Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input and HID Signal Output for Device Control
Features
The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.
Key Features:
-
Onboard HDMI input interface: recognized by PC as a display for video capture
-
Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
-
Onboard 100Mbps Ethernet port: for video and control signal transmission
-
1.54inch touch display: for displaying IP address, connection status, and system operating status
-
TF card slot: supports storage expansion
-
I/O expansion interface: for host power ON/OFF control
Specifications
|
Product
|
Luckfox PicoKVM
|
|
Processor
|
RV1106G3
|
|
Core
|
1 × A7@1.2G
|
|
Memory
|
256M DDR3
|
|
Storage
|
8G eMMC
|
|
System
|
PicoKVM
|
|
Resolution
|
1080P@60fps
|
|
Video Encoding
|
H264
|
|
Video Latency
|
80ms ~ 200ms
|
|
Audio Transmission
|
√
|
|
UEFI / BIOS Support
|
√
|
|
USB Keyboard & Mouse Emulation
|
√
|
|
USB Storage Emulation
|
√
|
|
UEFI / BIOS Scope
|
√
|
|
Wake-on-LAN (WOL)
|
√
|
|
Web Terminal
|
√
|
|
Custom Script
|
√
|
|
Serial Terminal
|
1-Ch
|
|
Storage Expansion
|
TF card
|
|
Power Control
|
GPIO control
|
|
Ethernet
|
100Mbps
|
|
LCD Display
|

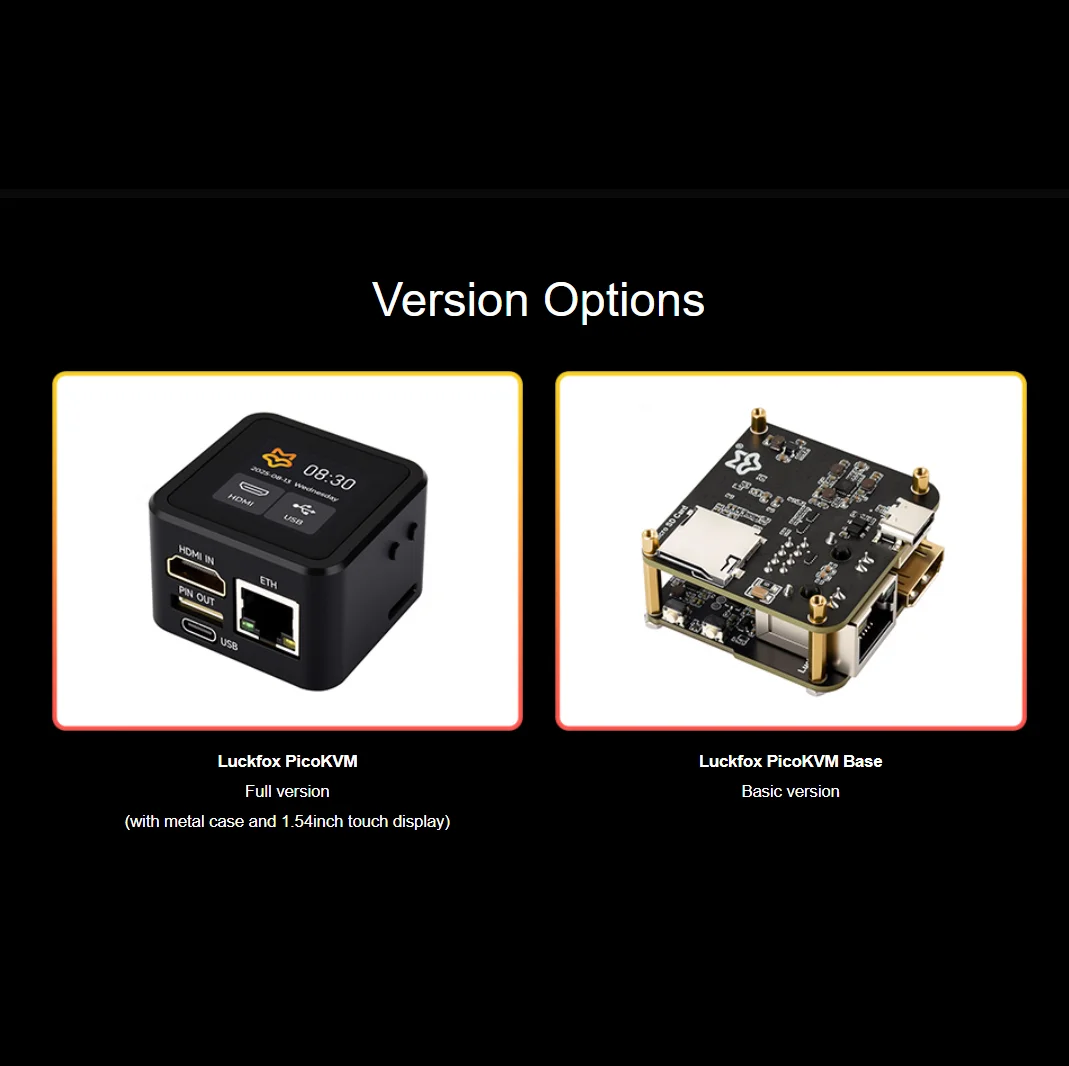

1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full version)
|
|
Power Input
|
Type-C
|
|
Outline Dimension
|
Luckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm)
|
|
Luckfox PicoKVM Base: 44.00 × 42.00 × 23.60 (mm)
|
Comparison with Commercial Remote Control Software
* for reference only, the above host boards are NOT included.
What's On Board
-
HDMI IN interface
for connecting to the HDMI output interface of the controlled host
-
I/O expansion interface
-
USB Type-C port
for power supply, simulating HID/UMS devices, and programming
-
10/100Mbps RJ45 Ethernet port with indicator
-
1.54inch touch LCD
-
BOOT button
press it when powering on or resetting to enter download mode
-
RESET button
-
TF card slot
Outline Dimensions
Luckfox PicoKVM
Luckfox PicoKVM Base
Resources & Services
Wiki: https://wiki.luckfox.com/Luckfox-PicoKVM
Package Content
Weight: 0.117 kg
Luckfox PicoKVM
Luckfox PicoKVM x1
Luckfox PicoKVM Base
Luckfox PicoKVM Base x1
