Description:

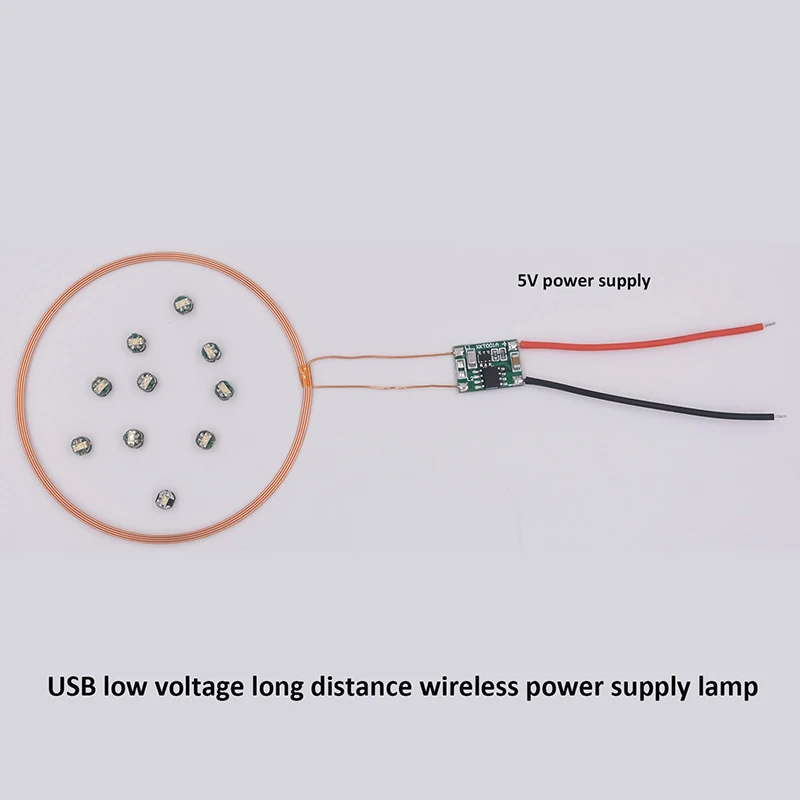

This module can provide low-voltage 5V power supply to realize long-distance wireless power transmission function.
Module parameters:
Transmitter module input voltage: 5 V
Transmitter outer diameter: 70mm, inner diameter 65mm, thickness 0.5mm
Transmitter board size: length 16mm, width 12mm, thickness 2.5mm
Receiver lamp outer diameter: 4.3mm
Induction distance: 0~80mm
(The best sensing distance of this module is 0-50MM.

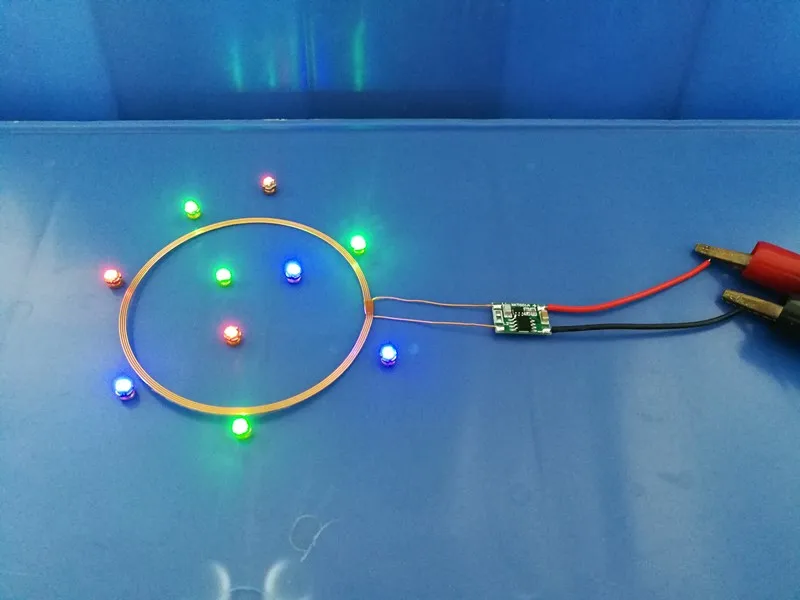

The closer the induction LED light is to the module, the brighter the light will be.
The farther the induction LED light is from the module, the darker the light will be until it goes out.)
A set of 10 small lights is distributed. If you need more leds,please contact with us.
Package include:
1* wireless power supply module
If you need to purchase additional matching LEDs(1PCS), please click here.
If you need to purchase a matching LED quantity of 100pcs, please click here.
If you need to buy 5 sets of this product, please click here!
If you need to buy 10 sets of this product, please click here!
Reminder: Please do not store the transmitter and receiver close to each other after power on, the chip will get hot!
