Resumen del producto

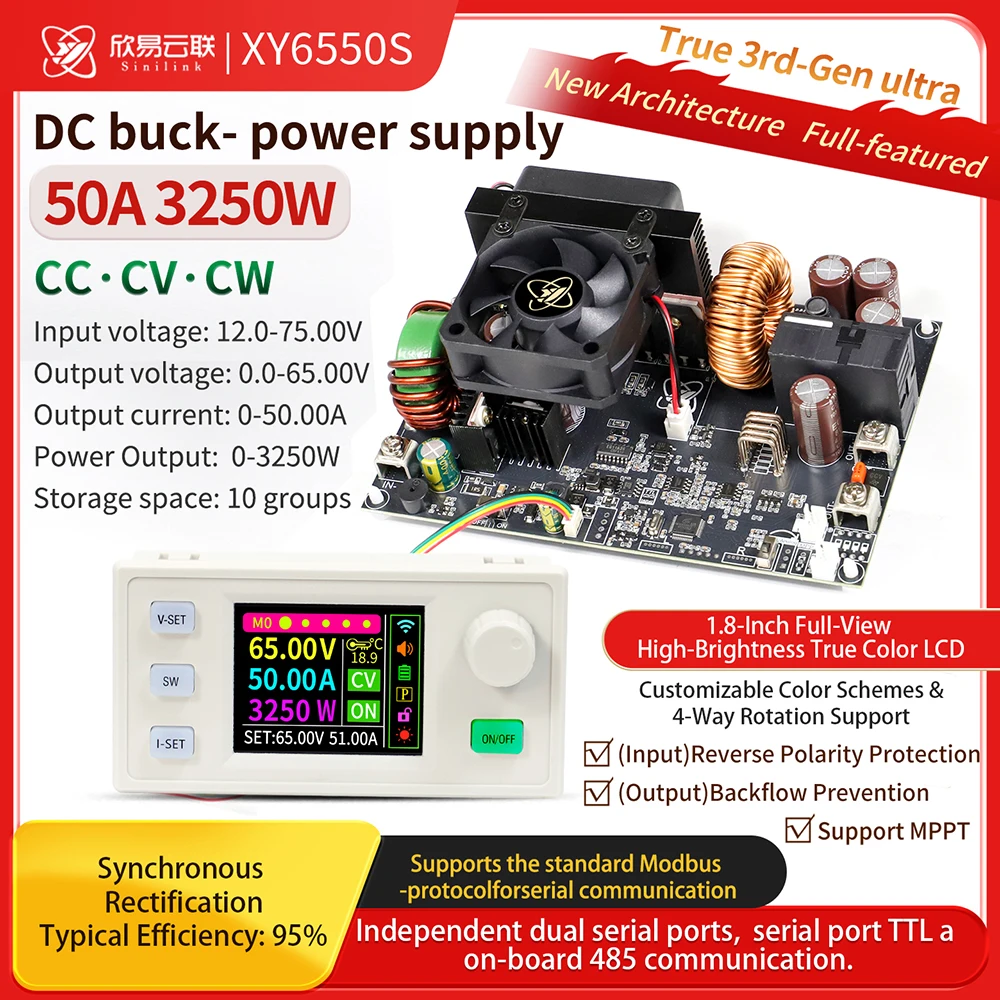

XY6550S 3250W 50A CNC Buck fuente de alimentación Direct Current Stabilized Voltage Constant Voltage is a power and battery módulo selected for power conversion, battery testing, charging and regulated output projects. Es adecuado para electronics builders, repair users and lab bench users que necesitan hardware electrónico práctico para trabajar en proyectos de forma fiable.
Ideal para
- power conversion, battery testing, charging and regulated output projects
- DIY electronics, battery packs, solar modules and bench power workflows
- pruebas electrónicas, reparación, prototipado y flujos de trabajo maker
Preguntas frecuentes
¿Para quién es este producto? Está pensado para electronics builders, repair users and lab bench users.
¿Qué debo revisar antes de comprar? Revisa en esta página las opciones del producto, las especificaciones, los accesorios incluidos y los detalles de compatibilidad.

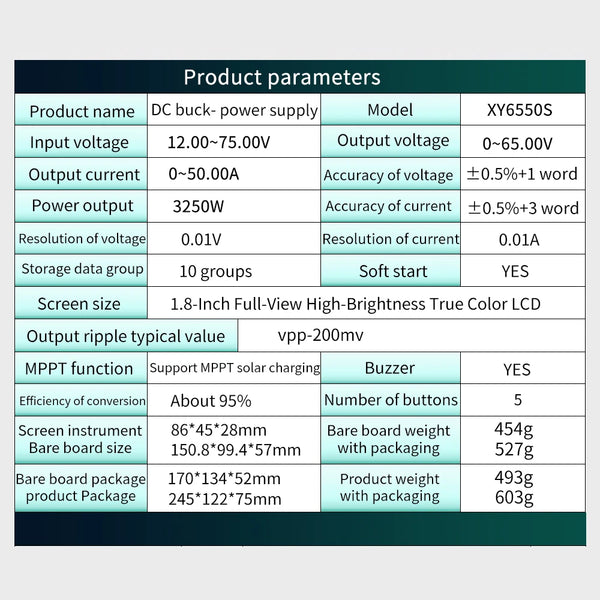

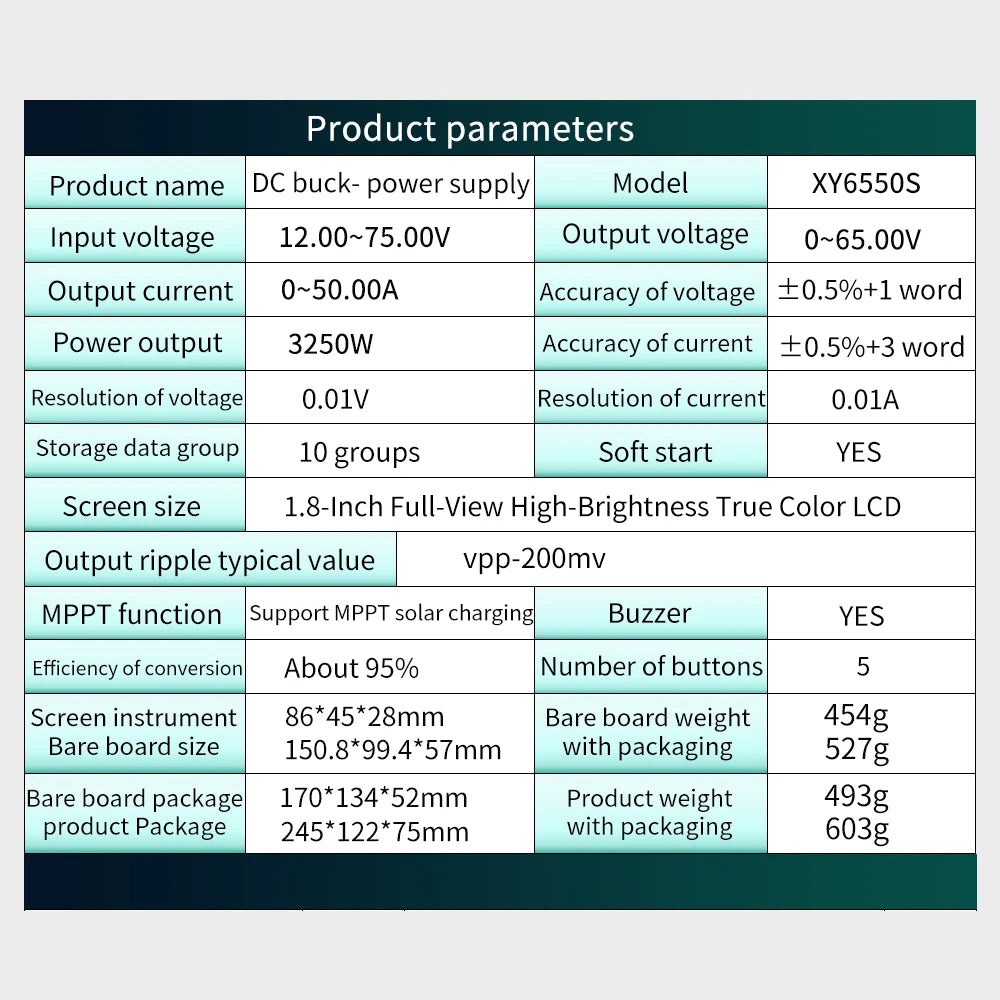

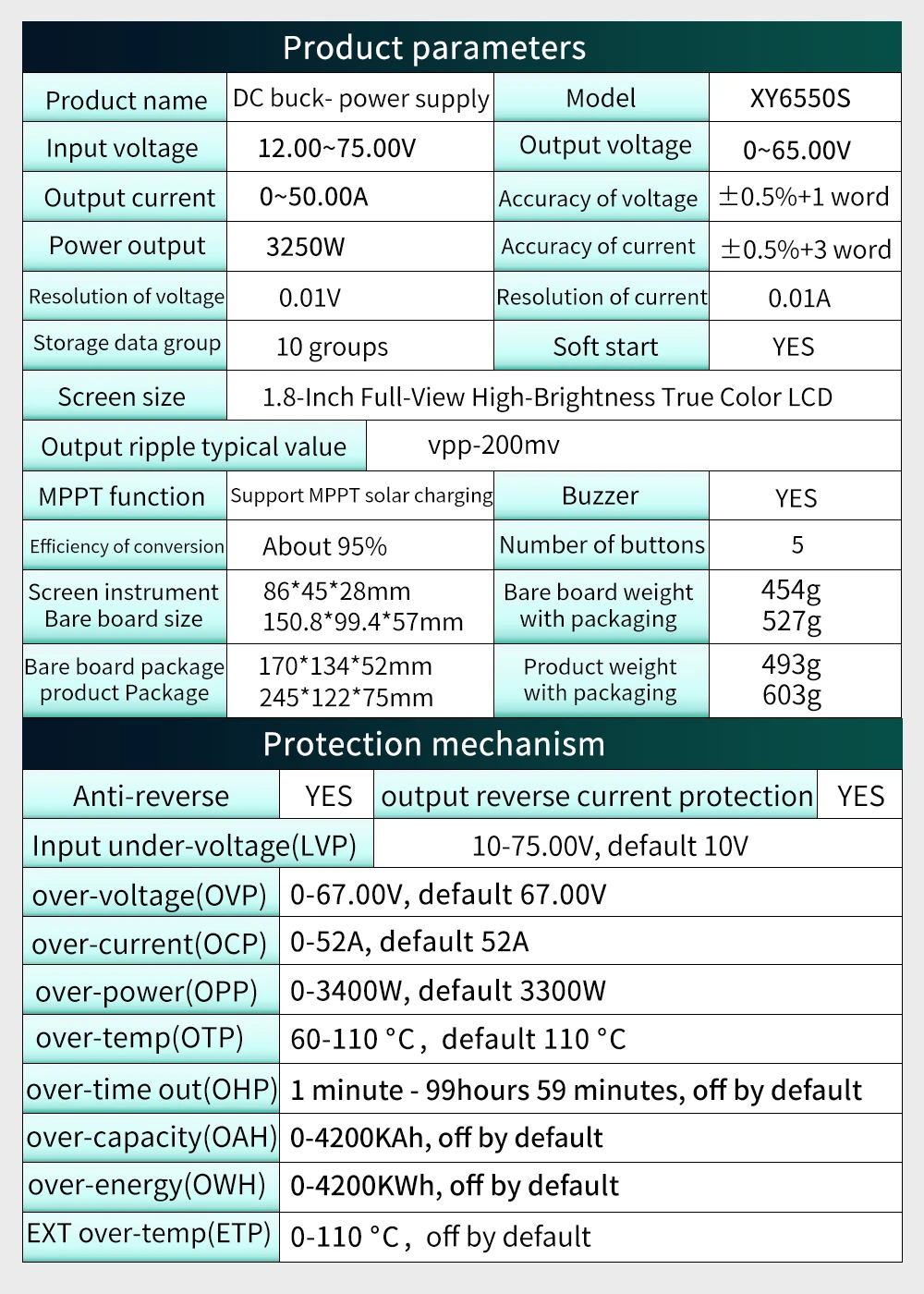

Product name: DC buck fuente de alimentación Model: XY6550S

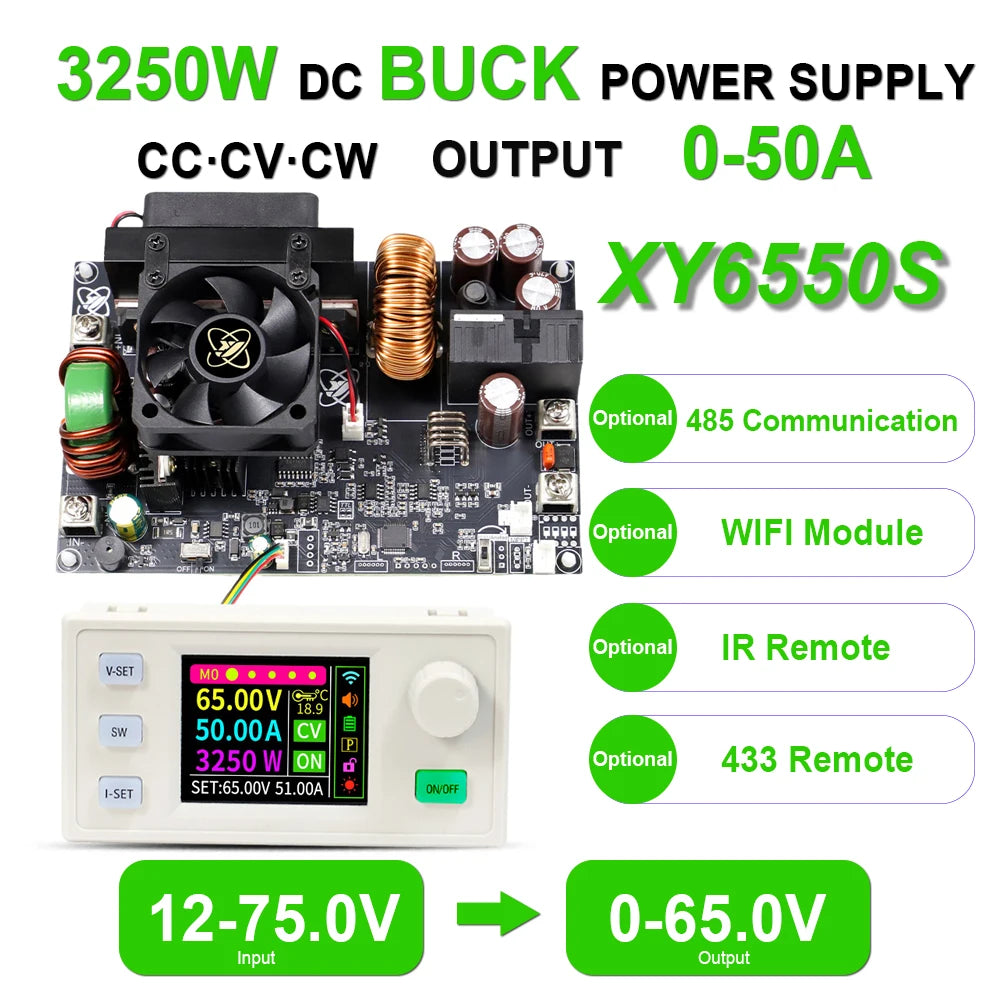

Input voltage: 12.00-75.0V Output voltage: 0.0-65.0V
Output current: 0-50.00A; Accuracy of voltage: 士0.5%+1 word
Power output:0-3250W Accuracy of current: 士0.5%+3 word
Resolution of voltage: 0.01V Resolution of current: 0.01A
Storage data group: 10 groups Max output voltage:Input voltagex0.945

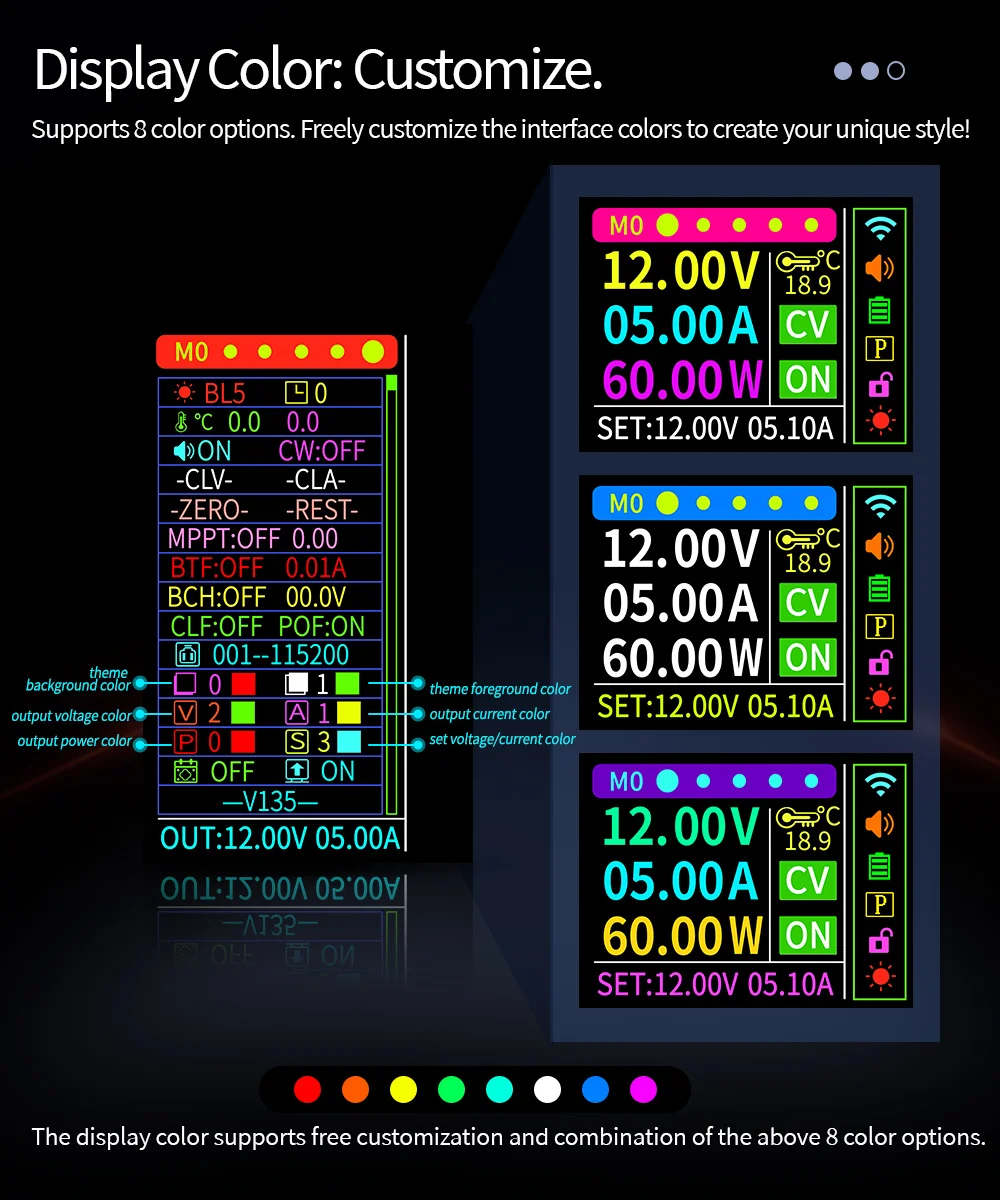

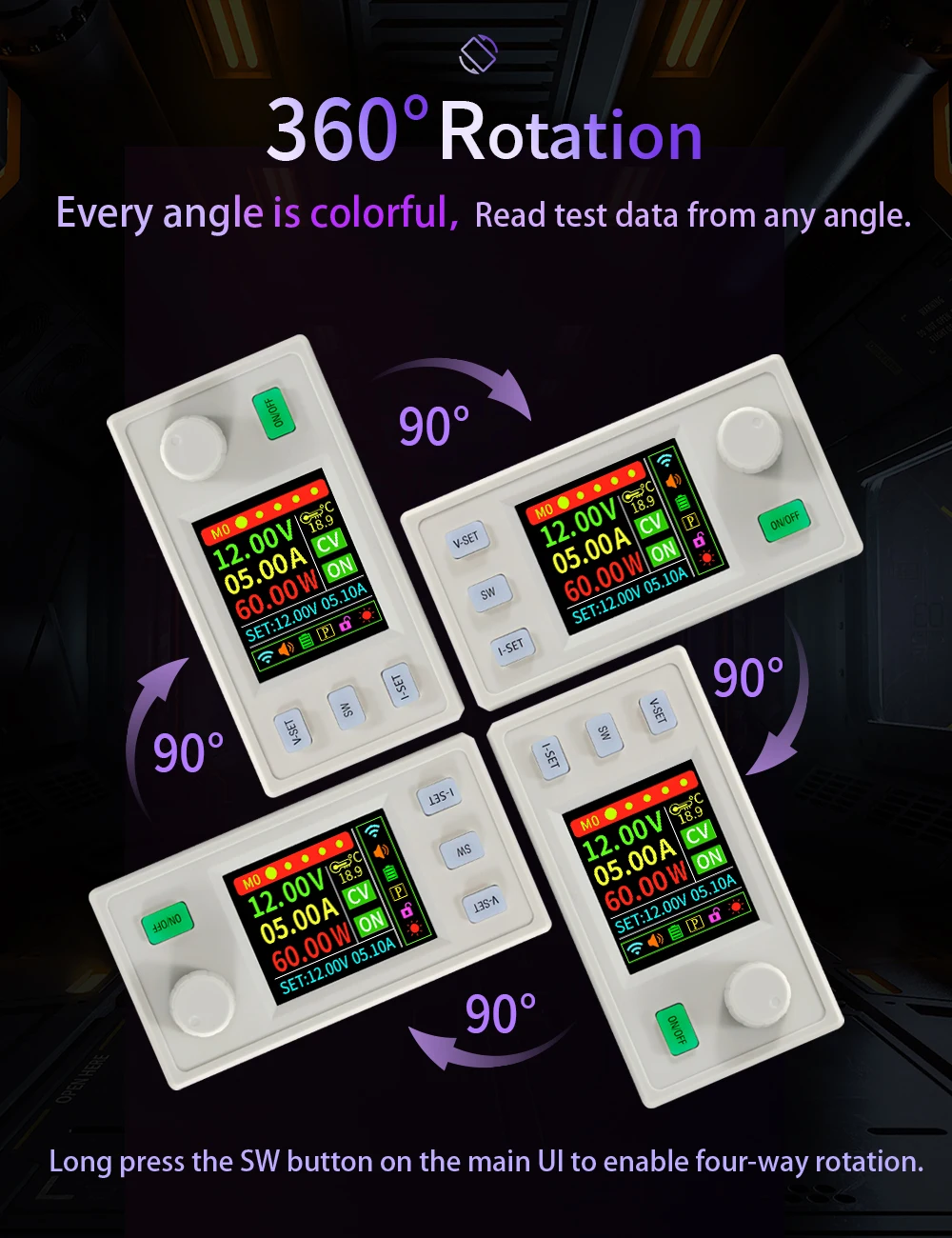

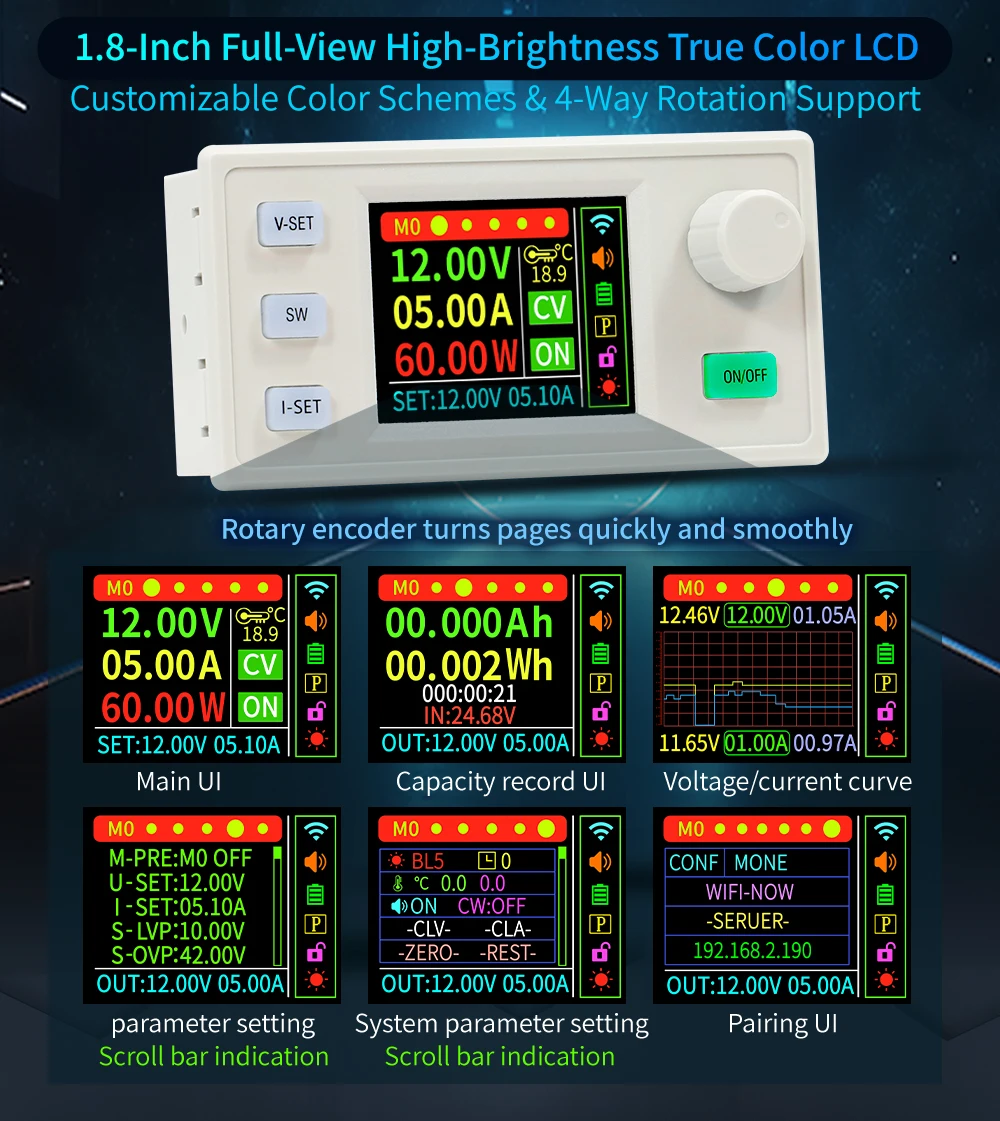

Screen size: 1.8-nch Full-View High-Brightness True Color LCD Buzzer: YES /Soft start: YES
Output ripple typical value:vpp-200mv
Efficiency of conversion: About 95%

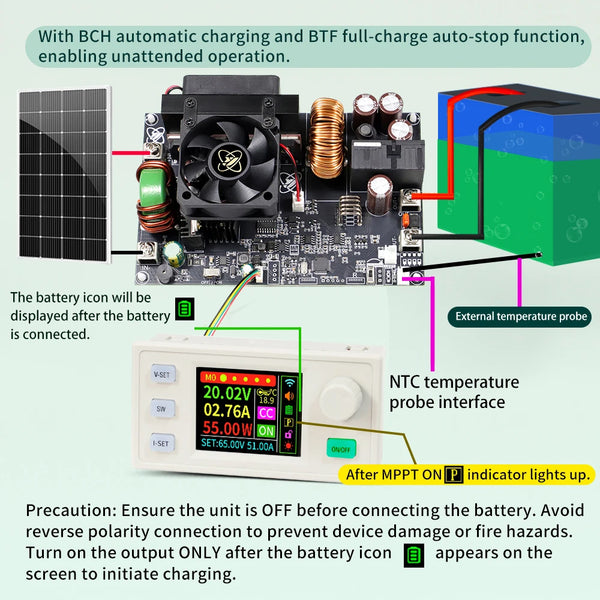

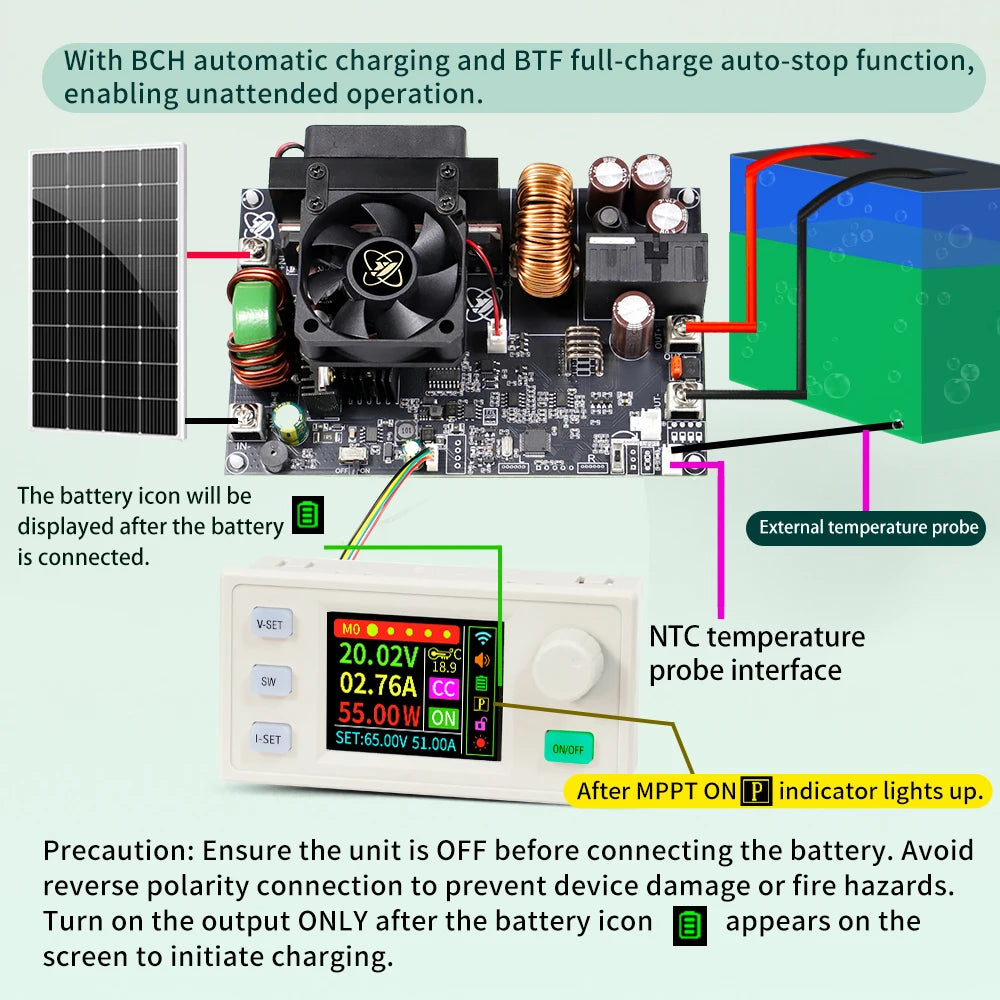

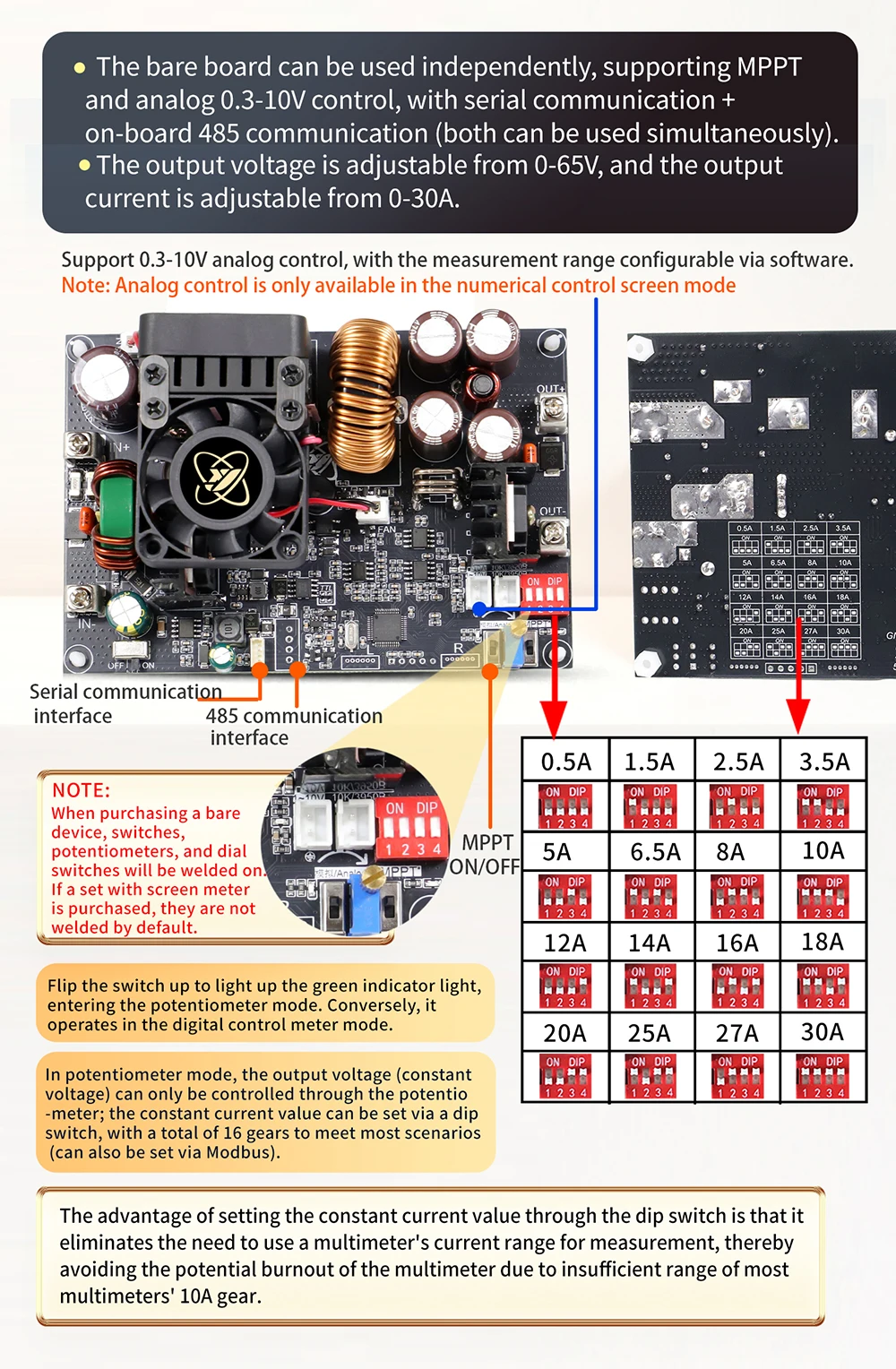

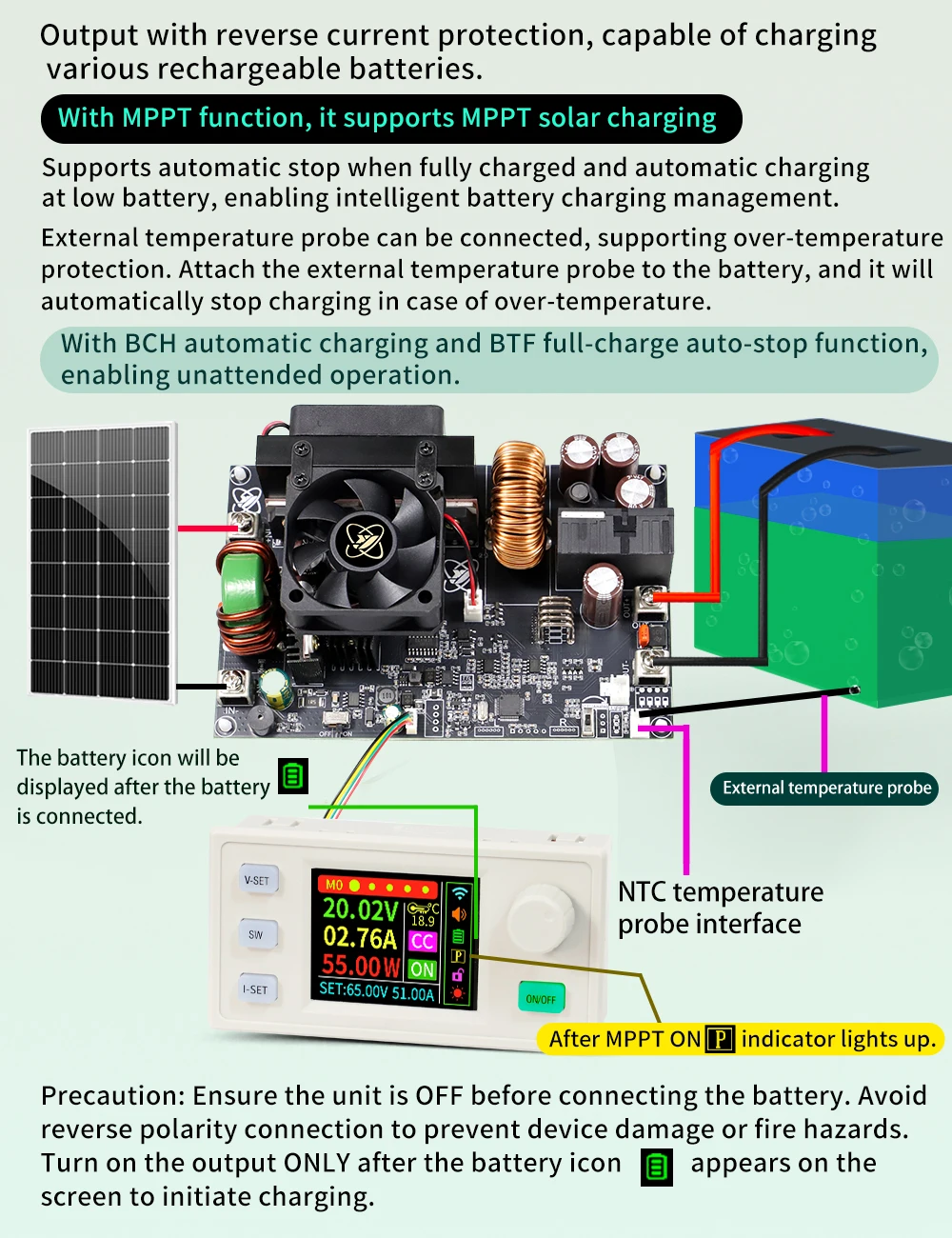

MPPT function: Support MPPT solar charging

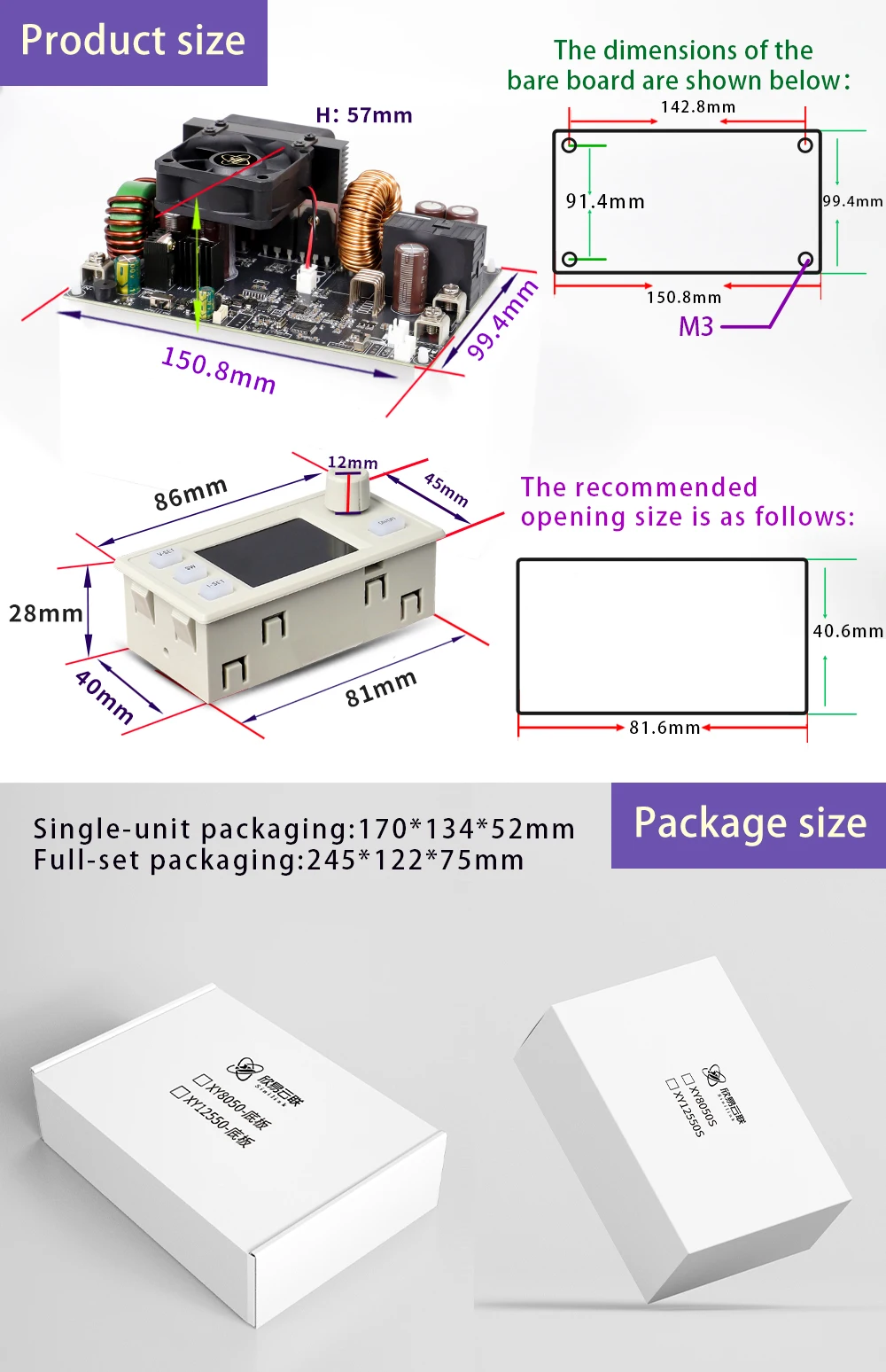

Product size: bare placa:150.8x99.4x57mm; LCD:86x45x28mm

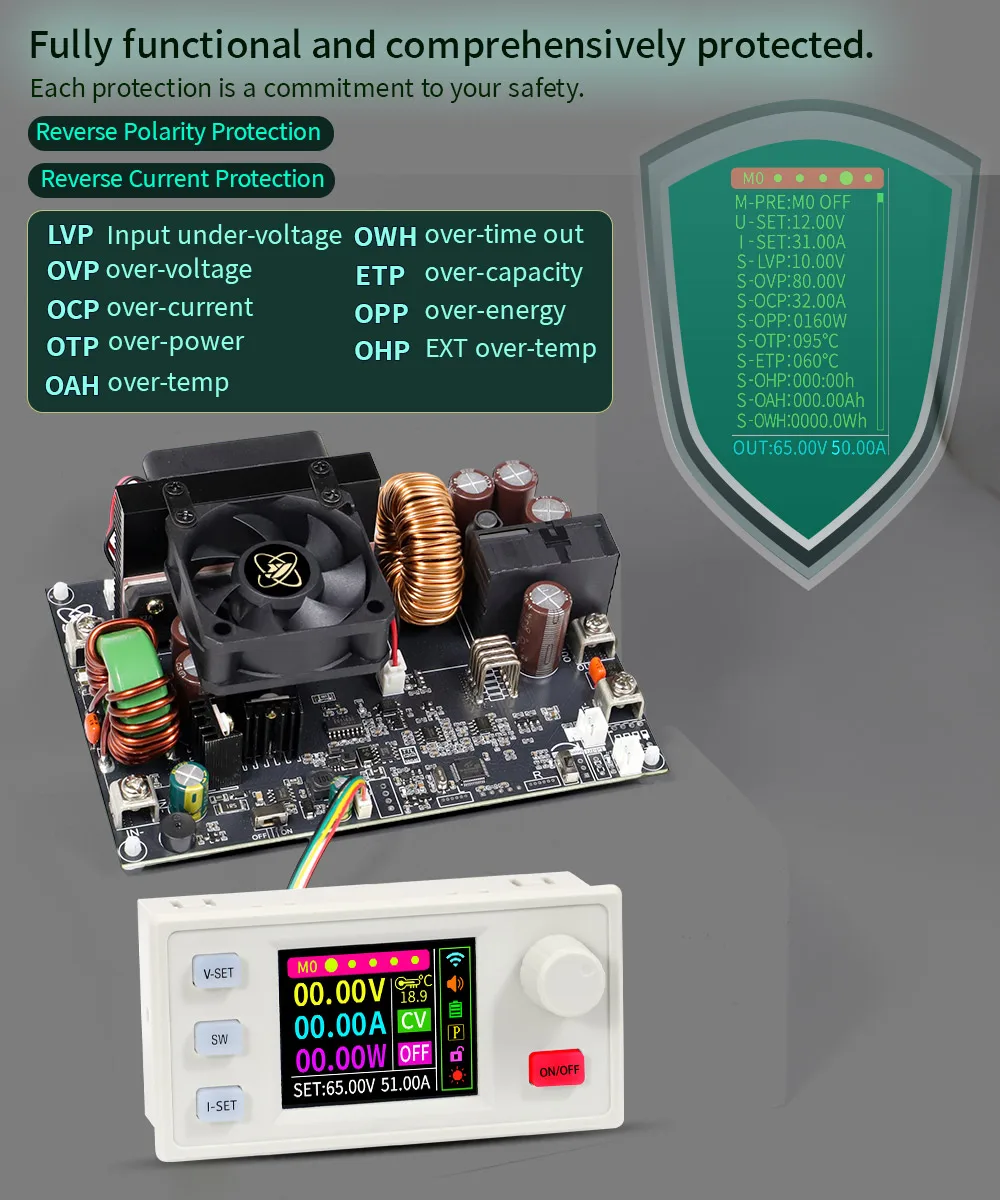

Protection mechanism
Input under-voltage (LVP):(10-75V, default 10V)
over-voltage (OVP):(0-67V, default 67V)
over-current (OCP):(0-52A, default 52A)
over-power (OPP):(0-3400W, default 3300W)
over-temp (OTP):60-110 deg c,
default 110 deg Cover-time out (OHP): 1 minute -99 hours 59 minutes, off by default
over-capacity (OAH):0-4200Ah, off by default
over-energy (OWH):0-4200KWh, off by default
EXT over-temp(ETP): 0-110 deg C, off by default
Input voltage: 12.00-75.0V Output voltage: 0.0-65.0V
Output current: 0-50.00A; Accuracy of voltage: 士0.5%+1 word
Power output:0-3250W Accuracy of current: 士0.5%+3 word
Resolution of voltage: 0.01V Resolution of current: 0.01A
Storage data group: 10 groups Max output voltage:Input voltagex0.945
Screen size: 1.8-nch Full-View High-Brightness True Color LCD Buzzer: YES /Soft start: YES
Output ripple typical value:vpp-200mv
Efficiency of conversion: About 95%
MPPT function: Support MPPT solar charging
Product size: bare placa:150.8x99.4x57mm; LCD:86x45x28mm
Protection mechanism
Input under-voltage (LVP):(10-75V, default 10V)
over-voltage (OVP):(0-67V, default 67V)
over-current (OCP):(0-52A, default 52A)
over-power (OPP):(0-3400W, default 3300W)
over-temp (OTP):60-110 deg c,
default 110 deg Cover-time out (OHP): 1 minute -99 hours 59 minutes, off by default
over-capacity (OAH):0-4200Ah, off by default
over-energy (OWH):0-4200KWh, off by default
EXT over-temp(ETP): 0-110 deg C, off by default
