Resumen del producto

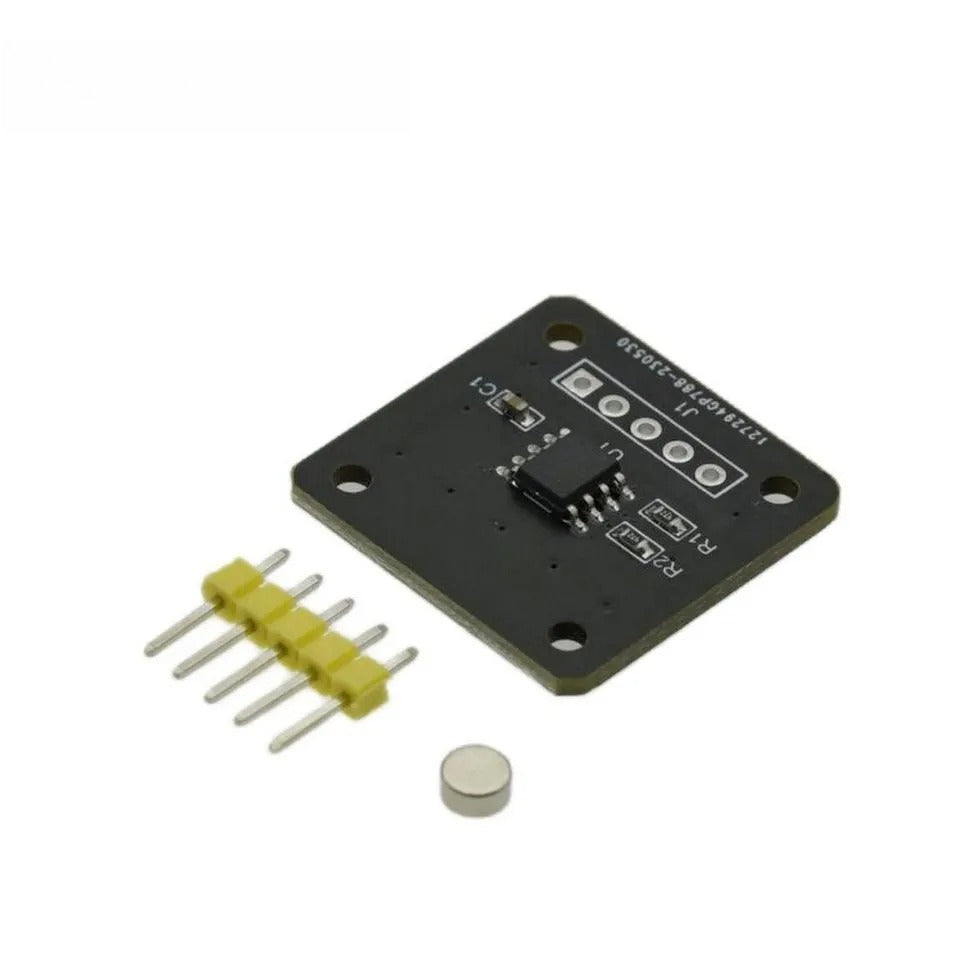

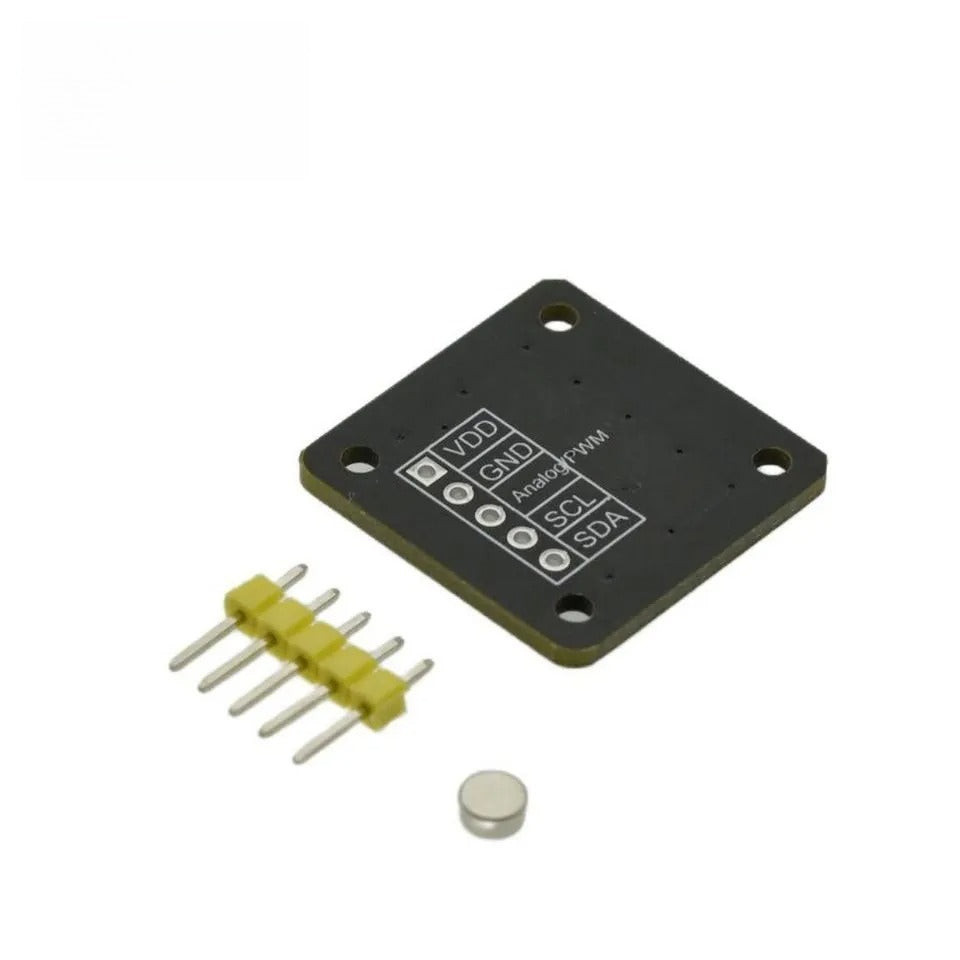

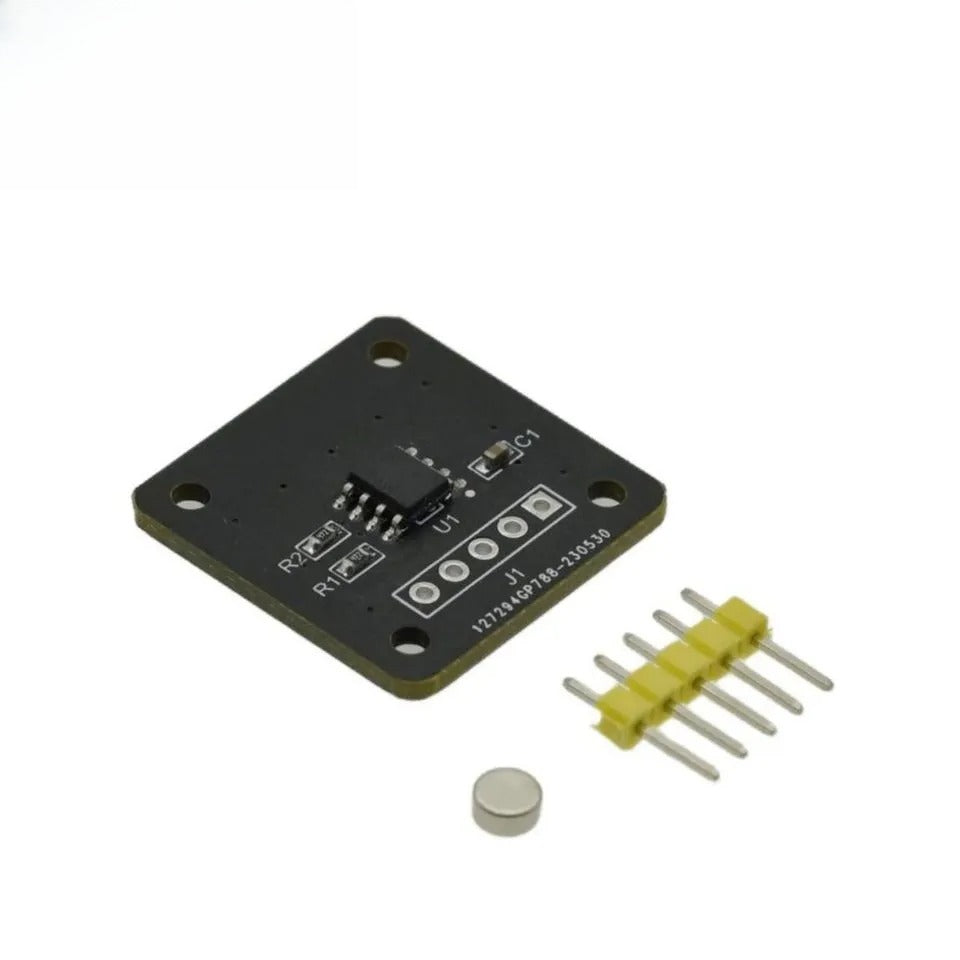

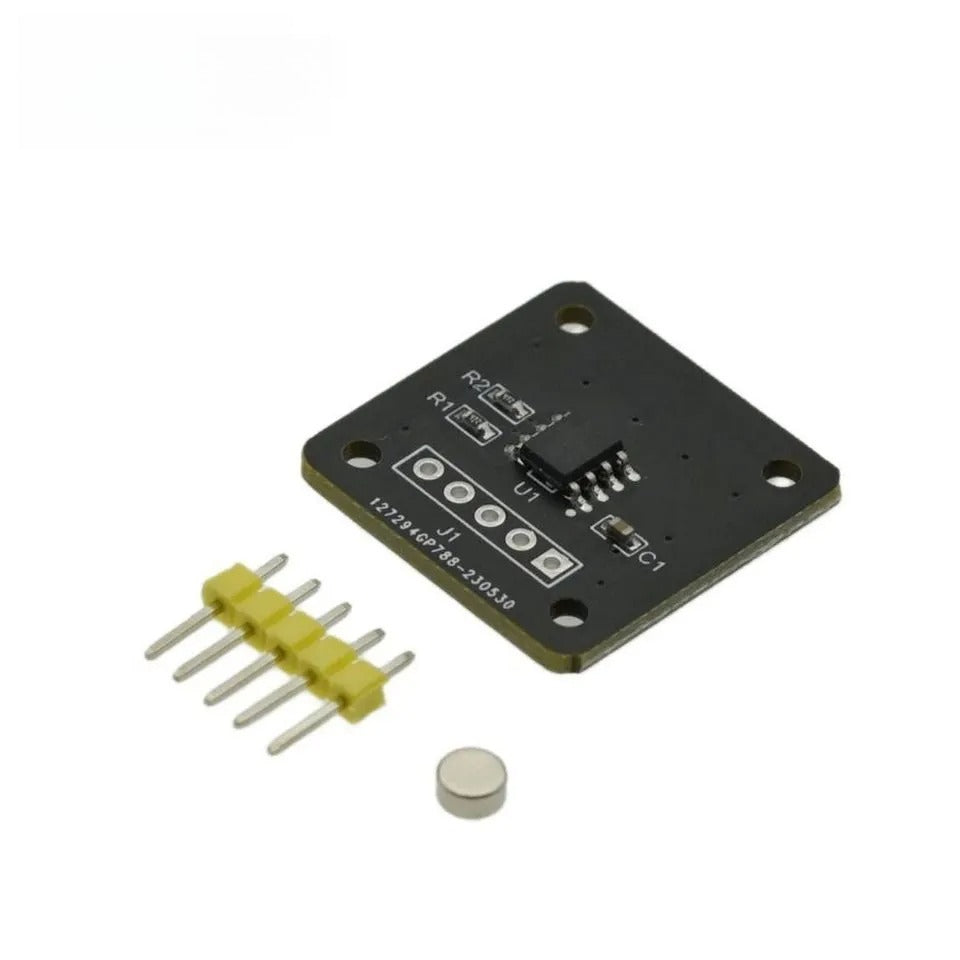

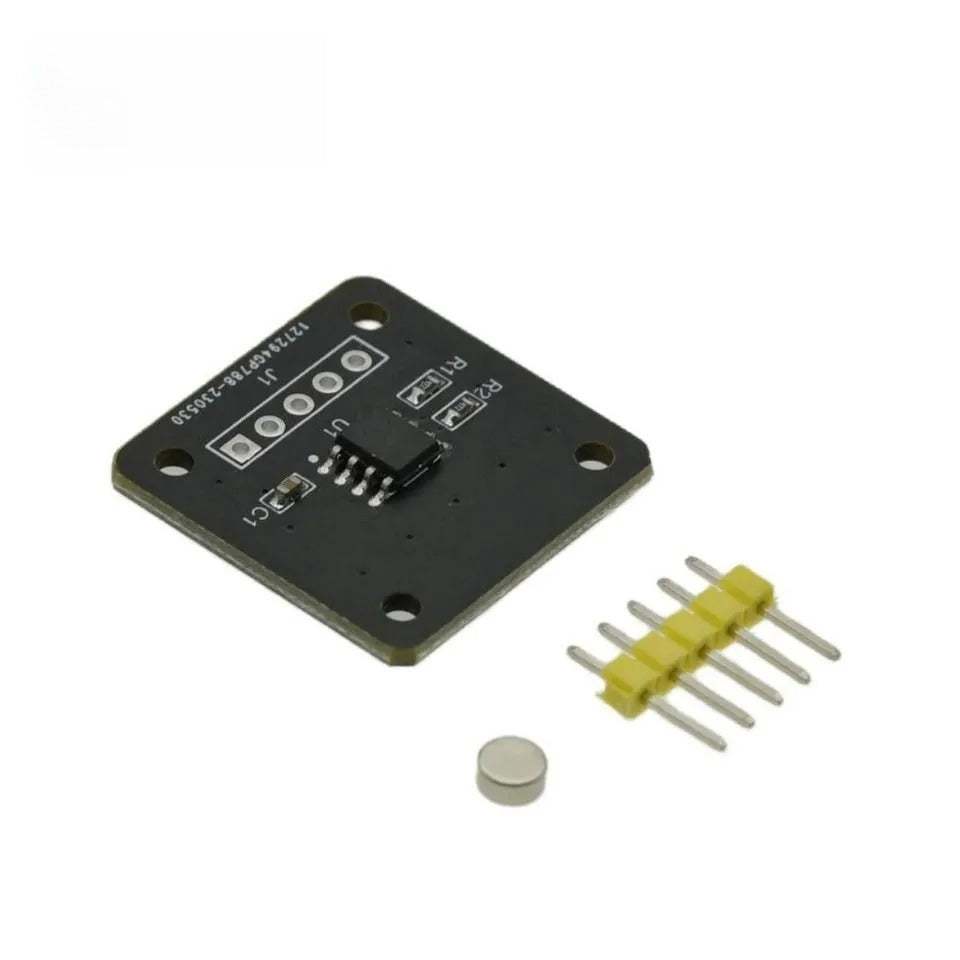

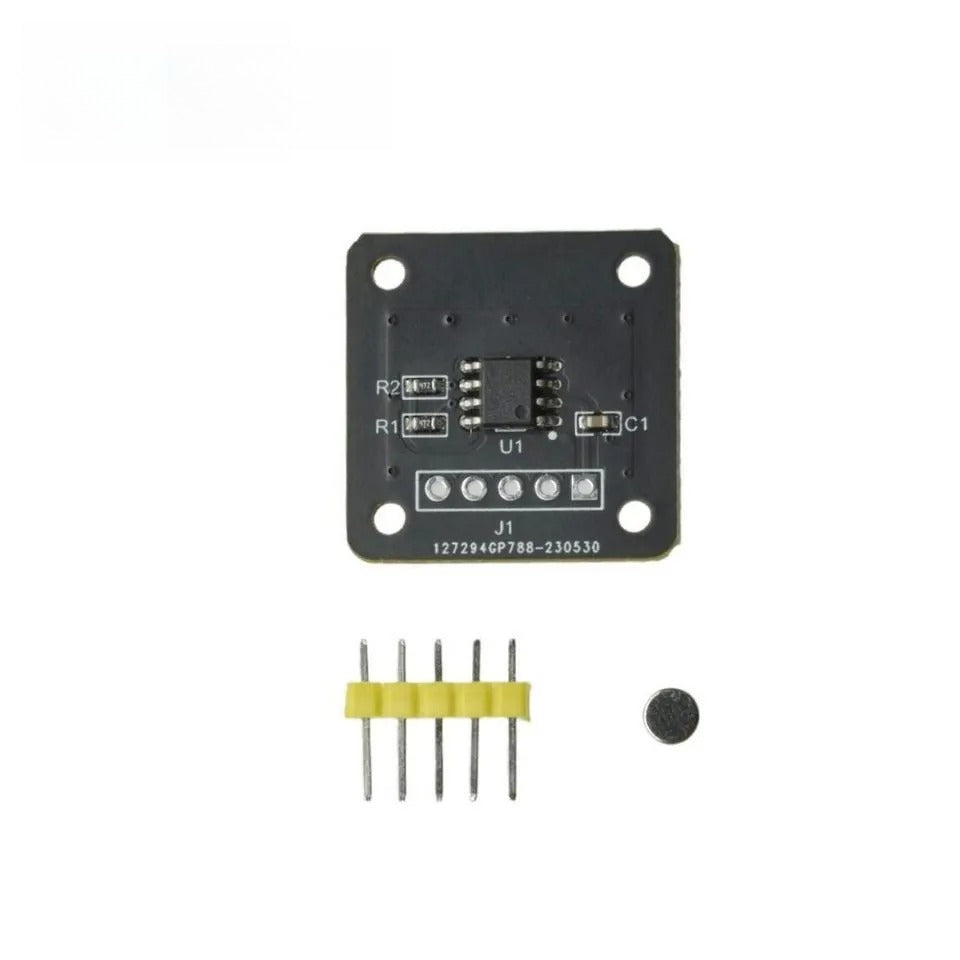

MT6701 Magnetic Encoder Magnetic Induction Angle Measurement Sensor módulo 14bit High is a sensor módulo selected for detecting environmental data, presence, motion or system status. Es adecuado para smart home users, automation builders and embedded developers que necesitan hardware electrónico práctico para trabajar en proyectos de forma fiable.
Ideal para
- detecting environmental data, presence, motion or system status
- IoT projects, automation hubs, microcontrollers and monitoring systems
- pruebas electrónicas, reparación, prototipado y flujos de trabajo maker
Preguntas frecuentes
¿Para quién es este producto? Está pensado para smart home users, automation builders and embedded developers.
¿Qué debo revisar antes de comprar? Revisa en esta página las opciones del producto, las especificaciones, los accesorios incluidos y los detalles de compatibilidad.
Product Description:
MT6701 is a new generation of magnetic Angle encoder chip based on differential Hall induction principle. MT6701 senses the component of the magnetic field perpendicular to the chip surface, and with the rotation of a pair of magnetic radial magnets on the chip surface,
The MT6701 corresponding output Angle signal of 0-360 deg . In addition to providing ABZ/UVW incremental output and Analog/PWM absolute Angle output, the MT6701 provides 14 bit digital Angle output via the I2C/SSI interface. In addition to rotation Angle measurement, the MT6701 also offers a "push" output to enable single-chip button (rotation + press) functionality.
Product features:
- Based on differential Hall technology, absolute Angle measurement from 0 deg to 360 deg is provided
- Operating voltage 3.3-5.0V, operating temperature -40 deg C-125 deg C
- Typical linearity deviation <±1 deg , <±1.5 deg over the whole temperature range
- System delay is as low as 5us and can support speeds up to 55,000 RPM
- Provides I2C/SSI interface to read 14-bit Angle data inside the chip
- Incremental output ABZ supports any resolution of 1 to 1024 lines
- Incremental output The UVW supports any polarity from 1 to 16
- Provides 12-bit PWM output or analog output (12-bit DAC)
- Dedicated press detection output (sensing changes in magnet and chip spacing) for single-chip button applications
- Built-in EEPROM, >1000 iterations of programming
