Resumen del producto
DC-DC alta potencia 600W ajustable Step-down módulo de alimentación With Fan 12V-80V To 2.5V-50V is a power and battery módulo selected for power conversion, battery testing, charging and regulated output projects. Es adecuado para electronics builders, repair users and lab bench users que necesitan hardware electrónico práctico para trabajar en proyectos de forma fiable.
Ideal para
- power conversion, battery testing, charging and regulated output projects
- DIY electronics, battery packs, solar modules and bench power workflows
- pruebas electrónicas, reparación, prototipado y flujos de trabajo maker
Preguntas frecuentes
¿Para quién es este producto? Está pensado para electronics builders, repair users and lab bench users.
¿Qué debo revisar antes de comprar? Revisa en esta página las opciones del producto, las especificaciones, los accesorios incluidos y los detalles de compatibilidad.

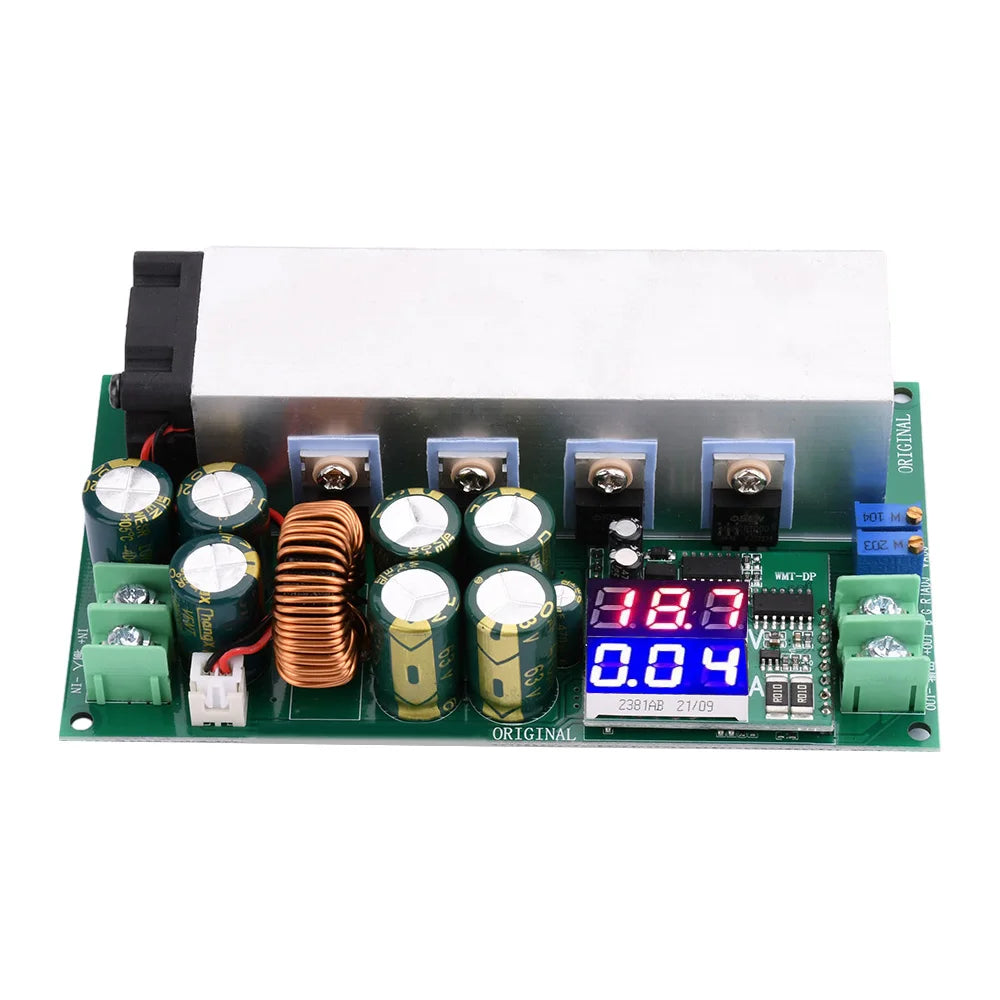

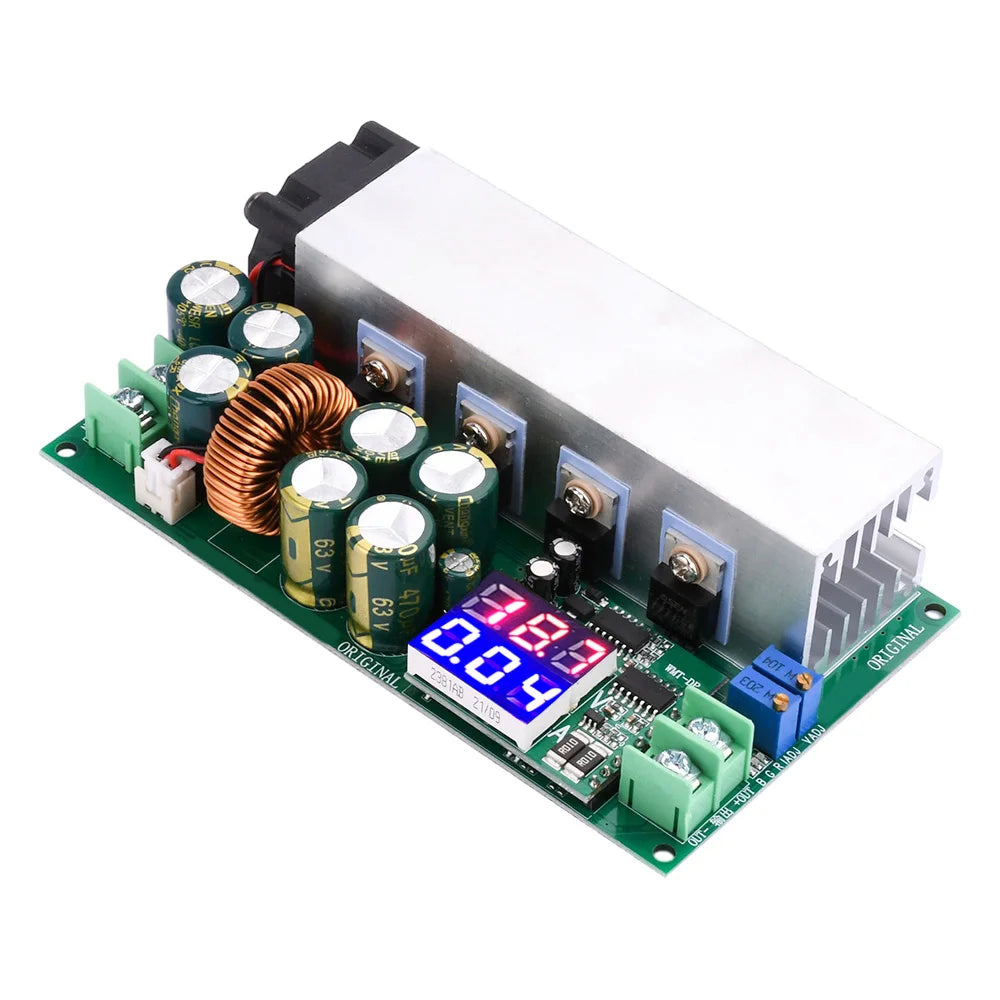

DC-DC alta potencia 600W ajustable Step-down módulo de alimentación With Fan 12V-80V To 2.5V-50V Buck Converter 25A Constant Current
Features:
1. High performance, output voltage and current are continuously ajustable;

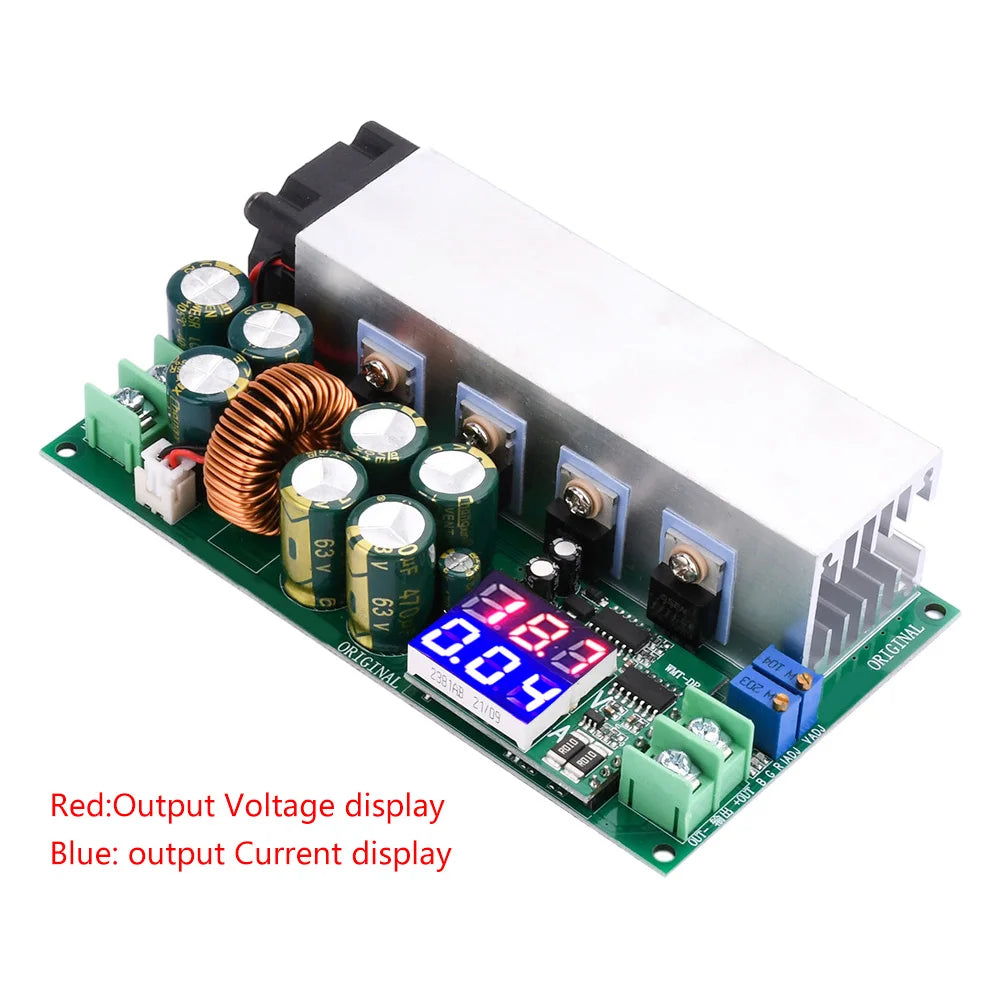

2. Add digital pantalla function, the output voltage can be displayed, making it more convenient to use;
3. Easy to operate, just plug it in and use it;
4. Made of high-quality materials, the input voltage can reach up to 80V;
5. The efficiency is extremely high, up to 93%.
Product parameters:
Input voltage: DC12-80V (72V battery cannot be used)
Output voltage: 2.5V-50V ajustable (can only step down) (maximum output voltage = input voltage * 0.8)
Output current: 20A (MAX) 25A overcurrent
Maximum power: 600W
Conversion efficiency: ≥93%
Protection: over-current protection, anti-backflow

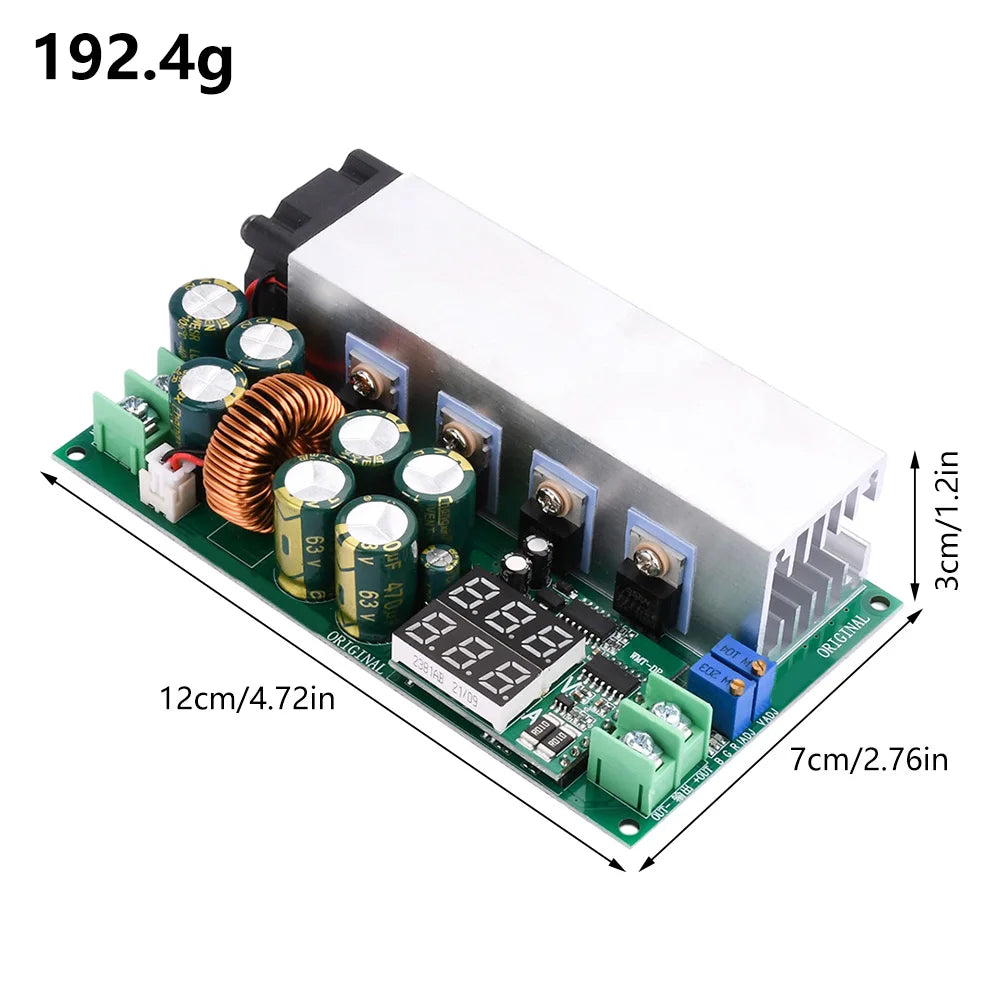

Size: L125mm*W70mm*H32mm
Working temperature: -40-85 deg C
Storage environment: -20 deg C-+50 deg C
Relative humidity: 65±20%
Wiring: For alta potencia, the wiring should be as thick as possible.

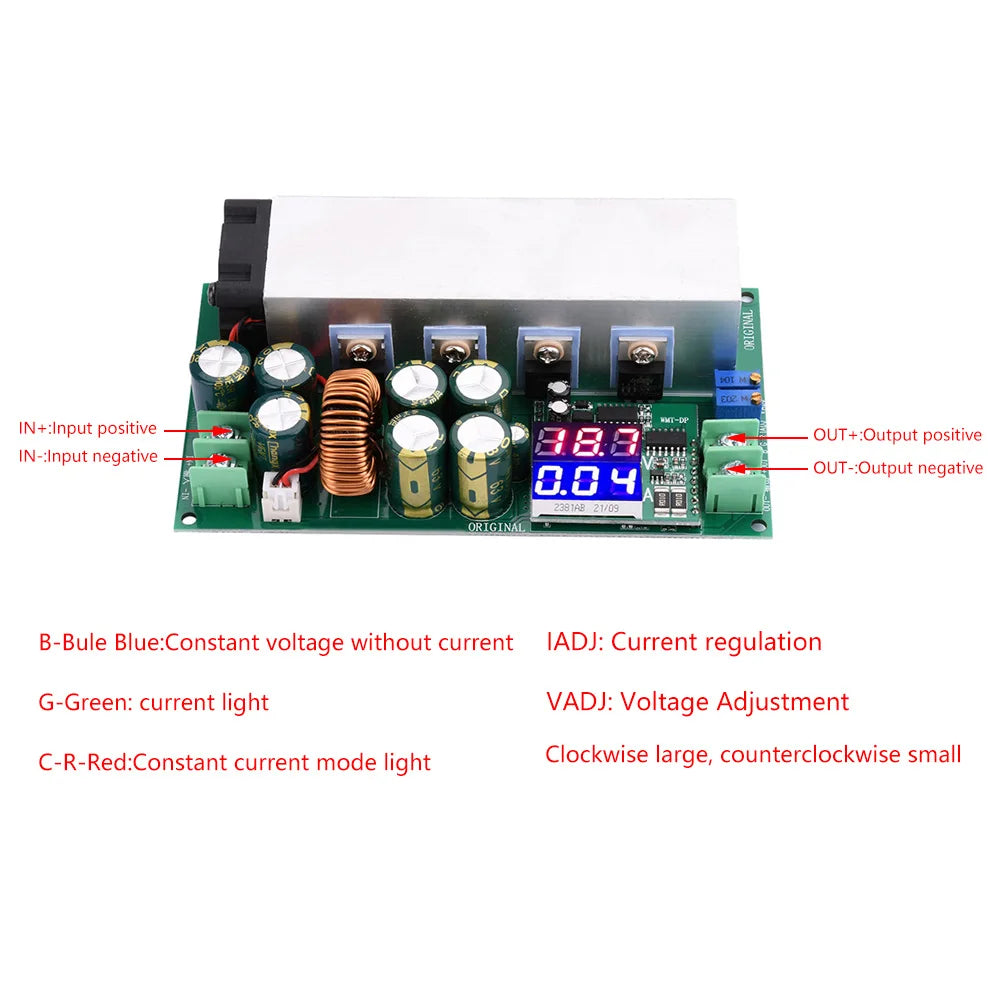

Interface Description:
IN+: Input positive pole
IN-: Input negative pole
OUT+: output positive pole
OUT-: output negative pole
B-Bule blue light: constant voltage and no current
G-Green green light: current light
C-R-Red red light: constant current mode light
IADJ: current adjustment, clockwise is larger, counterclockwise is smaller
VADJ: voltage adjustment, clockwise is larger, counterclockwise is smaller
Note: When charging batteries and batteries, please add diodes to the output to prevent backfeed!
Product List:
1X módulo
