Resumen del producto

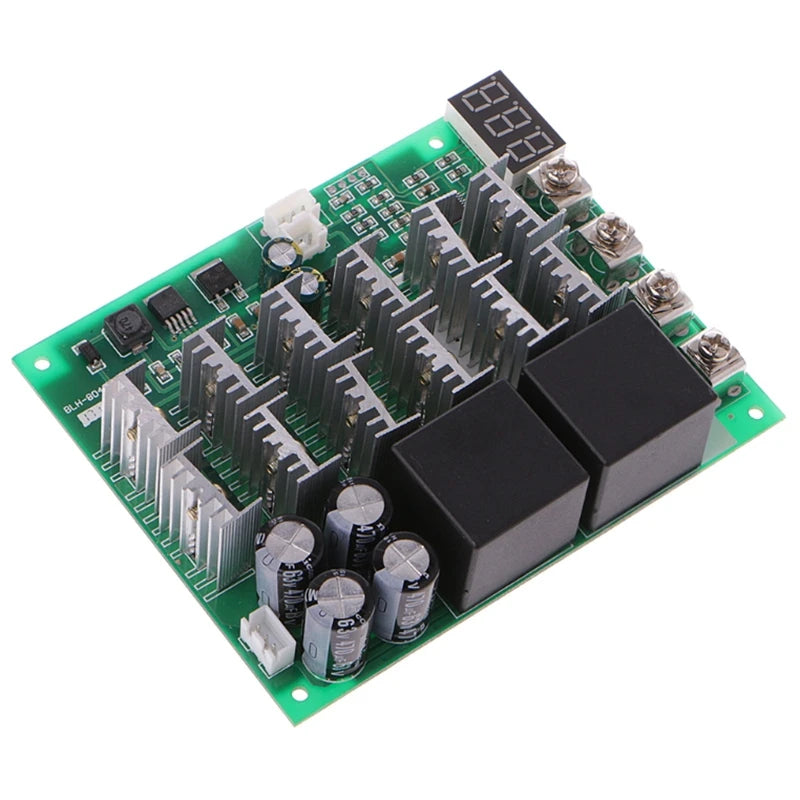

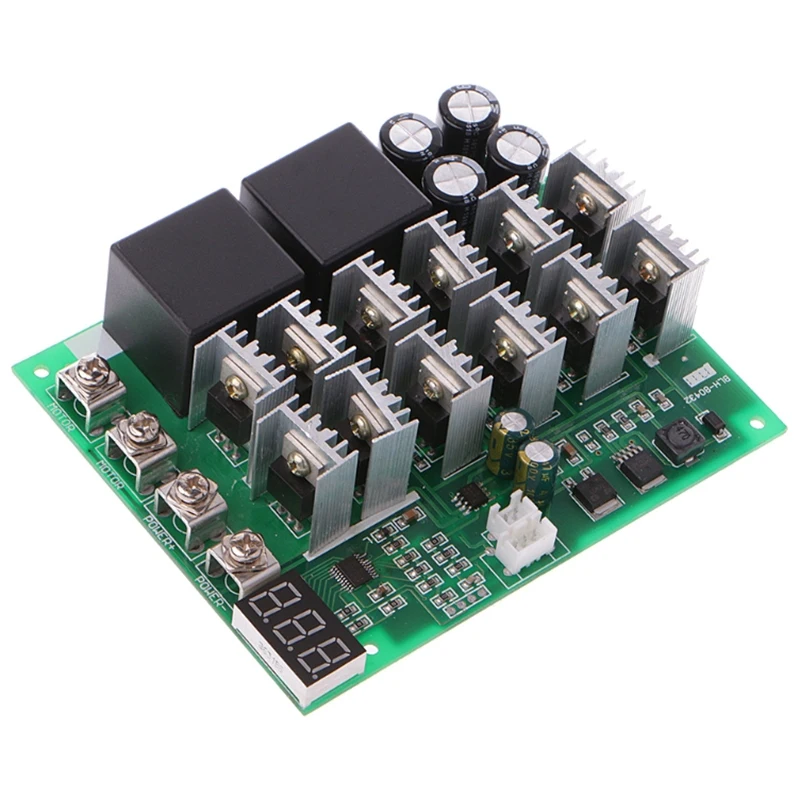

DC 10-55V 12V 24V 36V 48V 55V 100A controlador de velocidad del motor PWM HHO RC Reverse Control Switch is a electronics product selected for electronics repair, testing, prototyping and project work. Es adecuado para electronics users, repair technicians and maker project builders que necesitan hardware electrónico práctico para trabajar en proyectos de forma fiable.
Ideal para
- electronics repair, testing, prototyping and project work
- bench electronics, DIY projects and maker workflows
- pruebas electrónicas, reparación, prototipado y flujos de trabajo maker
Preguntas frecuentes
¿Para quién es este producto? Está pensado para electronics users, repair technicians and maker project builders.
¿Qué debo revisar antes de comprar? Revisa en esta página las opciones del producto, las especificaciones, los accesorios incluidos y los detalles de compatibilidad.
Operating voltage: 10V-55V
Output voltage: Linear under load
Input current: Require large than the motor operating current
Output current: depend on load size
Output current: 0-100A
Continuous current: 60A
Current at rest: 0.01A (standby)
Maximum power: 3000 W (power = voltage * current)
Motor Power control: 0.01-3000 W,
12 V: 720 W (max), 24 V: 1440 W (max),
36 V: 2160 W (max), 48 V: 2880 W (max),
50 V: 3000 W (max).
Knob hole: 7mm
Speed type: ajustable current
Speed mode: ON / OFF linear potentiometer 270 degrees
Speed range: 0% -100%
Frequency control: 15 KHZ
Speed Control: potentiometer (with switch)
Knob Specifications: 100 K (with switch)
Speed type: flow control
Advance rotation: Support
Digital positioning screen: 0-100 (full speed percentage)

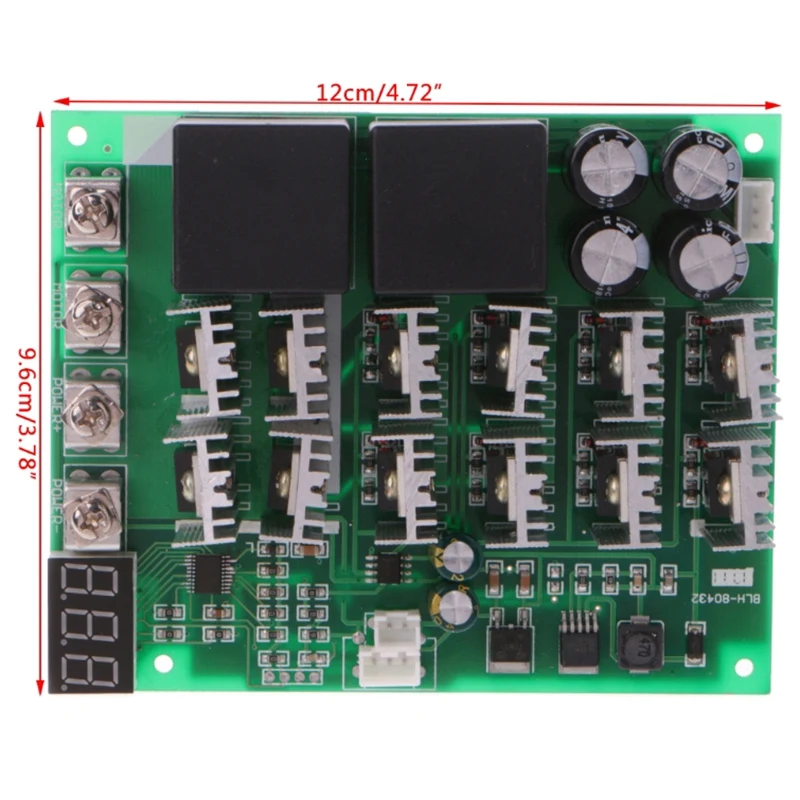

placa size: 120*96mm/4.72*3.78 inch
Color: Green
Material: Plastic
Package Contents:
1 * controlador de velocidad del motor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
