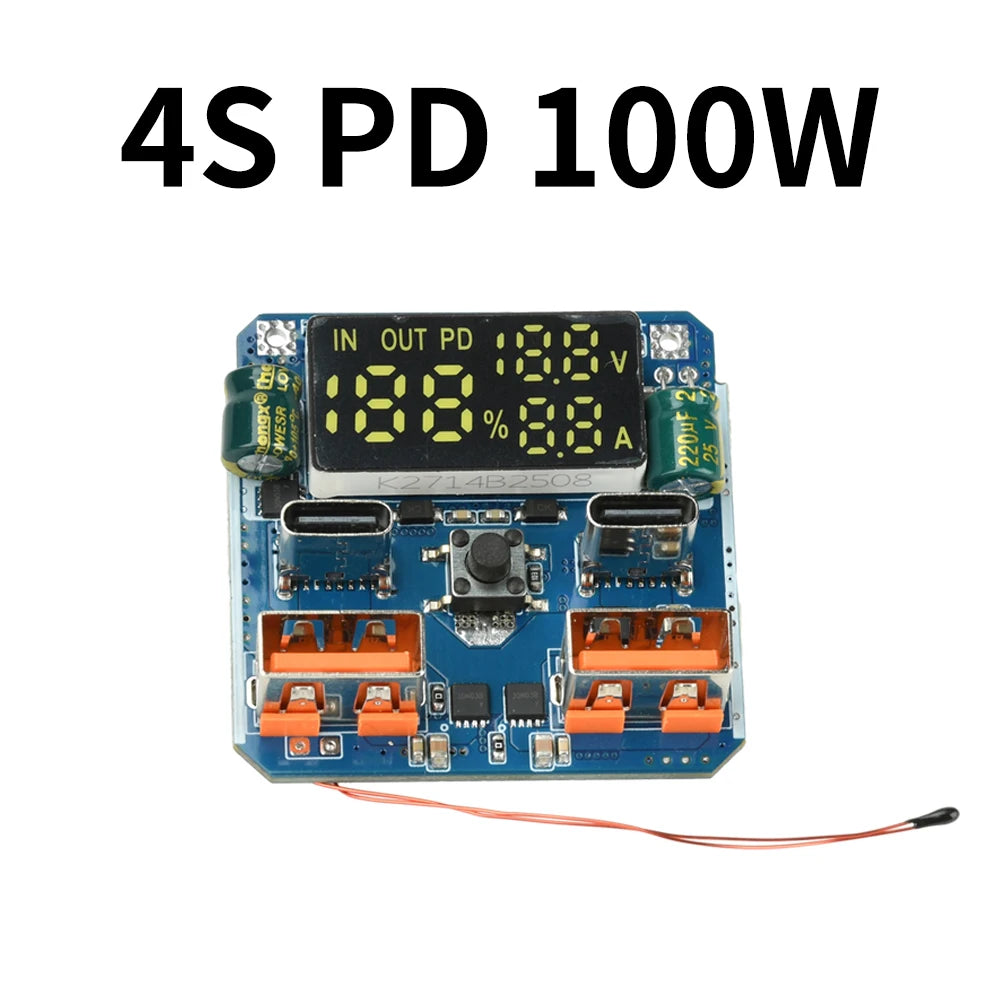

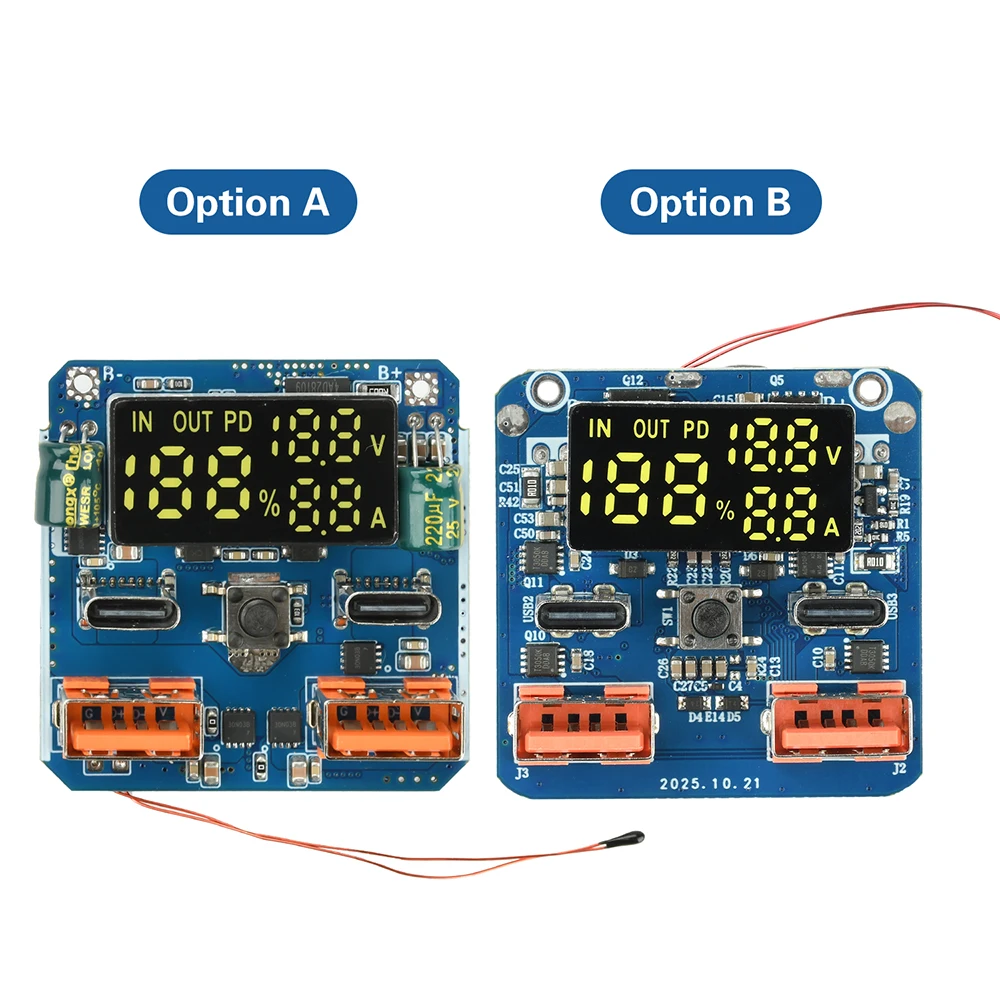

Resumen del producto
4S 20V 5A Buck-Boost módulo Charge/Discharge Integrated Bidirectional Fast Charging High is a power and battery módulo selected for power conversion, battery testing, charging and regulated output projects. Es adecuado para electronics builders, repair users and lab bench users que necesitan hardware electrónico práctico para trabajar en proyectos de forma fiable.
Ideal para
- power conversion, battery testing, charging and regulated output projects
- DIY electronics, battery packs, solar modules and bench power workflows
- pruebas electrónicas, reparación, prototipado y flujos de trabajo maker
Preguntas frecuentes
¿Para quién es este producto? Está pensado para electronics builders, repair users and lab bench users.
¿Qué debo revisar antes de comprar? Revisa en esta página las opciones del producto, las especificaciones, los accesorios incluidos y los detalles de compatibilidad.

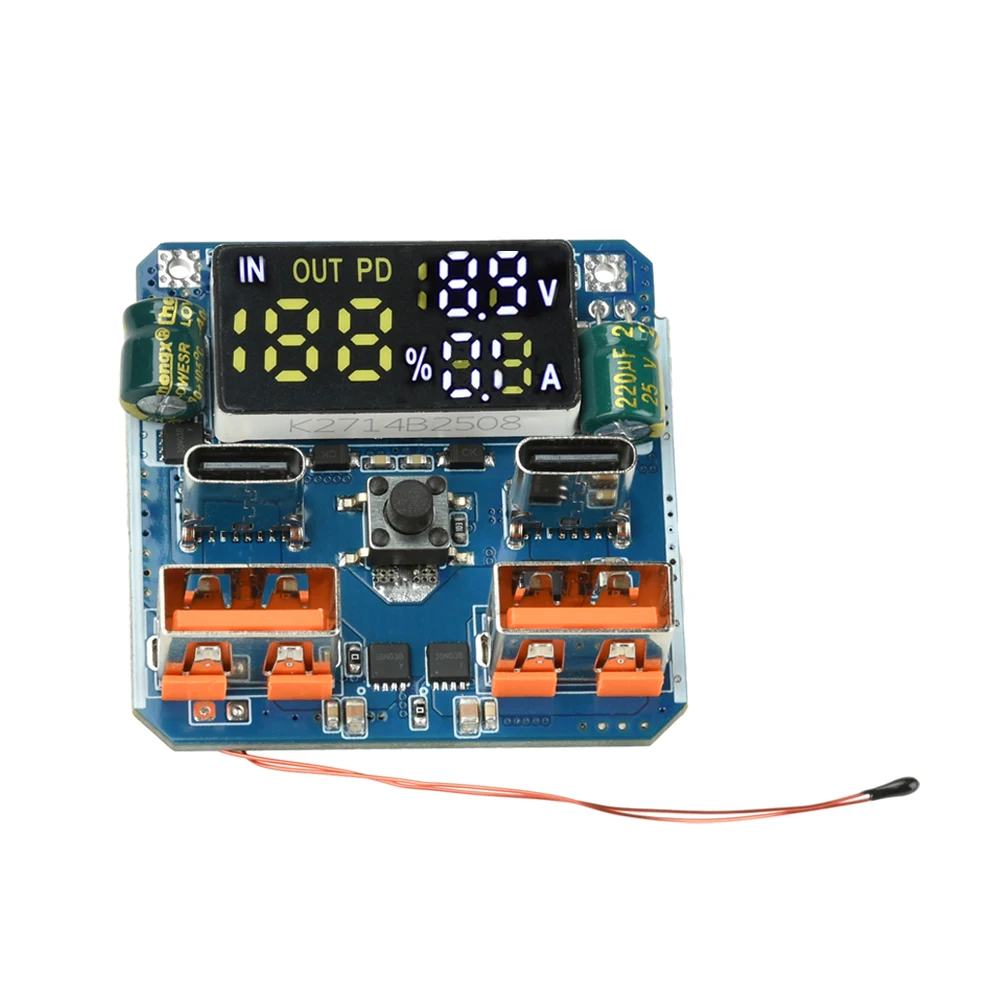

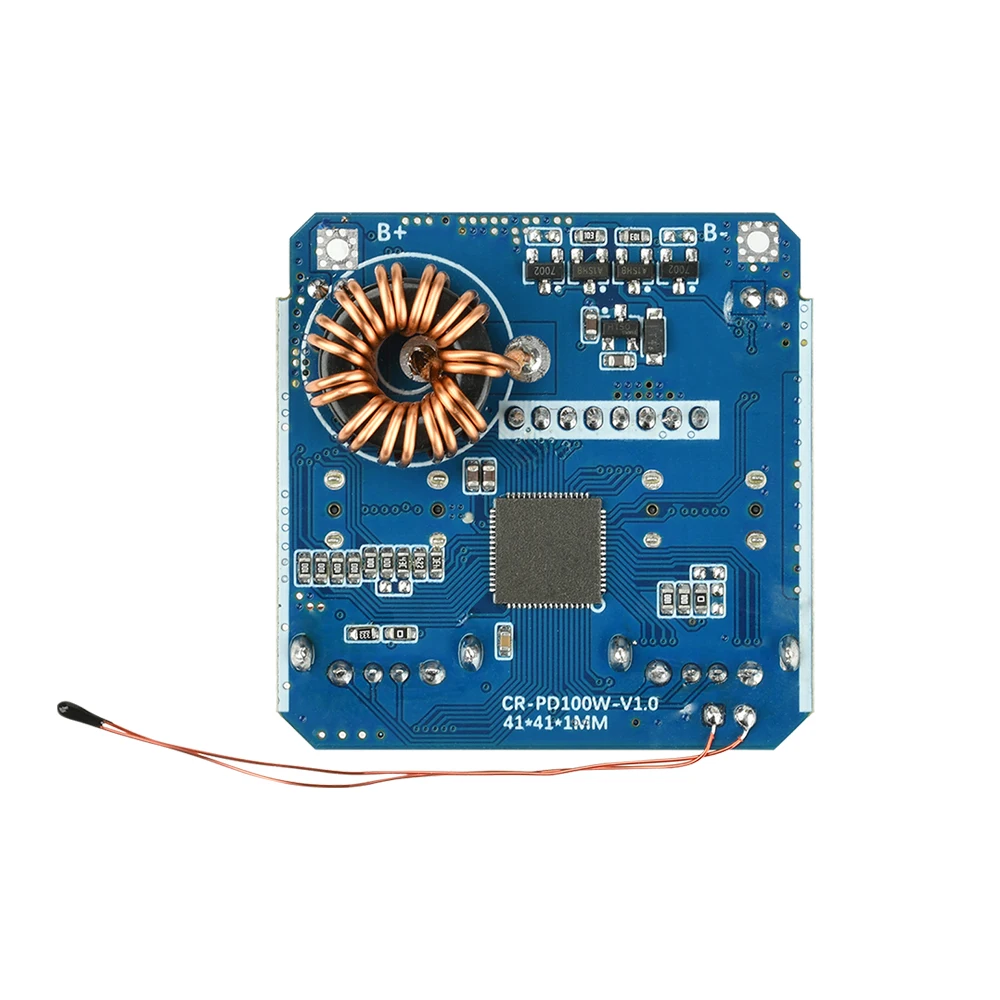

Features

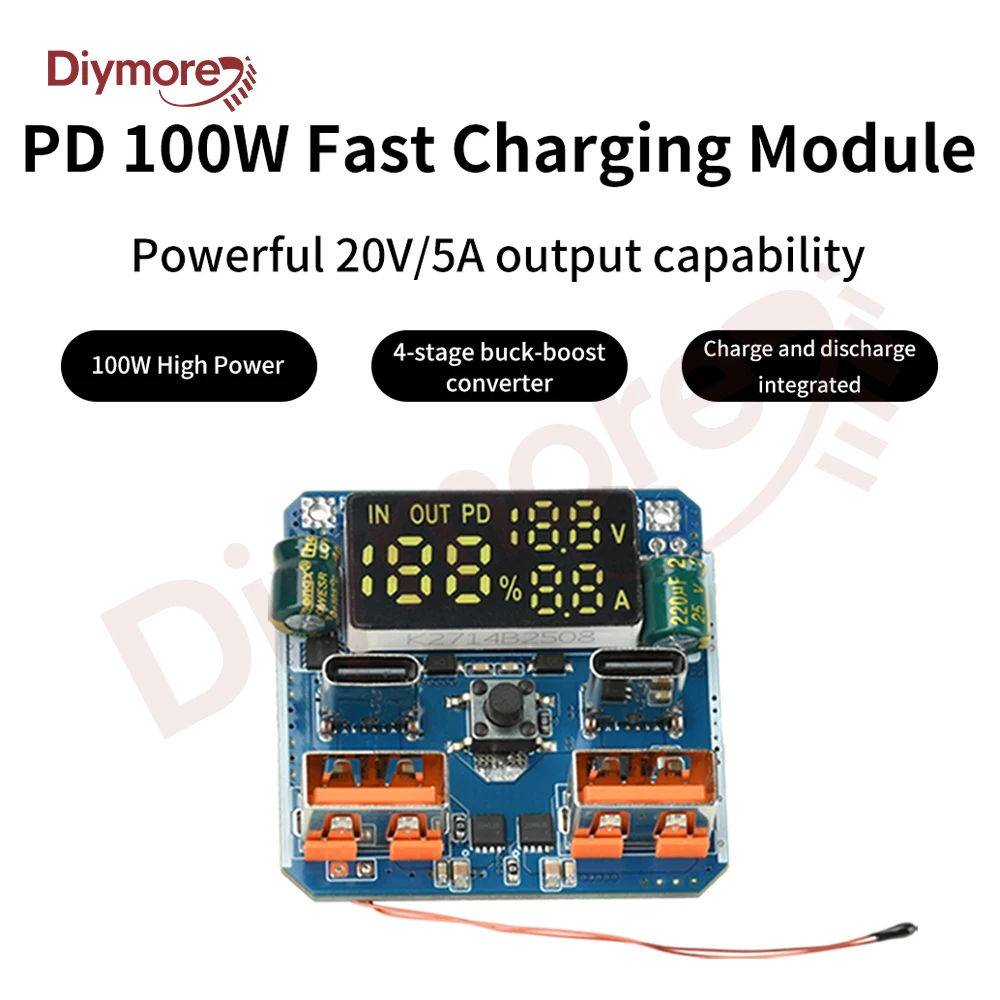

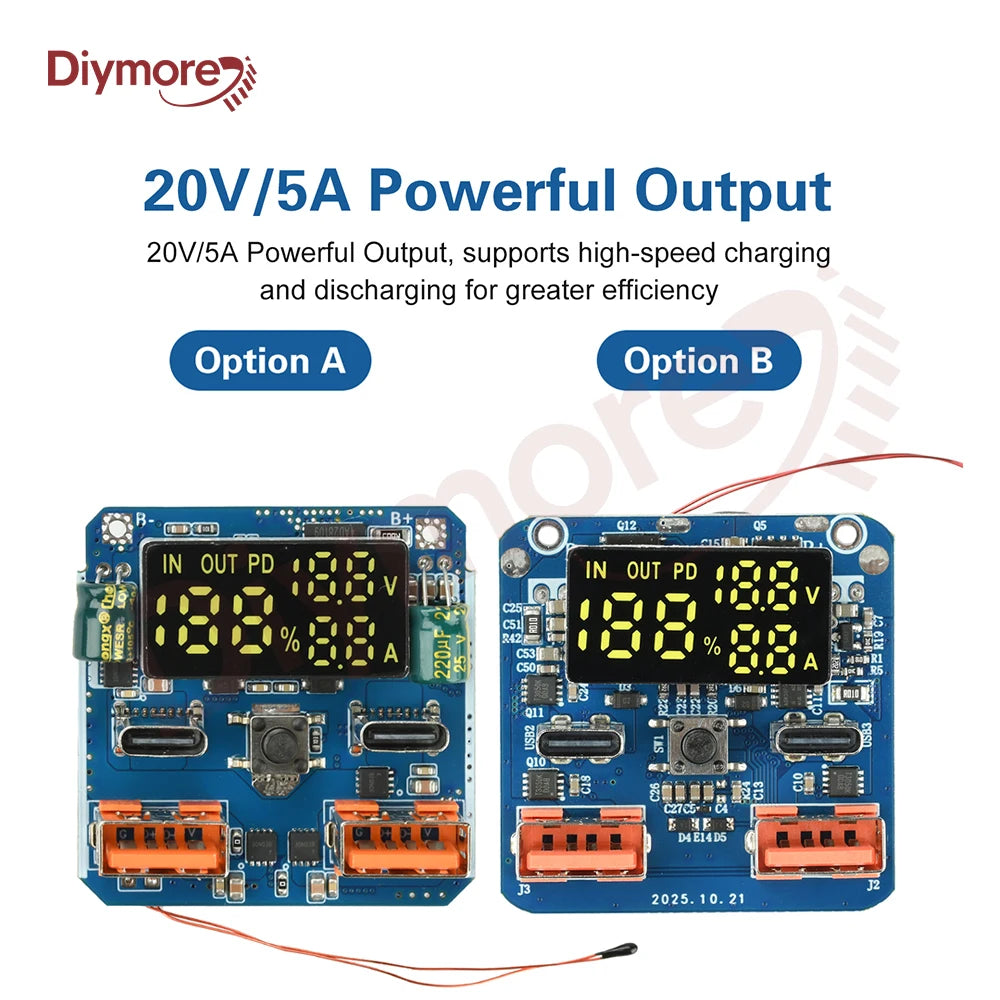

1. Robust 20V/5A output capability meets high-speed charging and discharging demands, enhancing operational efficiency

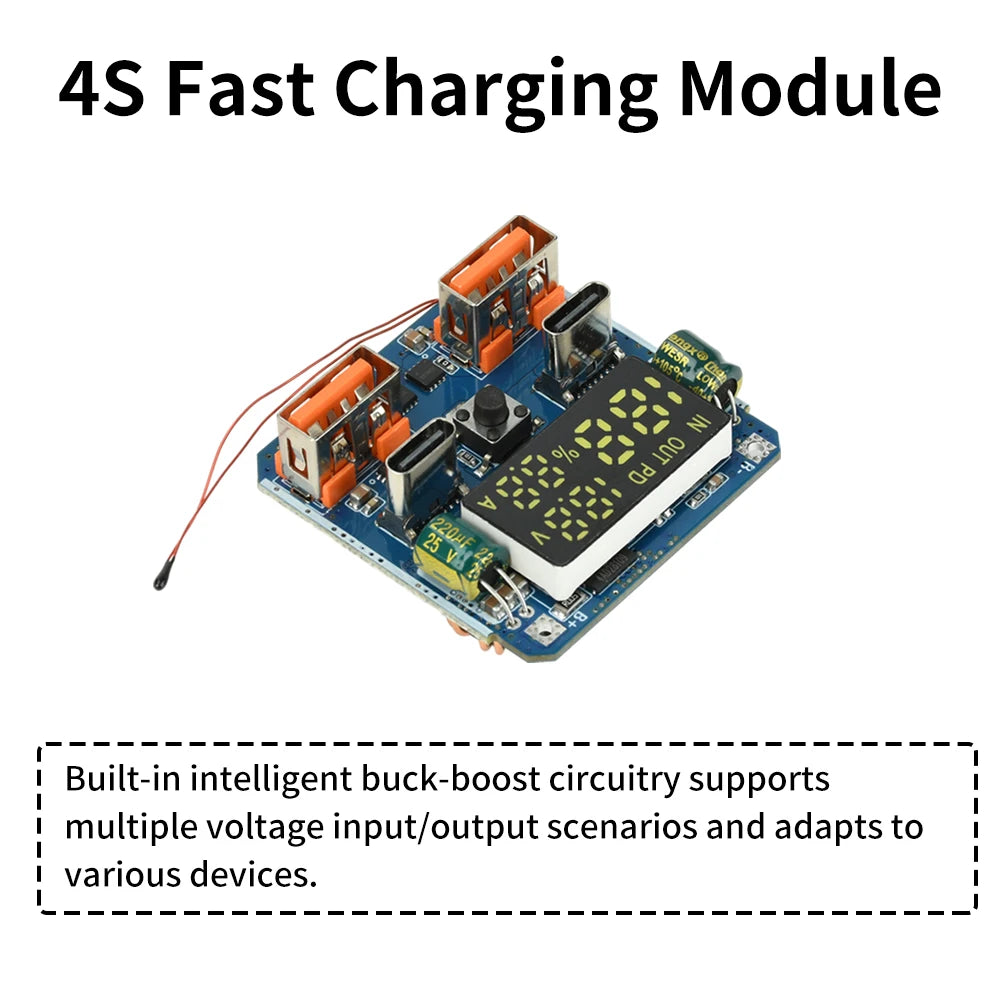

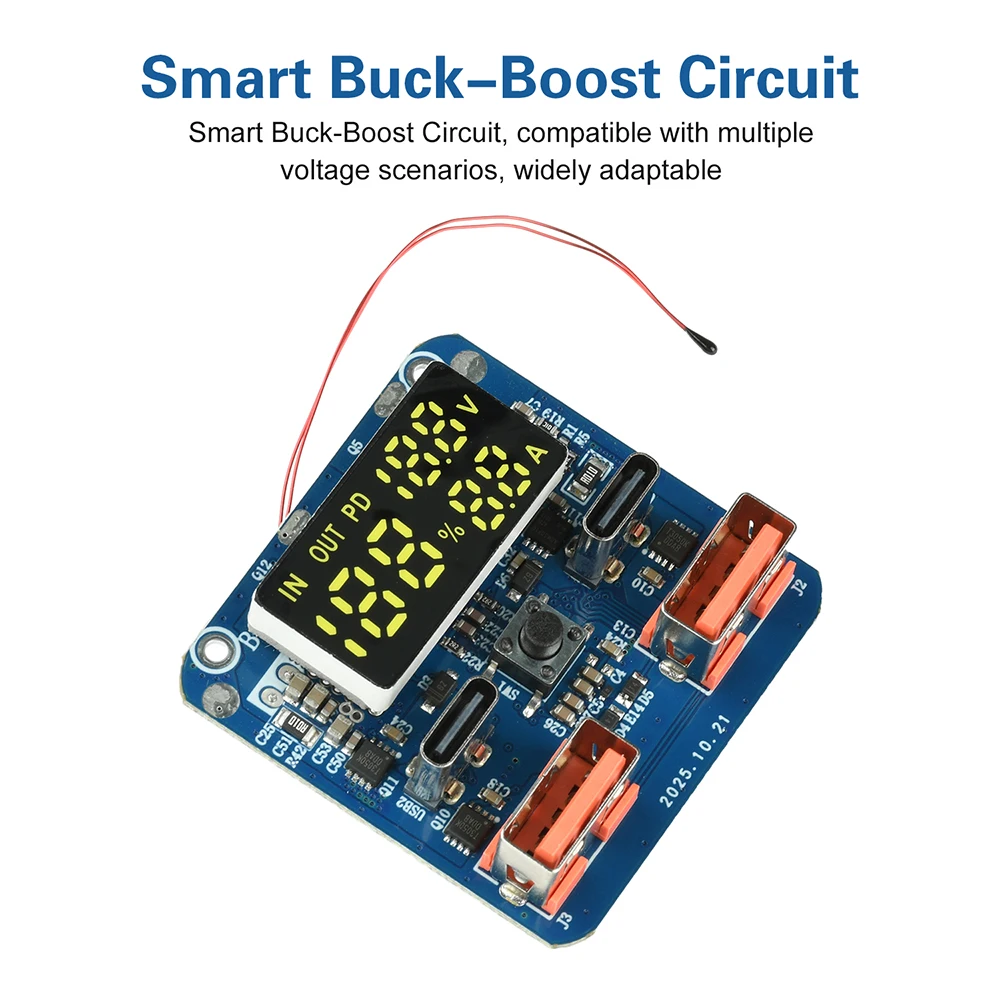

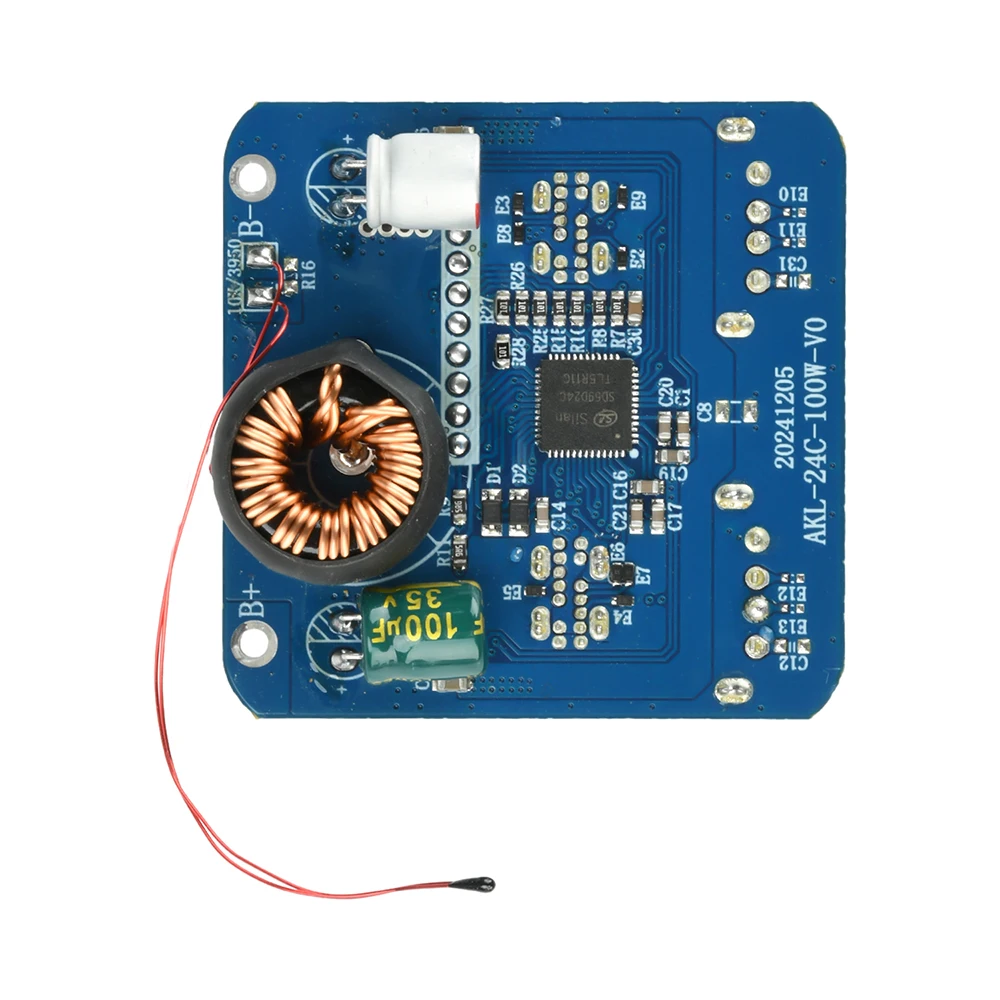

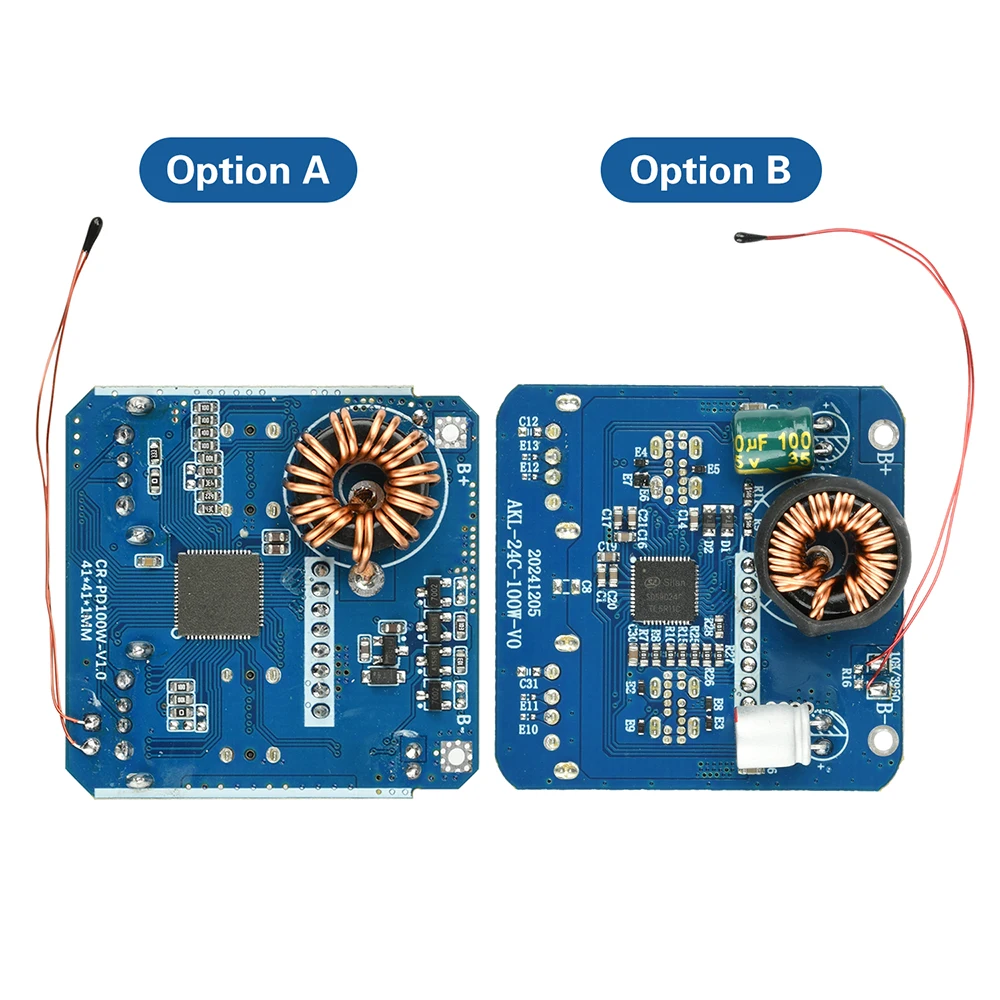

2. Built-in intelligent buck-boost circuitry supports diverse voltage input/output scenarios, compatible with multiple devices

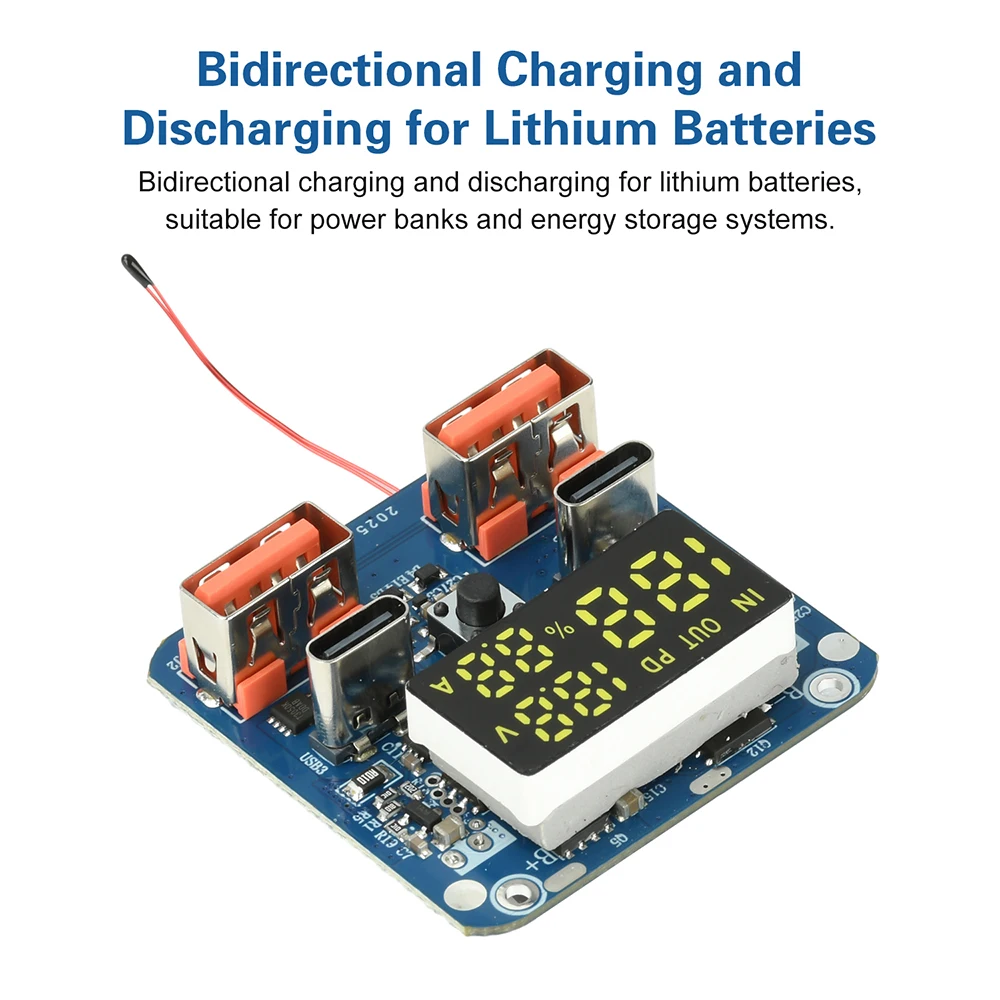

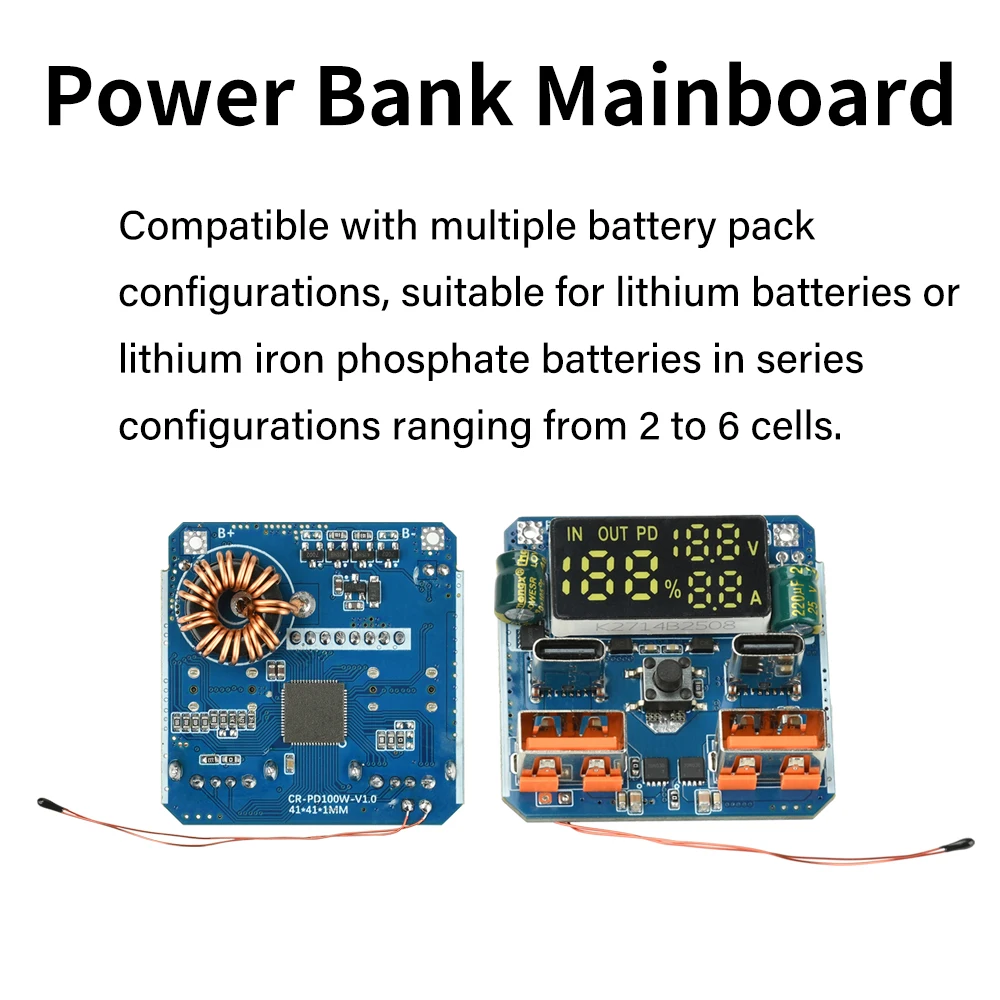

3. Bidirectional lithium battery charging/discharging suitable for power banks, energy storage systems, and similar applications

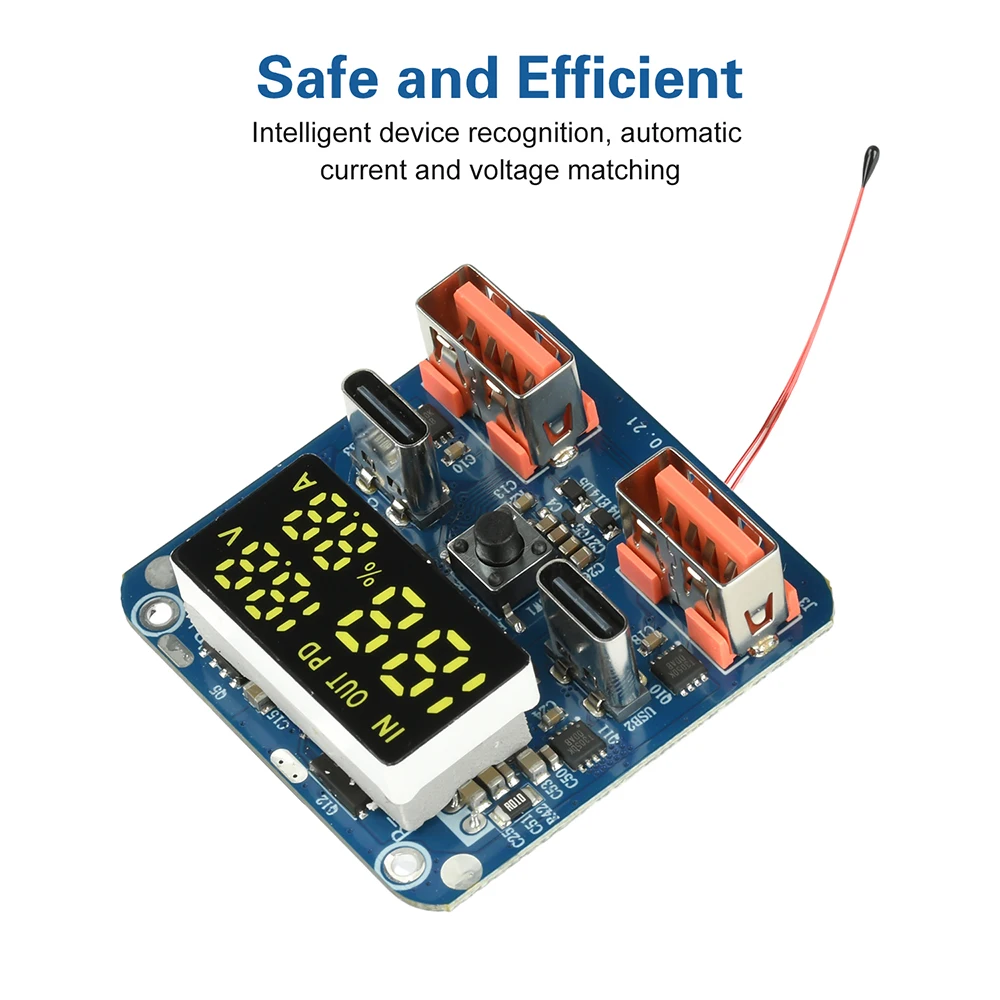

4. Intelligently identifies device requirements for safe and efficient current/voltage matching

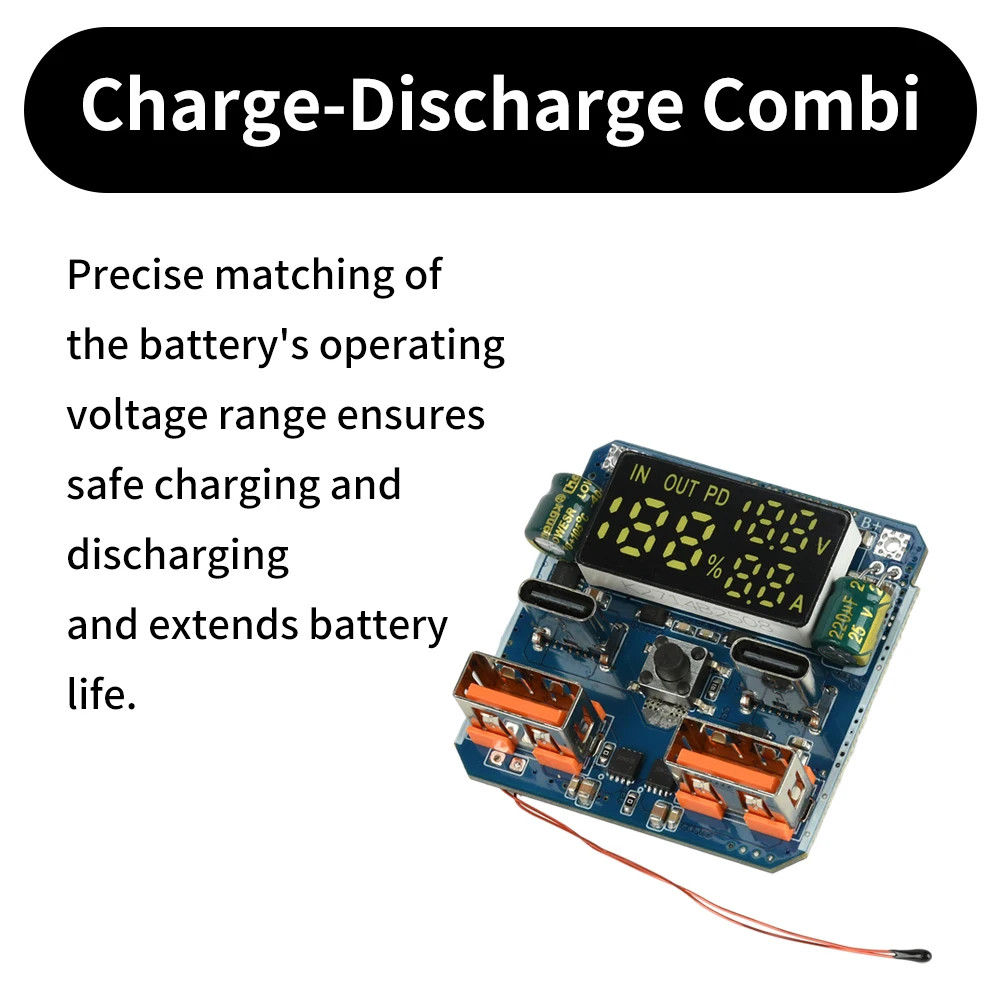

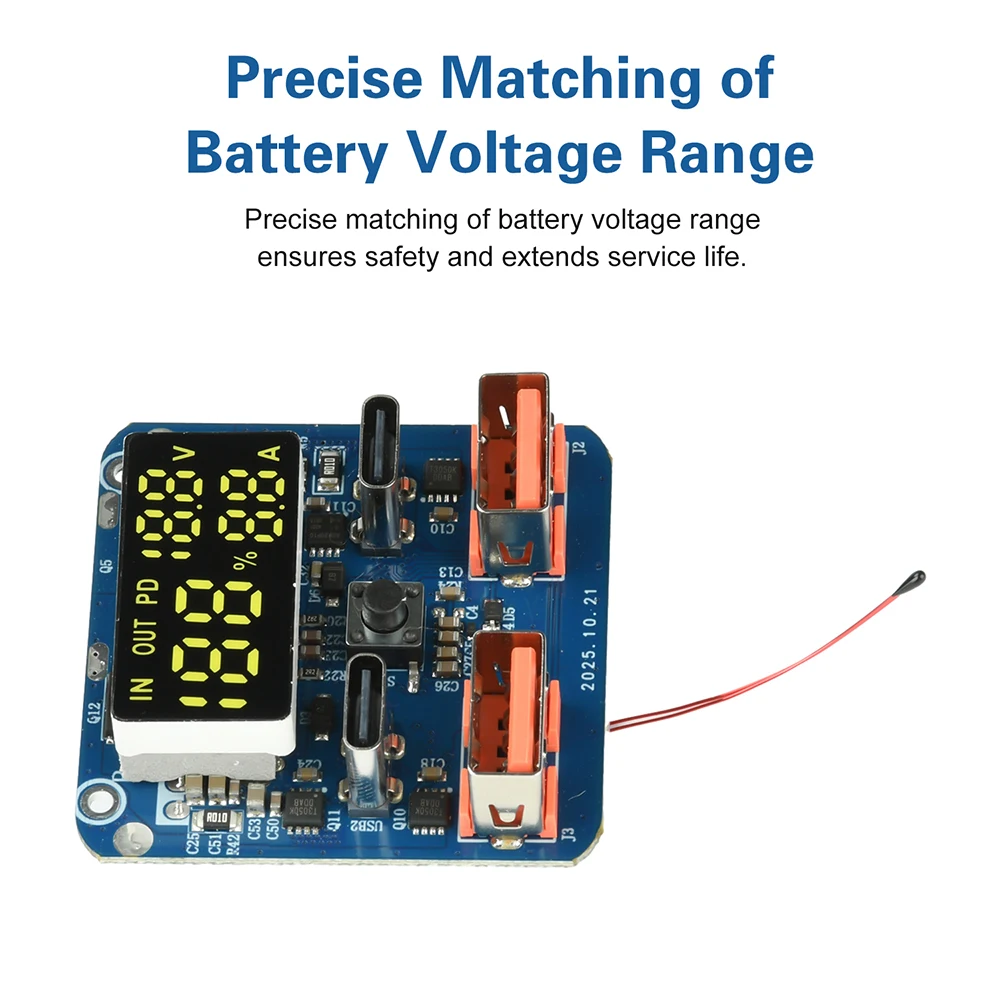

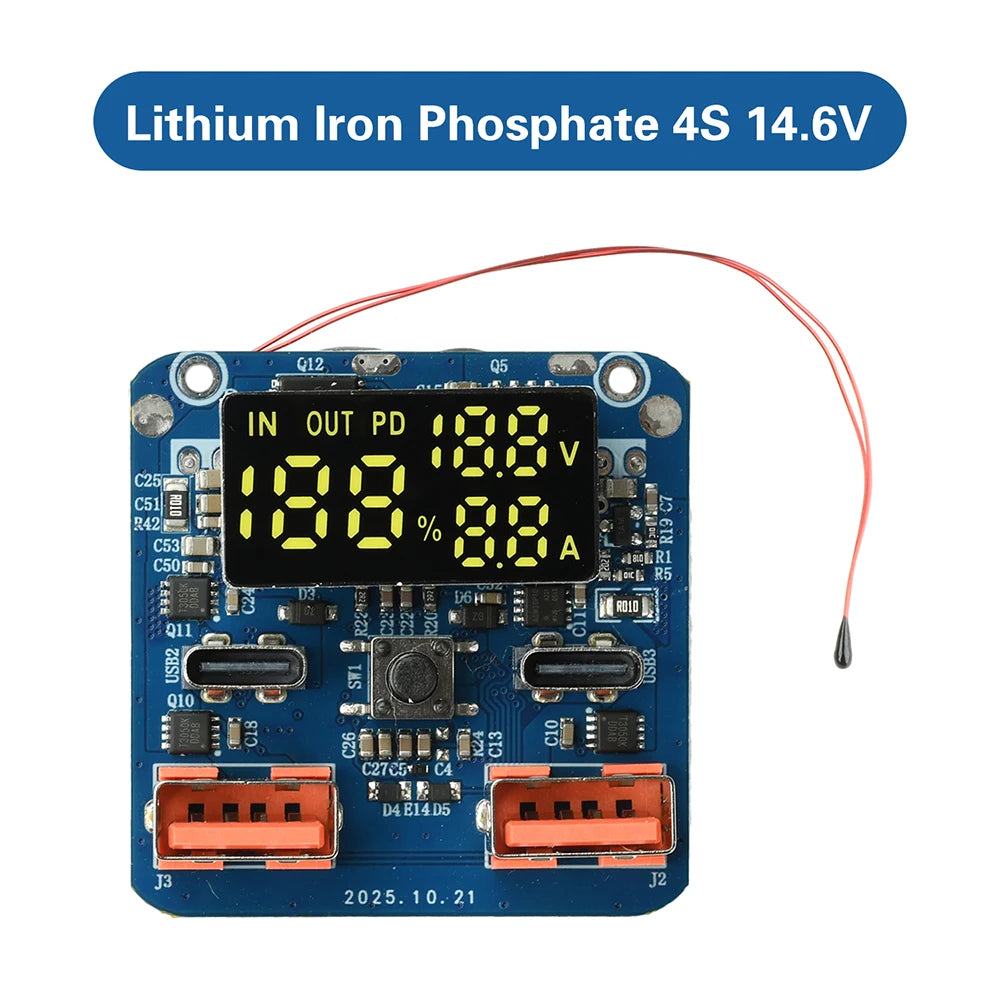

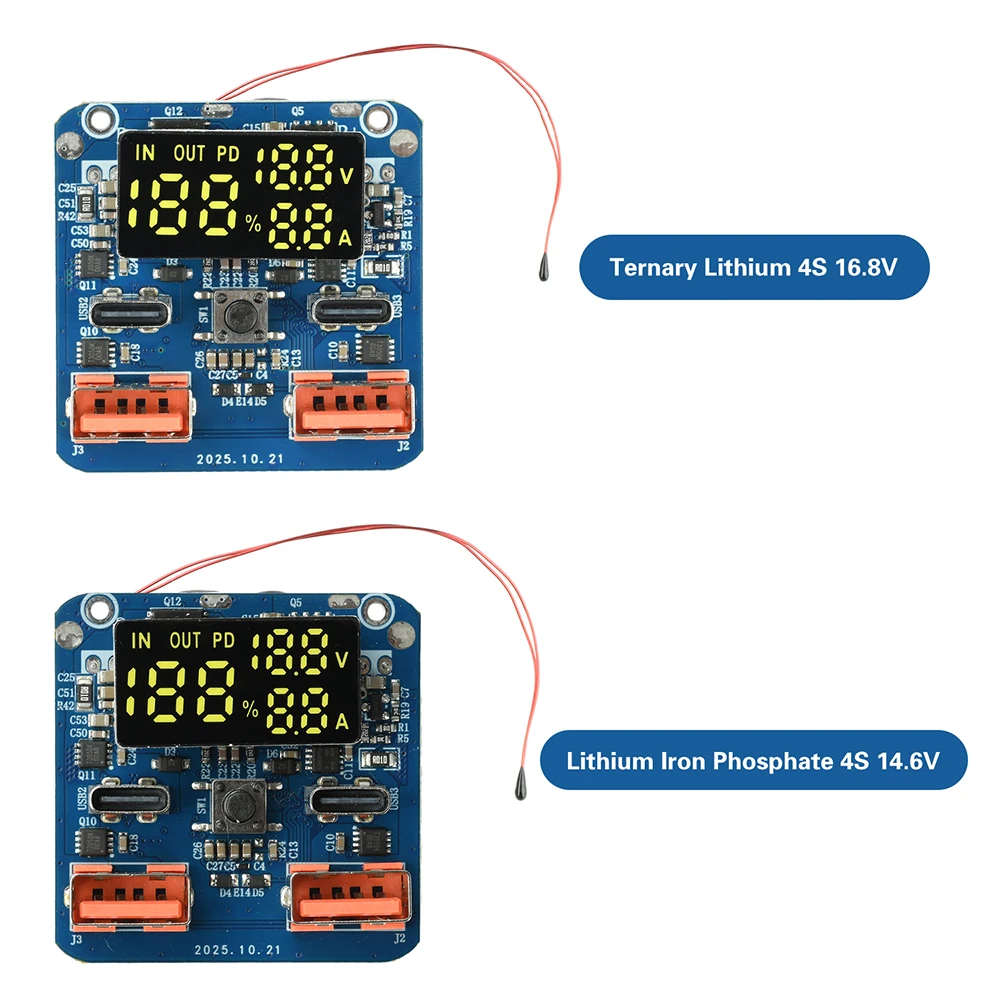

5. Precisely matches battery operating voltage range to ensure charging/discharging safety and battery longevity

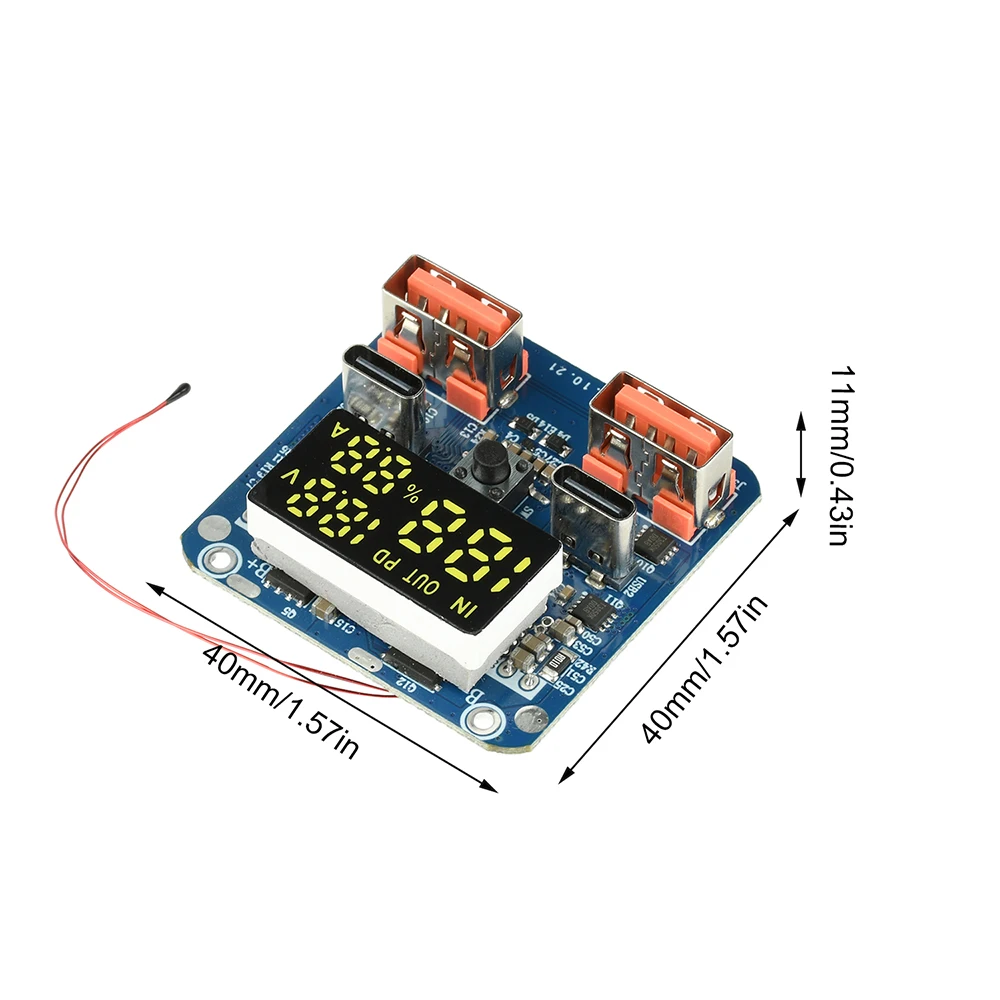

Parameter

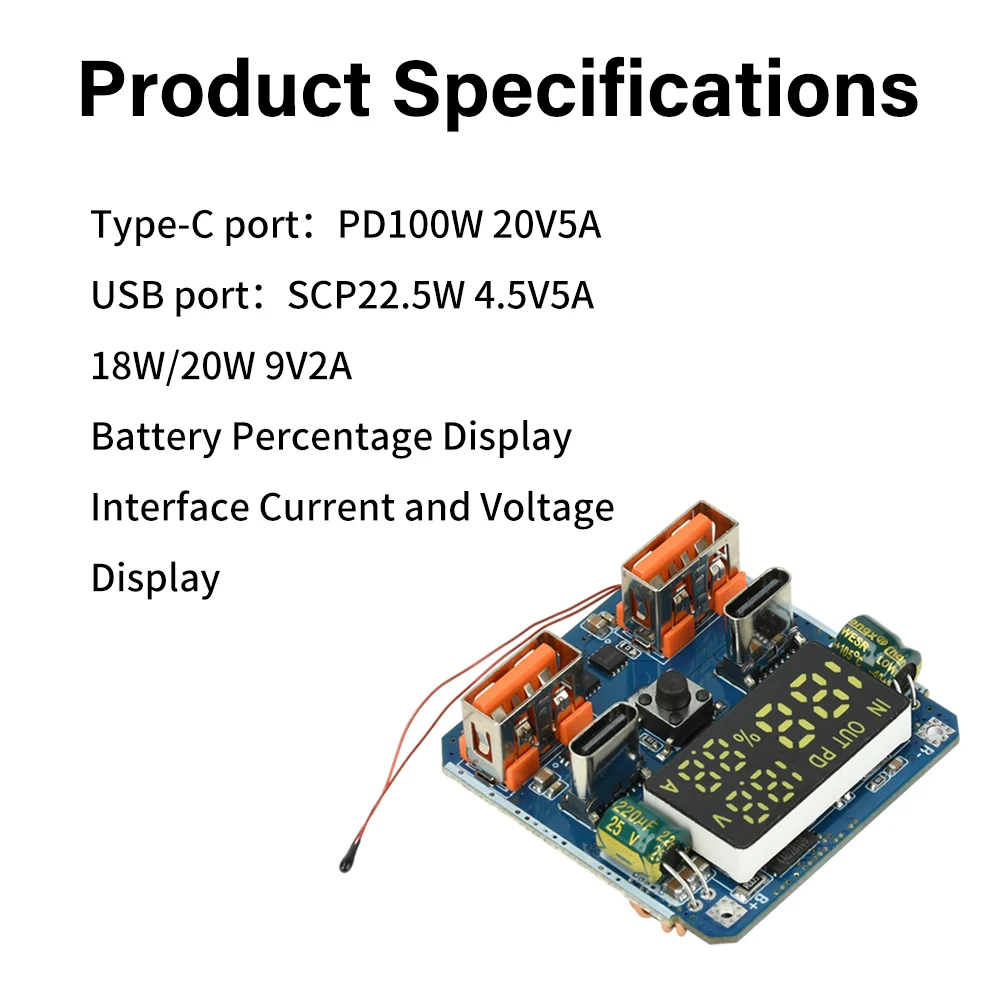

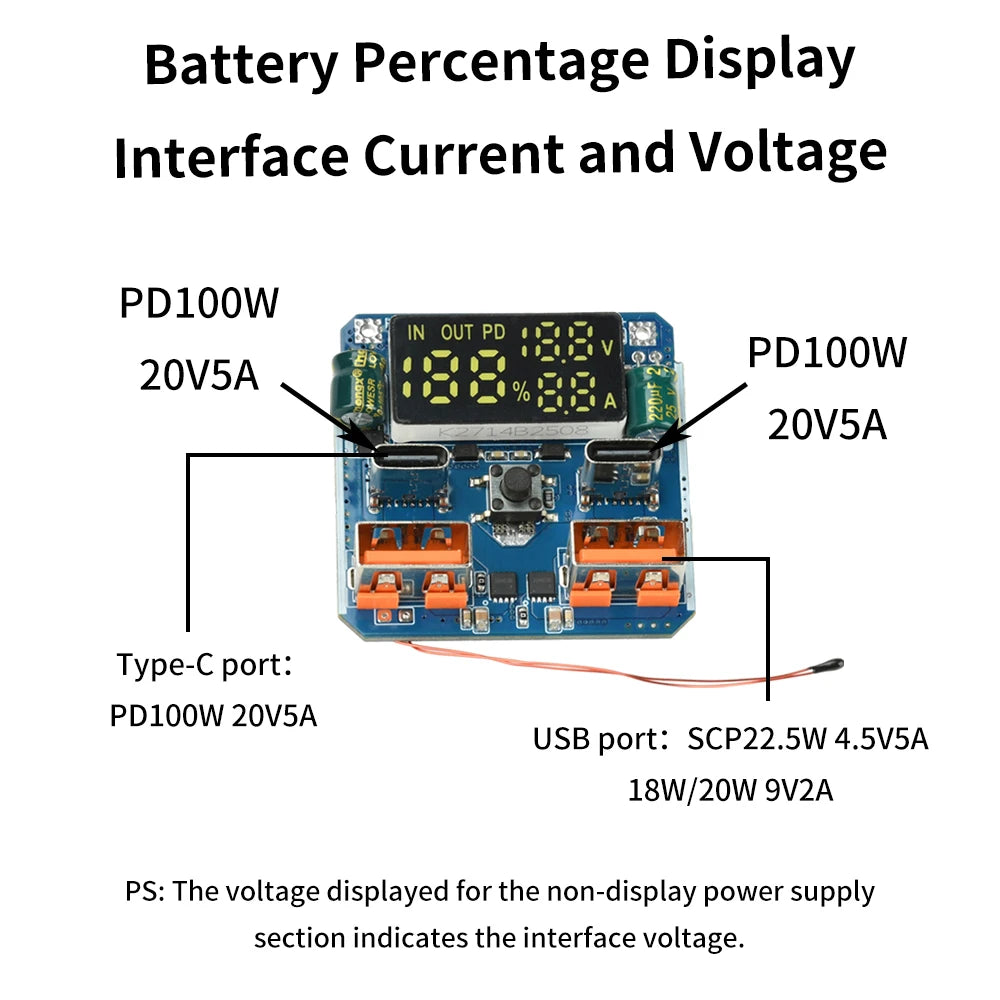

Type-C Port: PD100W 20V5A
USB Ports: SCP22.5W 4.5V5A, 18W/20W 9V2A

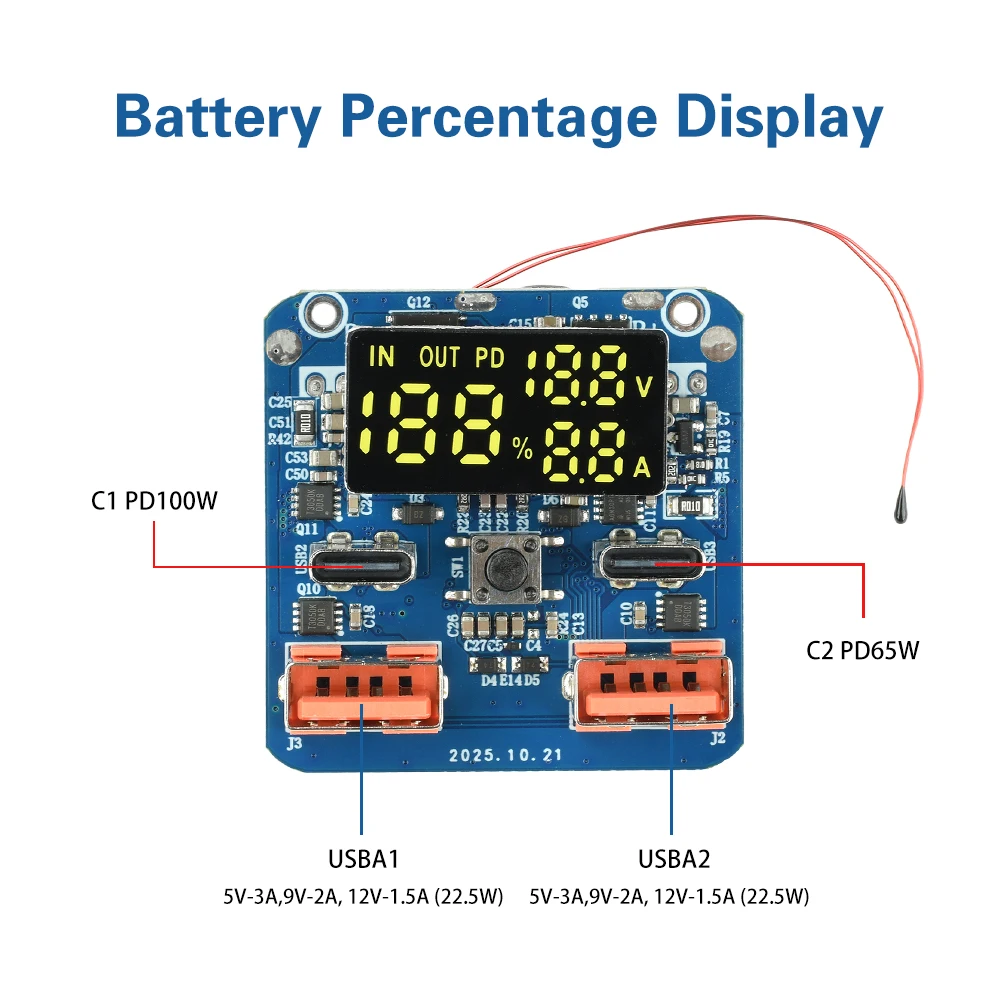

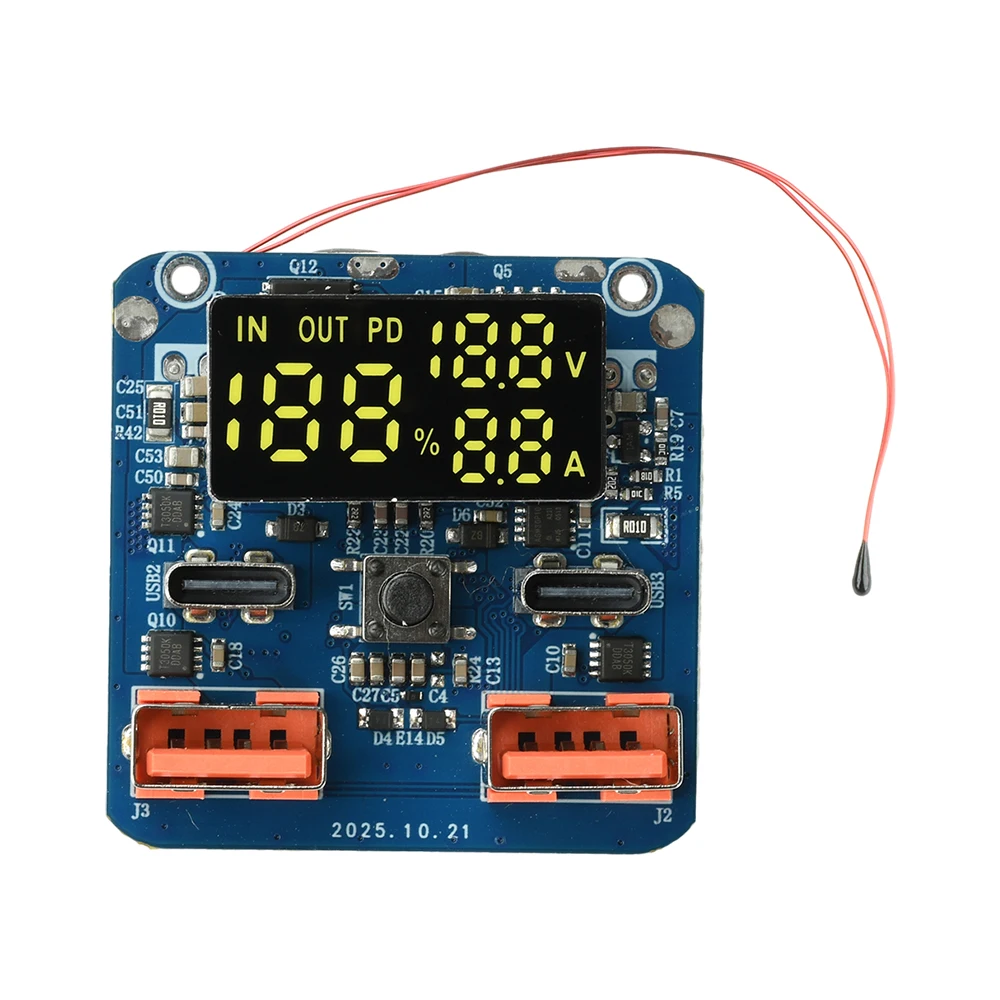

Battery Percentage pantalla
Current/Voltage pantalla

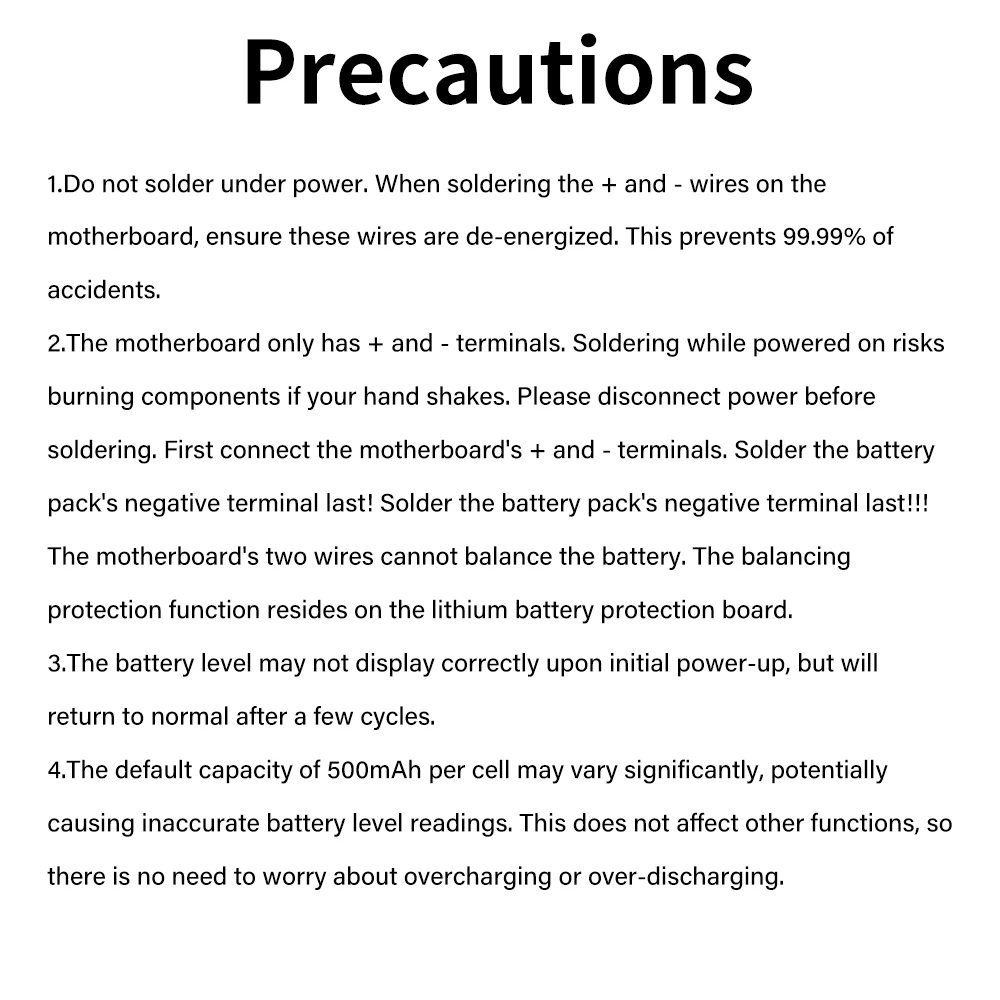

Precautions:
1. Never solder while energized. When soldering the main placa's + and - wires, ensure they are de-energized to prevent 99.99% of accidents.
2. The main placa only has + and -. Soldering while energized risks burns from hand tremors. Always disconnect power before soldering, connecting the main placa's + and - first. The battery pack's negative terminal must be soldered last! The motherboard's two wires cannot balance the battery; the balancing protection function resides on the lithium battery protection placa.
3. The first power-on may not pantalla the battery level accurately; it will recover after a few cycles.
4. The default capacity is 500mAh per cell. Significant variations may cause inaccurate battery level pantalla, but this does not affect other functions. There is no need to worry about overcharging or over-discharging.
Package include
módulo*1
Features

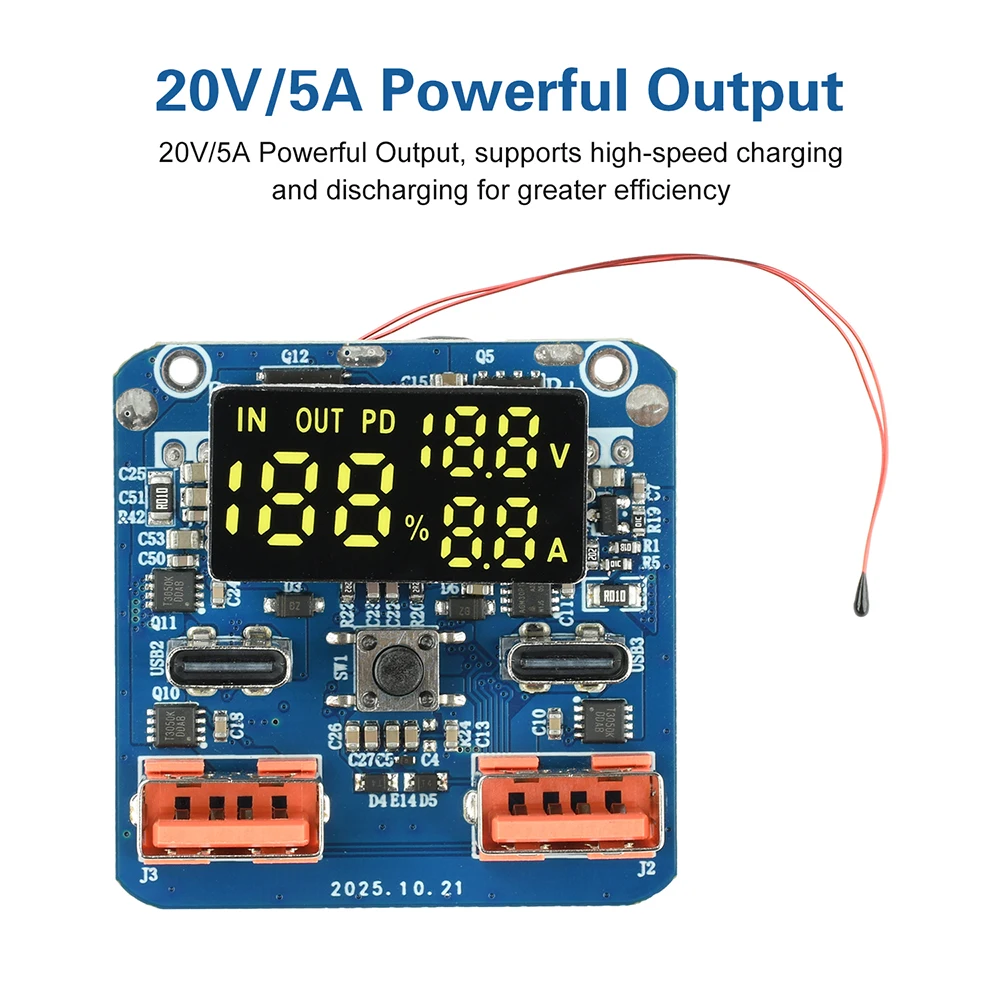

1. 20V/5A powerful output supports high-speed charging and discharging for enhanced efficiency
2. Intelligent buck-boost circuitry ensures compatibility across multiple voltage scenarios and broad adaptability
3. Bidirectional charging/discharging for lithium batteries, suitable for power banks and energy storage systems
4. Intelligent device recognition automatically matches current and voltage for safe, efficient operation
5. Precisely matches battery voltage range to ensure safety and extend lifespan

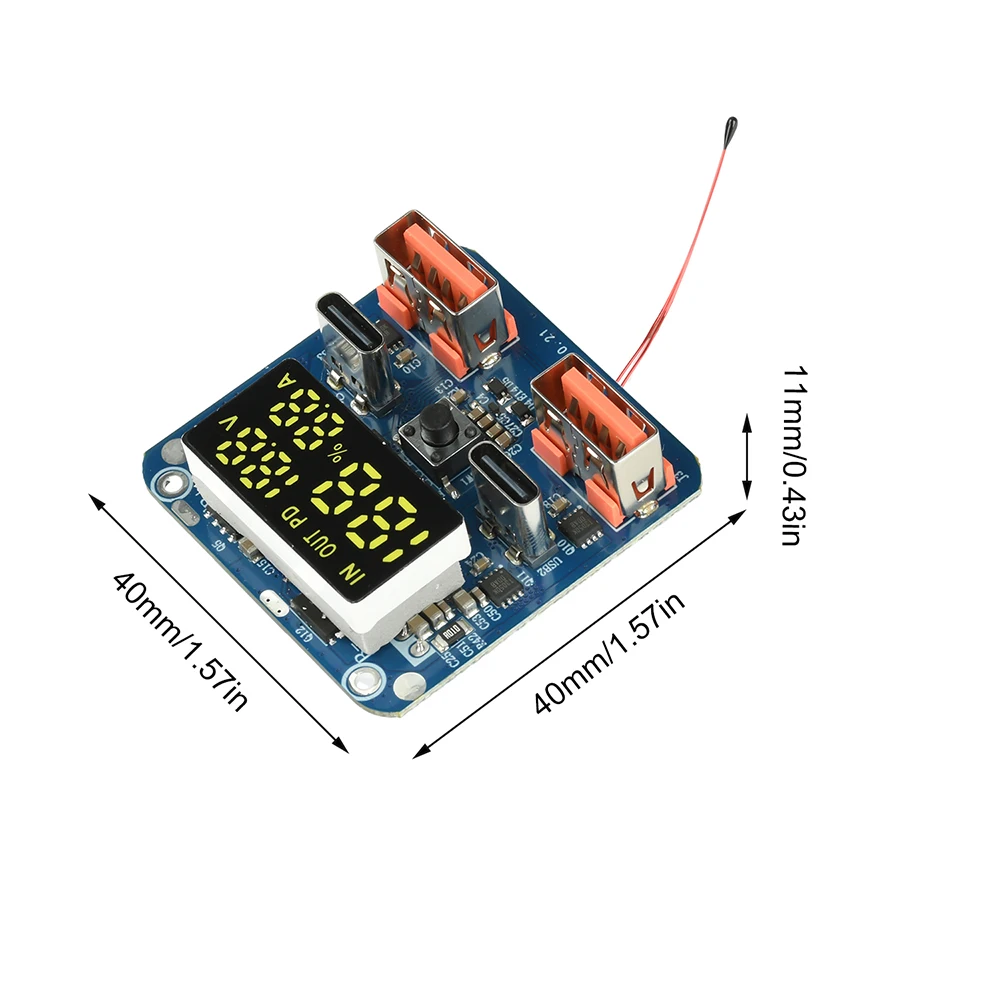

Parameter

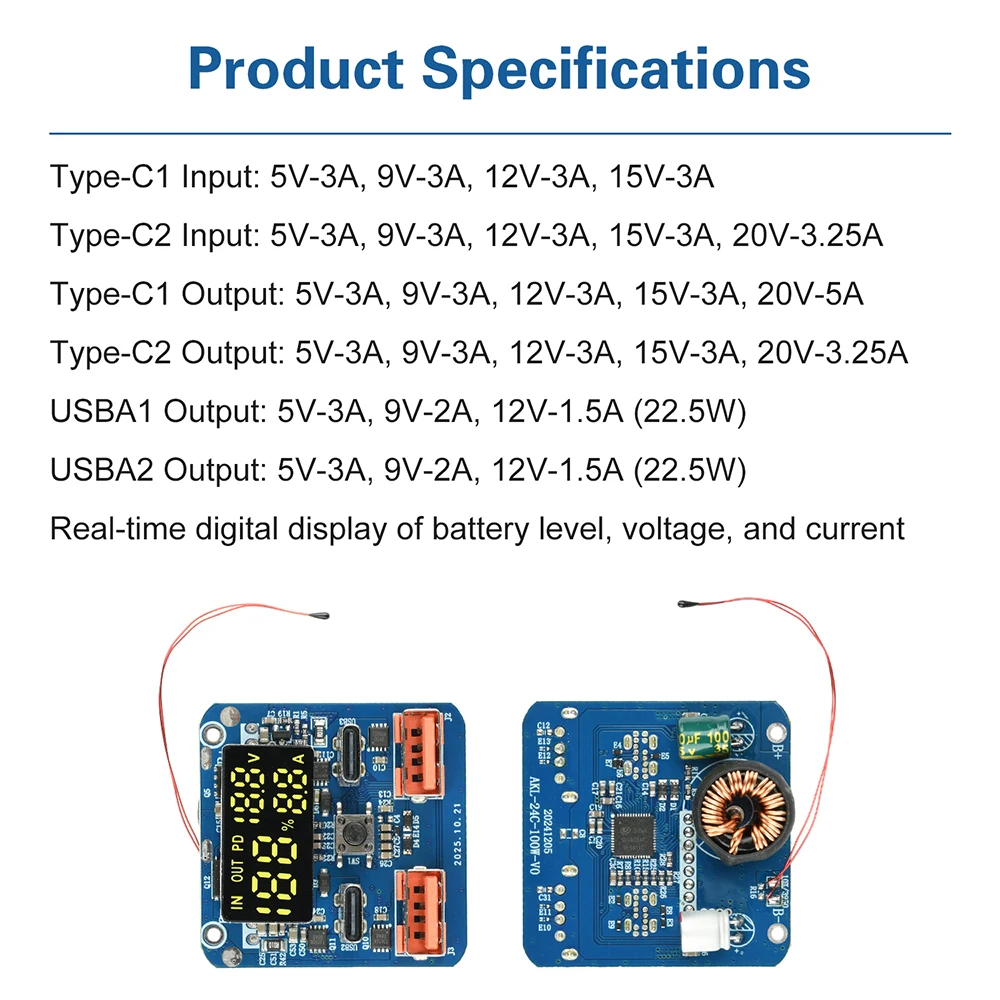

Type-C1 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A
Type-C2 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A
Type-C1 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-5A
Type-C2 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A
USBA1 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W)
USBA2 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W)
Real-time digital pantalla of battery level, voltage, and current
Frequently Asked Questions

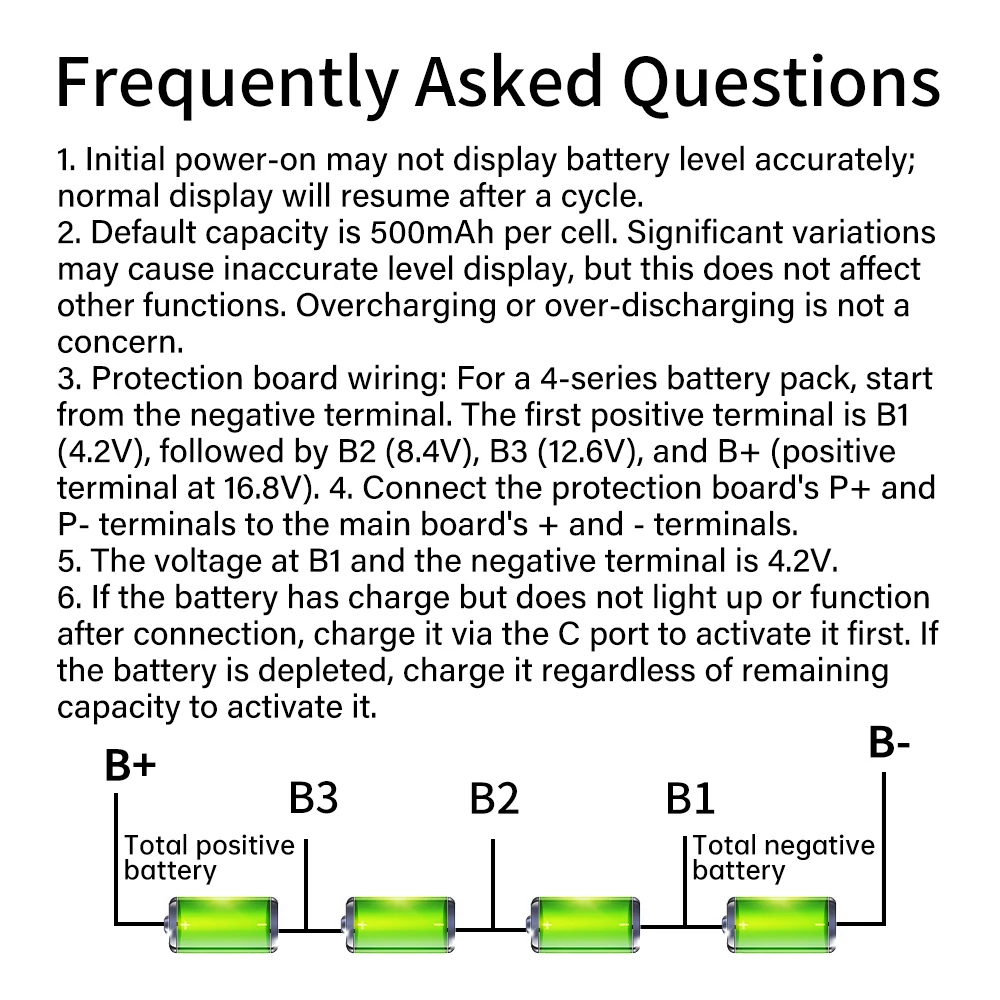

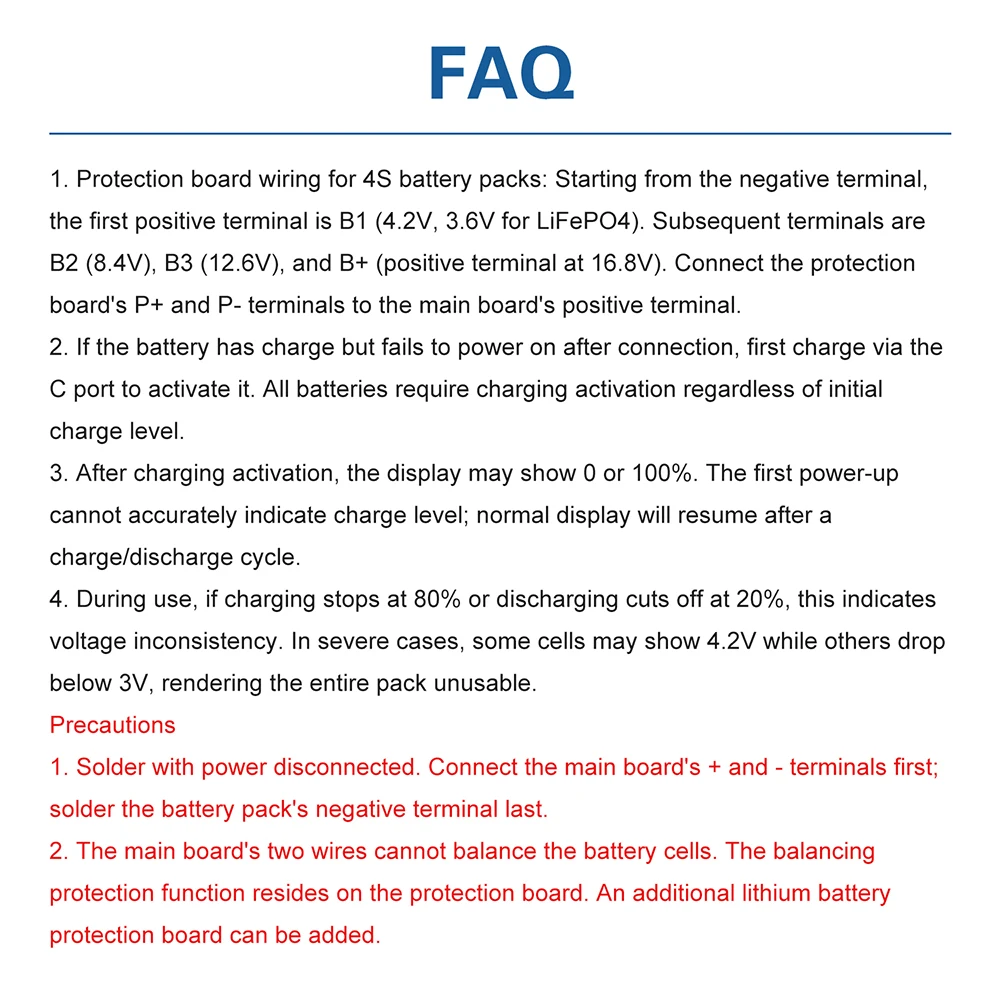

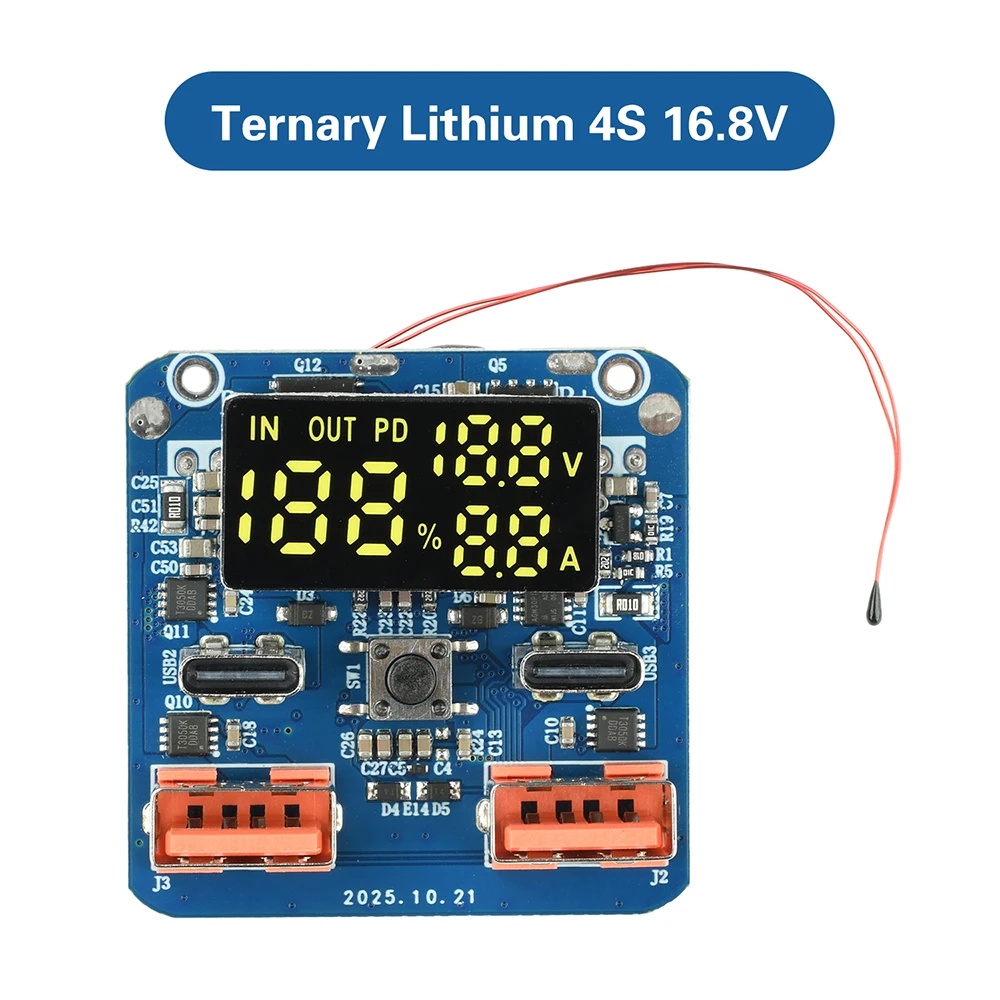

1. Protection placa wiring: For a 4S battery pack, starting from the negative terminal, the first positive terminal is B1 (4.2V for LiFePO4, 3.6V for LiFePO4). Subsequent terminals are B2 (8.4V), B3 (12.6V), and B+ (positive terminal at 16.8V). Connect the protection placa's P+ and P- to the main placa's positive terminal.
2. If the battery has charge but fails to power on after connection, first activate it by charging via the C port. All batteries require activation regardless of initial charge level.
3. After charging activation, the pantalla may show 0 or 100%. Initial power-up may not accurately reflect charge level; normal pantalla resumes after one charge/discharge cycle.
4. During use, charging stops at 80% or discharging halts at 20% due to voltage inconsistency. In severe cases, a fully charged battery may show 4.2V while others drop below 3V, rendering the entire system unusable.
Important Notes
1. Solder with power disconnected. Connect the main placa's + and - terminals first; solder the battery pack's negative terminal last.
2. The main placa's two wires cannot balance the batteries. The balancing protection function resides on the protection placa. An additional lithium battery protection placa can be added.
Package include
módulo*1
