Note:
Do not change photos or insert other files on the disk. Before connecting to the computer, please make sure the device is turned off.
If the computer is not turned off when connected, the product may freeze in the system. If the system freezes, you can only wait for the battery to run out.
Features：

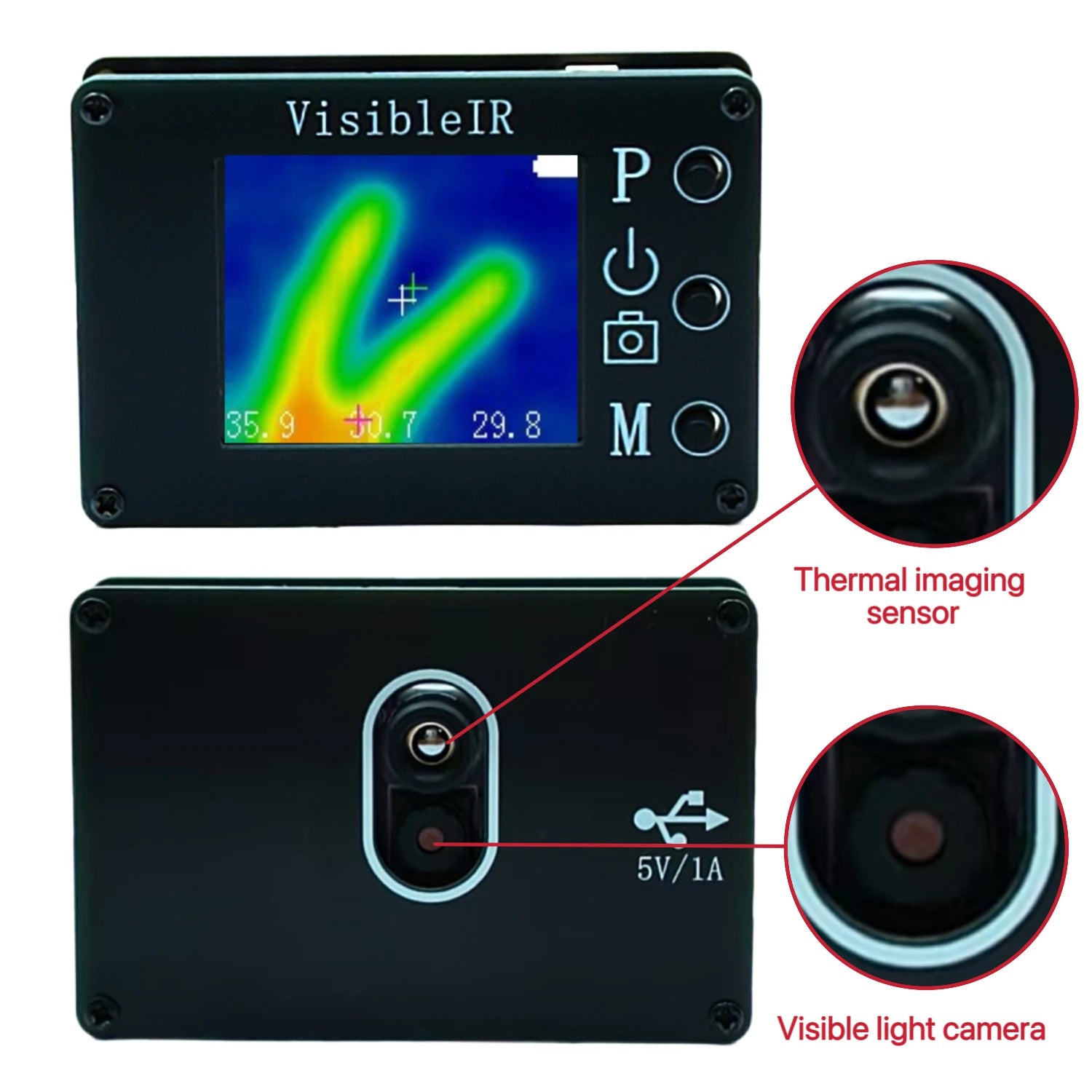

1. Dual-vision fusion technology: Combining a 32x24 infrared thermal sensor and a visible light camera, it offers three display modes: visible light and infrared image fusion mode, visible light mode, and infrared image mode. One-click switch between fusion mode, infrared mode and visible light mode, allowing you to clearly locate the heat source in a real environment.

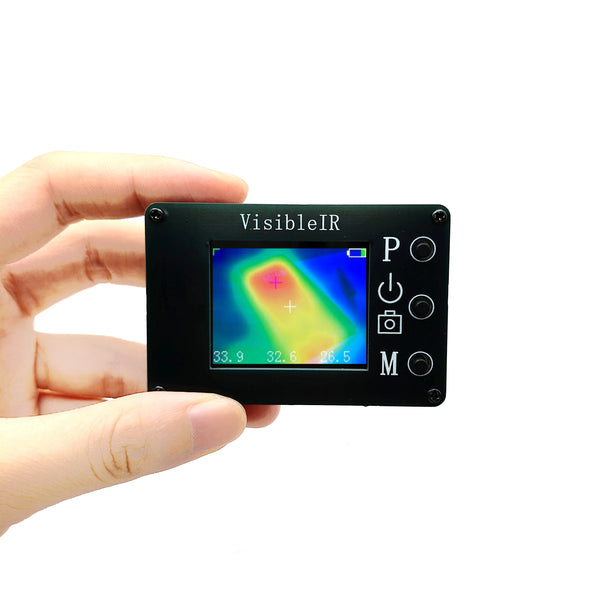

2. Visual thermal display: Choose between the rainbow color and iron red color palettes to visualize the temperature difference in the way that best suits you, making hot spots nowhere to hide.
3. Photography and data recording: Capture and save images to internal storage. Connect to your computer via USB Type-C to easily copy, analyze and share your findings.

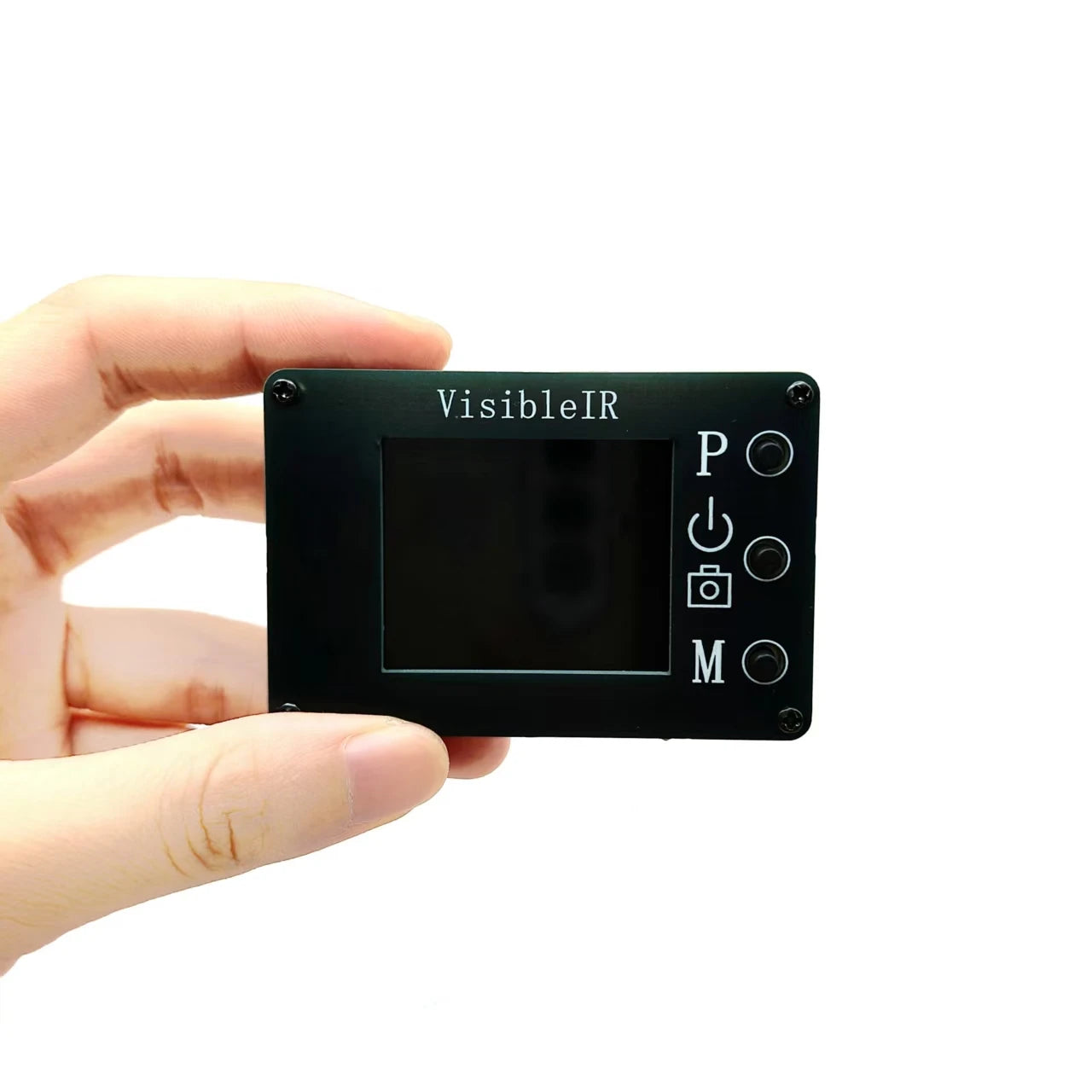

4. Compact and portable: Equipped with a rechargeable battery and a clear 1.8-inch TFT display. Its compact size is ideal for mobile use in home inspections, DIY projects and electrical maintenance.
5. Easy to use: No complex calibration required. One button press can turn the device on and off and take photos. Intuitive operation, accessible to everyone.
Parameter：
- Infrared resolution: 32 x 24 pixels
- Thermal imager field of view: 55° x 35°
- Temperature range: -40°C to +300°C
- Measurement accuracy: ±2°C (center point, 0°C to 100°C target temperature)
- Refresh rate: 8 Hz
- Display screen: 1.8-inch TFT (resolution 160x120
- Pseudo-colors: rainbow colors, iron red
- Display modes: Fusion mode, visible light mode, infrared mode
- Interface: USB Type-C (Charging and Data Transfer)
- Battery: Built-in rechargeable battery
- Working environment: 10°C to 50°C, humidity ≤80%
Shipping list:
1 x visible light thermal imager
1 x Type-C data cable
V. Common Questions:
Question: 1. Can it be used to search for animals outdoors at night?
Answer: No.
Question: 2. What is the optimal usage distance?
Answer: Within 2 meters (related to the size of the object).
Question: 3. Can it be used as a computer camera, connected to a computer, or connected to a mobile phone via WiFi?
Answer: No. Only supports connecting to the computer in USB flash drive mode when the device is off and reading the saved images.
Question: 4. Can it be used to check if the floor heating system is leaking?
Answer: No. The precision of this product is limited and it is not recommended for this requirement.
Question: 5. Can it be used to find the heat source of the circuit board?
Answer: The precision of this product is limited and it is not recommended for this requirement.
It is a normal phenomenon that there is an offset in the fusion of visible light and infrared images.
