1. MAX/MIN/REL modes

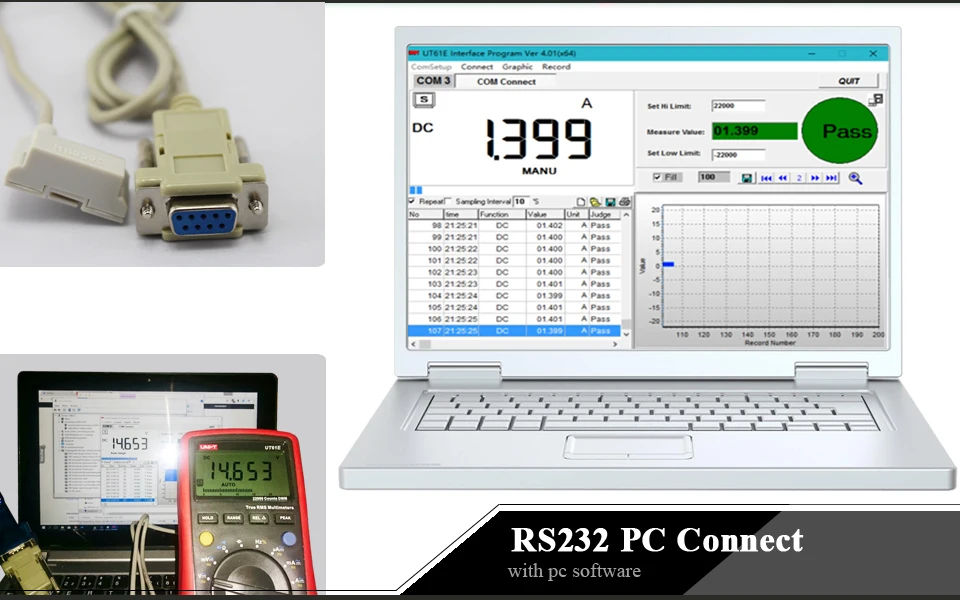

2. RS-232 and USB interface
3. Analog bar graph
4. True RMS
5. Peak hold
Specifications
Range
Best Accuracy
Model UT61E
DC Voltage (V) 220mV/2.2V/22V/220V/1000V ±(0.1%+2)
AC Voltage (V) 220mV/2.2V/22V/220V/750V ±(0.8%+10)
DC Current (A) 200μA/2200μA/22mA/220mA/2.2A/10A ±(0.5%+10)
AC Current (A) 200μA/2200μA/22mA/220mA/2.2A/10A ±(0.8%+10)
Features

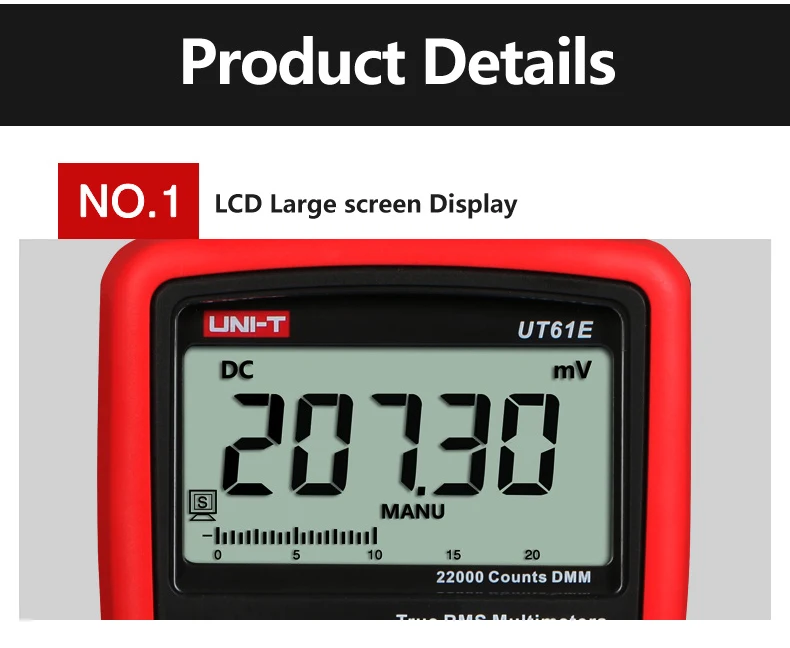

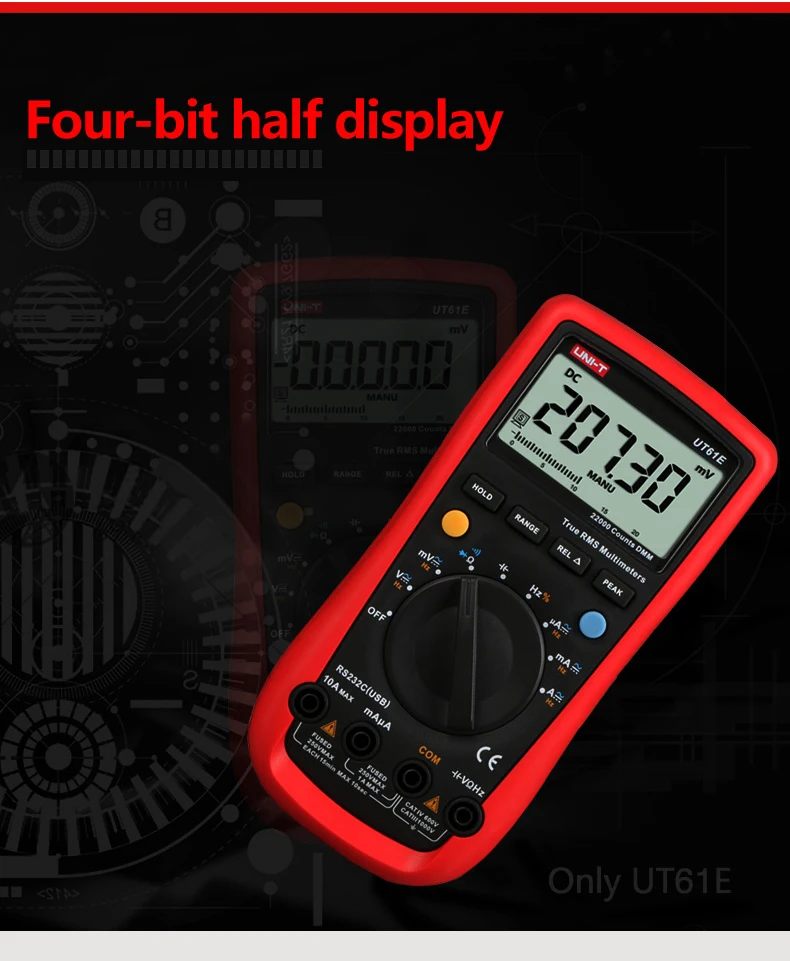

Display Count 22000
Auto Range √
True RMS √
Bandwidth (Hz) 45Hz ～10kHz
Duty Cycle 0.1% ～ 99.9% √
Diode √
Continuity Buzzer √
Low Battery Indication ≤7.5V √
Data Hold √
Relative Mode √
MAX/MIN √
Peak Value √
RS-232 √
Analog Bar Graph 46
Input Protection √
Input Impedance for DCV Around 10MΩ √
General Characteristics
Power 9V Battery (6F22) (not included)
LCD Size 65mm X 43mm
Product Color Red and grey
Product Net Weight 370g

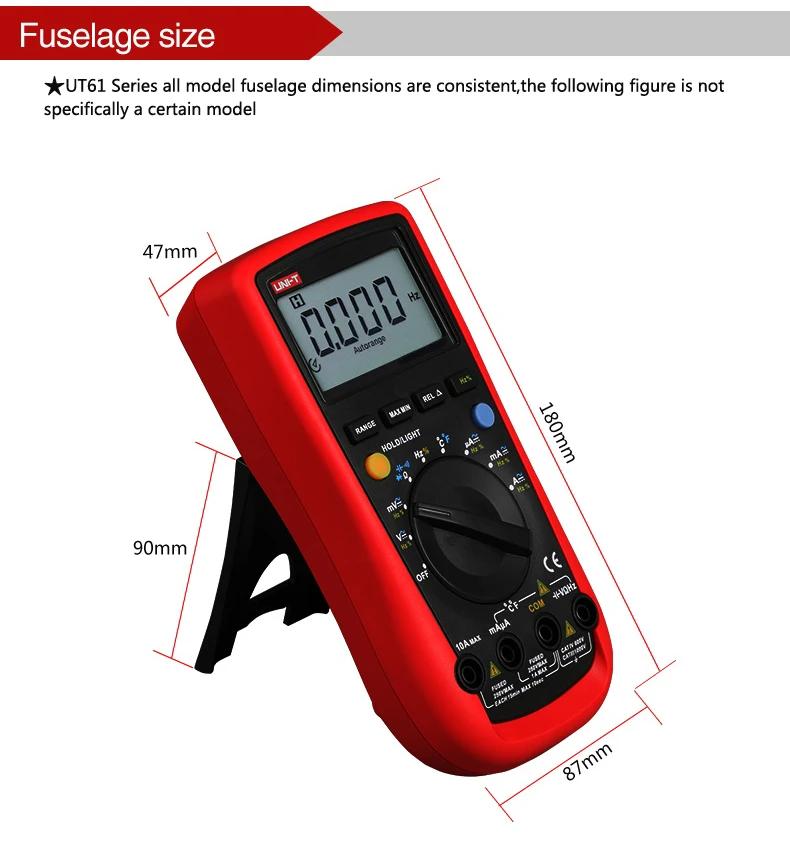

Product Size 180mm X 87mm X 47mm

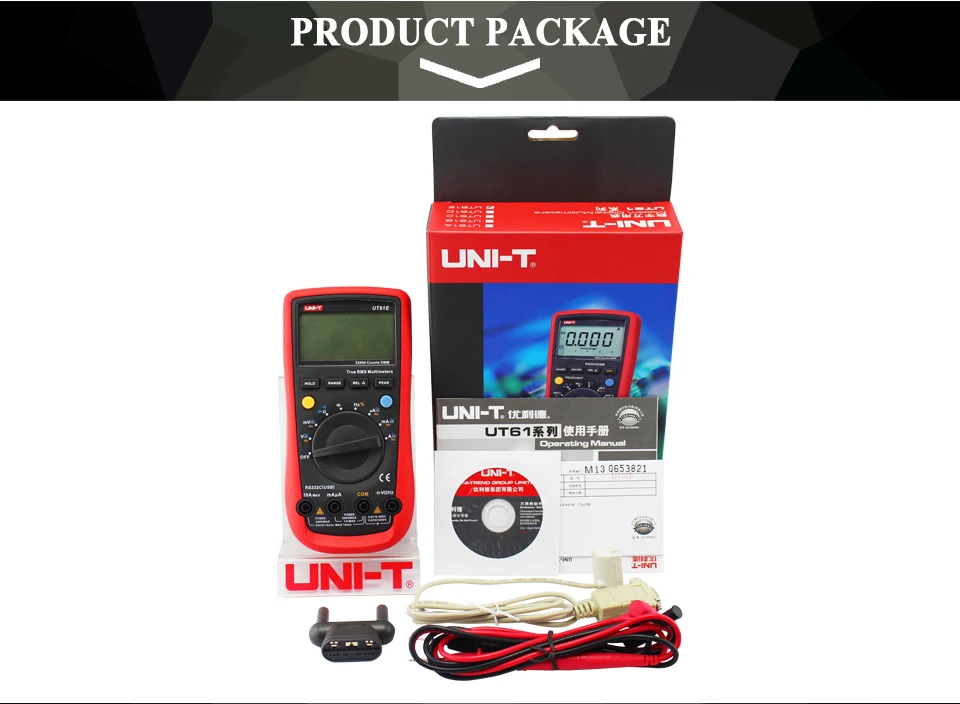

Standard Accessories Battery (if shipping from Russian inludes, from China not included), Test Lead, Multi-Purpose Socket, RS-232 Interface Cable,
Standard Individual Packing Gift Box, English Manual
Note: If shipping from China, shipping company not allow to carry battery,so battery is not included
Please note: Batteries and CD are not included in the product.
-
