Product Summary

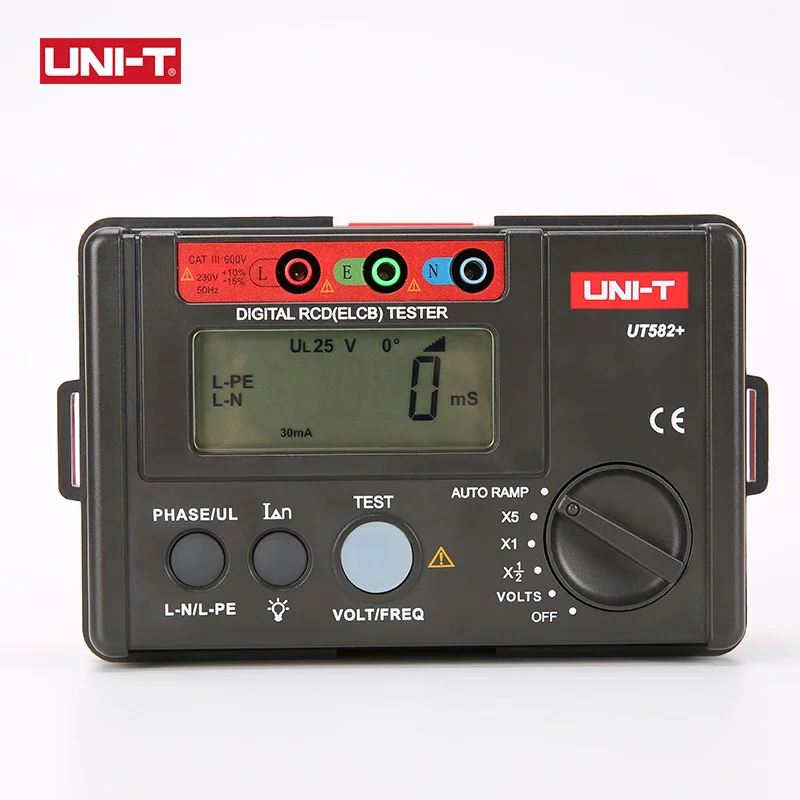

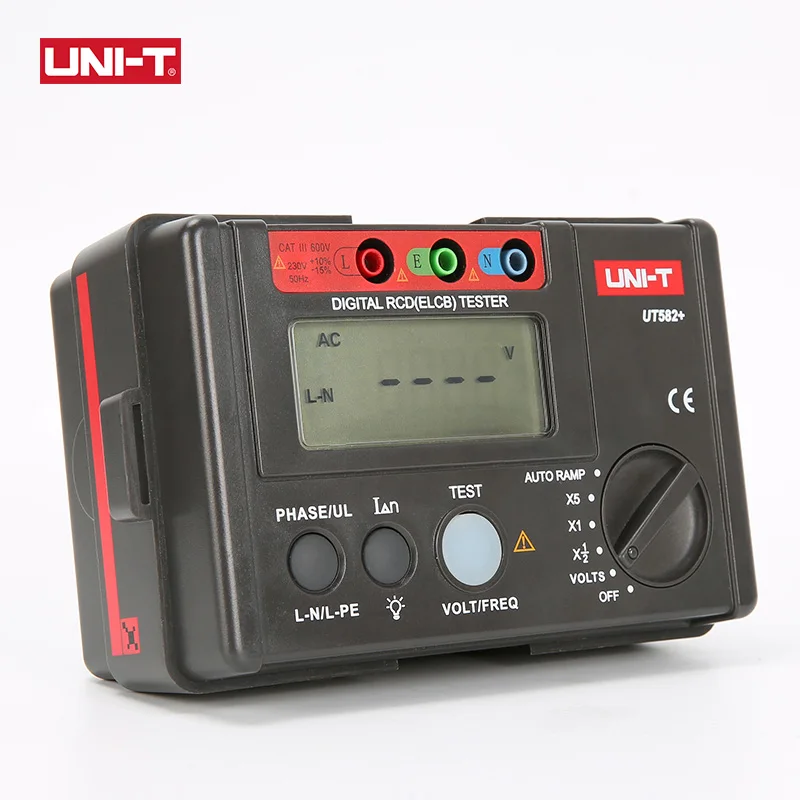

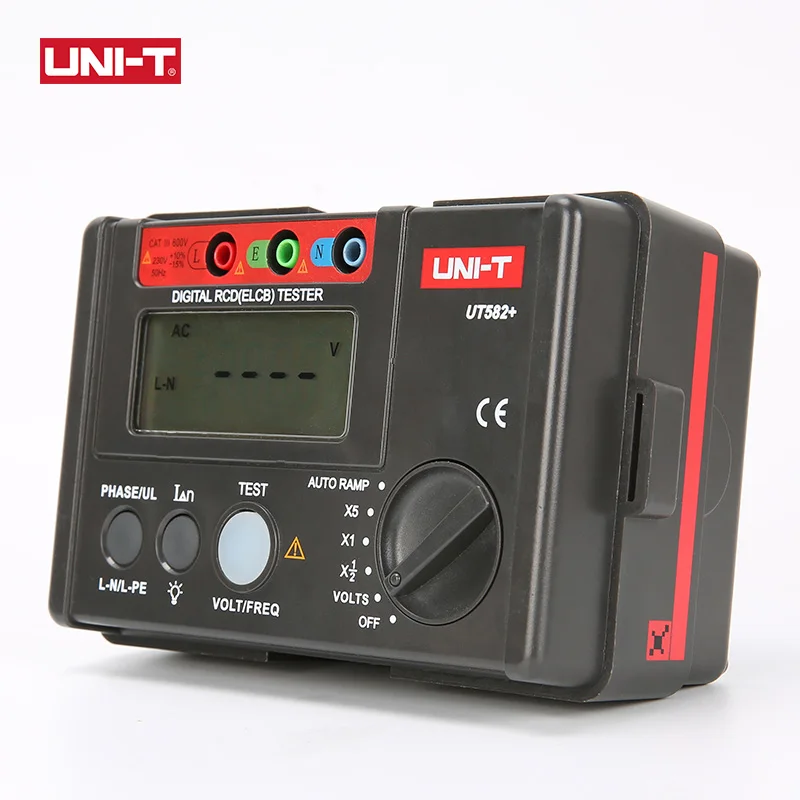

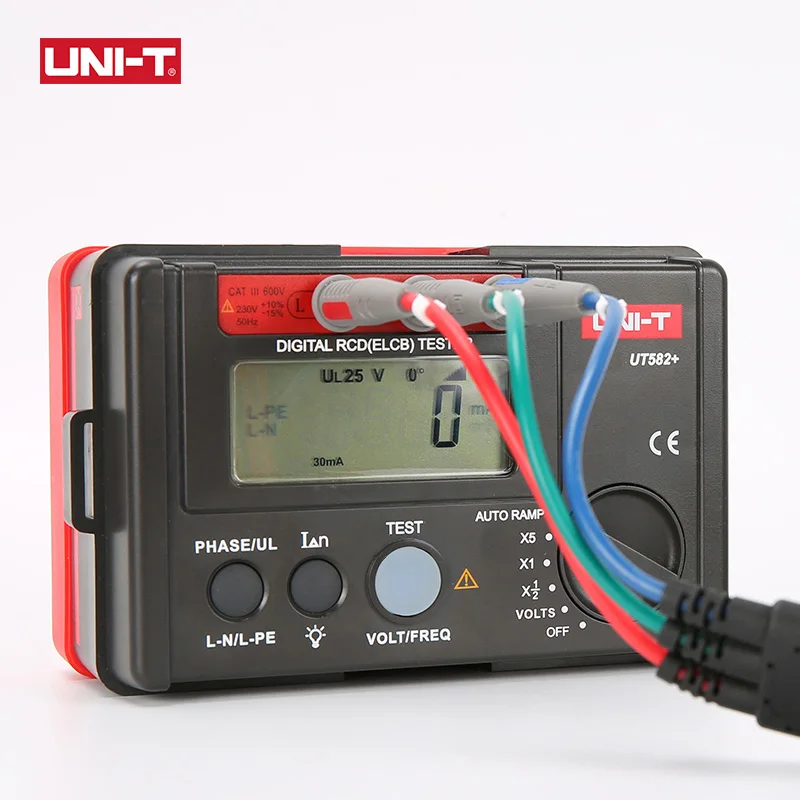

UNI-T UT582+ Digital RCD (ELCB) Tester AUTO RAMP Leakage Circuit Breaker Meter with is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
UT582+ is mainly used to detect whether the RCD in the circuit canbe triggered normally. It is only suitable for single-phase circuitswith the supply voltage range of 195V-253V. Its voltage measurementrange is 30V-600V, 45Hz -65Hz.
Specifications |
Range |
Accuracy |
||
RCD measurement |
Range setting |
Rated operating current |
Trip time |
|
X 1/2 |
10mA/20mA/30mA/100mA/300mA/500mA |
2000ms |
-10%-0% |
|
X 1 |
10mA/20mA/30mA/100mA/300mA |
1000ms |
0%-10% |
|
500mA |
300ms |
0%-10% |
||
X 5 |
10mA/20mA/30mA |
40ms |
0%-10% |
|
AUTO RAMP |
10mA/20mA/30mA/100mA/300mA/500mA |
300ms |
-10%-10% |
|
Trip time accuracy |
±(2%+2) |
|||
Operating voltage (Freq.) |
195V-253V |
|||
Voltage measurement |
Voltage range |
30-600V |
||
Frequency |
45Hz-65Hz |
|||
Resolution |
1V |
|||
Accuracy |
±(3%+3) |
|||
Features | ||||
Display count |
999 |
|||
Power off gear |
√ |
|||
Low battery indication |
<7.2V |
|||
APO |
Auto power off fuction |
|||
LCD backlight |
√ |
|||
Data hold |
√ |
|||
Phase angle selection |
0 deg and 180 deg |
|||
Connections check |
Simultaneously test the trip time and trip current |
|||
AUTO RAMP |
√ |
|||
Disconnect buzzer |
√ |
|||
Over-range display |
OL |
|||
Fused |
√ |
|||
Mis-operation buzzer |
√ |
|||
Power off buzzer |
√ |
|||
Full icon display |
√ |
|||
Compliance standard |
IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2 |
|||
Lead sequence check |
LCD |
|||
General Characterisitics | ||||
Power |
1.5V battery (LR6) x 6 |
|||
Display |
71mm x 34mm |
|||
Product color |
Red and grey |
|||
Product net weight |
400g |
|||
Product size |
160mm x 100mm x 71mm |
|||
Notice please: battery no include!
