UNI-T UT219PV Clamp Meter Bluetooth Digital 1500V 2500V Multimeter Pliers Ammeter Voltmeter PEAK LPF Photovoltaic Multi Tester
The UT219PV photovoltaic dedicated AC/DC clamp meter is designed specifically for high-voltage testing in the photovoltaic industry. It is the first true effective value clamp meter from Unitech that meets the CAT III 1500V safety level and IP54 protection level. It integrates multiple measurement functions and is suitable for high-voltage environments such as installation, operation, and maintenance of photovoltaic power plants.
The UT219PV clamp meter can not only measure 1500V AC voltage and 2500V DC voltage, but also meet the DC power measurement requirements of 2500kVA. Its measurement function of 1000A AC and DC current enables it to easily meet the common current measurement needs in photovoltaic systems; By combining with UT-CS09D flexible current clamp, the AC current measurement range can be extended to 3000A. At the same time, the clamp meter also has LPF low-pass filtering function, which can measure parameters such as voltage, current, and frequency output by the frequency converter. In addition, the product also has functions such as surge current, peak current, resistance, capacitance, diode, on/off, DC millivolt, and contact temperature measurement, which can better meet the measurement needs of different users.

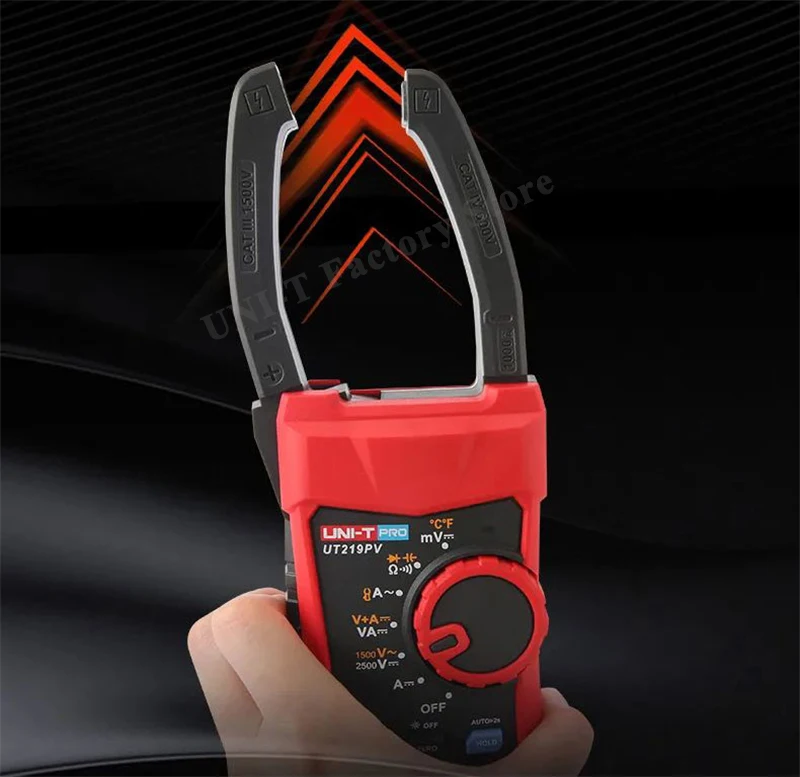

Another highlight of UT219PV is the use of a 35mm narrow edged pointed nose clamp head design, which makes it easy to measure in dense and narrow wiring spaces such as inverters and combiner boxes, solving the problem of current clamps not being able to extend into crowded and narrow spaces. The combination of 999 sets of data storage function and Bluetooth wireless data transmission function means that users can store a large amount of data locally and transmit it to their mobile phones through the Youlide Intelligent Test Bluetooth APP... All of these make UT219PV not only an ideal choice for high-voltage environments such as photovoltaic power plant installation, operation and maintenance, but also widely applicable to other high-voltage scenarios, such as energy storage systems UPS uninterrupted power supply and large motors, etc.
UT219PV photovoltaic dedicated AC/DC clamp meter (New Arrivals!)
UT219PV is a true RMS photovoltaic dedicated AC/DC clamp meter (hereinafter referred to as clamp meter) designed specifically for photovoltaic high-voltage environments. It has a fully functional automatic range, with a display digit of 9999, and superior performance. It can measure various parameters such as AC/DC voltage, AC/DC current, low-pass filter voltage/current, surge current, peak current, DC power external flexible clamp, resistance, circuit on/off, diode, capacitance, and temperature. In addition, the clamp watch is also equipped with data storage function and Bluetooth function, which can achieve remote data observation and control by connecting to the mobile app "Unitech Smart Test". For solar photovoltaic installation technicians and maintenance personnel, it is an ideal maintenance instrument. In addition to being used in photovoltaic scenarios, clamp meters are also suitable for other high-voltage scenarios, such as energy storage systems, UPS uninterruptible power supplies, and large motors.
Main features of UT219PV
* Measure the DC voltage of 2500V, DC current of 1000A, and DC power of 2500kVA.
* Measure AC voltage of 1500V and AC current of 1000A, and measure AC current of up to 3000A with an external clamp.
* Bluetooth transmission function, which can be connected to mobile apps for remote data observation and instrument control.
* AC voltage and AC current have low pass filtering (LPF) measurement function.
* AC current surge and peak (PEAK) measurement function.
* One screen dual display function, displaying voltage/frequency, current/frequency, DC voltage/current, and DC power/current simultaneously.
* Temperature measurement function (dual display of Celsius/Fahrenheit temperature)
* 999 sets of data storage functions.
* Flexible current probes can be attached externally.
* Multi functional full range anti burn, capable of withstanding up to 1500Vrms/DC2500V voltage surges, and equipped with overvoltage and overcurrent alarm prompts.
* IP54 protection level, especially suitable for outdoor operations of solar photovoltaic arrays and wind energy systems.
* 35mm narrow edged pointed mouth pliers for easy measurement in densely wired areas, and suitable for measuring inverters/combiner copper bars, etc
