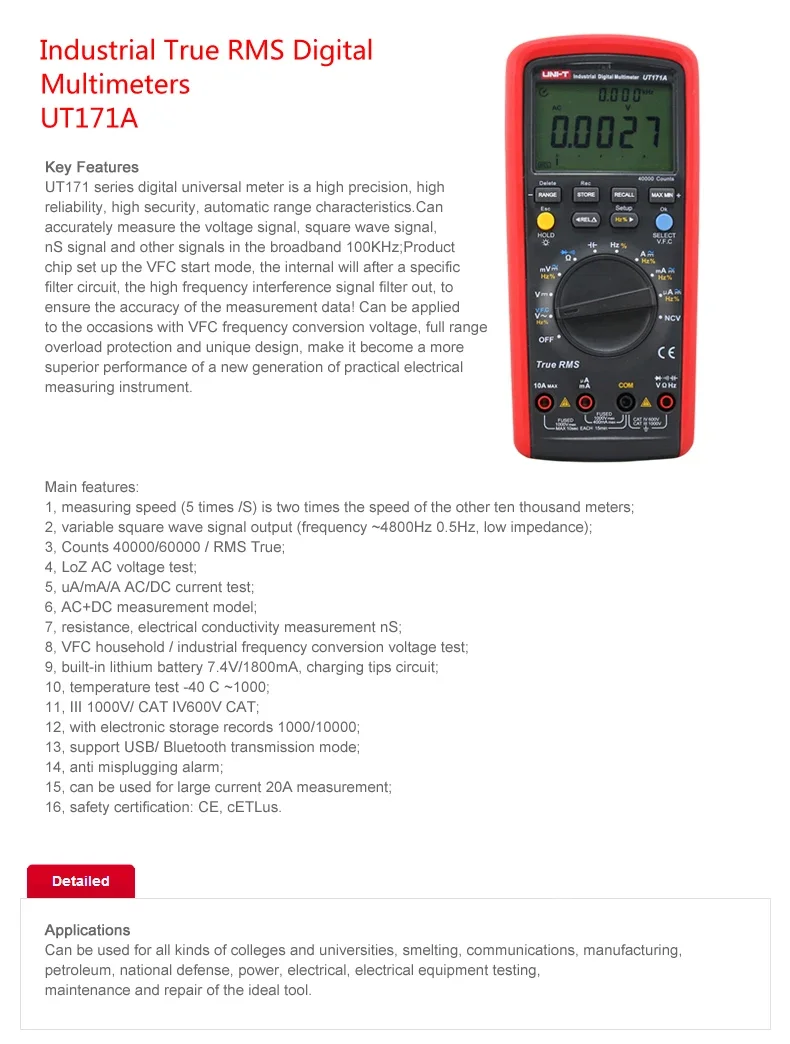

UT171A is industrial grade multimeter used by professionals. Its built-in square wave output is useful for troubleshooting industrial control signals. Its LoZ (ACV) feature can be used to identify residual (ghost) voltage in large capacitors.
Feature
1.5 times/S measuring speed ,two times the speed of the other ten thousand meters
2.Variable square wave signal output (frequency -4800Hz 0.5Hz low impedance)
3.Counts 40000/60000 RMS true
3.LoZ AC voltage test
5.uA/mA/A AC/DC current test
6.AC DC measurement model
7.Resistance, electrical conductivity measurement Ns
8.VFC household /industrial frequency conversion voltage test
9.built-in battery 7.4V/1800mA
10.-40 centigrade -1000 centigrade
11. III 1000V/CAT IV600V CAT
12.with electronic storage records 1000/10000

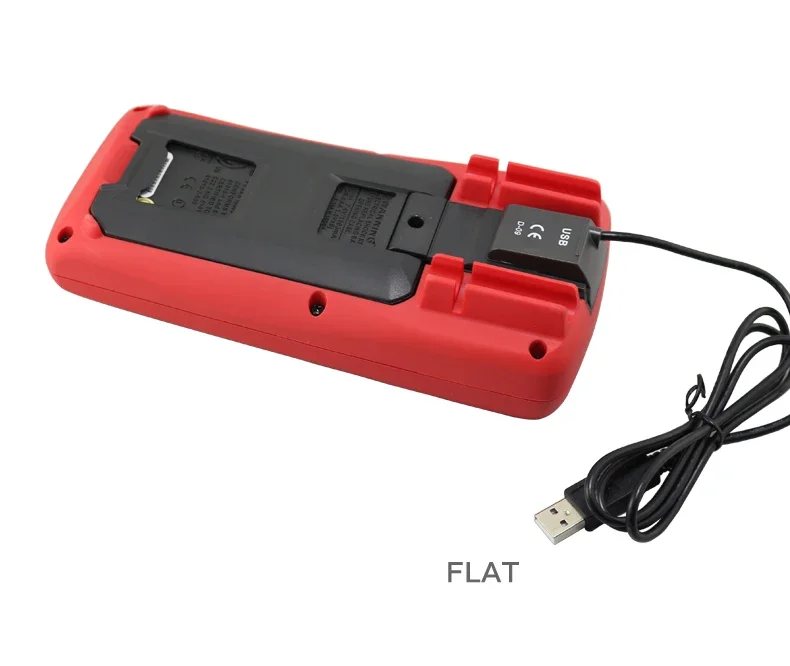

13.support USB/Bluetooth transmission mode
14.Anti misplugging alarm
15.can be used for large current 20A measurement
16. Safty certification CE cETLus
