Product Summary
UNI-T UT161B UT161E UT161D Smart Digital Multimeter Profesional Tester True RMS CE Voltmeter is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

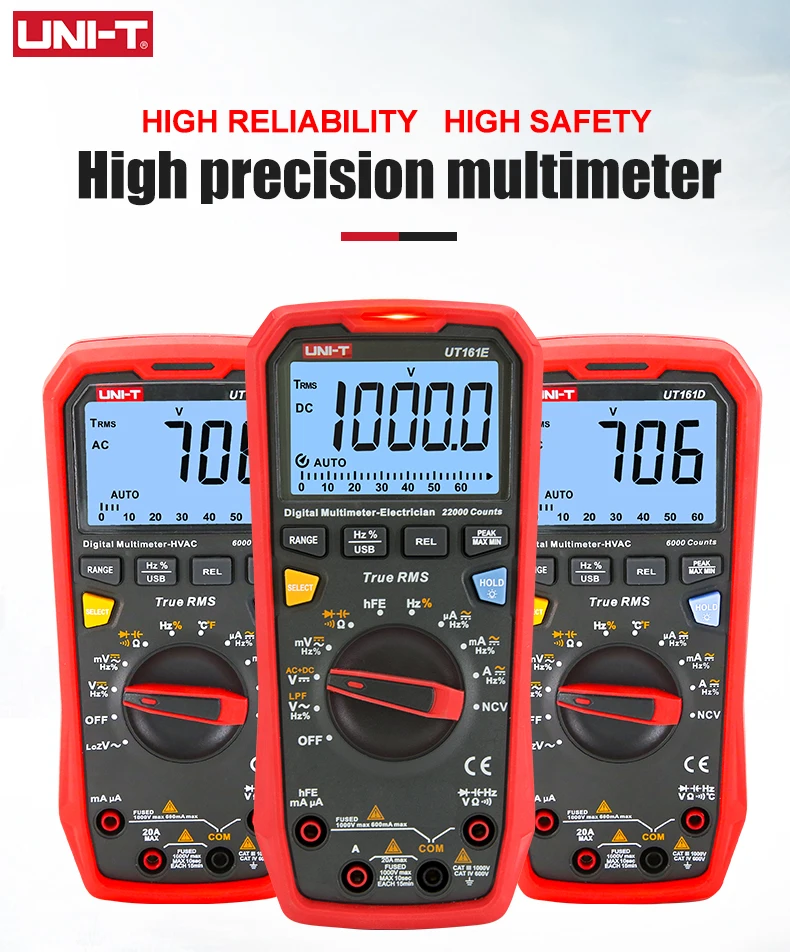

UT161B 1000V True RMS Digital Multimeter
UT161 series are reliable true RMS digital multimeters with display counts 6000 (UT161B/D) and 22,000 (UT161E). It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Features:

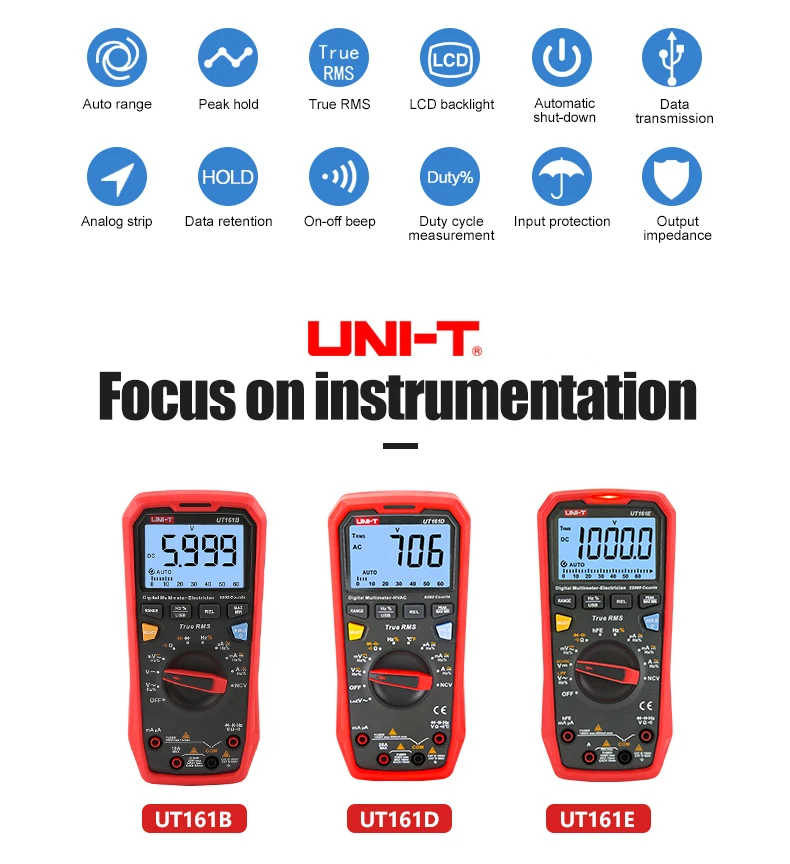

● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
Notice please: battery no include!

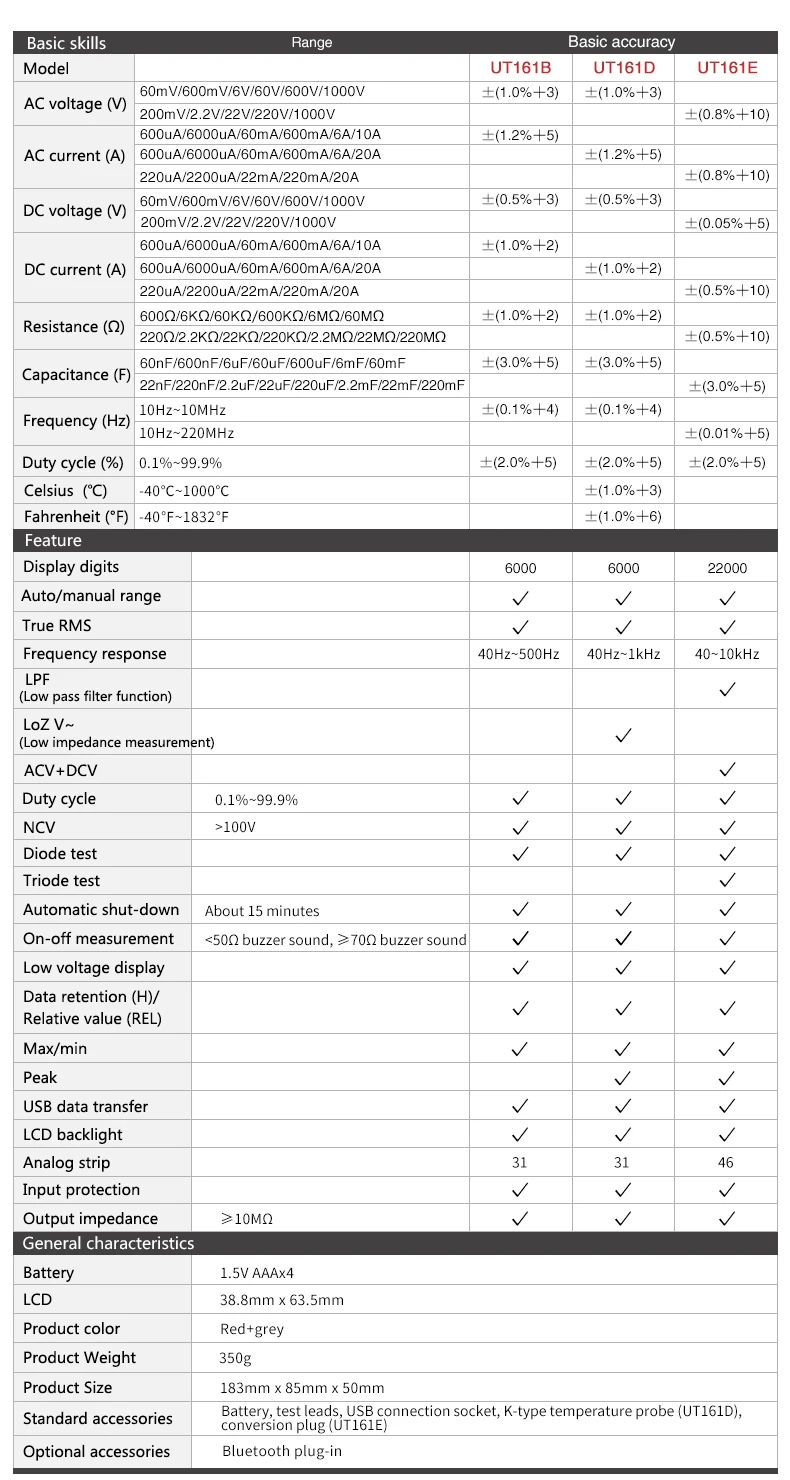

Specifications |
Range |
UT161B |
UT161D |
UT161E |
Certifications |
CE/RoHS/cETLus |
|||
Safety |
CAT III |
|||
AC |
1000V |
±(1%+3) |
±(1%+3) |
±(0.8%+10) |
DC |
1000V |
±(0.5%+3) |
±(0.5%+3) |
±(0.05%+5) |
AC |
10A |
±(1.2%+5) |
||
20A |
±(1.2%+5) |
±(0.8%+10) |
||
DC |
10A |
±(1%+2) |
||
20A |
±(1%+2) |
±(0.5%+10) |
||
Resistance |
60M ohm |
±(1%+2) |
±(1%+2) |
|
220M ohm |
±(0.5%+10) |
|||
Capacitance |
60mF |
±(3%+5) |
±(3%+5) |
|
220mF |
±(3%+5) |
|||
Frequency |
10MHz |
±(0.1%+4) |
±(0.1%+4) |
|
220MHz |
±(0.01%+5) |
|||
Duty |
0.1%-99.9% |
±(2%+5) |
±(2%+5) |
±(2%+5) |
Temperature |
-40 deg C-1000 deg C |
±(1%+3) |
||
-40 deg F-1832 deg F |
±(1%+6) |
|||
Display |
6000 |
6000 |
22000 |
|
Bandwidth |
40Hz-500Hz |
40Hz-1kHz |
40-10kHz |
|
LPF |
√ |
|||
LoZ |
√ |
|||
ACV+DCV |
√ |
|||
Transistor |
√ |
|||
Peak |
√ |
√ |
||
Analog |
31 |
31 |
46 |
|
General | ||||
Power |
1.5V |
|||
Product |
350g |
|||
Product |

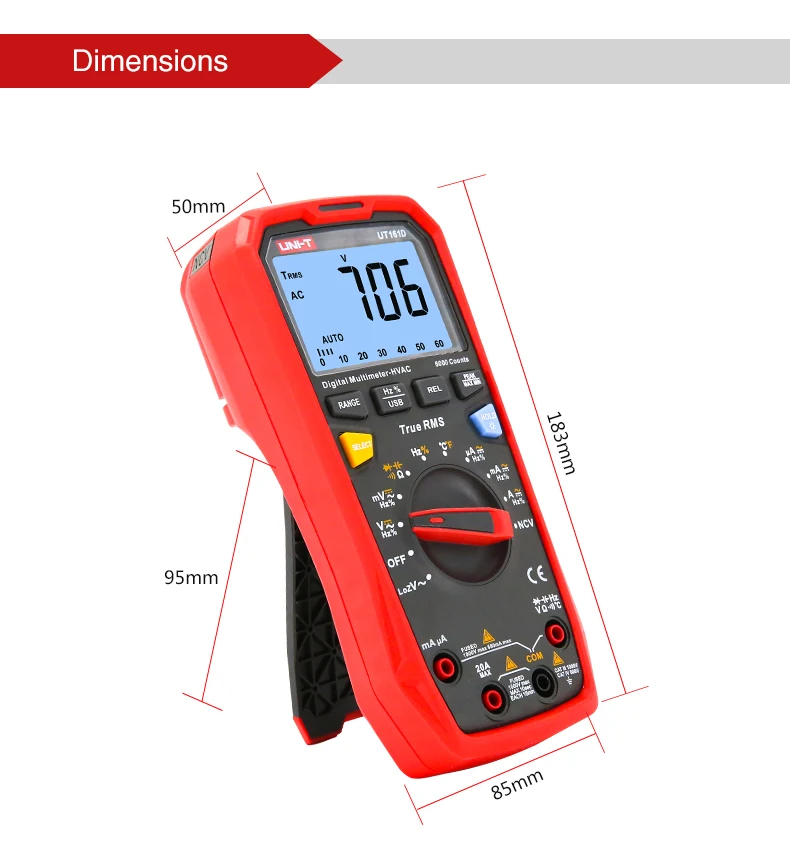

190mm x |
|||

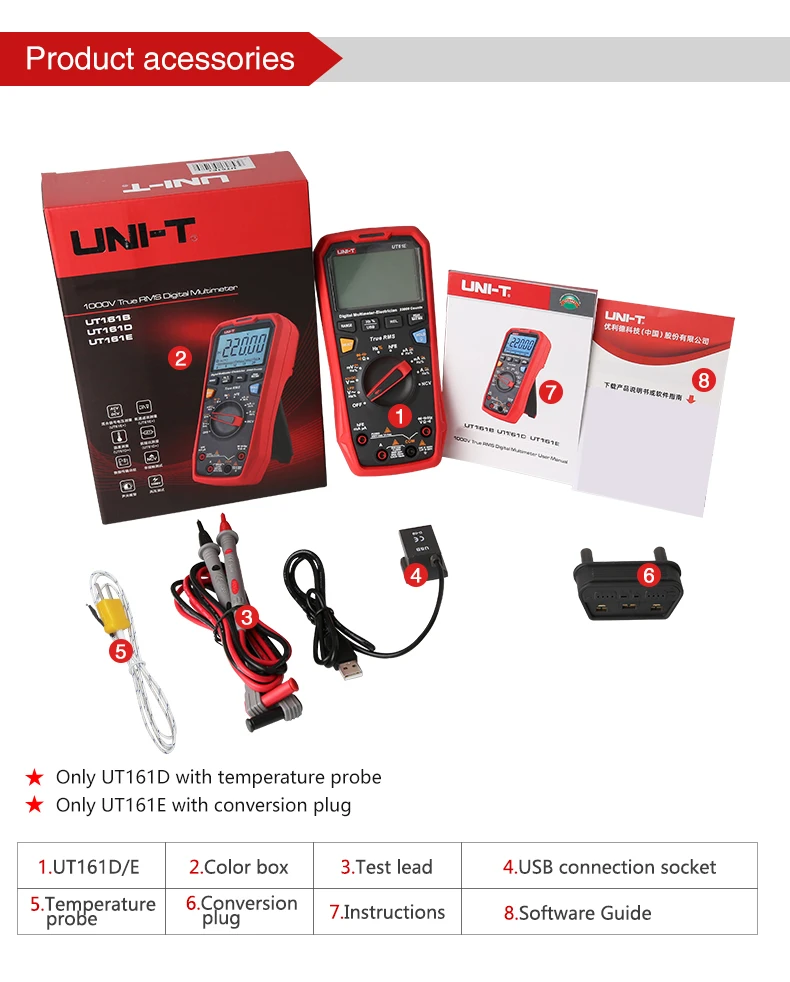

Standard |
Battery, |
|||
multi-purpose socket (UT161E), English manual | ||||
Standard |
Gift box, |
|||
Optional |
Bluetooth/APP |
|||
