Product Summary
UNI-T Thermal Imager UTI32 High Temperature Thermal Imaging Camera Thermographic Camera is a thermal inspection tool selected for finding hot spots, checking heating patterns and troubleshooting faults. It is suitable for maintenance users, HVAC technicians and electronics repair users who need practical electronics hardware for reliable project work.
Best For
- finding hot spots, checking heating patterns and troubleshooting faults
- building inspection, PCB repair and equipment maintenance
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for maintenance users, HVAC technicians and electronics repair users.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

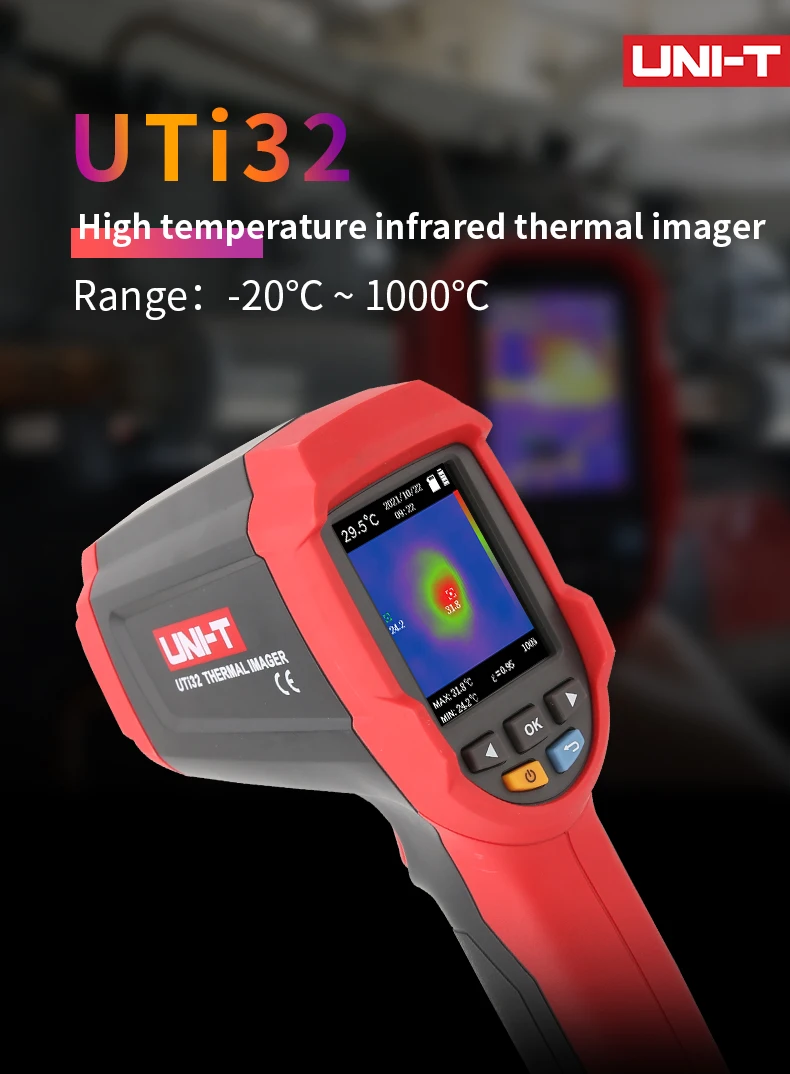

High Temperature Thermal Camera
UTi32 is a high temperature thermal camera that specially designed for higher temperature applications,such as: iron forging, glassware & porcelain production, petrochemical,metallurgy,etc. It can quickly detect the temperature from -20 deg C to 1000 deg C and auto tracking and alarm for hot/cold spot. UTi32 is a portable and lightweight thermal imager with 30000pixels digital camera, with three image modes: thermal, visual image,fusion and more than 7 hours battery operation time. It is an affordable and reliable tool for high temperature inspection.

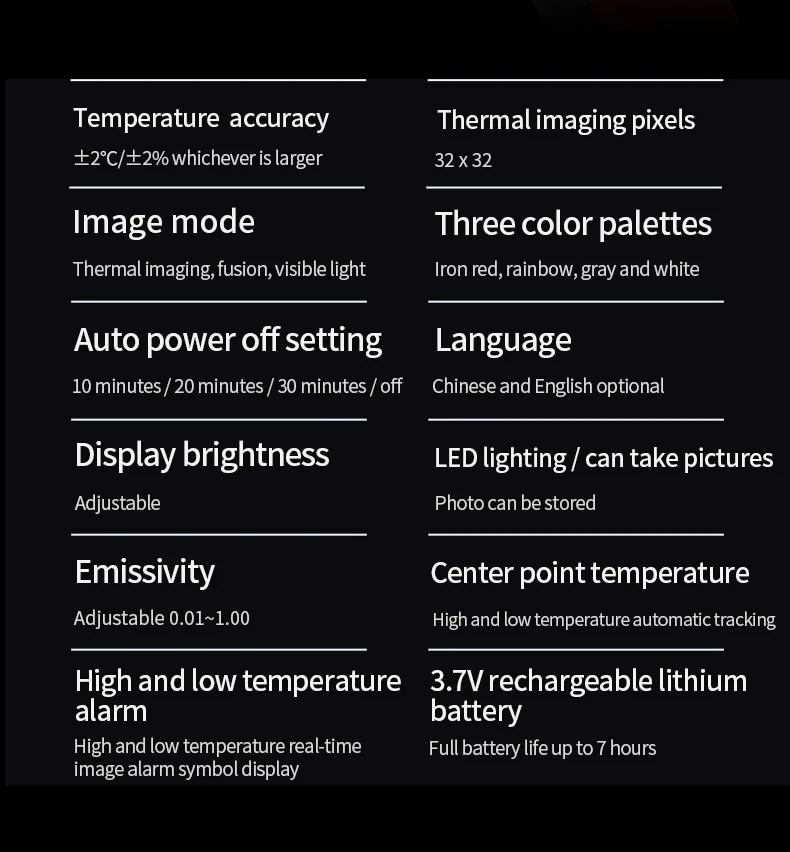

Features :
1.Temperature range: -20 deg C-1000 deg C / -4 deg F -1832 deg F
2. IR resolution: 32x32
3.Display: 2.4′′ IPS (480*320)
4.Digital camera resolution: 640x480

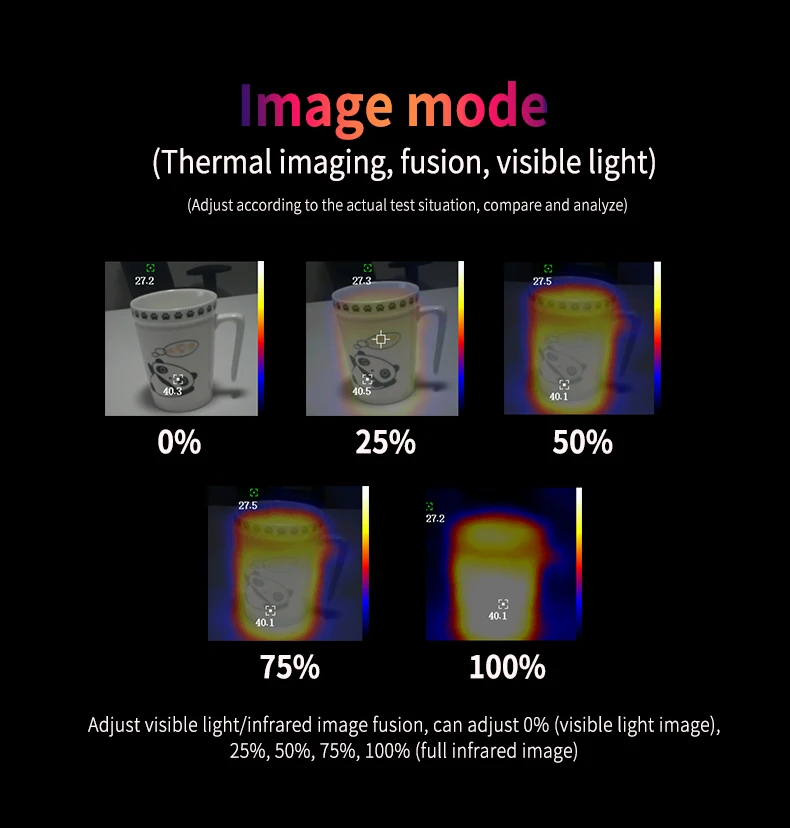

5.Image modes: Thermal,visual image,fusion

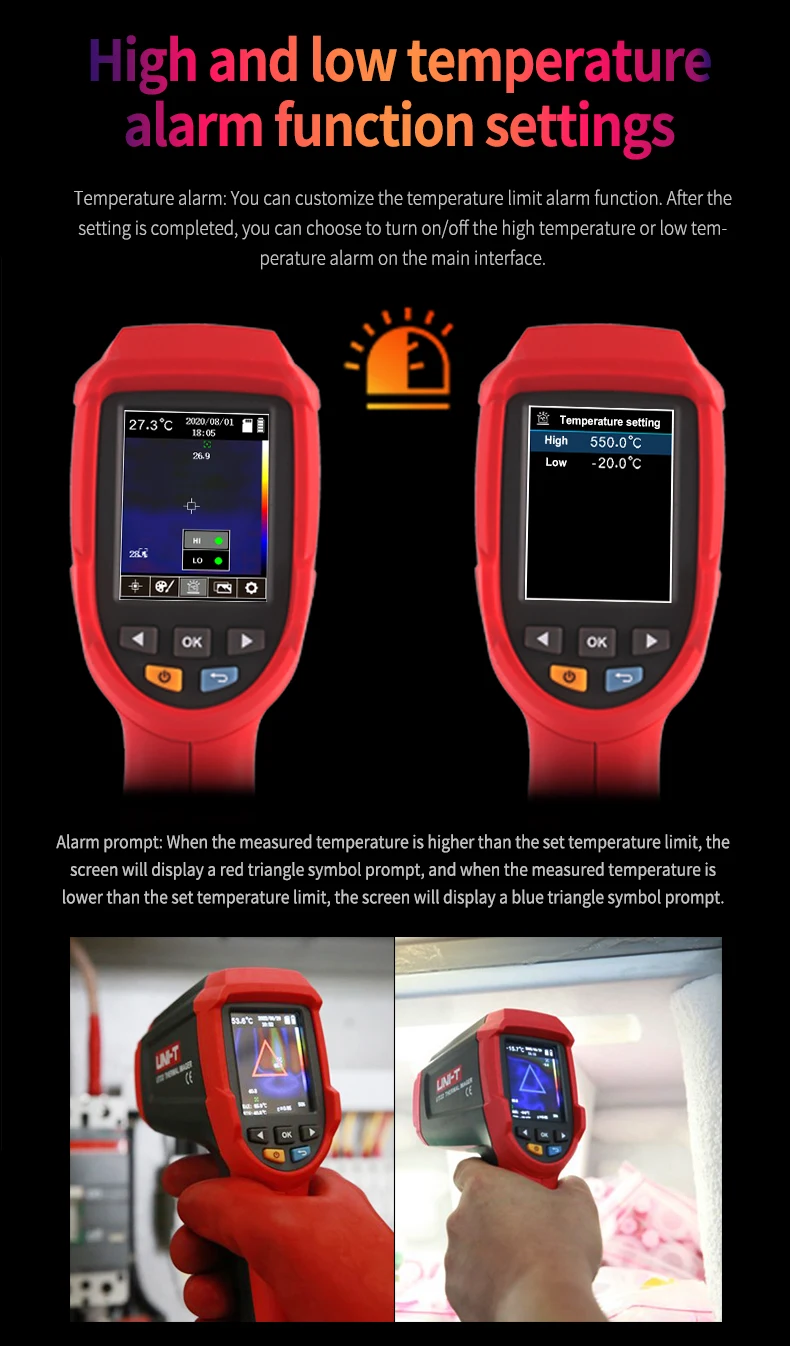

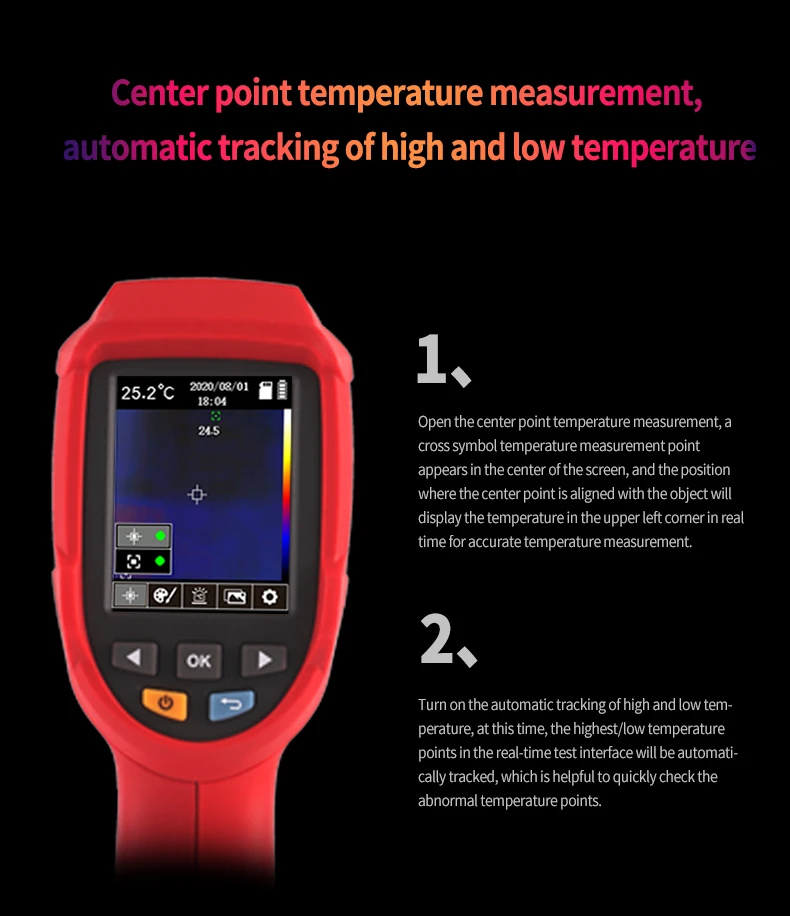

6.Auto tracking and alarm for high/low spots
7.Portable and lightweight
8.More than 7 hours battery operation time

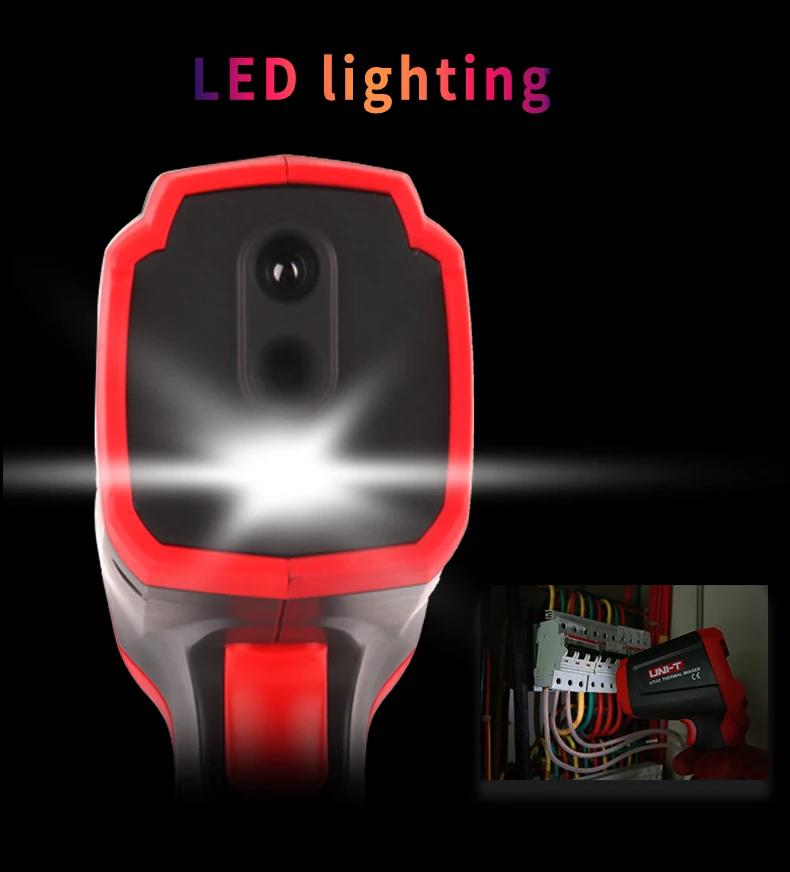

9.With LED light
Parameter

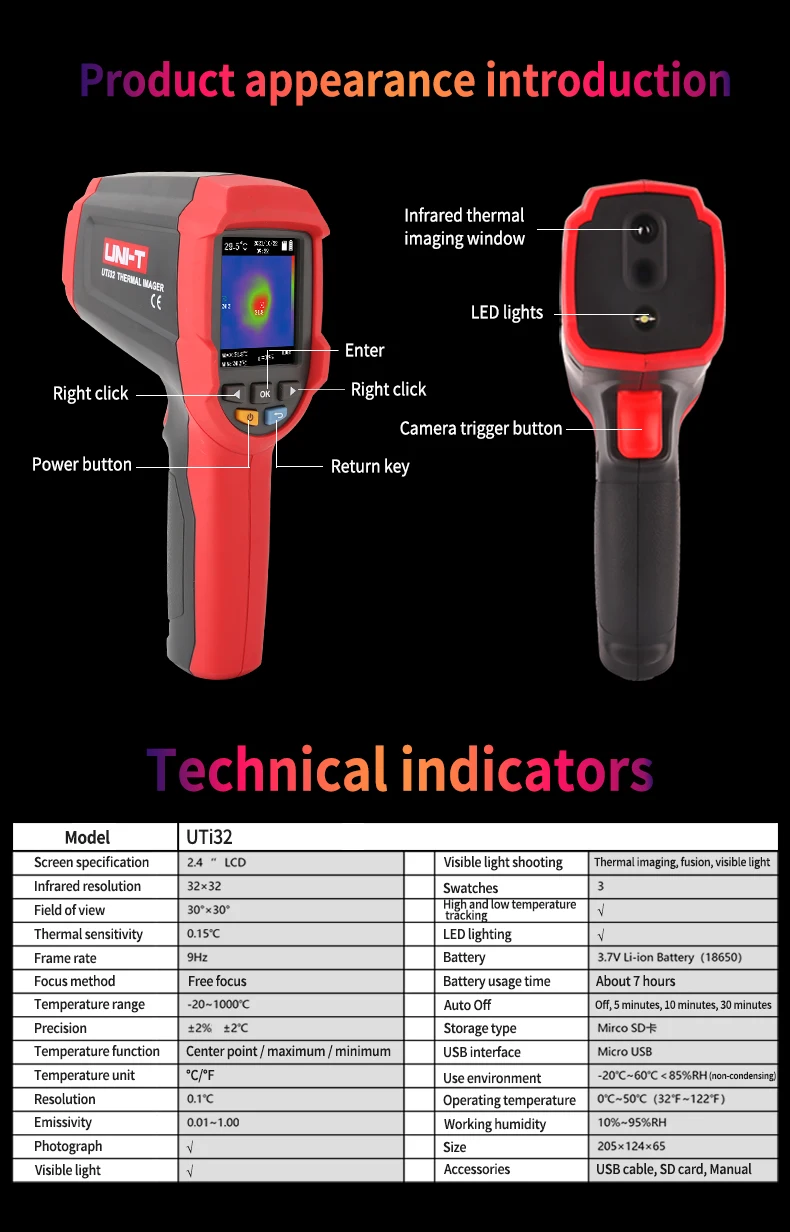

Technical Data | |
IR resolution(Pixels) |
32x32 |
Display |
2.4′′ IPS (480*320) |
Field of view(FOV) |
30 deg x30 deg |
Thermal sensitivity(NETD) |
0.15 deg C |
Frame rate |
≤9Hz |
Focus |
Focus free |
Temperature measurement range |
-20 deg C - 1000 deg C |
Accuracy |
±2 deg C or ±2% whichever is greater |

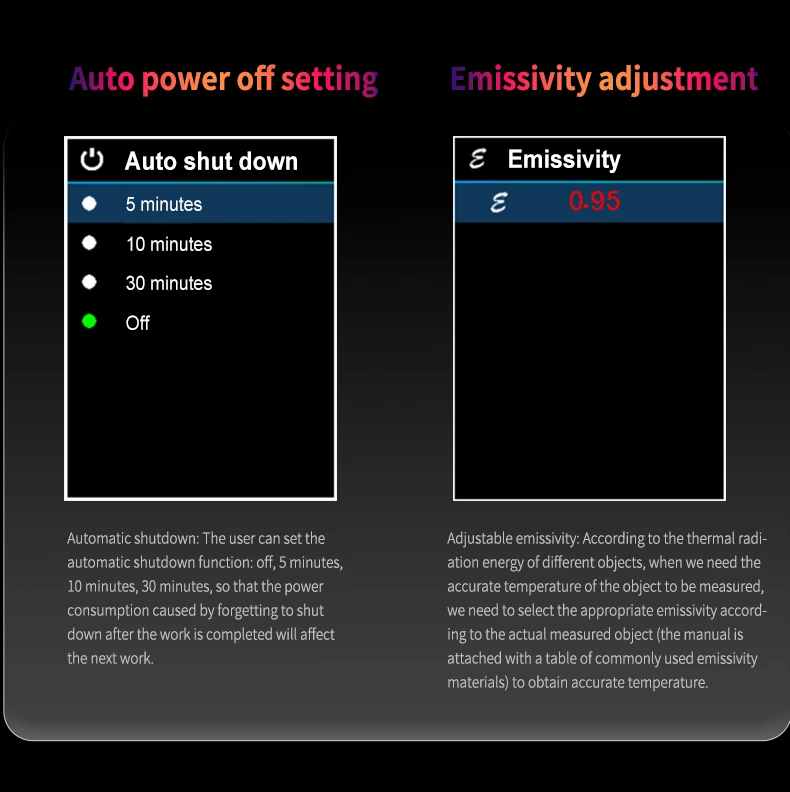

Emissivity |
0.01-1.00 adjustable(0.95 default) |

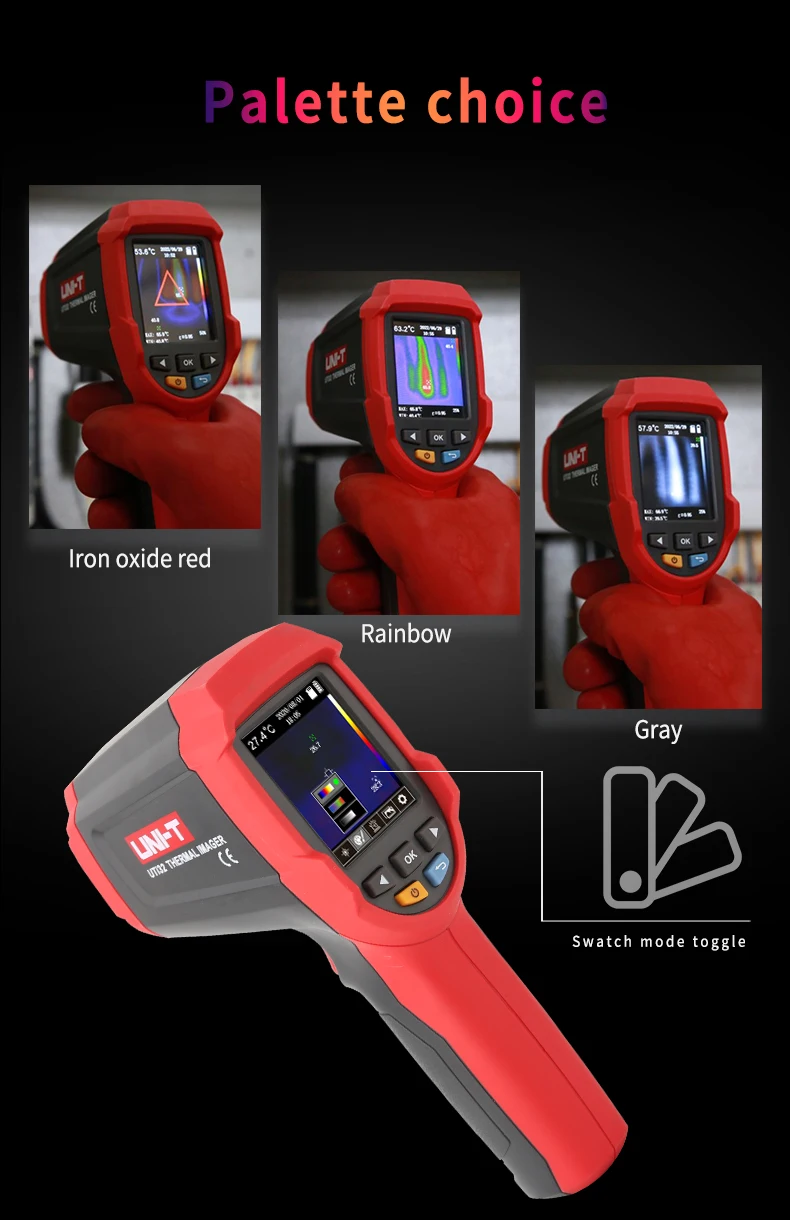

Functions Color palettes |
Ironbow, Rainbow,Black hot |
Image modes |
Thermal,Visualimage,Fusion |
Digital camera resolution |
300000 pixels |
Hi/Lo temperature alarm |
Icon |
General Characteristics | |

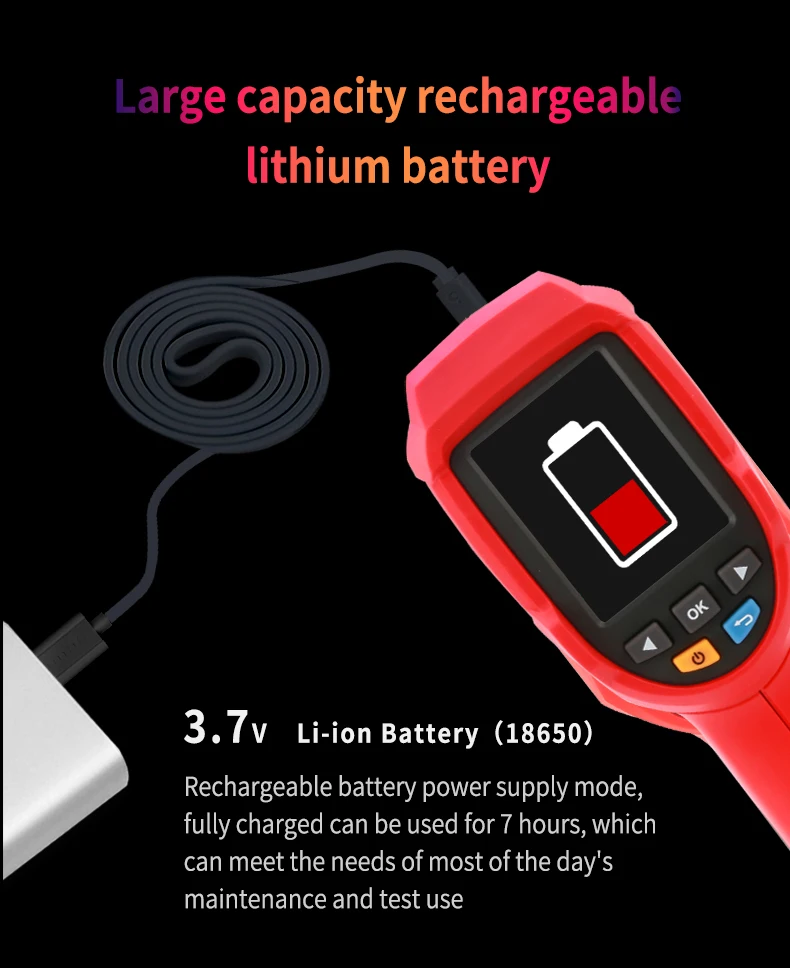

Battery |
Fixed Li-ion battery(3.7V 5000mAh) |
Battery operation time |
>7 hours |
USB |
Type-C |
Storage |
16G Mirco SD card |

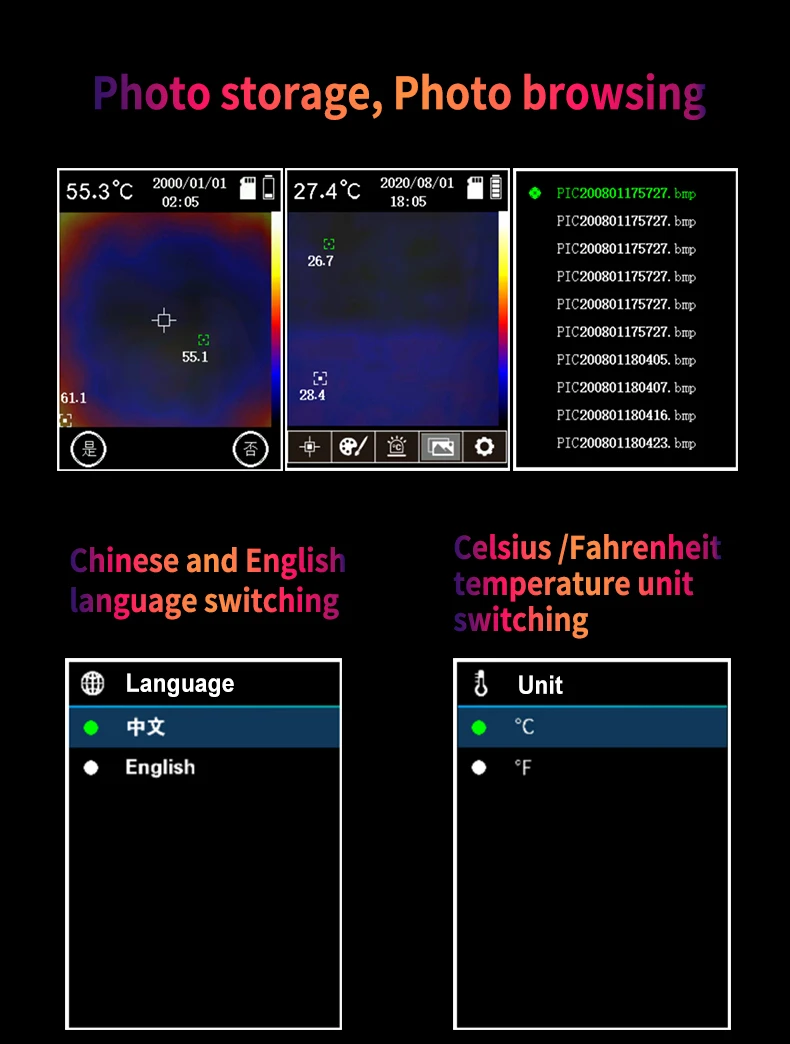

Image/Video storage format |
BMP |
Certificates |
CE,UKCA,FCC,RoHS |
Product net weight |
303.7g |
Product size |
205mmx124mmx65mm |
