Product Summary
UNI-T Digital Infrared Thermometer UT305C+ UT305A+ optical Temperature Meter Industrial Not is a specialized measurement tool selected for measuring task-specific environmental, physical or installation parameters. It is suitable for maintenance users, installers and technical inspection teams who need practical electronics hardware for reliable project work.
Best For
- measuring task-specific environmental, physical or installation parameters
- field inspection, equipment checks and maintenance workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for maintenance users, installers and technical inspection teams.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

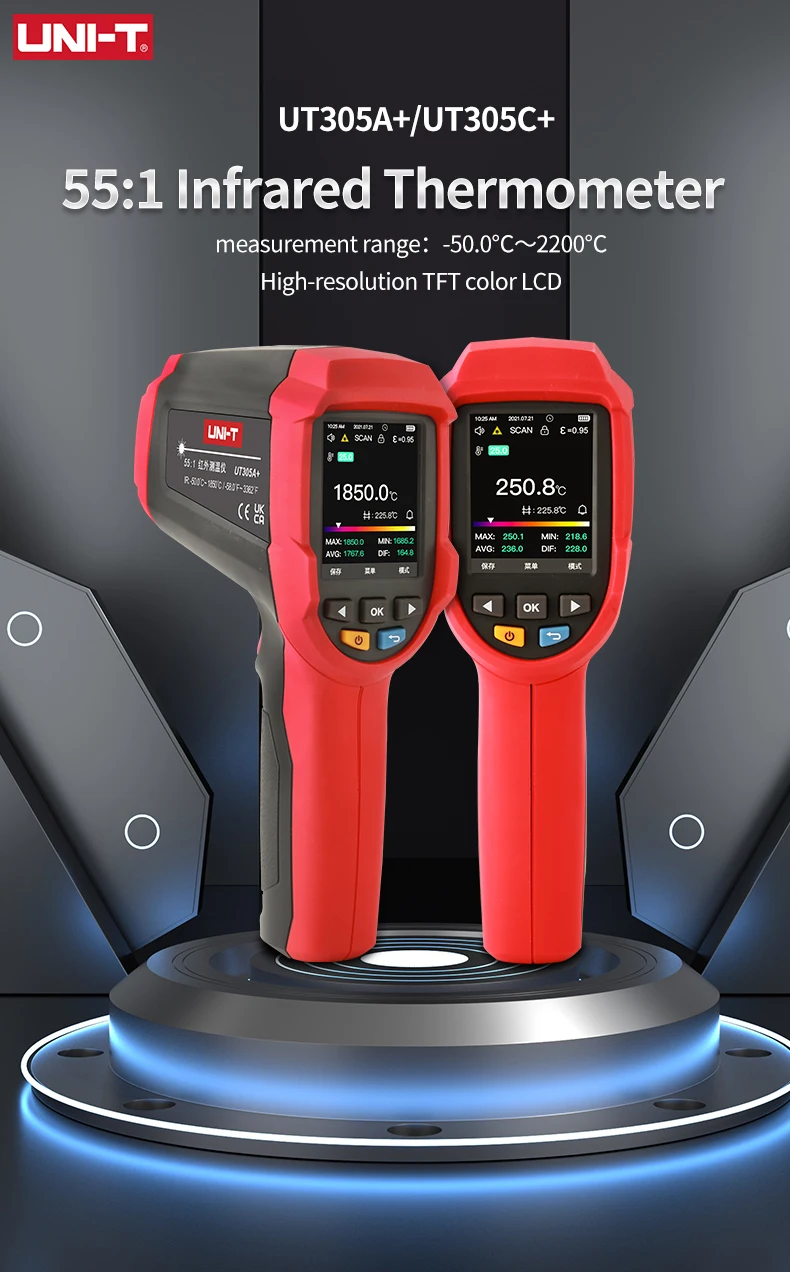

The UT305+ series is a high-precision, high-distance ratio (55:1), wide temperature range (-50 deg C- 2200 deg C) non-contact infrared thermometer. It can detect the thermal insulation performance of various types of equipment, and is suitable for furnace kilns, heat transfer pipes, building thermal bridge effect, cold storage, greenhouses, floor heating and other fields.

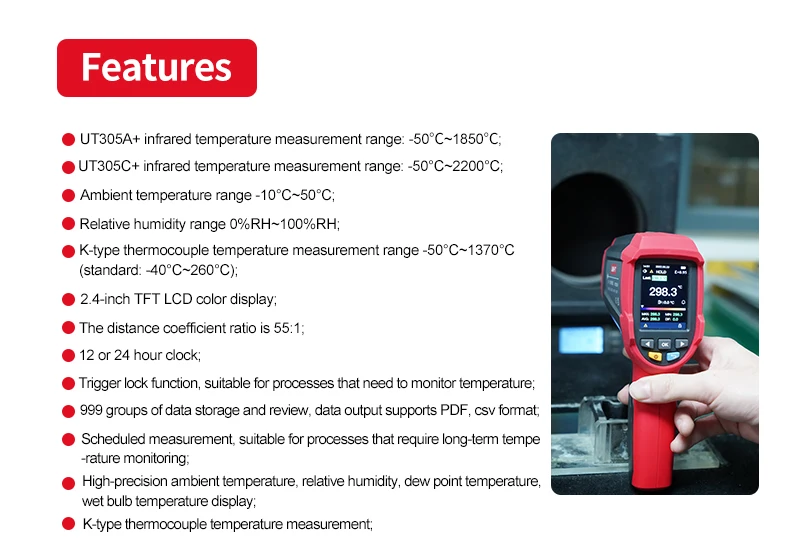

Features

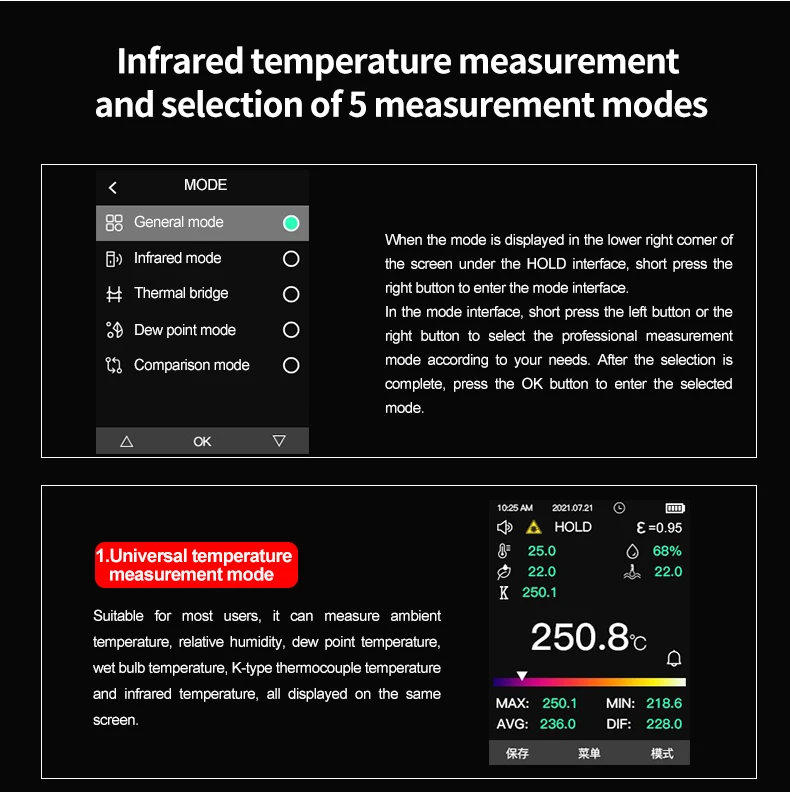

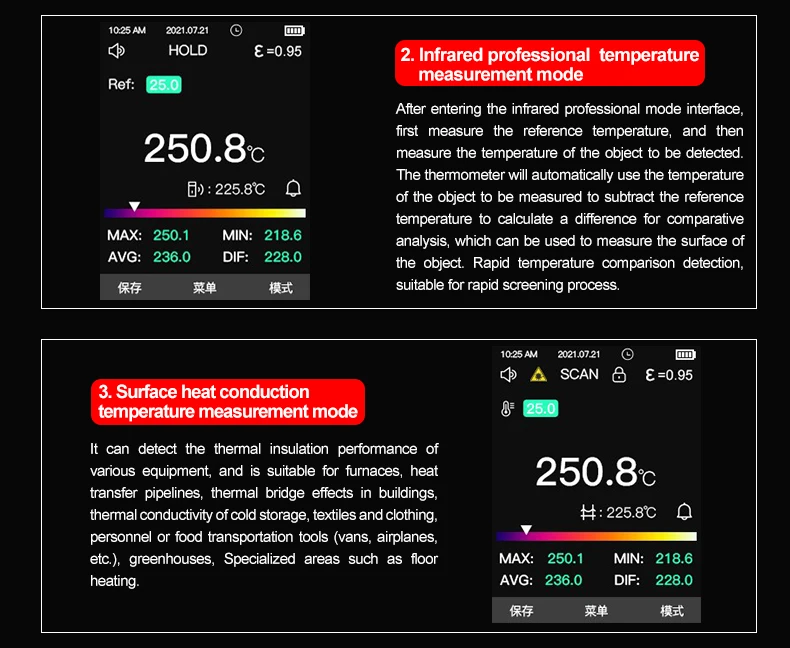

● Infrared professional mode
● Surface heat conduction detection mode

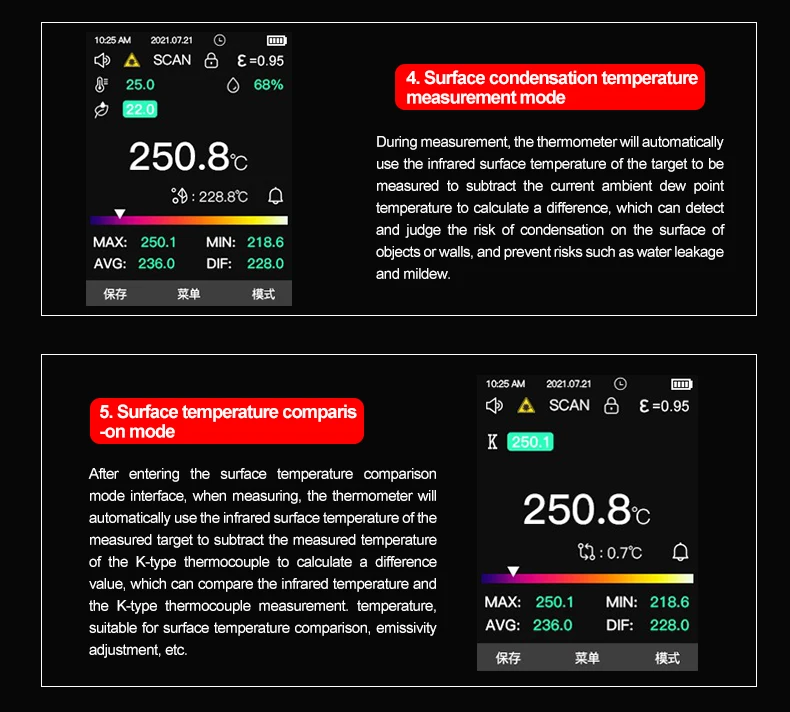

● Surface dew point detection mode
● Surface temperature comparison mode
● High resolution TFT color LCD

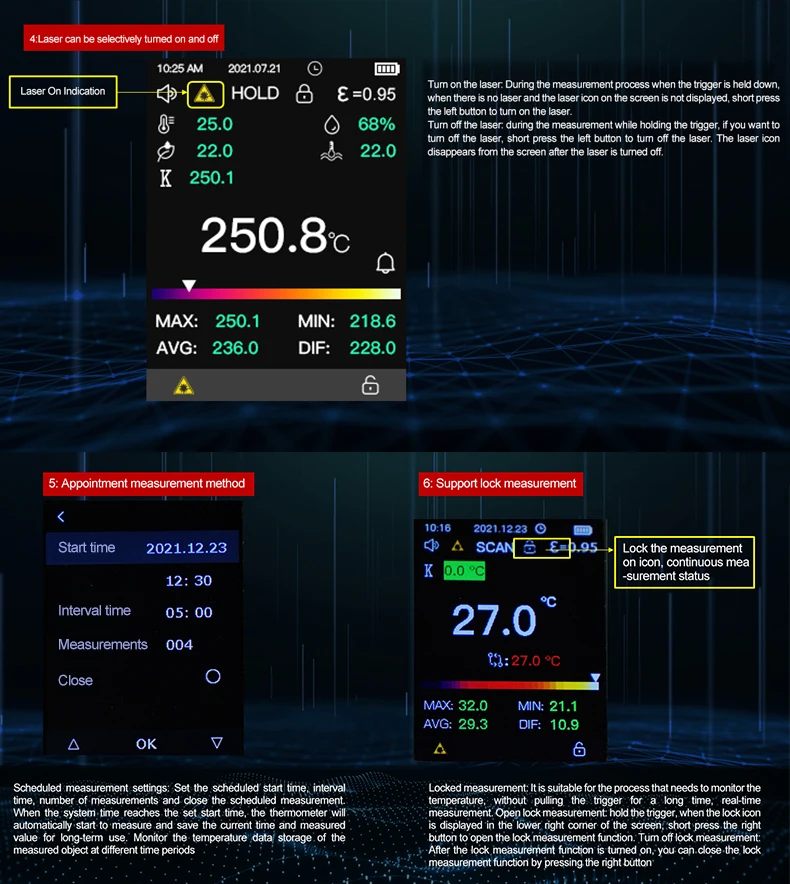

● Trigger lock function,Reservation measurement
● 999 groups of data storage, data output support PDF, CSV format
● High precision display of ambient temperature, relative humidity, dew point temperature and wet bulb temperature

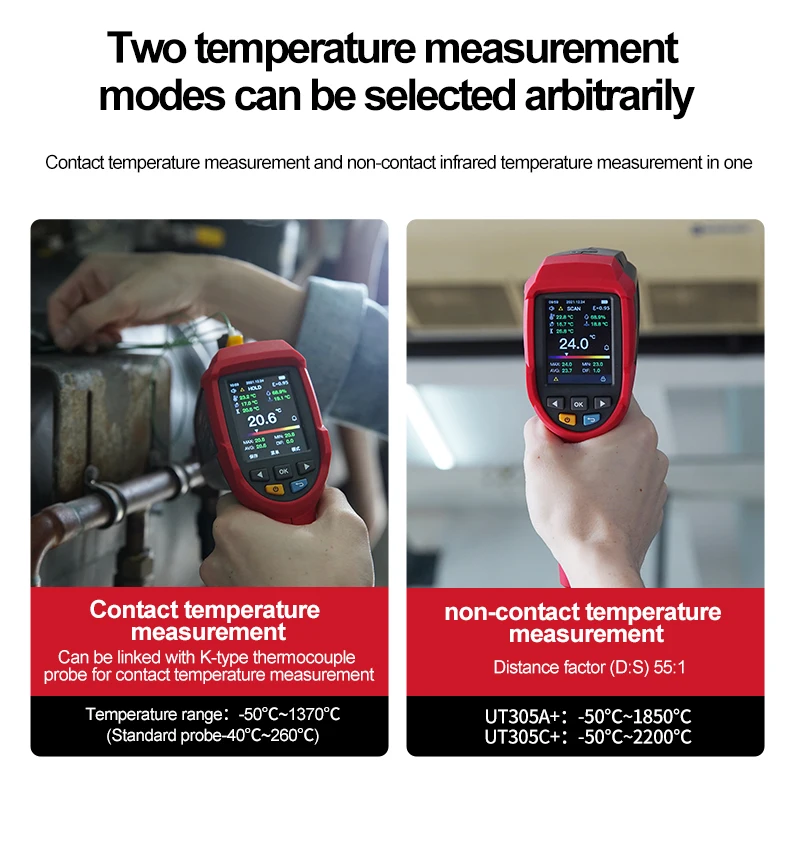

● Type K thermocouple temperature measurement

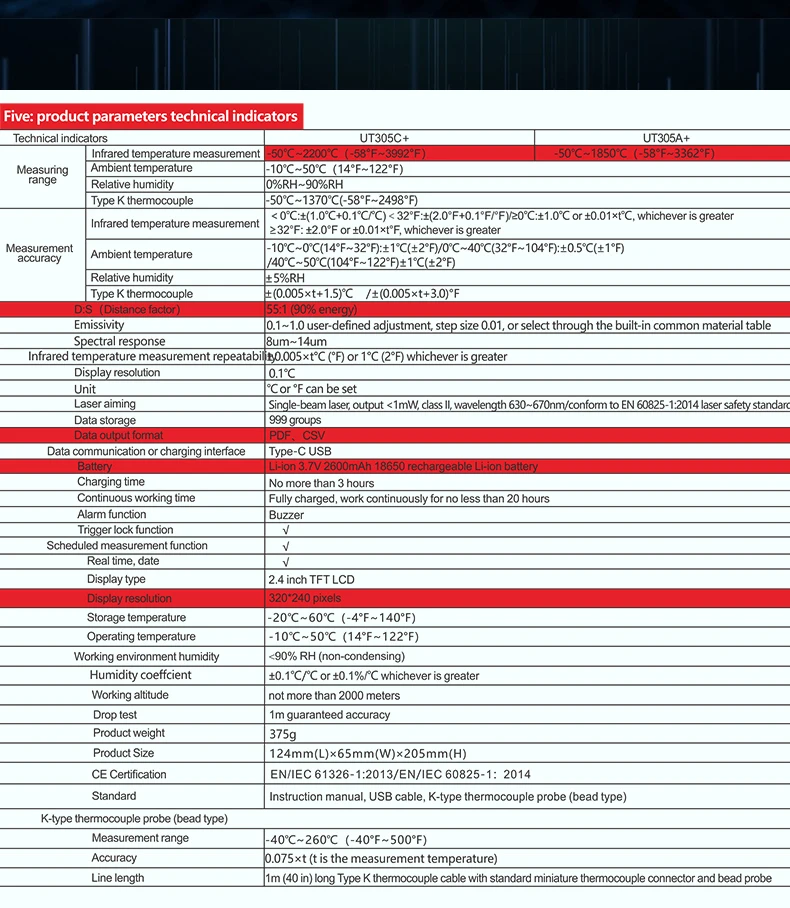

Parameter
Specifications |
UT305A+ |
UT305C+ |
|
Measurement |
Infrared temperature measurement |
-50 deg C-1850 deg C (-58.0 deg F-3362 deg F) |
-50 deg C-2200 deg C |
The environment temperature measurement |
-10 deg C-50 deg C (14 deg F-122 deg F) |
||
Relative humidity |
10%RH-90%RH |
||
Type K thermocouple |
-50 deg C-1370 deg C (-58.0 deg F-2498 deg F) |
||
Accuracy |
Infrared temperature measurement |
-50 deg C-0 deg C ±(1.0 deg C+0.1 deg C/ deg C) -58 deg F-32 deg F ±(2.0 deg F+0.1 deg F/ deg F) 0 deg C-2200 deg C±1.0 deg Cor ±0.01xt deg C(Which is greater) |
|
32 deg F-3992 deg F±2.0 deg F or ±0.01xt deg F (Which is greater) | |||
The environment temperature measurement |
-10 deg C-0 deg C (14 deg F-32 deg F)±1.0 deg C(±2.0 deg F) |
||
40 deg C-50 deg C (104 deg F-122 deg F)±1.0 deg C (±2.0 deg F ) | |||
Relative humidity |
±5%RH |
||
Type K thermocouple |
±(0.005xt+1.5) deg C / ±(0.005xt+3.0) deg F |
||
Certification |
CE UKCA |
||

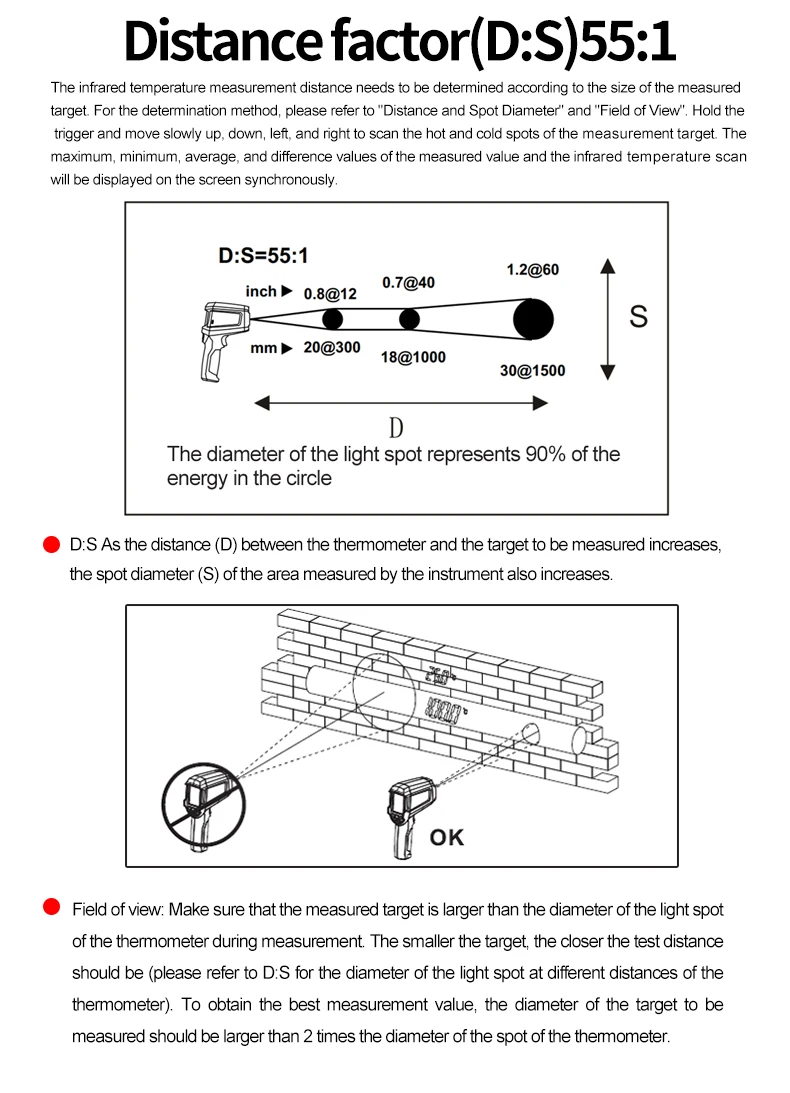

Diastance ratio(D:S) |
55:01 |
||
Emissivity |

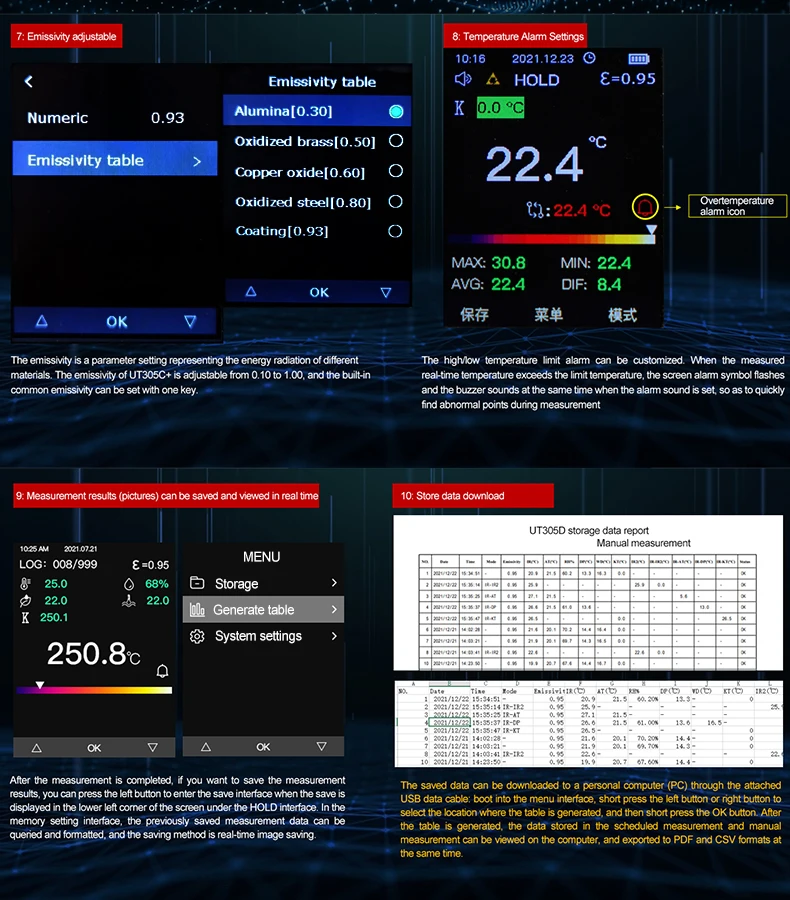

0.1-1.0(adjustable) |
||
Spectral response |
8um-14um |
||
Repeatability of infrared temperature measurement |
±0.005xt deg C( deg F)or1 deg C(2 deg F) (Which is greater) |
||
Display |
0.1 deg C(0.1 deg F) |
||
Unit conversion |
deg C / deg F |
||
optical point |
Single optical, output < 1 mW, class II |
||
Data storage |
999groups |
||
Data output format |
PDF、CSV |
||
Data communication or charging interface |
Type-C USB |
||
Battery |
Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery |
||
Charging time |
No more than 3 hours |
||
Continuous working time |
Work continuously for no less than 20 hours on full charge |
||
Buzzer alarm |
√ |
||
Trigger lock function and reservation measurement |
√ |
||
Real time, date |
√ |
||
LCD type |
2.4 inch TFT LCD 320 * 240 pixels |
||
temperature coefficient |
±0.1 deg C/ deg C or ±0.1% deg C/ deg C, ±0.1 deg F/ deg F or ±0.1% deg F/ deg F(Which is greater) |
||
Work at an altitude of |
No more than 2000 meters |
||
Drop test |
1m |
||
Standard k-type thermocouple probe (bead type) | |||
Measurement range |
-40 deg C to 260 deg C (-40 deg F to 500 deg F) |
||
Accuracy |
0.075x T(t is measured temperature) |
||
Lenth |
1 m (40 in) long K type thermocouple cable with standard micro thermocouple connector |
||
General Characteristics | |||
Power |
Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery |
||
LCD screen size |
37mm x 49mm |
||
Product color |
red and gray |
||
Net weight |
375 g |
||
Product size |
205 x 65 x 124 mm |
||

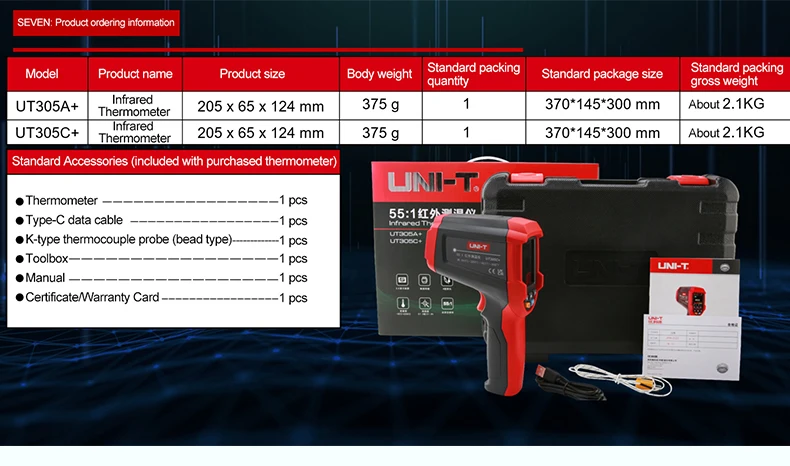

Standard accessories |
Type-C data cable, Type K thermocouple probe (bead Type) |
||
