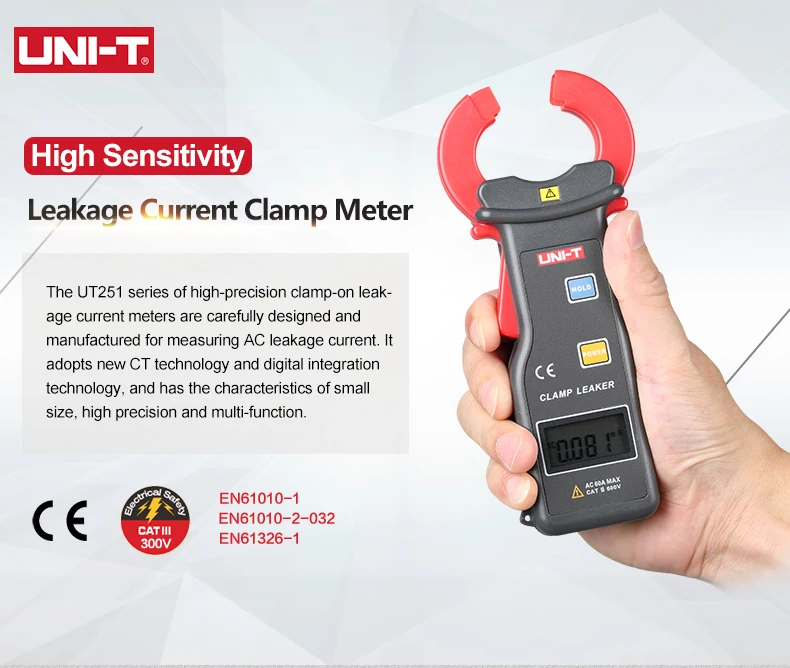

UT251C Leakage Current Clamp Meter
UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high resolution meters are great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 600A.

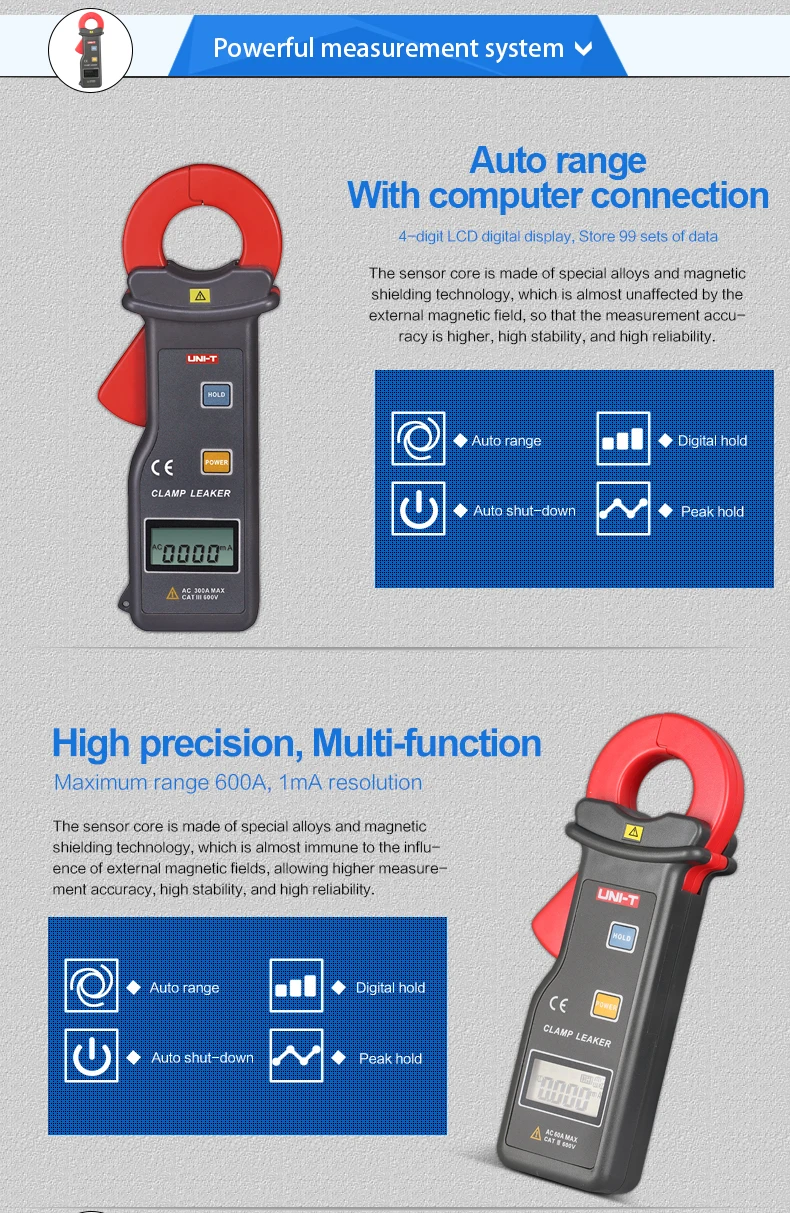

Features
1. 4-digit LCD digital display, 10000 display count
2. Auto range, 2/s sampling rate
3. Peaks hold
4. Store 99 sets of data
5. RS-232 interface
6. Data hold
7. Auto power off
8. Overload indication, low battery indication

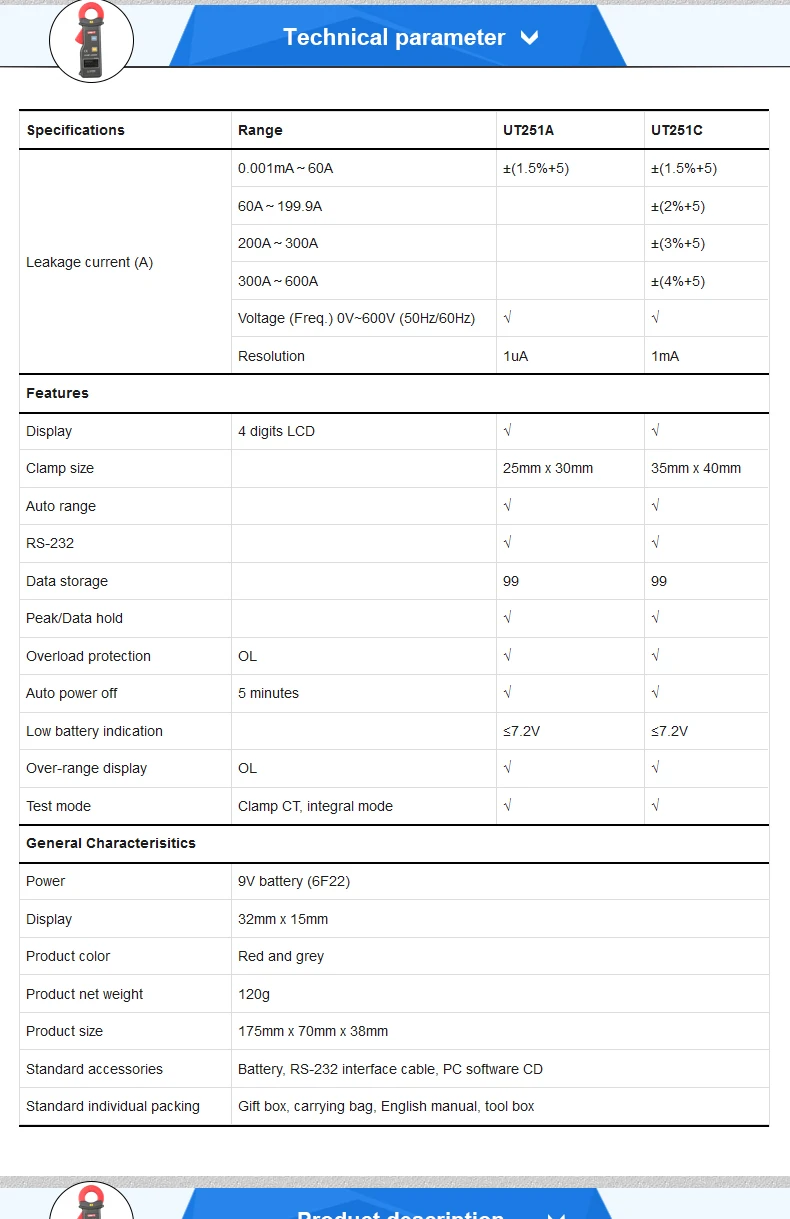

Parameter
|
Specifications |
Range |
UT251C |
|
Leakage current (A) |
0.001mA～60A |
±(1.5%+5) |
|
60A～199.9A |
±(2%+5) |
|
|
200A～300A |
±(3%+5) |
|
|
300A～600A |
±(4%+5) |
|
|
Voltage (Freq.) 0V~600V (50Hz/60Hz) |
√ |
|
|
Resolution |
1mA |
|
|
Features |
||
|
Display |
4 digits LCD |
√ |
|

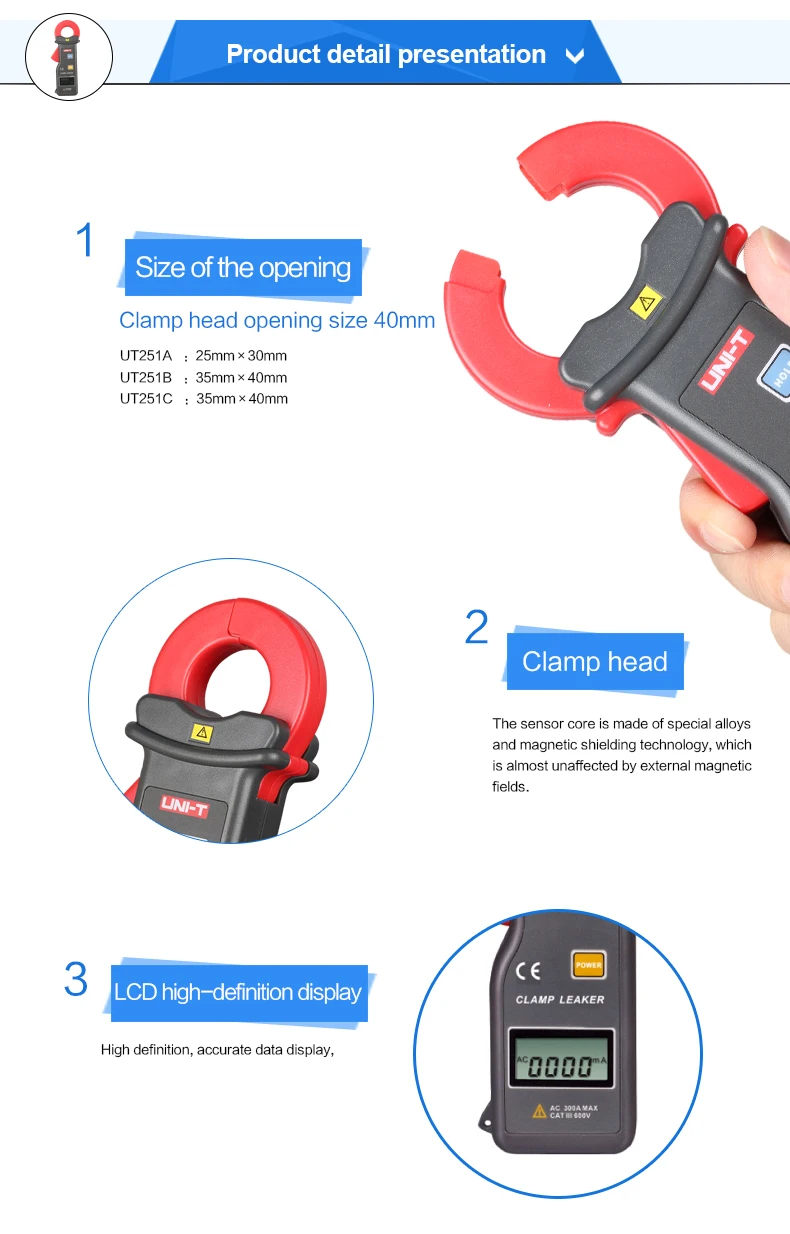

Clamp size |
|
35mm x 40mm |
|
Auto range |
|
√ |
|
RS-232 |
|
√ |
|
Data storage |
|
99 |
|
Peak/Data hold |
|
√ |
|
Overload protection |
OL |
√ |
|
Auto power off |
5 minutes |
√ |
|
Low battery indication |
|
≤7.2V |
|
Over-range display |
OL |
√ |
|
Test mode |
Clamp CT, integral mode |
√ |
|
General Characterisitics |
||
|
Power |
9V battery (6F22) (No include) |
|
|
Display |
32mm x 15mm |
|
|
Product color |
Red and grey |
|
Notice please: battery no include!
