Product Summary
TS-FT007 Digital Water Tank Water Level Gauge Ultrasonic Liquid Level Gauge Liquid Level is a sensor module selected for detecting environmental data, presence, motion or system status. It is suitable for smart home users, automation builders and embedded developers who need practical electronics hardware for reliable project work.
Best For
- detecting environmental data, presence, motion or system status
- IoT projects, automation hubs, microcontrollers and monitoring systems
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for smart home users, automation builders and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Features:
1. Backlight on/off: Adjusts to various lighting conditions, facilitates reading, and conserves power.
2. Liquid level alarm: Provides timely warnings to prevent overflow or dry-out.
3. Low battery warning: Prevents monitoring interruptions caused by insufficient power.

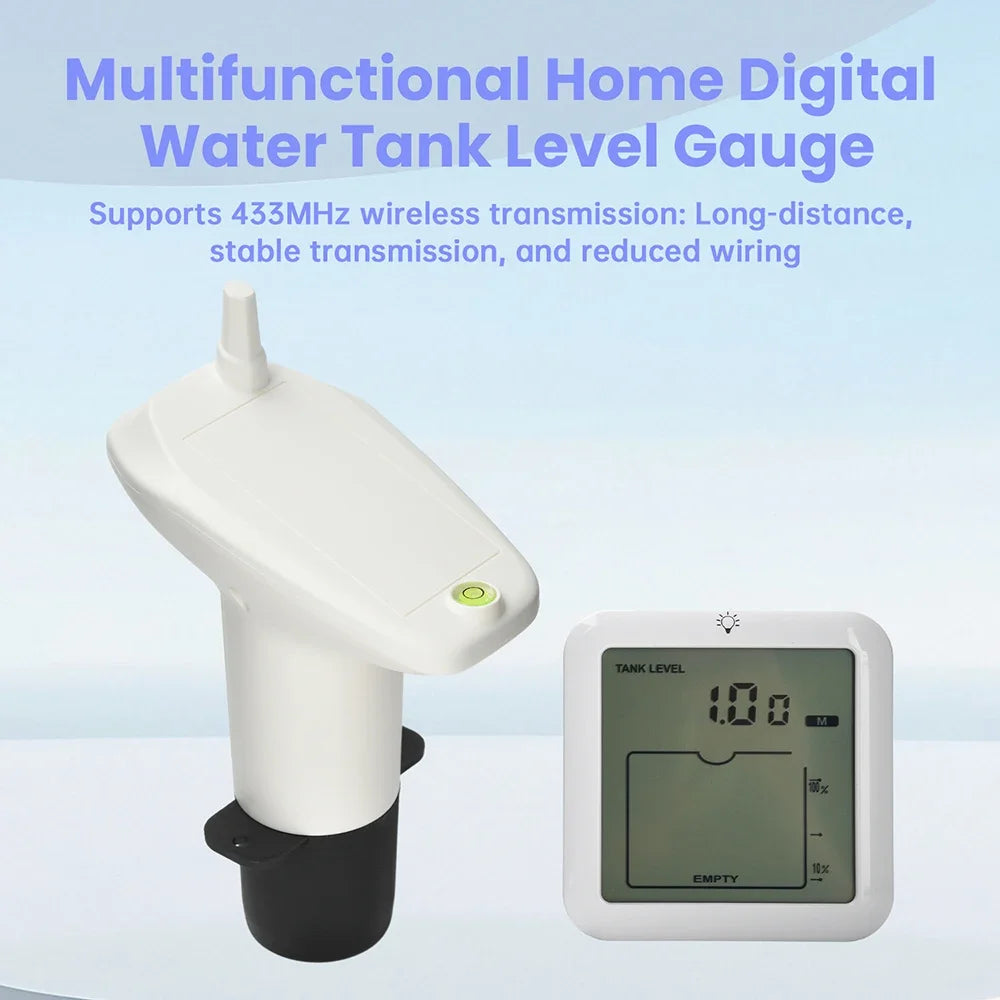

4. Supports 433MHz wireless transmission: Long-distance, stable transmission, reduces wiring.

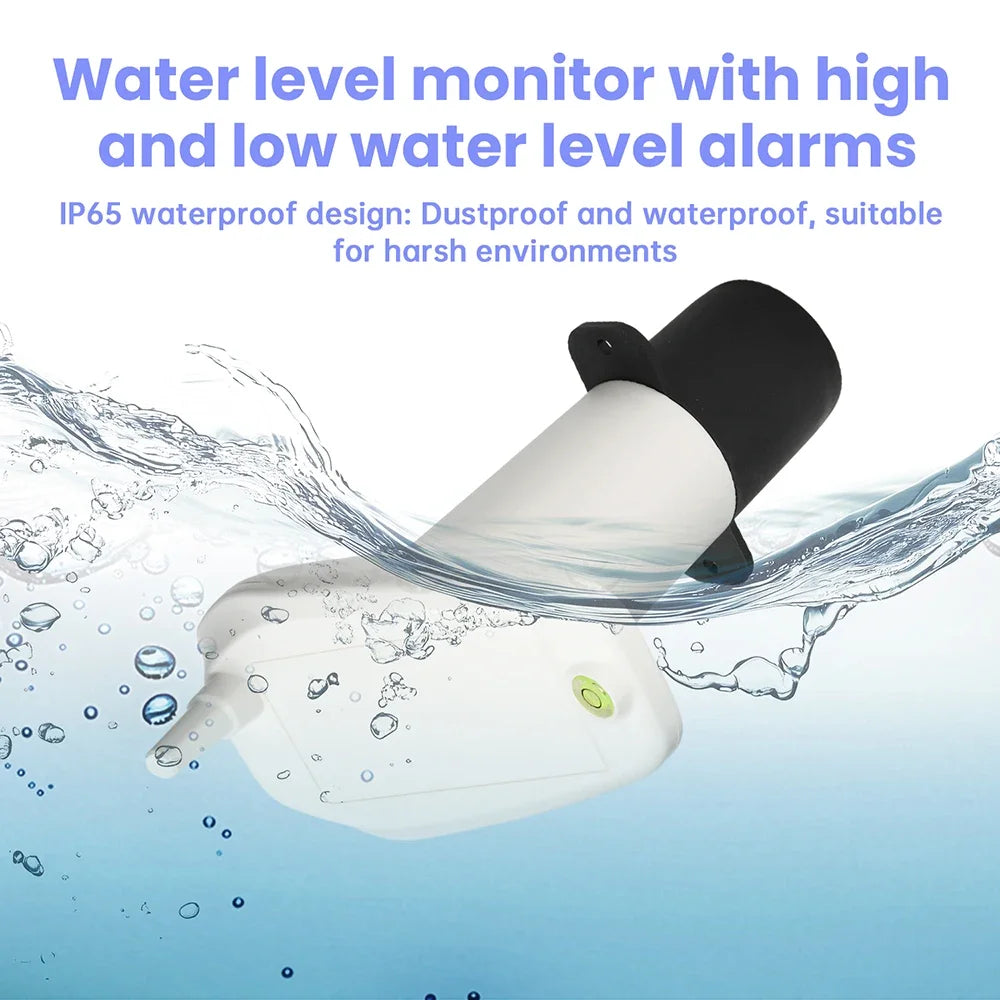

5. IP65 waterproof design: Dustproof and waterproof, suitable for harsh environments.
Product Parameters:
Alarm duration: 120 seconds
Water level displayed on a 10-element LCD bar graph.
Water level measurement range: 1-5 meters

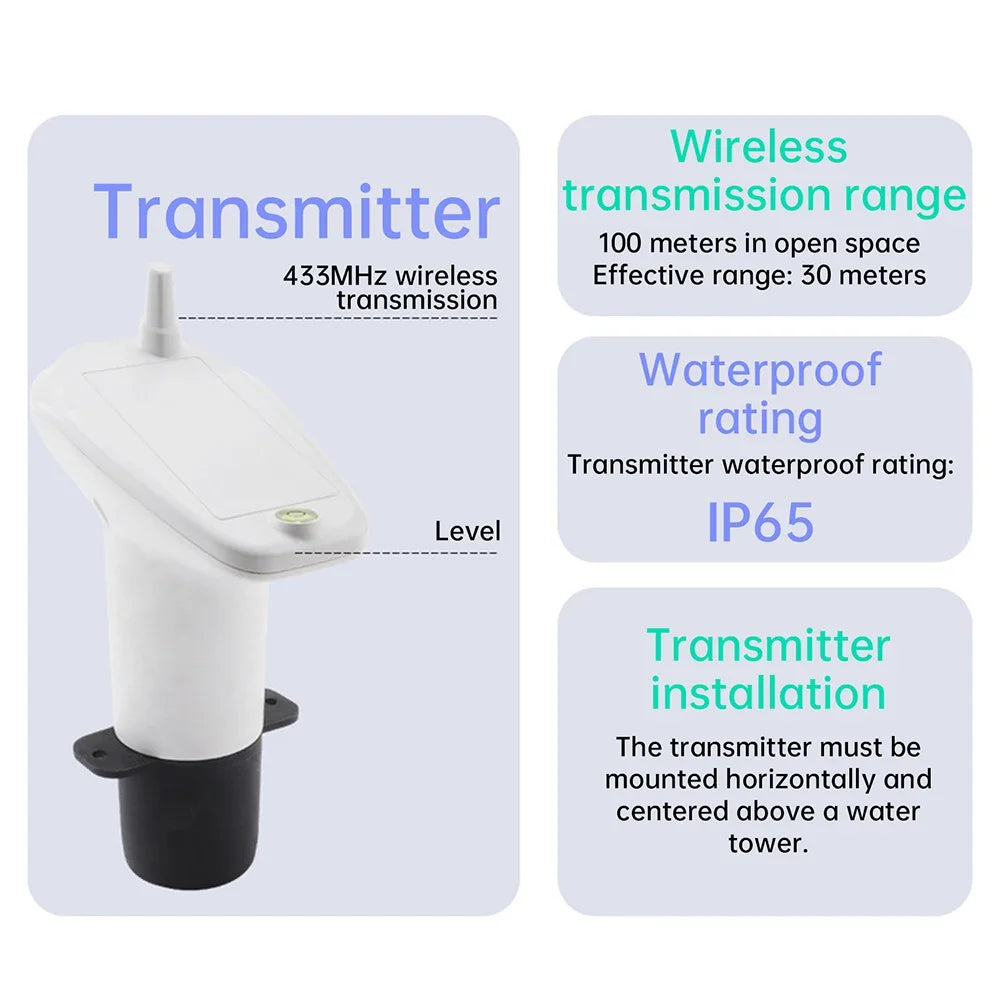

Transmitter protection rating: IP65 (effectively protected against rain splashes from any direction). Wireless transmission range: 100 meters in open air, effective range 30 meters
Screen size: 3.42 inches
High and low temperature test: -20 deg C to 60 deg C

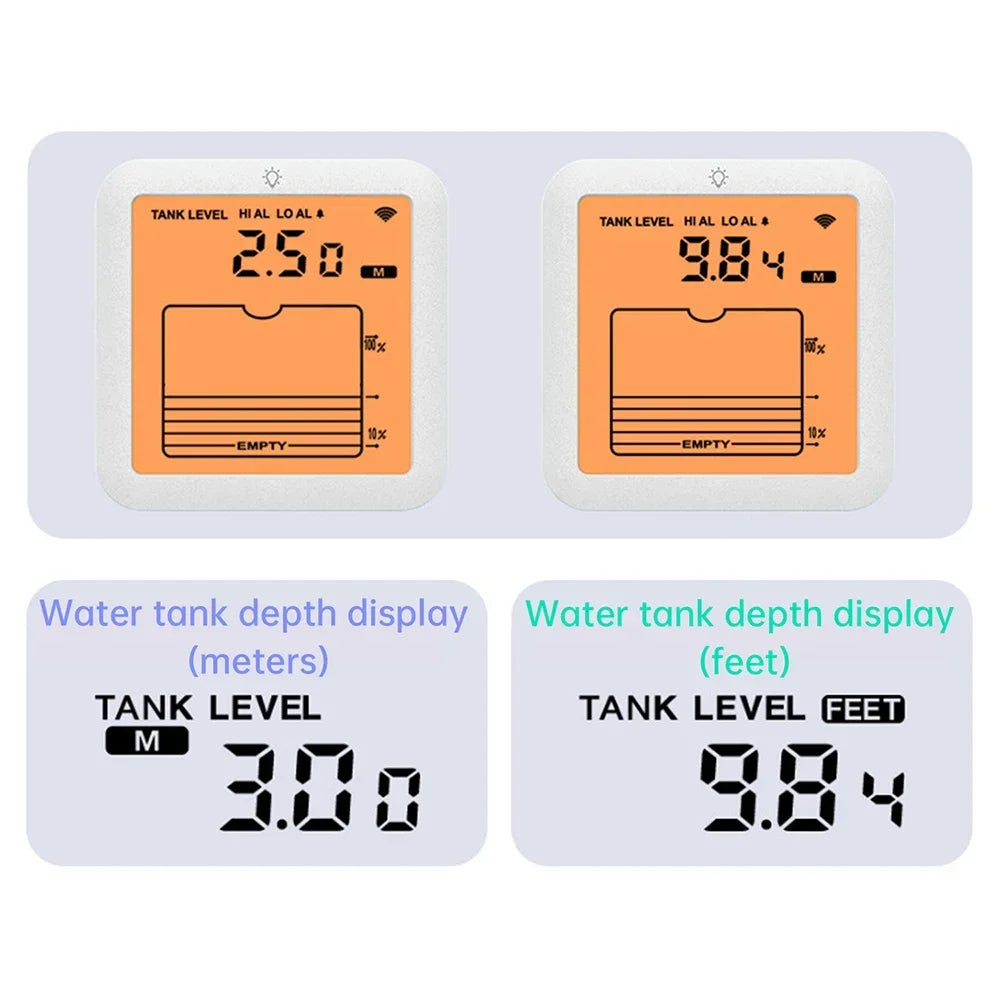

Water tank level display unit: meters/feet (default: meters upon power-up)
Power supply (batteries not included):
Receiver: 2 x AAA batteries/USB to DC power cable
Transmitter: 6 x AAA batteries
Dimensions:
Transmitter: 6.8 x 10.9 x 16.7 cm
Receiver: 8.2 x 2.1 x 8.2 cm

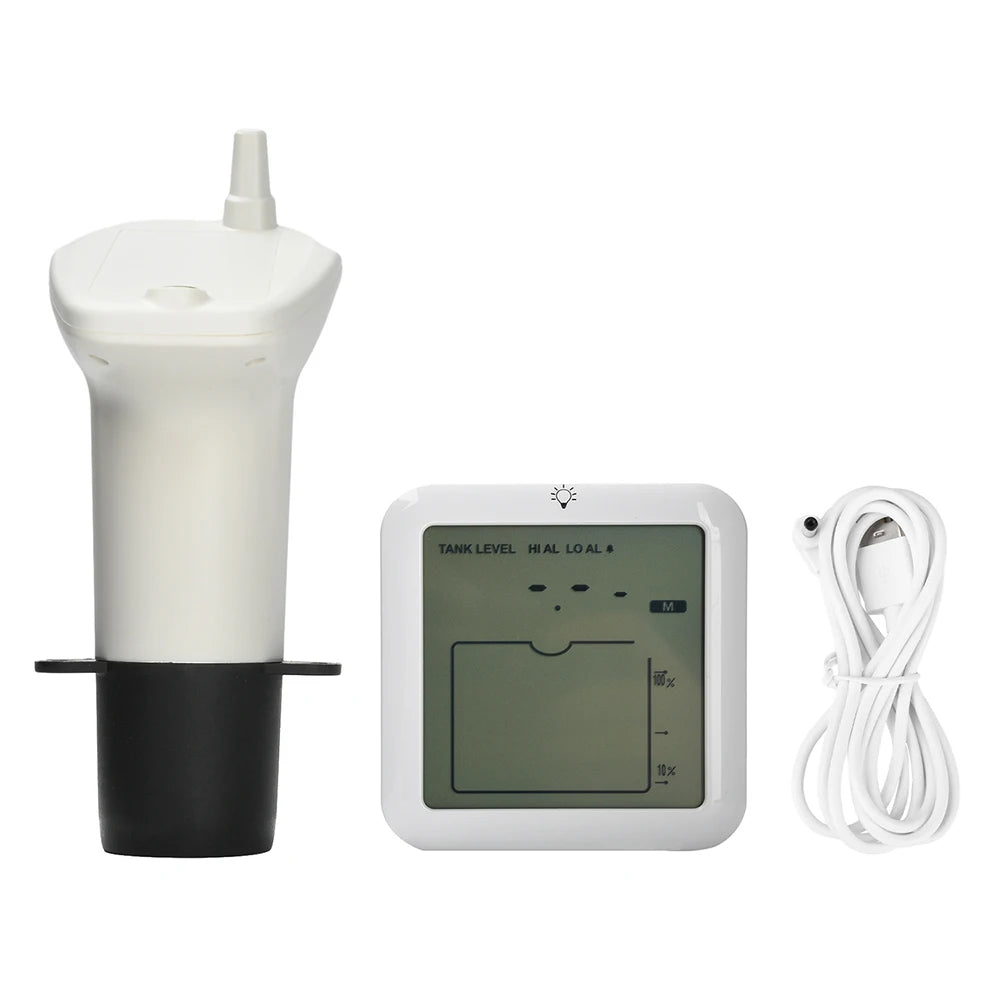

Packing list:
Receiver*1
Transmitter*1
Mounting screws*2
USB to DC 3.5mm power cable*1
Instruction manual*1
1. Backlight on/off: Adjusts to various lighting conditions, facilitates reading, and conserves power.
2. Liquid level alarm: Provides timely warnings to prevent overflow or dry-out.
3. Low battery warning: Prevents monitoring interruptions caused by insufficient power.
4. Supports 433MHz wireless transmission: Long-distance, stable transmission, reduces wiring.
5. IP65 waterproof design: Dustproof and waterproof, suitable for harsh environments.
Product Parameters:
Alarm duration: 120 seconds
Water level displayed on a 10-element LCD bar graph.
Water level measurement range: 1-5 meters
Transmitter protection rating: IP65 (effectively protected against rain splashes from any direction). Wireless transmission range: 100 meters in open air, effective range 30 meters
Screen size: 3.42 inches
High and low temperature test: -20 deg C to 60 deg C
Water tank level display unit: meters/feet (default: meters upon power-up)
Power supply (batteries not included):
Receiver: 2 x AAA batteries/USB to DC power cable
Transmitter: 6 x AAA batteries
Dimensions:
Transmitter: 6.8 x 10.9 x 16.7 cm
Receiver: 8.2 x 2.1 x 8.2 cm
Packing list:
Receiver*1
Transmitter*1
Mounting screws*2
USB to DC 3.5mm power cable*1
Instruction manual*1
