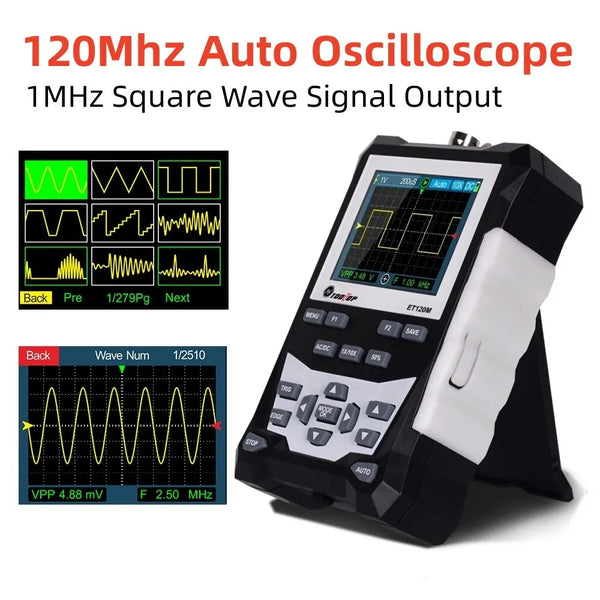

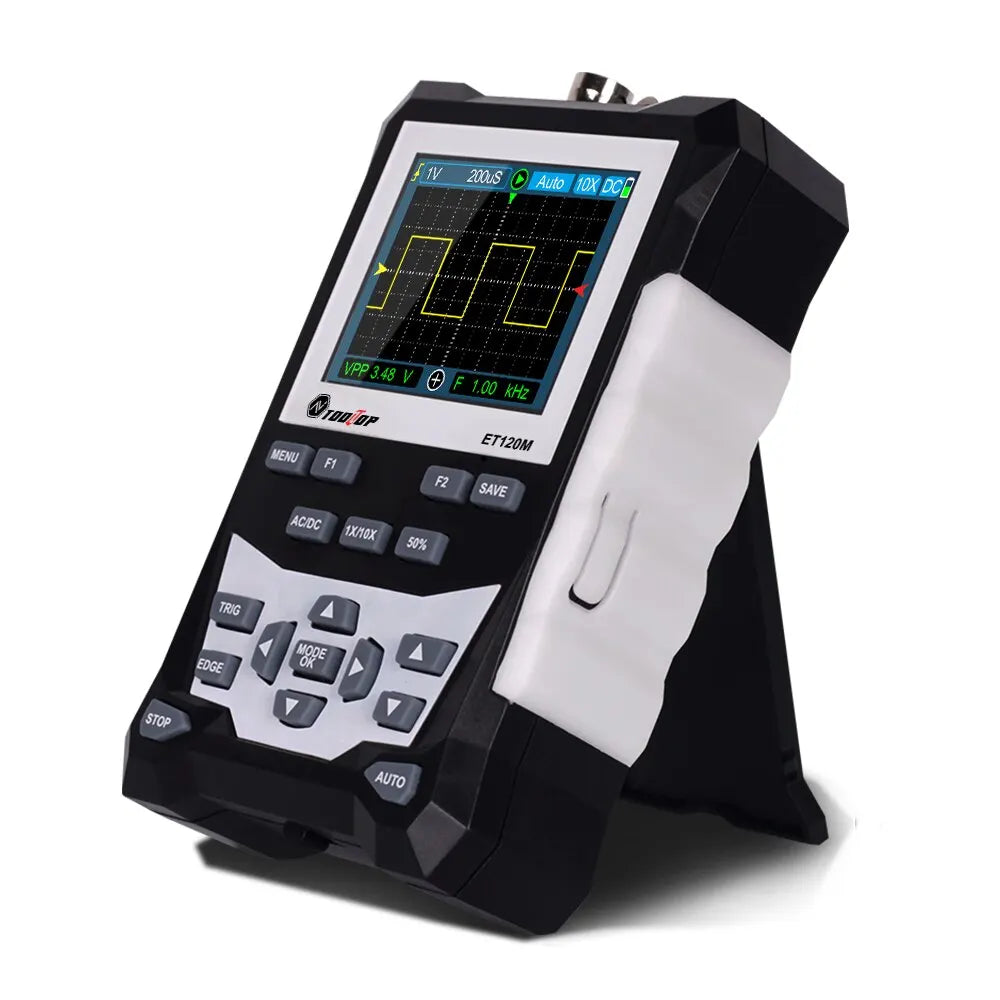

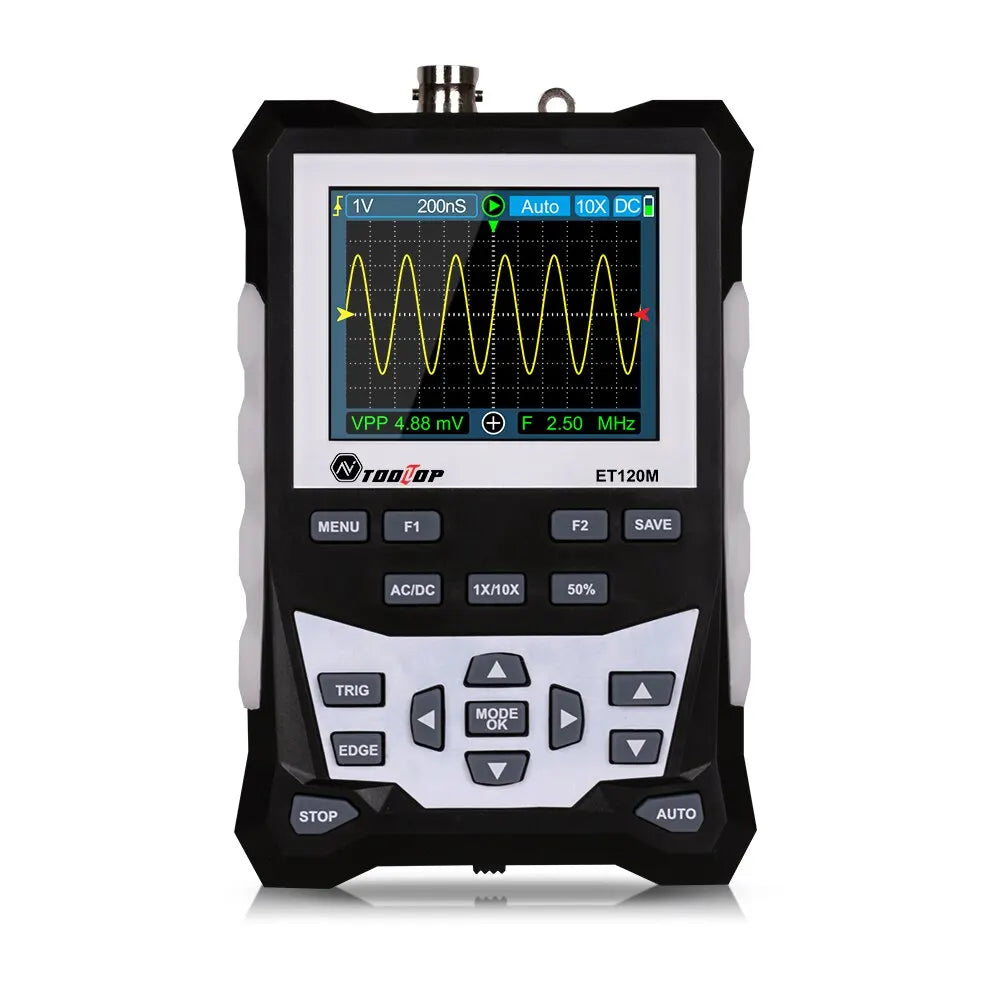

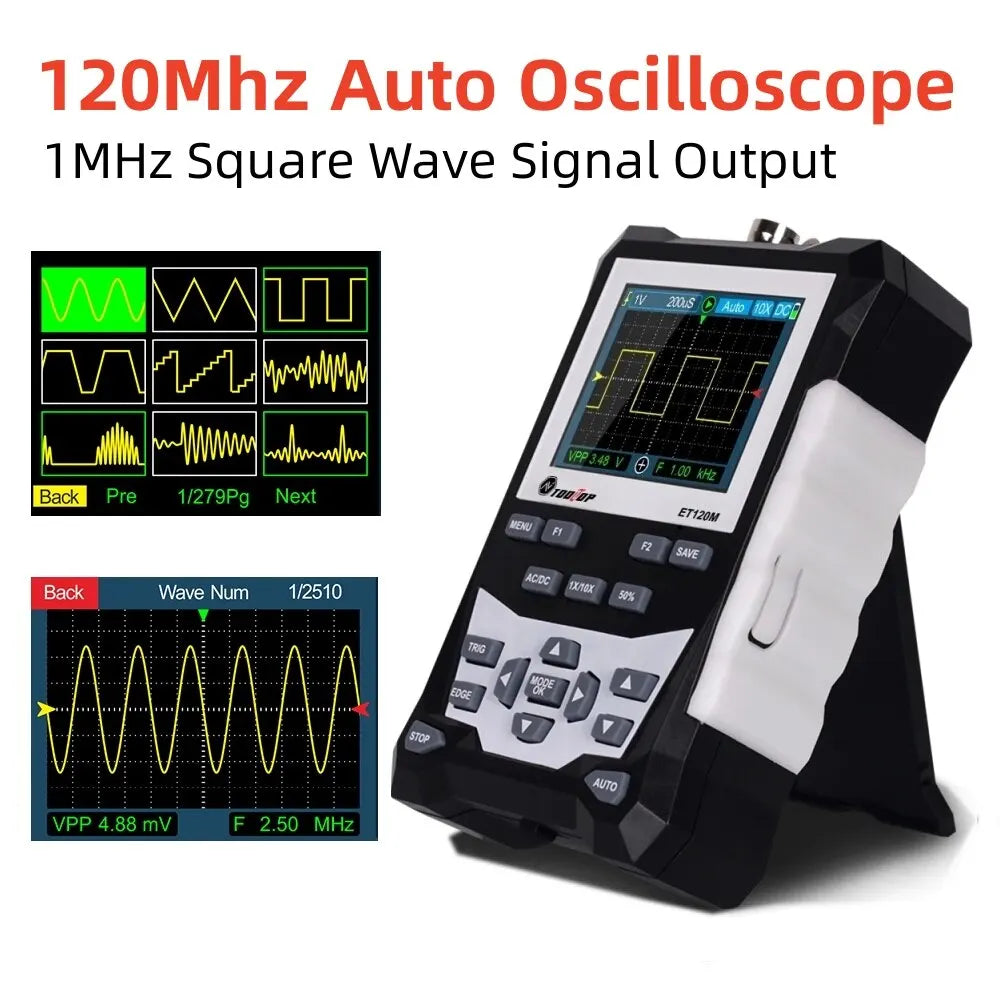

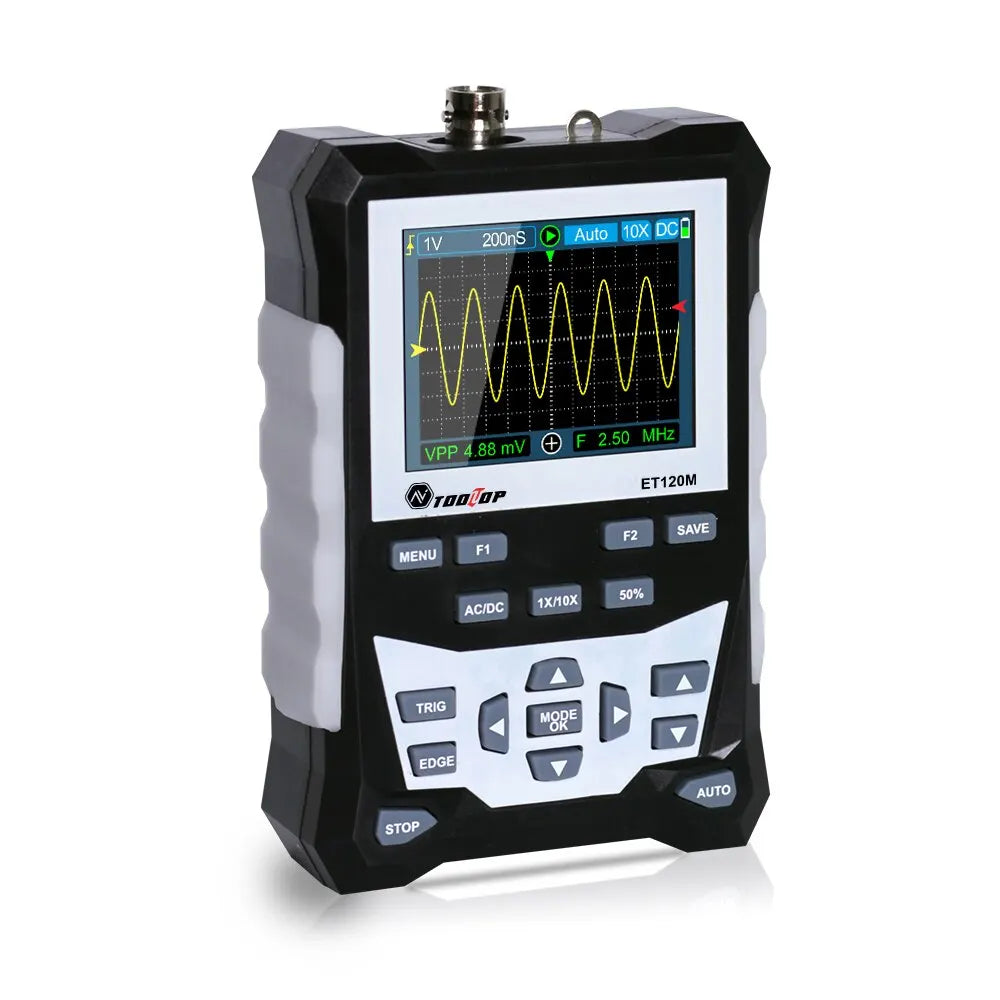

TOOLTOP ET120M Handheld Digital Oscilloscope 1Mhz Square Wave Signal Output Auto is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.
Best For
- checking waveforms, debugging signals and validating circuit behavior
- test leads, probes and bench electronics workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Features:

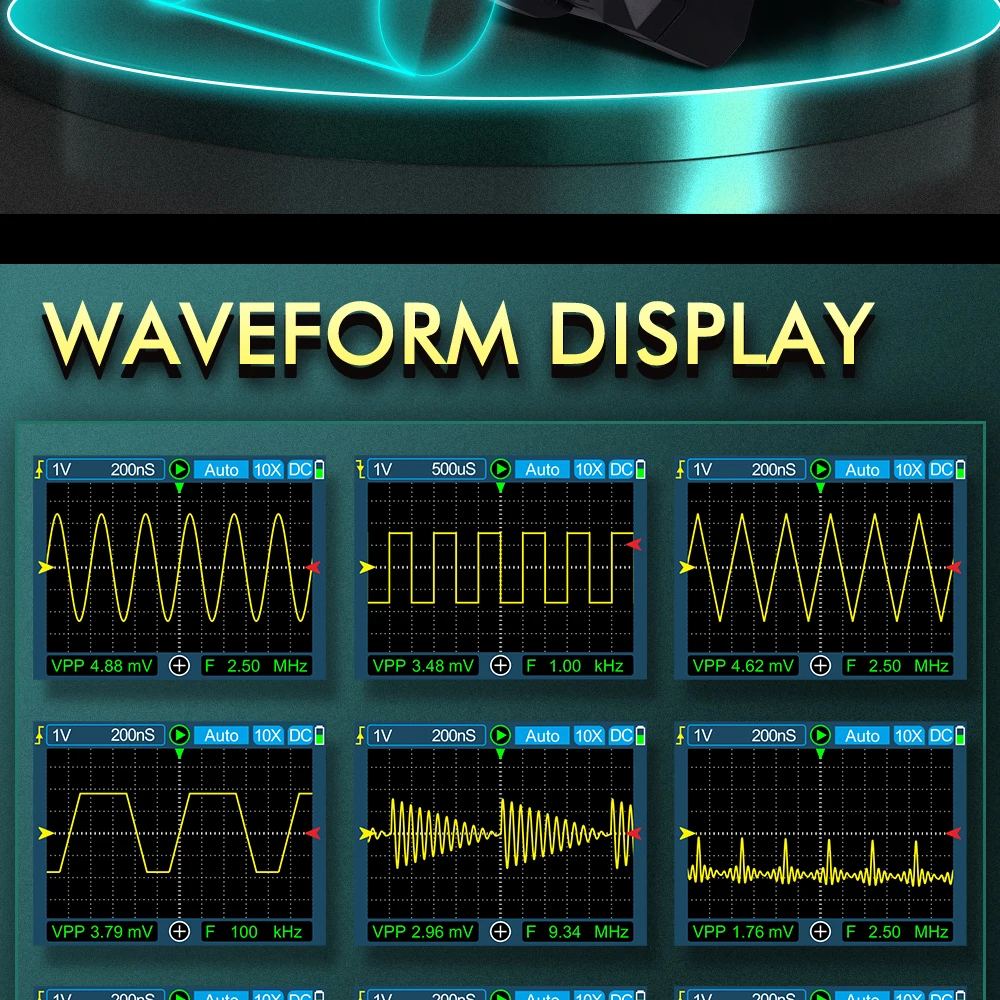

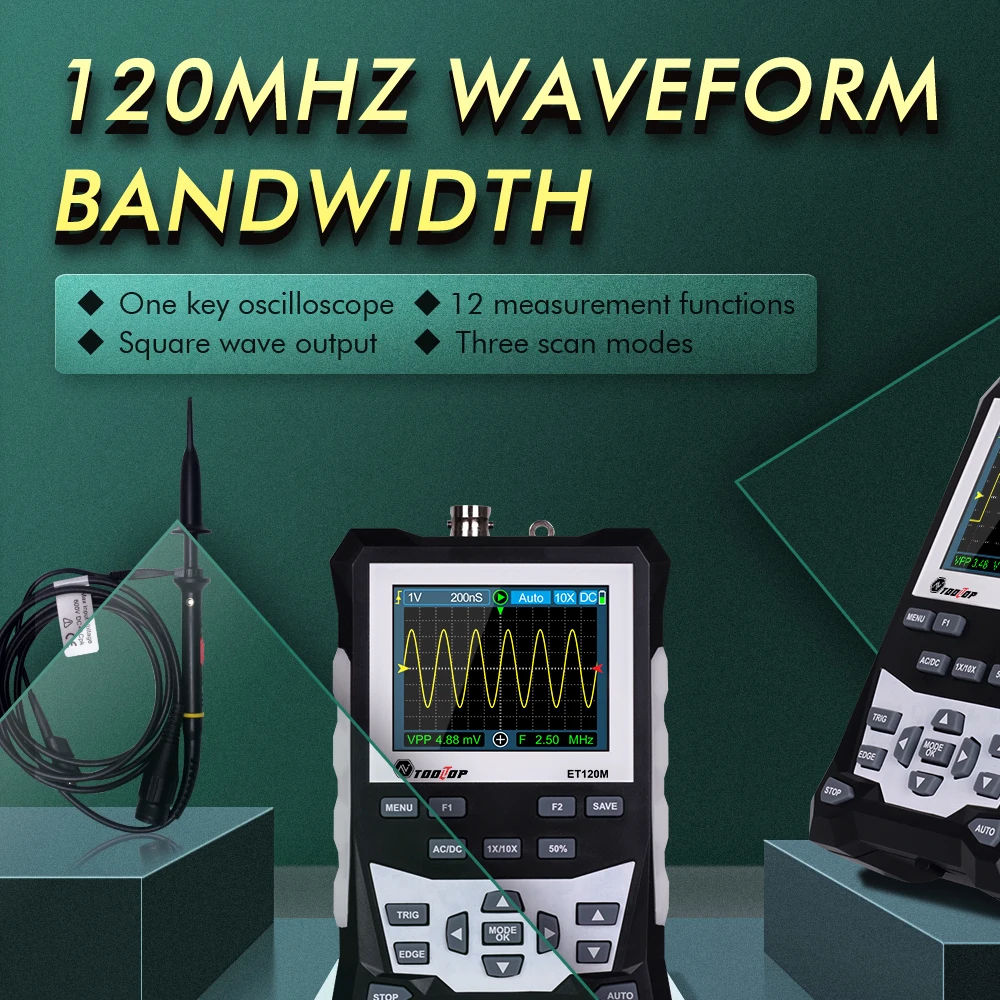

-120MHz analog bandwidth and 500MS/s sampling rateoscilloscope with 2.4 inches 320 * 240clear color screen

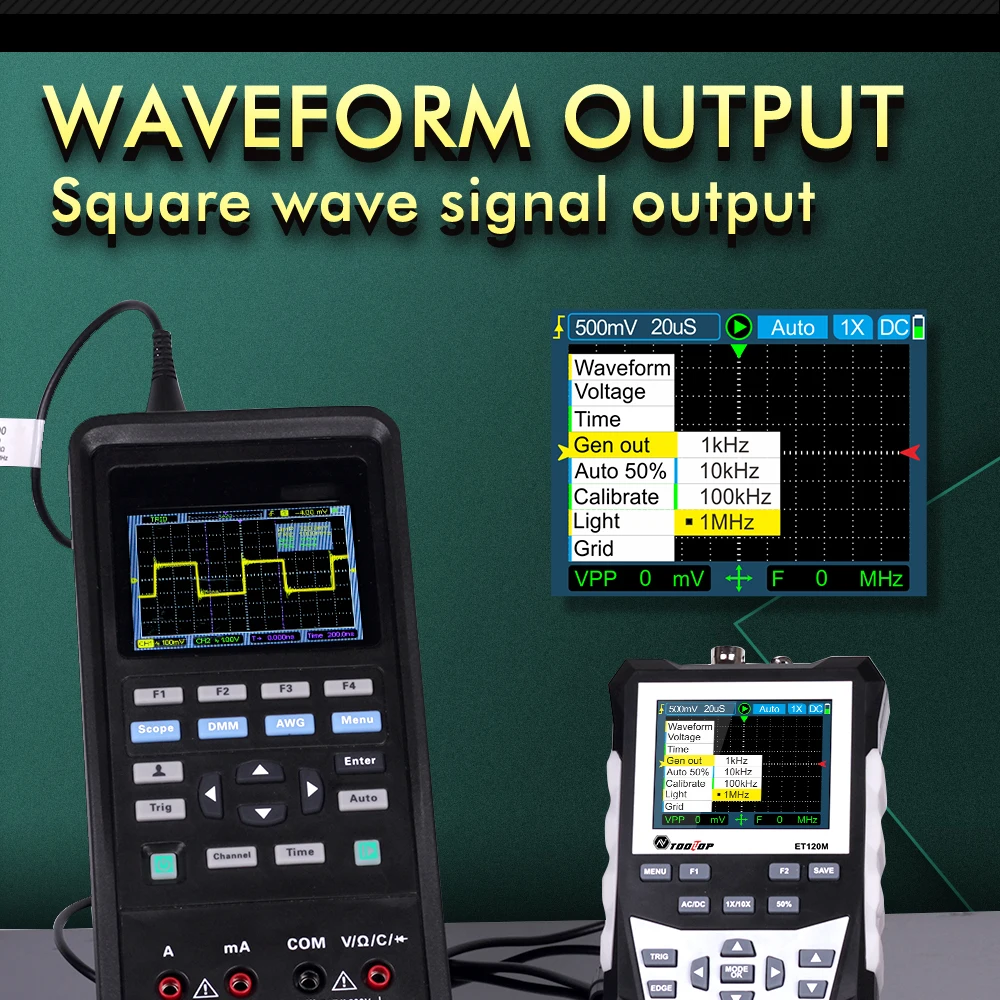

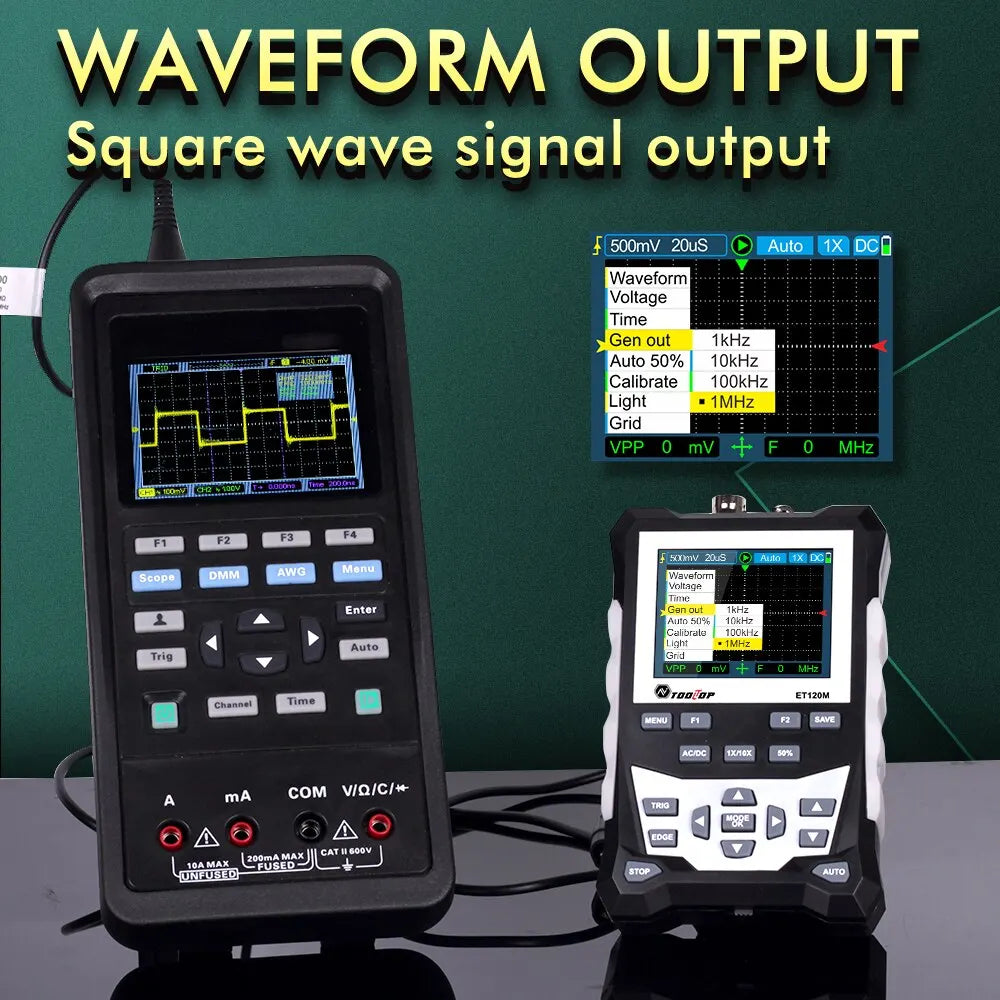

-Square wave signal output:1kHz,10KHz,100KHz,1MHz 4 speeds of square wave signal output

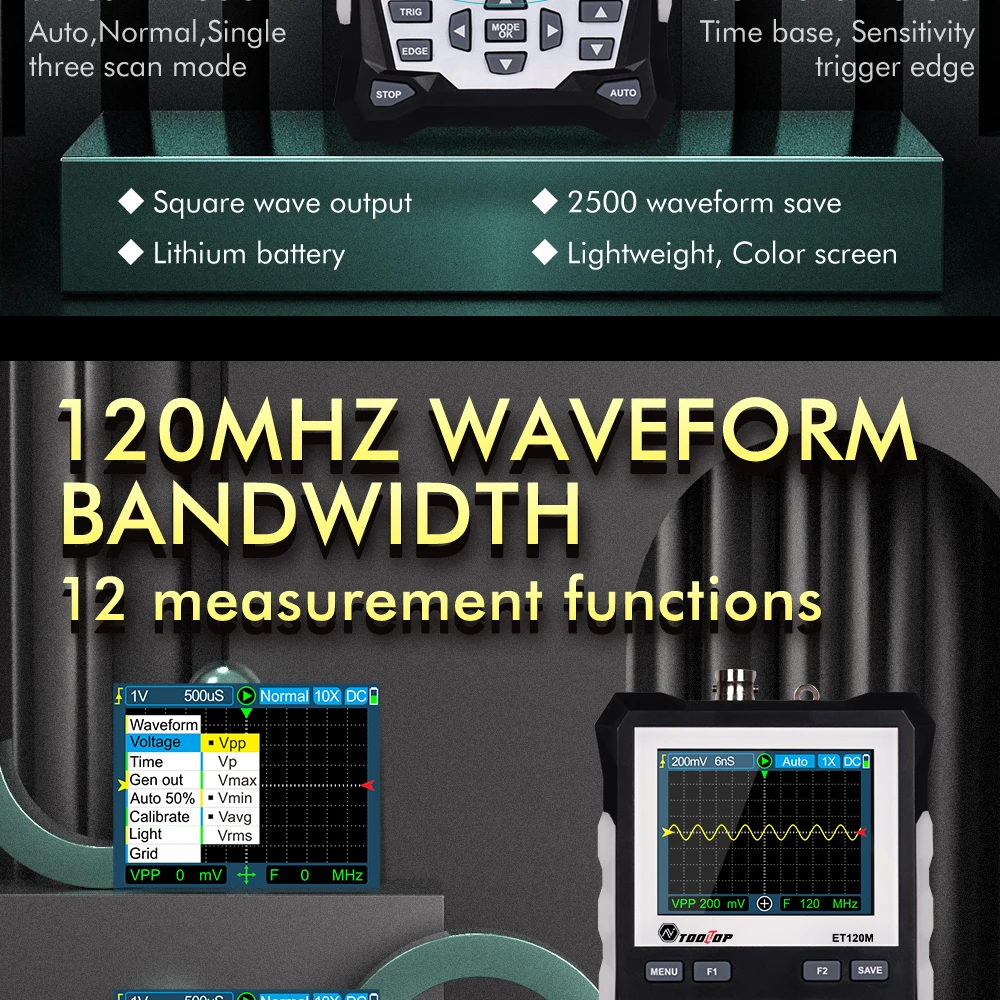

-12 kinds of parameter measurement: Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-.

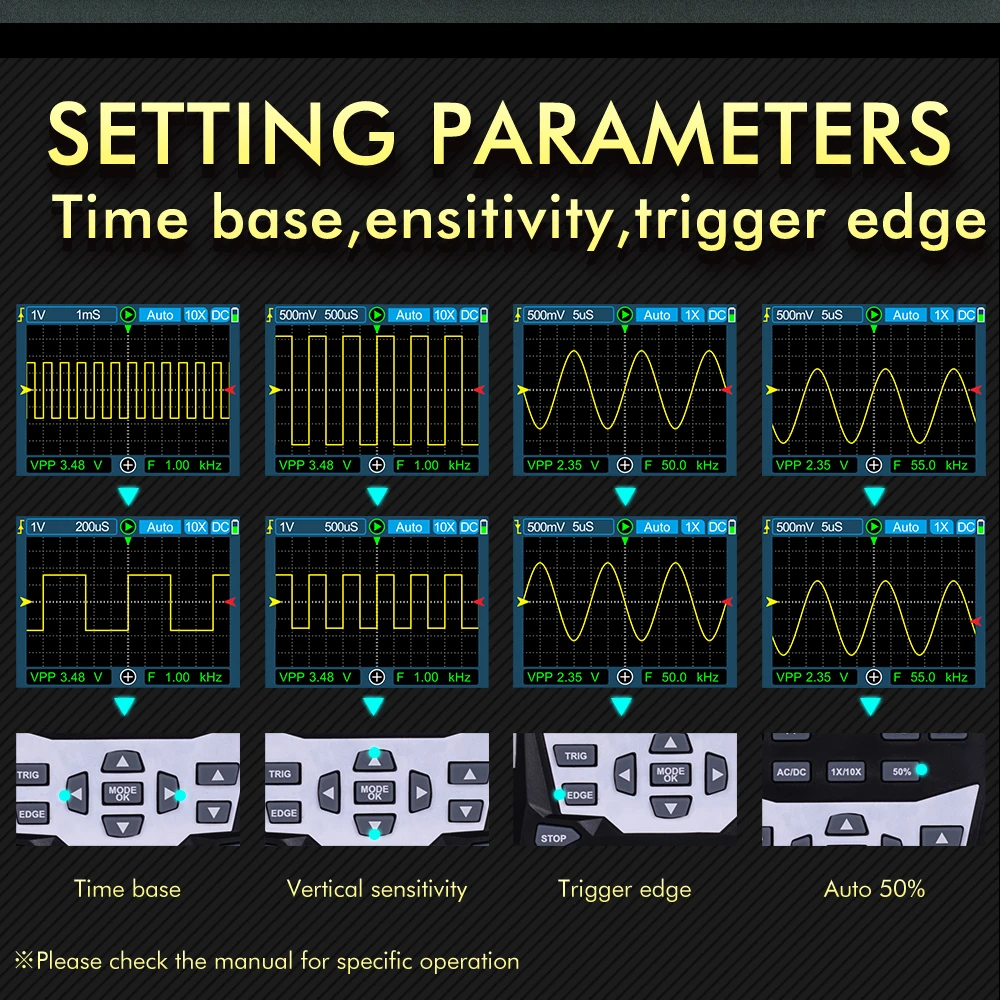

- Waveform Parameters Adjustable:time base, amplitude,trigger slopeand vertical sensitivity can be setting

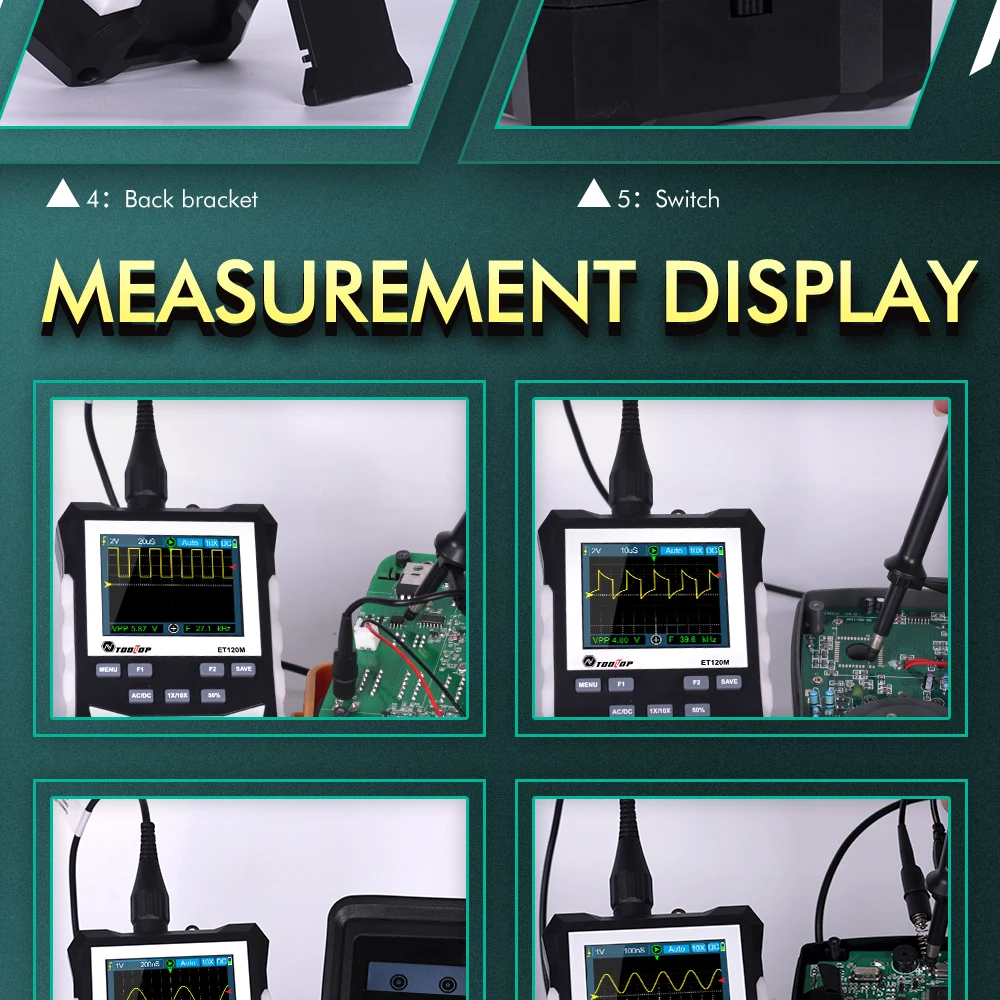

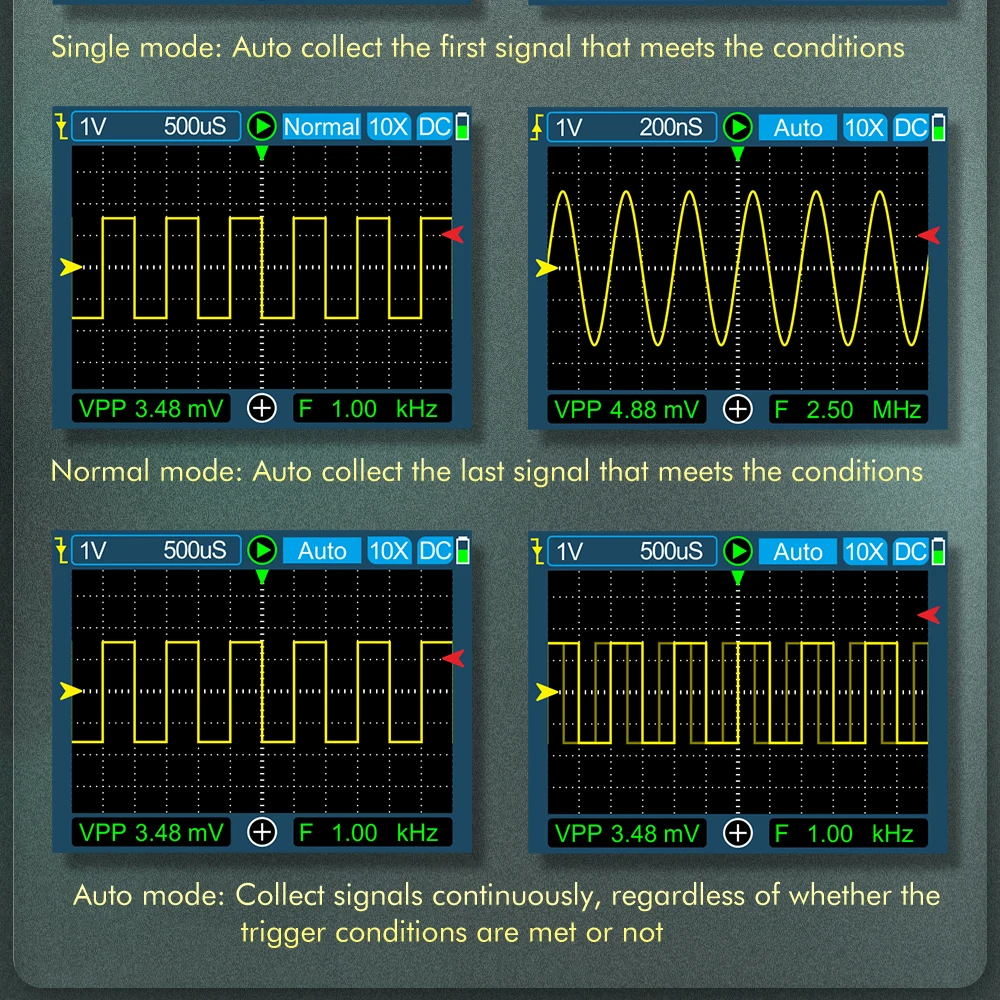

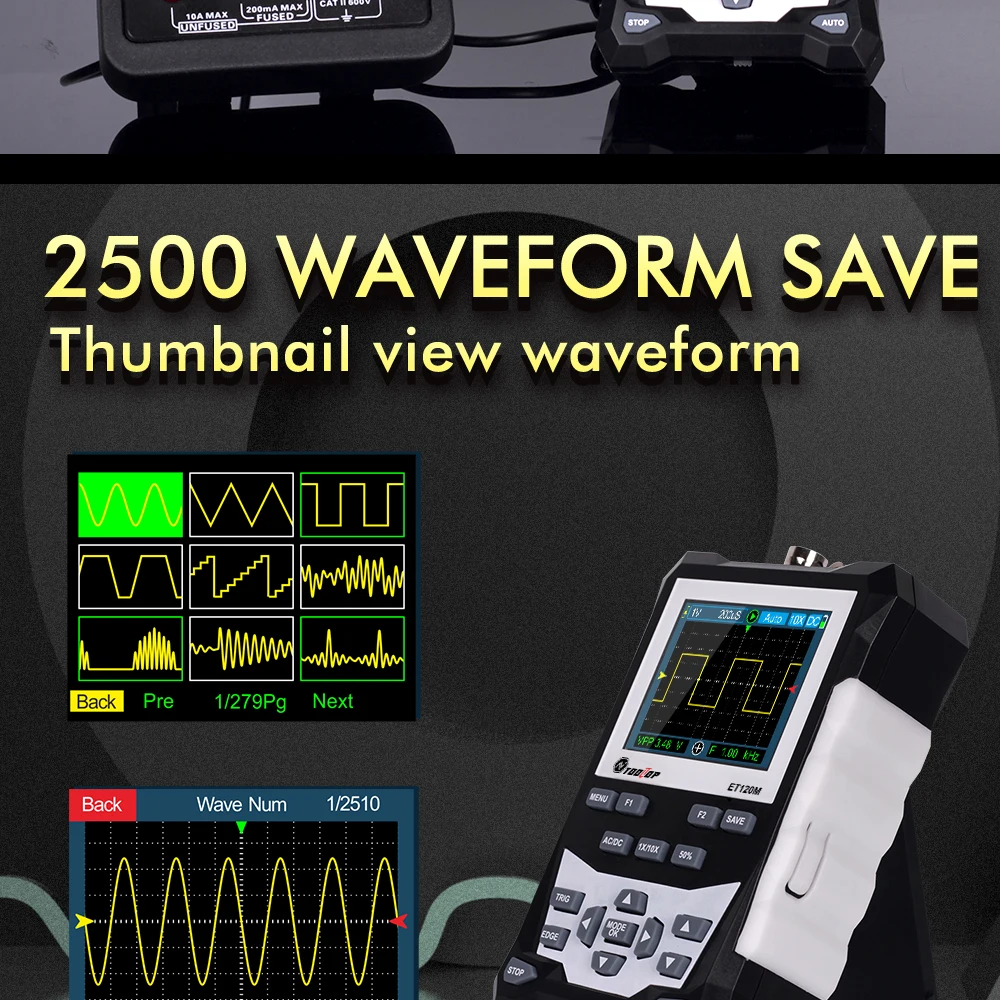

- Three scan modes: auto, normal and single. Can store 2500DSOwaveforms, support thumbnail browsing.

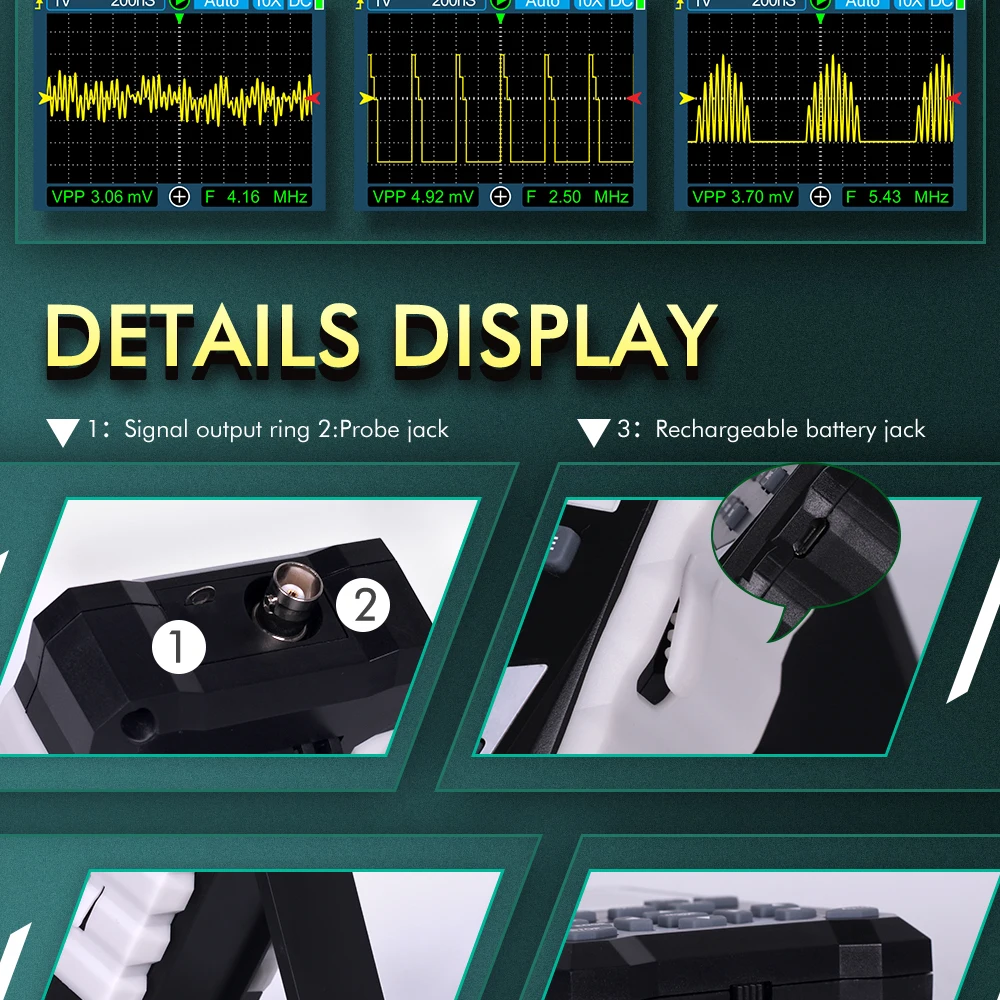

- Compact and portable appearance, with silicone protective cover ,strong and durable, built-in rechargeable lithium battery, can be used continuously for 6 hours,suitable for outdoor working
Specification:

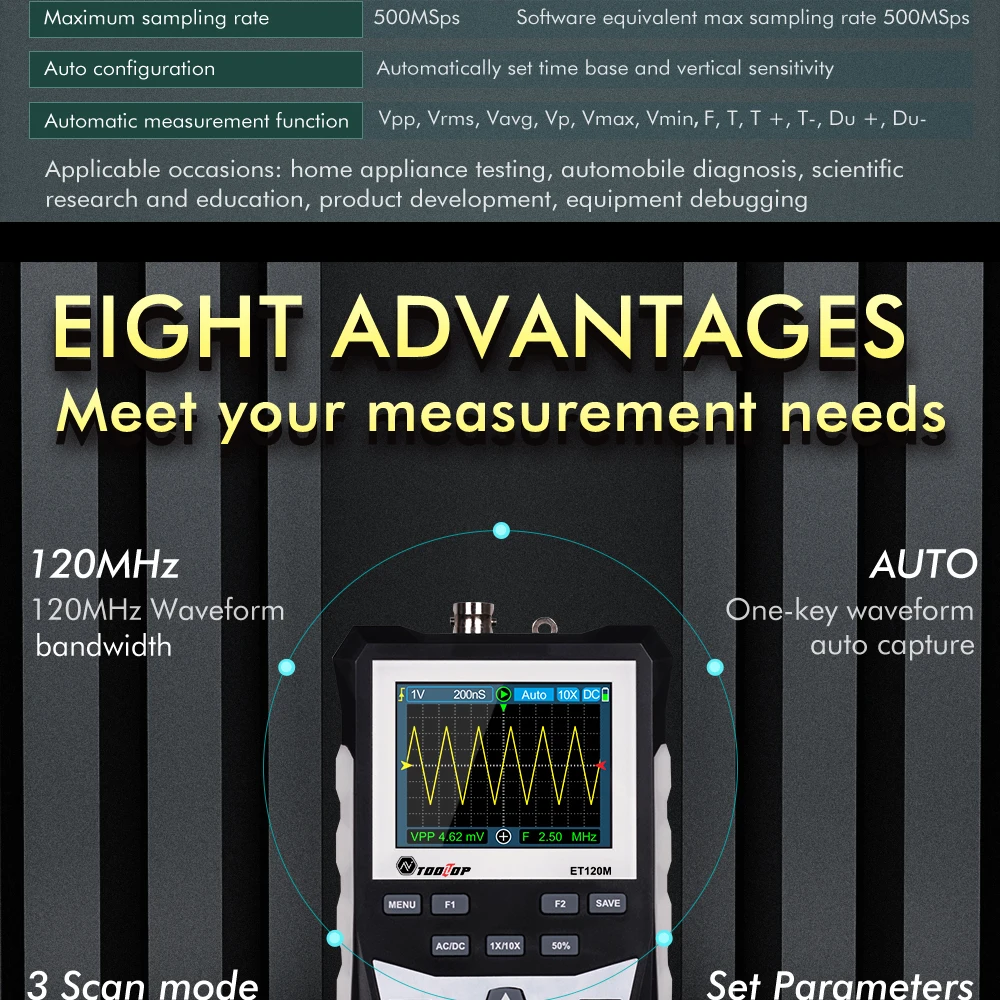

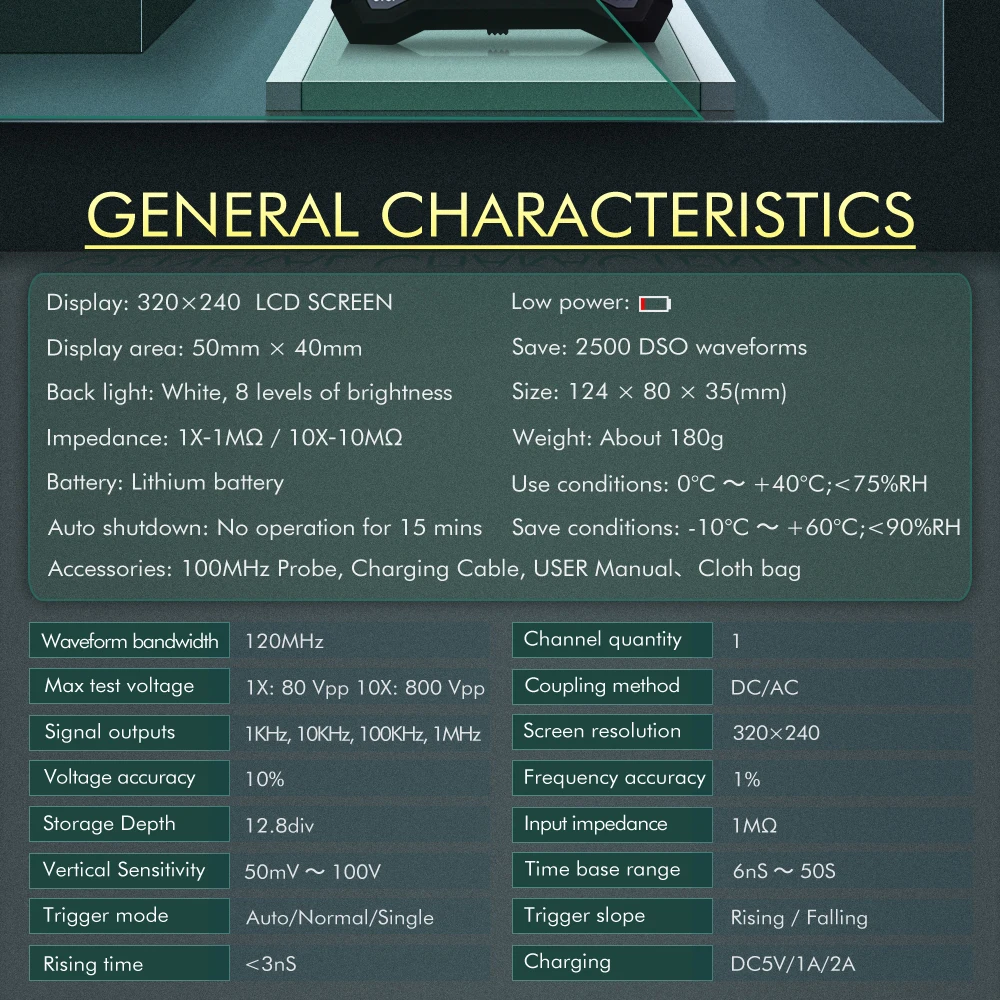

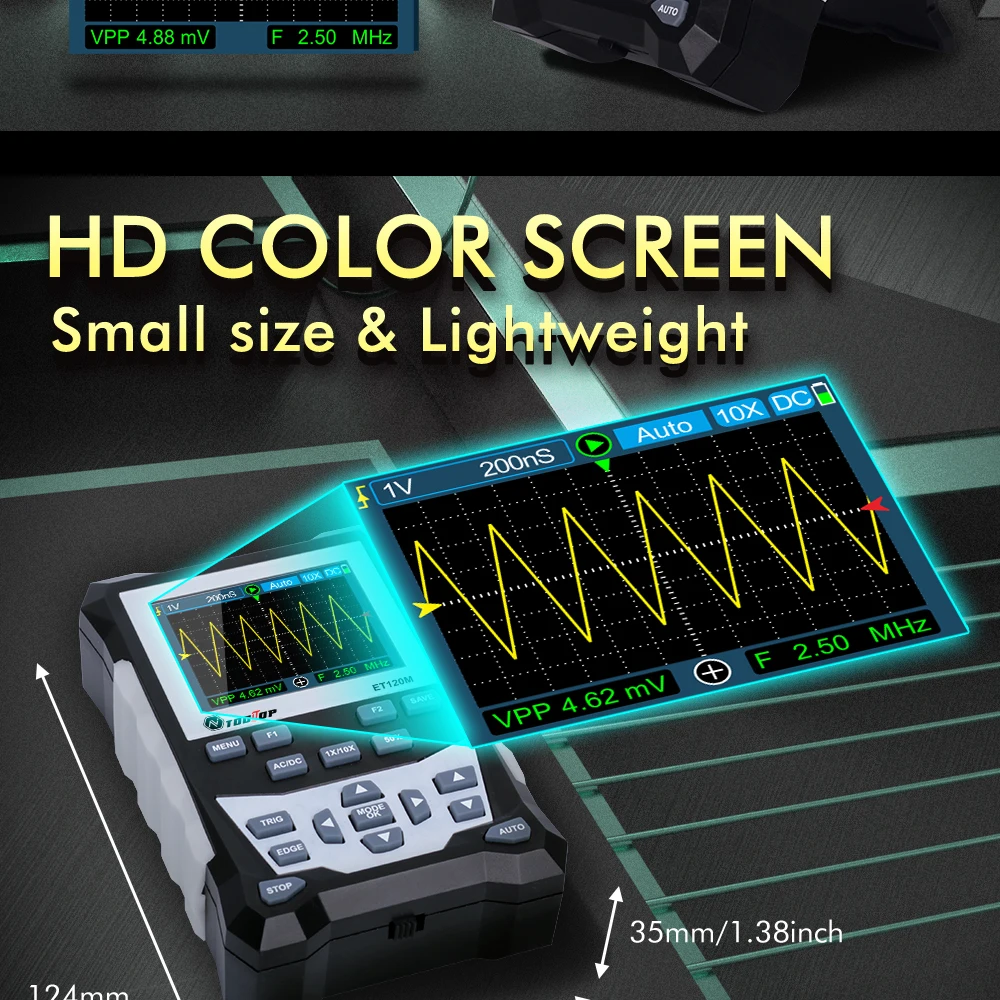

Display: 320x240 LCD screen
Display area: 50mm x 40mm
Backlight: White, brightness adjustable
Impedance: x1: 1M ohm / x10: 10M ohm
Battery: 18650 lithium battery
Auto shutdown: No operation for 15 minutes
Storage: 2500 DSO waveforms
Size: 124x80x35mm
Use conditions: 0C- +40 deg C; < 75%RH
Storoge conditions: -10C- +60 deg C; < 90%RH
Analog bandwidth: 120MHz
Maximum real-time sampling rate:500MSps
Vertical resolution: 8 bits
Vertical accuracy: ±(5% + 0.2div)
Auto zero reference: During DC meosurement
Trigger level: ±3.8div (0. 1div per step)
Trigger position: ± 6div (0. 1div per step)
Cursor function: △V,△t, 1 /△t
Nonlinearity:±1 bits
Coupling method:DC/AC
DivisionVerical: ±3.8 Horizontal:12
Time base range:6ns/div - 50s/div
Time base accuracy:±(0.01%+0.1div)
Scan mode:Auto/Single/Normal
Trigger slope:Rising / Falling
Record length:12div

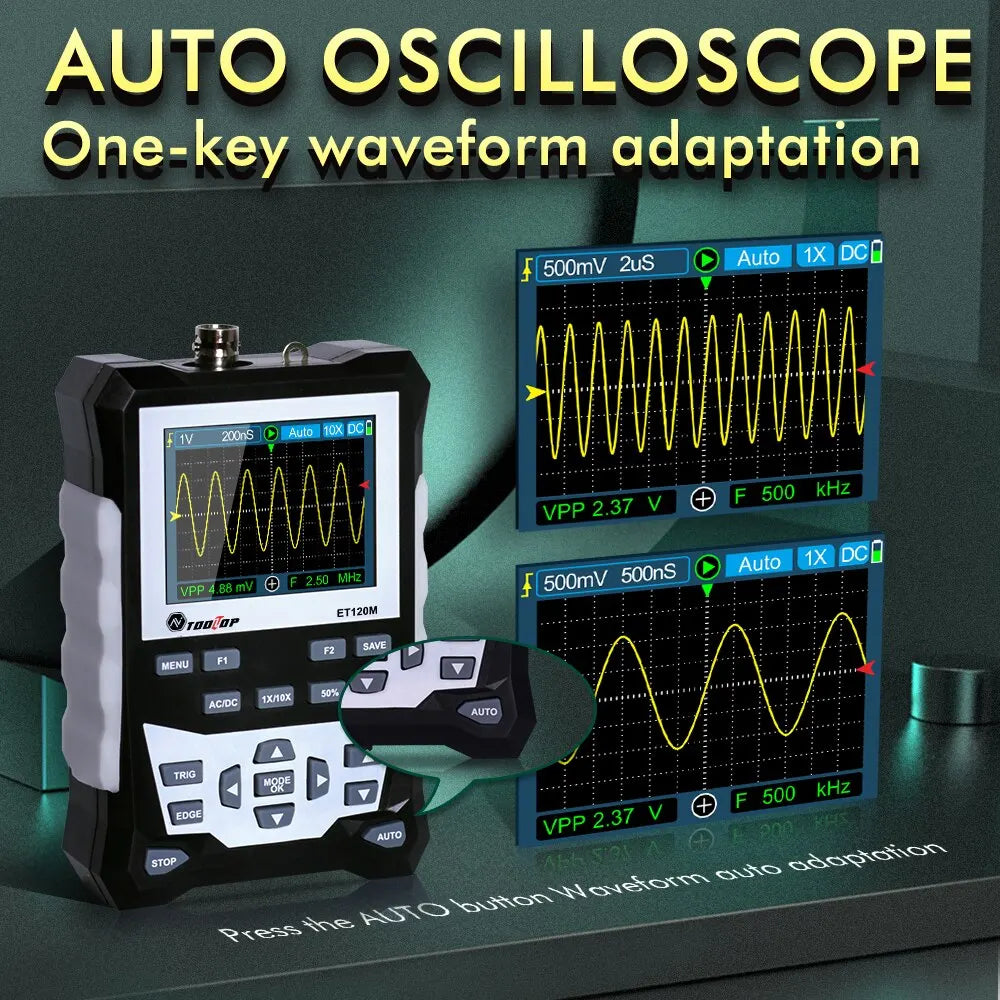

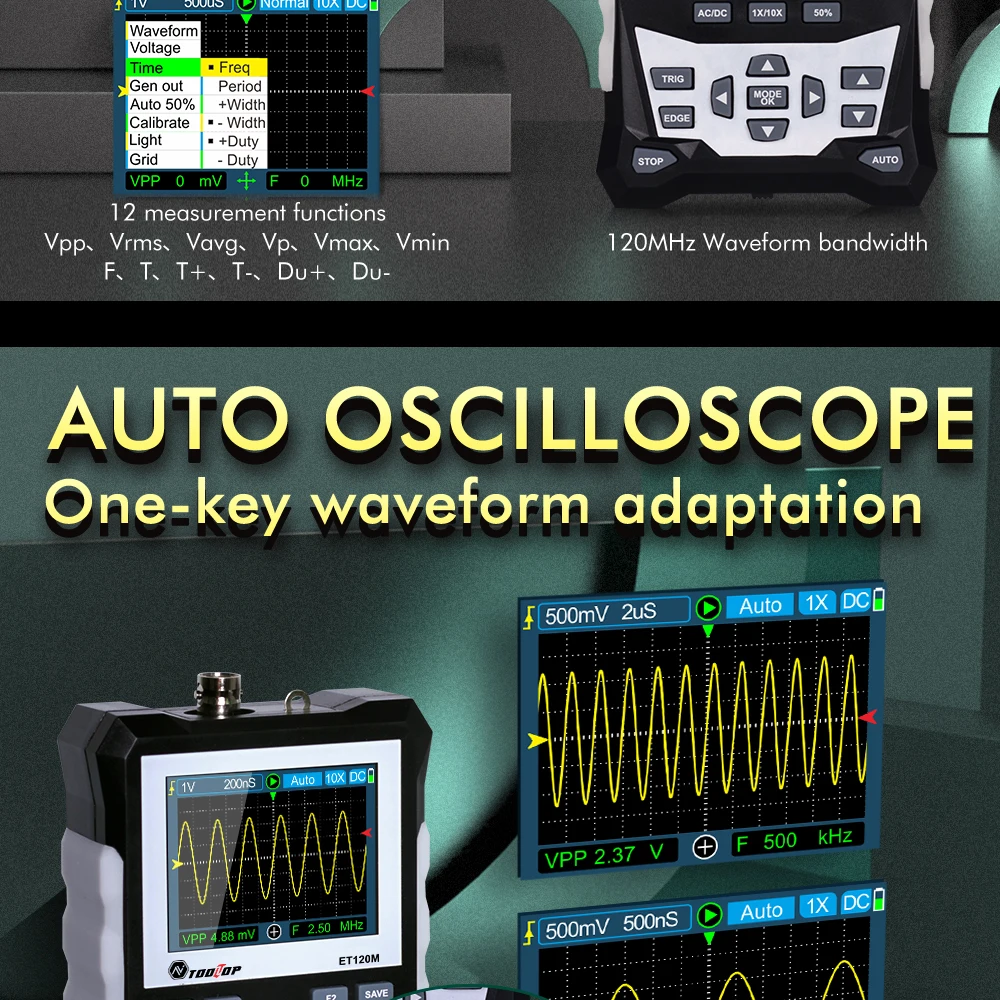

Auto configuration:Automatically set time base and vertical amplitude
Aulomatic measurement function:Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-
Vertical sensifvity range:x1: 50mV/div - 10V/div ; x 10: 500mV/div - 100V/div
Package list:

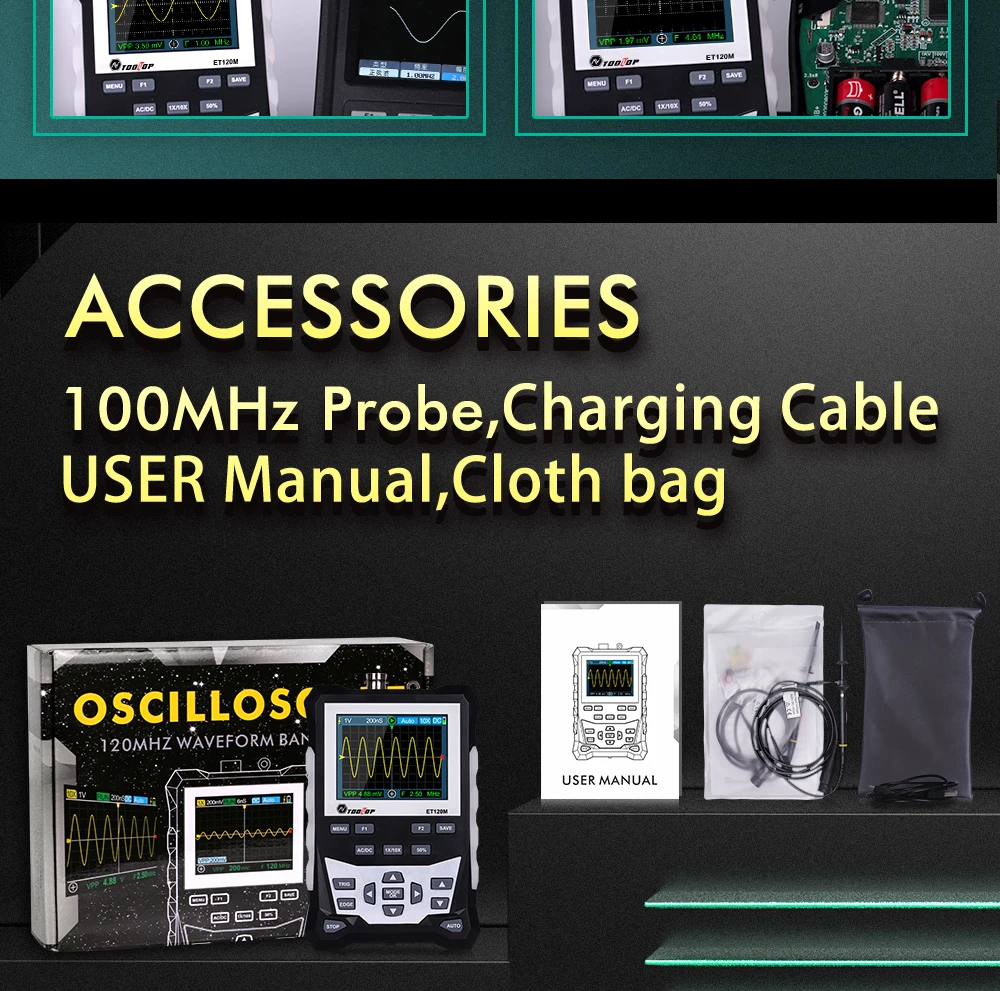

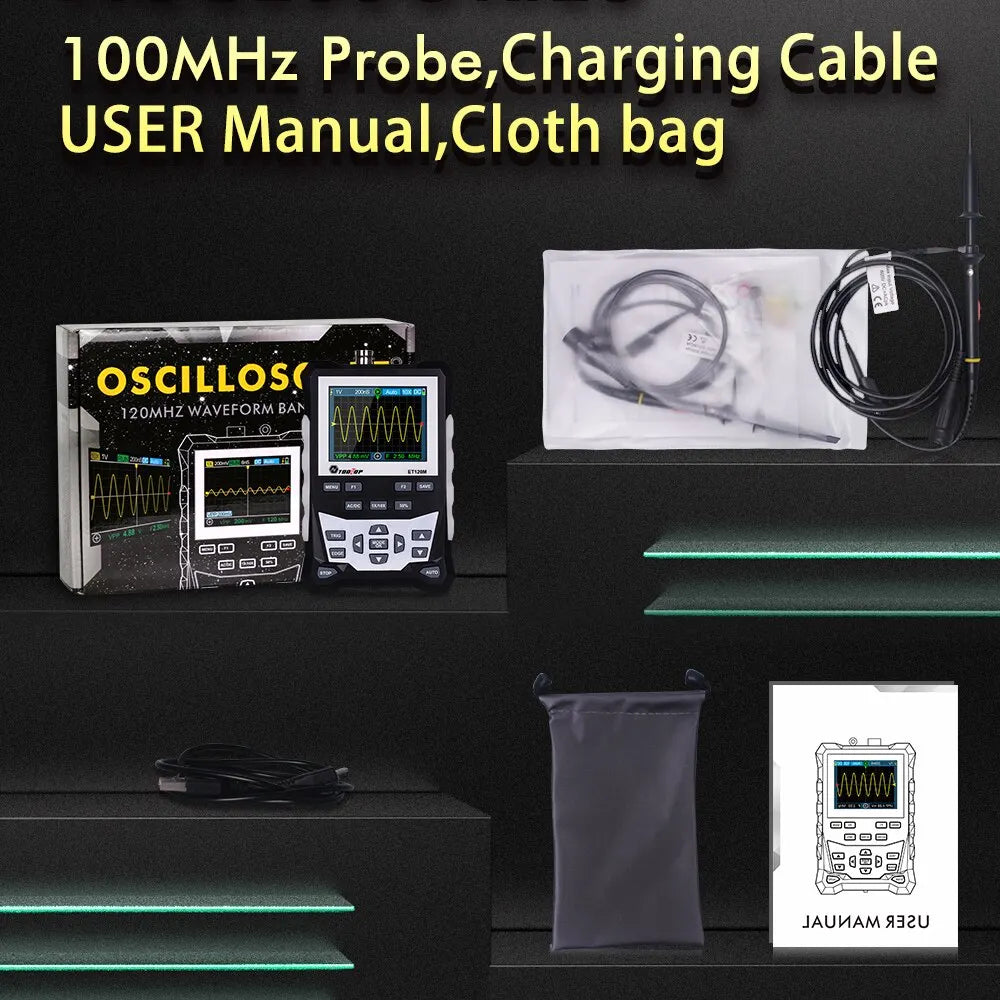

1 xOscilloscope
1 xProbe
1 x English Manual
1 x USB Cable
