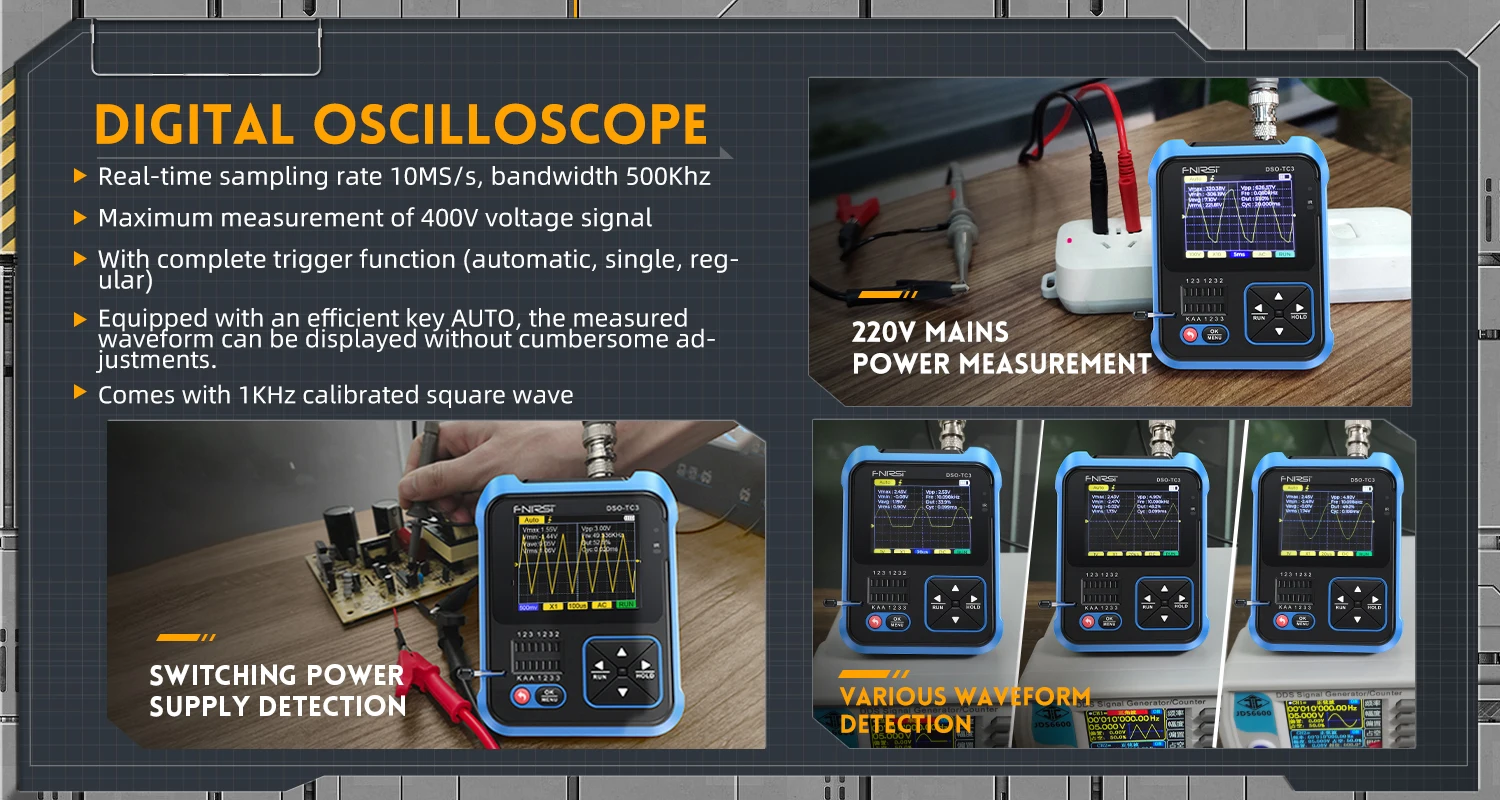

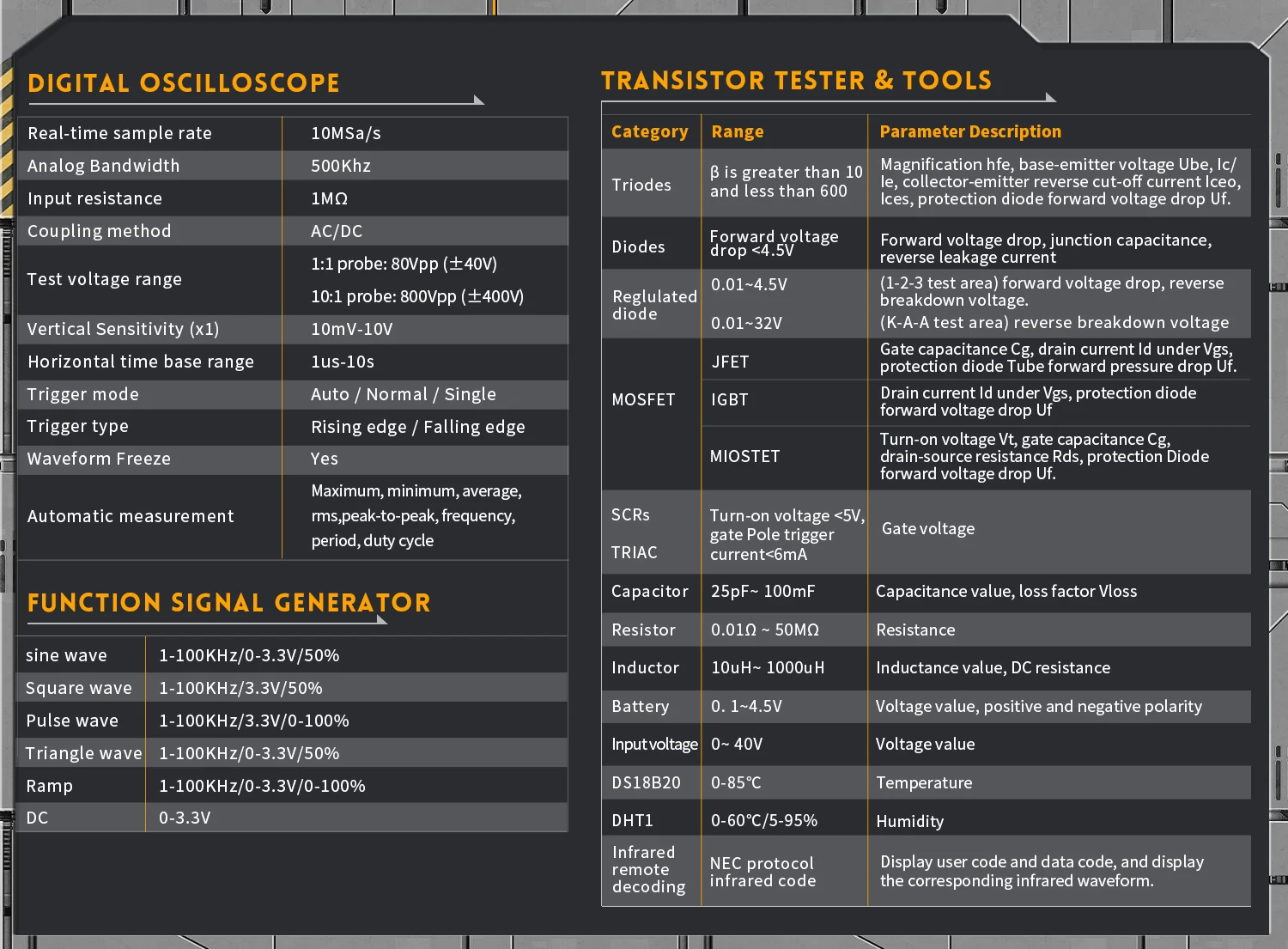

Real-time sample rate：10MSa/s
Analog Bandwidth：500Khz
Input resistance：1MΩ
Coupling method：AC/DC
Test voltage range：400V
Vertical Sensitivity (x1)：10mV-10V
Horizontal time base range：1us-10s
Trigger mode：Auto / Normal / Single
Trigger type：Rising edge / Falling edge
Waveform Freeze：Yes
Automatic measurement：Yes

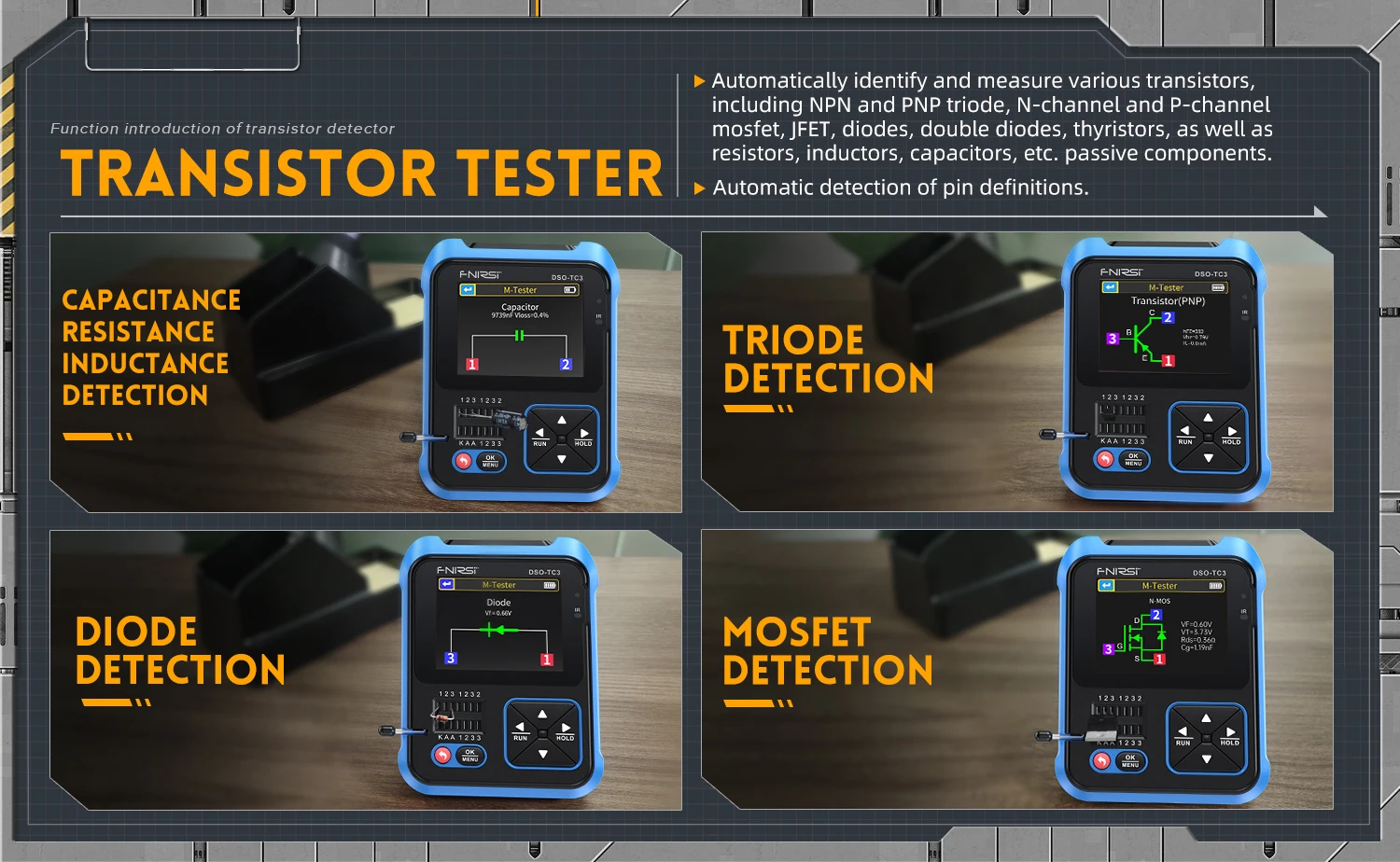

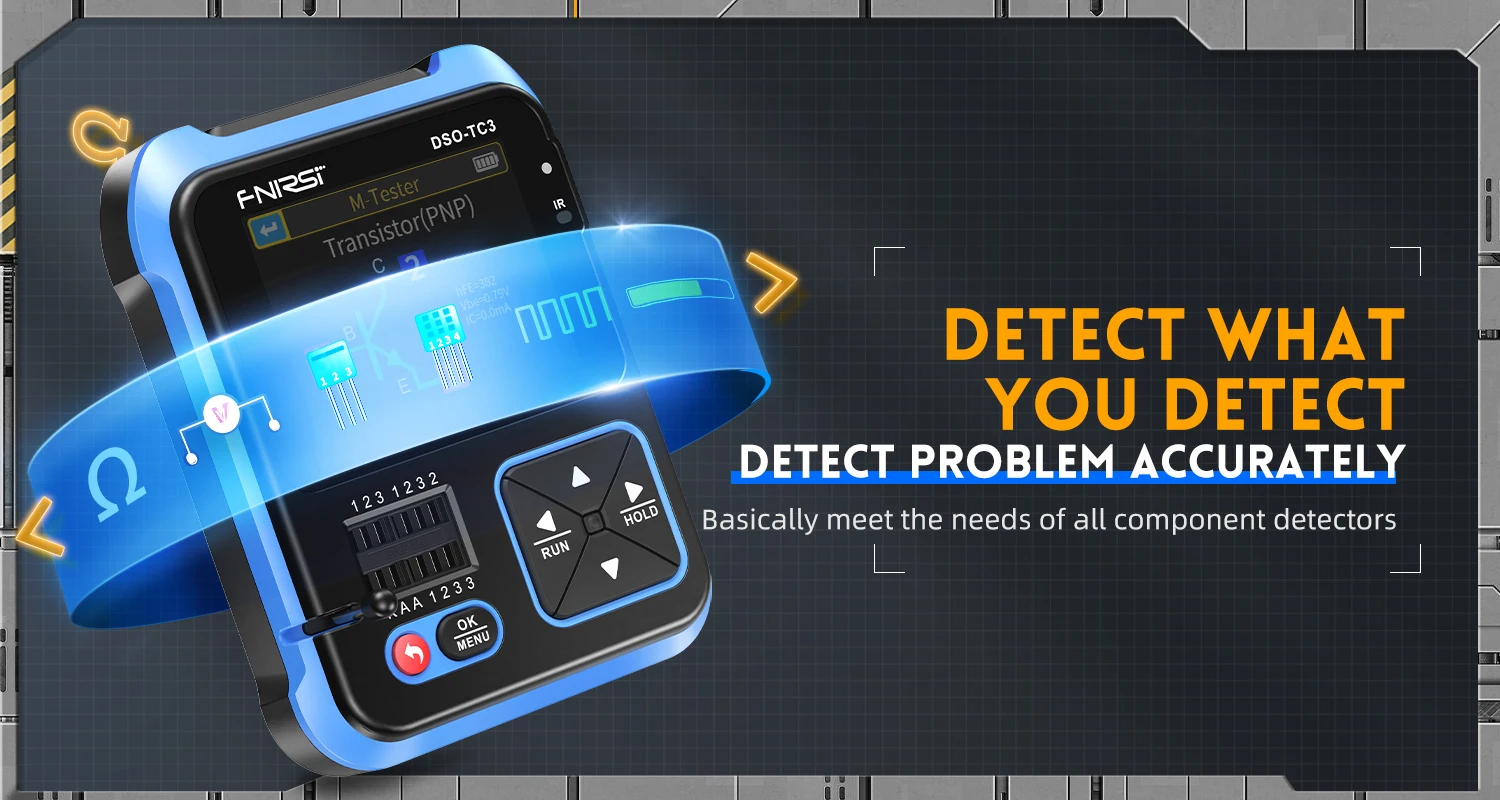

Transistor tester
Triodes：β is greater than 10 and less than 600
Diodes：Forward voltage drop <4.5V
Reglulated diode：0.01~32V
MOSFET：JFET，IGBT，MOSFET
SCRs：Turn-on voltage <5V, gate Pole trigger current <6mA
TRIAC：Turn-on voltage <5V, gate Pole trigger current <6mA
Capacitor：25pF~100mF
Resistor：0.01Ω~50MΩ
Inductor：10uH~1000mH
Battery：0.1~4.5V

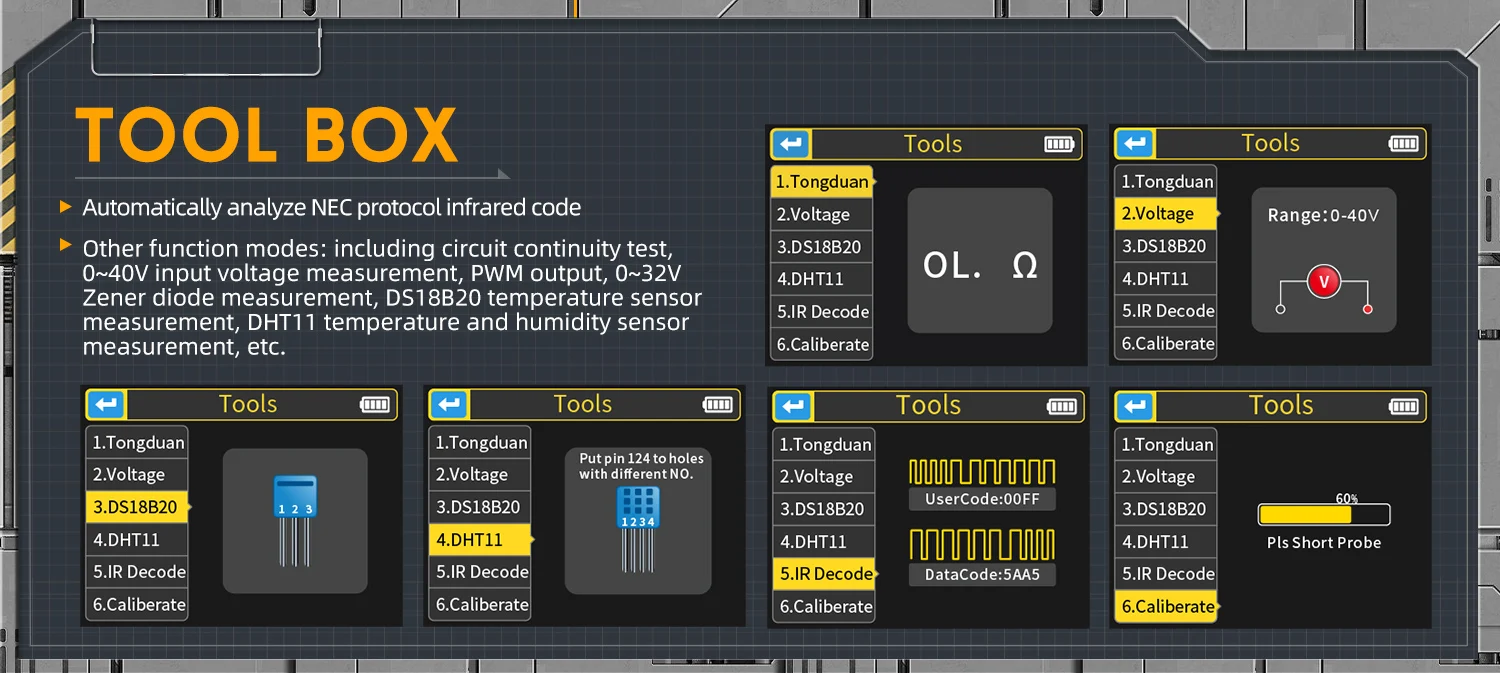

Input voltage：0~40V
DS18B20：0-85℃
DHT11：0-60℃/5-95%
Infrared remote decoding：NEC protocol infrared cod
NOTE：
①Ices, Iceo, Uf are only displayed when they are valid.
② Junction capacitance and reverse leakage current are only displayed when they are valid.
③The turn-on or turn-off voltage of the FET must be less than 5V.
④ Displayed only when there is a protection of diode.
⑤Vloss is only displayed when it is valid.
⑥Two-legged components and measure the inductance when the resistance is less than 2.1kΩ.

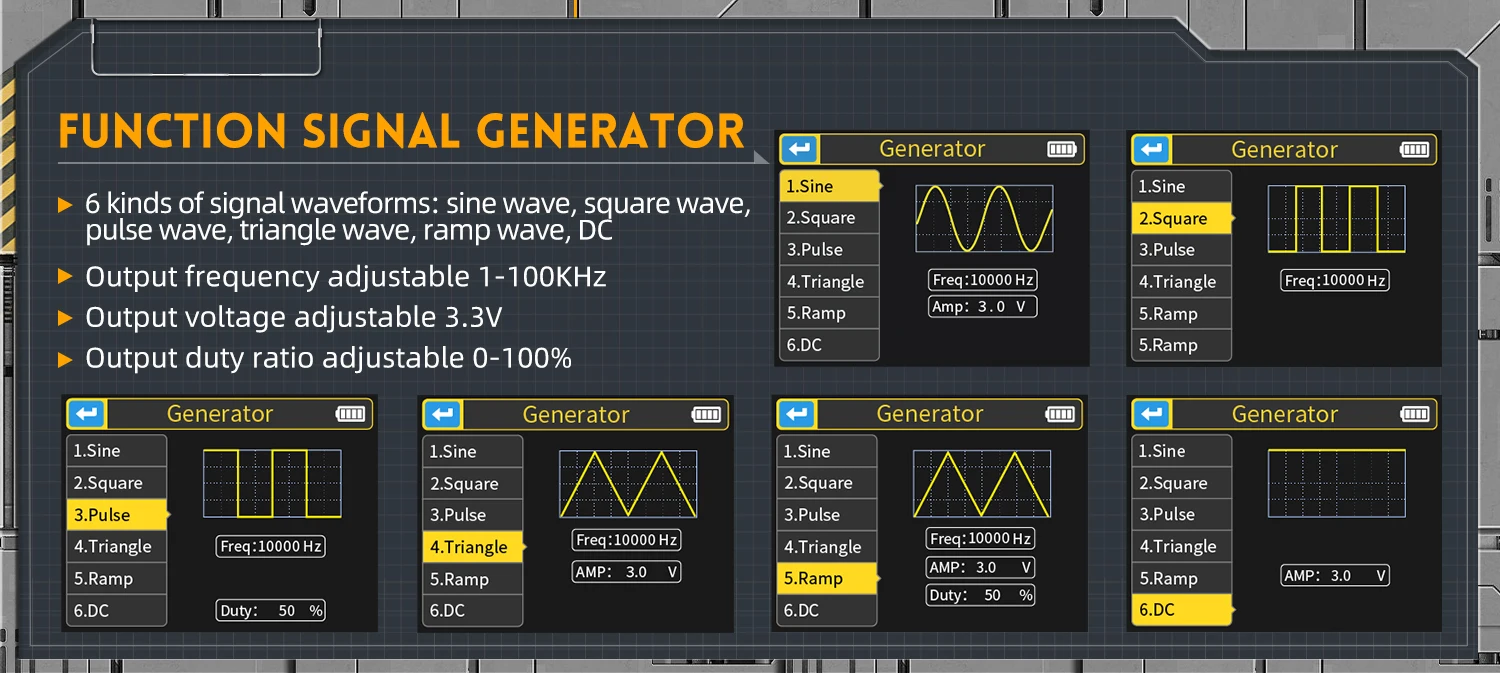

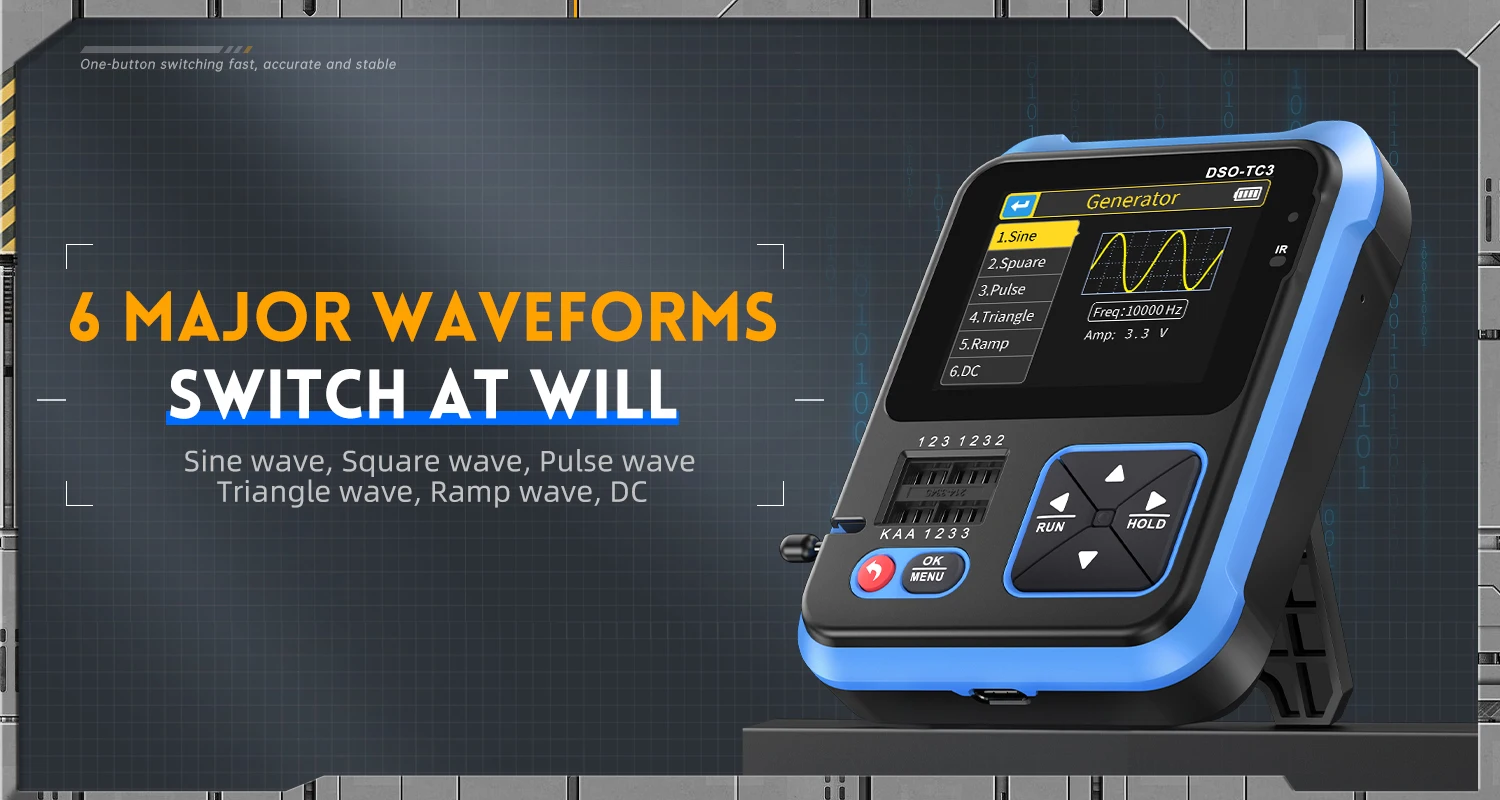

DDS
sine wavel：1-100KHz/0-3.3V/50%
Square wave：1-100KHz/3.3V/50%
Pulse wave：1-100KHz/3.3V/0-100%
Triangle wave：1-100KHz/0-3.3V/50%
Ramp：1-100KHz/0-3.3V/0-100%
DC：0-3.3V

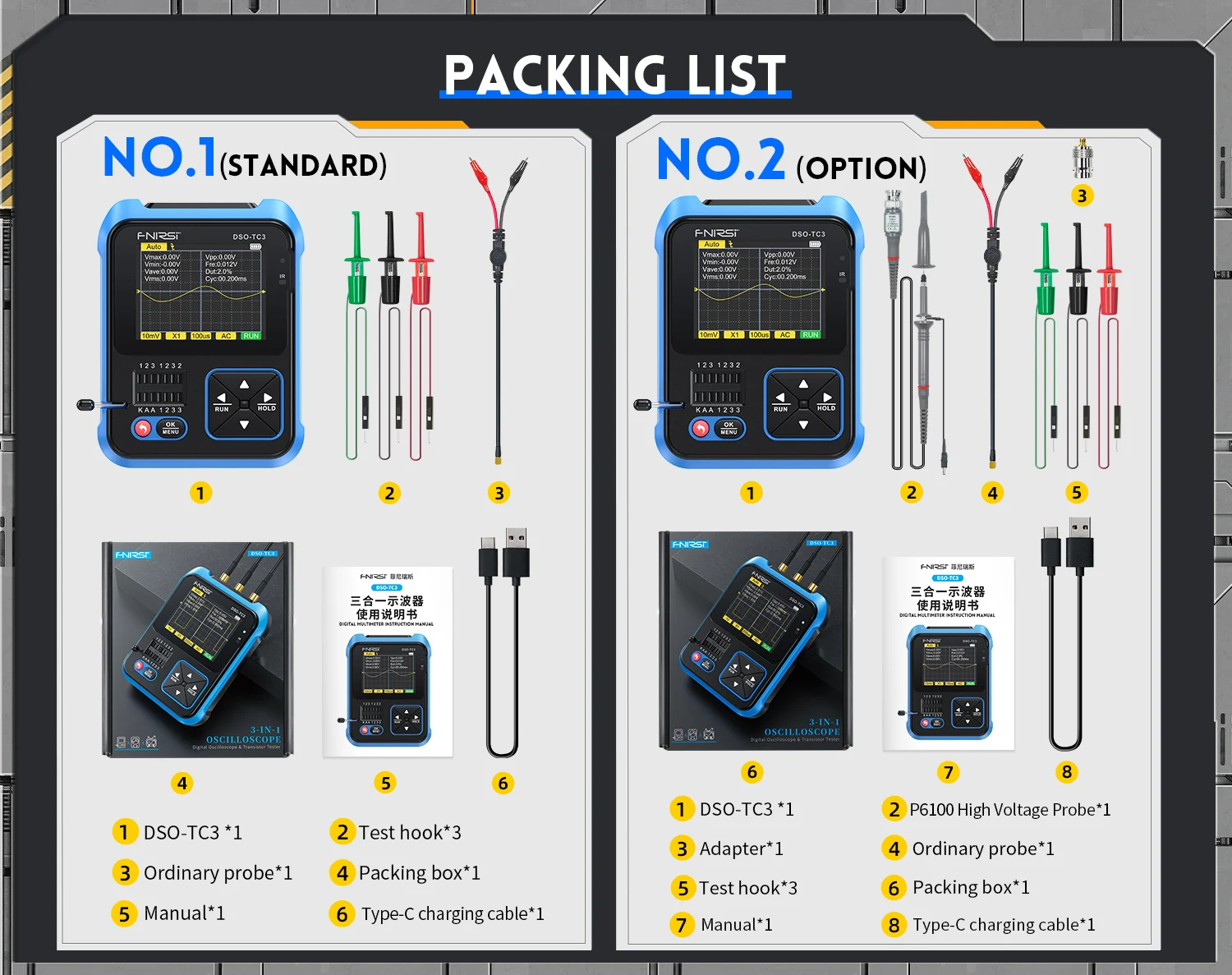

NO.1(Standard)
DSO-TC3 *1
Ordinary probe*1
Test hook*3
Type-C charging cable*1
Packing box*1
Manual*1
NO.2(Option)
DSO-TC3 *1
P6100 High Voltage Probe*1
Ordinary probe*1
Test hook*3
Adapter*1
Type-C charging cable*1
Packing box*1
Manual*1
