Product Summary
SK60 SK120 DC Buck Boost Converter CNC Adjustable Regulated Laboratory Power Supply Constant is a power and battery module selected for power conversion, battery testing, charging and regulated output projects. It is suitable for electronics builders, repair users and lab bench users who need practical electronics hardware for reliable project work.
Best For
- power conversion, battery testing, charging and regulated output projects
- DIY electronics, battery packs, solar modules and bench power workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics builders, repair users and lab bench users.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Features:
1. The use of high-quality PCB materials, quality assurance, greatly improving the service life of the product

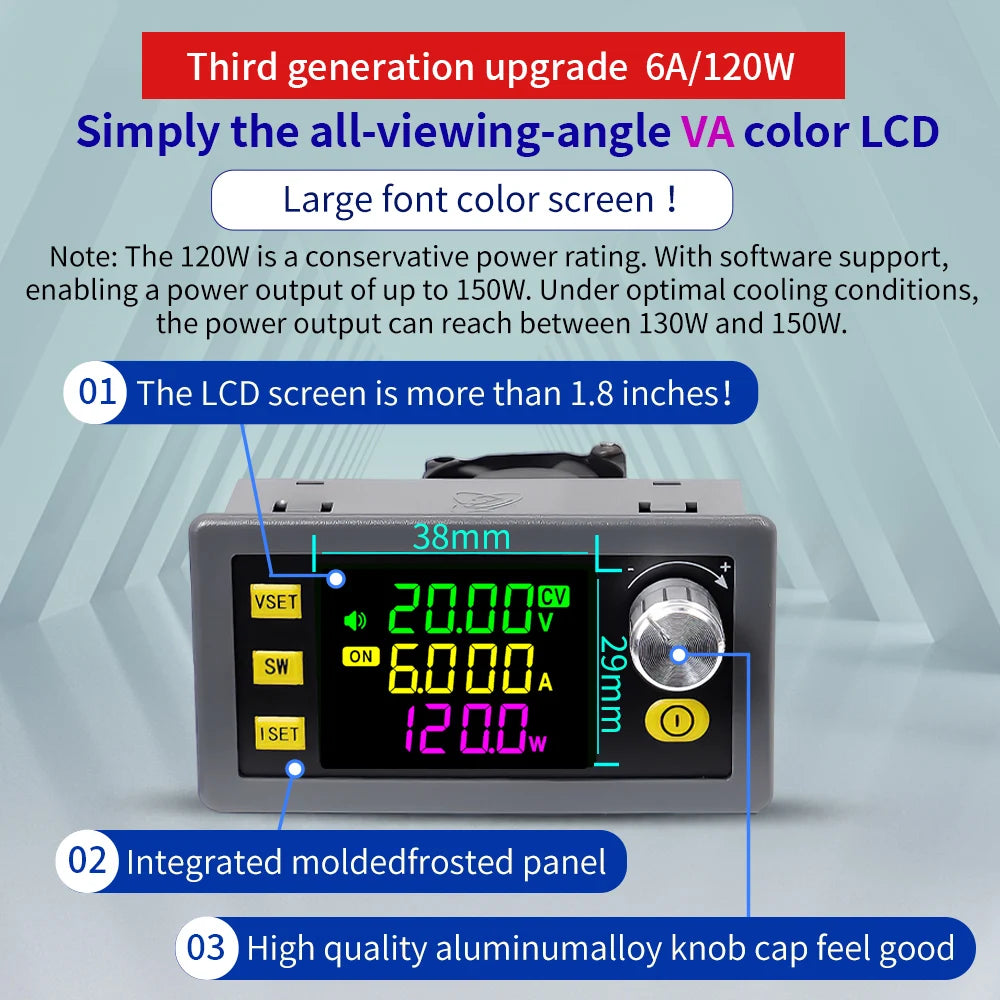

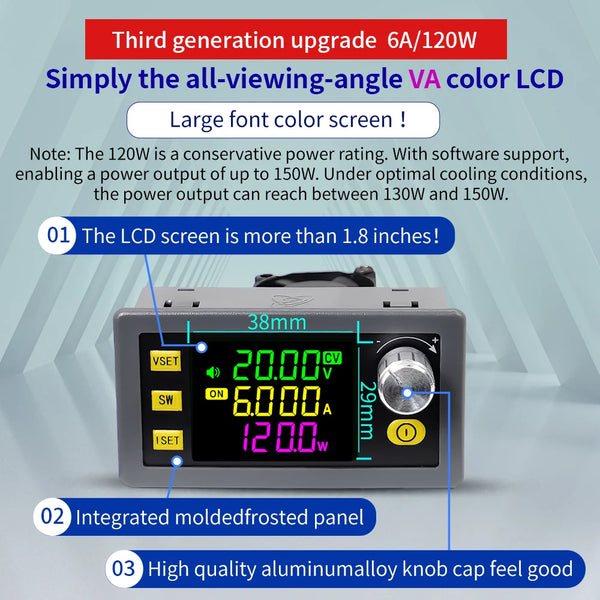

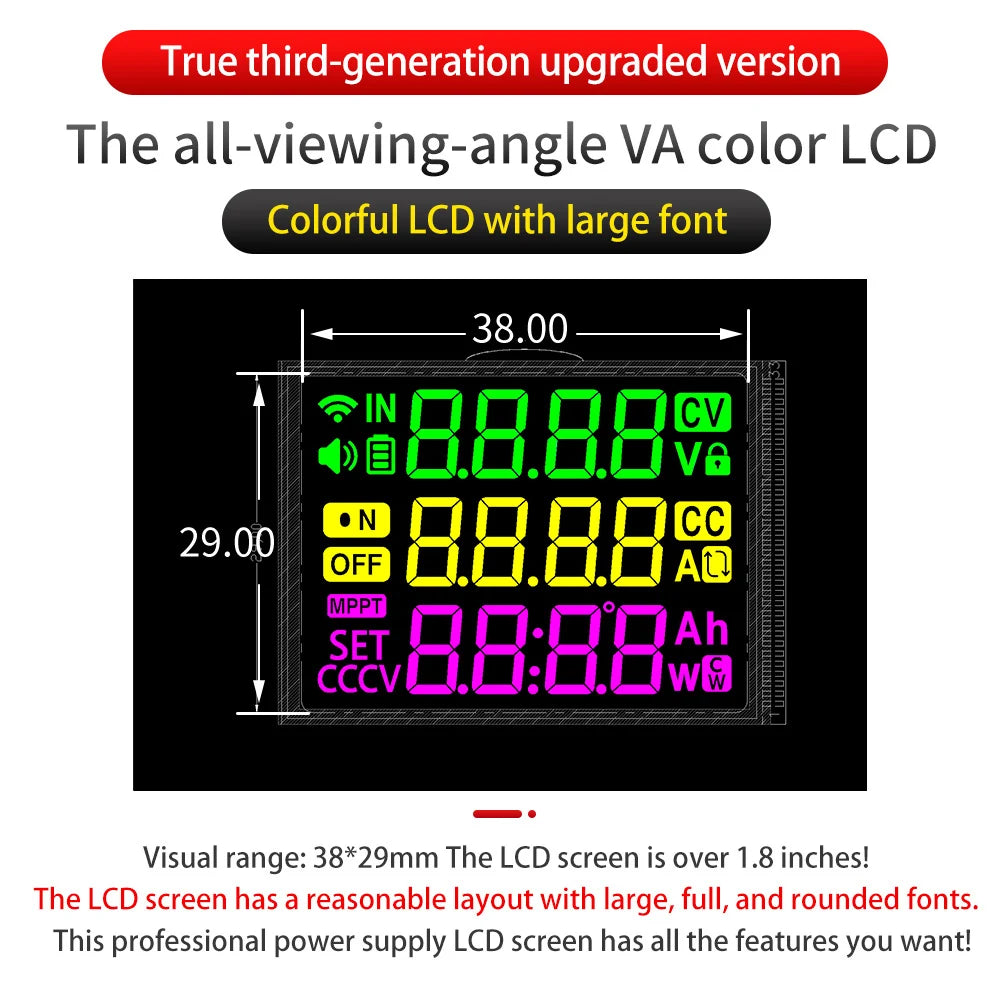

2. LCD screen layout is reasonable, the font is large and full of rounded, professional power supply LCD screen, you want the function it has!
3. Built-in buzzer, key prompts, alarm prompts, safer and more assured use of the product
4. Upgraded plug-in terminals, easy to disassemble and replace.

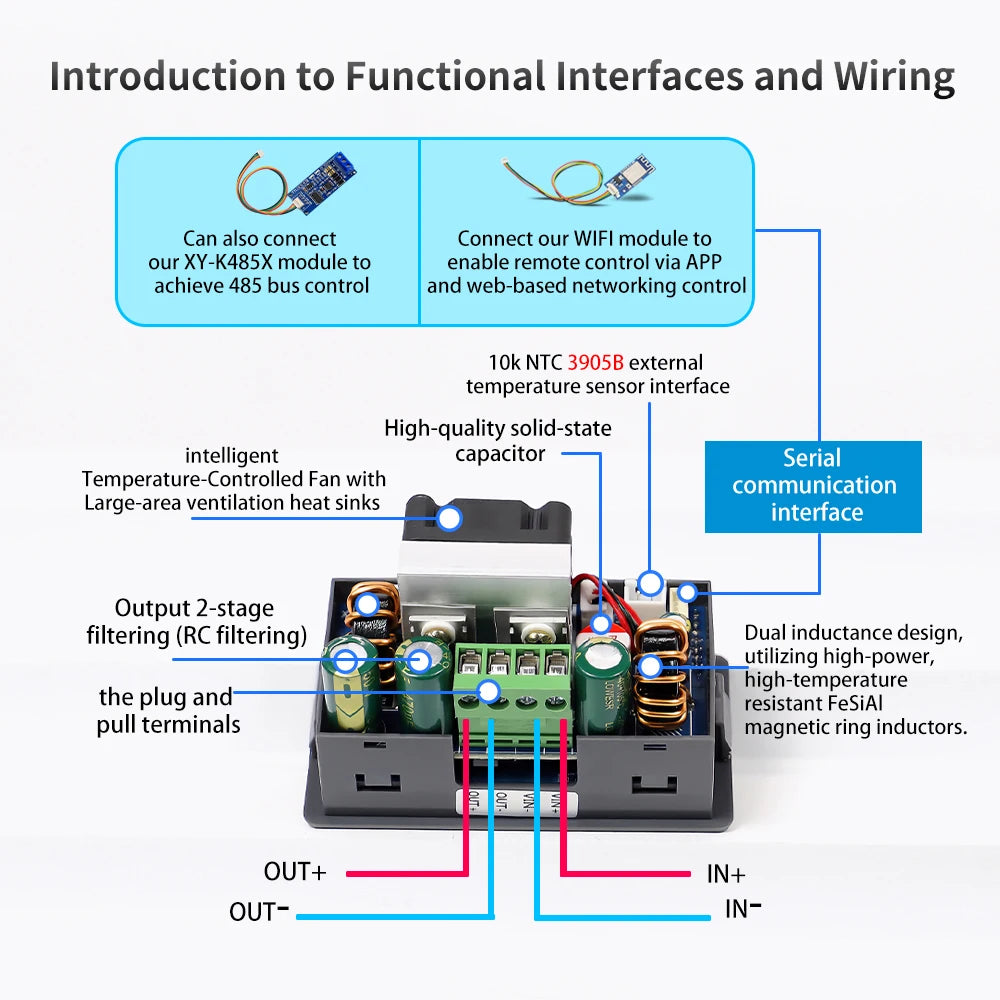

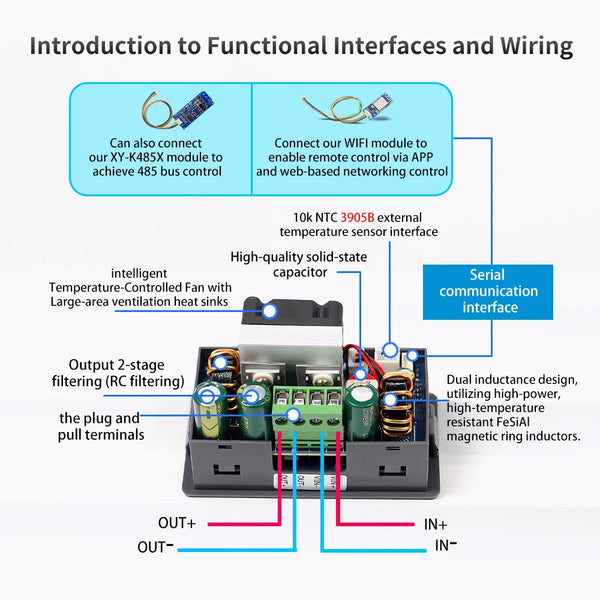

5. The product has a wide range of applications, with MPPT function, support for MPPT solar charging, can be connected to the external temperature probe to support over-temperature protection.

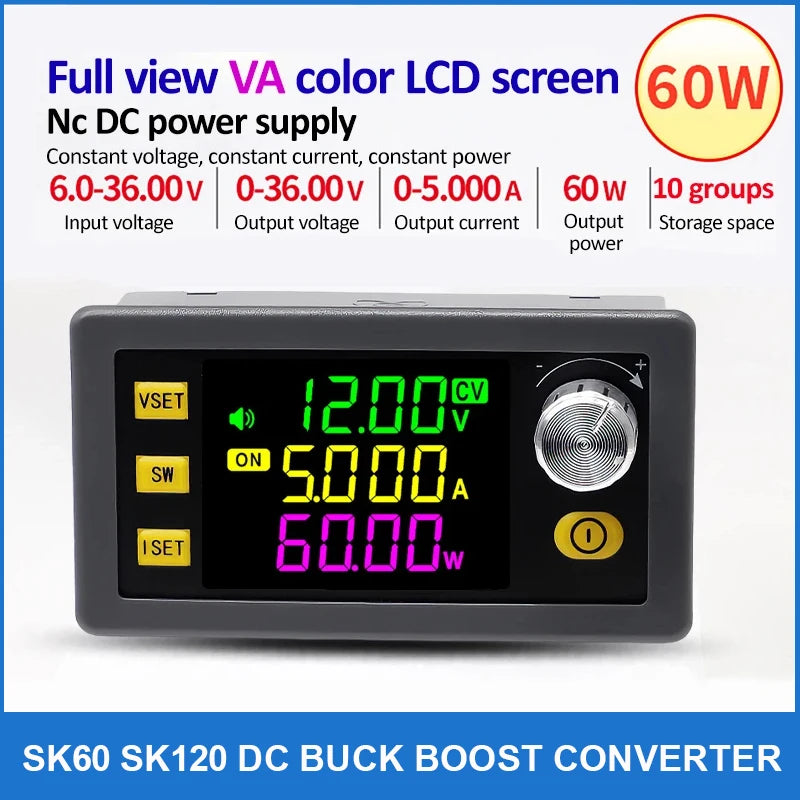

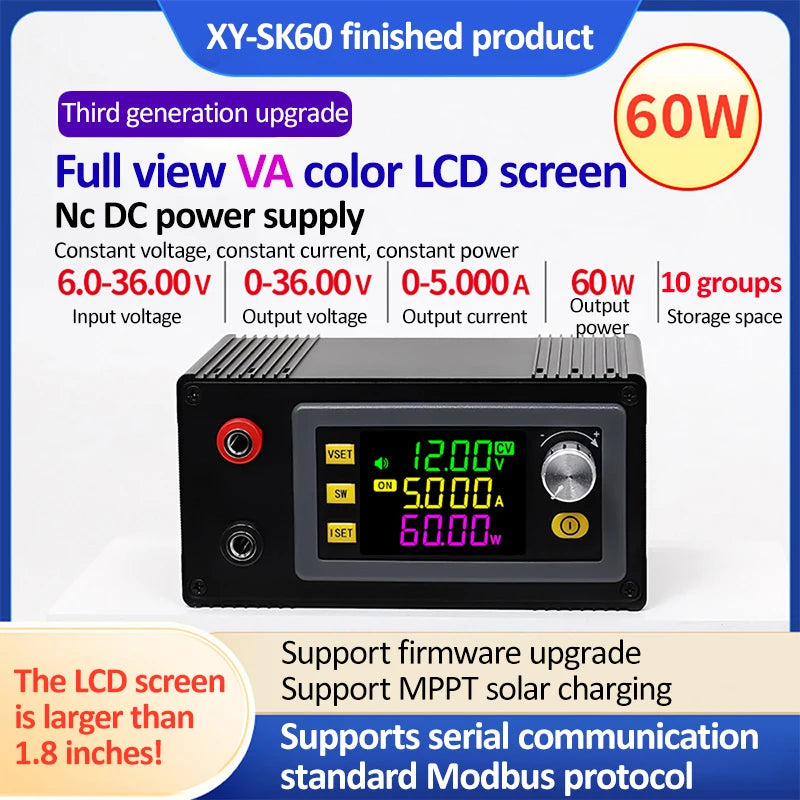

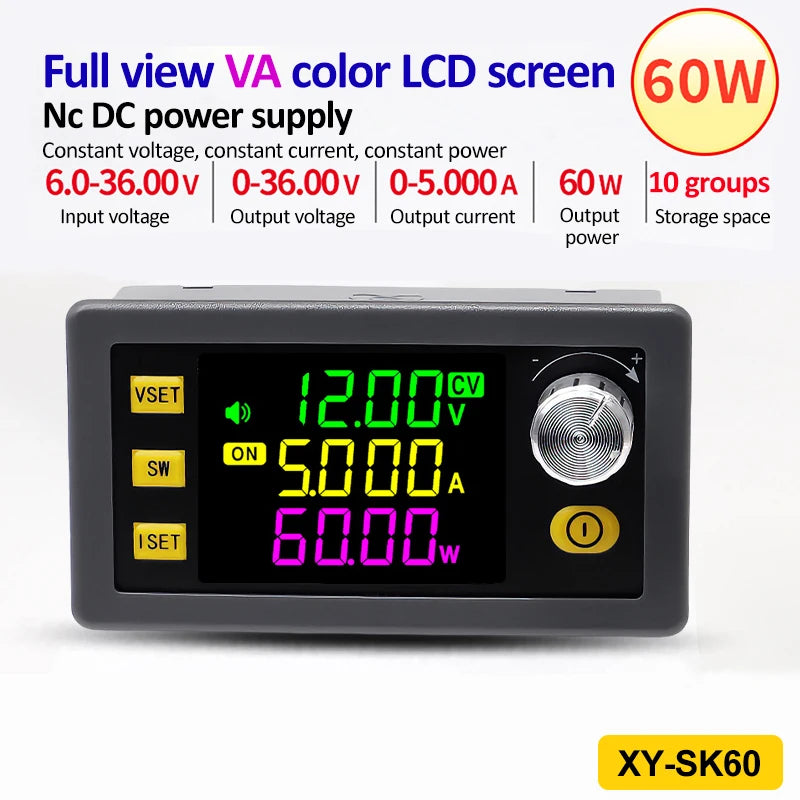

XY-SK60
Parameter:
Input voltage: 6.0-36V
Output current: 0-5.000A
Output power: 60W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0-36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.01A
Storage data group: 10 groups
MPPT function: Support MPPT solar energy
Charging buzzer: Yes
Soft start: Yes
Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V
Output over-voltage protection: 0-38V adjustable, default 38V
Output overcurrent protection: 0 -5.2A adjustable, default 5.2A
Output over power protection: 0 -80W adjustable, default 65W
Over-temperature protection: 0-110 deg C adjustable, default 95 deg C
Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0-9999AH adjustable, default off
Super energy protection: 0-4200KWH adjustable, default off

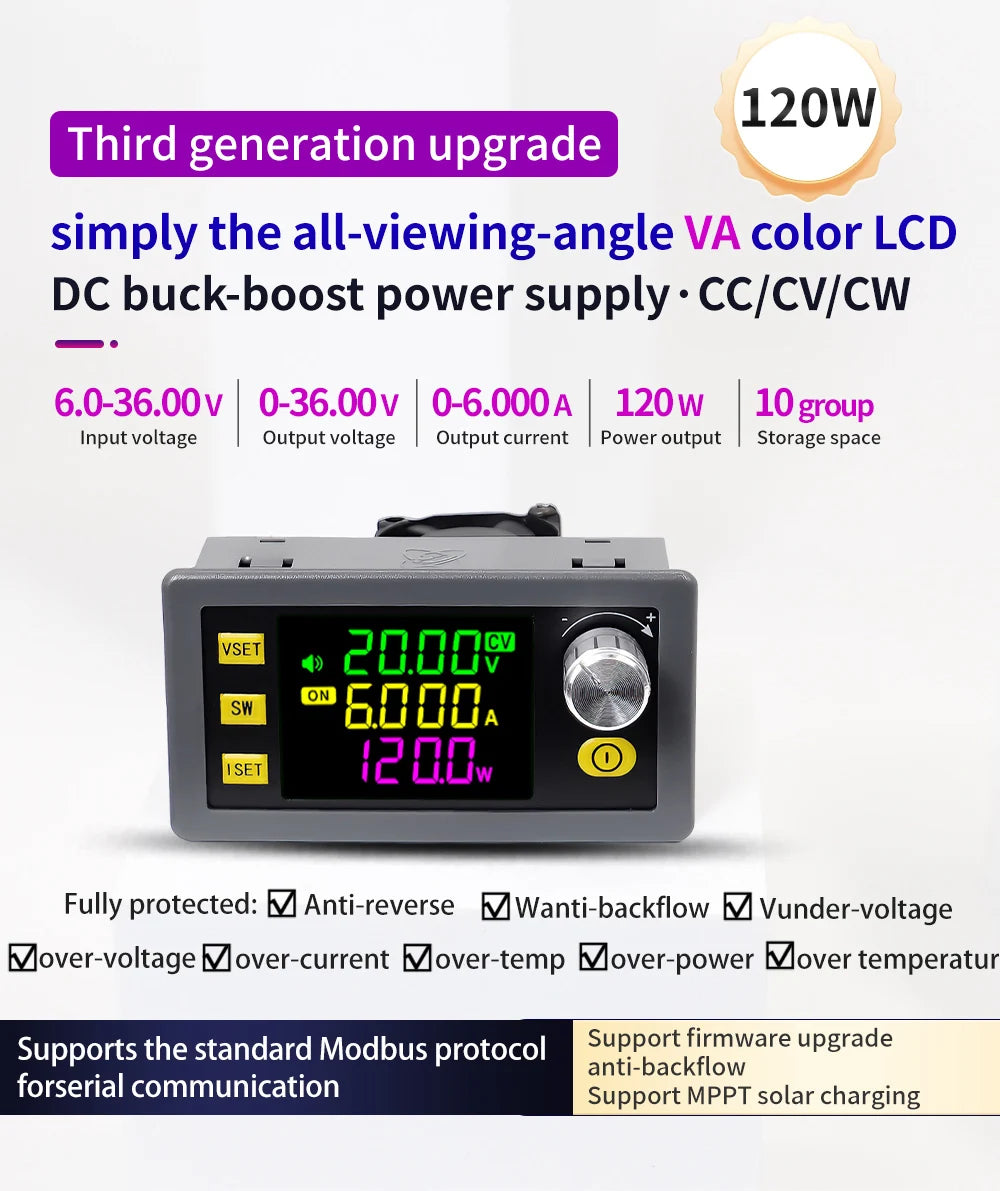

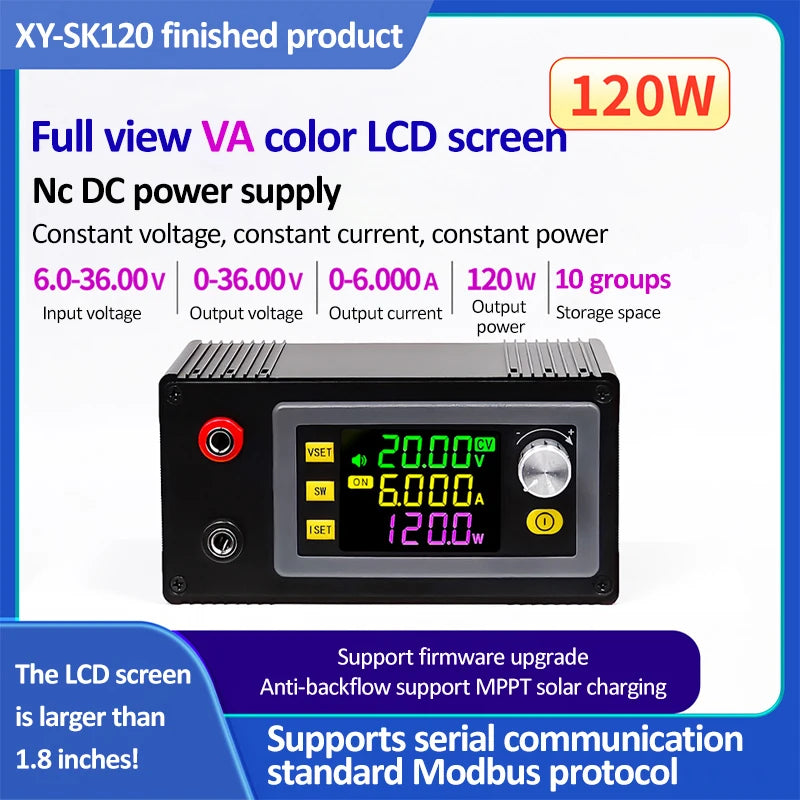

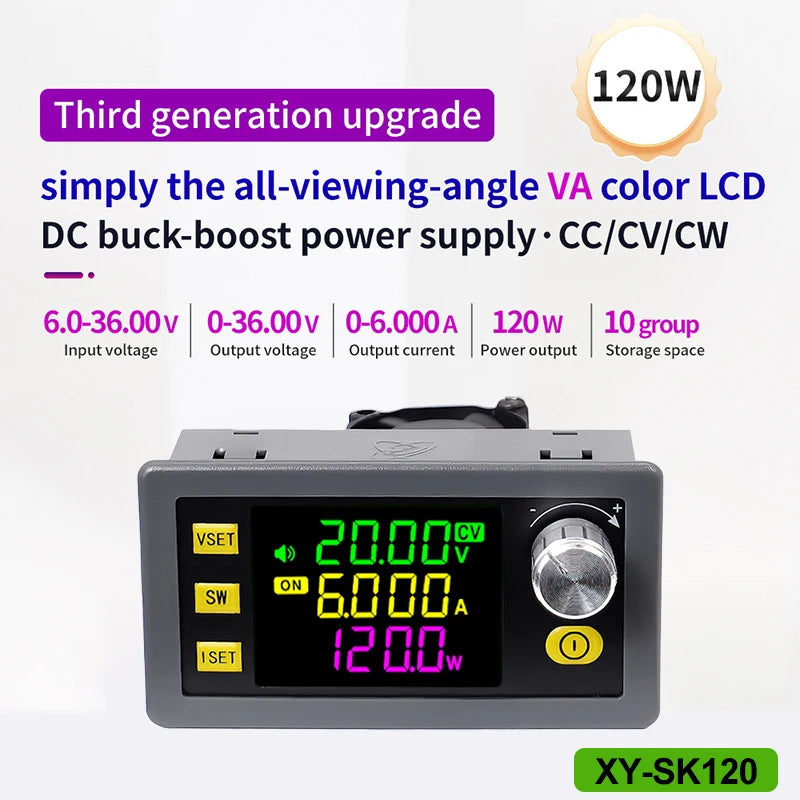

XY-SK120
Parameter:
Input voltage: 6.0-36V
Output current: 0-6.000A
Output power: 120W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0-36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: support MPPT solar charging
Buzzer: Yes
Soft start: Yes
Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V
Output over-voltage protection: 0-38V adjustable, default 38V
Output overcurrent protection: 0 -6.2A adjustable, default 6.2A
Output over power protection: 0-150W adjustable, default 125W
Over-temperature protection: 0-110 deg C adjustable, default 95 deg C
Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0-9999AH adjustable, default off
Super energy protection: 0-9999KWH adjustable, default off
Package include:
Adjustable boost and buck module *1
