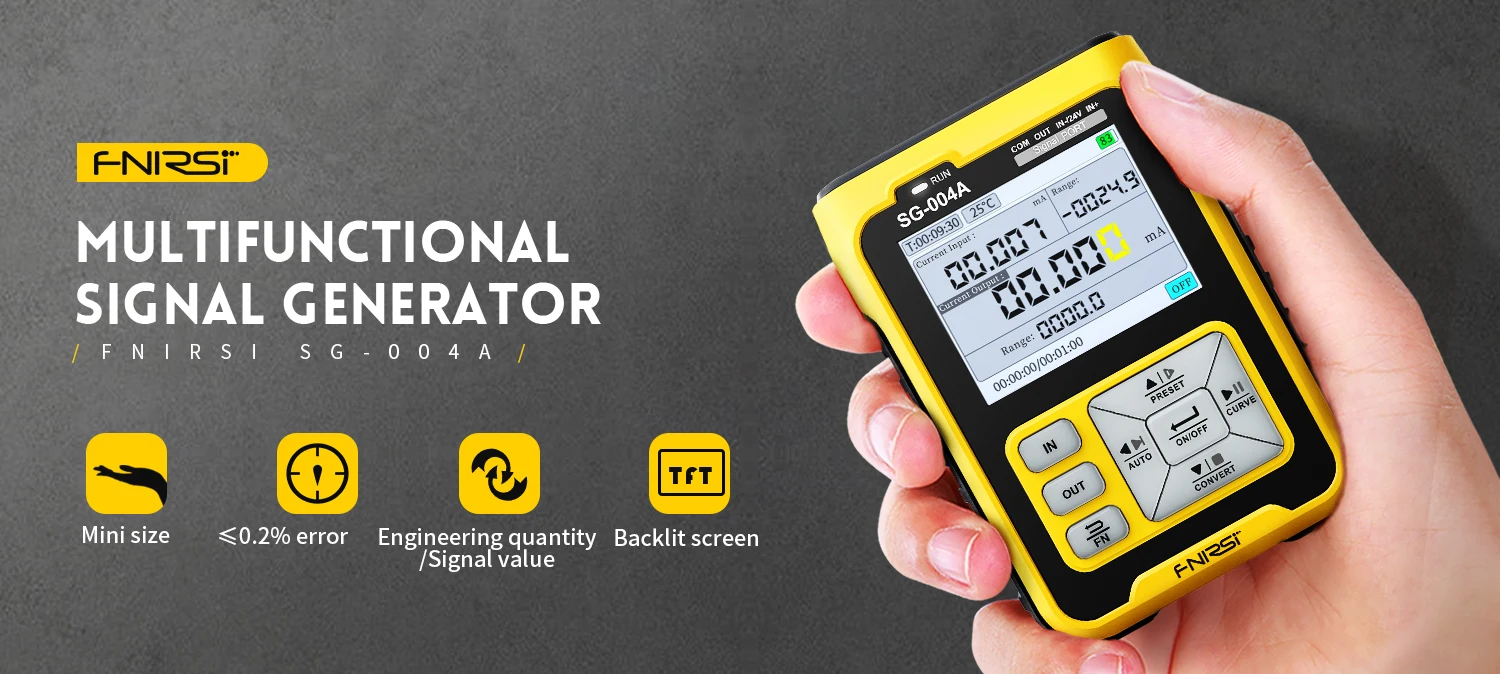

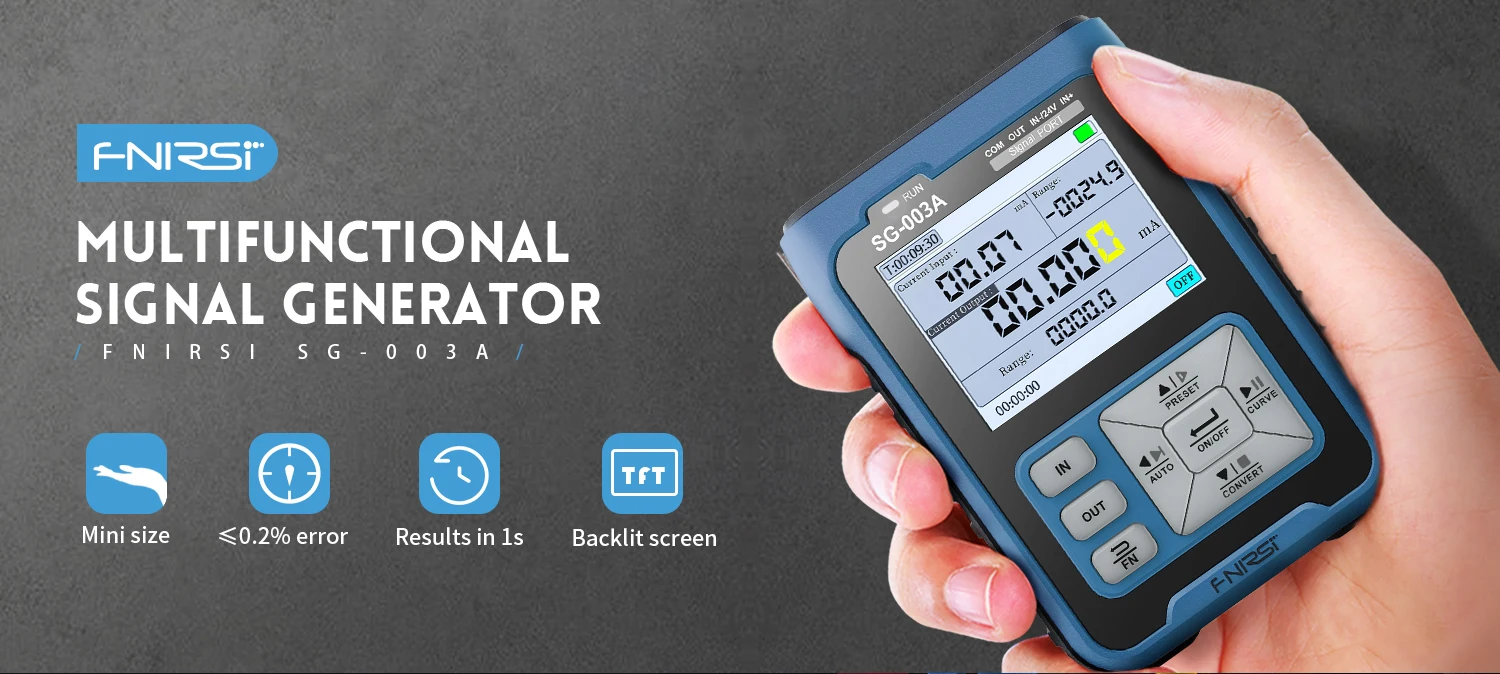

FNIRSI SG-003/SG-004 4-20mA 0-10V Voltage Signal Generator 0-20mA Current Transmitter

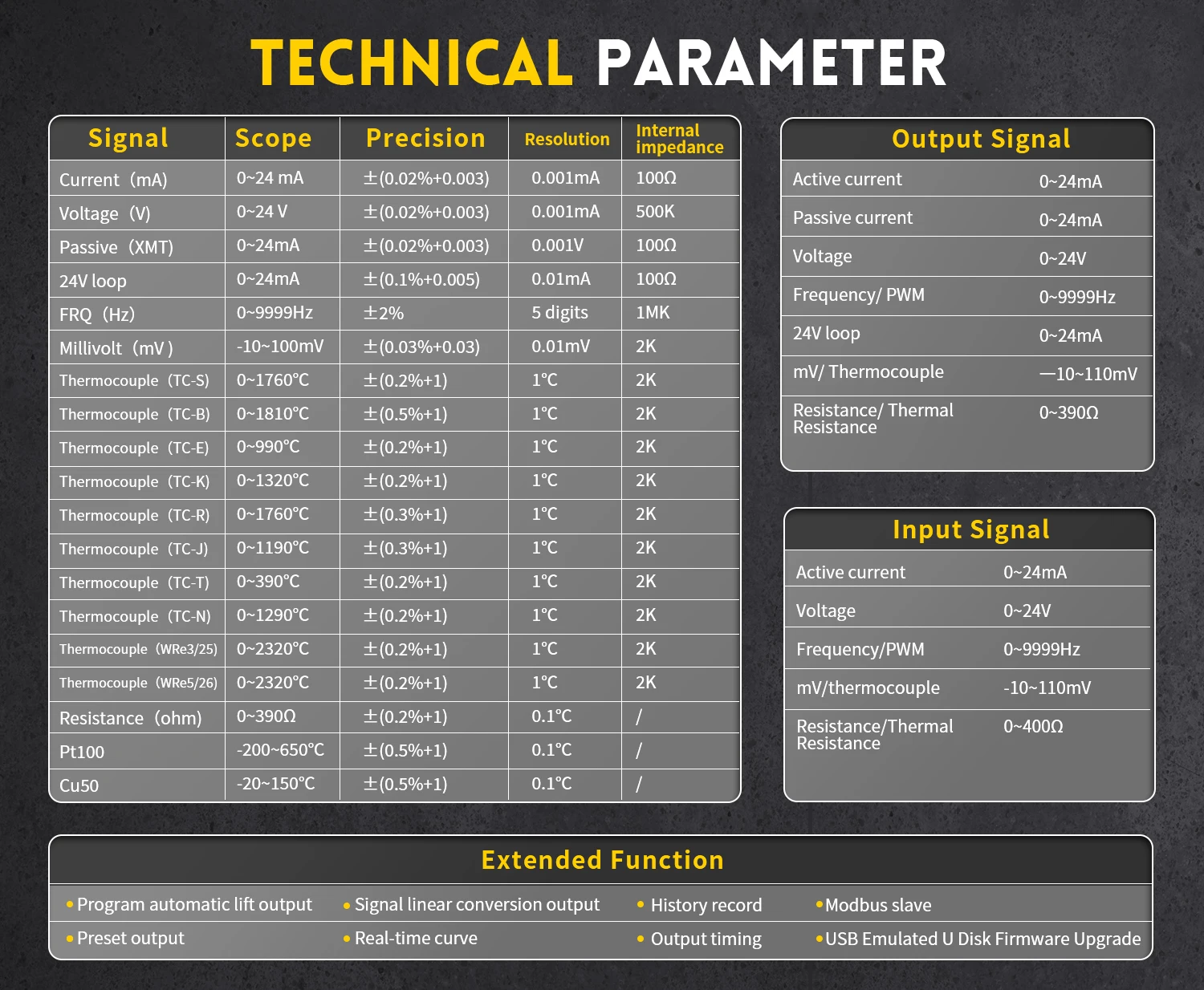

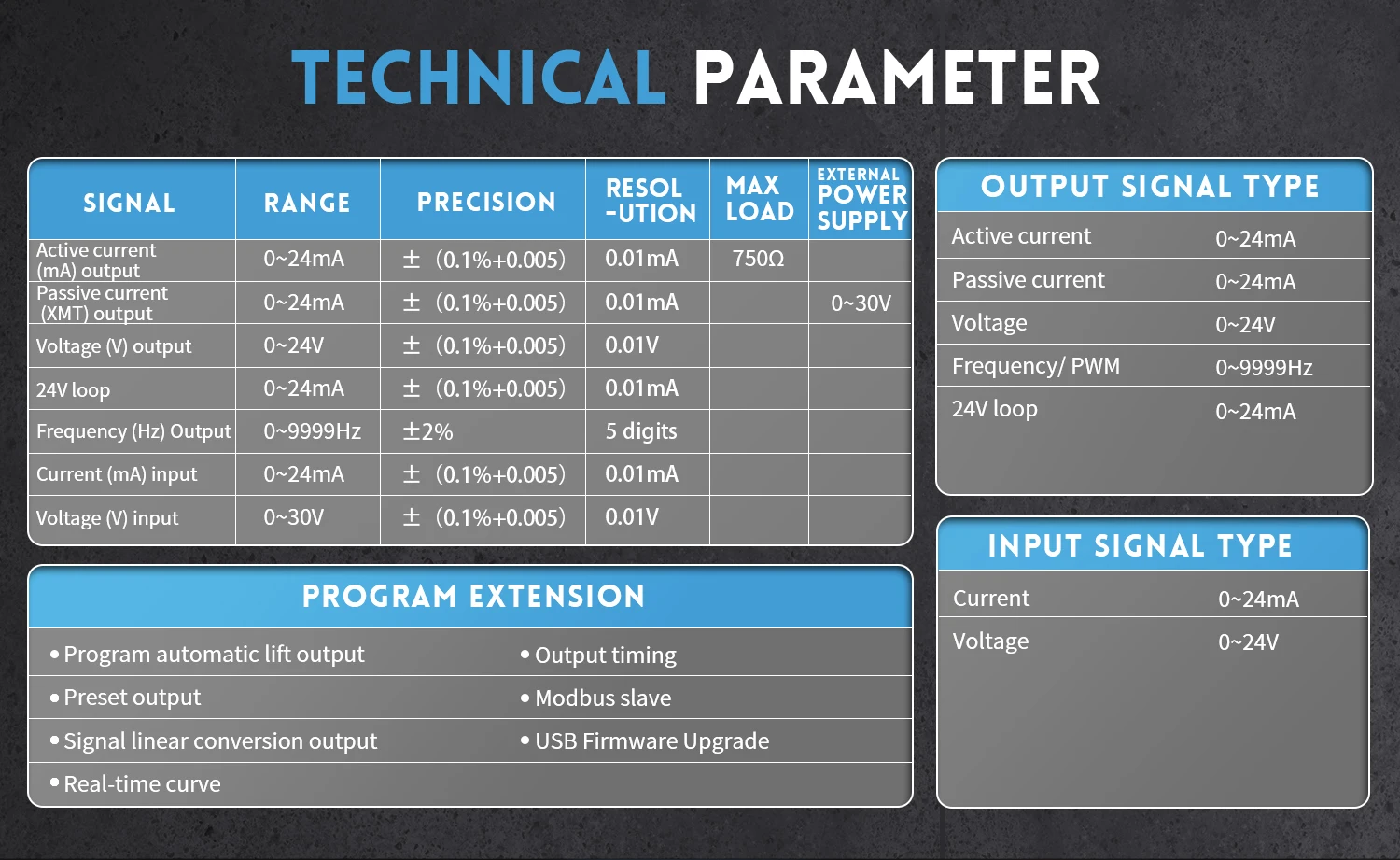

1. Active current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750Ω;Precision:±(0.1%+0.005)

2. Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V;Precision:±(0.1%+0.005)

3. Voltage output: range: 0-24 V; resolution: 0.01v; maximum current 30mA;Precision:±(0.1%+0.005)

4. 24V voltage output: drive current: 24mA;resolution: 0.01 mA;Precision:±(0.1%+0.005)

5. Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100Ω;Precision:±(0.1%+0.05)

6. Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2MΩ;Precision:±(0.1%+0.05)

7. PWM output (frequency):Range: 0-9999Hz

8. A sngle 3.7V 3000mAh lithium battery power supply; Standby time is 26 hours;the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)

9. Operating environment: 0 °C - 50 °C.

10. Internal reverse and overcurrent protection; protection voltage:30V

11. Output automatically

12. Size: 92mm*72mm*30mm

13. Weight:165g
