NOTE:
1. RK6006-C has bluetooth function, and it does not have AC power cord, you need to prepare it by yourself, and it does not have external temperature sensor cable, please notice that
2. RK6006-C is set to use 200-240V AC input by default, if you use 100-120V AC, please put the AC selector to 110V gearModel: RK6006-C
Input voltage range: 100-120V/200-240V AC
Output voltage range: 0-60.00V
Output current range: 0-6.000A
Output power range: 0-360W
Output voltage setting/reading resolution: 0.01V
Output current setting/reading resolution: 0.001A
Output voltage setting/reading accuracy: ±(0.3%+3 digits)
Output current setting/reading accuracy:±(0.5%+5 digits)
Output ripple typical:100mV VPP①
Working temperature range: -10℃~40℃
Constant voltage moderesponse time: 2ms（0.1A-5A Load）
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2％
Over temperature protection: System temperature>90℃
Screen brightness setting: 0-5(6 level in total)
Screen: 1.54 inch 240*240 color LED display
Weight(with package):About 1.3 kg
Product dimension: 200*115*57mm
Support USB/Bluetooth communication: yes
①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope, with a 0.1uF parallel capacitor at the output terminals
1. RK6006-C manual, PC software, APP download link: https://drive.google.com/drive/folders/1V9CMtTBnc4Ww-sNHrabN8522YPYQcrNI?usp=sharing
2. IOS APP download: search "RUIDENG" in APP STORE
Android app download link: https://drive.google.com/drive/folders/1V9CMtTBnc4Ww-sNHrabN8522YPYQcrNI?usp=sharing
1.4.2.1 Main Page Output Voltage and Current Setting: https://youtu.be/C3qL3OIkNBo
1.4.2.2 Data Group Quick Storage and Call out: https://youtu.be/7bW9UcJY17o
1.4.2.3 System Setting: https://youtu.be/YaDcW2voC7Q
1.4.2.4 Main Page Display Style Setting: https://youtu.be/kpFtPQGhBmc
1.4.2.5 Storage Data Setting: https://youtu.be/7GYv6B40dGk
RK6006 actual testing: voltage and current accuracy, ripple and efficiency: https://youtu.be/EP9uKFeOwPQ

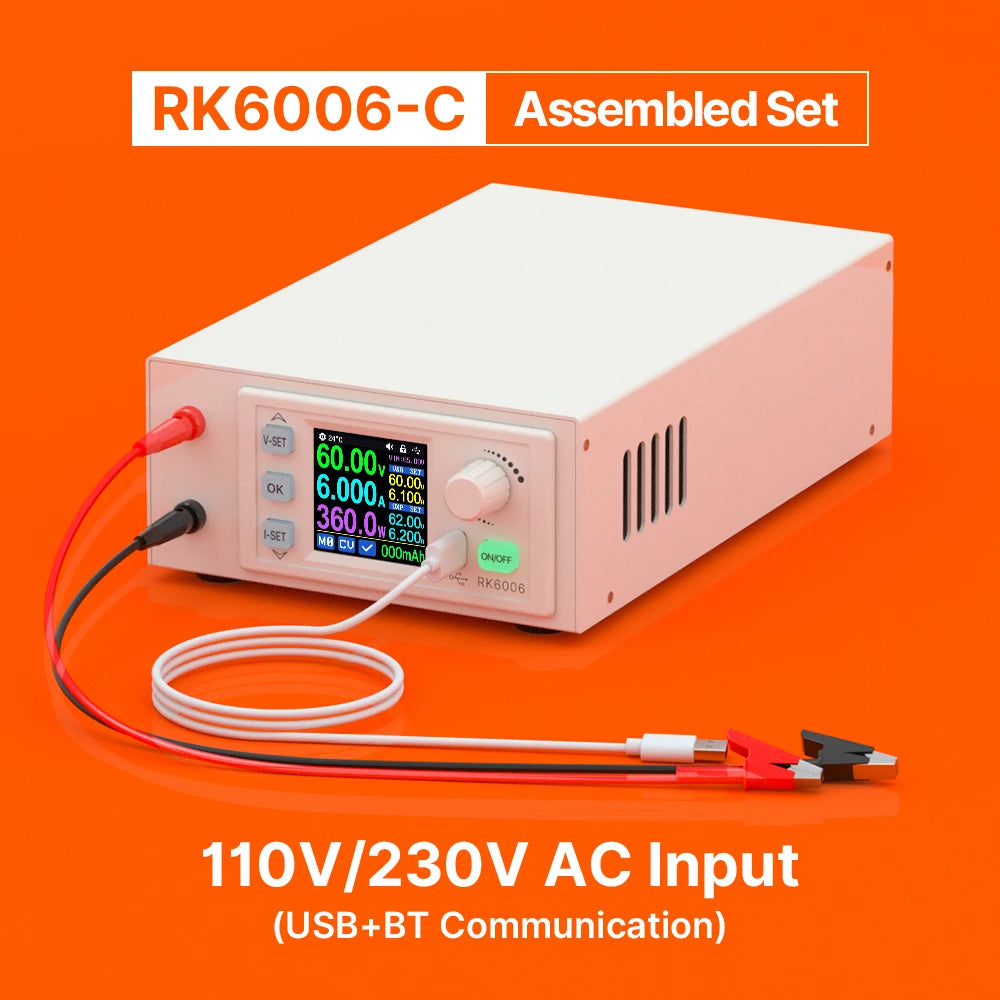

1. Q: What is included in RK6006-C?
A: RK6006-C is AC to DC power supply, in this option, you can get RD6006 assembled set*1, X15A cable*1, micro USB cable*1 and a backup fuse(check the picture above), the bluetooth board is inserted at the communication interface. This set does NOT have AC power cable and external temperature sensor cable.
2. Q: How do I choose the AC input?
A: this device is default 200-240V AC input, if you use 100-120V AC input, you can put the AC selector to 110V gear, and there is no problem.
3. Q: Why the product I get is a bit different with the picture?
A: We keep updating the product hardware and software to make the device better, so the internal material details may be different, but it does not affect you to use the functions.
4.Q: Can I use it to power on inductive load?
A: If you connect inductive load (such as motor), the max working voltage and current is 1/3 of full range. don't exceed it.
5. Q: Why there is a fuse in the box? Should I install it?
A:It is a BACKUP fuse in the, if you burn the fuse with wrong operation, you can replace the fuse with the backup fuse to fix it.
SOFTWARE QUESTIONS:
1. Q: The APP crashes on my phone, what the problem is?

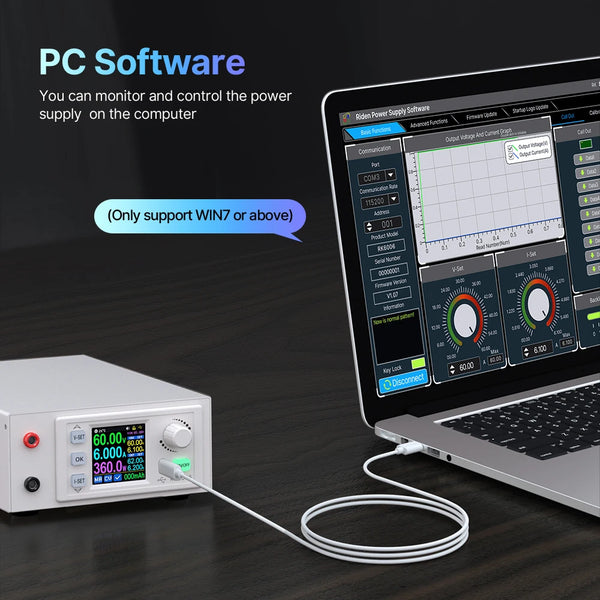

A: For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.For PC software, it only support win 7 and above for now. For APP, it only support android 8.0 and above.
