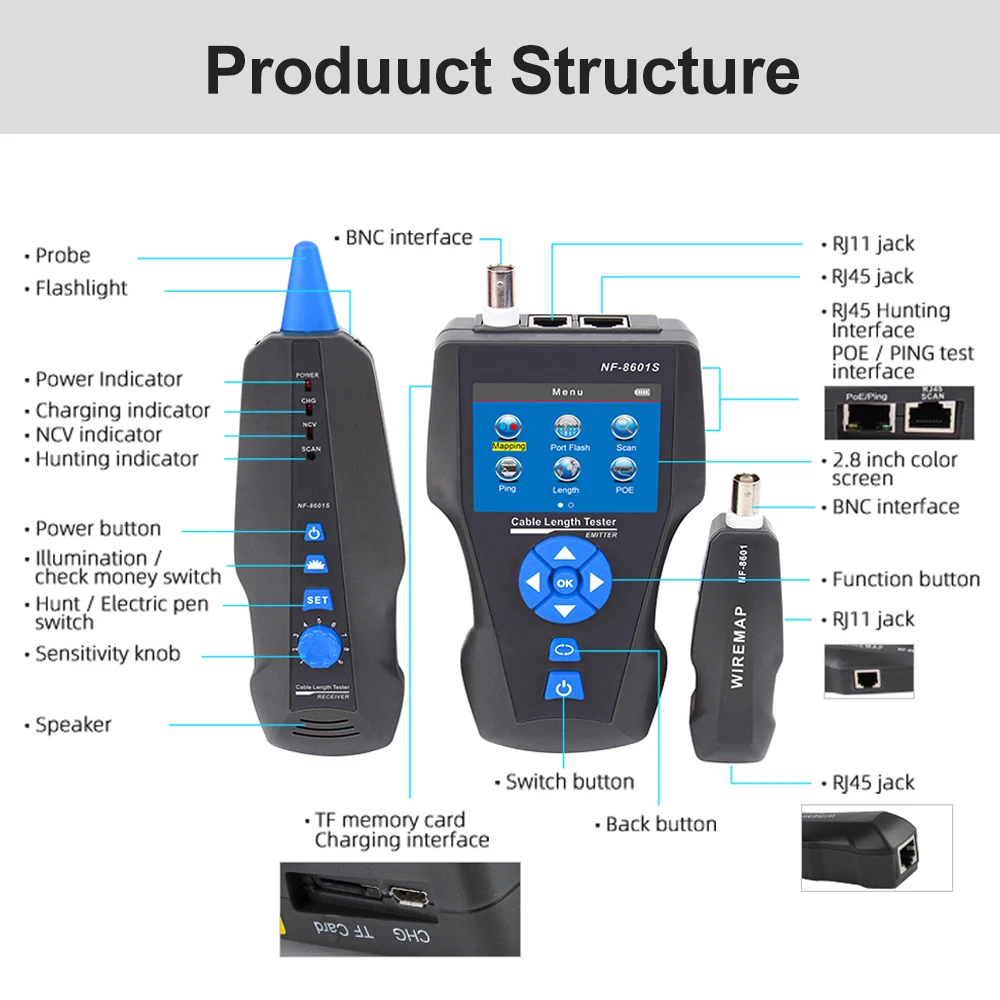

Cable length tester NF-8601S

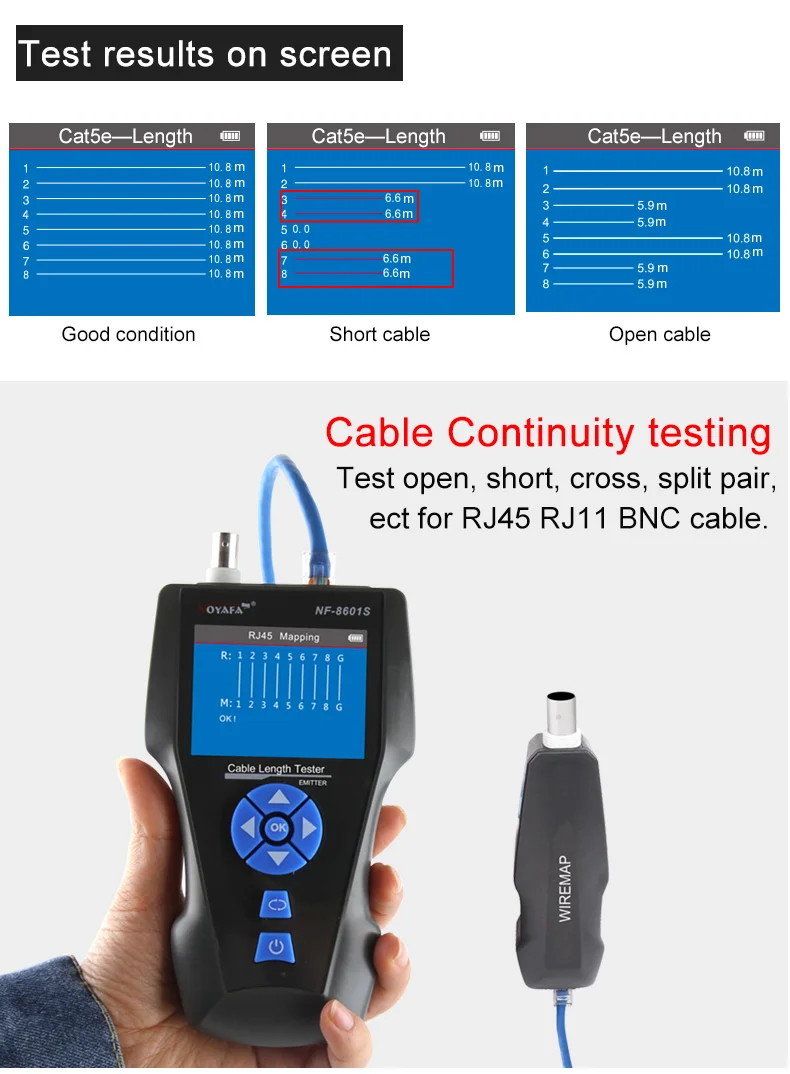

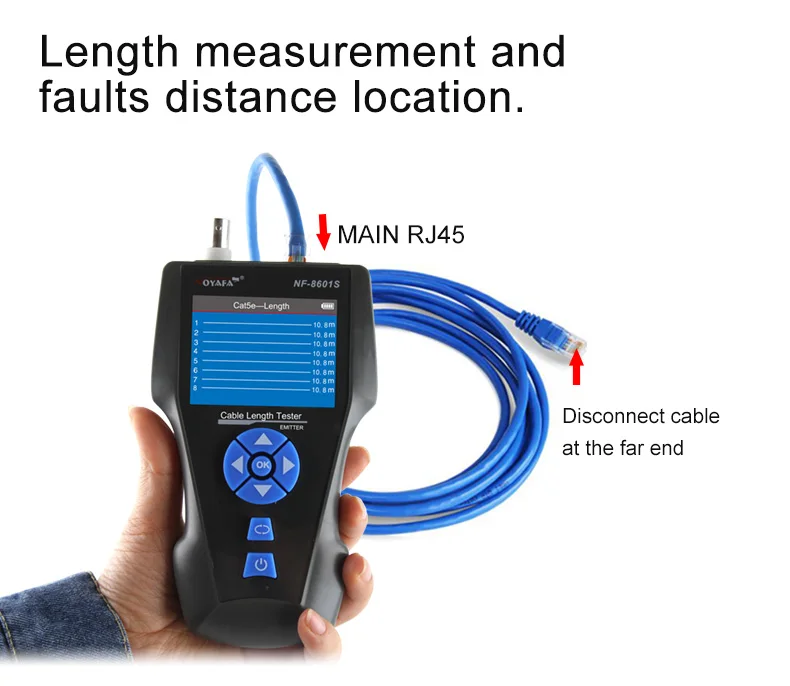

Item Specifics:
Brand Name : Noyafa
Product Name : Multifunction TDR Enthernet Cable Tester
Model Number : NF-8601S
Port : RJ45, RJ11, BNC
Test length : RJ11,RJ45 ,BNC
Tracking Type : RJ45, RJ11, BNC , and Metal Cable
Other Function : PING&PoE&Portflash function
Power :3.7V Lithium battery
Functions

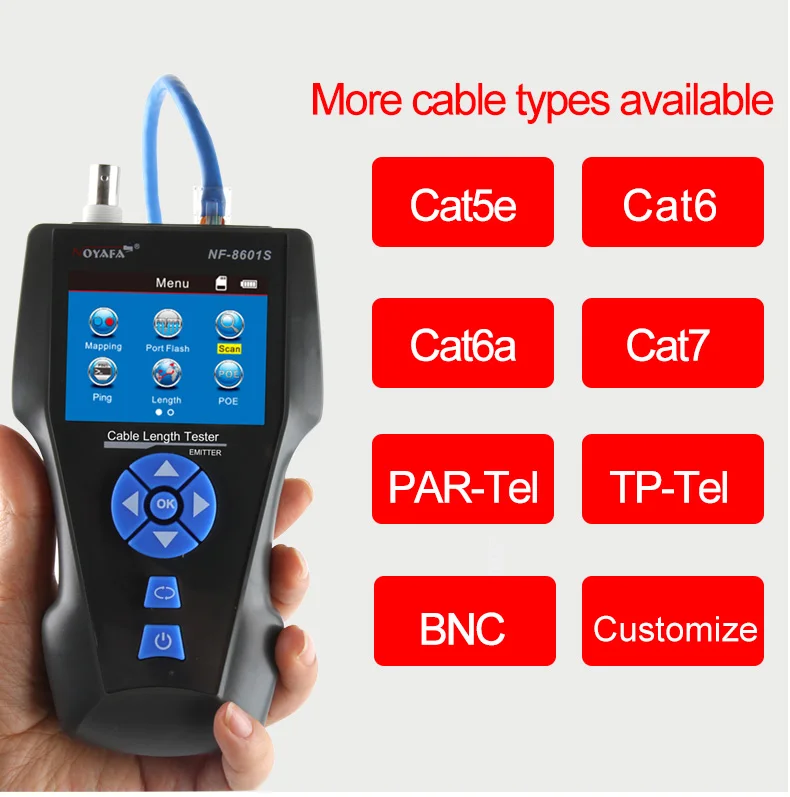

1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.
2. Wiremapping with length and provide the distance to fault information.

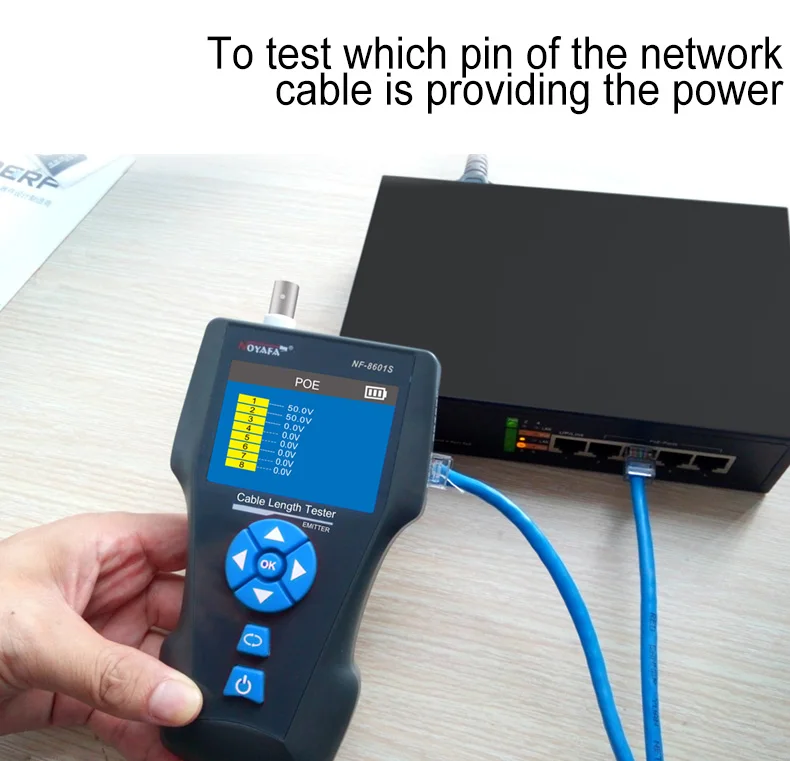

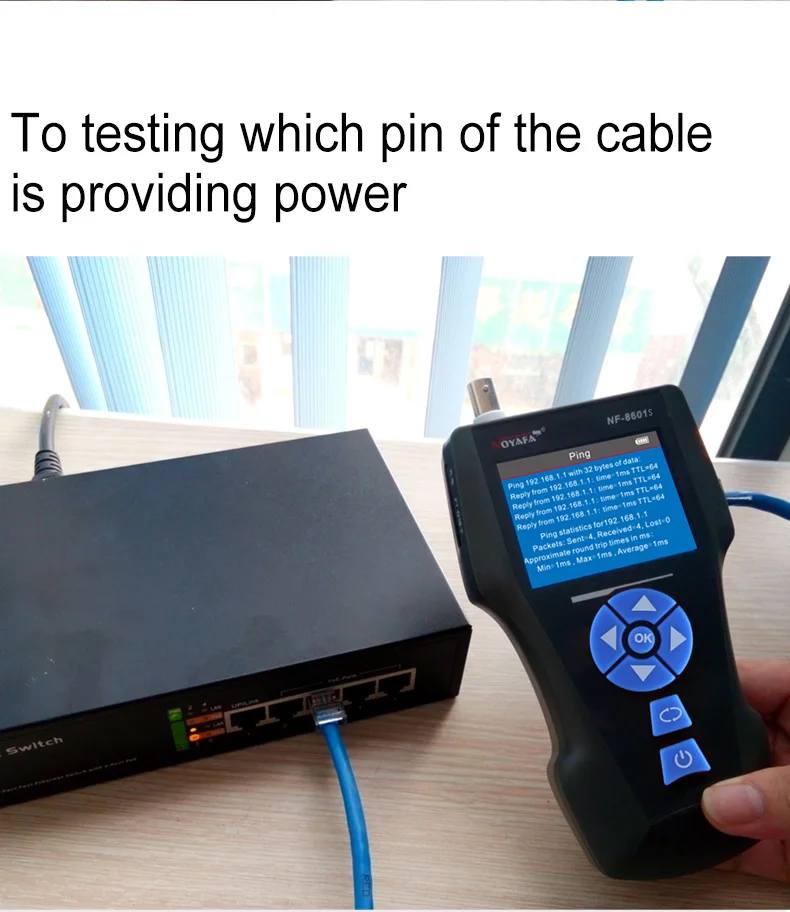

3. PoE function: identify which pins are providing power and detect how much voltage.
4. PING function to test network performance, data packet, MIN&MAX time.

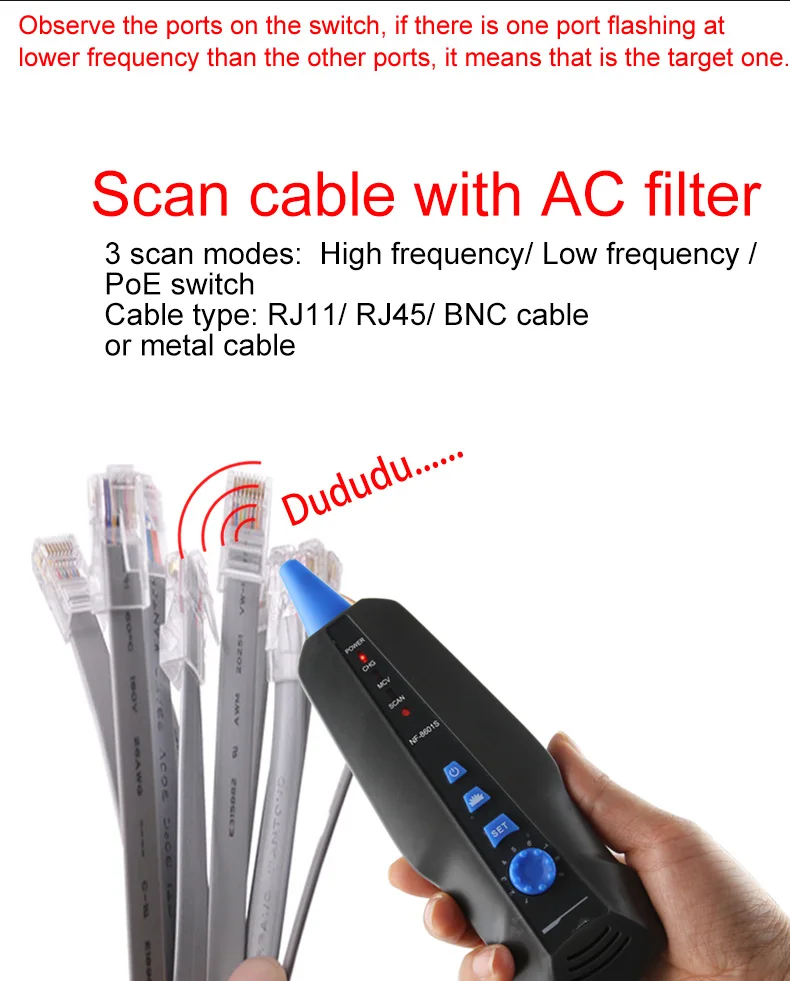

5. Quickly find the targeted cable without stripping isolation among unknown cables.

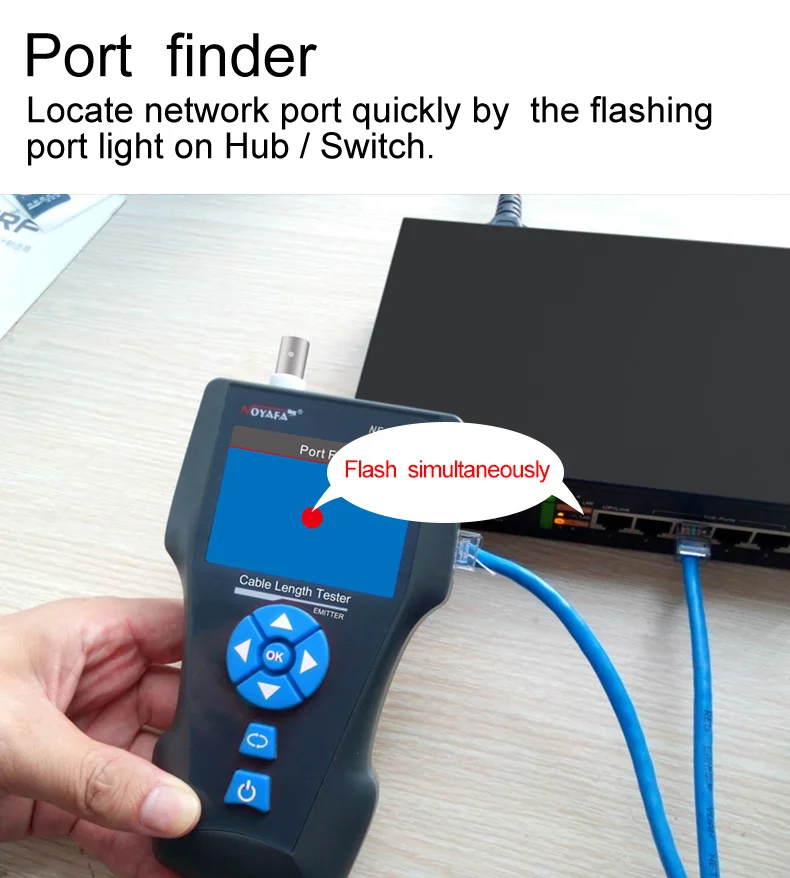

6. Hub blinks for locating network port by the flashing port light on Hub / Switch.
7. Voltage detector: included in receiver (90~1000V)
Benefits：
1. Tone traces cable with complete AC fliter.

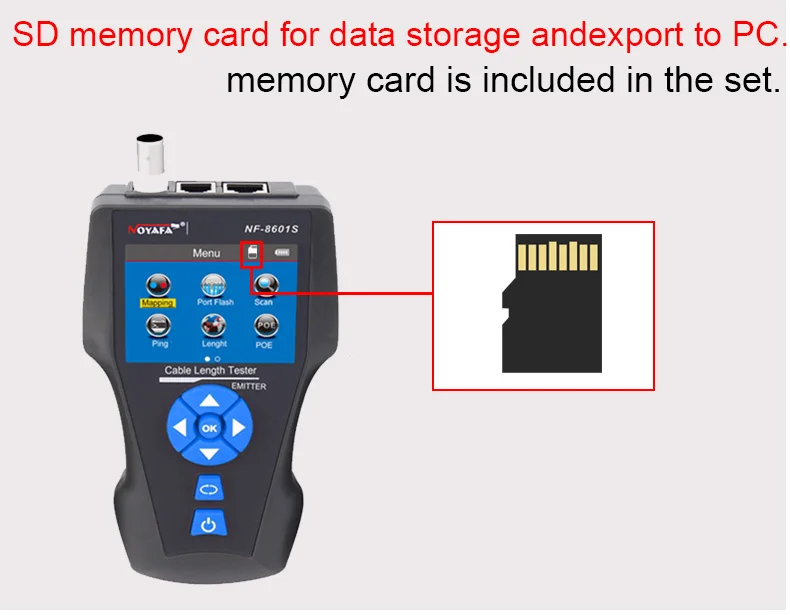

2. TF card function to export data from computer (50sets, TXT format)

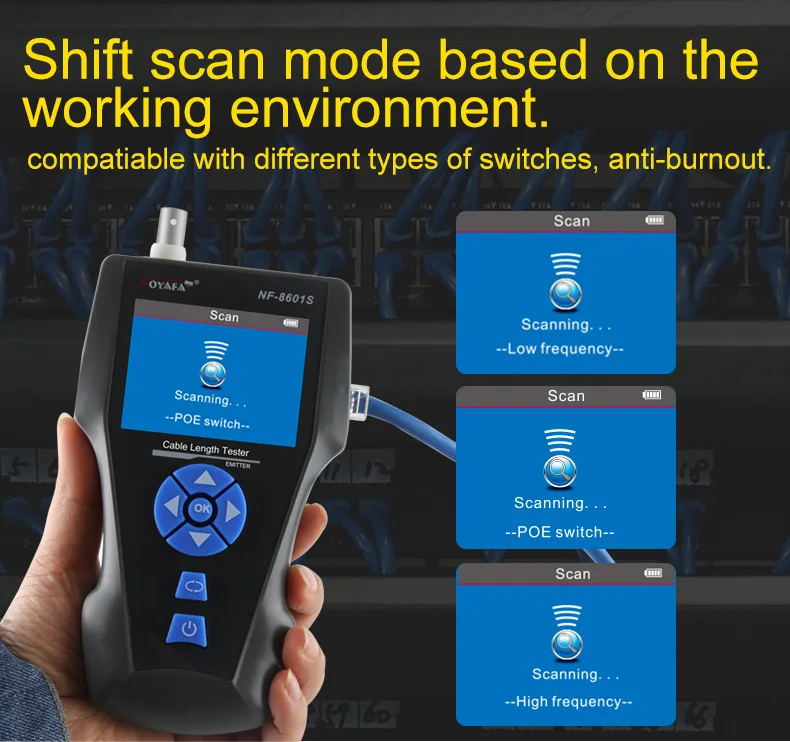

3. 2 scan modes: common switch and PoE switch
4. 3.7V lithium battery for power supply and 2.8 inch color screen

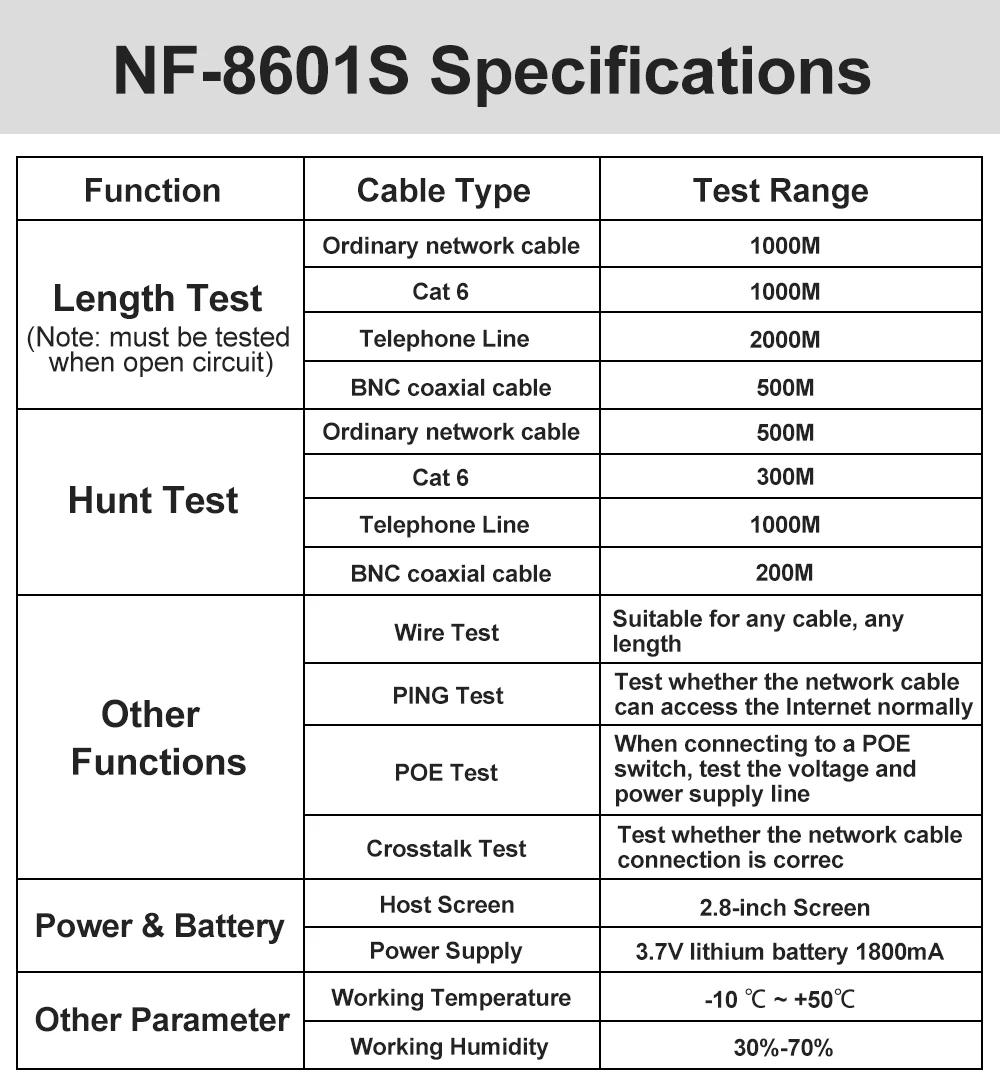

Technical indexes:
NF-8601S Transmitter specifications
Indictor LCD 320x240 mm, with backlight
Cable test types STP/UTP 5E,6E network , telephone , coaxial cable.
Max. distance of wiremap 1000 m
Max. distance of tracing 1000m
Max. distance of cable length 1000 m
Min. distance of calibration 50 m
Accuracy up to 98% ( after calibration )
Compatible connectors RJ11, RJ45, PING/POE, BNC
Cable map indication LCD (#1-#8)

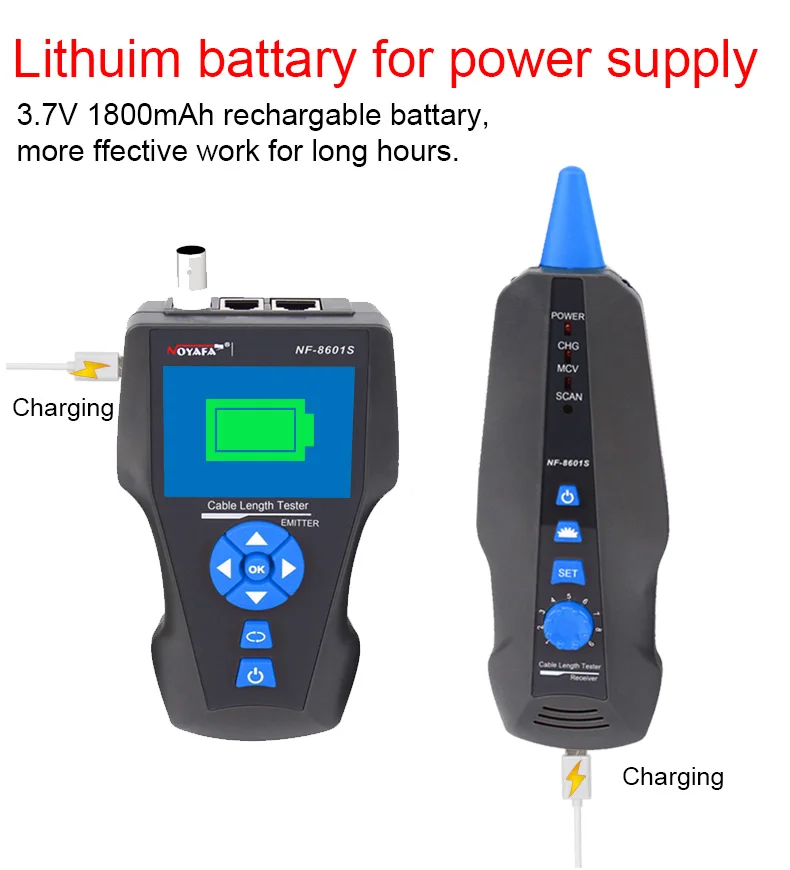

Battery Type 3.7V lithium battery 1800mAh
Work temperature / humidity 10℃ ~ -60℃ / 0℃~70℃
Dimension(LxWxD) 173x92x34mm
NF-8601S Receiver specifications
Cable hunting RJ11，RJ45, BNC
Types of cable ≥ 2 cores
Battery Type 3.7V lithium battery 1800mAh
Dimension(LxWxD) 183x58x35 mm
NF-8601S Remote unit specifications
Compatible connectors RJ11，RJ45, BNC
Dimension(LxWxD) 106x32x30mm
Accessories Included:
Bulit-in battery x 2 set
Adapted telephone line x 1 set
Adapted network cable x 1 set
Cable clips x 1 set
Toolkit x 1 set
USB Charger cable x 1pcs
TF card x 1pcs
Please Note:
1. NF-8601S: RJ45 SCAN port can not be powered on for testing, especially not connected to the POE switch for testing, otherwise it is easy to burn out the instrument motherboard.
2.The 8601S uses the TDR principle to measure length with high accuracy and without calibration.NF-8601S can measure the length of multi-core wire and cable, not the length of single-core cable

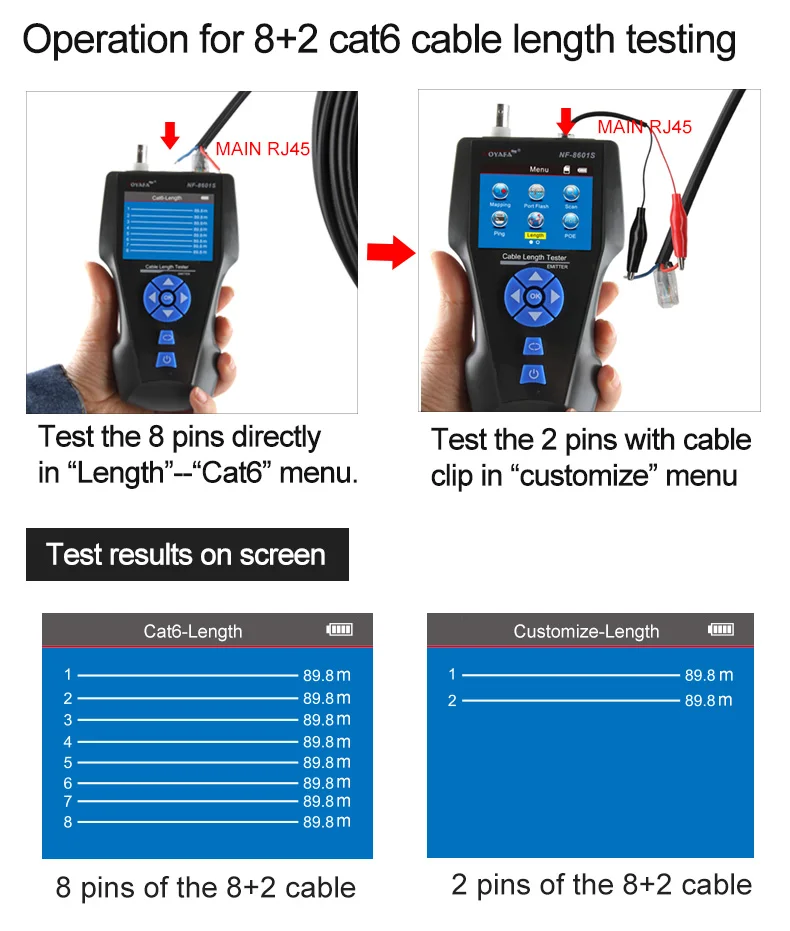

3.The 8601S can measure 4+2 network cable and 8+2 network cable lengths, the 8601 and 8601W cannot.

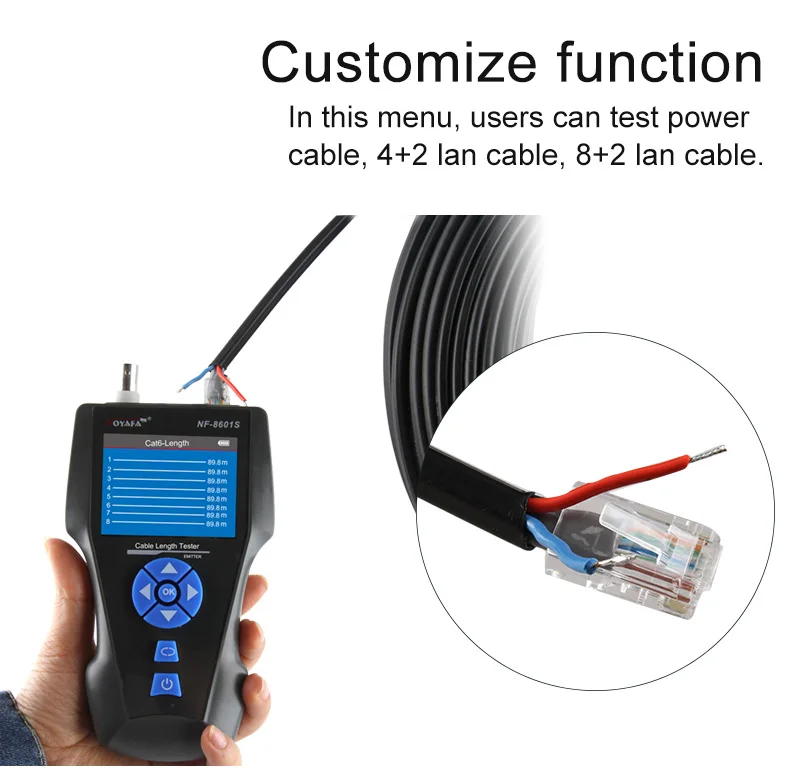

When measuring if the measurement is the length of 4/8 signal lines, you can use the network cable mode.
If the measurement is the length of the 2 power lines, it is recommended to use the custom mode
