Feature
Touch Screen: 7 inch G + G structure capacitance screen
LCD Screen: 7 inch resolution 1920 × 1200 IPS HD full view
Ethernet Port: 10/100/1000M adaptive
WIFI: Built-in wireless WIFI, speed 150M
IP Camera Test: 4K 12MP camera resolution, video image real-time display without delay, support video snapshot, video recording and playback

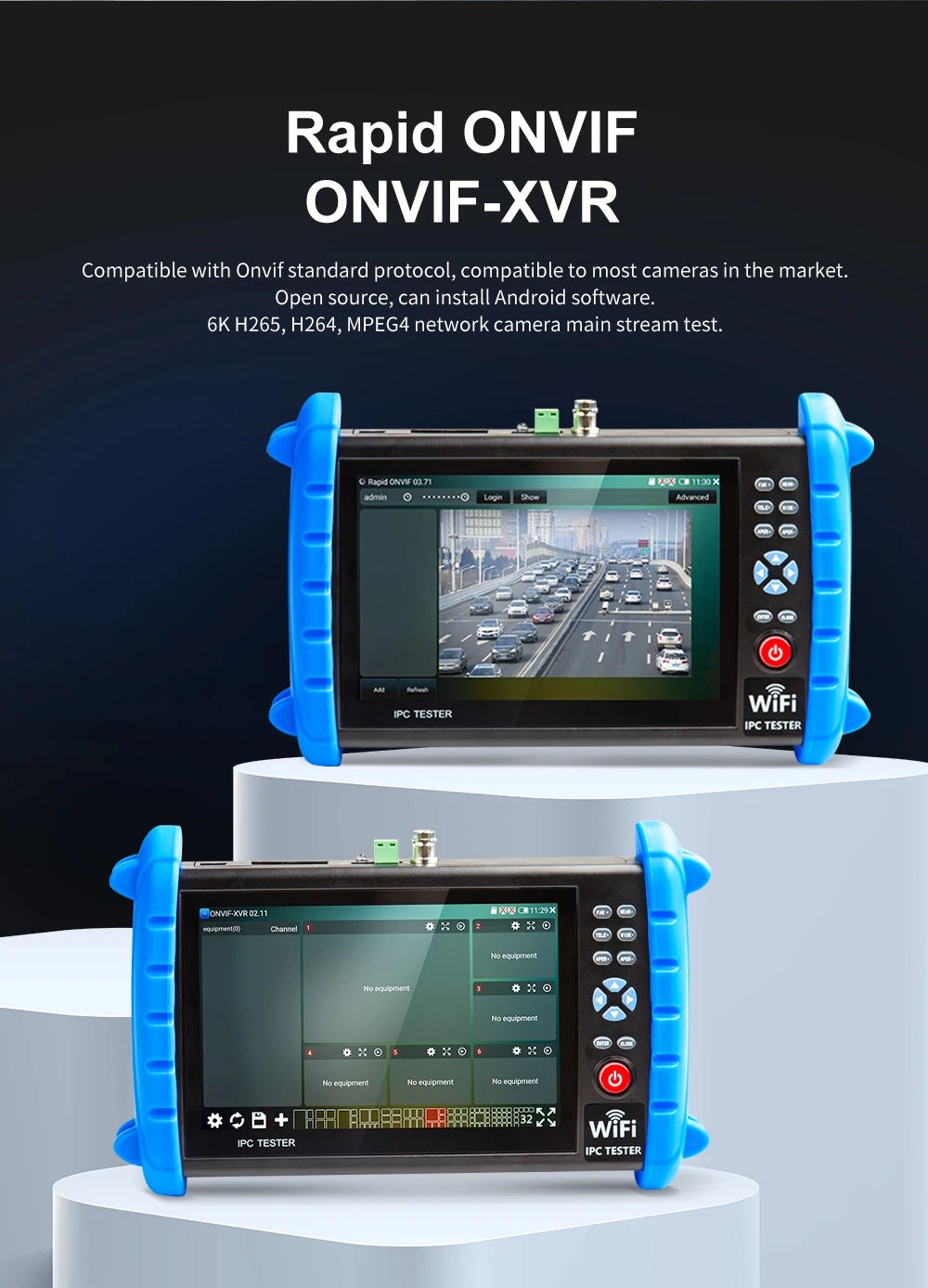

ONVIF: ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and
other more than 30 manufacturer private protocols and customizable, support camera mobile client installation

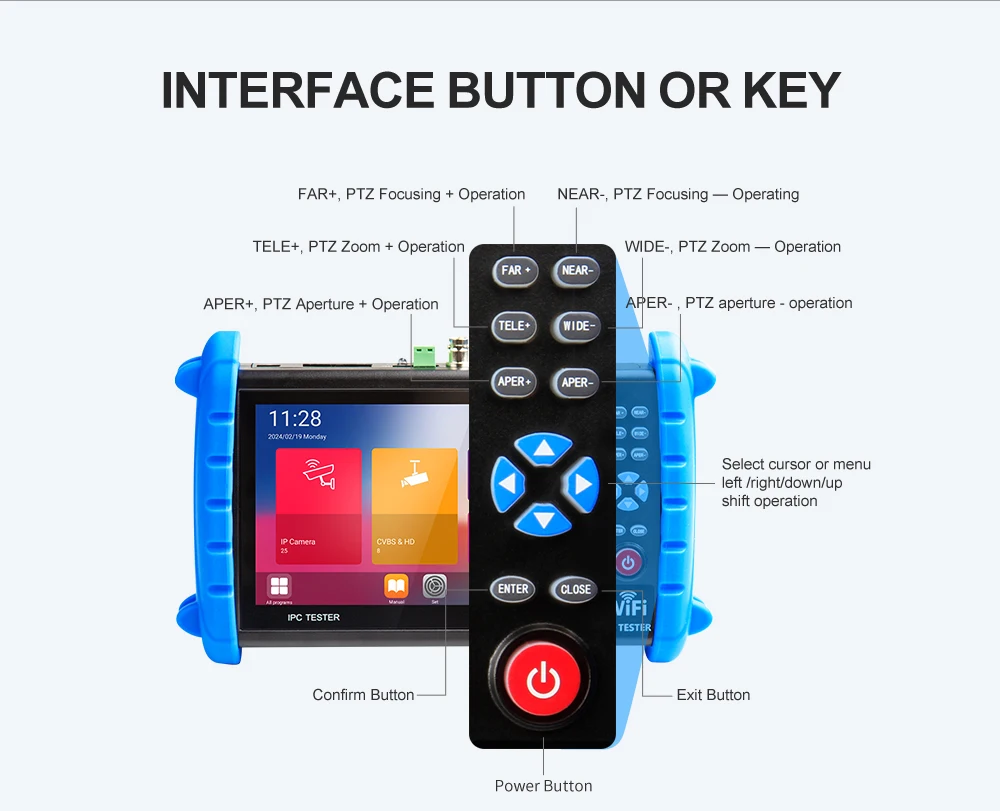

PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
CVBS Analog Camera Test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation
(optional) HD Camera Test: Support HD TVI 8MP, CVI 8MP, AHD 8MP
Video Image Zoom: Real-time enlarge moving HD video image, max enlarge 8 times
Cable Test: Built-in cable testing tool, check cable sequence and breakpoint, etc
Audio Test: One channel audio signal input for testing, can be recorded and saved, one channel audio output for connecting earphones
(optional)Optical Power Meter: Test optical fiber parameters
DC12V Power Output: DC12V power output, max current 3A, provide temporary power for cameras
DC24V Power Output : DC24V power output, max current 1A, provide temporary power for cameras
PoE Power Output: 48V standard PoE output, provide PoE power for cameras
DC5V Power : Output Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
(optional)PSE Voltage Test: Display PoE power supply device voltage and circuit condition
(optional)HDMI Video Input Test: Input HD video image into instrument to test video recorder
RS485 Serial Port tool : Can send or receive any data or hex data
