Product Summary
MOES Tuya WiFi/ZigBee Smart Water Level Sensor with APP Alarm Alert, Ultrasonic Tank is a sensor module selected for detecting environmental data, presence, motion or system status. It is suitable for smart home users, automation builders and embedded developers who need practical electronics hardware for reliable project work.
Best For
- detecting environmental data, presence, motion or system status
- IoT projects, automation hubs, microcontrollers and monitoring systems
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for smart home users, automation builders and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
BY-MOES
Packing List:
Liquid level sensor*1
Screws*4
Gasket*1
EU adapter*1
Sensor cable*1
Manual*1
Note: This product comes in both WiFi and ZigBee versions. The ZigBee version requires a ZigBee gateway to function. Please confirm your preferred model before purchasing.
Note: ZigBee gateway is required(ZigBee version), please purchase in addition.
IP65 Waterproof Performance
With IP65-rated waterproof protection, this smart level sensor ensures accurate measurement in any weather. Reliable performance indoors and outdoors.

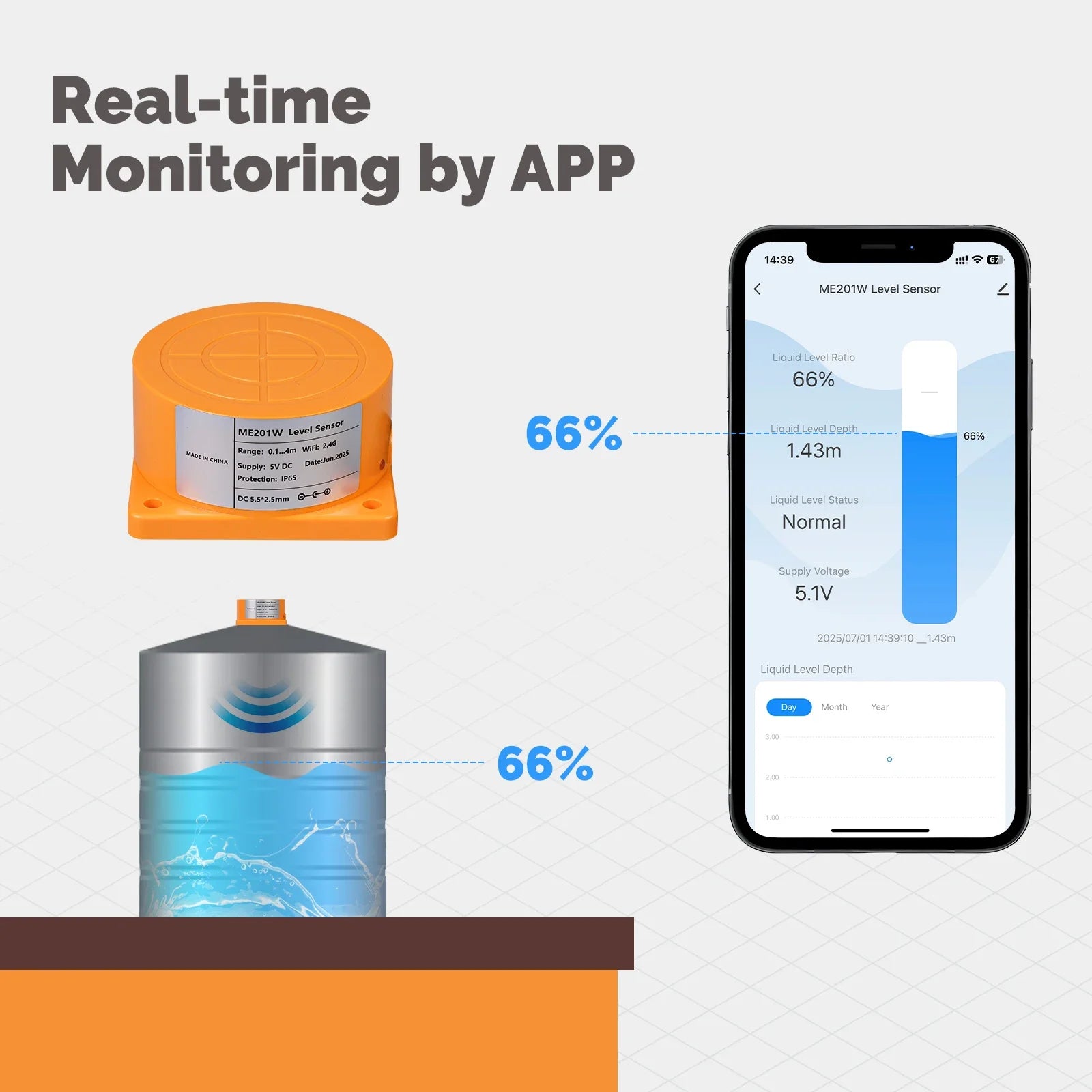

Check Water Curve & History Records
Gain full insight into your tank's water usage with intuitive curves and detailed history logs.
Extended 4 m Cable - Flexible Long-Distance Setup
Ideal for wide or elevated installations, ensuring precise measurement anywhere.

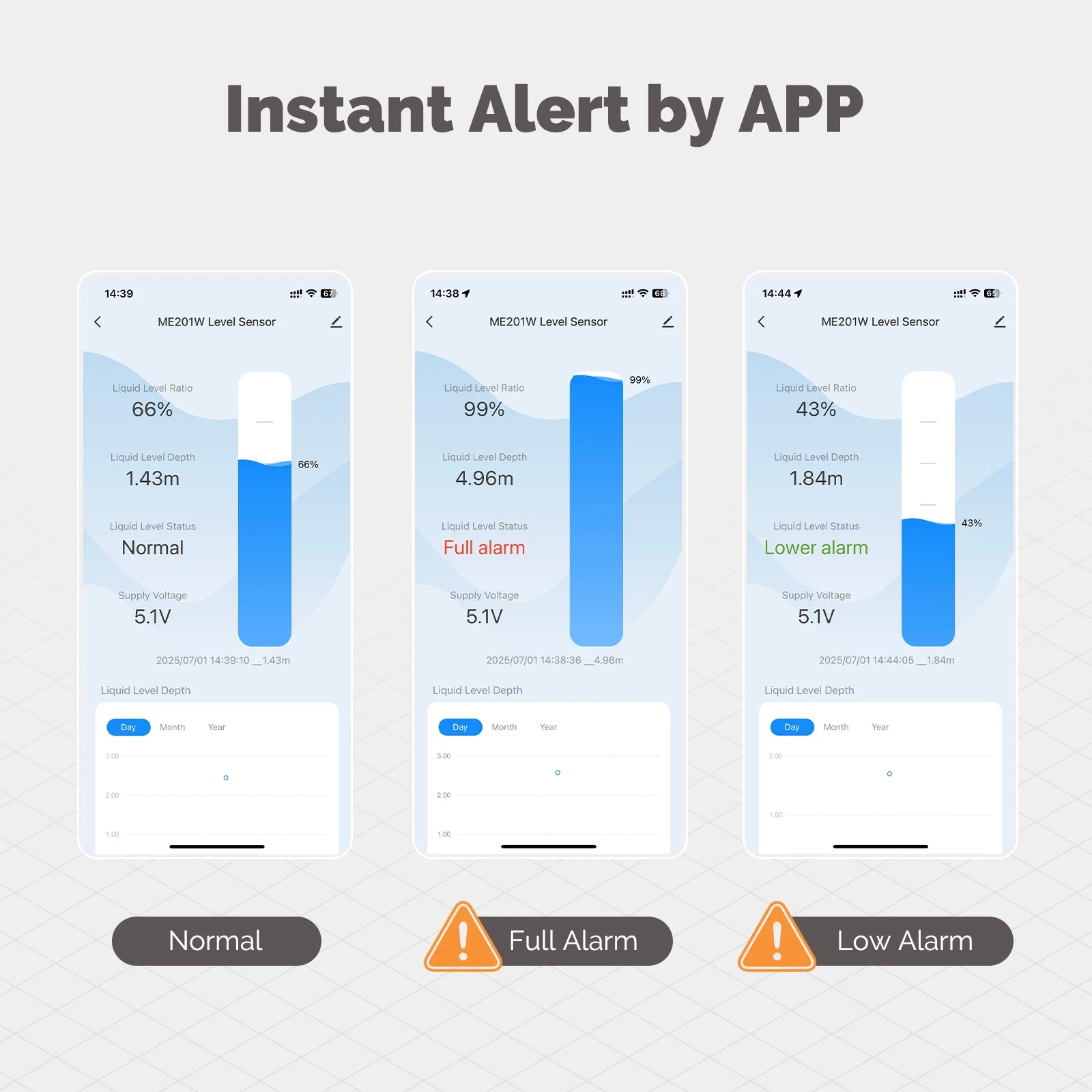

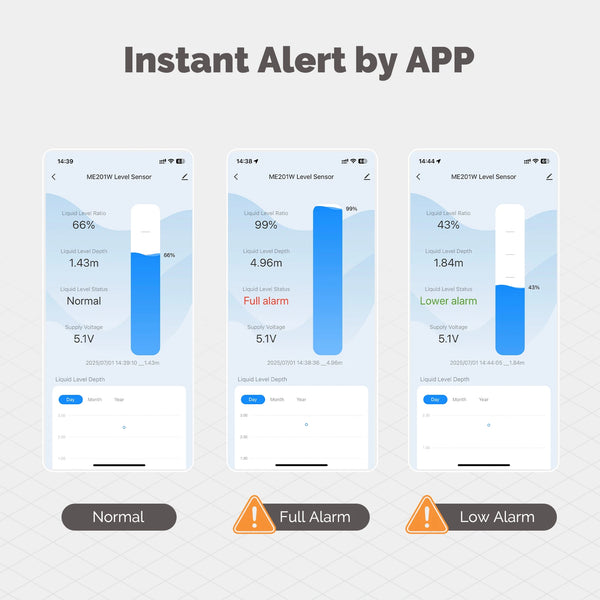

Customizable Water Level Thresholds

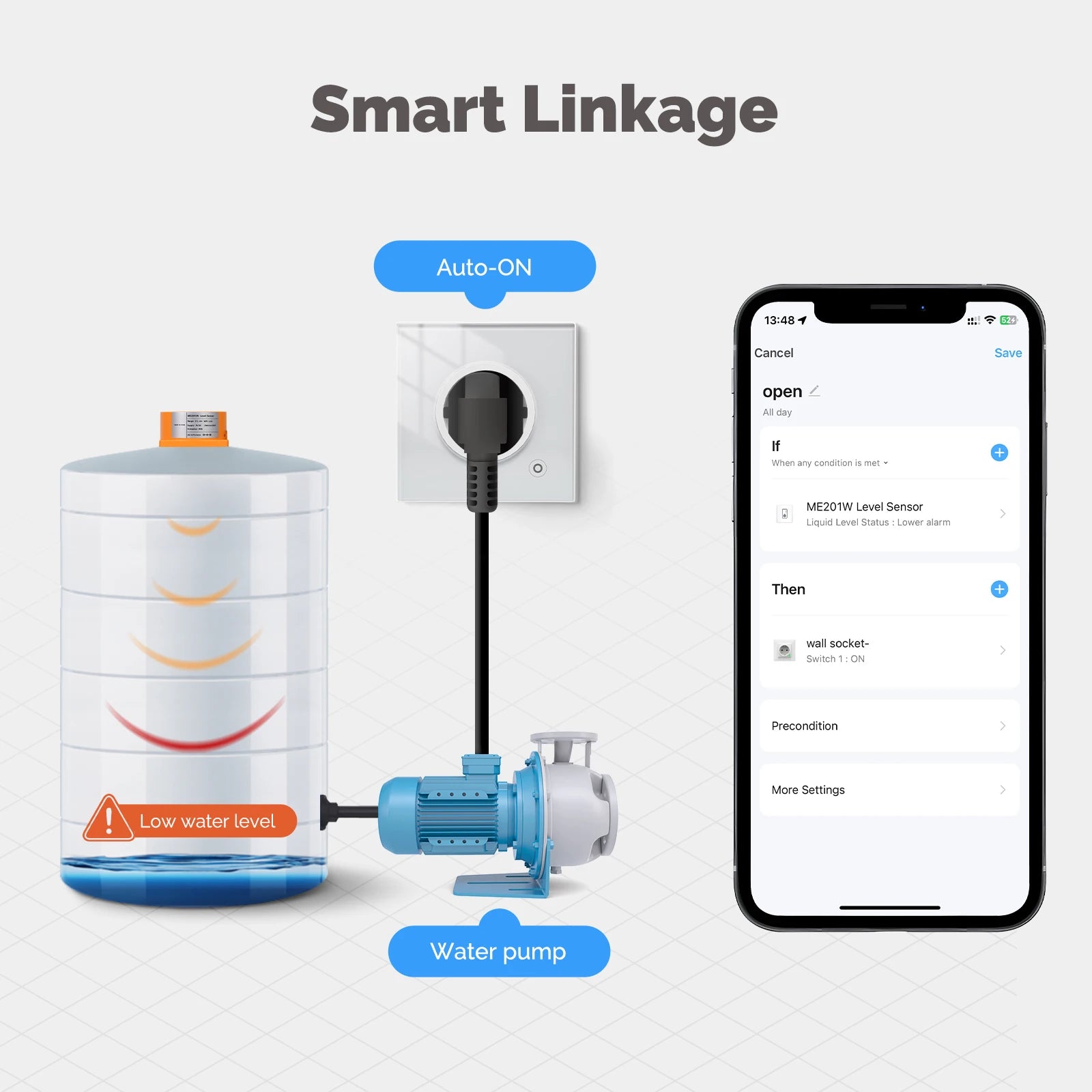

Set upper and lower water level thresholds for smarter overflow and dry-run prevention with App alert.
Precautions before Installation
1. Hold the sensor perpendicular to the liquid.
2. Install the sensor away from the water inlet to avoid pseudo-echo.
3. The sensor installation cannot be close to the bulkhead, otherwise it will cause a strong pseudo-echo.
Installation Steps
1 Remove the release paper from the gasket, and attach the gasket to the center of the tank where the hole will be drilled.
2 Drill a circular hole right in the middle of the tank with a diameter of 55mm-80mm;
3 Place the sensor over the gasket, Keeping it aligned with the screw holes. unobstructed;
4 Fasten the sensor with a self-tapping screw.
Dimensions
Technical Specifications
Touch Key: Press 5 seconds
Network mode: 2.4G WiFi/Zigbee 3.0
Config: Led light flashes rapidly
Connected: Led light on
Not Connected: Led light off slowly
Adaptor: AC 110V-240V
Sensor power supply: ≤100mA@ 5V DC
Level Range: 0m-5m

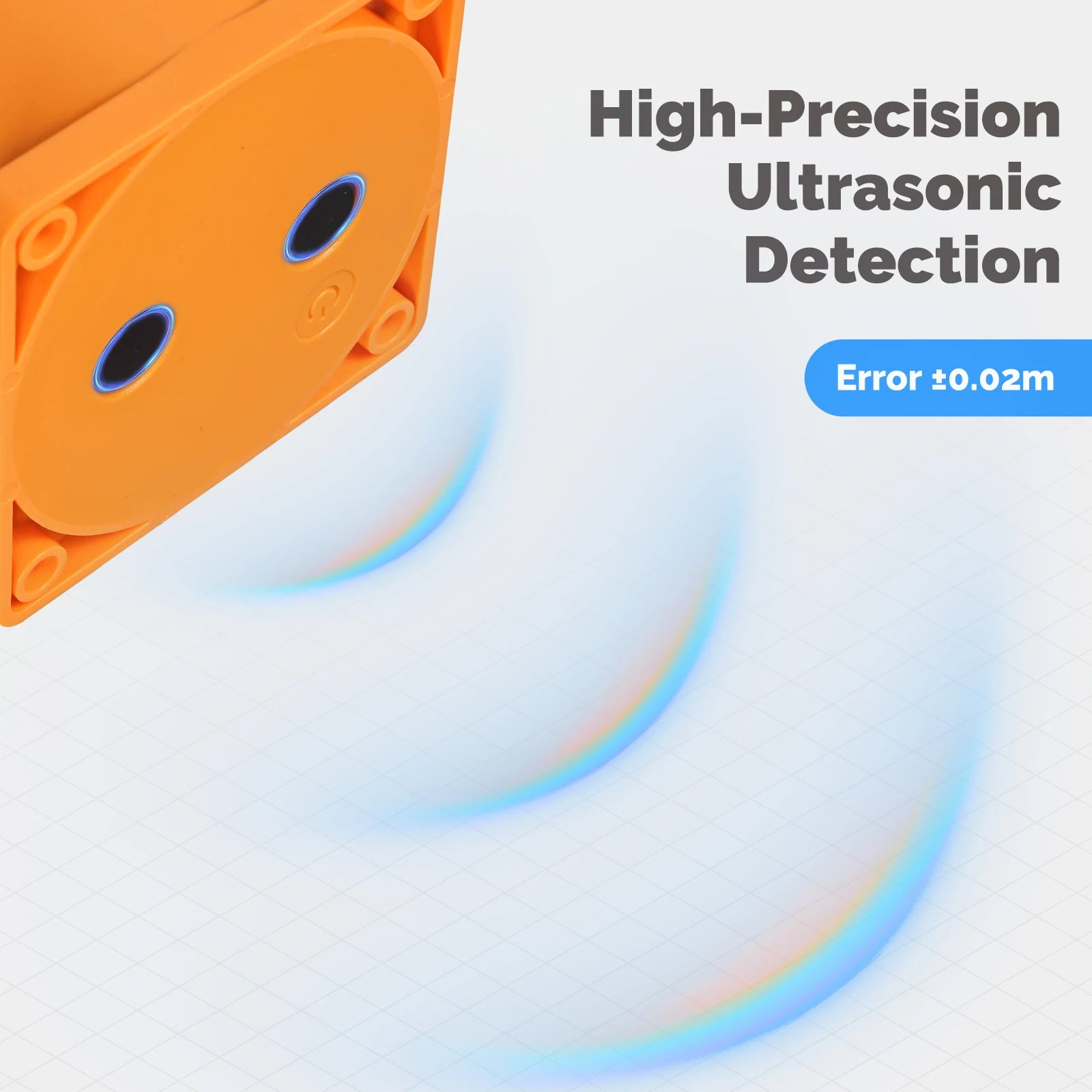

Accuracy: ± 0.02m
Operation Temperature: -20 deg C-70 deg C
Protection: IP65
