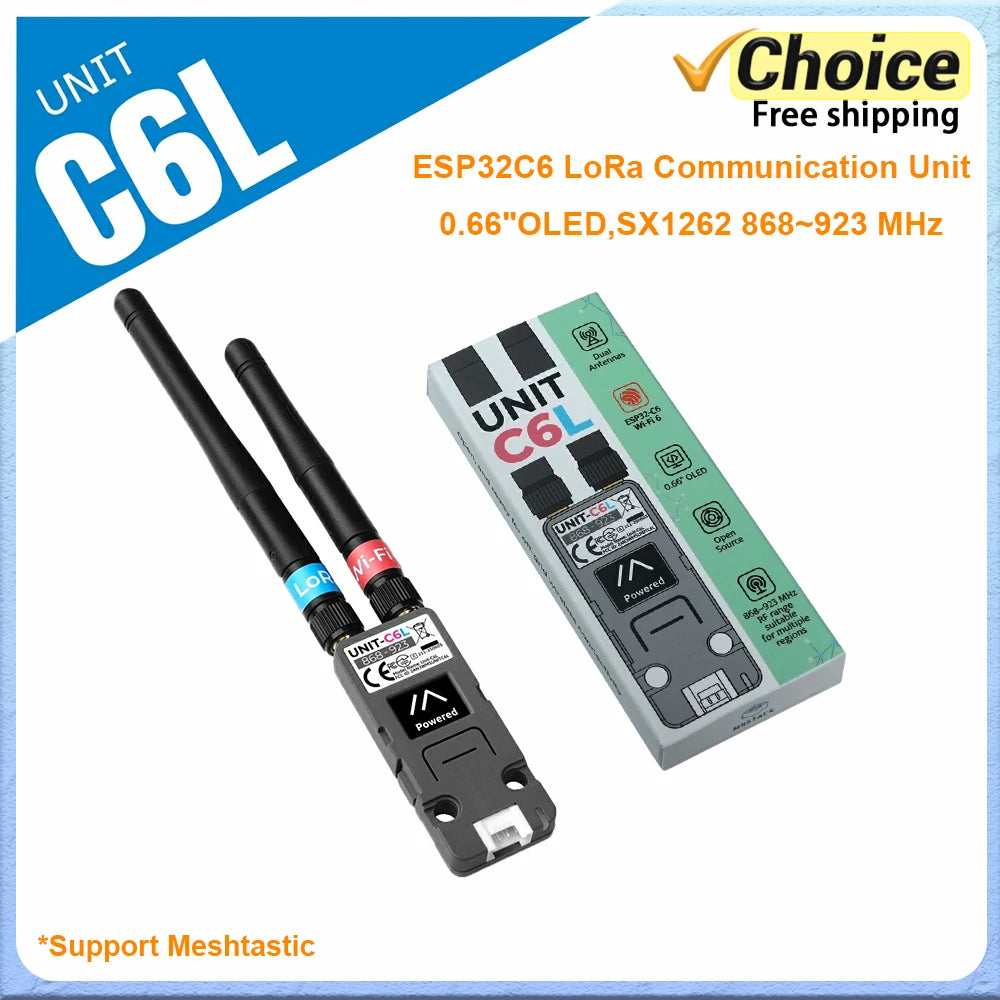

M5Stack Unit C6L LoRa Communication Unit
Description

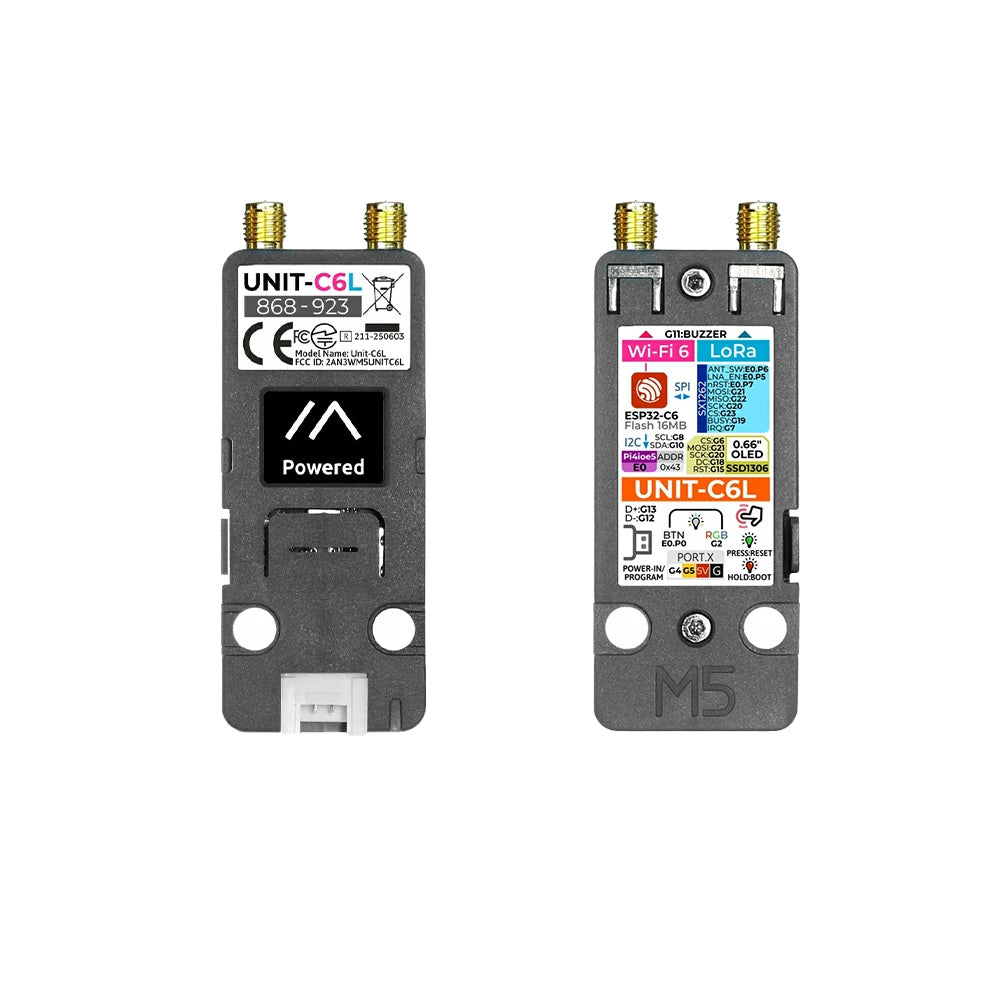

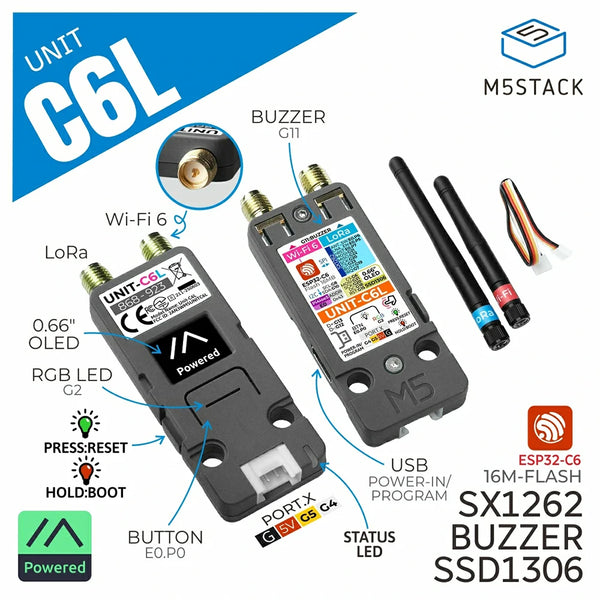

Unit C6L is a highly integrated LoRa communication unit, equipped with the Stamp C6LoRa module (featuring ESP32-C6 as the core controller, integrating SX1262 LoRa transceiver and RF switch circuit), supporting 868 ~ 923 MHz operating frequency range. Unit C6L integrates a 0.66" OLED monochrome display, programmable RGB indicator, buzzer, and user button, providing intuitive human-machine interaction. The device supports connection to the Meshtastic network or secondary development, enabling rapid deployment of private LoRa networks, suitable for remote monitoring, outdoor exploration, and emergency communication scenarios. In hardware design, Unit C6L offers 2x SMA antenna interfaces, respectively for 2.4 GHz Wi-Fi 6 and LoRa communication, ensuring scalability and stability of wireless performance. It also integrates over-voltage protection chip AW32901FCR to enhance device stability. With HY2.0-4P expansion interface and LEGO-compatible mounting holes, users can easily expand sensors or modules to quickly build more application scenarios.
Features
-Supports Meshtastic
-ESP32-C6 core controller
-2.4 GHz Wi-Fi 6
-SX1262 LoRa transceiver
-LoRa operating frequency: 868 ~ 923 MHz
-Programmable RGB LED WS2812C
-SSD1306 0.66" OLED monochrome display, resolution 64x48
-Human-machine interaction:
*Buzzer
*User button
-Integrated over-voltage protection chip AW32901FCR
-HY2.0-4P expansion interface
-LEGO-compatible mounting holes

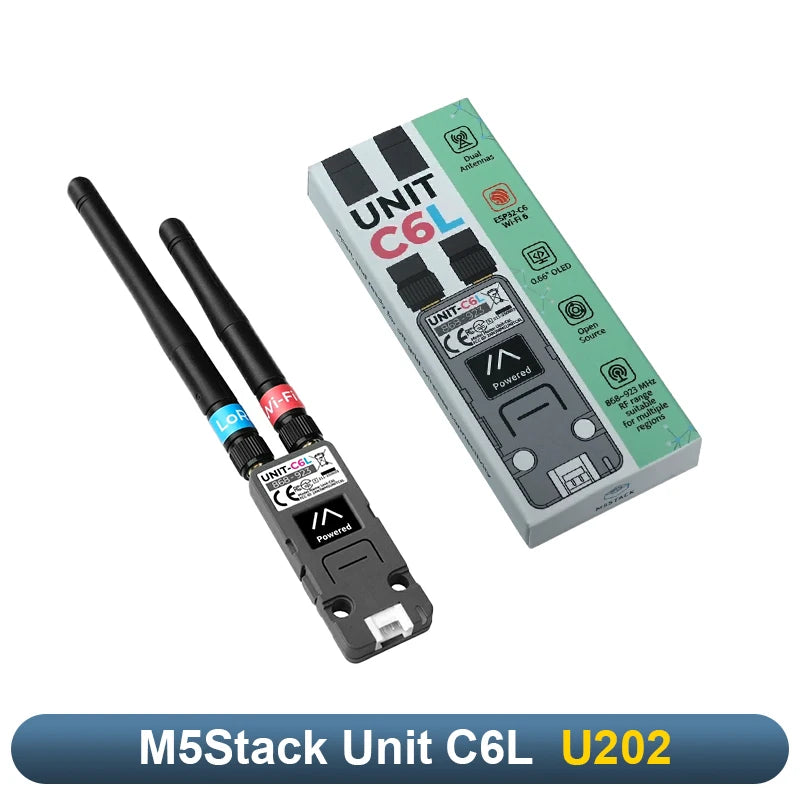

Packing list
1 x Unit C6L
1 x 2.4 GHz SMA whip antenna
1 x 868 MHz SMA whip antenna
1 x HY2.0-4P Grove Cable (20cm)
Applications
*Smart agriculture
*Industrial monitoring
*Outdoor communication
