Product Summary

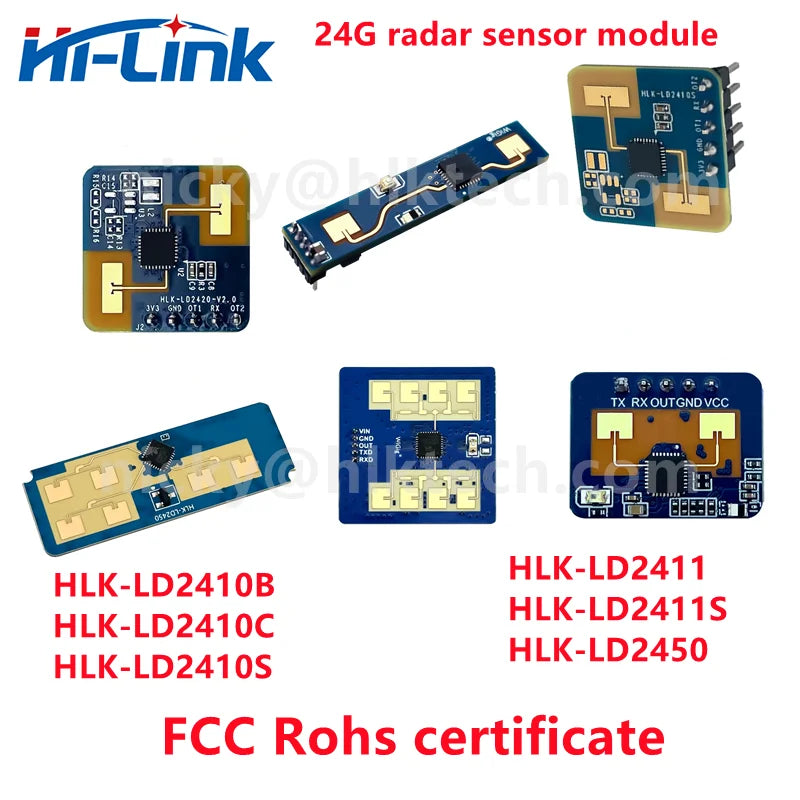

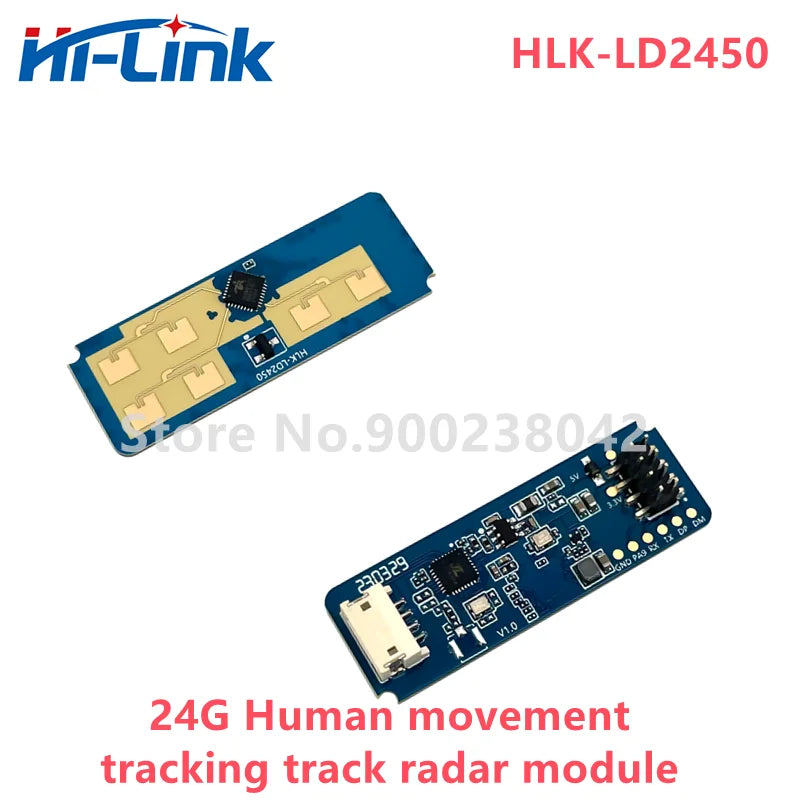

Hi-Link Rohs/FCC/CE 24G HLK-LD2410 LD2410C LD2402 LD2450 LD2401 Smart Home/Hotel Human is a sensor module selected for detecting environmental data, presence, motion or system status. It is suitable for smart home users, automation builders and embedded developers who need practical electronics hardware for reliable project work.
Best For
- detecting environmental data, presence, motion or system status
- IoT projects, automation hubs, microcontrollers and monitoring systems
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for smart home users, automation builders and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
We are the manufacturer of HLK-LD24xx series radar module
You can choose from a variety kinds of kit at this link. , please select the one you real need.
1. Product introduction
Product Description:

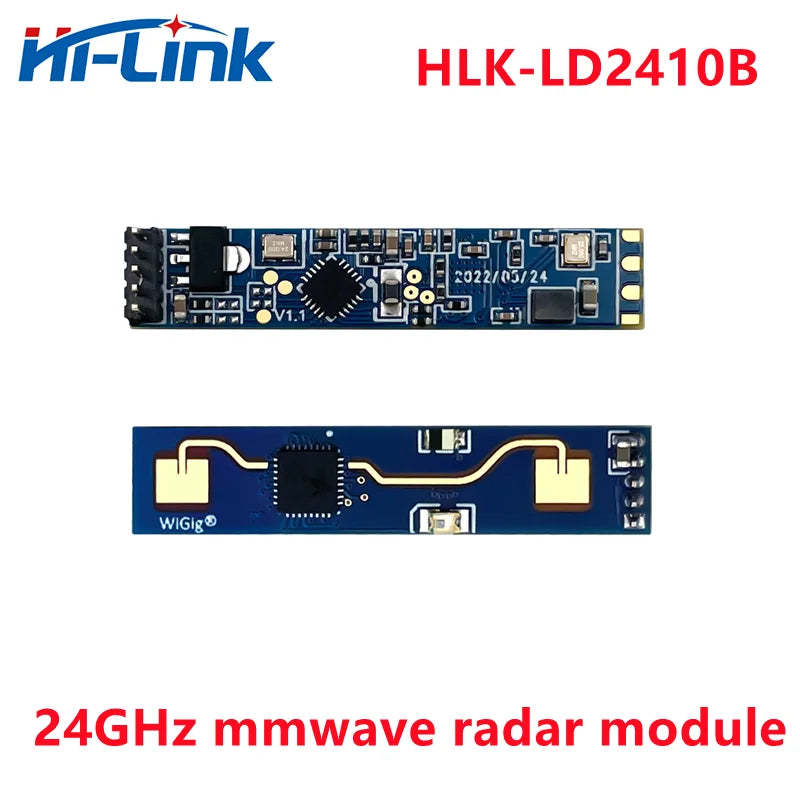

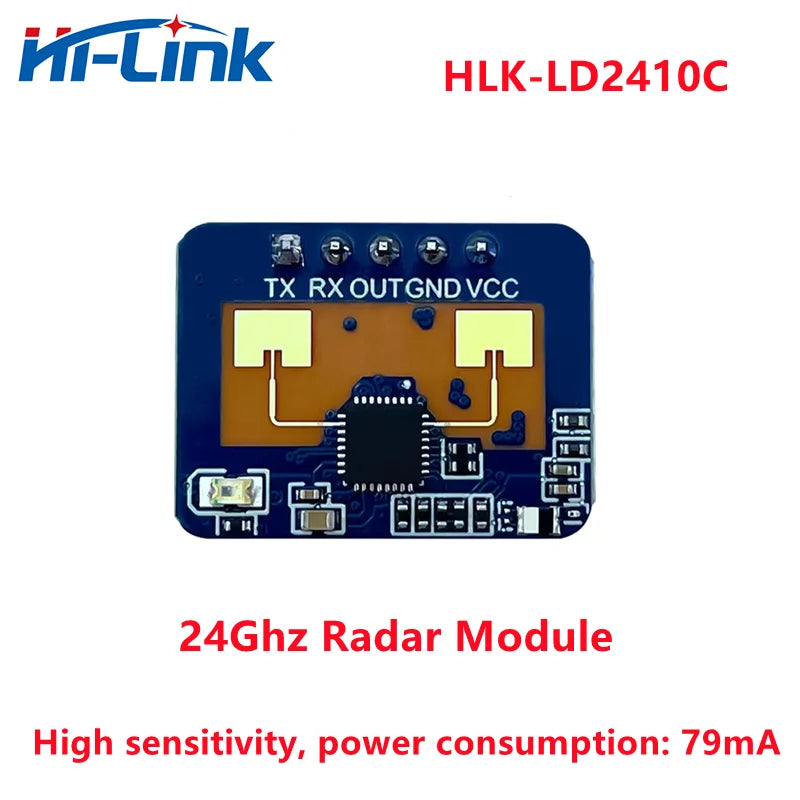

HLK-LD2410B/LD2410Cis a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave to detect human targets in the set space. Combined with radar signal processing and accurate human body sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.
Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and
terminal products.
2. Product Features and Benefits
2.1 Features
-
l Plug and play, easy assembly
l Large detection angle, coverage up to ±60 degrees
l Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
l Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes
l Visual debugging and configuration tools
l Supports various installation methods such as ceiling hanging and wall hanging
l 24GHz ISM band, can be certified by FCC and CE spectrum regulations
l The ultimate cost-effective
3. Application scenarios
The LD2410B human body sensing module can detect and identify the human body in motion, fretting, standing, sitting and lying down. It supports multi-level parameter adjustment and can be widely used in various AIoT scenarios. The common types are as follows:
l Human body sensor light control
It senses whether there is someone in the space, and automatically controls lights, such as lighting equipment in public places, various sensor lights, bulb lights, etc.
l Human body induction wake-up of advertising screen and other equipment
Automatically turn on when people come, and automatically sleep when no one comes to save power, information delivery is more accurate and efficient.
l Life safety protection
UV lamp work protection, to prevent the UV lamp from being turned on when there are people around and causing personal injury;
Automatic detection and alarm of dangerous places to prevent people from entering specific high-risk spaces, such as high-risk places entered by personnel from coal mine blasting.
l Smart home appliances
When there is no one in the room for a long time, the TV, air conditioner and other electrical appliances are automatically turned off, saving energy and safety.
l Intelligent security
Detection and identification of people intruding, staying, etc. within the specified range.
