Hantek Digital Oscilloscope DSO2C10 DSO2D15 DSO2D10 DSO2C15 2 Channels 100Mhz/150Mhz Bandwidth USB Osciloscopio Portable Meter

Sale price
$216.00
List price
$308.56
You save
$92.56 (30%)

Prices include VAT and any applicable duties.

Color:DSO2C10
Ships From:CHINA
In stock, usually dispatched in 2-3 business days.

This oscillscope is only equipped with one probe pp-150. If you still need a probe, you can click here to purchase:

https://www.aliexpress.com/item/32847437016.html

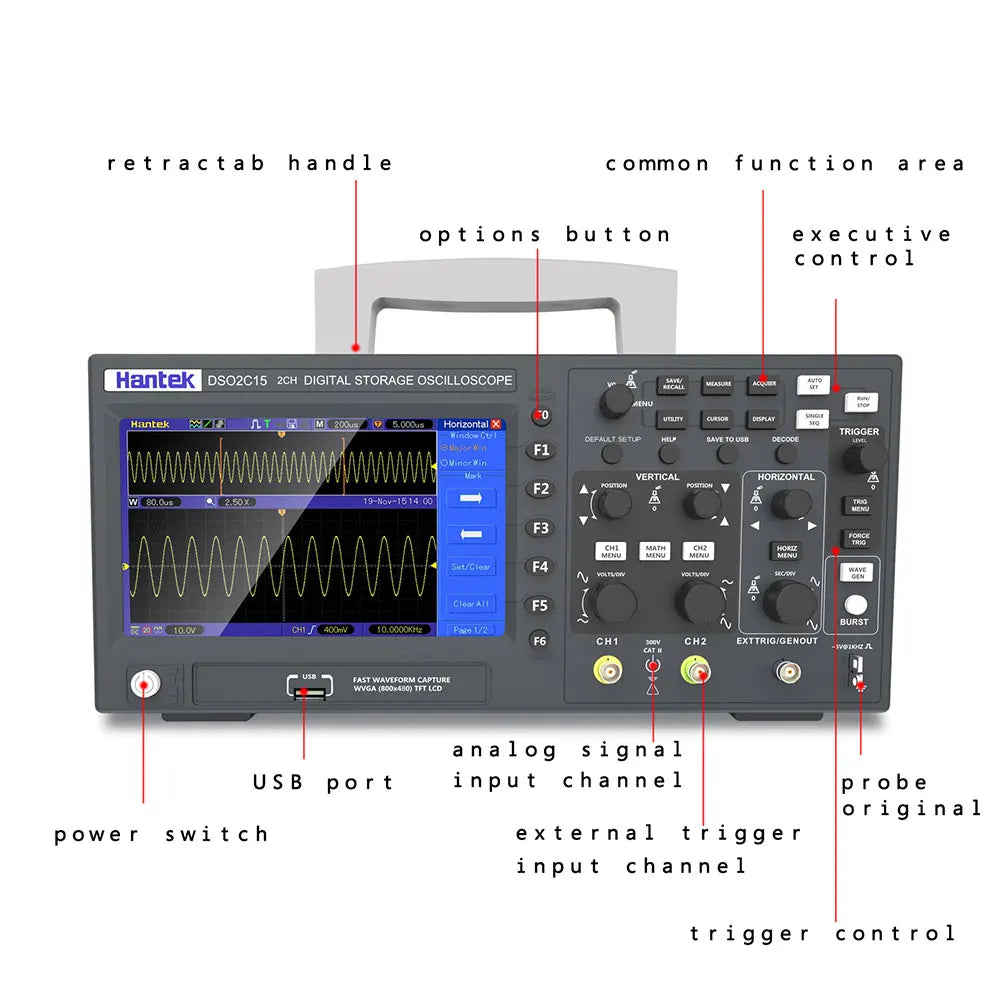

Hantek Digital Oscilloscope DSO2C10 DSO2C15 DSO2D10 DSO2D15 2 Channels 100Mhz/150Mhz Portable USB Osciloscopio

Feature:

1) 2 channels, both are respectively controlled by independent knobes;

2) 100 MHZ, 150MHZ analog channel bandwidth;

3) 1 GSa/s real-time sample rate;

4) 8M memory depth;

5) Vertical range 2mV/div ~ 10V/div;

6) Built-in 1 CH 5MHz waveform genera;

7) Vertical resolution : 8bit;

8) Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC;

9) CAN decode and protocol analysis: RS232/UART、I2C、SPI、CAN、LIN

10) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;

11) 5 bits digital voltage meter and 6 bits hardware frequency indicator function;

12) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;

13) 2 sets of digital voltmeter;

14) Support threshold testing, free measurements within the screen;

15) Abundant SCPI remote command control;

16) Many external interface: USB Host/Device.

NOTE:DSO2C10 and DSO2C15 have no waveform generation function!
