Highlights

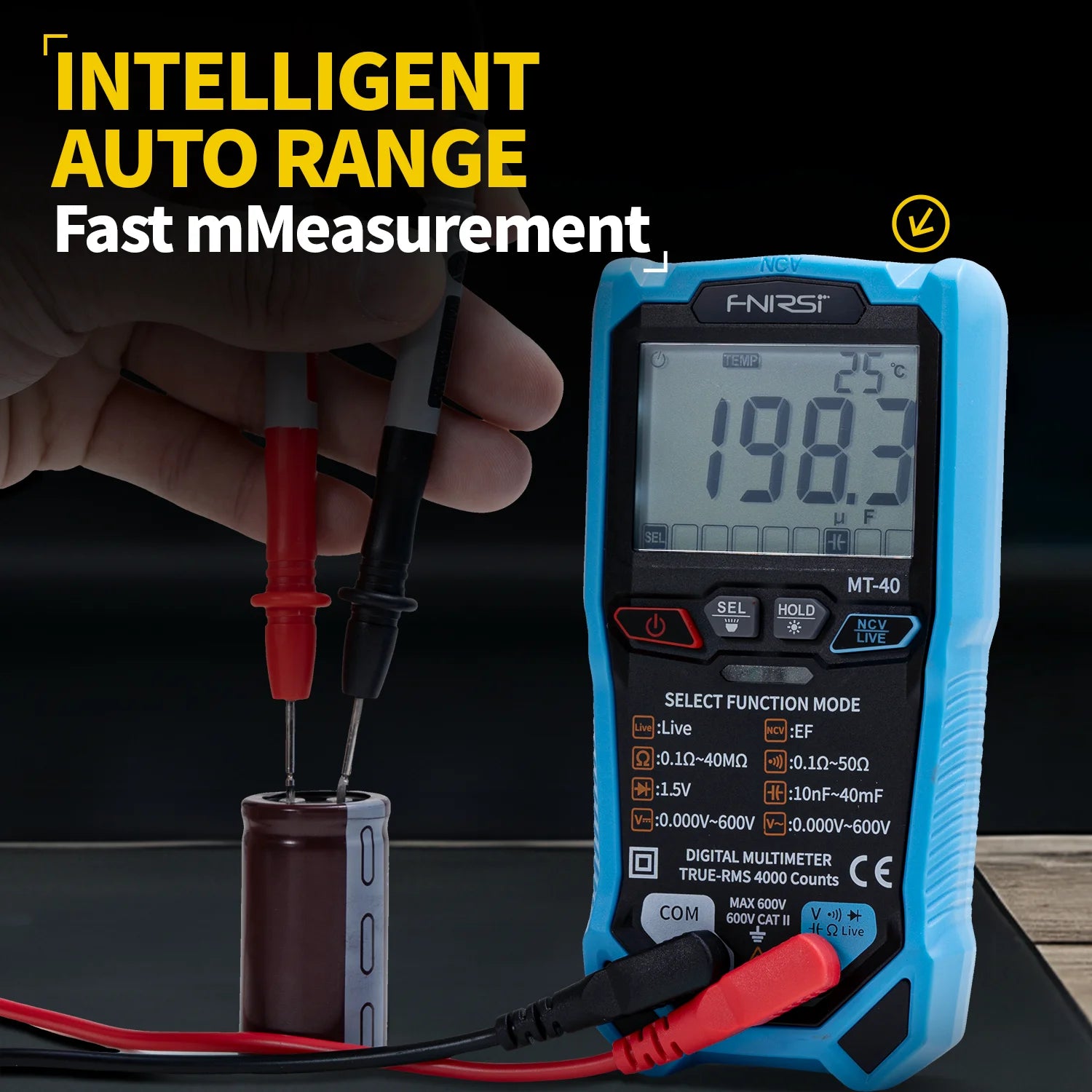

✦ Auto Range: Start measuring immediately after power is on, automatically identify voltage and resistance on and off, and make the measurement more efficient; full-range automatic measurement, no need to adjust the range to measure.

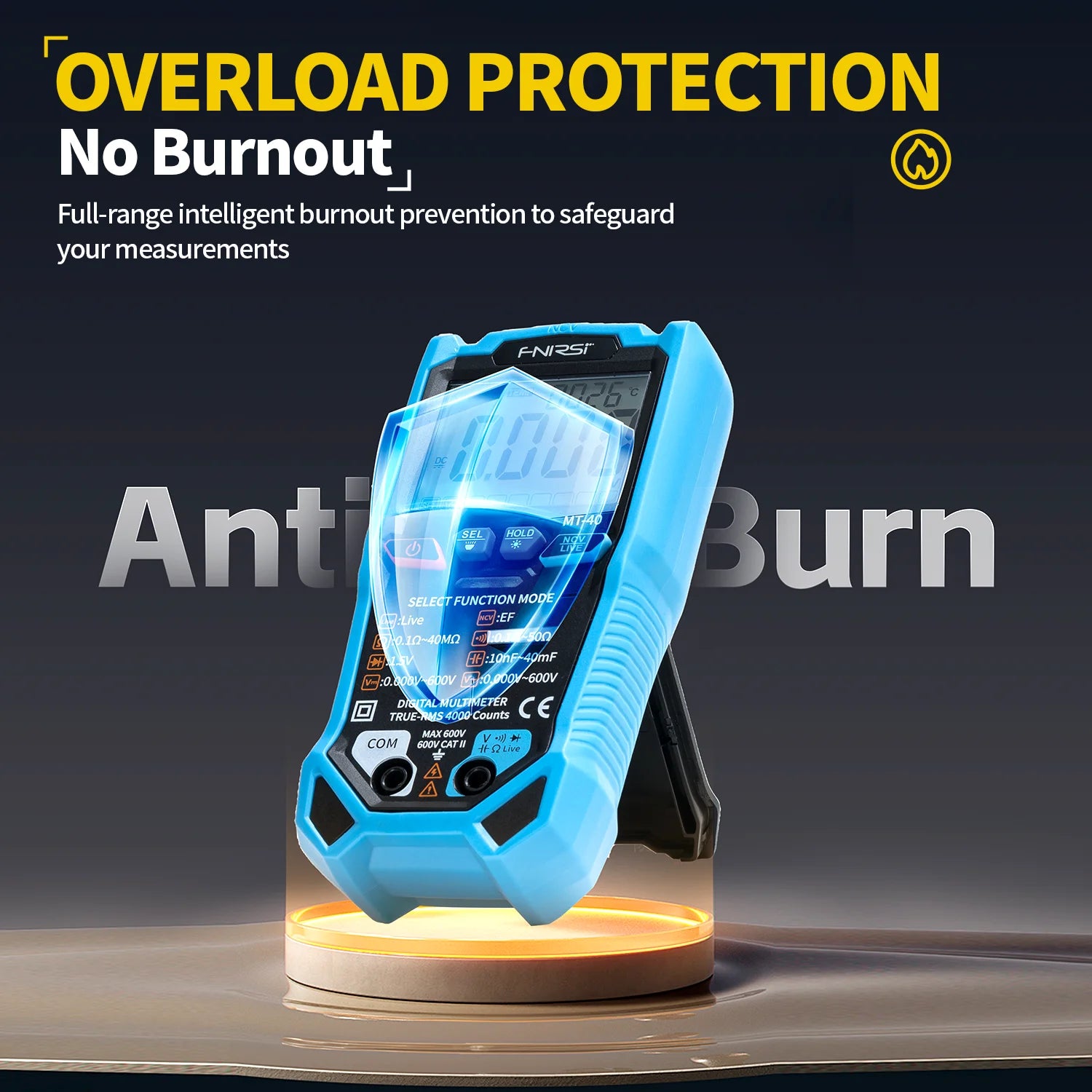

✦ Overload Protection: Full-range intelligent burnout prevention to safeguard your measurements.

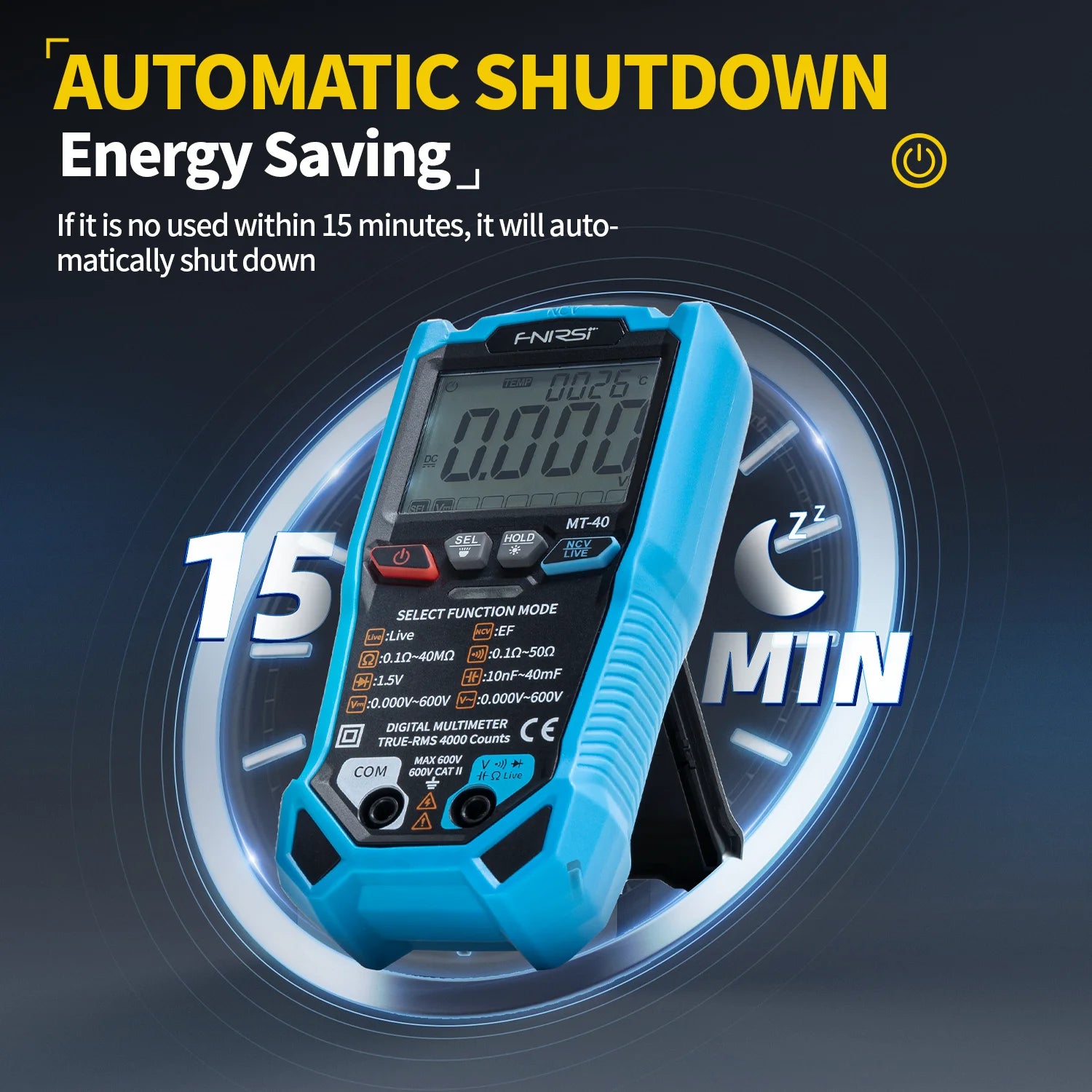

✦ Automatic Shutdown: After 15 minutes of non-use, it will automatically shut down, saving energy and electricity.
✦ Excellent Chip: Powerful Computing, ultra-fast sampling rate of 3 times per second, delivering enhanced speed and accuracy.

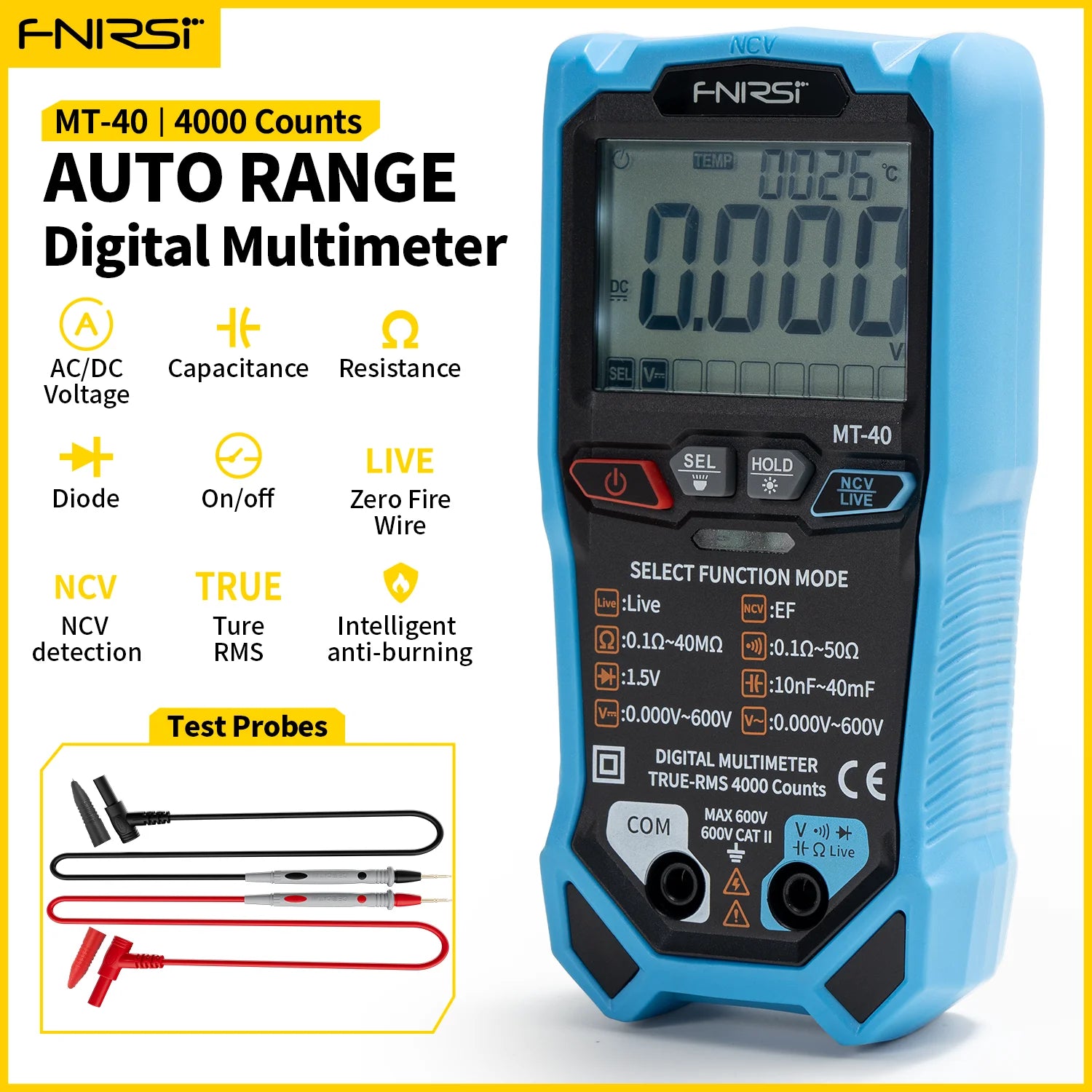

The MT-40 is a cutting-edge multimeter designed to simplify and enhance measurement tasks. Equipped with a high-definition backlit LCD display, it delivers clear and easy-to-read measurements. Its intelligent auto-ranging feature eliminates manual adjustments, ensuring efficient and accurate results.
Powered by an advanced chip, the MT-40 boasts an ultra-fast sampling rate of 3 times per second, providing real-time data for precise analysis. This powerful device offers various functions, including True RMS measurement, capacitance, resistance, diode testing, and non-contact voltage detection.

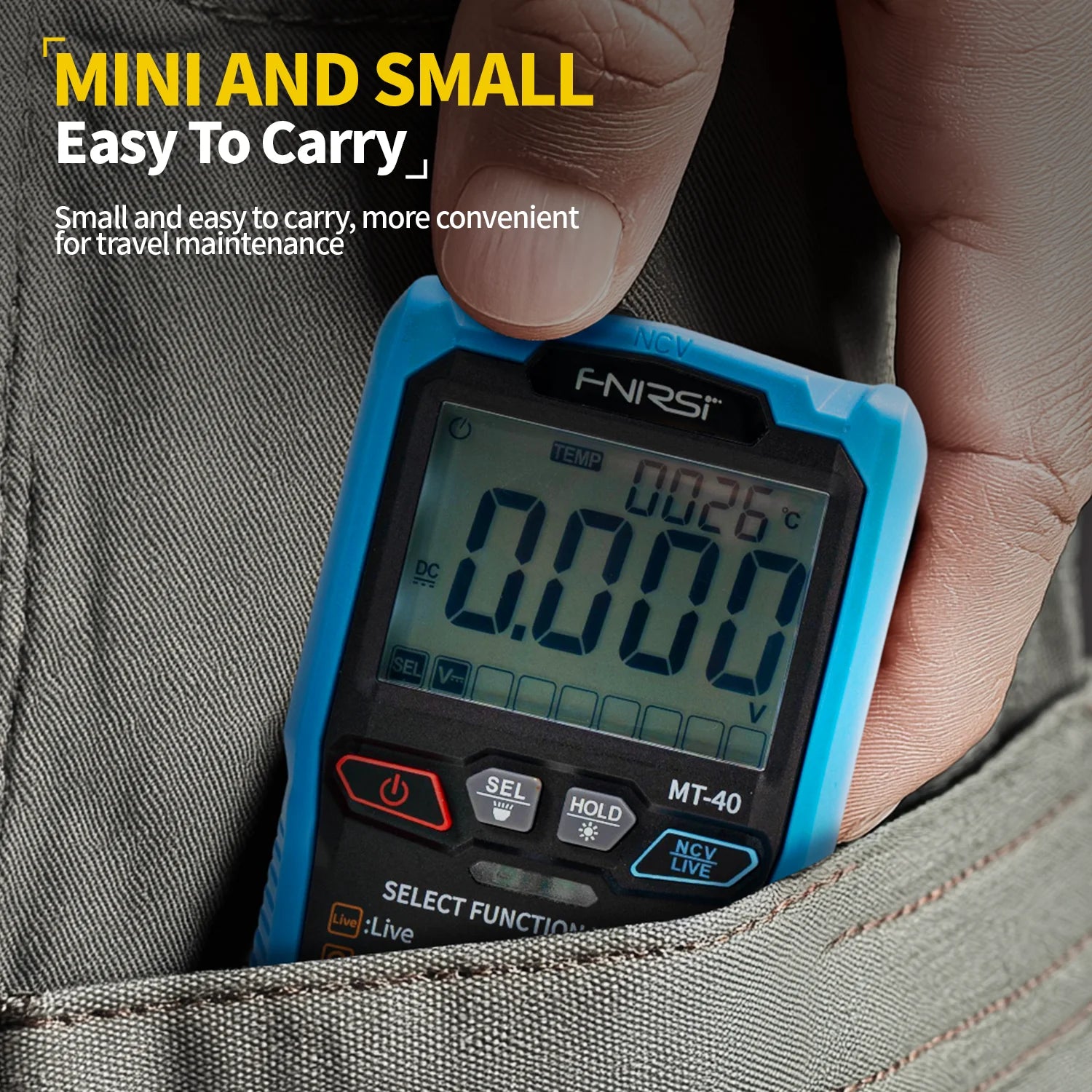

With its overload protection and intelligent anti-burning features, the MT-40 safeguards both your measurements and the device itself. The compact and lightweight design, combined with a convenient silicone protective cover, makes the MT-40 the ideal tool for on-the-go professionals.
Key Features:
1. Auto Range: Start measuring immediately after power is on, automatically identify voltage and resistance on and off, and make the measurement more efficient; full-range automatic measurement, no need to adjust the range to measure.
2. Overload Protection: Full-range intelligent burnout prevention to safeguard your measurements.
3. Automatic Shutdown: After 15 minutes of non-use, it will automatically shut down, saving energy and electricity.
4. Excellent Chip: Powerful Computing, ultra-fast sampling rate of 3 times per second, delivering enhanced speed and accuracy.

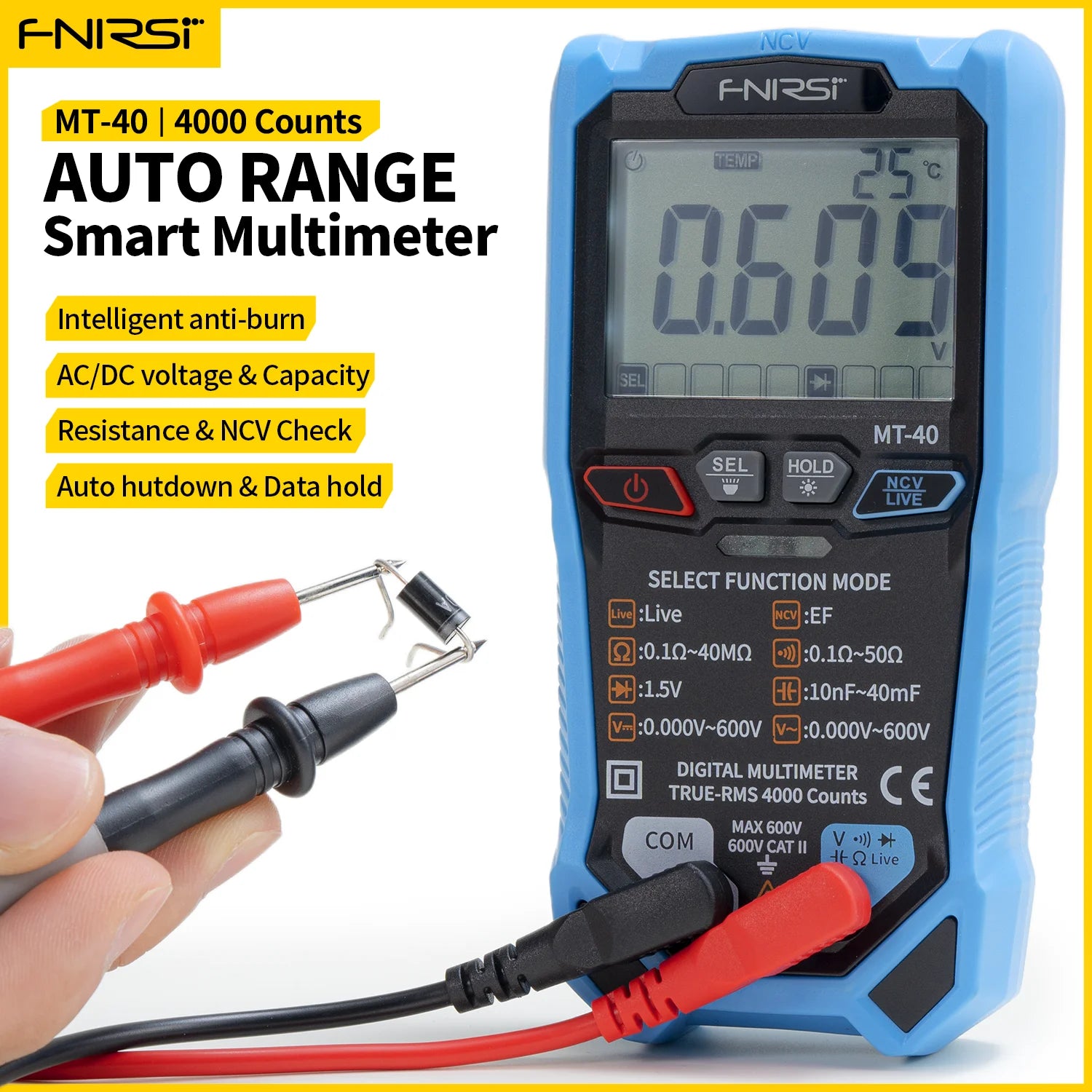

Product Model：MT-40
Dimension：140mm*70mm*31mm
Battery type：2x1.5V AAA (Not included)
DC Voltage: AUTO function:0.800v~600V, Manual function : 0.000V~600V
AC Voltage: AUTO function: 0.800V~600V, Manual function:0.000V~600V
Resistor: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
Capacitor: 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF
Diode Test: Yes
Continuity Buzzer: Yes
Fireline judgment(Live): Yes

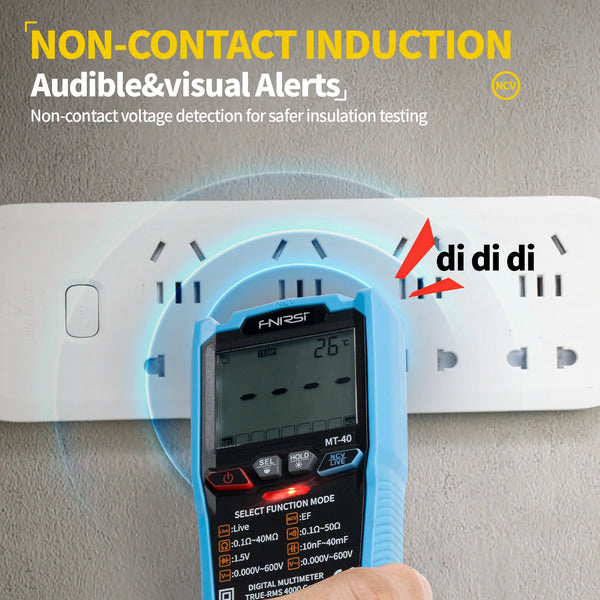

Non-contact voltage detection(NCV):Yes
AUTO function/Manual conversion function: Yes
True RMS: Yes
Back light: Yes
undervoltage: Yes
Flashlight lighting: Yes
Data hold: Yes
Measuring rate: 3 times/s
Auto power off: 15 minutes
1. MT-40 Multimeter
2. Multimeter probe
3. Instruction manual
