Product Summary
FNIRSI DST-210/201 3-in-1 Oscilloscope Multimeter & Signal Generator is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.
Best For
- checking waveforms, debugging signals and validating circuit behavior
- test leads, probes and bench electronics workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Highlights

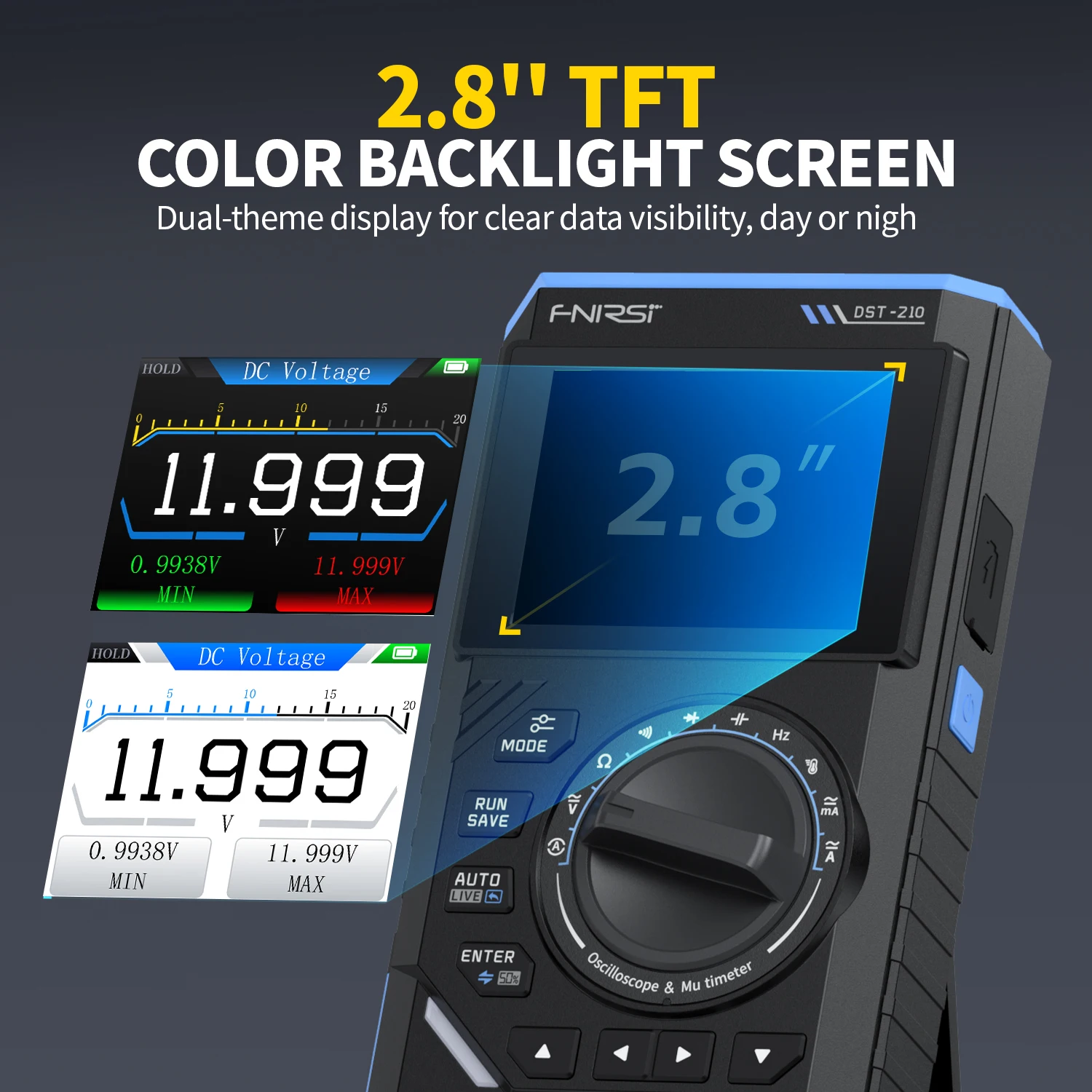

◉ Full-Color Display: 2.8" TFT screen with dual themes and adjustable backlight. Clear readings day or night.

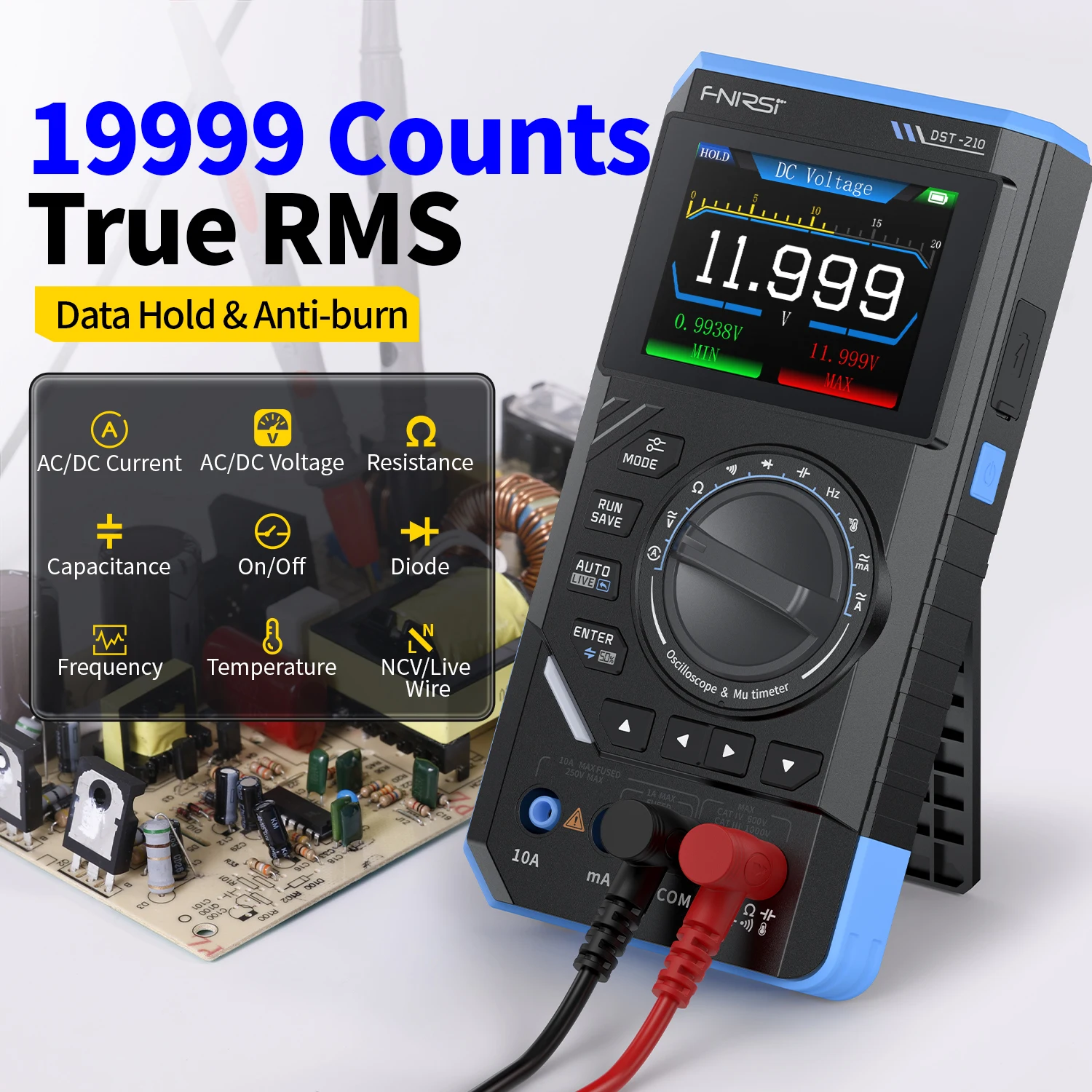

◉ High-Precision Multimeter: True RMS 4.5-digit display with up to 1000V DC range. Efficient and reliable testing.

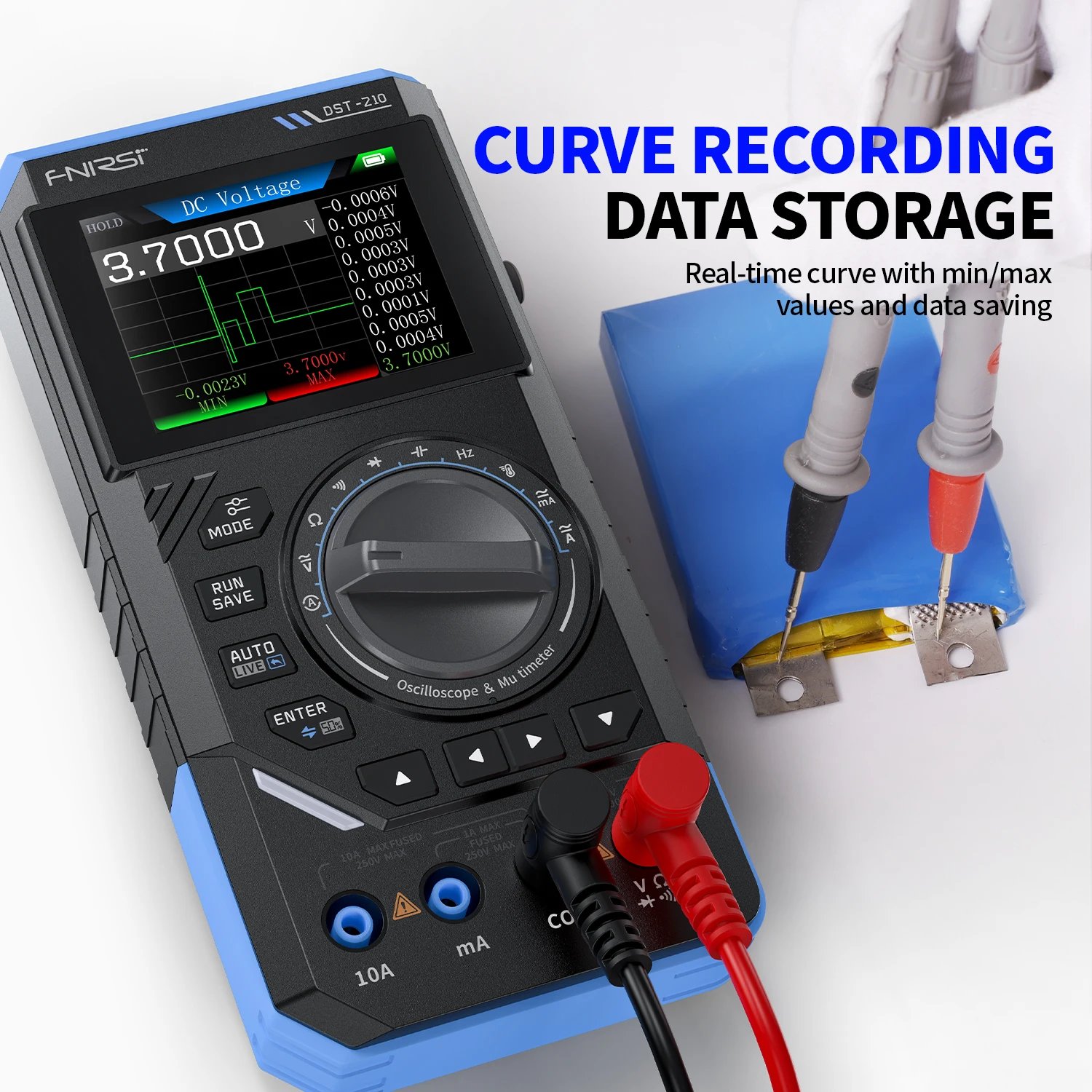

◉ Data Hold & Curve Record: Holds test data and records curves for better analysis.

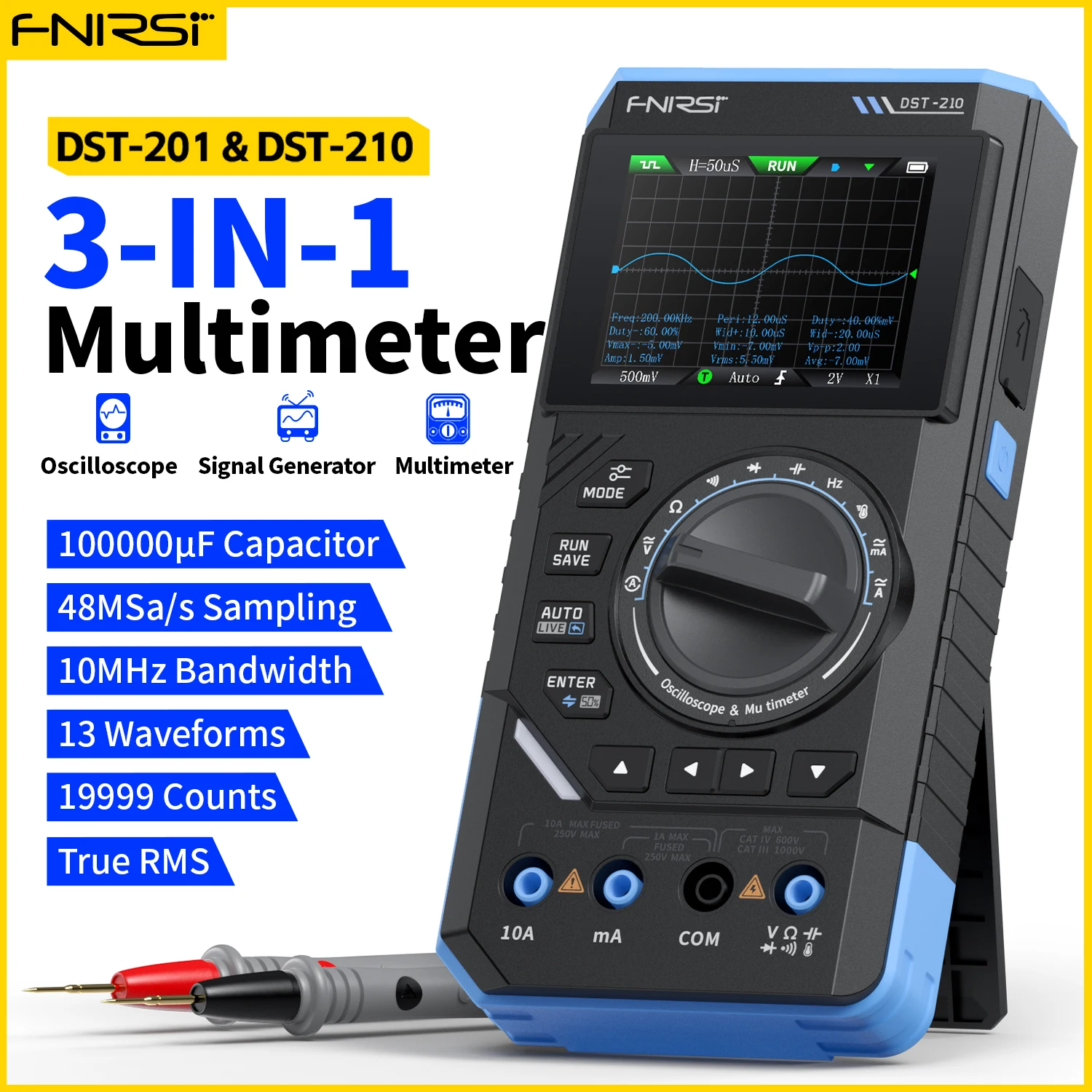

◉ Multifunctional: Includes 48 MSa/s sampling, 10 MHz bandwidth oscilloscope, and signal output-no need to switch devices.
◉ Rotary Dial Design: Quickly select functions with a dial for faster operation and time savings.
The DST-201/DST-210 is a versatile multifunction tester developed by FNIRSI, tailored for electronics repair and R&D. This all-in-one device integrates multiple essential testing functions, addressing a broad spectrum of measurement requirements.
Key Features:
1.High-precision oscilloscope function:

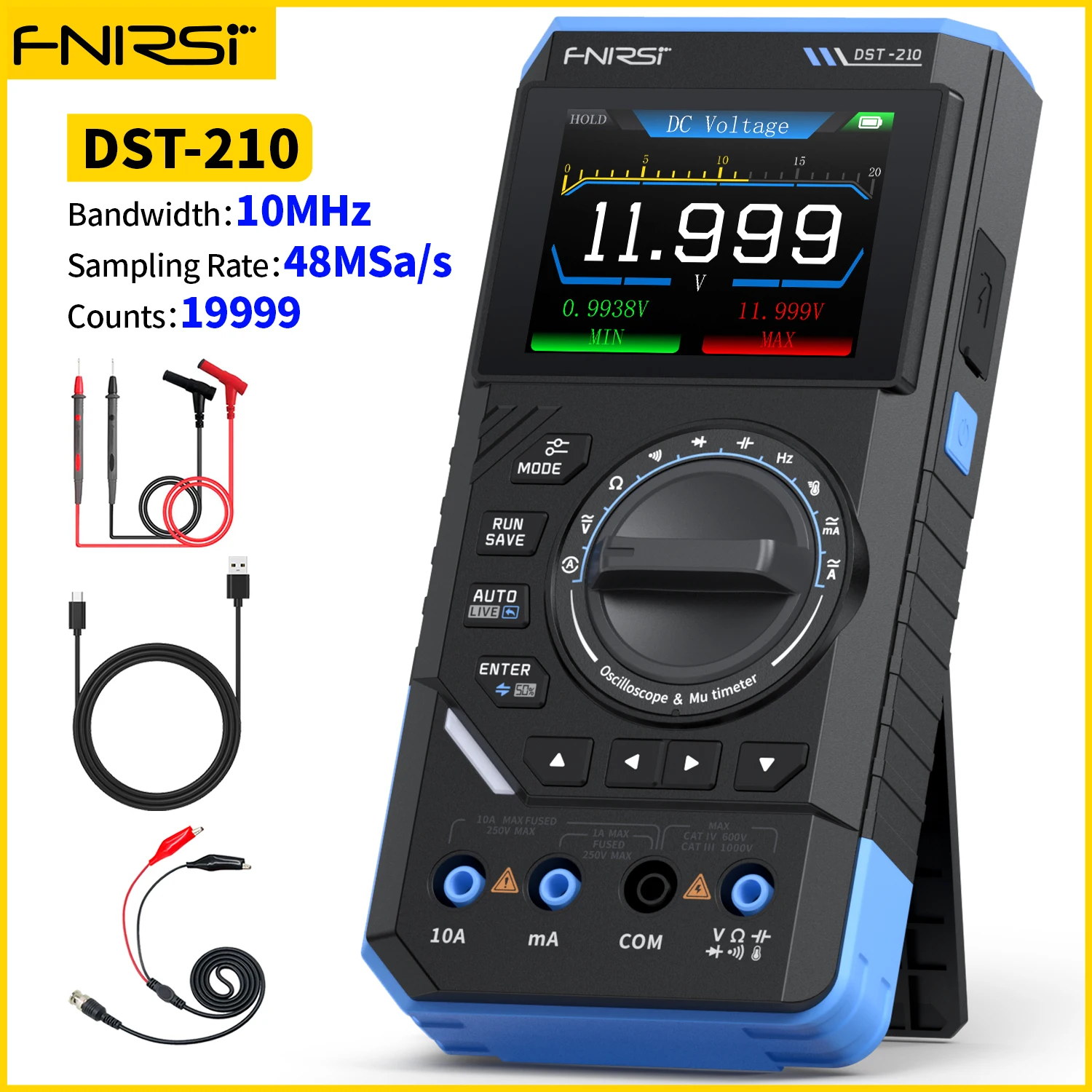

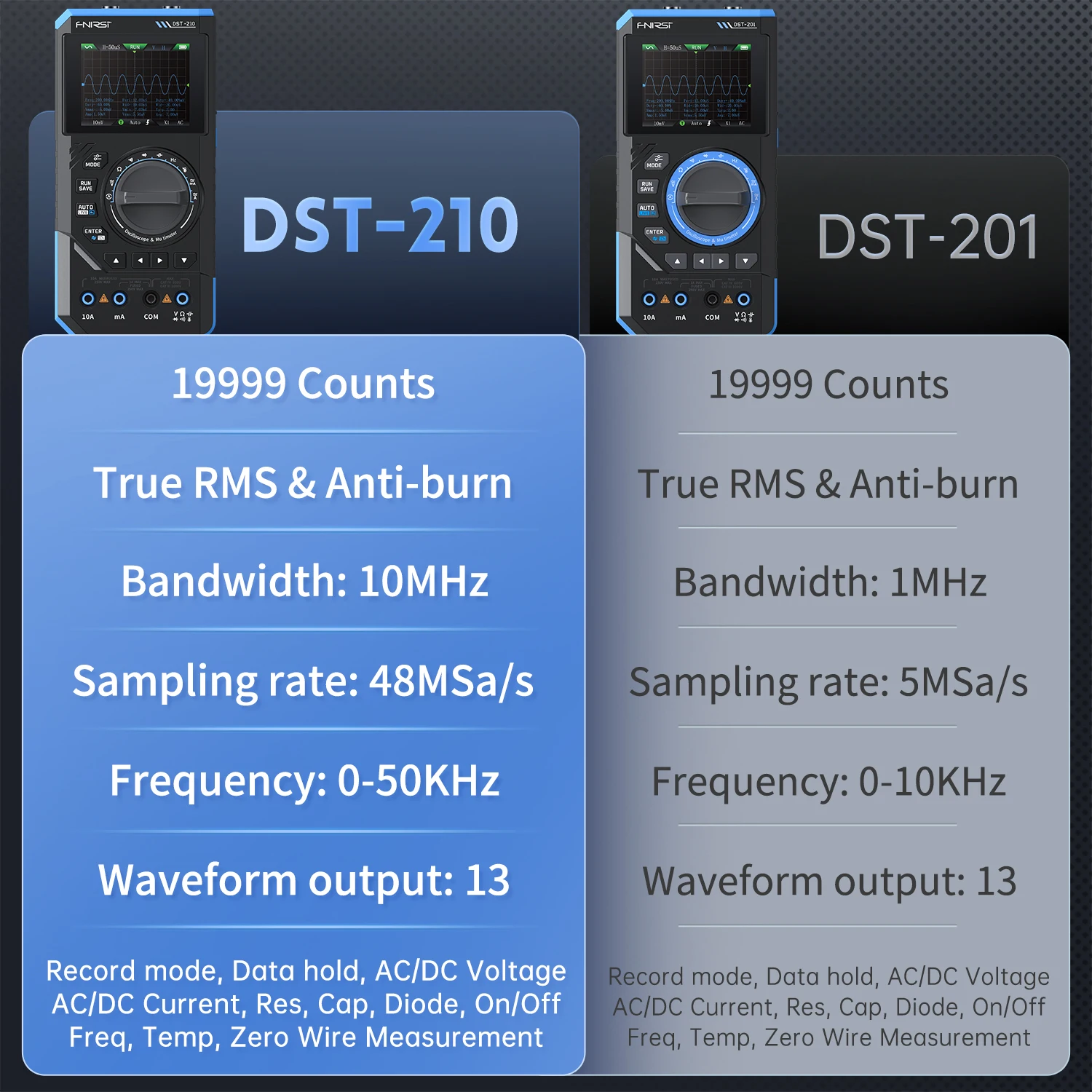

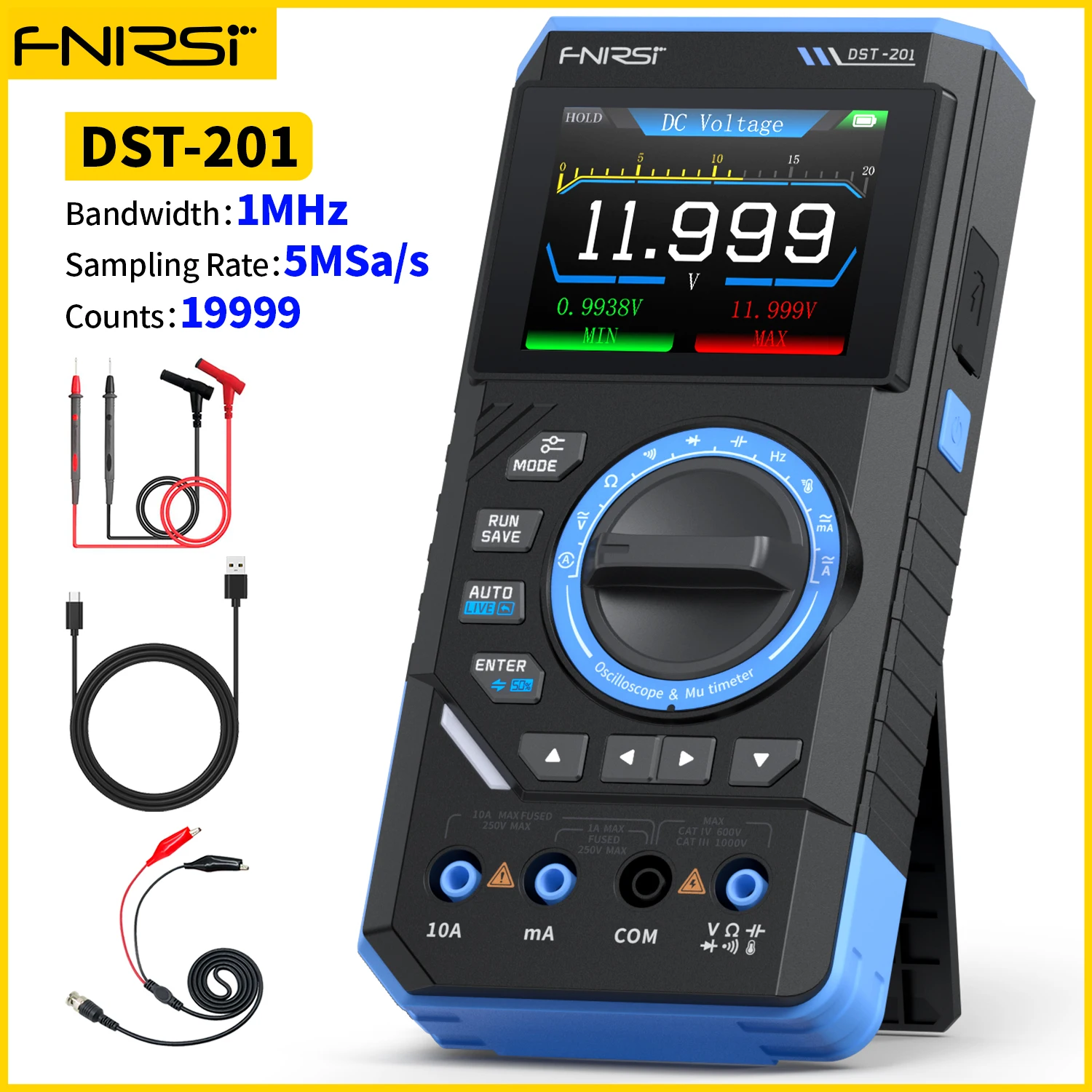

FNIRSI DST-201 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, DST-210 provides a sampling rate of 48MSa/s and an analog bandwidth of 10MHz, ensuring waveform analysis. It is equipped with voltage protection up to ±400V, suitable for a wide range of applications.
2.Multi-function signal generator function:

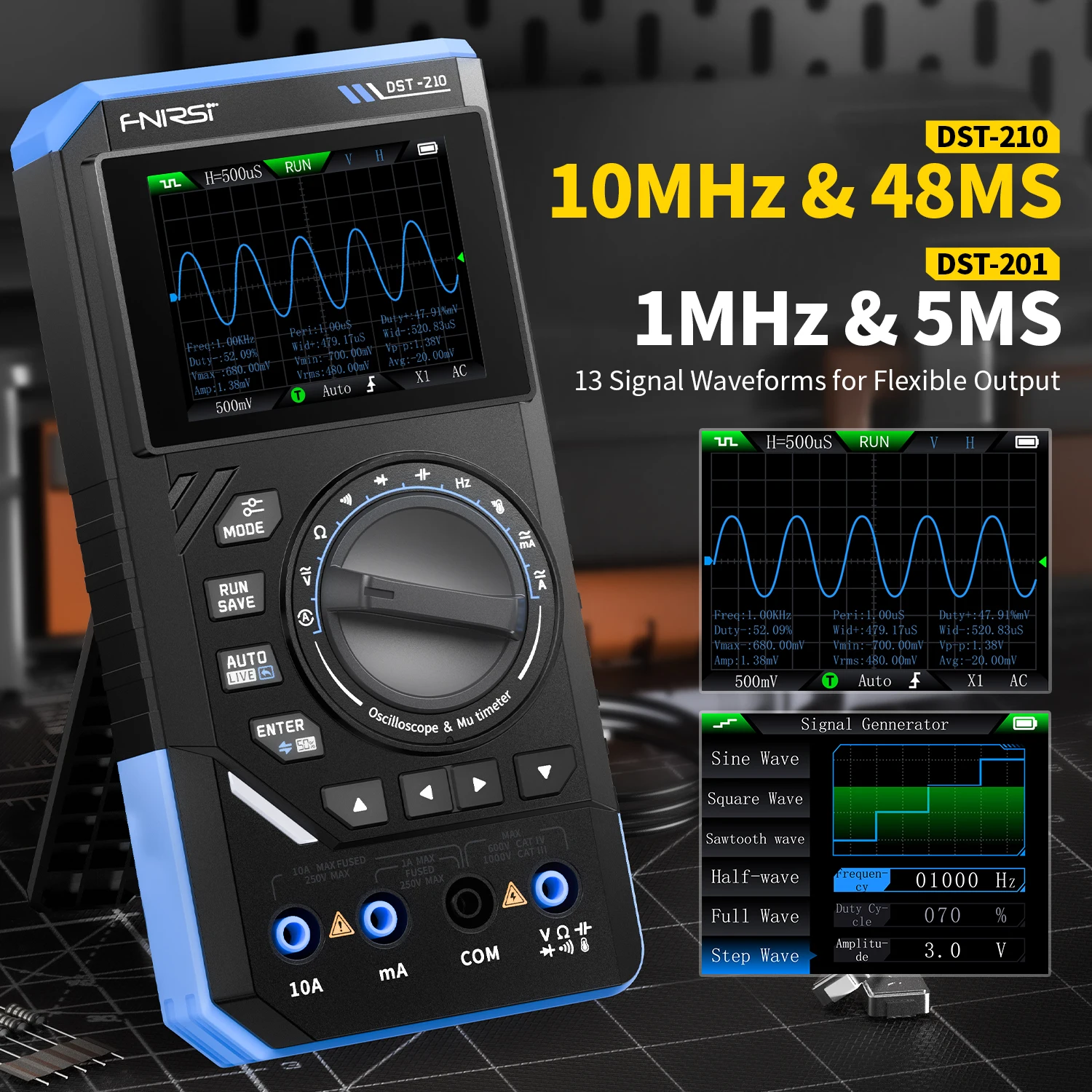

Supports 13 waveforms with a frequency range of 0-10KHz and an adjustable output voltage of 3V. The frequency, amplitude and duty cycle can all be fine-tuned to meet various testing needs.
3.Comprehensive multimeter function:
FNIRSI DST-201/210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and LIVE zero/live line, providing powerful functions for various measurements.
4.Overload protection and portable design:
The device is equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects. Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use.
5.User-friendly and multifunctional:
FNIRSI DST-201/210 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists and home users.
Basic Parameters
1.Screen Material: 2.8 inch TFT Color Screen
2.Backlight: Backlight brightness adjustable
3.Charging Power: TYPE-C (5V 1A)
4.Battery: 3000mAh
5.Languages: Chinese / English
6.Product Size: ≈177.43x87.47x34.5mm
7.Net Weight: ≈300g
Parameters 1
1.Real-time Sampling rate: 5MSa/s(DST-201);48MSa/s(DST-210)
2.Analog Bandwidth: 1MHz(DST-201);10MHz(DST-210)
3.Input Impedance: 1M ohm
4.Coupling Mode: AC/DC
5.Test Voltage Range: 1:1 Probe: 80Vpp (+40V), 10:1 Probe: 800Vpp (+400V)
6.Vertical Sensitivity: 10mV/div - 10V/div
7.Vertical Displacement: Adjustable with indicators
8.Level Time Base: 500ns - 20s
9.Trigger Mode: Auto / Normal / Single
10.Trigger Type: Rising Edge & Falling Edge
11.Trigger Level: Adjustable with indicators
12.Waveform Freeze: Support (HOLD function)
13.Auto Measurement: Maximum, Minimum, Average, RMS, VPP, Frequency, Period, Duty Cycle
Parameters 2
1.DC Voltage: 1.9999V/19.999V/199.99V/1000V -- ±(0.5%+3)
2.AC Voltage: 1.9999V/19.999V/199.99V/750.0V -- ±(1%+3)
3.DC Current: 19.999mA/199.99mA/1.9999A/9.999A -- ±(1.2%+3)
4.AC Current: 19.999mA/199.99mA/1.9999A/9.999A -- ±(1.5%+3)
5.Resistance: 19.999M ohm/1.9999M ohm/199.99K ohm/19.999K ohm() -- ±(0.5%+3)
1.9999K ohm/199.99 ohm -- ±(2.0%+3)
6.Capacitance: 999.9uF/99.99uF/9.999uF/ 999.9nF/99.99nF/9.999nF -- ±(2.0%+5)
9.999mF/99.99mF -- ±(5.0%+20)
7.Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/ 999.99Hz/99.99Hz/9.999Hz -- ±(0.1%+2)
8.Temperature: -55-1300 deg C/ -67-2372 deg F -- ±(2.5%+5)
9.Diode/Continuity: √
10.Zero Live Wire: √
Parameters 3
1.Output Waveform: Support 13 types
2.Waveform Frequency: 0-10KHz
3.Square Duty Cycle: 0-100%, Square and Sawtooth are adjustable
4.Waveform Amplitude: 0.1V-3.0V
