Highlights
✦ Recording Mode: FNIRSI multimeter can plot measured value ripple that changes over time is drawn, and the fluctuation of voltage or current over time can be observed. 8 measured values can be recorded, and the Max and Min measurement values are displayed.
✦ Monitoring mode: Custom thresholds can be set in multimeter monitoring mode, and a warning will be issued if the voltage exceeds or falls below the set threshold.

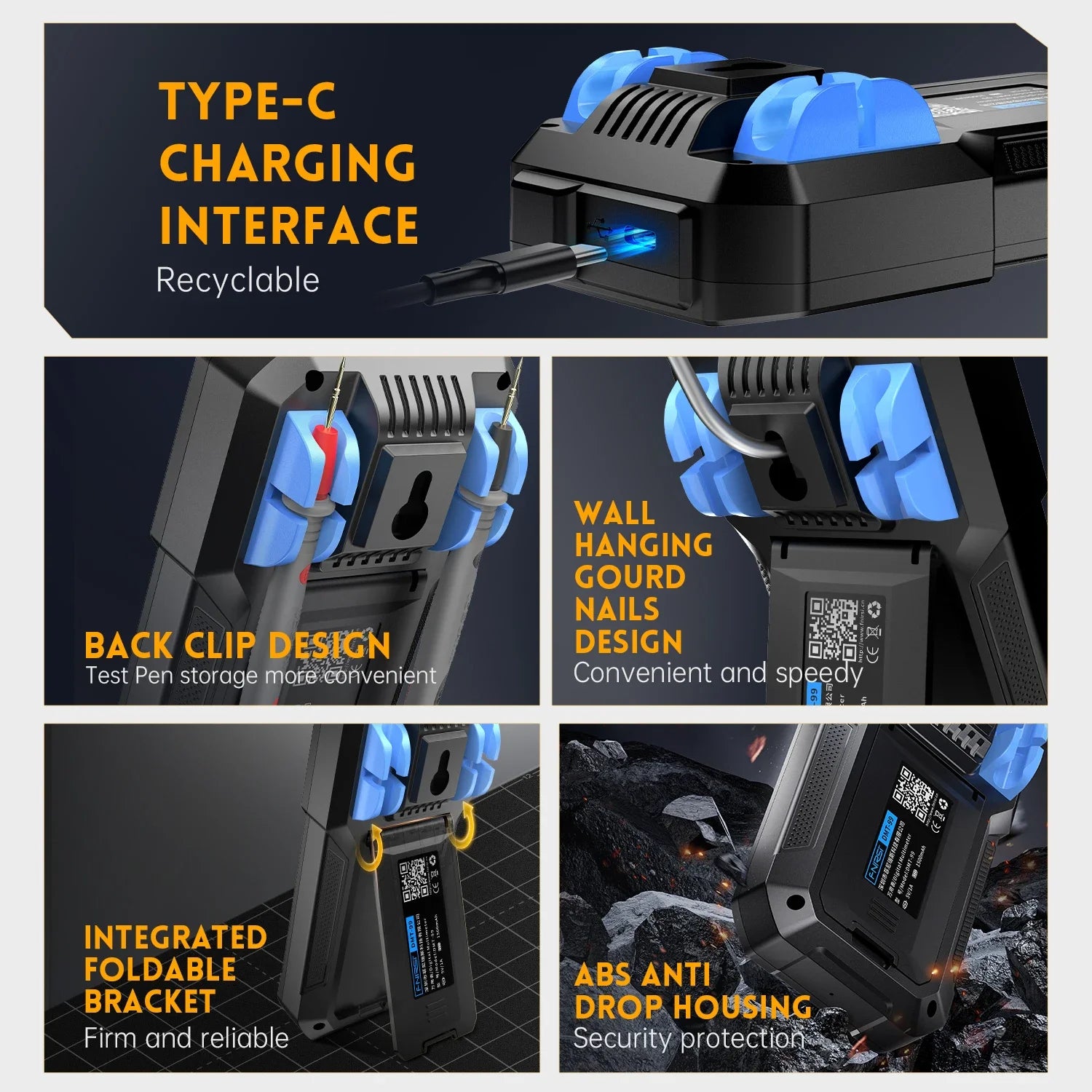

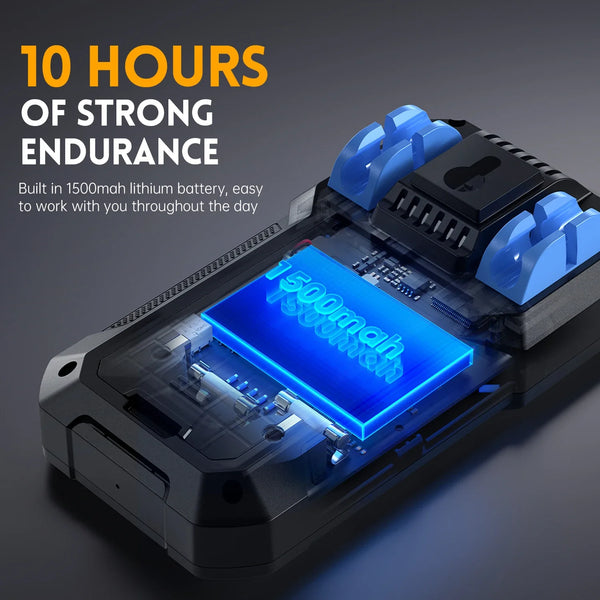

✦ Solving hunger: Built-in 1500 mAh rechargeable battery allows the multimeter tester to work longer. No more manually replacing bulky, unfindable disposable batteries, the Type-c port renews energy at any time.

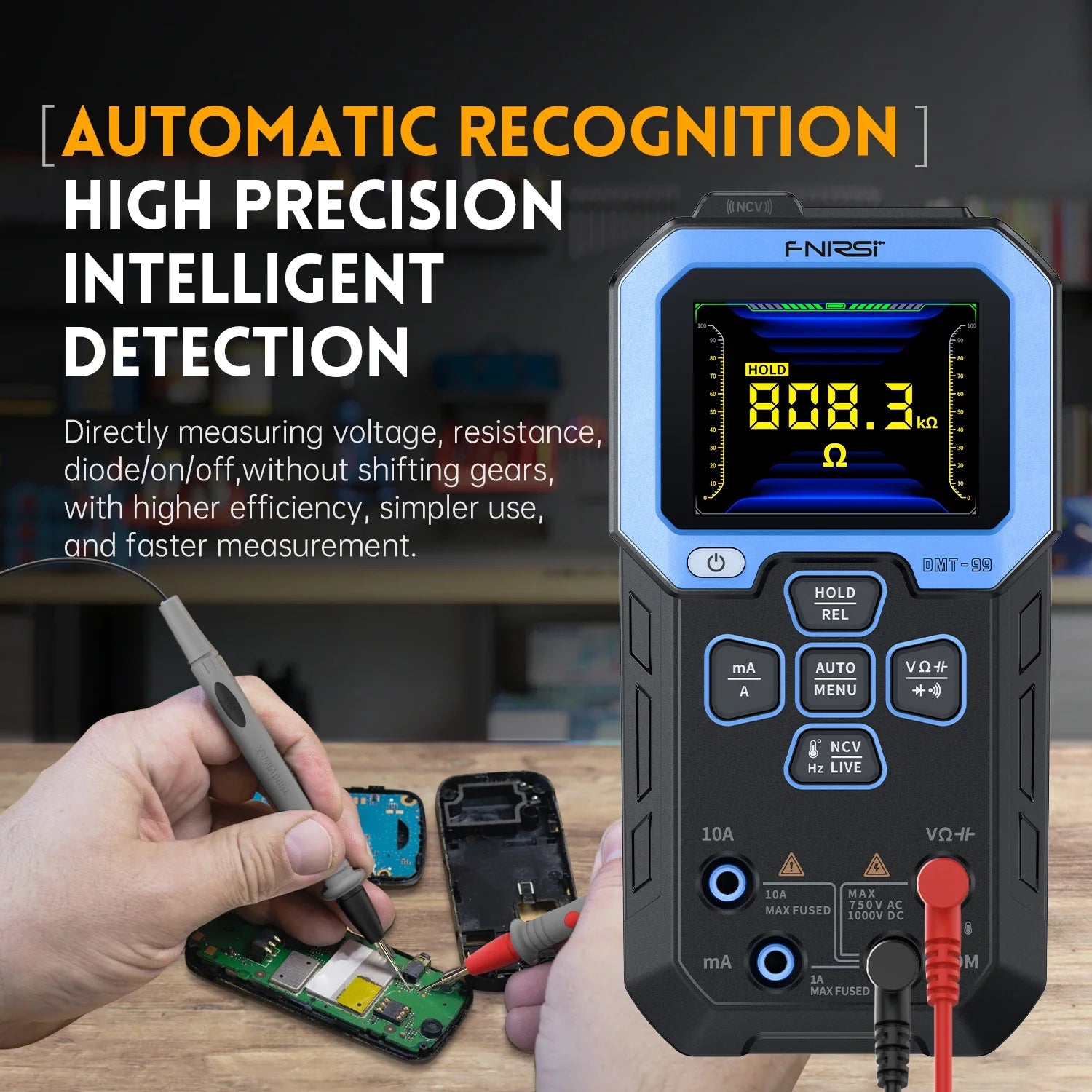

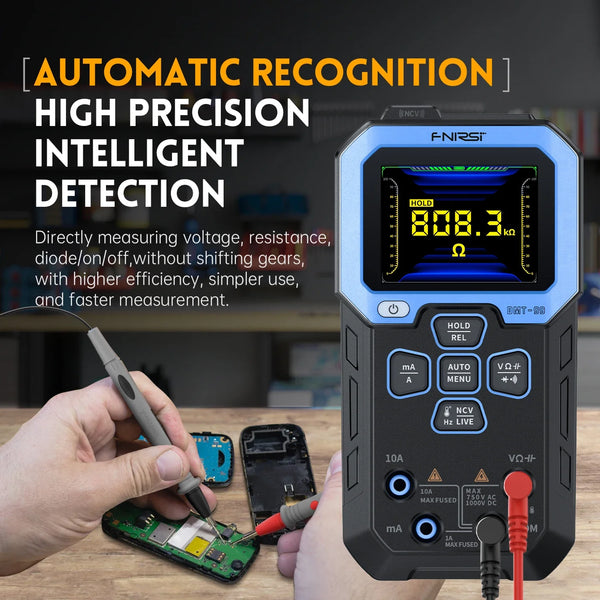

✦ Intelligent Mode: In intelligent mode, DMT-99 digital multimeter can identify the measurement content and select the range with the best resolution, making the measurement more convenient and faster,Takes out the guesswork for most applications.
✦ Private customization: 2.4-inch full-color TFT screen display, 240*320 resolution, makes it easy to use in dimly light areas. Supports DIY startup interface and creates your own personal entry interface.
✦ Intelligent Multimeter: It measures AC/DC voltage, AC/DC current, and can be used to test resistance, capacitance, continuity, diode, NCV and live wire etc. Applicable to automotive, home applian

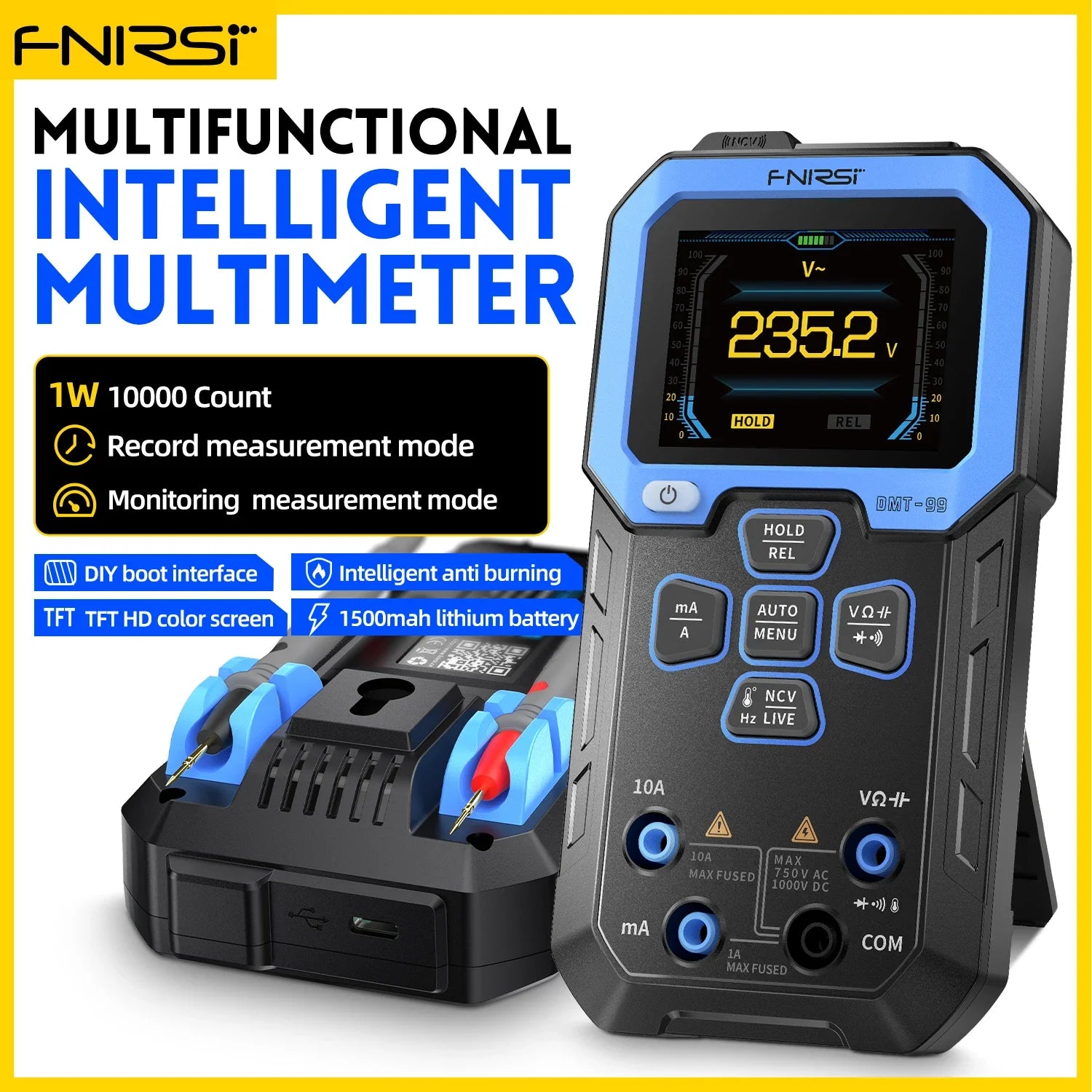

Features
- Professional digital multimeter multitester
- Automotive Multimeter: 1000V 10A True RMS
- 2.4 inch full-color TFT display (240 * 320 resolution screen)

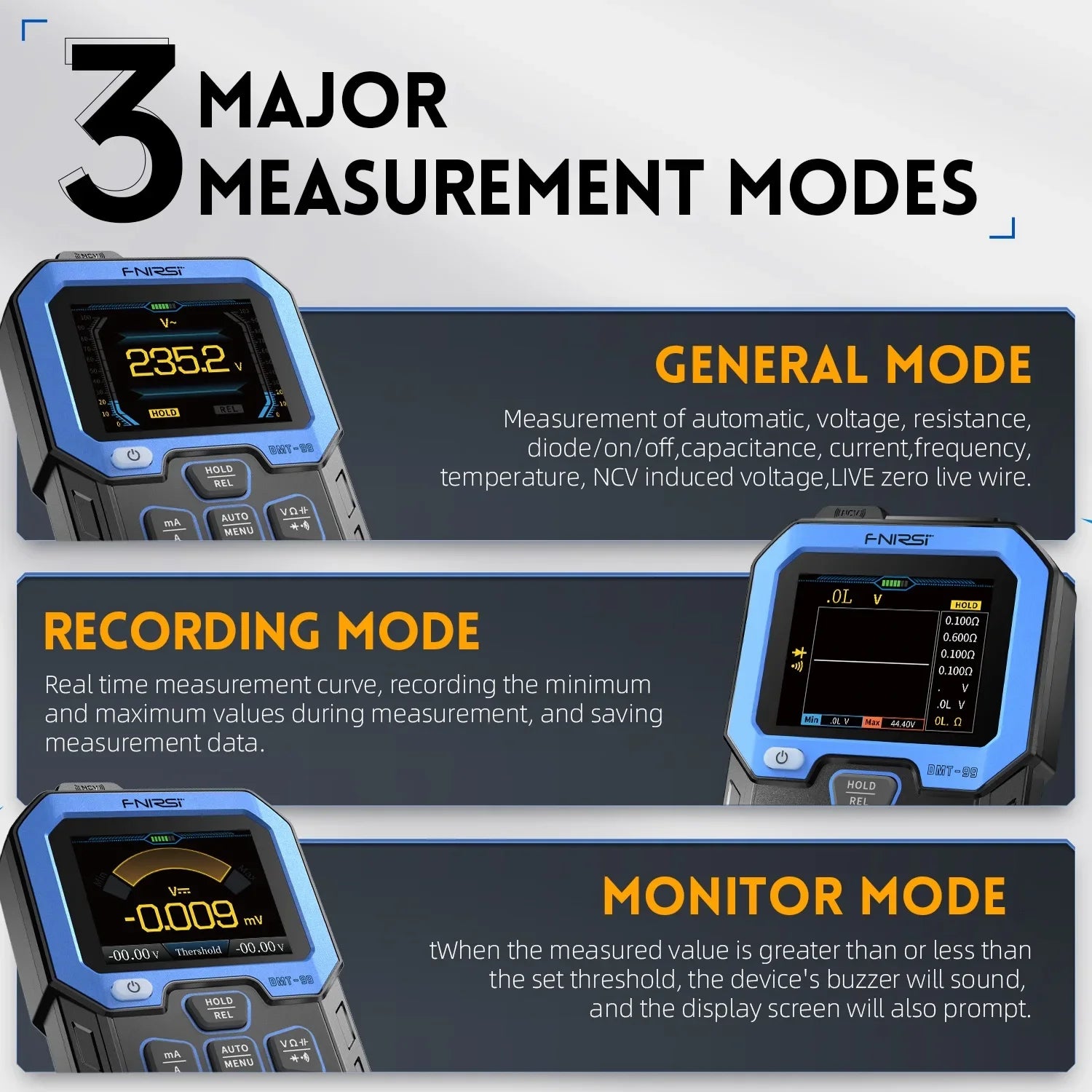

- 3 measurement modes( recording, normal, and monitoring)
- Intelligent anti-burning digital multimeter
- Multimeter Use: tests conductivity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, live wire, etc.
- Measures AC/DC voltage, AC/DC current, and 10A current.
- Built-in 1500mAh rechargeable battery multimeter tester
- Supports DIY startup interface
Product Description
DMT-99 is FNIRSI's new 10,000 count intelligent digital multimeter with a wider measurement range and higher resolution.It measures AC/DC voltage, AC/DC current, 10A current, conductivity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire. Ideal for engineering, laboratories, cars, and home appliances.Features include a 2.4 inch full-color TFT display (240x320 resolution), DIY boot interface, new UI design, and first monitoring mode function.
Product Parameters
- DC Voltage:9.999V~999.9V
- AC voltage:9.999V~750.0V
- DC current:9999uA~9.999A
- AC current:9999uA~9.999A
- Resistance:999.9Ω~99.99MΩ
- Capacitance:9.999nF~99.99mF
- Frequency:9.999MHz~9.999Hz
- Temperature:(-55~1300℃)/(-67~2372℉)
- Diode:Yes- Continuity test:Yes- NCV:Yes
- LIVE:Yes
- Working conditions:temperature 0~40℃,humidity <75%
- Storage conditions:temperature -20~60℃,humidity <80%
- Weight:185g
- Battery capacity:1500mAh

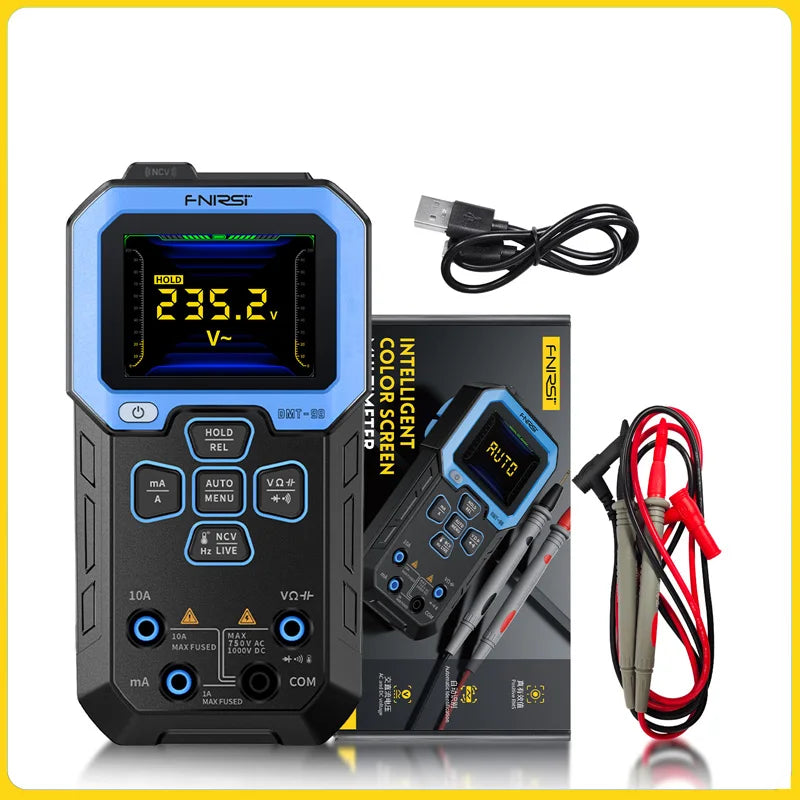

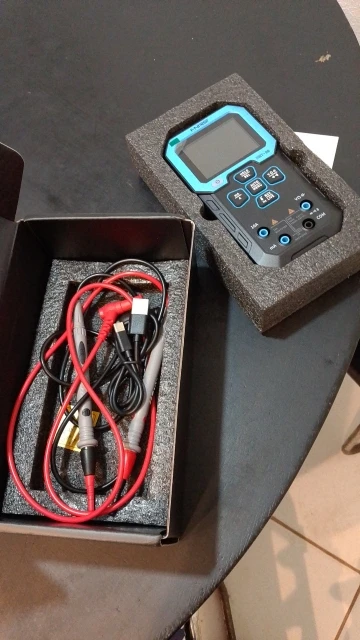

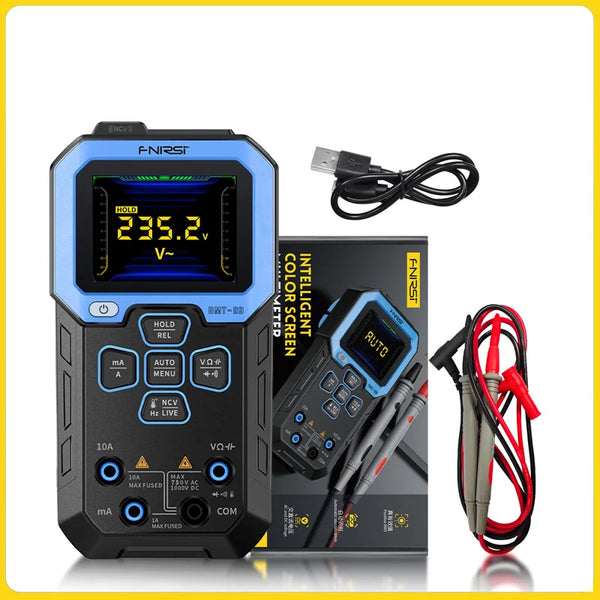

Packing list
- DMT-99 *1

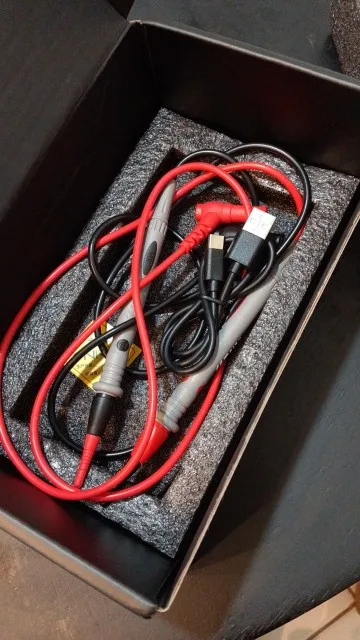

- Test Pen*1
- Charging cable *1
- User Manual *1
- Packaging box*1
