DSO183 DC 5V DIY Digital Oscilloscope Kit 0-500kHz Oscilloscope Soldering Kit Type-C is a soldering and rework tool selected for soldering, desoldering, spot welding and board repair tasks. It is suitable for PCB repair users, makers and electronics assembly workflows who need practical electronics hardware for reliable project work.
Best For
- soldering, desoldering, spot welding and board repair tasks
- PCB assembly, battery pack work and repair bench setups
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for PCB repair users, makers and electronics assembly workflows.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Product Features:

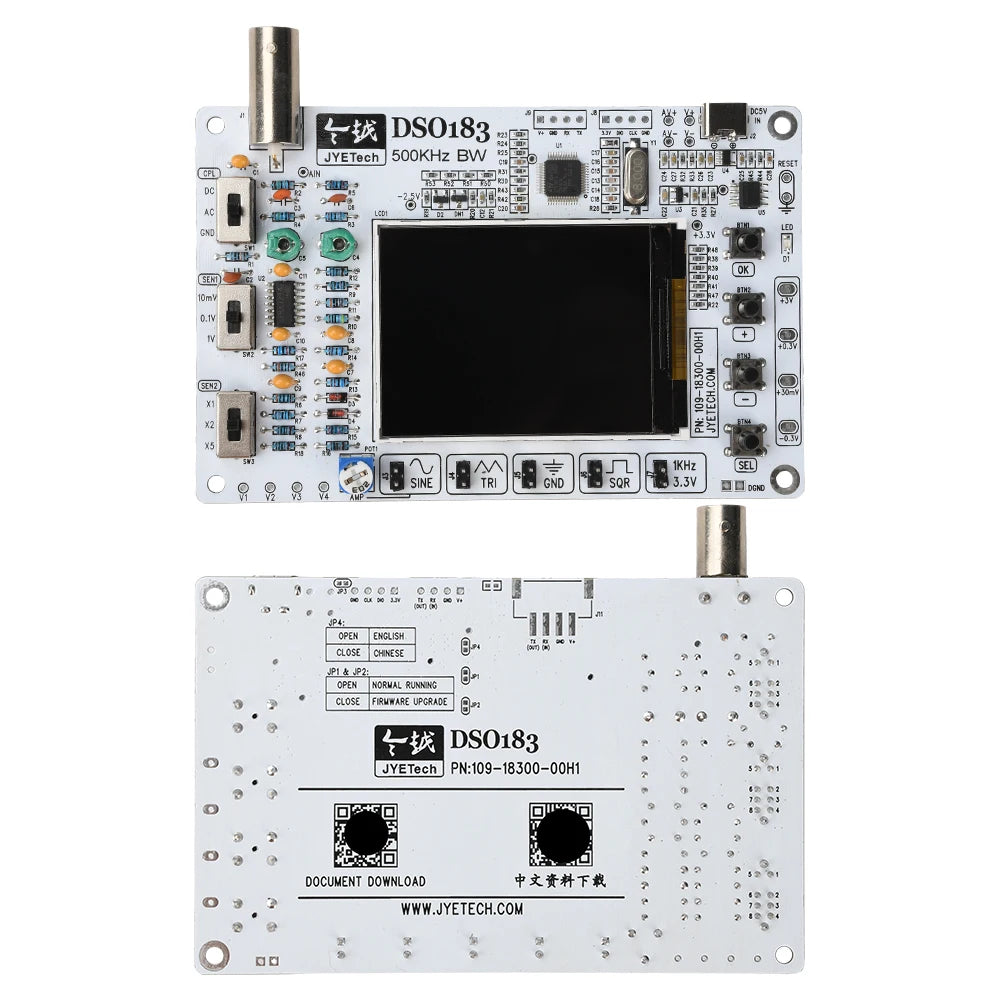

1. Single-board design: Compact integrated structure for straightforward installation and high stability, suitable for diverse experimental environments

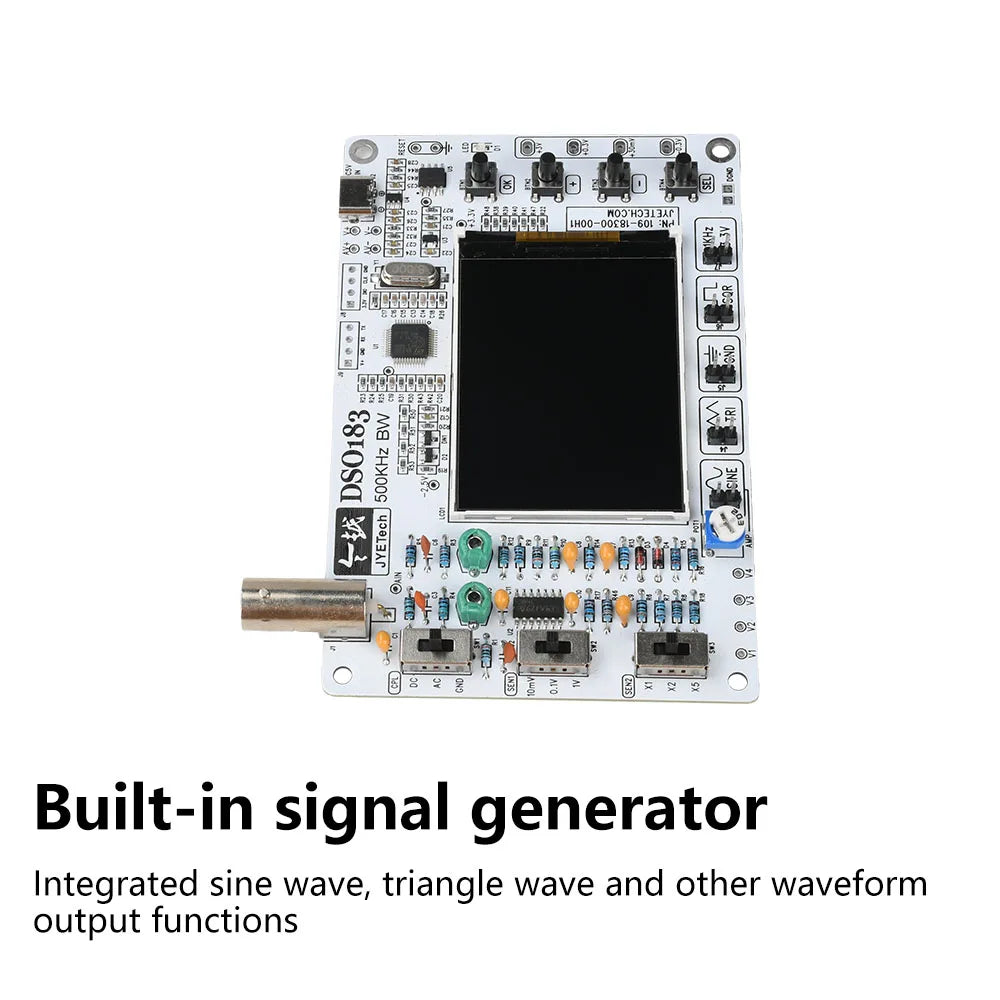

2. Built-in signal generator: Integrates multiple waveform outputs including sine and triangle waves to meet varied testing requirements

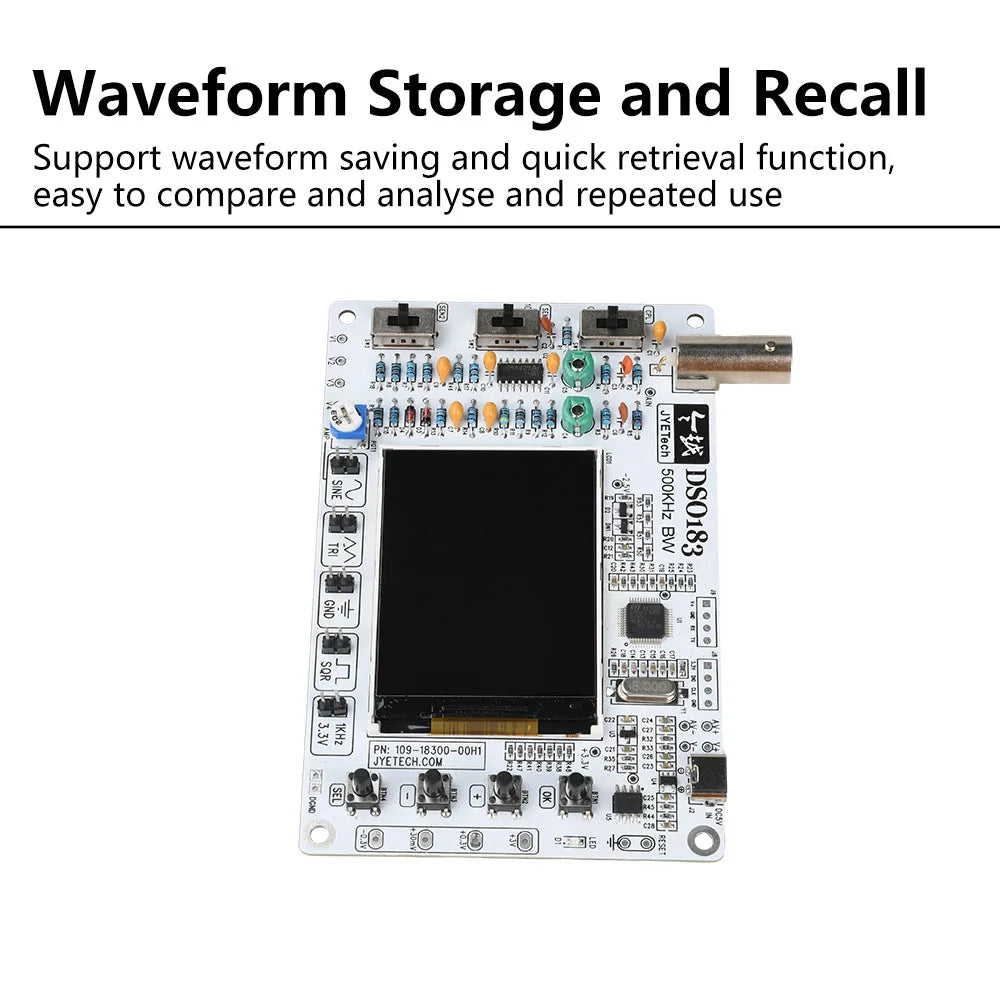

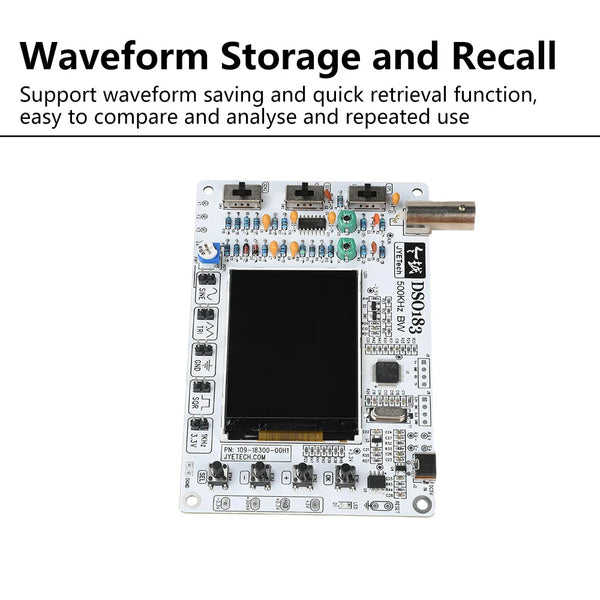

3. Waveform storage and recall: Supports waveform saving and rapid retrieval for comparative analysis and reuse
4. 500kHz High Bandwidth: Capable of high-frequency response, accurately capturing intricate signal details

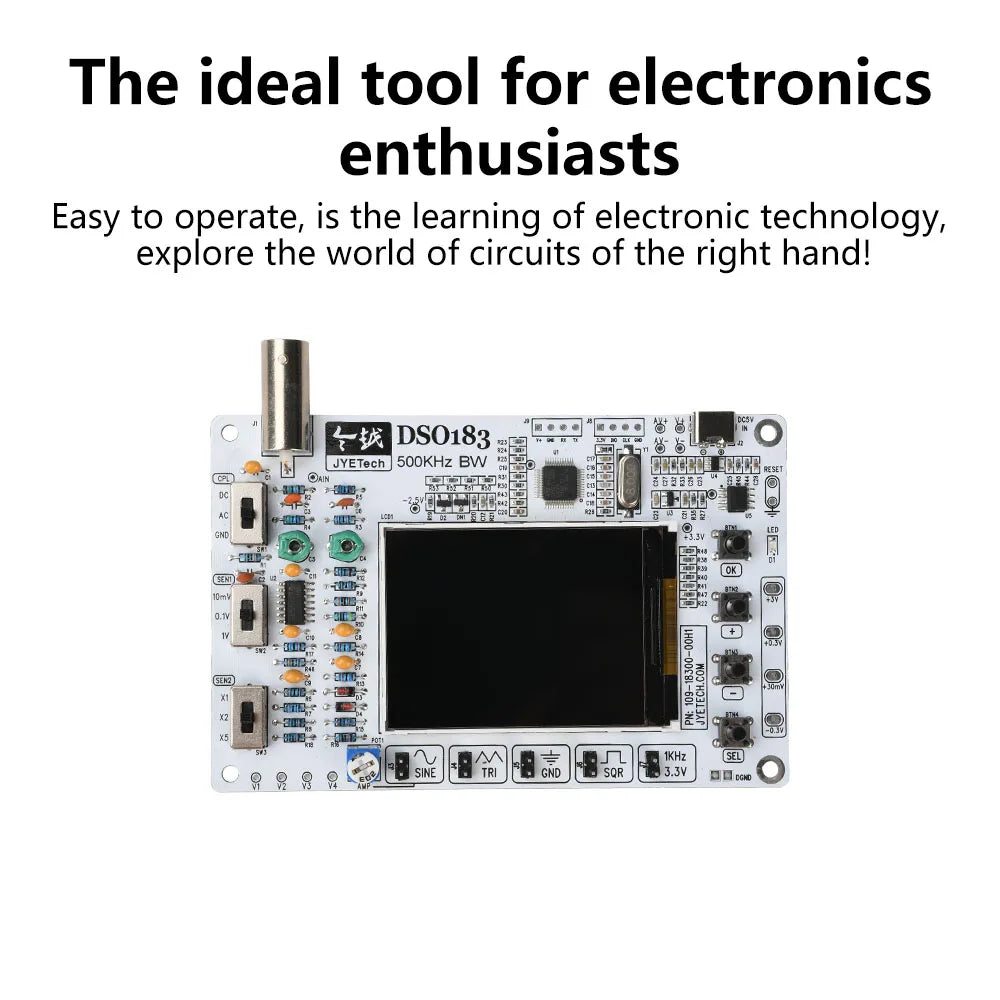

5. Ideal Tool for Electronics Enthusiasts: Simple operation with robust functionality, serving as a capable assistant for learning electronics and exploring circuitry
Product Specifications:
Bandwidth: 500kHz
ADC Resolution: 12-bit
Real-time Sampling Rate: 1.5Msps
Waveform Buffer Length: 1024 points
Vertical sensitivity range: 10mV/div - 5V/div
Input impedance: 1M ohm
Maximum input voltage: 50Vpk
Coupling modes: DC, AC, GND
Horizontal time base range: 1us/div - 500s/div
Trigger modes: Auto, Normal, Single
Trigger edge: 1us/div - 500s/div
Power supply: DC 5V (supplied via USB [Type C interface])
Current consumption: <100mA
Product dimensions: 118 x 76 x 12mm
Packing list:

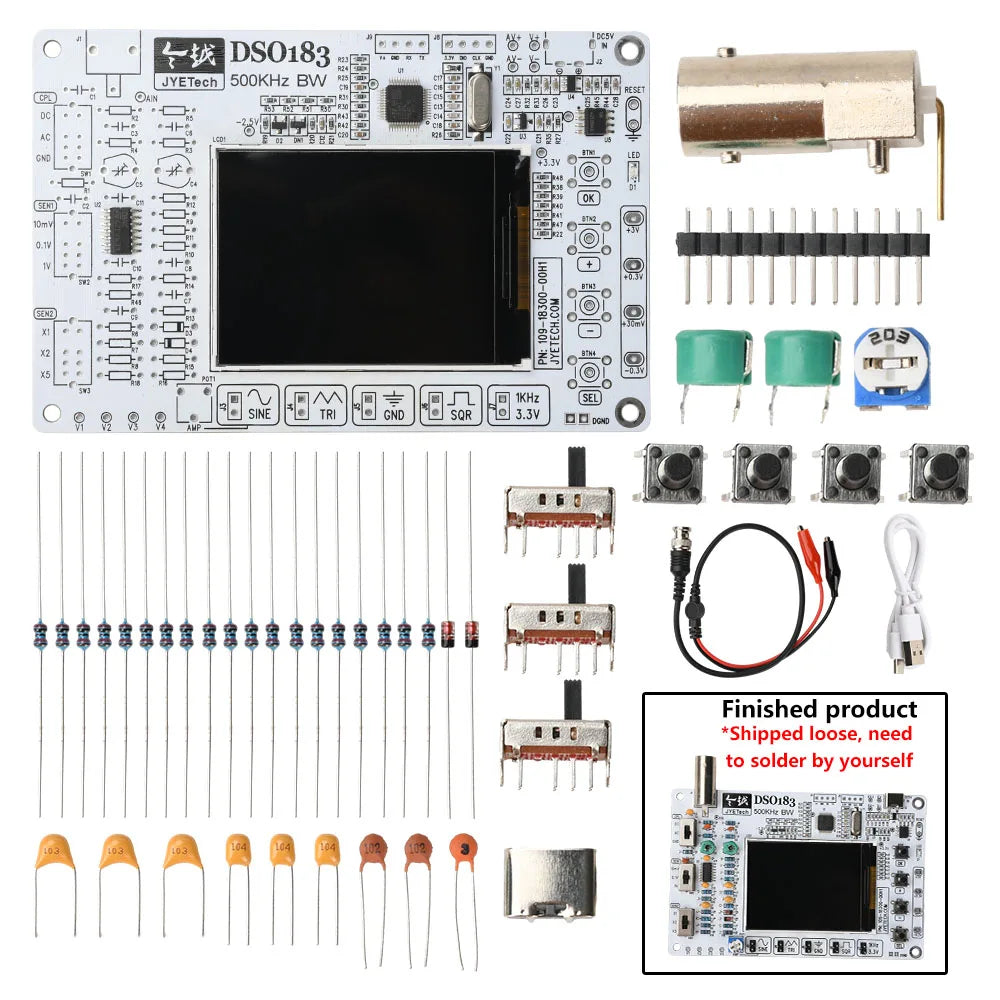

DIY kit components x1 (without enclosure)
