• Dual LED Display Panel :The product features a 0.28 inch dual LED display panel that allows for easy and clear reading of voltage and current measurements.
• Wide Voltage and Current Range :With a voltage range of up to 100V and a current range of up to 10A, this product is suitable for a wide range of applications.
• Accurate Measurements :The digital voltmeter ammeter provides accurate measurements of voltage and current, ensuring precise readings every time.
• Easy Installation :The product comes with connect wires, making it easy to install and use without the need for additional tools or equipment.
Product Description
-

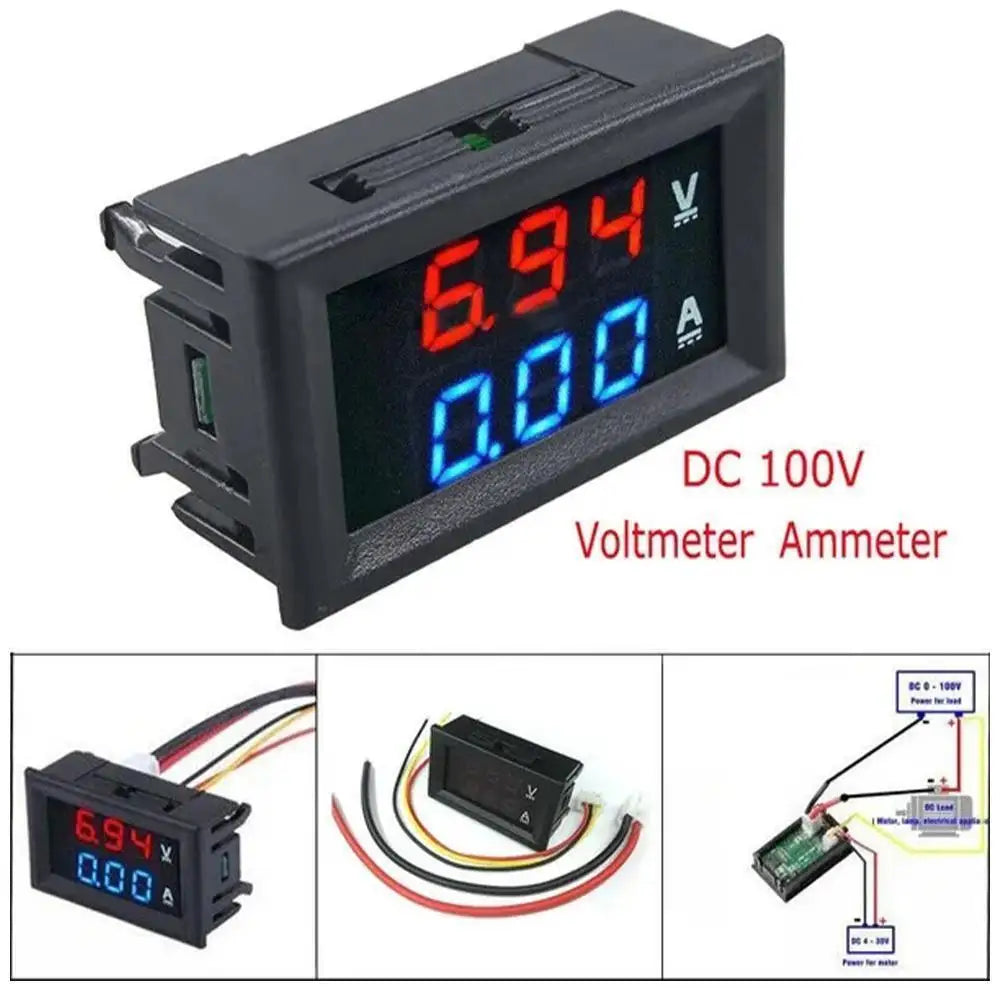

0.28 "Digital Voltmeter Ammeter DC 100V 10A Blue + Red Dual LED Display
-
10A Amp Voltage Current Meter Tester with 3 Bits Blue + Red Dual LED Display
-
Operating voltage: DC 4 ~ 30V; Measure voltage: DC 0 ~ 100V; Minimum resolution (V): 0.1V
-
Operating Current: <20mA;Minimum resolution (A): 0.01A;Measure current: 10A
Specifications:
Working voltage of Meter: DC 4 - 30V
Working current of Meter: ≤20mA
Voltage Measuring range: DC 0 - 100V
Current Measuring range: DC 0 - 10A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.28" digital tube, Two color blue and red
Refresh rate: about 300mS / times

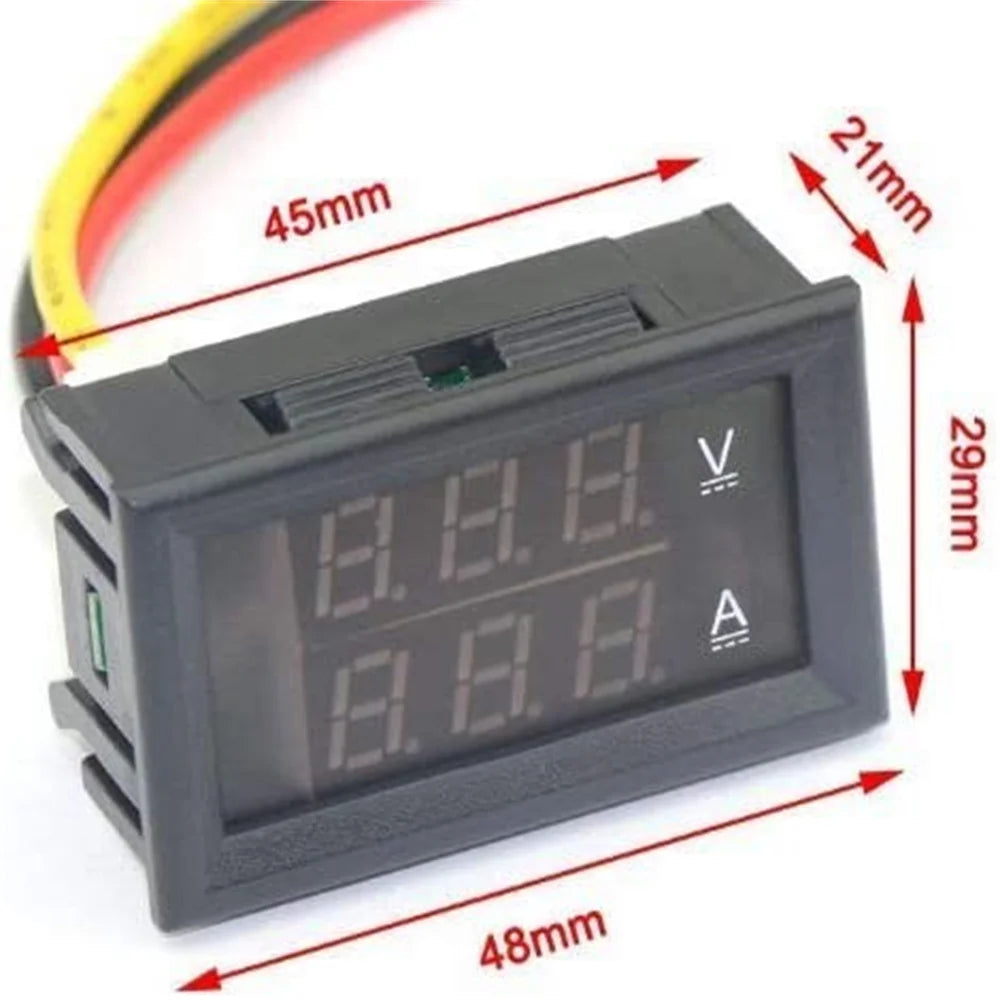

Dimensions: 48mm*29mm*21mm
Operation Temp: -10°-+65°
Note:
The maximum input voltage can not exceed 30V. Otherwise the meter will be burned out.
