Product Summary
DC 3V-6V bis 400kV 400000V Boost Step up Power Module High Voltage Generator transformer is a electronics product selected for electronics repair, testing, prototyping and project work. It is suitable for electronics users, repair technicians and maker project builders who need practical electronics hardware for reliable project work.
Best For
- electronics repair, testing, prototyping and project work
- bench electronics, DIY projects and maker workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics users, repair technicians and maker project builders.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
input voltage: DC 3 V to 6 V
Input current: 2 A - 5 A
High pressure type: the type of waveform current
Output voltage: 400000 v(Please pay attention to safety)
High pressure discharge distance between: 10 mm - 20 mm
The output high voltage wire length: 100 mm
Input power cord length: 100 mm (the red line is positive)

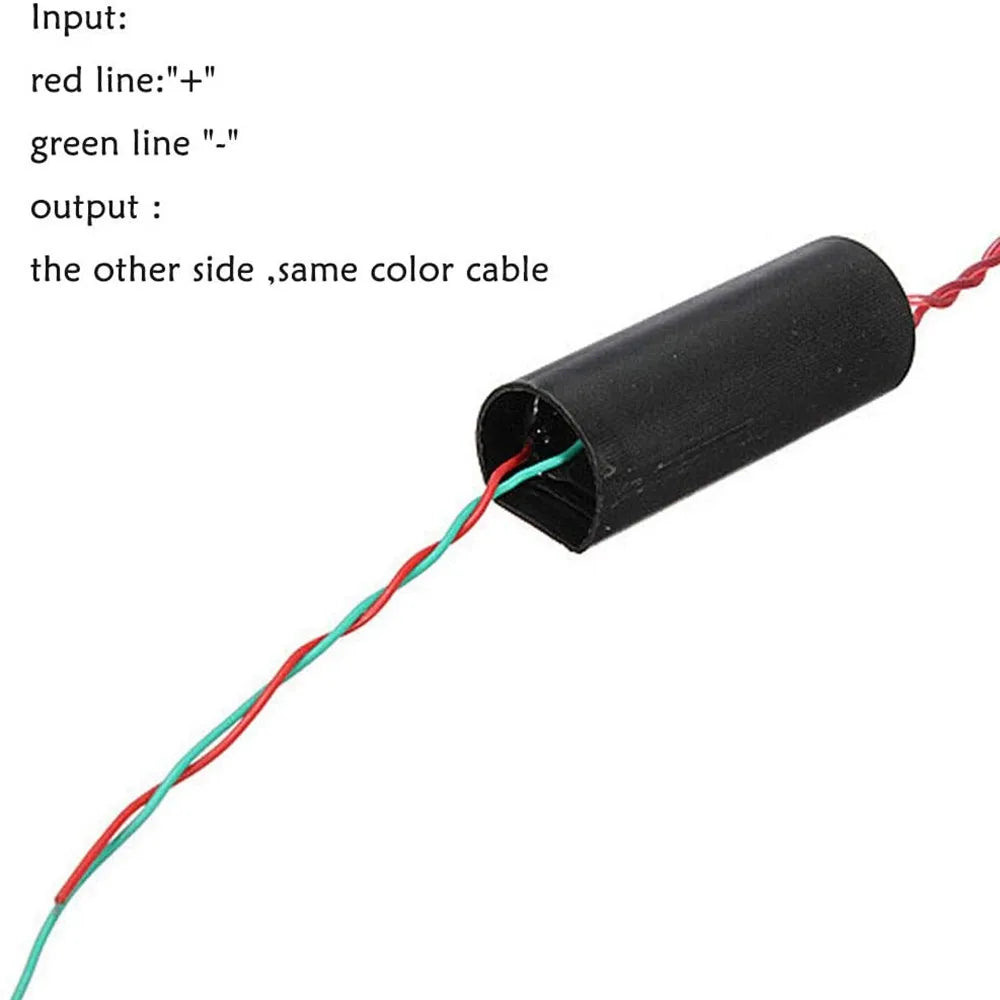

Wiring:
Red and green power connection red line:"+" green line "-"
output : the other side ,same color cable
please notice:
the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )
Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module
