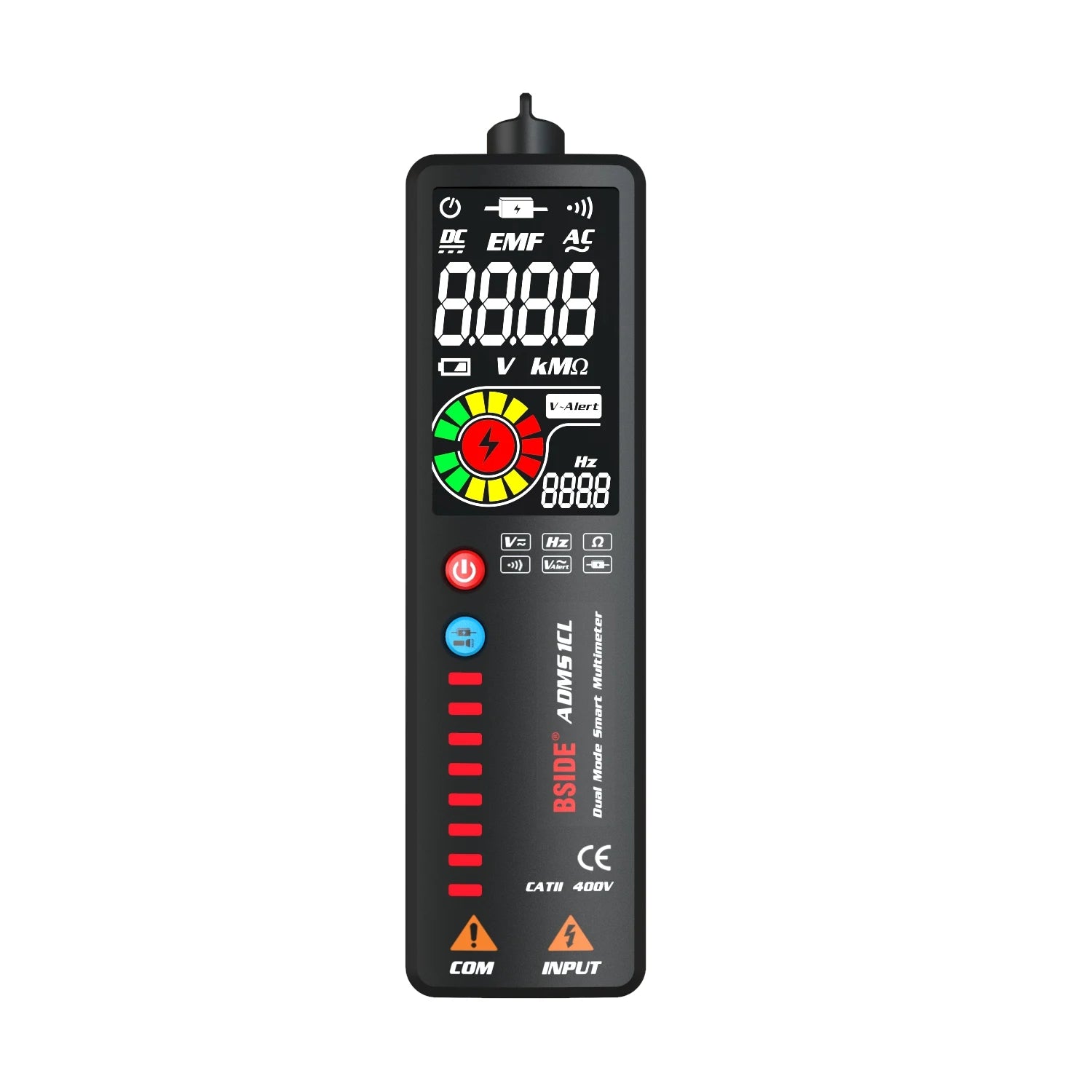

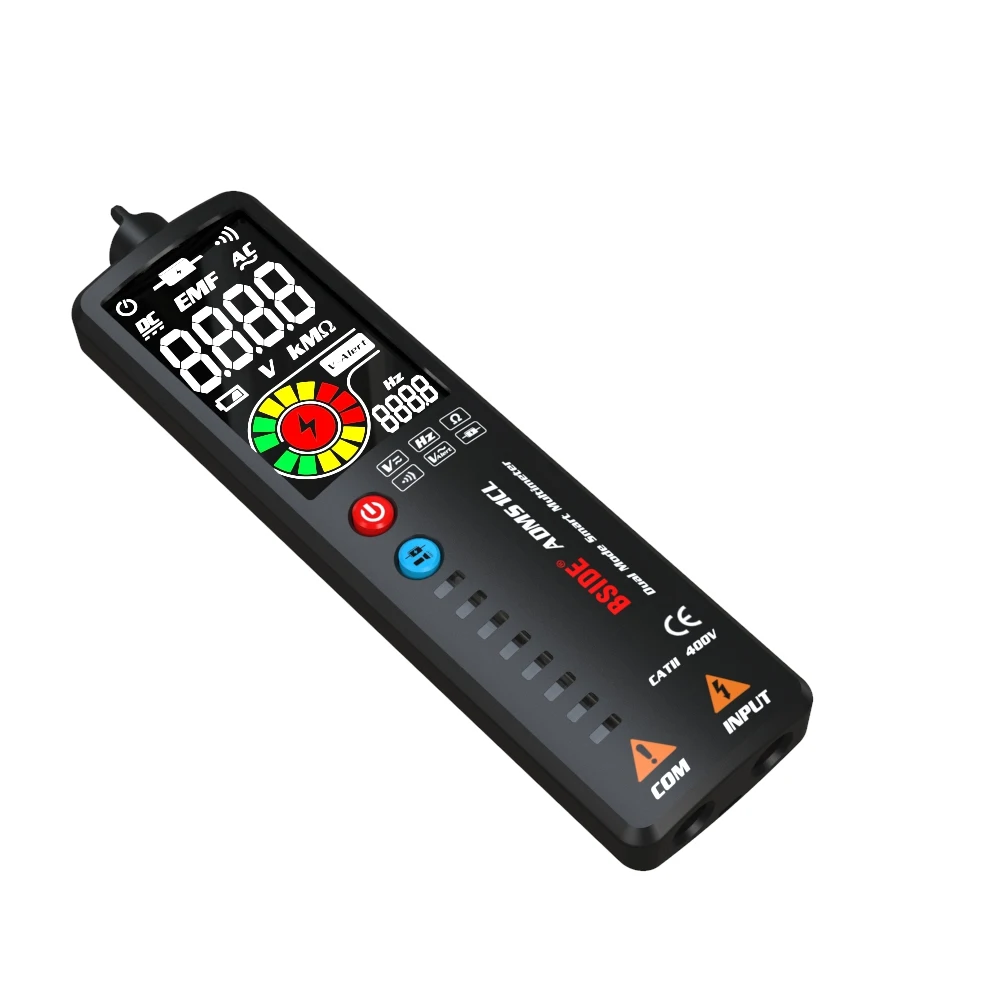

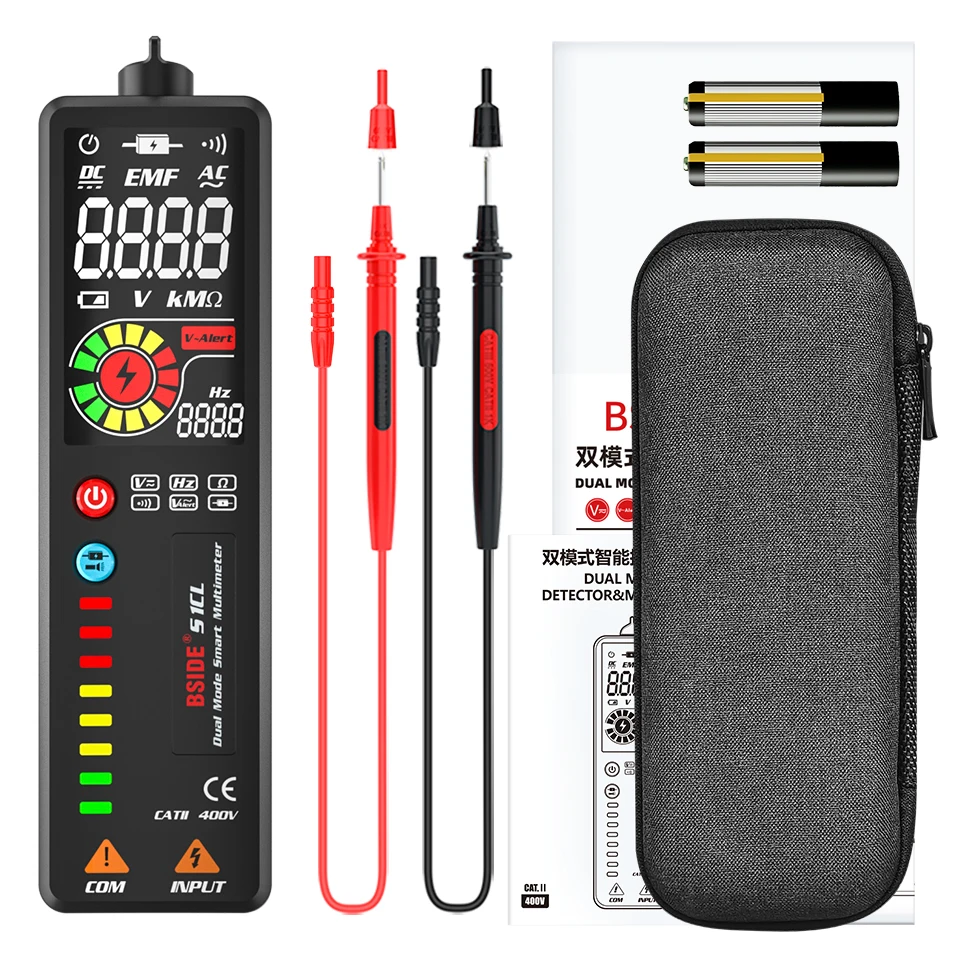

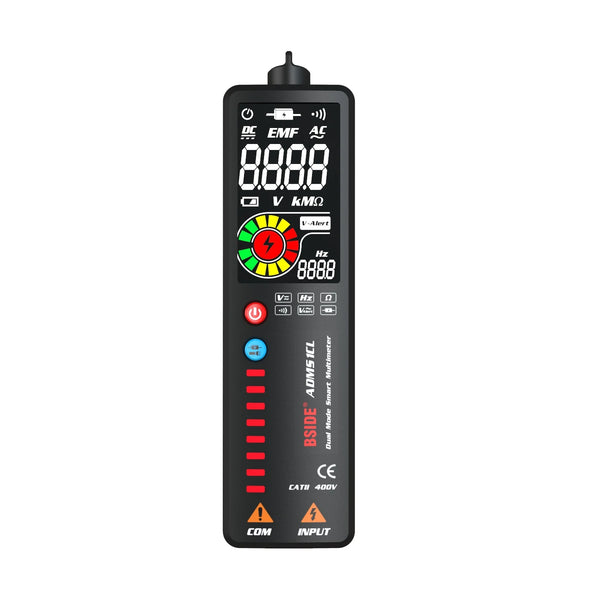

BSIDE S1 S1CL New Voltage Detector Tester Digital Multimeter Smart LCD Portable DC
AC Voltage Ohm Continuity Hz NCV Test Meter

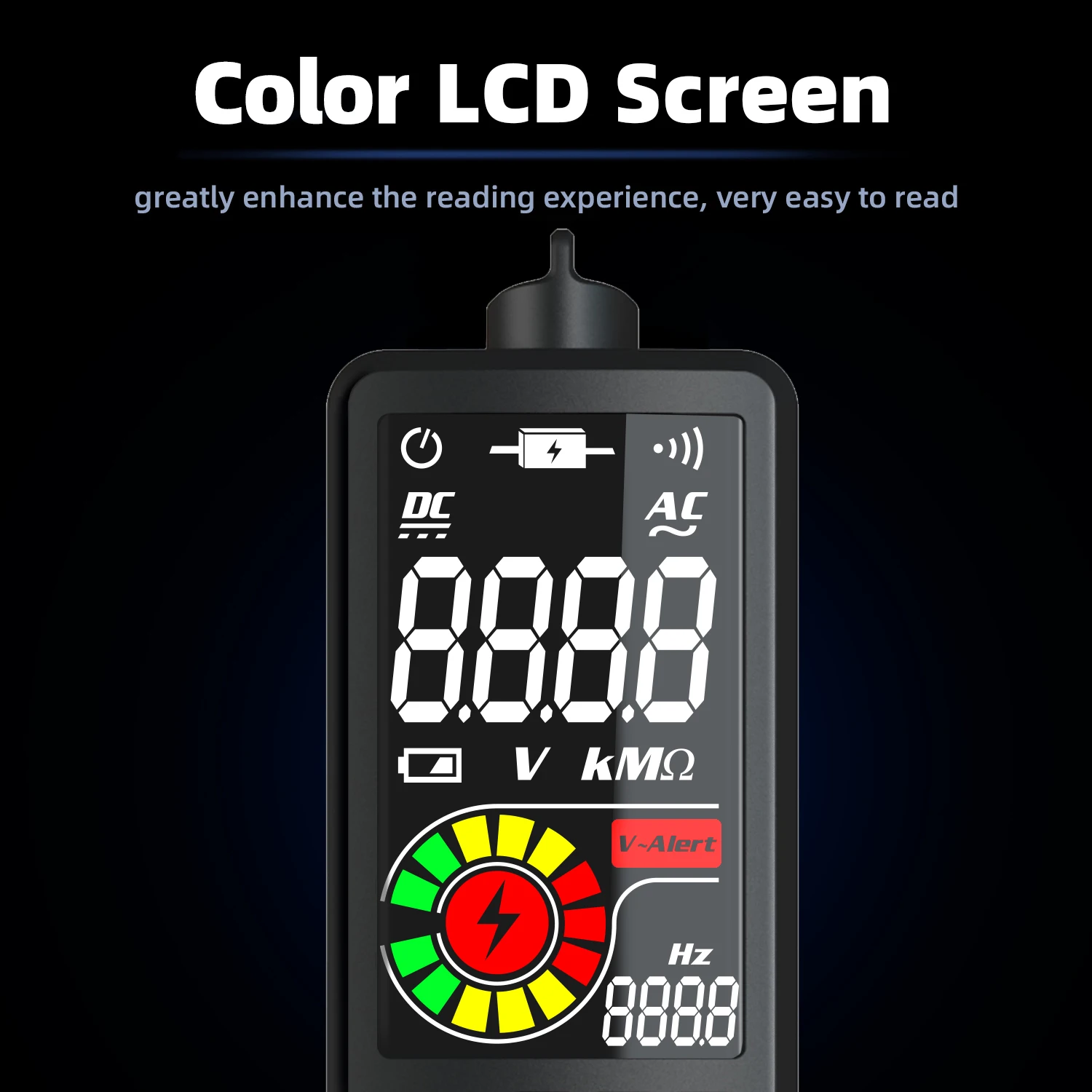

[3-Results Display]: High resolution large screen triple line display can show 3 test results on the screen, the voltage, frequency and analog bar.

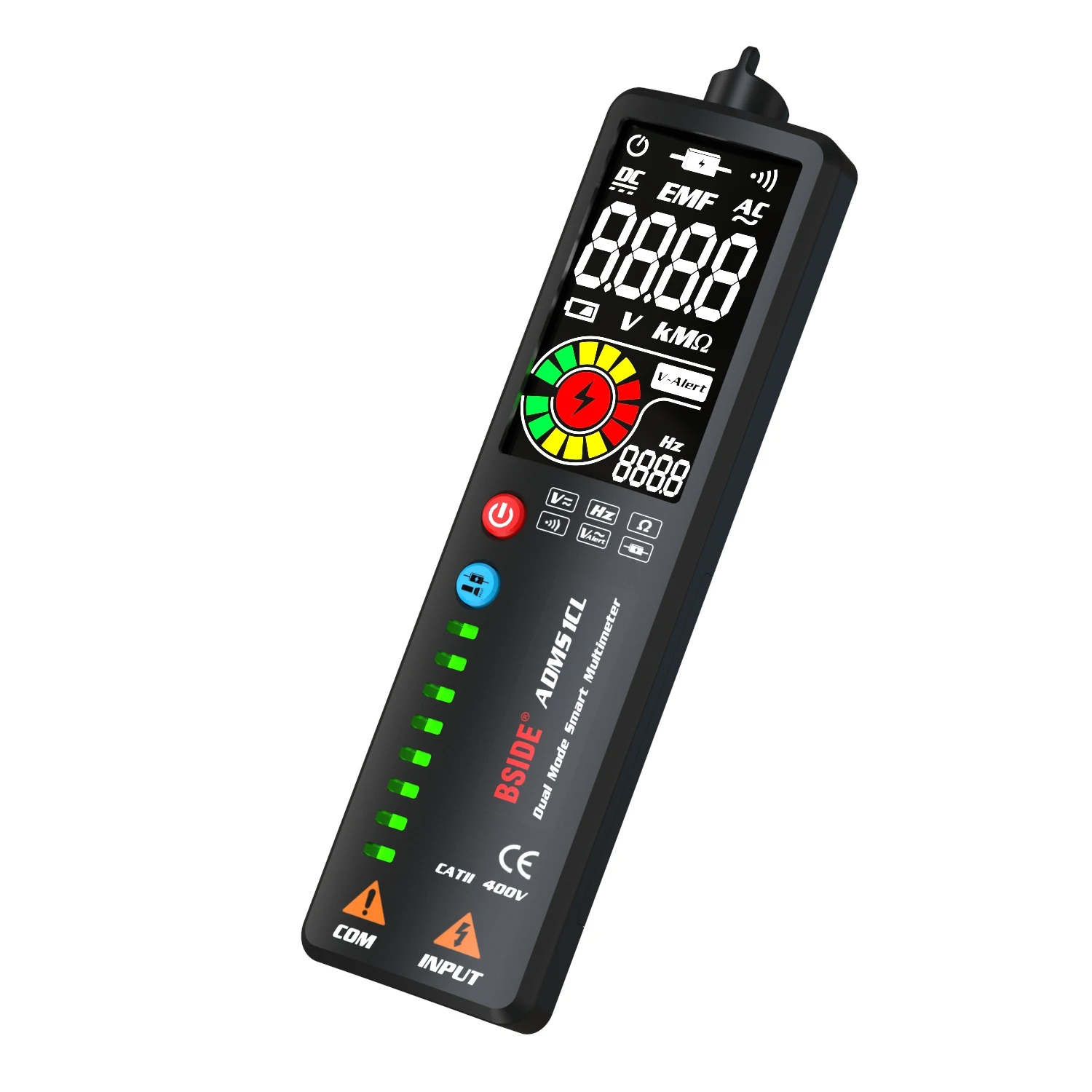

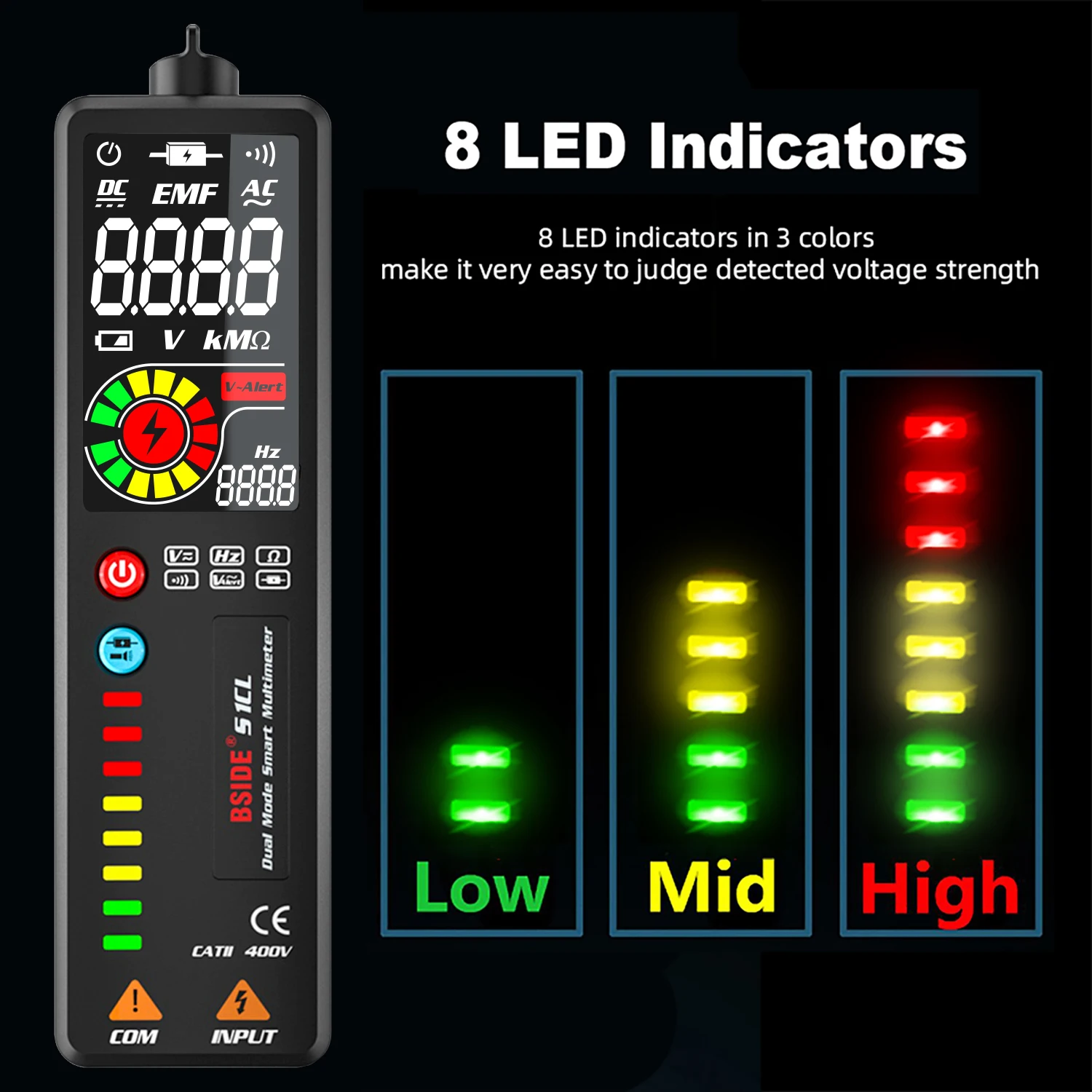

[8 LED Indicators]: 8 LED Indicators in 3 color make it very easy to judge the detected voltage strength.
[Sensitivity Adjustable]: Adjustable sensitivity makes measurement more convenient, when adjusting to low sensitivity, it can more accurately distinguish the specific situation in complex lines.
[Integrated Multimeter]: Voltage detector integrated multimeter design not only greatly expands the testing applications, but also let you not worry the multimeter consume too much space.
[Automatic Identification]: Automatic identification greatly improves your test efficiency. BSIDE smart technology make this multimeter can automatically identifies the tested parameters and choose their required range.
Product description:
|
Maximum display: 2000 counts. |
|
|
|
Display method: ADMS1（LCD display）；ADMS1CL（EBTN display） |
|
|
|
Meter Thickness: 1.5 cm. |
|
|
|
DC Voltage test: 400V ±(0.8%+3). |
|
|
|
AC Voltage test: 400V ±(1.2%+5). |
|
|
|
Resistance test:10MΩ ±(1.2%+3). |
|
|
|
Frequency test: 1000Hz ±(1.0%+5). |
|
|
|

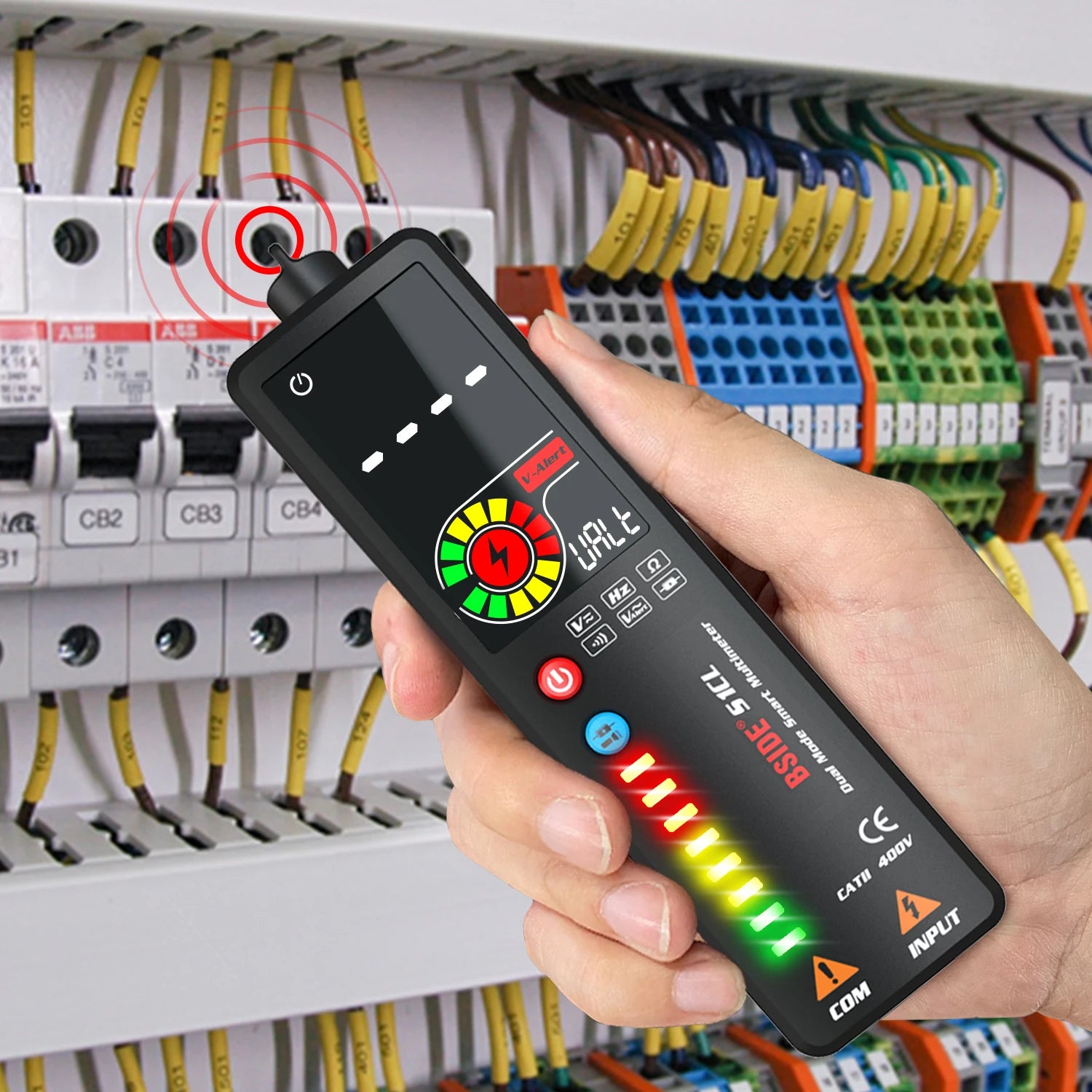

Non-contact dangerous voltage detection:Yes. |
|
|
|
Hidden Wire Test: Less than 3cm. (The actual test depth is determined by the wall material) |
|
|
|
Live/Neutral Check: alarm beep sounds, LCD screen display stripe. |
|
|
|
Continuity test: If the resistance is less than 30Ω, the beeper sounds. |
|
|
|

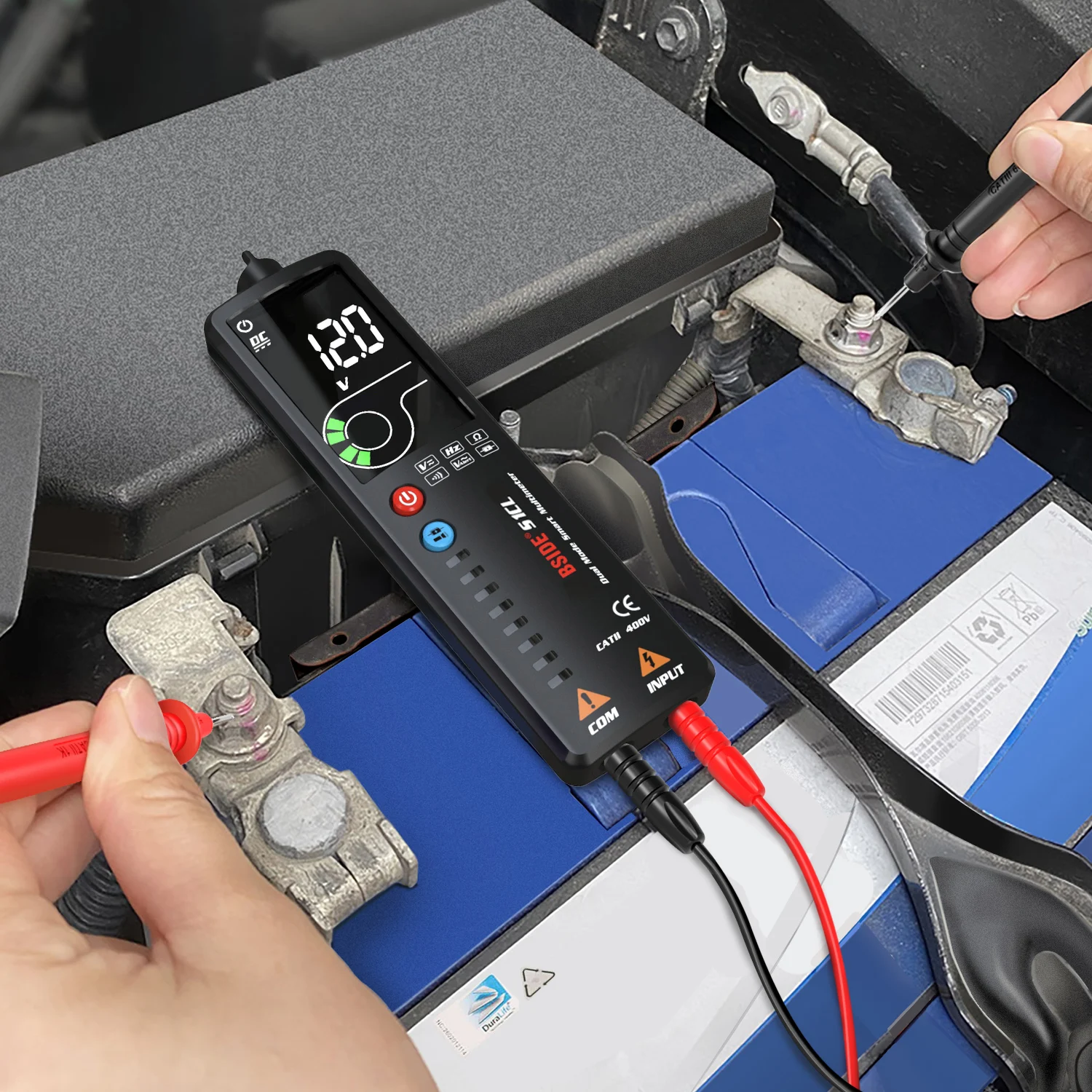

Battery test: 1.5V/6V/9V/12V. |
|
|
|

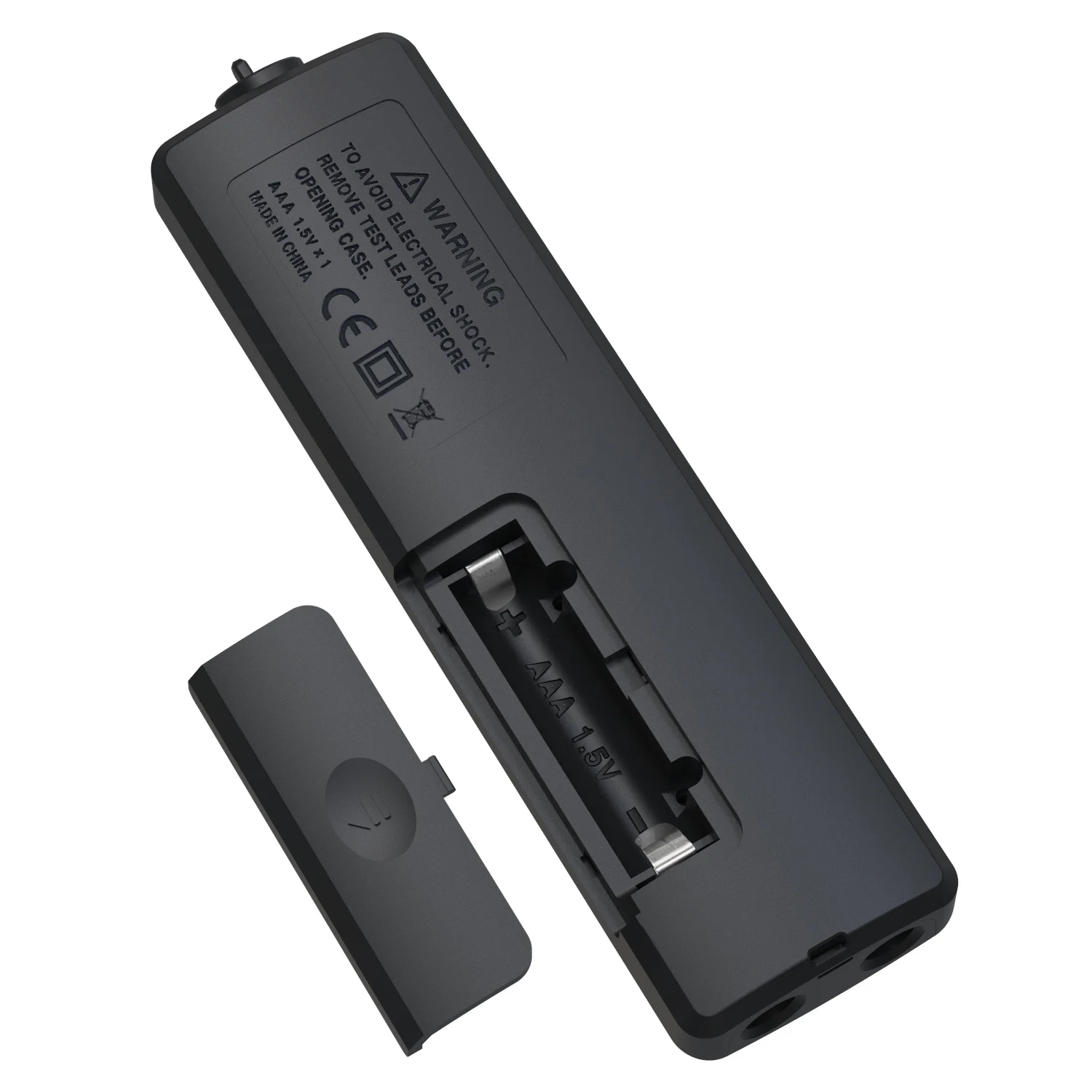

Power: 1 * 1.5v AAA battery. |
|
|
|
Size: 150*39*18mm. |
|
|
|
Weight: 65g. |
|
|
|
Security Level:Comply with international safety standards. CE certification. |
