Product Summary
BSIDE I8 DC Laboratory Regulated Power Supply Programmable 30V 10A Adjustable Bench Switch is a power and battery module selected for power conversion, battery testing, charging and regulated output projects. It is suitable for electronics builders, repair users and lab bench users who need practical electronics hardware for reliable project work.
Best For
- power conversion, battery testing, charging and regulated output projects
- DIY electronics, battery packs, solar modules and bench power workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics builders, repair users and lab bench users.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

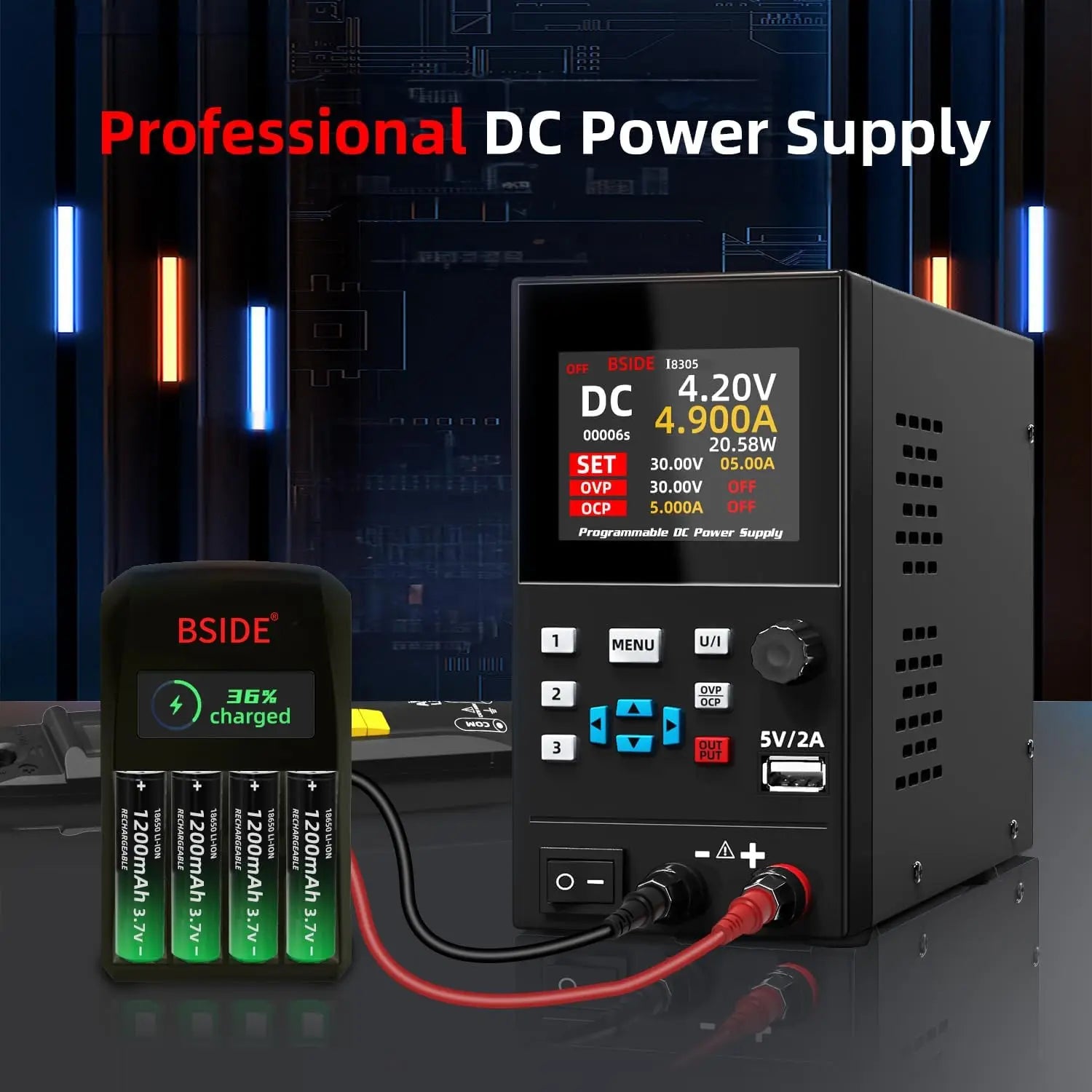

BSIDE Programmable DC Regulated Power Supply Lab 30V 10A 300W Adjustable Digital Bench power supply Stabilizer 110V/220V
Features:
1. TFT320*240 color screen full viewing angle configuration 360 degree full viewing angle, high-precision four-digit display, six lines display the number of lines.

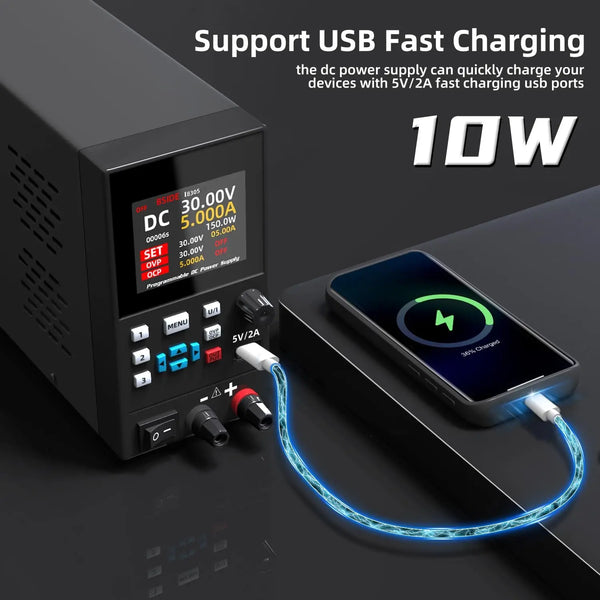

2. It has a USB communication interface, which can be connected to a computer for programming.
3. Small size and light weight.
4. Automatic switching of constant pressure and constant current.
5. The output voltage and current are adjustable: the output voltage and output current can be adjusted between 0 and the rated value.
6. Voltage and current, with the characteristics of stable voltage, current limiting, simple operation, etc.
7. It has over-voltage protection (OVP), over-current protection (OCP), over-temperature protection and overload protection.
8. The intelligent electronically controlled fan has low noise, realizes low-noise temperature control, and has a longer fan life.
9. Both AC 110V and 220V can work, so you can choose with confidence.
Specifications:
Model: I80305 / I803010 / I804020
Voltage:
Set resolution: 10mV
Setting accuracy: ≤0.1%+5 digits
Readback resolution: 10mV
Readback accuracy: ≤0.1%+5 digits
Ripple: ≤10mVrms (I8305), ≤10mVrms (I83010), ≤12mVrms (I84020)
Current:
Set resolution: 1mA
Setting accuracy: ≤0.1%+10digits
Readback resolution: 1mA
Readback accuracy: ≤0.1%+10digits
Ripple: ≤10mArms(I8305), ≤10mArms(I83010), ≤18mArms(I84020)
Load regulation: ≤0.1%Vmax+5mV(I8305,I83010) ≤0.2%Vmax+5mV(I84020)
OVP: 0-33V(I8305), 0-33V(I83010), 0-41V(I84020)
Max Voltage: 32V (I8305), 32V (I83010), 40.5V (I84020)
OCP: 0-6.5A(I8305),0-10.5A(I83010), 0-20.5A(I84020)
Max Current : 6.1A(I8305), 10.1A(I83010), 20.1A(I84020)
Heat dissipation: Air cooling
Size: 230*80*150mm
Weight: about 2KG
Product packaging
1x DC power supply
1x Power Cord (EU, US, UK, AU)
1x test lead
1x User Manual
1x USB communication port (i8 305 needs to be optional)
1x 12 months warranty card
