BSIDE 3-in-1 Professional Digital Oscilloscope Multimeter Dual Channel 25MHz Bandwidth AC DC Voltage Current OHM Multifunction Teste
BSIDE O7/O9 NEW Portable Oscilloscope adopts FPGA+MCU+ADC hardware architecture, Dual-channel with a sampling rate of 208MS/s, 25Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V.
Using a 3.98 inch 480*320px resolution high-definition TFT display screen with a built-in 5000mAh rechargeable lithium battery（18650 battery*2）, the Standby for 10 H in Oscilloscope mode and 24 H in Multimeter mode.
Can be used with Flexible current clamp. It can test 6000A current.
The digital multimeter mode has 6000 Digit, True-RMS, Supports AC/DC Voltage、Current、Temperature、Capacitance、Resistance、Diode、NVC、Continuity other measurement functions. Properties such as auto power off, low battery alert, etc.
Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.
Product Introduction:
[Data Storage and Export]: The data of this graphic oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.
[Rechargeable]: The handheld oscilloscope multimeter comes with a rechargeable battery and charging cable, ensuring that you never have to worry about running out of power during the measurement.
[Carrying case]: The digital oscilloscope multimeter comes with a high-quality EVA carrying case, which is perfect for use on the go.
If you need BSIDE TP01 Flexible Current Clamp（MAX-6000A ; Suitable for O1X, O7, O9）,
Please order at this link:
https://www.aliexpress.com/item/1005008227777921.html
Specification:
Maximum display: 6000counts(O7) / 20000counts(O9)
Screen size: 3.9 inches.
Bandwidth: 25MHz(O7) / 50MHz(O9)
Real-time scan rate: 208MSa/s(O7) / 250MSa/s(O9)
Input impedance: 1MΩ
Maximum Input Voltage: ×1 Range<150V, ×10 Range<300V (DC+AC Peak)
Horizontal seconds range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div
DC voltage: 60mV 0.01mV ± (1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±（0.8%+3）; 600V/1000V 0.1V/0.1V ±（1%+5）
AC voltage: 60mV 0.01mV ± (1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±（1%+3）; 600V 0.1V ±（1.2%+5）; 750V 1V ±（1.2%+5）
DC current: 60mA/600mA 0.01mA/0.1mA ±(1%+3)
AC Current: 60mA/600mA 0.01mA/0.1mA ±(1.2%+5)
Flexible Current Clamp AC Current: 600A/6000A 0.1A/1A ±(1%+5)
Resistance: 600Ω 0.1Ω ± (1.2% + 5); 6K Ω/60K Ω/600K Ω 0.001K Ω/0.01K Ω/0.1KΩ ±（1.0% + 3）; 6MΩ 0.001MΩ ±（1.2% + 5）; 60MΩ 0.01MΩ ±（1.5% + 5）
Capacitance: 999.9nF/9.999 μF/999.9 μF 0.1nF/0.001 μF/0.1 μF ± (4.5% + 5); 99.99mF 0.01mF ±（5.0%+10）
Temperature: -20~1000°C/-4~1832°F 1°C/1°F ±(2.5% + 5)
Diode: Yes
Continuity: Yes
Power supply: 18650 battery*2 (rechargeable)
Size: 216.6x84.5x36mm
Weight: 384g

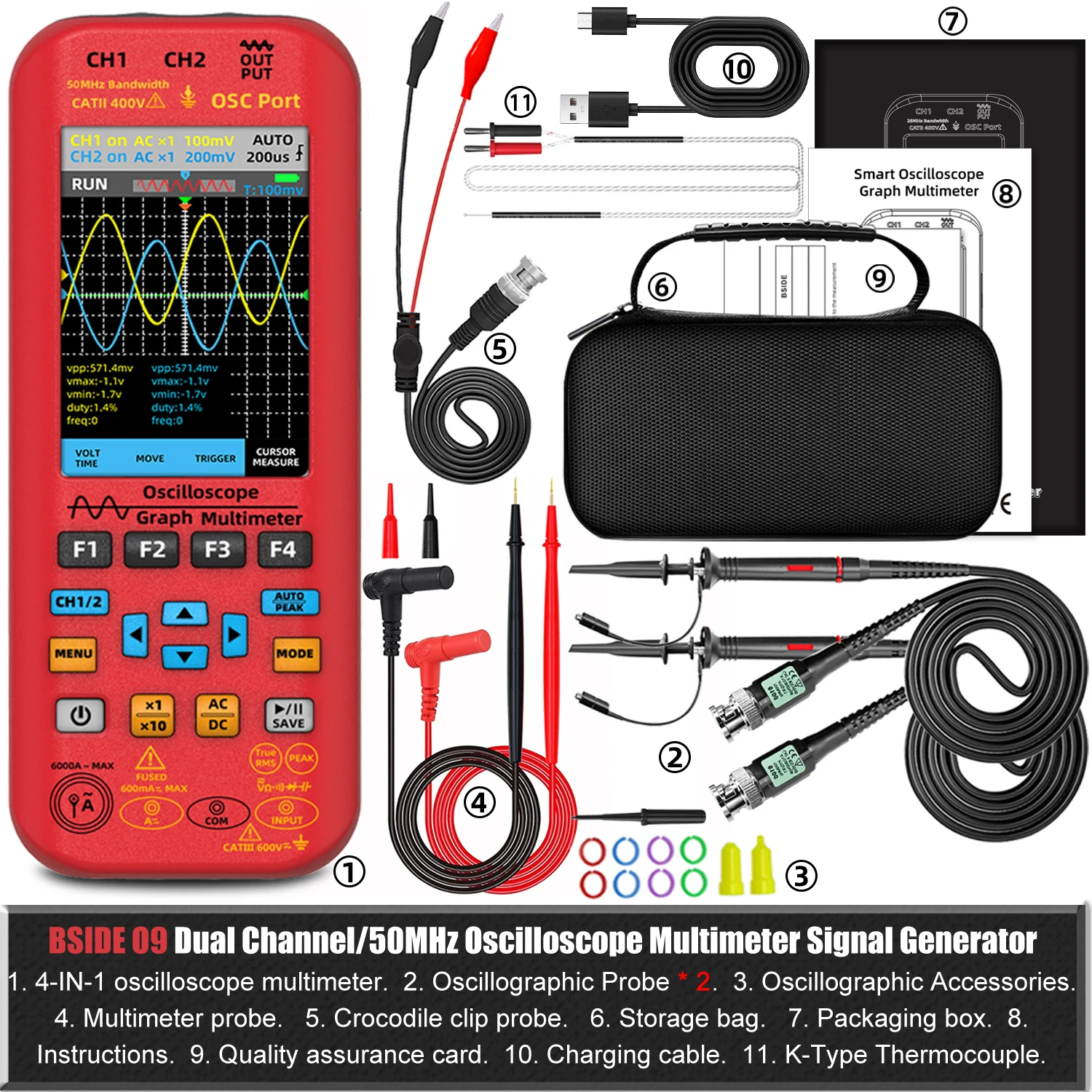

Package includes:
1 x Handheld Oscilloscope Multimeter
1 x EVA suitcase
1 x oscilloscope probe
1 x Oscilloscope Accessory
1 x multimeter pen
1 x Crocodile Clip
1 x box
1 x charging cable
1 x Instruction Manual
1 x Warranty Card
1 x charging cable
1 x User Manual
1 x K-Type Thermocouple
