Product Summary
ATS25 Pro+ firmware 4.2 Bluetooth Wifi AIR band 118M-135.975MHz FM SW SSB MW LW AIR SDR is a RF wireless product selected for wireless communication, antenna experiments and radio signal workflows. It is suitable for radio users, SDR experimenters and wireless project builders who need practical electronics hardware for reliable project work.
Best For
- wireless communication, antenna experiments and radio signal workflows
- SDR receivers, LoRa modules, antennas and RF test setups
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for radio users, SDR experimenters and wireless project builders.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

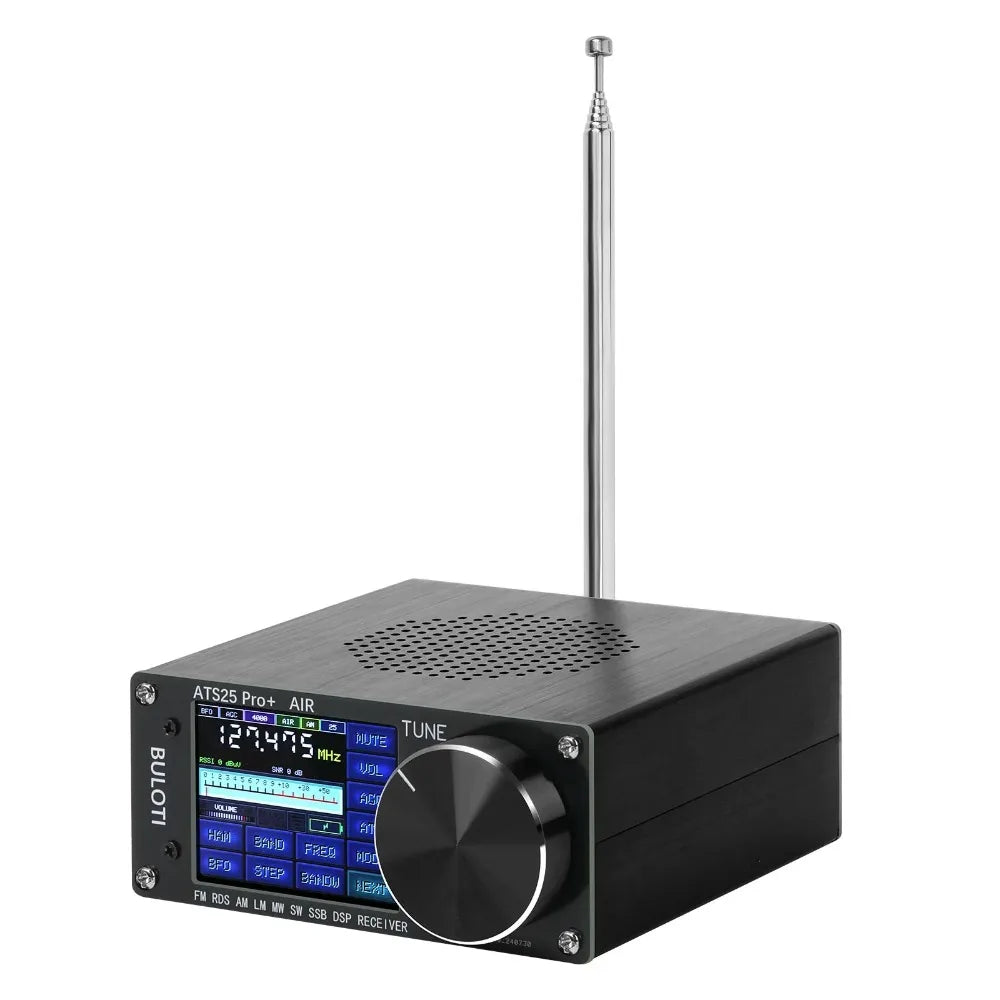

ATS25 Pro+ FM SW SSB MW LW AIR SDR Receiver Aviation Band Receiver Supports Bluetooth Wifi
Description:

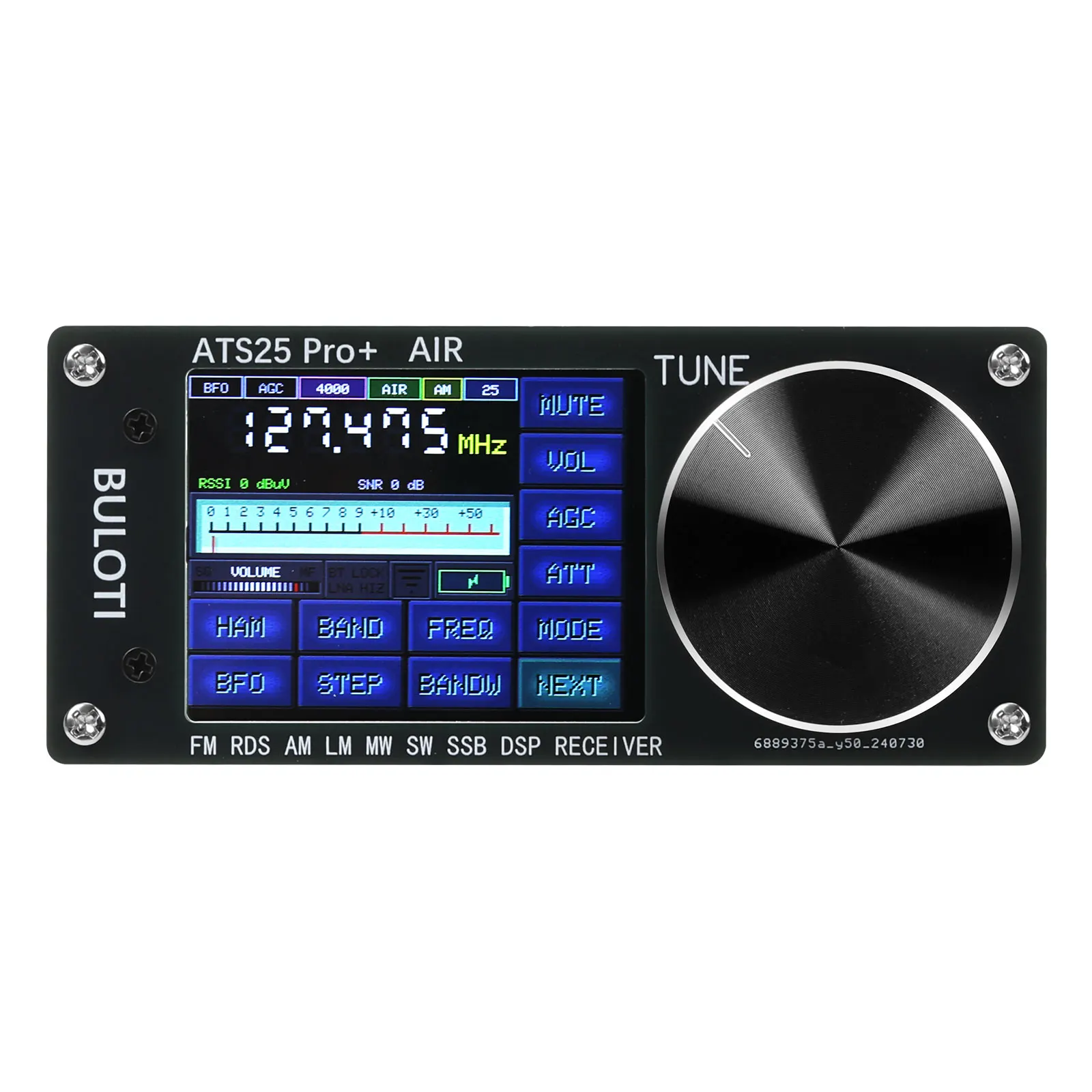

ATS25 Pro+ Bluetooth SDR receiver supports FM, SW, SSB, MW, LW and air-band. The SDR receiver is designed with a 2.4" touch screen. ATS25 Pro+ is officially licensed. It comes with an activation code for firmware 4.2.
It boasts a newly upgraded SI5351 frequency mixer and firmware 4.2, added with air-band 118-138MHz (VHF 144-145.8MHz).
Frequency Range:
* FM: 64-108MHz/RDS function
* LW: 153KHz-500KHz
* MW: 520KHz-1710KHz
* SW: 1730KHz-30000KHz
* SSB: 1730KHz-30000KHz
* Airband: 118-138Mhz AM (VHF 144-145.8MHz)
* AM: 1-200MHz
Features:
* Built-in Morse code and digital communication decoder
* Registered version: The software supports subsequent upgrades
* Supports Bluetooth
* Battery capacity has been increased to 4000mAh to achieve ultra-long battery life
* Airband reception (VHF test in the range of 144-145.8MHZ)
* Low noise amplifier
* The PSK mode in DIGI mode is unique to decoder products
* Supports CW and other decoding functions
* Supports 50-ohm mode
* Built-in and external full-range speakers provide better stereo sound
* Imported BNC interface
* Silent mode, frequency band, and time display interchangeable
* Displays battery percentage
* Radio spectrum scanning function
* Displays battery voltage
* Adjustable backlight brightness
* The backlight can be turned off
* AM/FM automatic switching. AM and FM do not interfere with each other

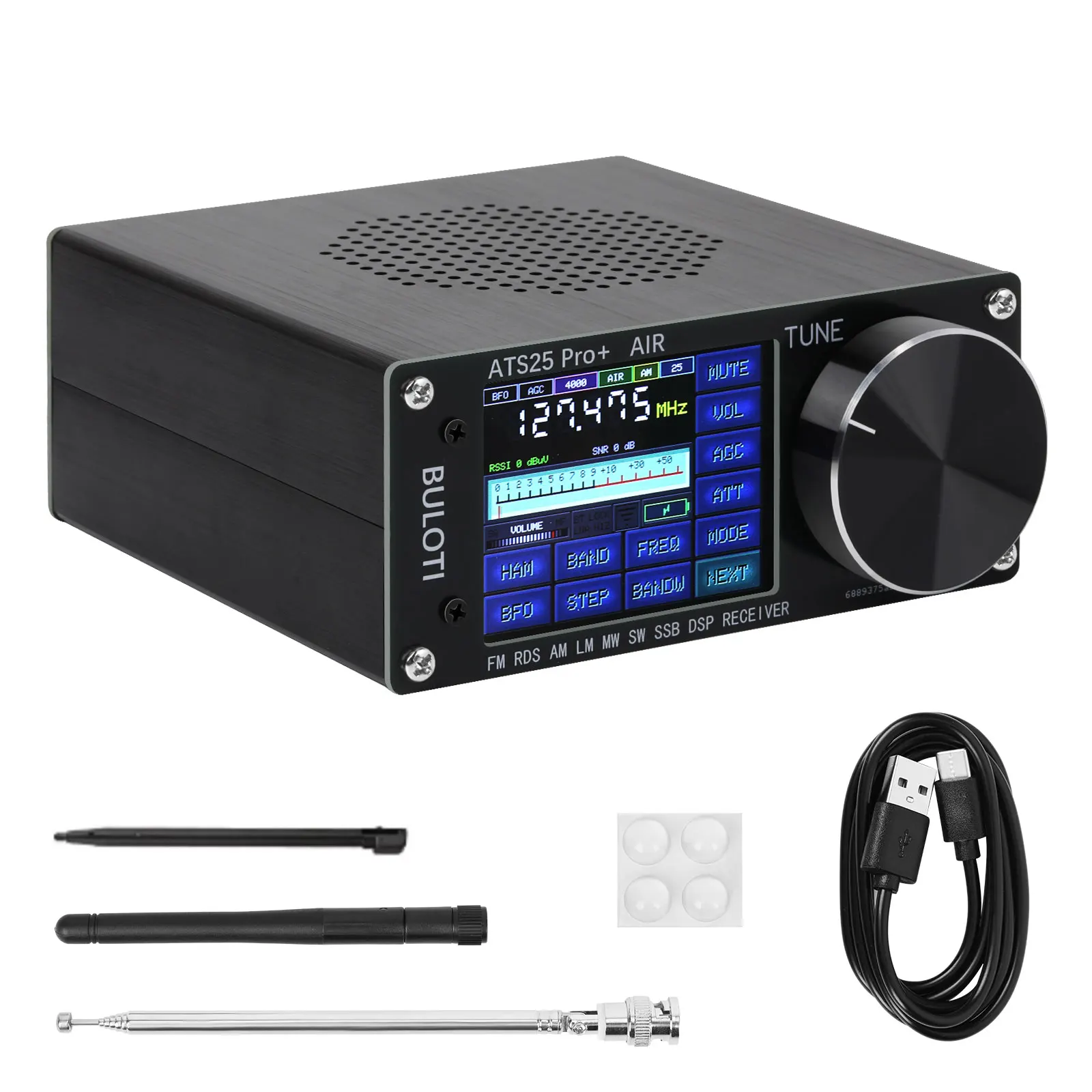

kit Included:
* 1 x ATS25 Pro+ radio receiver
* 1 x Radio antenna
* 1 x WiFi antenna
* 1 x Stylus
* 1 x USB cable
* 1 x Cushion
