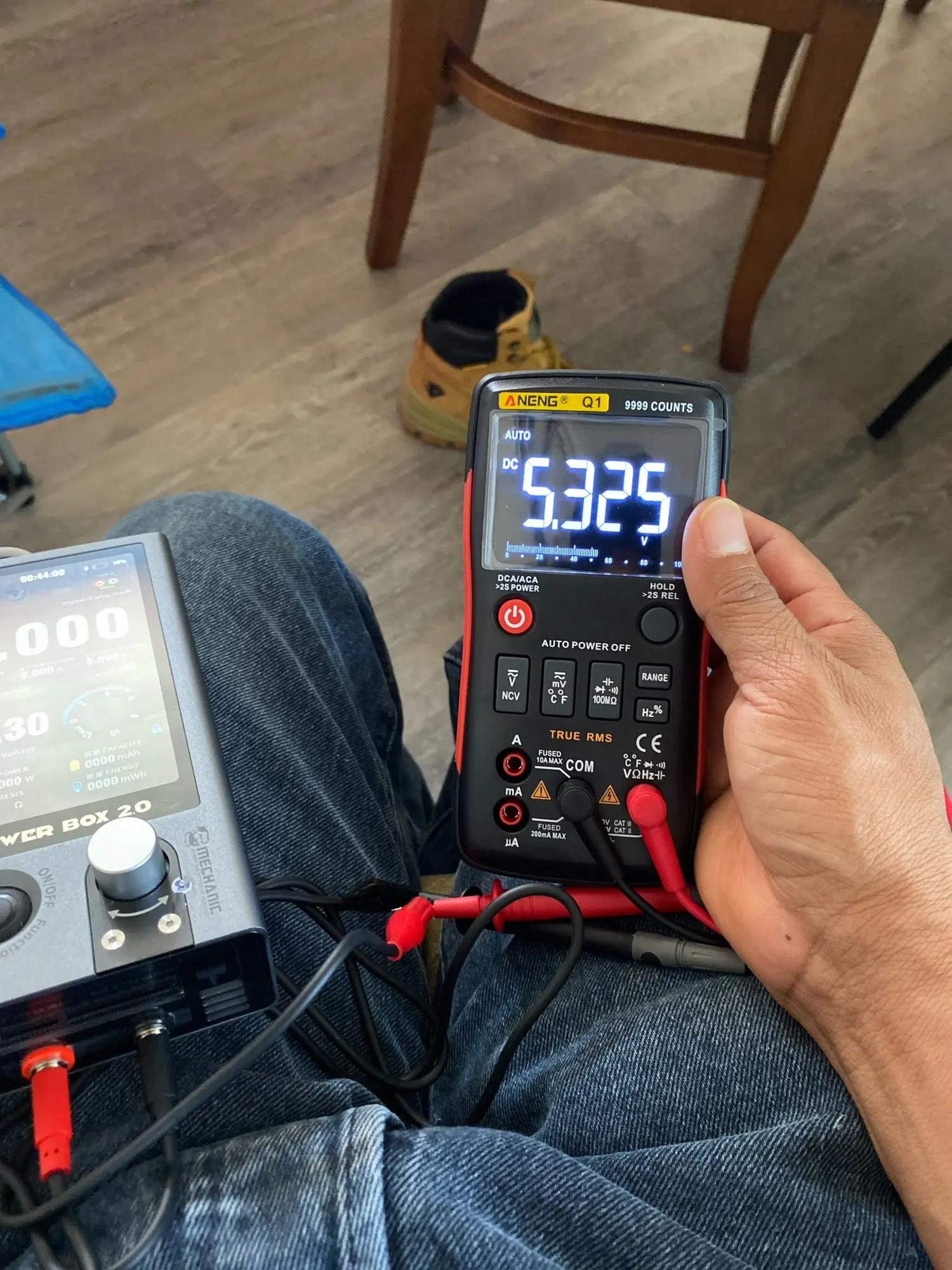

ANENG Q1 True-RMS Digital Multimeter Button 9999 Counts With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm Auto/Manual
Please Note you have to reading the operate manual first before use,otherwise you will burn the device with wrong operat.
Specifications:
|
Brand Name |
ANENG |
Model Number |
Q1 |
|
Display (LCD) |
9999 Counts |
Ranging |
Auto/Manual |
|
Material |
ABS+TPE |
Update Rate |
3 Times/Second |
|
Ture RMS |
YES |
Data Hold |
YES |
|
Relative Value Measurement |
YES |
Low Battery Indication |
YES |
|
Backlight |
YES |
Auto Power Off |
YES |
|
Operating |
Tenperature |
0~40°C |
|
|
|
Hunidity |
75% |
|
|
Storage |
Tenperature |
-20~60°C |
|
|
|
Hunidity |
80% |
|
|
Funtion |
Range |
Accuracy |
|
DC voltage (V) |
999.9mV/9.999V/99.99V/999.9V |
±(0.5%+3) |
|
DC voltage (mV) |
9.999mV /99.99mV |
±(0.5%+3) |
|
AC voltage (V) |
999.9mV/9.999V/99.99V/750.0V |
±(1.0%+3) |
|
AC voltage (mV) |
9.999mV /99.99mV |
±(1.0%+3) |
|
DC Current (mA&A) |
999.9mA/9.999A |
±(1.0%+3) |
|
DC Current (uA) |
9999uA |
±(0.8%+3) |
|
AC Current (mA&A) |
999.9mA/9.999A |
±(1.0%+3) |
|
AC Current(uA) |
9999uA |
±(1.0%+3) |
|
Resistance |
99.99 |
±(1.0%+3) |
|
Resistance |
999.9 /9.999k /99.99k /999.9k / |
±(0.5%+3) |
|
Resistance |
9.999M |
±(1.5%+3) |
|
Resistance |
99.99M |
±(3.0%+5) |
|
Capacitor |
9.999nF |
±(5.0%+20) |
|
Capacitor |
99.99nF /999.9nF /9.999F /99.99F /999.9F |
±(2.0%+5) |
|
Capacitor |
9.999mF |
±(5.0%+5) |
|
Frequency |
99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /2.000MHz |
±(0.1%+2) |
|
Duty cycle |
1%~99% |
±(0.1%+2) |
|
Diode :YES |
Continuity :YES |
NCV :YES |
|
Temperature |
(-20~1000)° /(-4~1832)° |
±(2.5%+5) |
|
Power |
2 * 1.5V AA batteries |
(Not Included) |
|
Sample Rate |
3 times per second |
|
Packaging content:
1 x Multimeter
1 x Test lead+temperature sensor
1 x User Manual
1 x Storage bag
1 x 16pc Test probe
Note:
1. Do NOT exceed the maximum value indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
5. Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.
