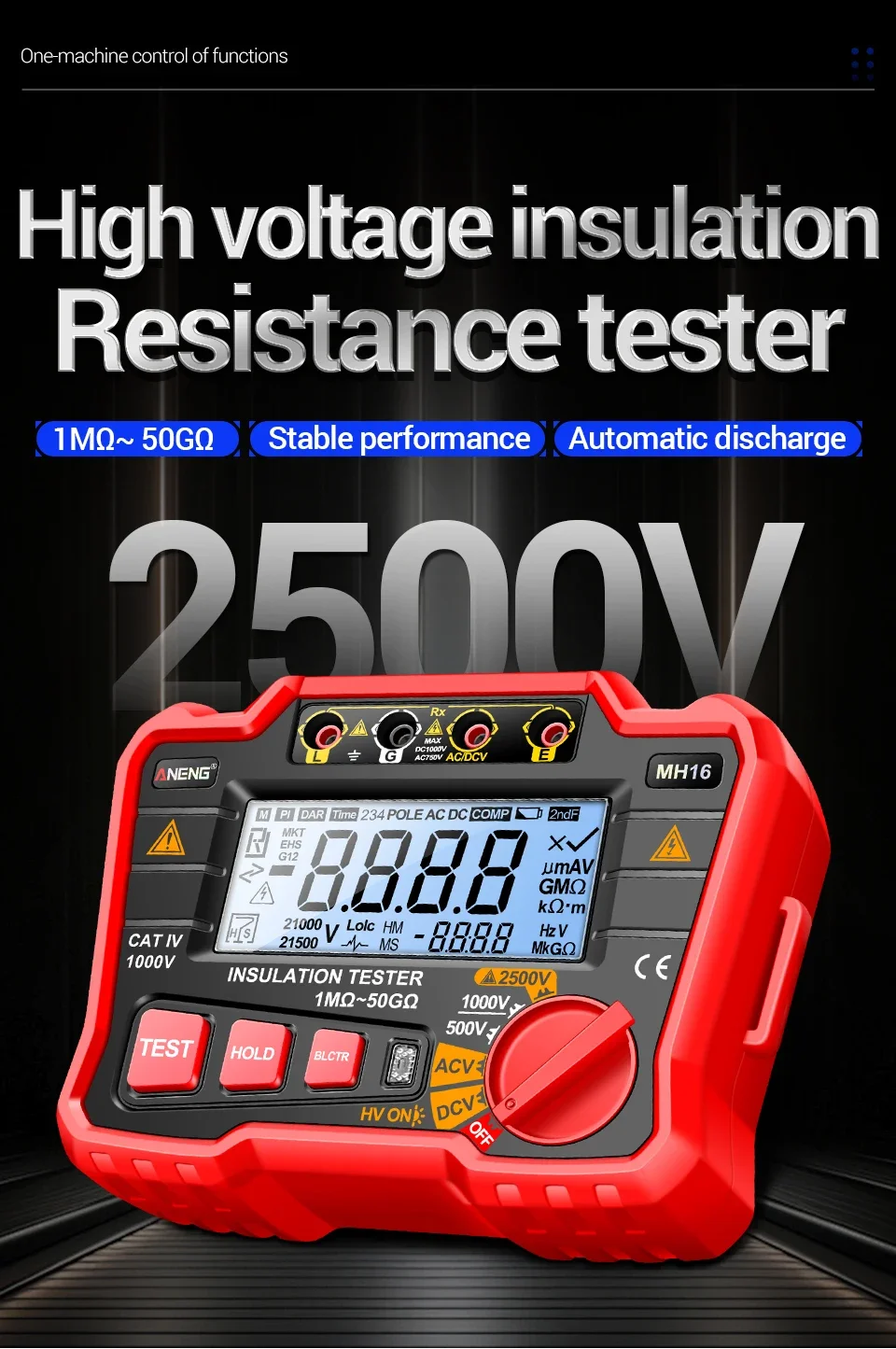

ANENG MH16 Ohm Tester Digital Multimeter Megometro Insulation Earth High Voltage Resistance Meter Tester Megohmmeter Tool
General:

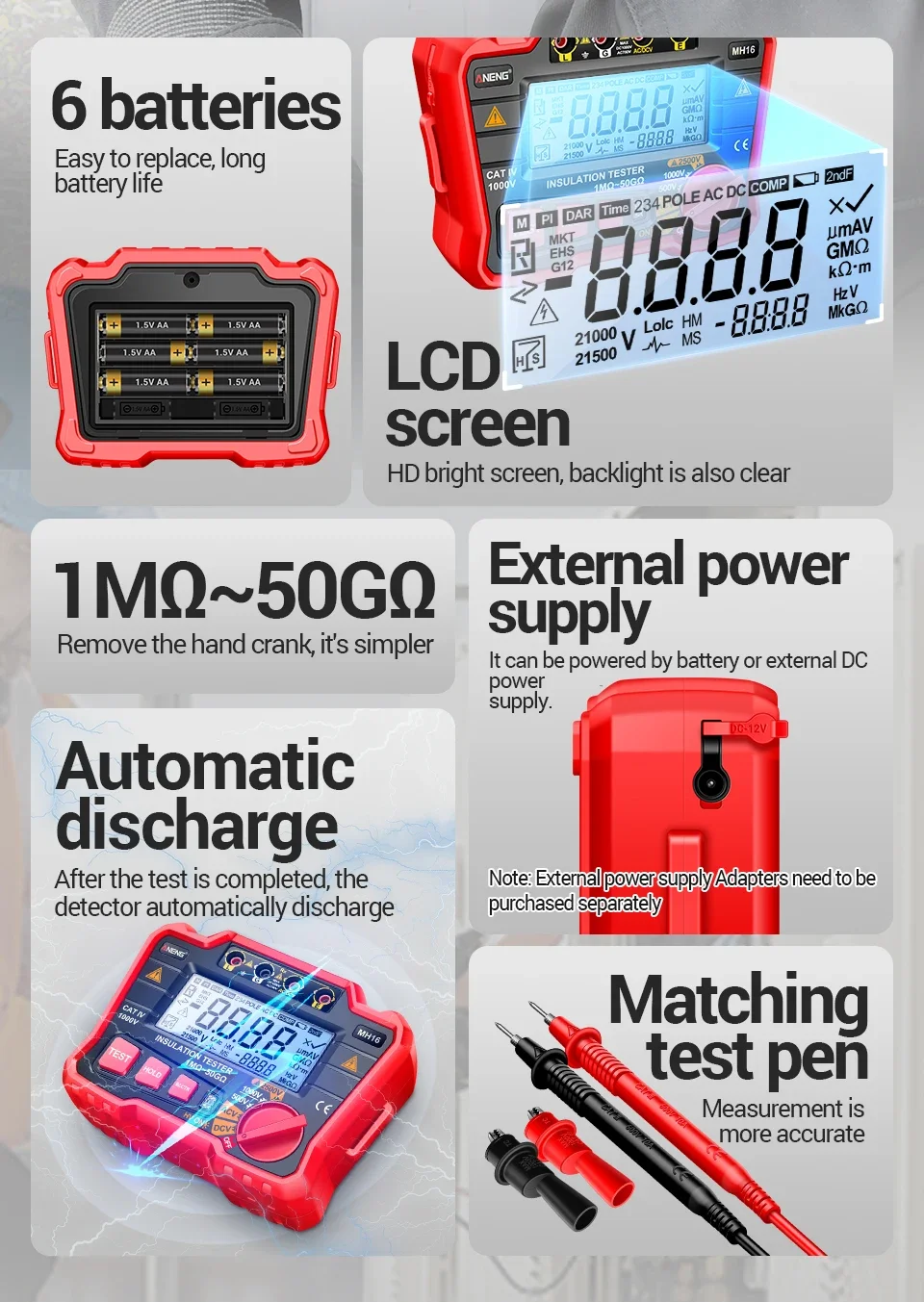

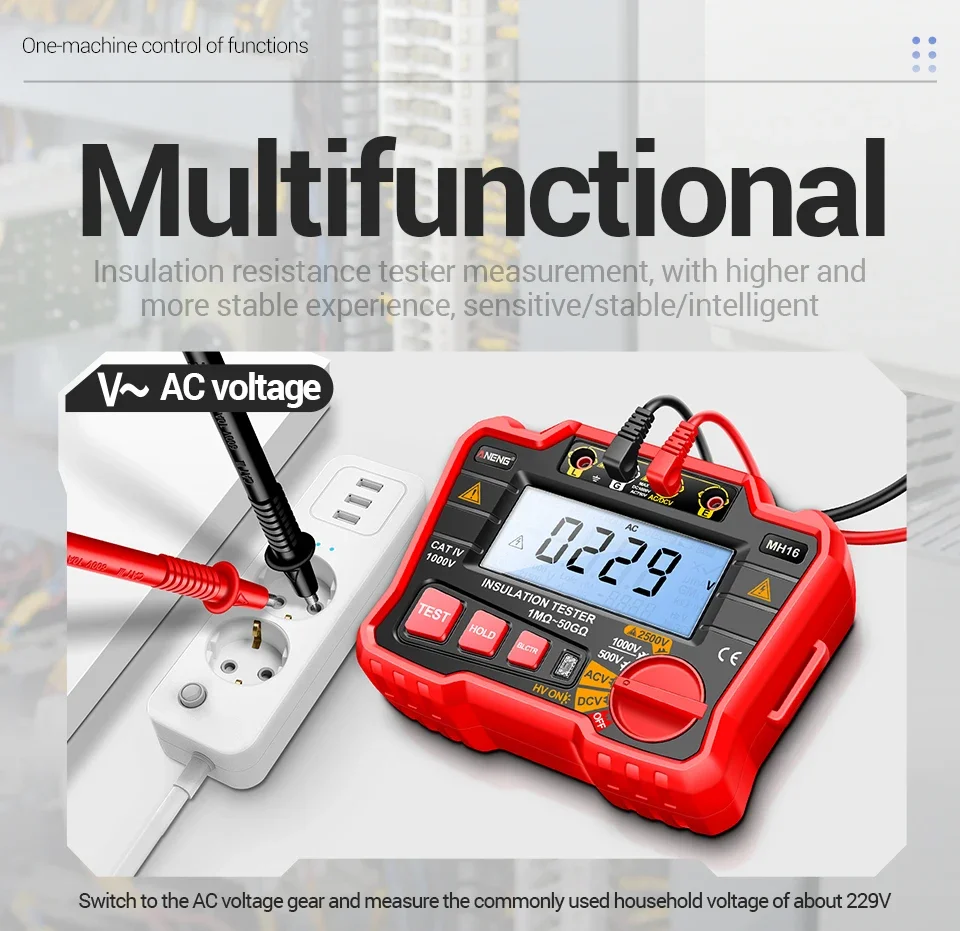

This instrument is a battery powered insulation resistance tester that can be used to measure DC voltage, AC voltage, resistance, and insulation resistance. When measuring insulation resistance, there are three test voltages to choose from: 500V, 1000V, and 2500V. This instrument has functions such as automatic discharge, automatic shutdown, backlight display, data saving, and low battery warning. It is easy to use and is a precision measuring instrument.
Functional range of insulation resistance
Functional range of insulation resistance

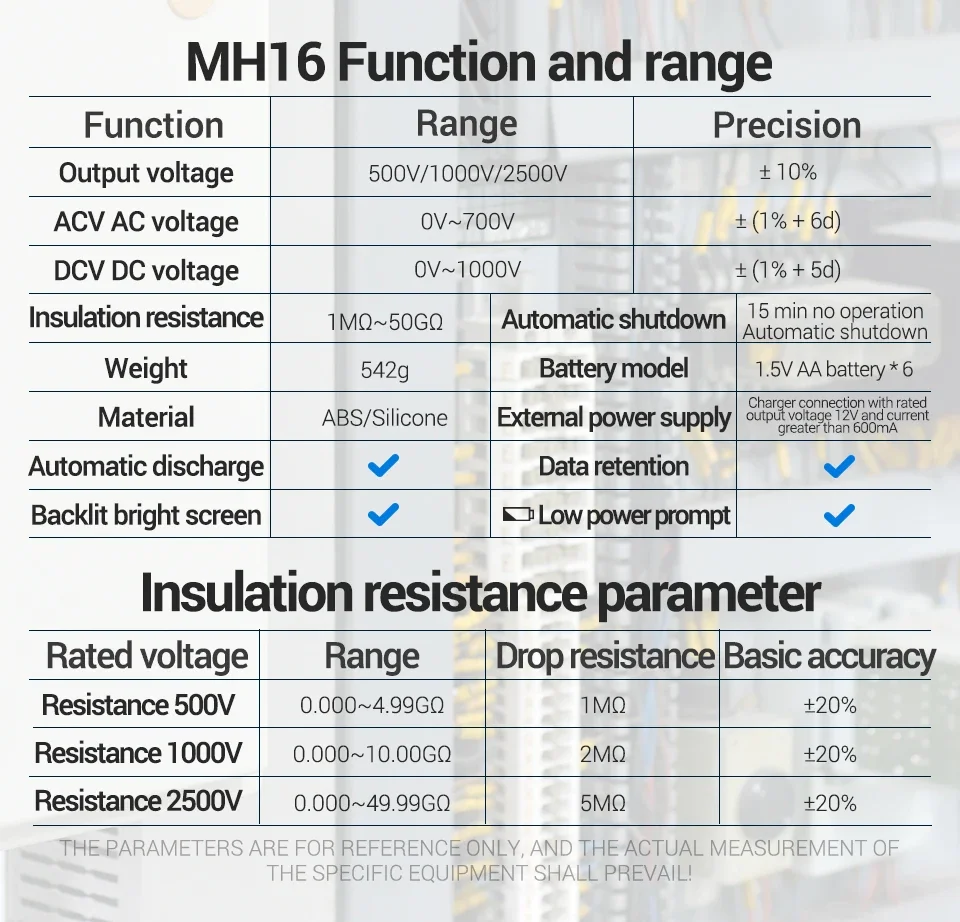

Insulation resistance functional range:
|
Function |
Range |
Precision |
|
|
Output voltage |
500V/1000V/2500V |
±10% |
|
|
ACV AC voltage |
0V~700V |
±(1%+ 6d) |
|
|
DCV DC voltage |
0V~1000V |
±(1%+ 5d) |
|
|
Insulation resistance |
1MΩ~50GΩ |
Automatic shutdown |
15 min no operationAutomatic shutdown |
|
Material |
ABS/Silicone |
Battery model |
1.5V AA battery* 6 |
|
Automatic discharge |
√ |
Extemal power supply |
Charger connection with ratedoutput voltage 12vand currengreaterthan 600mA |
|
Backlit bright screen |
√ |
Data retention |
√ |
|
Low power prompt |
√ |
|
|

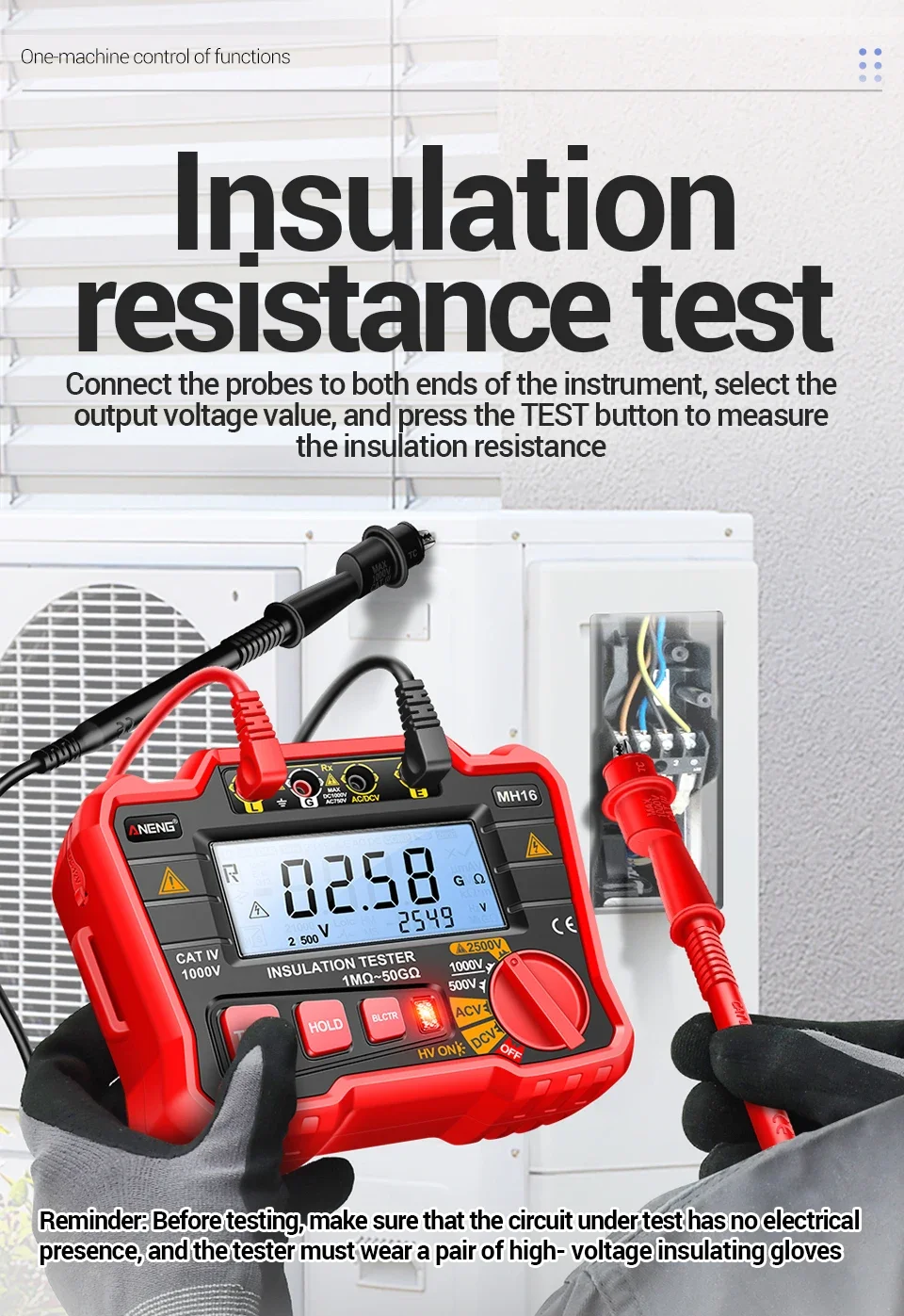

Insulation resistance parameter：
|
Rated voltage |
Range |
Drop resistance |
Basic accuracy |
|
Resistance 500V |
0.000~4.99GΩ |
1MΩ |
+20% |
|
Resistance 1000V |
0.000~10.00GΩ |
2MΩ |
±20% |
|
Resistance 2500V |
0.000~49.99GΩ |
5MΩ |
±20% |
THE PARAMETERS ARE FOR REFERENCE ONLY,AD THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL PREVAIL

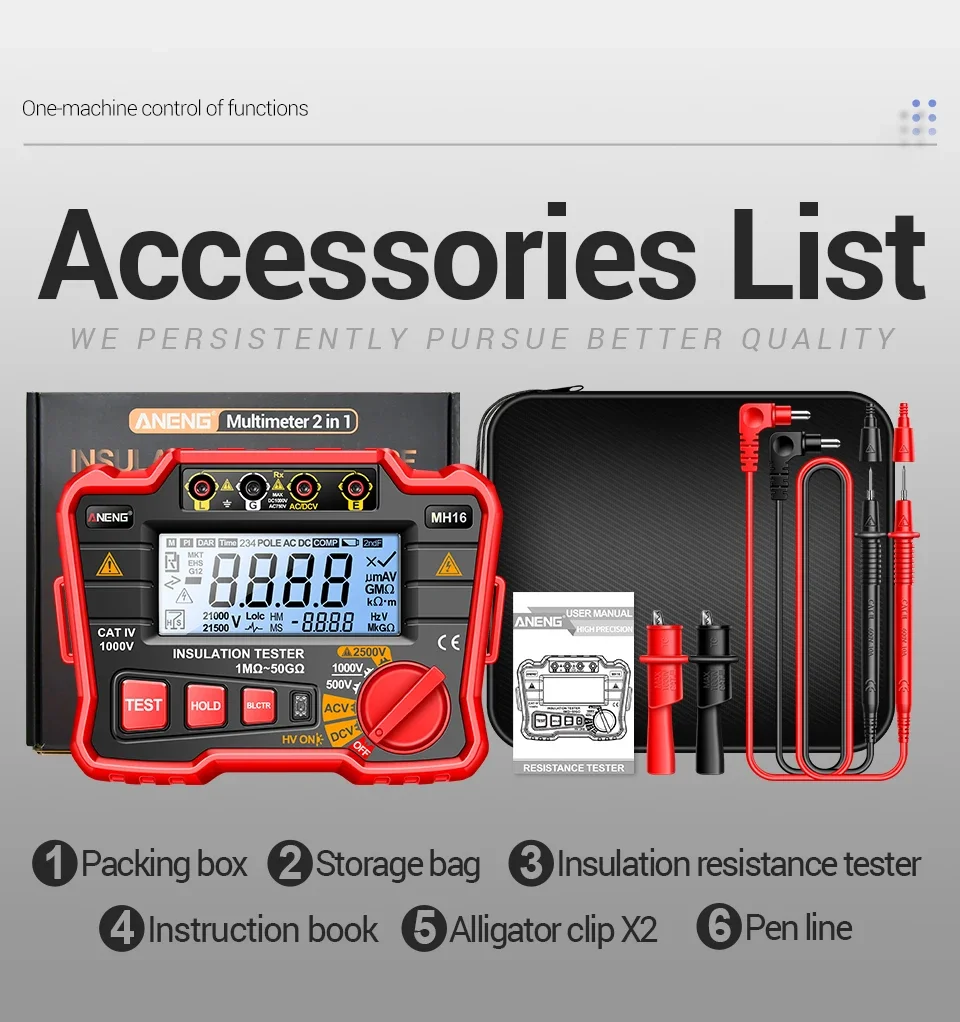

The packaging includes:
The packaging includes:
1 * Packaging box ( No Iinclude Battery )
1 * Storage bag
1 * Insulation resistance tester
1 *Instruction book
1 * Aligator clip X2

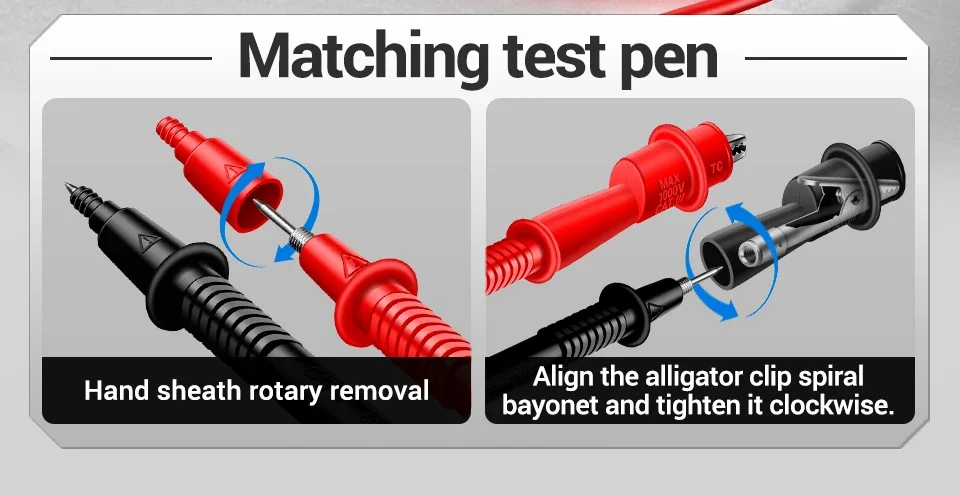

1 * Pen line
