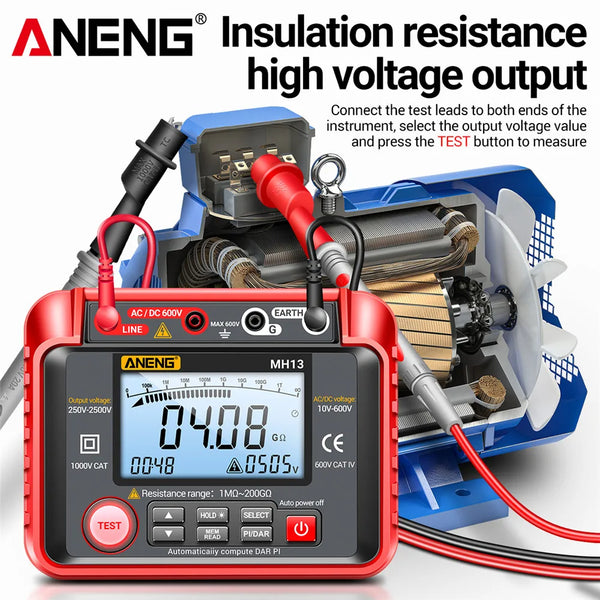

ANENG MH13 Digital Megohmmeter Insulation Resistance Meter Ohm 4000 Counts Tester AC/DC Voltage Earth High Voltage Meter Tester Tools
General:
Insulation resistance tester (or high voltage insulation meter) is a special instrument for measuring insulation resistance. It is an ideal test instrument for measuring insulation resistance of large transformers, transformers, generators, high-voltage motors, power capacitors, power cables, arresters, etc.
Technical Parameters:
|
The output voltage |
Measuring range |
Precision |
Short circuit |
|
250V |
1MΩ -10GΩ |
±(5%+10d) |
1.8mA |
|
500V/1000V |
2MΩ -20GΩ |
±(5%+10d) |
|
|
2000V/2500V |
5MΩ -40GΩ |
±(5%+10d) |
|
|
AC voltage |
10-600V |
±(1%+5d) |
|
|
DC voltage |
10-600V |
±(0.8%+5d) |
|
|
Resistance range |
1MΩ -200GΩ |
100 sets of |
√ |
|
Max Count |
2000 Counts |
HD backlit screen |
√ |
|
Use battery |
AA5 battery *8 |
Absorption ratio |
√ |
|
Material |
Silica gel/ABS |
Polarization Index |
√ |
|
Weight |
640g |
Autoranging |
√ |
|
Pen material |
PVC/brass |
Automatic discharge |
√ |
|
Overall length |
108cm |
Test voltage display |
√ |
|
Back support |
√ |
High pressure |
√ |
|
Low voltage |
√ |
Measurement |
|
Package inclued:(not including batteries)
1* Packing box
1* Resistance megohmmeter
1* Aligator clip
1* Storage bag
1* Instruction Manual
1* Test lead
1* Signal Shielding Wire
1* Resistance megohmmeter
1* Aligator clip
1* Storage bag
1* Instruction Manual
1* Test lead
1* Signal Shielding Wire
