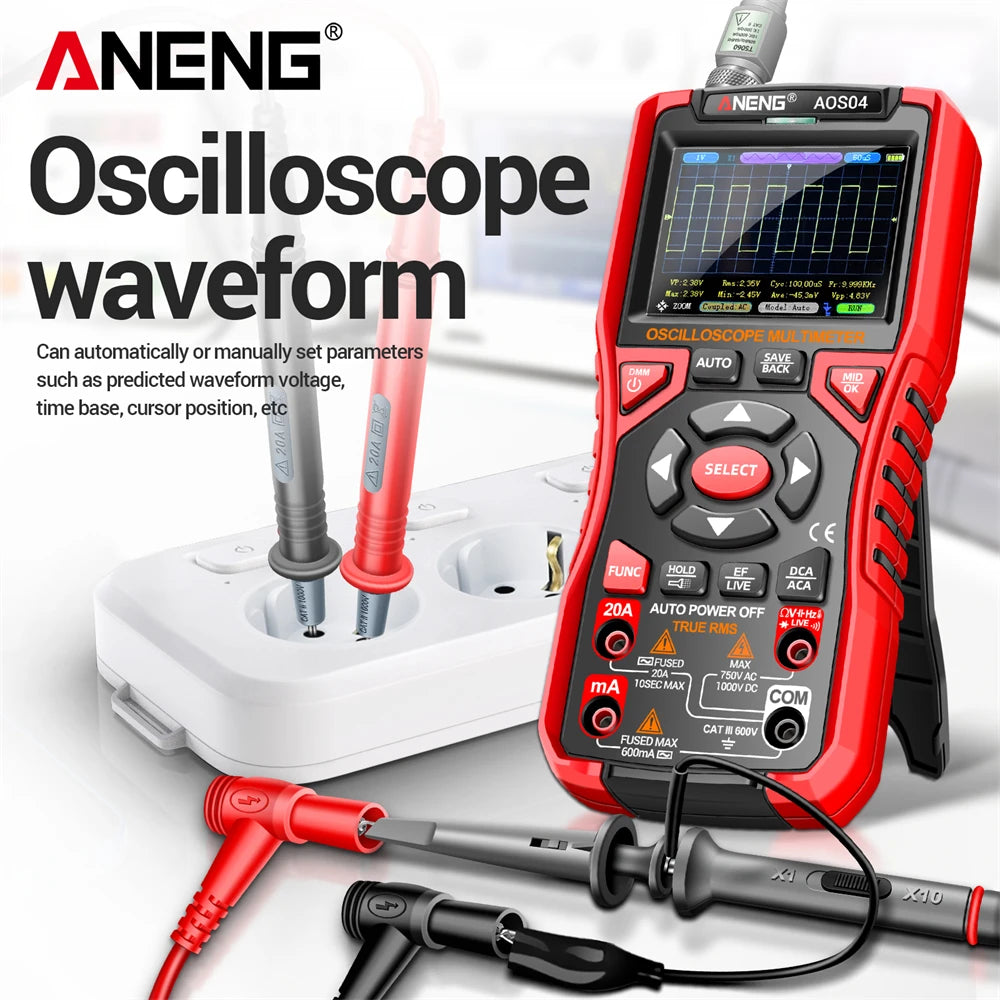

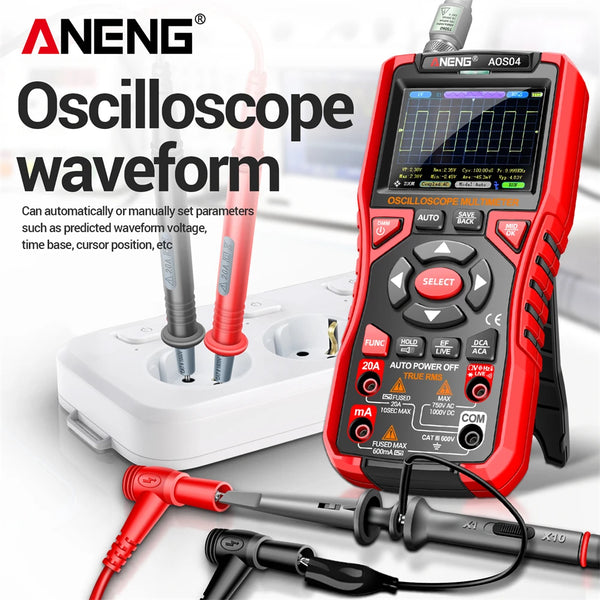

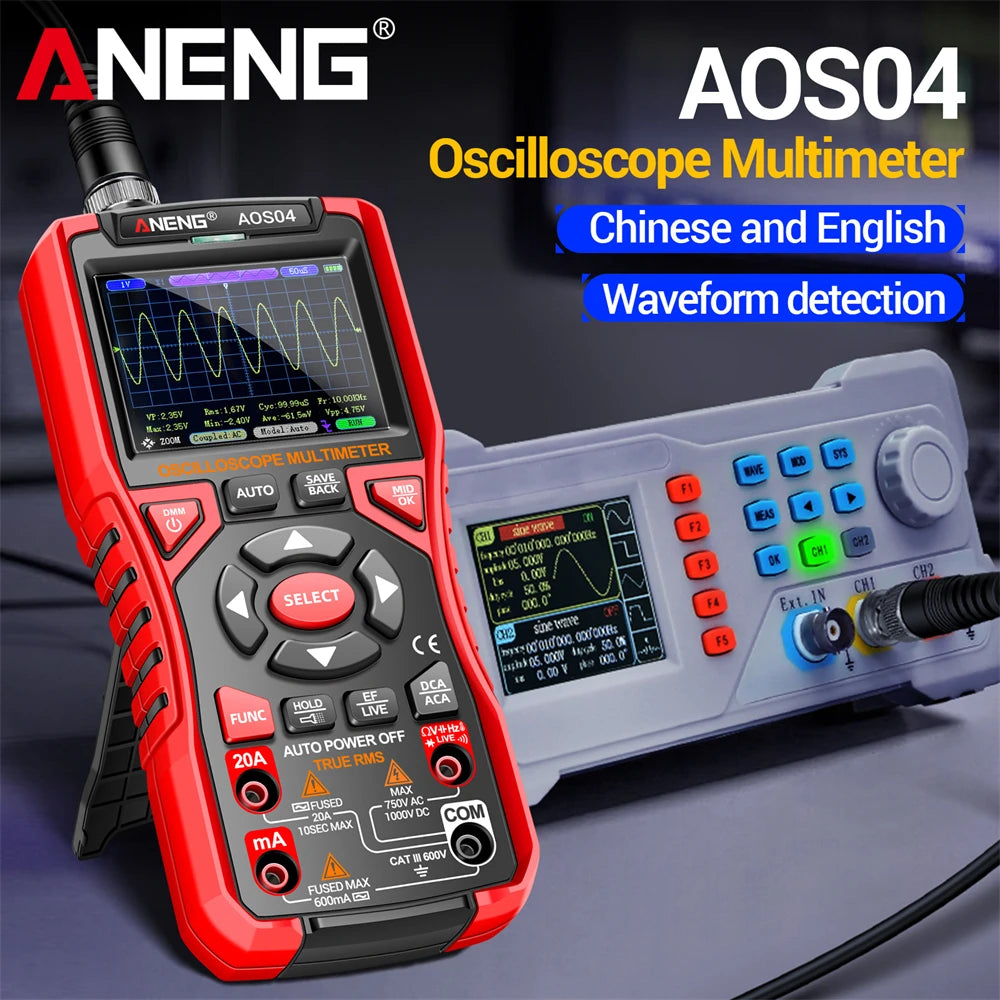

ANENG AOS04 Handheld Oscilloscope Multimeter Digital 50MS/s Sampling Rate Bandwidth Waveform AC Voltage Capacitance Ohm Test Tools
Attention:If there is a lag or crash during use, please restart!
summary:

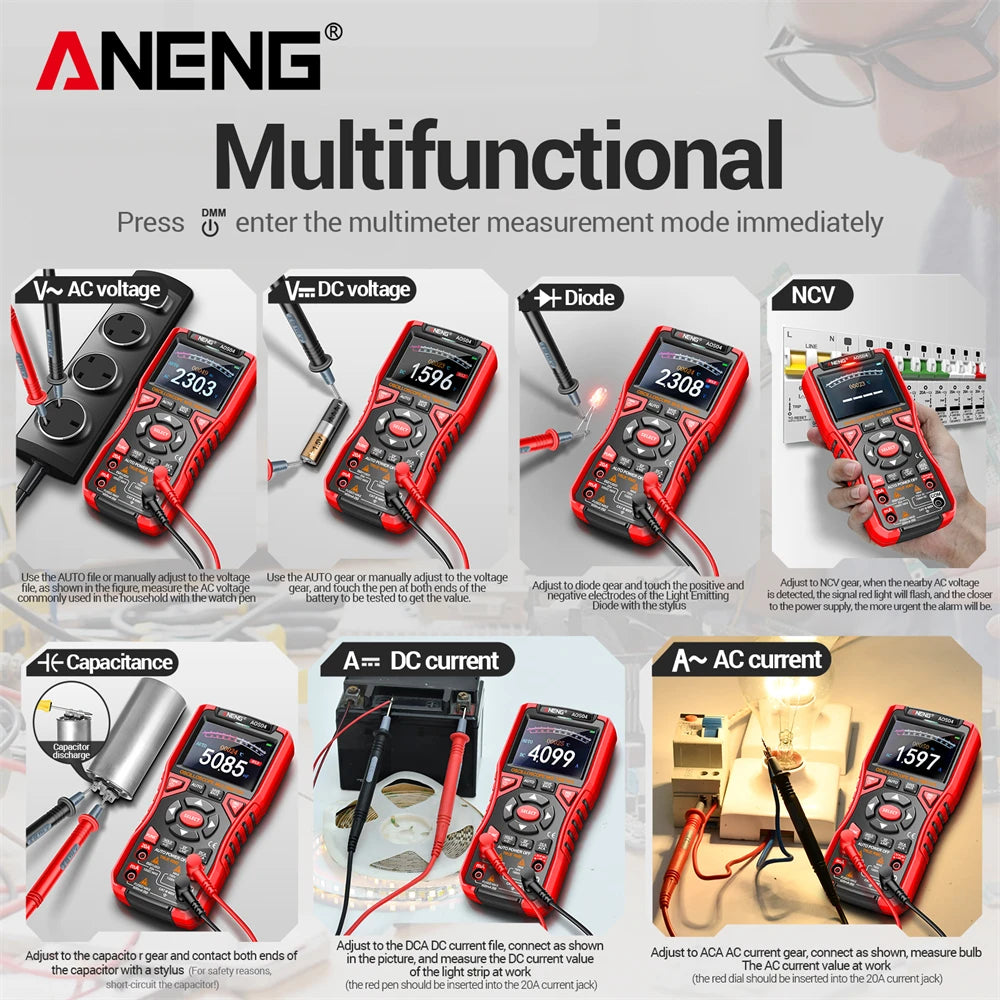

1. The handheld oscilloscope adopts double injection molding technology, with a generous and stable appearance, small size, convenient portability, and flexible operation; The oscilloscope mode can display multiple waveforms with fast response speed. The twelve electrical parameters of the waveform are also available for viewing and have Chinese English conversion modes in the table, which can meet different user groups. The multimeter mode has triple display, superior performance, and powerful functions. Used in various measurement scenarios to meet more measurement needs of users. It has the aura of 'one watch in hand, parameters I have', making it an ideal tool for laboratories, factories, radio enthusiasts, and families.
2. When the voltage to be tested is higher than 36V DC or 25V AC, it may cause harm to the human body. Please be careful to avoid electric shock.

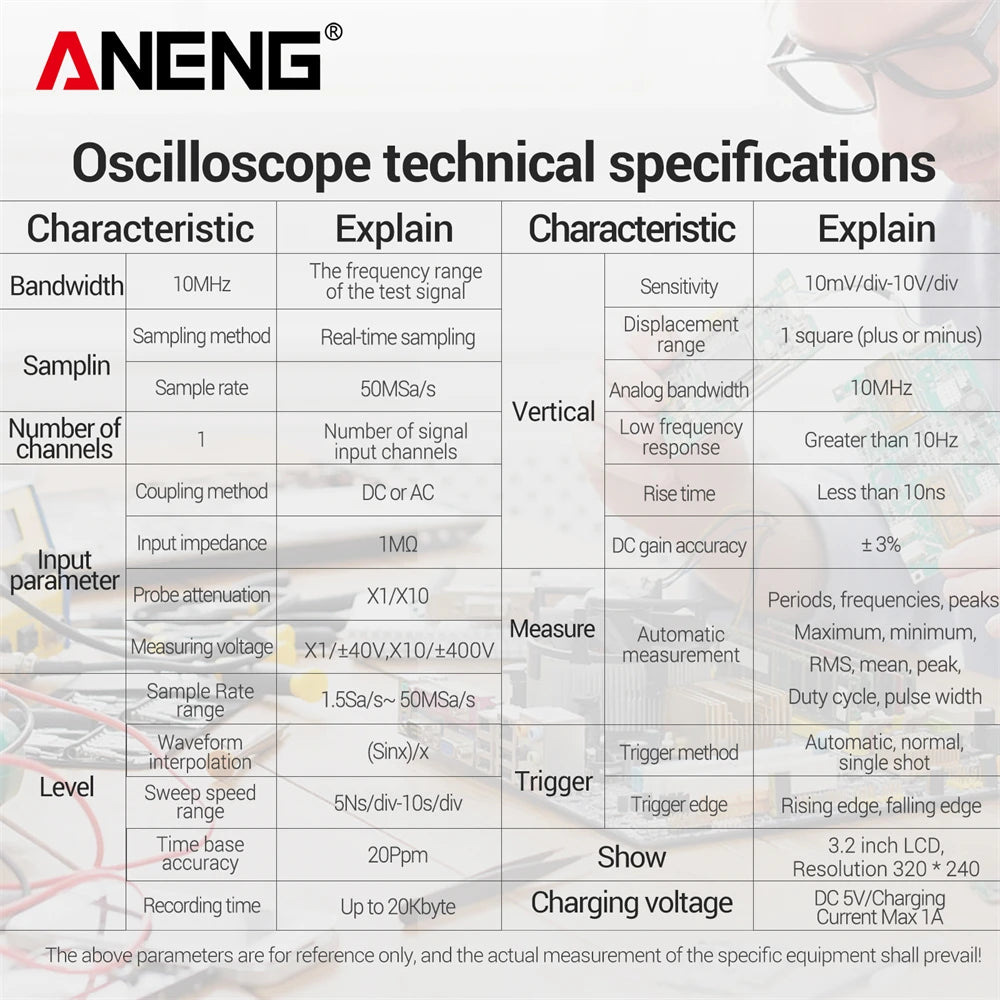

Specification:
|
Function |
Range |
Resolution |
Accuracy |
|
DC voltage |
0V-999.9V |
1mV-100mV |
±(0.5%+3) |
|
AC voltage |
0V-750.0V |
1mV-100mV |
±(1.0+3) |
|
DC current |
0mA-20.00A |
0.01mA-0.01A |
±(1.0%+3) |
|
AC current |
0mA-20.00A |
0.01mA-0.01A |
±(1.2%+3) |
|
Resistance |
0Ω-99.99MΩ |
0.1Ω-10kΩ |
±(3.0%+5) |
|
Capacitor |
0nF-99.99mF |
0.001nF-0.01mF |
+(5.0%+5) |
|
Hz |
0Hz-9.999MHz |
0.001Hz-0.001MHz |
+(0.1%+2) |
|
NCV detection |
YES |
Back support frame |
YES |
|
Naught FireWire |
YES |
Soft silicone shell |
YES |
|
Diode/0n/0ff |
YES |
Material |
ABS/Silicone |
|
Temperature °C°F |
YES |
Power supply |
3.7V/2500mAh |
|
9 sets ofwaveform storage |
YES |
Language selection |
Chinese/English |
|
Screen brightnessadjustable |
YES |
Maximum count |
9999 count |
|
Flashlight lighting |
YES |
Range |
Automatic/manual |
|
USB charging |
YES |
Screen display |
VA reverse display |
|
Data retention |
YES |
||
|
Automatic shutdown |
0FF/15 minutes/30 minutes/60 minutes/120 minutes |
||

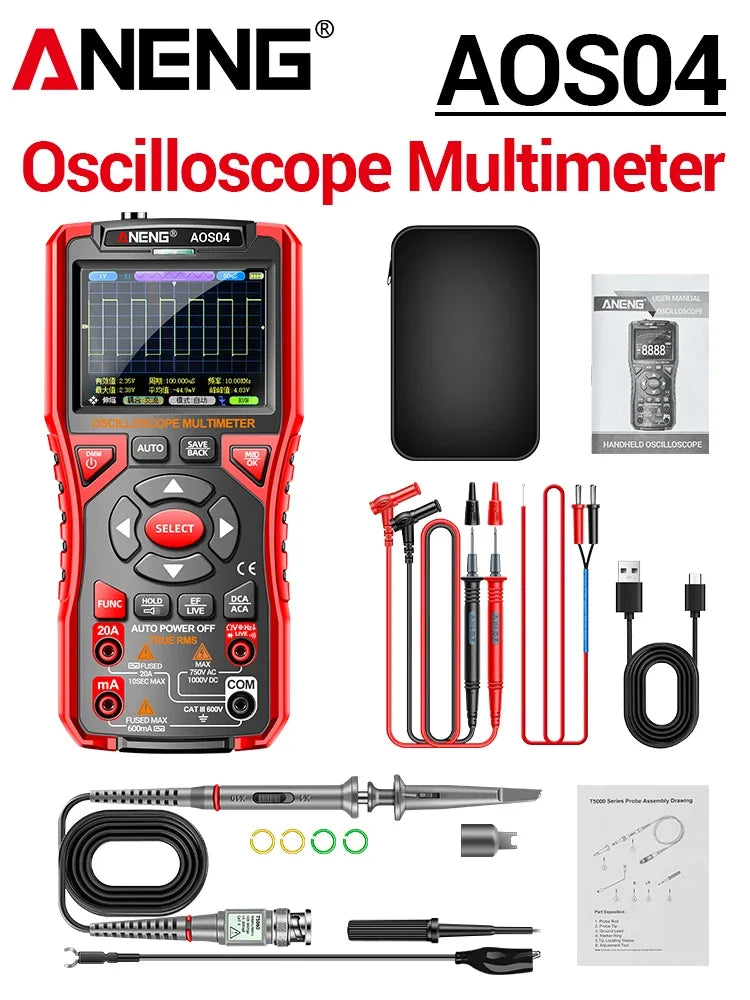

Package Include:
according to your choice
