Product Summary
ANENG AN870 Digital Multimeter Profesional 19999 Counts AC/Voltage Current NCV Capacitance is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Digital Multimeter Profesional 19999 Counts AC/DC Voltage Current NCV Capacitance Resistance Ohm Auto Range Tester Tools
Feature:
A. Introduction

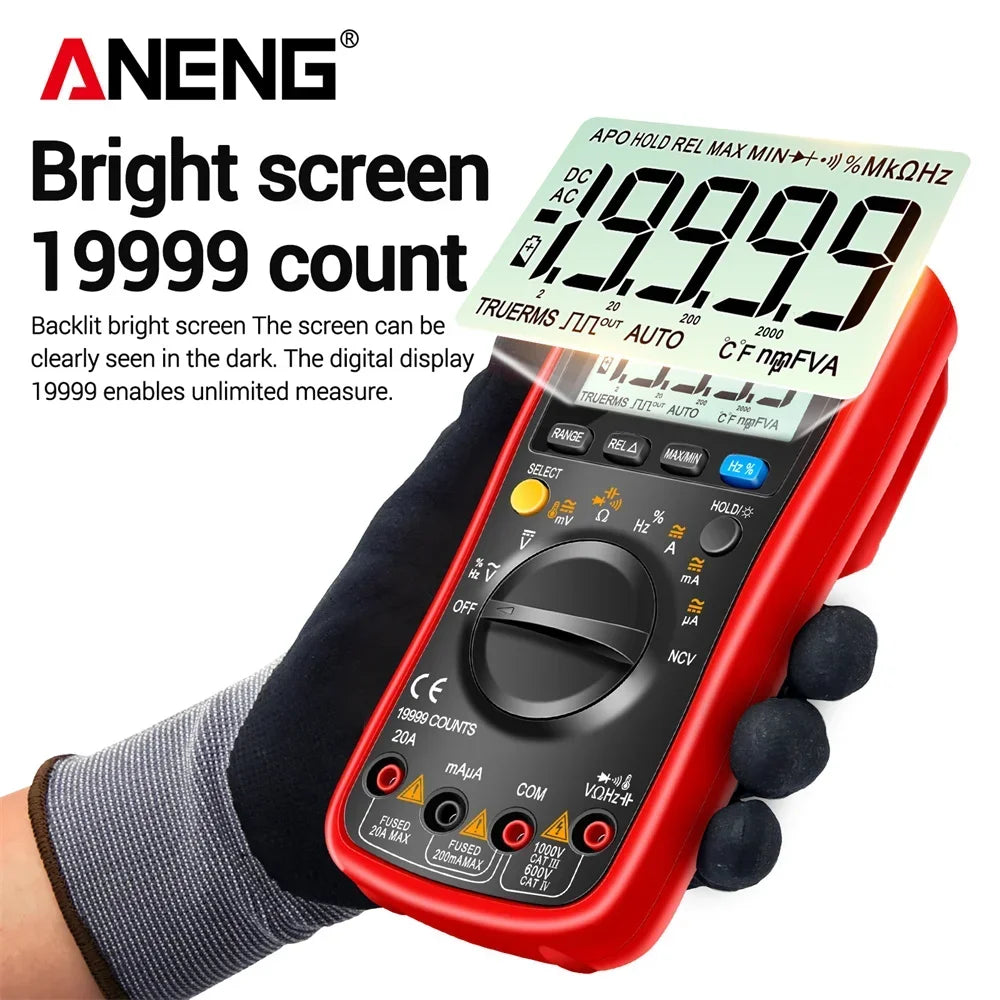

This product is a battery-powered, true-rms, auto-ranging digital multimeter with a 19999 LCD display and a backlight.
B. Specification
Brand Name |
ANENG |
Model |
AN870 |
Display(LCD) |
19999counts |
Ranging |
Auto/Manual |
Meterial |
ABS |
Update Rate |
3Time/Second |
Ture RMS |
yes |
Back Light |
yes |
Date Hold |
yes |
Relative Measurement |
yes |
MAX/MIN |
yes |
Low Battery Alect |
yes |
Auto Power Off |
yes |
Diode |
yes |
Continuity |
yes |
NCV |
yes |
Function |
Range |
Accuracy |
DC Voltage |
19.999mV/199.99mV/1.9999V/19.999V/199.99V/1000V |
±(0.05%+ 3) |
AC Voltage |
19.999mV/199.99mV/1.9999V/19.999V/199.99V/750V |
±(0.3%+ 3) |
DC Current |
1.9999A /19.999A / 19.999mA /199.99mA /99.99uA /1999.9uA |
±(0.5%+3) |
AC Current |
1.9999A /19.999A / 19.999mA /199.99mA /99.99uA /1999.9uA |
±(0.8%+3) |
Resistance |
199.99 ohm |
±(0.5%+3) |
1.9999k ohm/19.999k ohm/199.99k ohm |
±(0.2%+3) |
|
1.9999M ohm/19.999M ohm |
±(1.0%+3) |
|
199.99M ohm |
±(5.0%+5) |
|
Capacitance |
9.999nF |
±(5.0%+20) |
99.99nF/999.9nF/9.999uF/99.99uF/999.9uF |
±(2.0%+5) |
|
9.999mF |
±(5.0%+5) |
|
Frequency |
99.99Hz/ 999.9Hz/ 9.999kHz/ 99.99kHz/ 999.9kHz/ 9.999MHz |
±(1.0%+2) |
Duty Cycle |
1%-99% |
±(1.0%+2) |

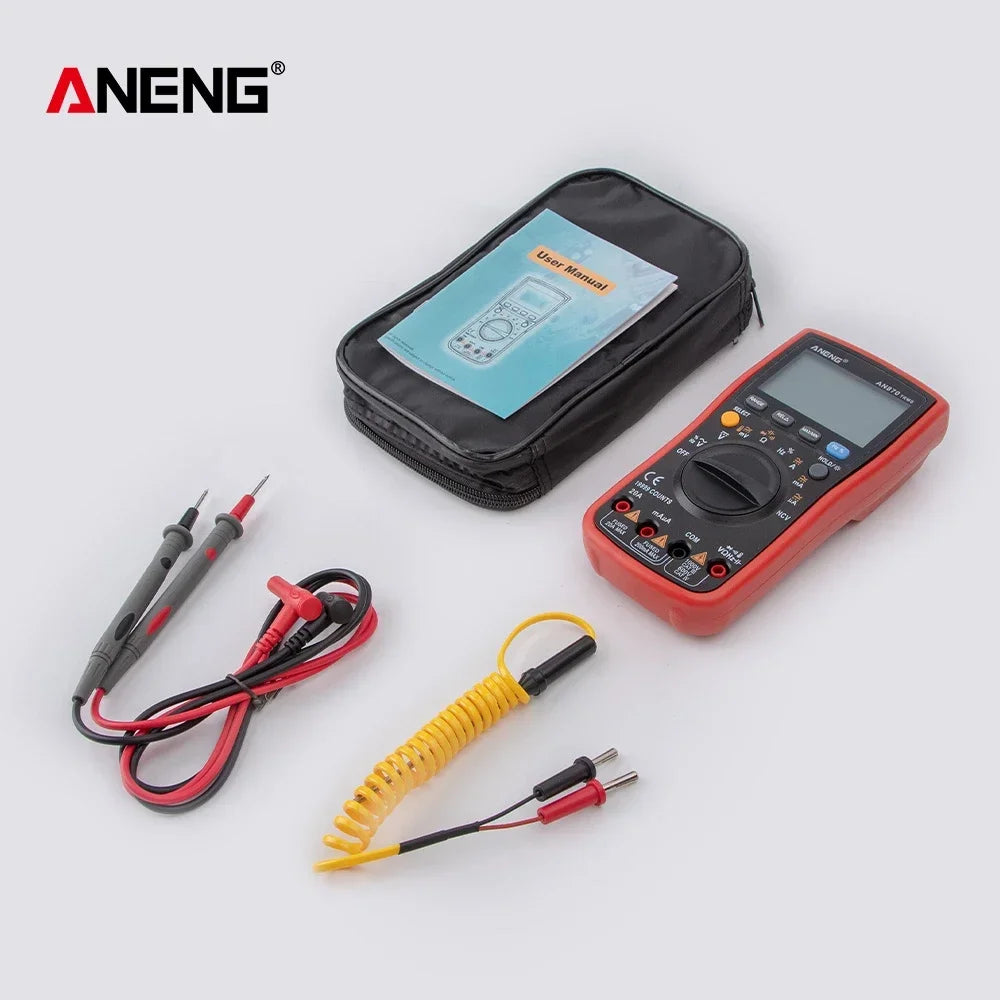

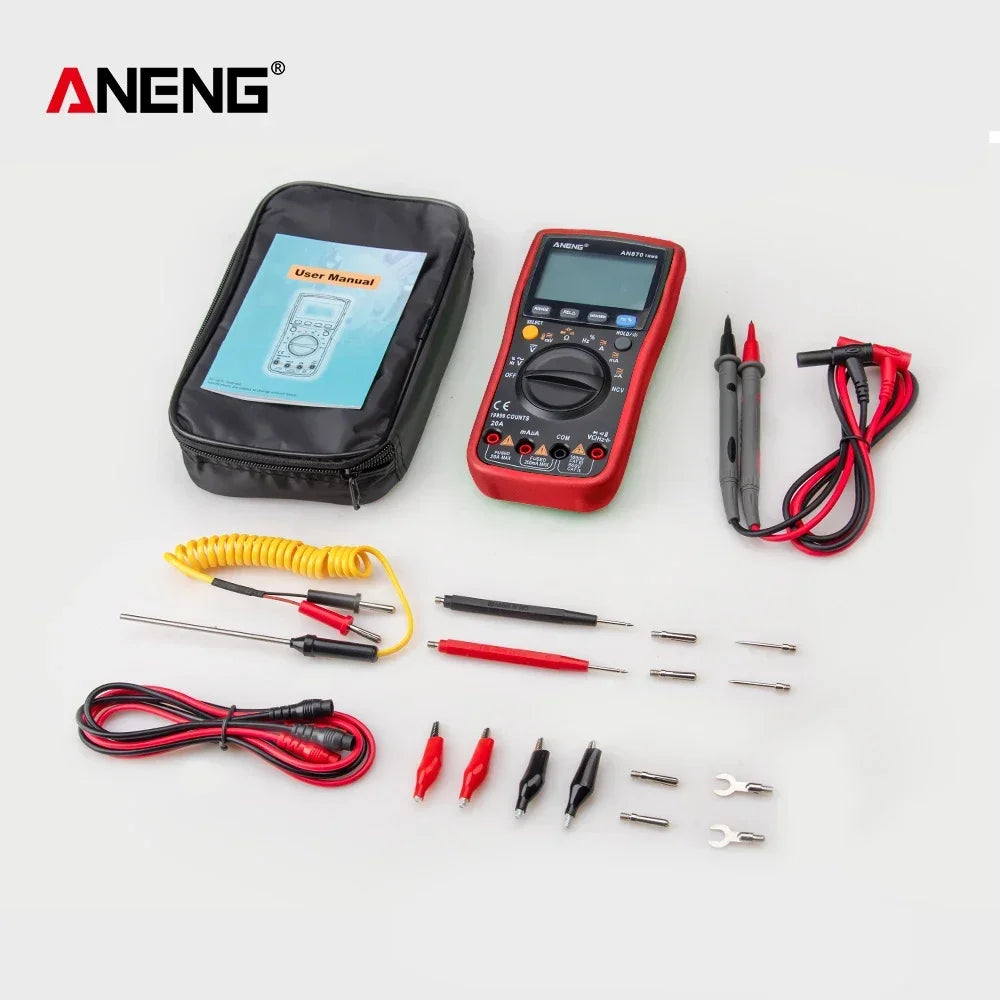

Packaging:(Not including battery)
as the picture showed
Warning:
1. Do NOT exceed the "maximum value" indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
