Product Summary
ANENG 620A Digital Multimeter 6000 Counts Professional AC/DC Current Voltage Resistance is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
• True RMS Measurement :The ANENG 620A multimeter provides true RMS measurement, ensuring accurate readings for capacitance, resistance, and temperature.

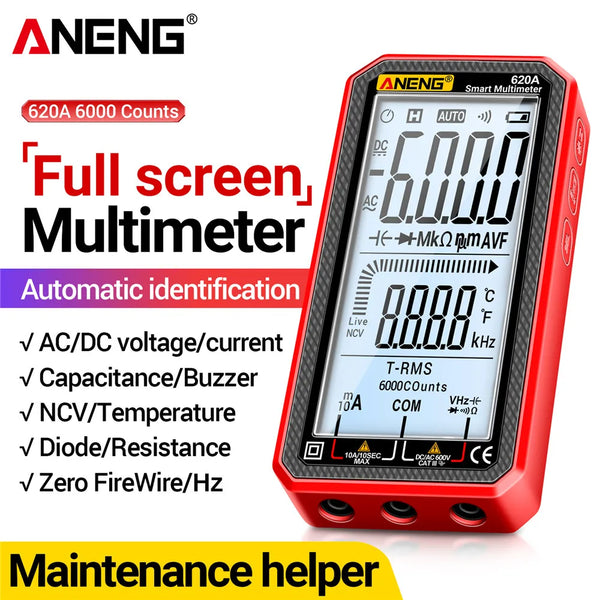

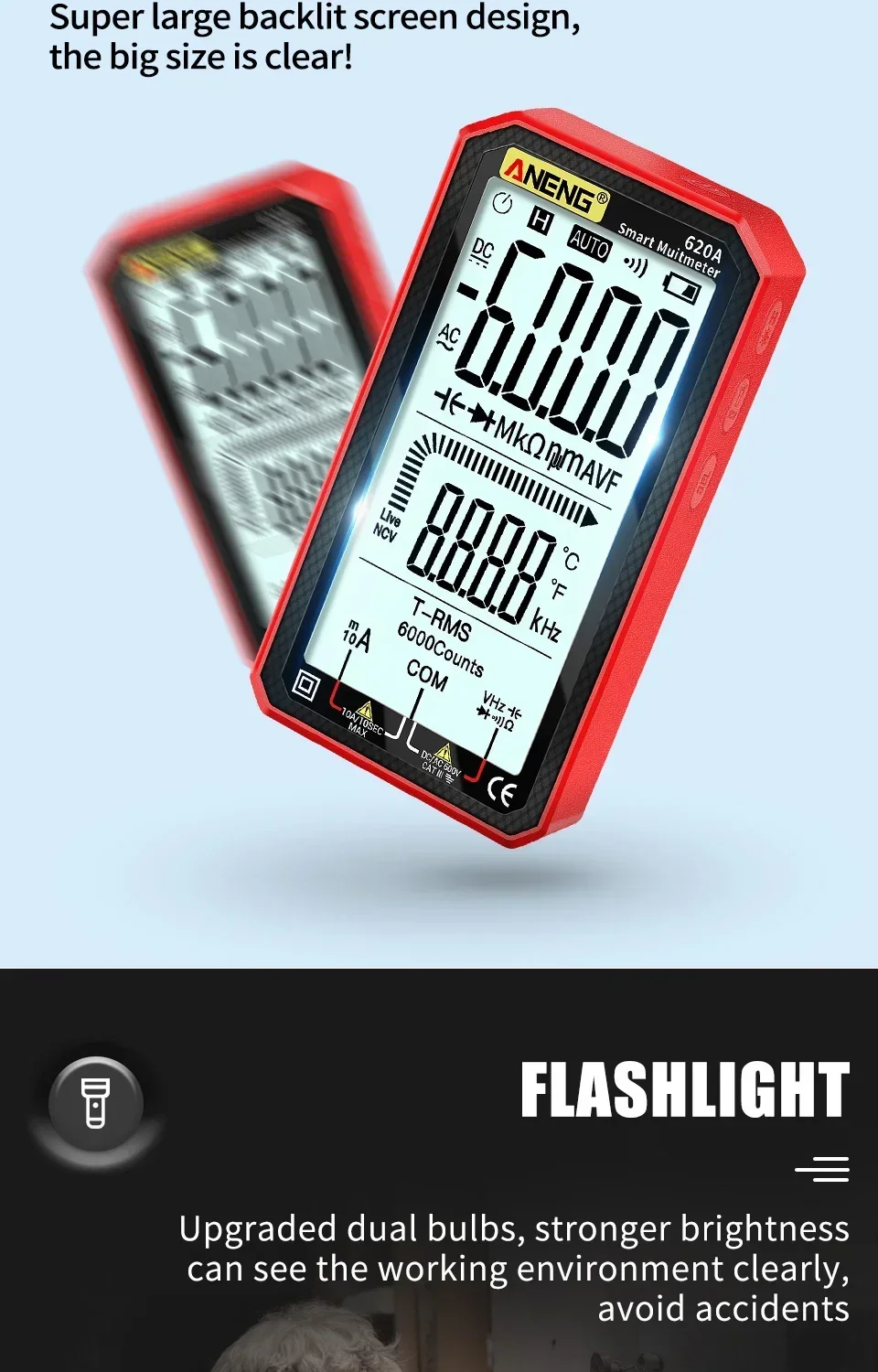

• Large Count Display :With 6000 counts, the digital display provides a large and easy-to-read count, making it simple to understand your measurements.
• Wide Operating Temperature Range :The ANENG 620A multimeter can operate in a wide temperature range of 0-40 degrees Celsius, making it suitable for use in a variety of environments.
• Automatic Testing :The multimeter is equipped with automatic testing capabilities, making it easy to test circuits and components without the need for manual intervention.
A.Overview:
Dispaly: LCD
Max. display value:6000 digit
Automatic shut down time:15 minutes
power supply:2*1.5V AAA Battery(Without)
The instrument specifies one year as a cycle,and shall be re-calibrated under 18 deg C-28 deg C,with relative humidity less than 75%.

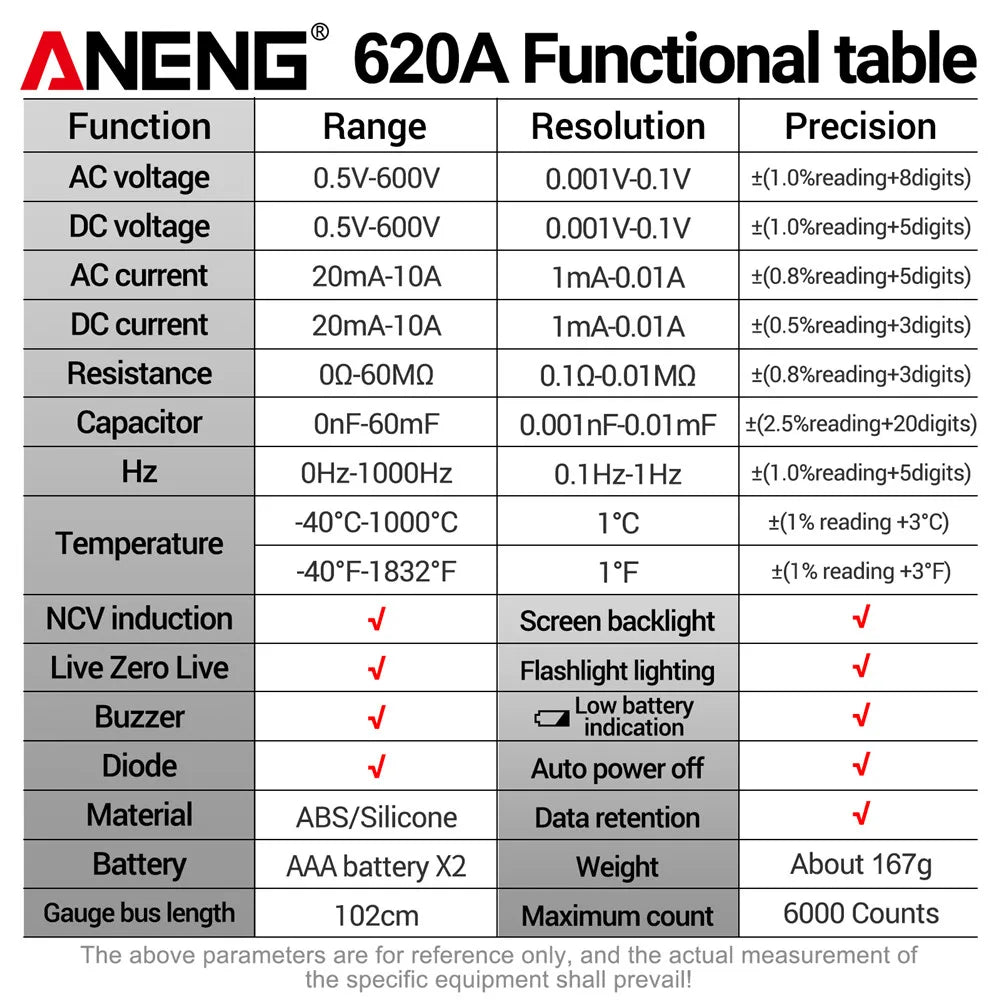

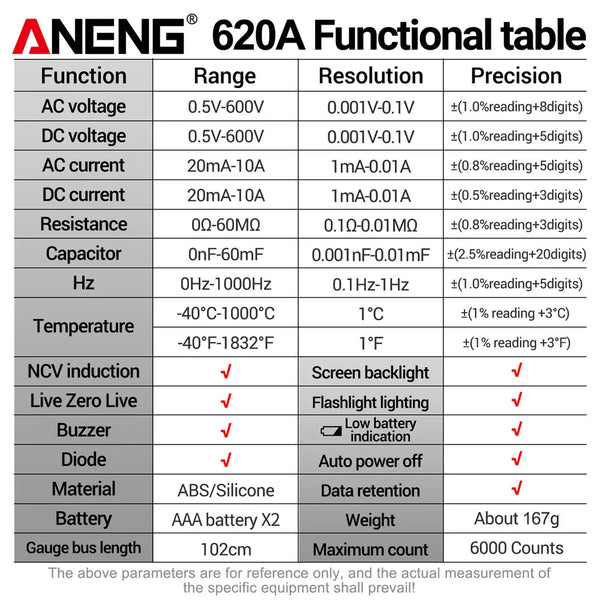

B.Specification:
Function |
Range |
Accuracy |
AC Current |
6000mA/10A |
+-(1.0%reading+8 digits) |
DC Current |
6000mA/10A |
+-(1.0%reading+5 digits) |
DC Voltage |
6V/60V/600V |
+-(0.5%reading+3 digits) |
AC Voltage |
6V/60V/600V |
+-(0.8%reading+5 digits) |
Line on-off Test |
-- |
1 ohm |
Resistance |
600 ohm/6K ohm/60K ohm/600K ohm/6M ohm/60m ohm |
+-(0.8%reading+3 digits) |
Diode Test |
-- |
1V |
Capacitor |
6nF |
+-(10%reading+40 digits) |
60nF/6uF/60uF/600uF/6mF/60mF |
+-(2.5%reading+20 digits) |
|
Temperature |
-40-1000 deg C |
+-(1%reading+3 deg C) |
-40-1832Xi |
+-(1%reading+3Xi) |
|
Frequency |
100Hz/1000Hz |
+-(1.0%reading+5 digits) |
100Hz/1000Hz |
+-(1.0%reading+5 digits) |

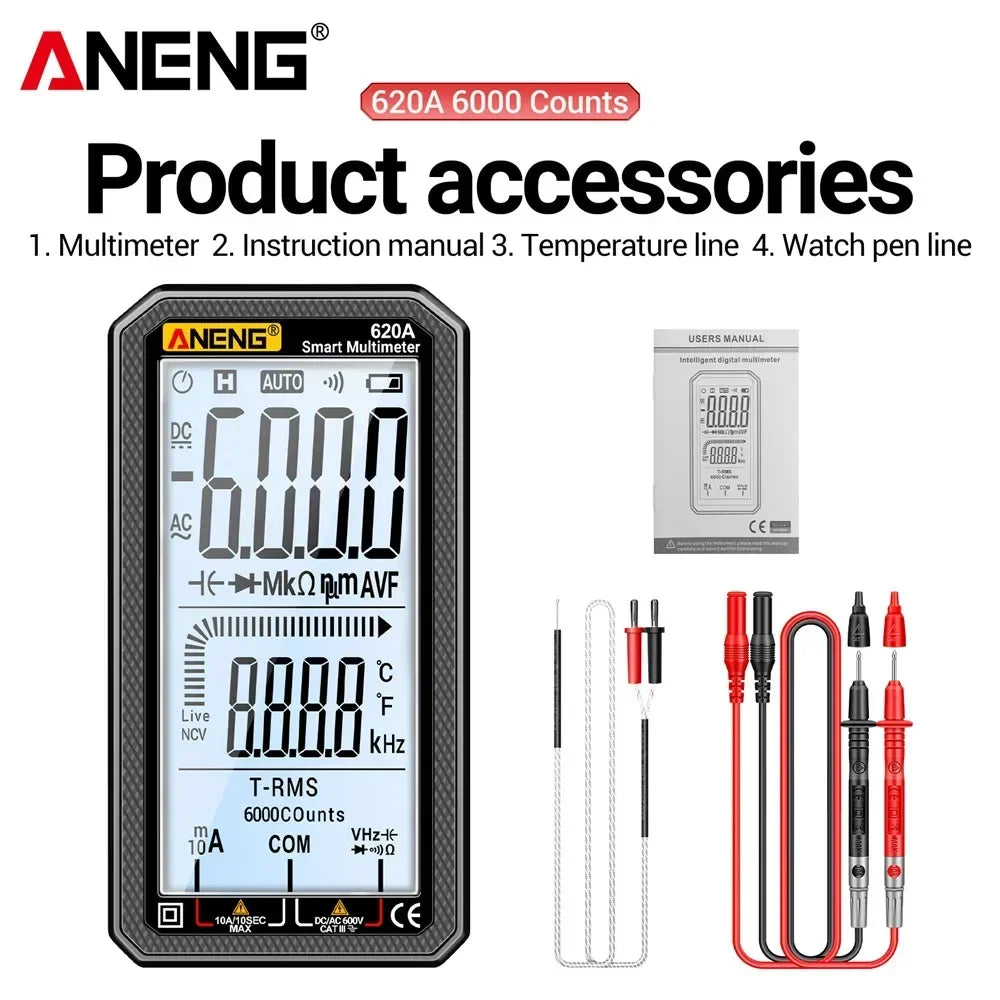

C.Package Include:
According to your
