Product Summary
900W 15A Boost Converter DC-DC 9V-60V to 10V-120V LCD Display Control Step Up Module High is a display module selected for adding visual output, status screens and control interfaces to projects. It is suitable for embedded developers, makers and interface prototyping users who need practical electronics hardware for reliable project work.
Best For
- adding visual output, status screens and control interfaces to projects
- microcontrollers, SBC projects, SPI/I2C interfaces and display prototypes
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for embedded developers, makers and interface prototyping users.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

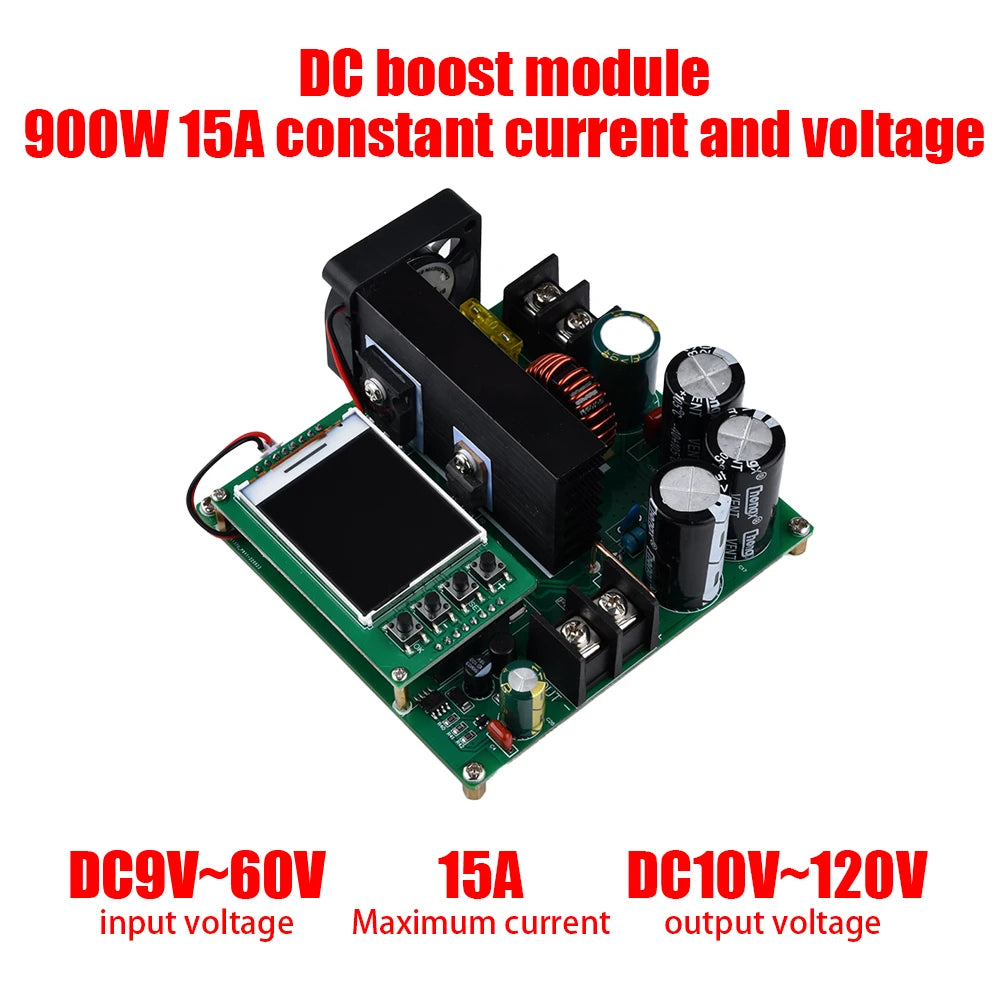

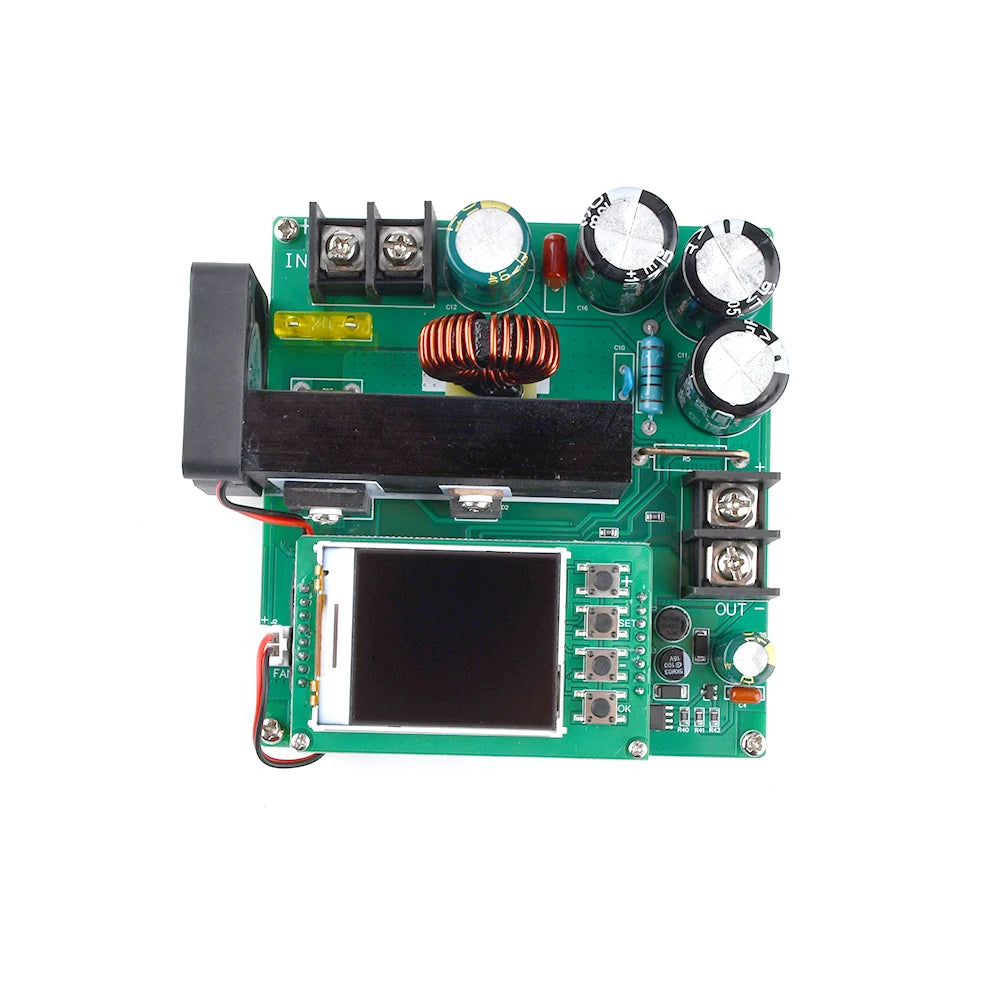

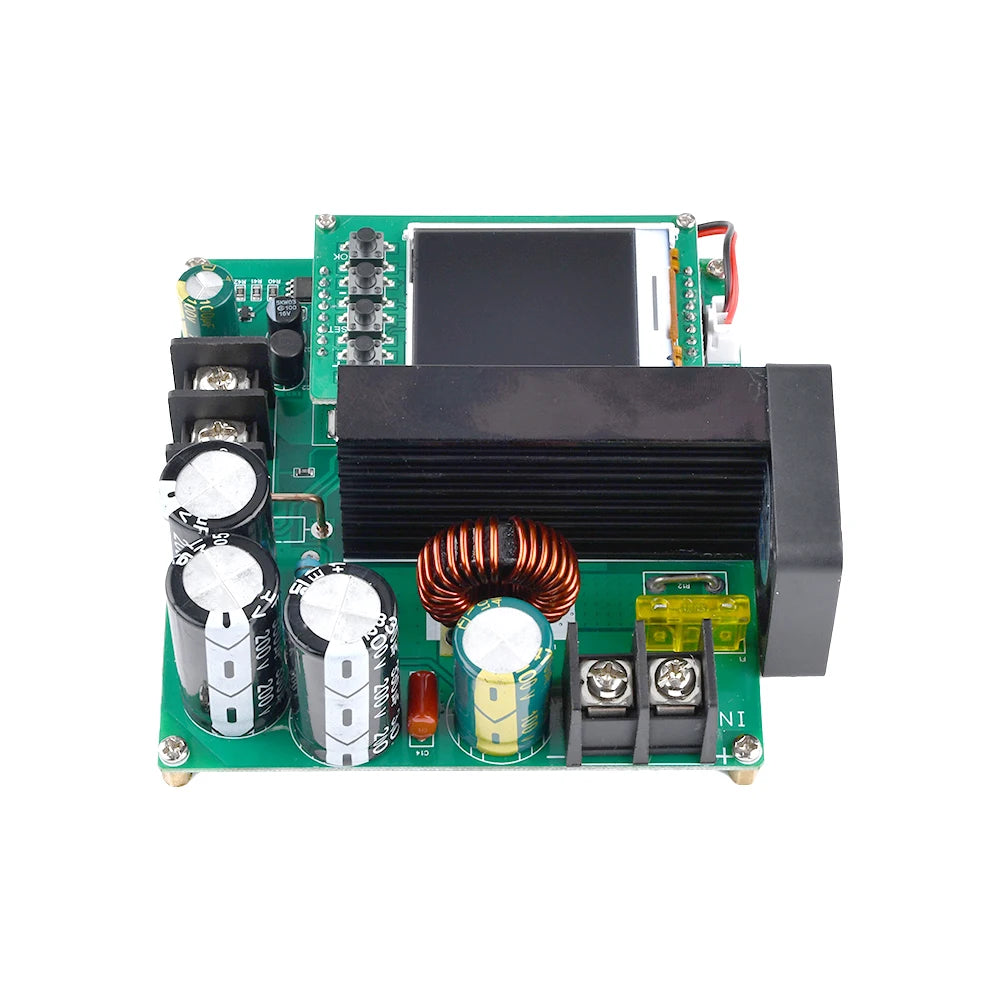

900W High Precise Boost Converter DC-DC 9V-60V to 10V-120V LCD Display Control Step Up Module Voltage Transformer Regulator
Product features
Output current: 0-15A
Conversion efficiency: 85%
Active heat dissipation Continuous operation with input fan

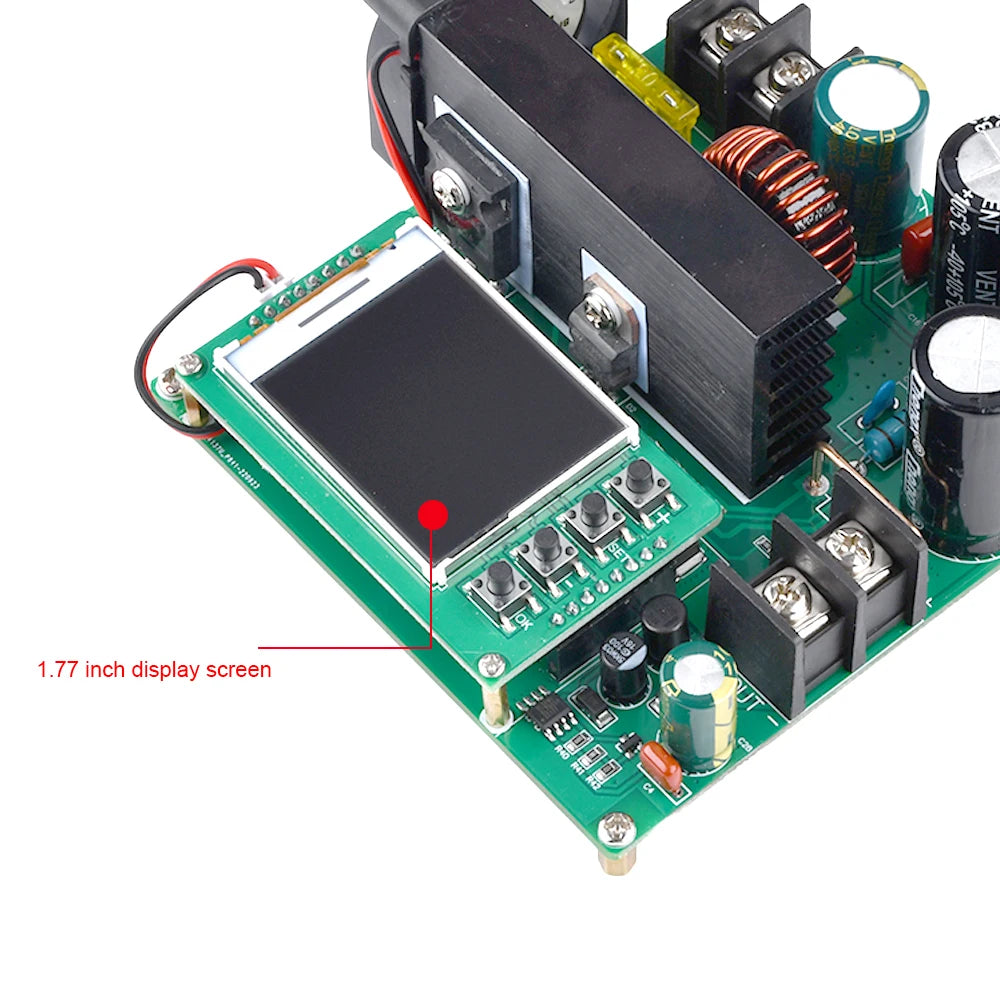

Digital control + colour screen display
Storage groups: 10 groups
Technical parameters

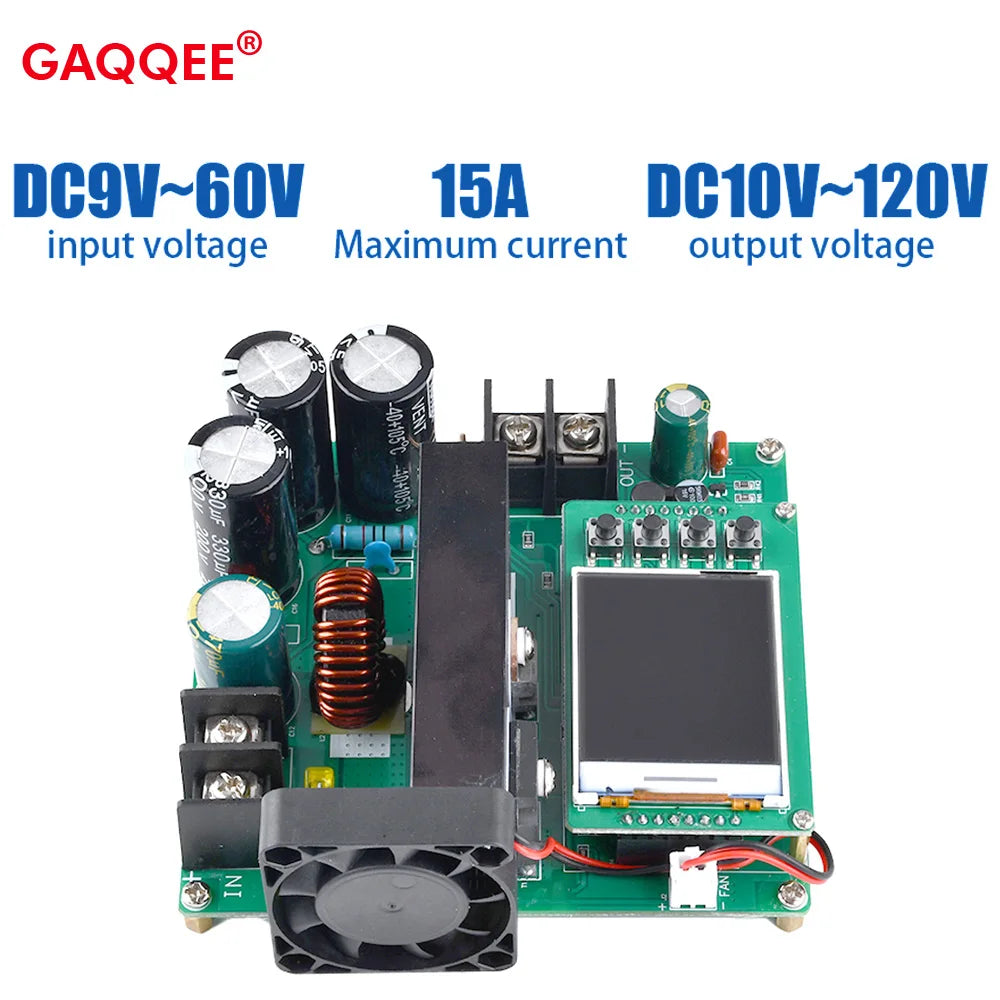

Input voltage (U-IN): DC9V-60V
Input current: 0-15A
Output voltage (U-OUT): 10V-120V
Output current: 0-15A
Conversion efficiency:85%
Operating frequency: 150KHZ

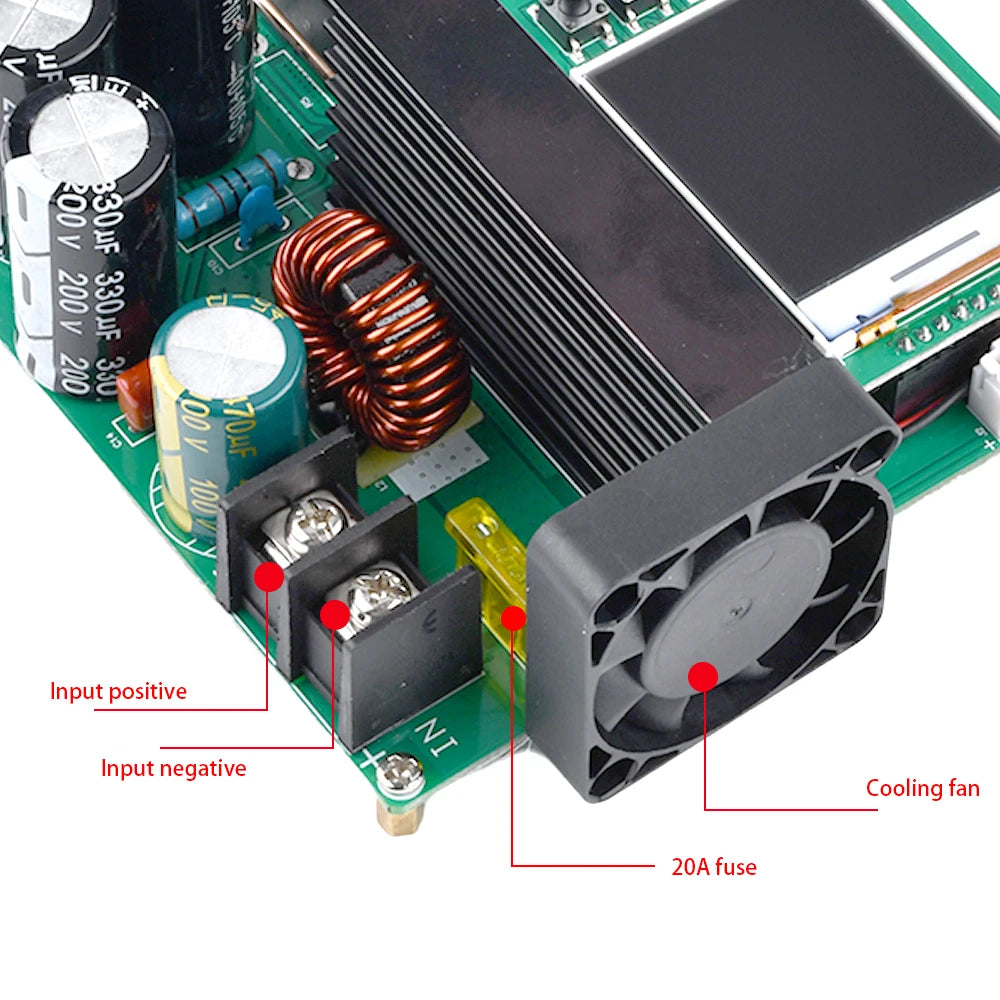

Short circuit protection: 20A fuse (non-self-recovery)
Working temperature: -40 deg C-85 deg C
Heat dissipation mode: active heat dissipation Continuous operation by connecting input fan
Control mode: CNC + colour screen display
Voltage adjustment display: 009.0V-120.0V
Current adjustment display: 00.01A-15.00A
Output ripple: ≤50mV
Storage group: 10 groups
Standby power consumption: less than 150mA (measured at 12V input)
Dimensions: 110mm x 105mm x 48mm (product)
Note
When the input is switched on, the output always has electrical output and the voltage is equal to the real-time output voltage shown on the interface
Product information
https://www.banber.com/gather/632d0a35106503000802b5a2.html(English vision)
kit list
900W 15A CNC LCD Display Constent Current Constent Voltage DC Boost Module X1
