Product Summary

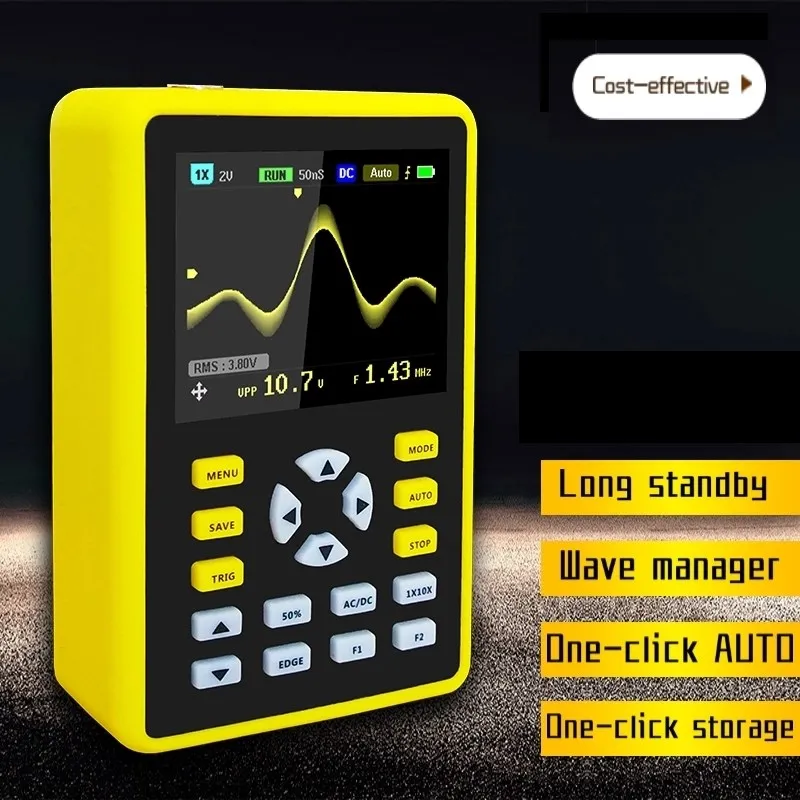

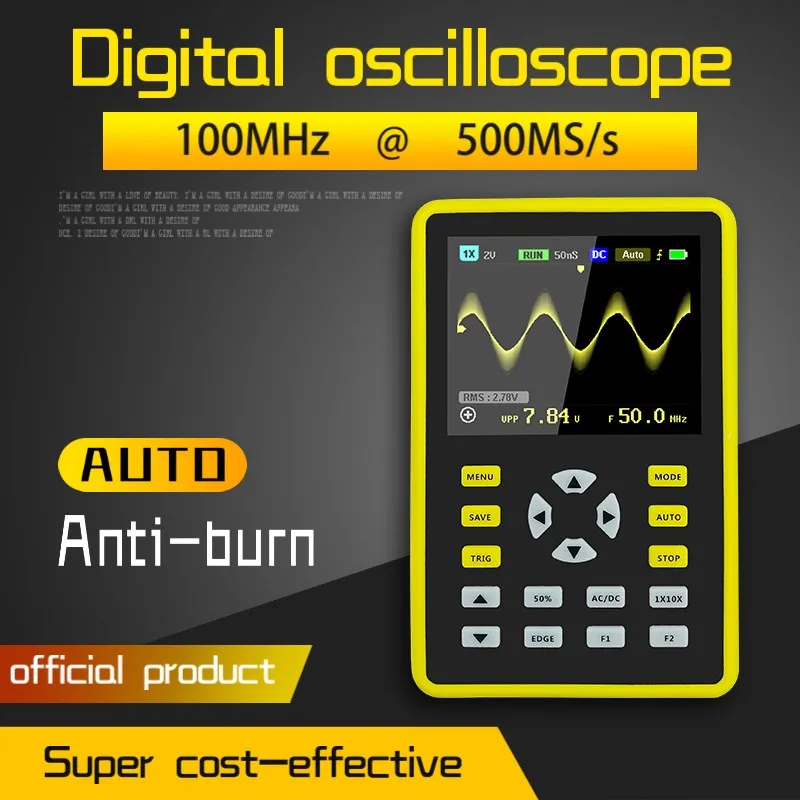

FNIRSI 5012H Handheld Digital Oscilloscope is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.

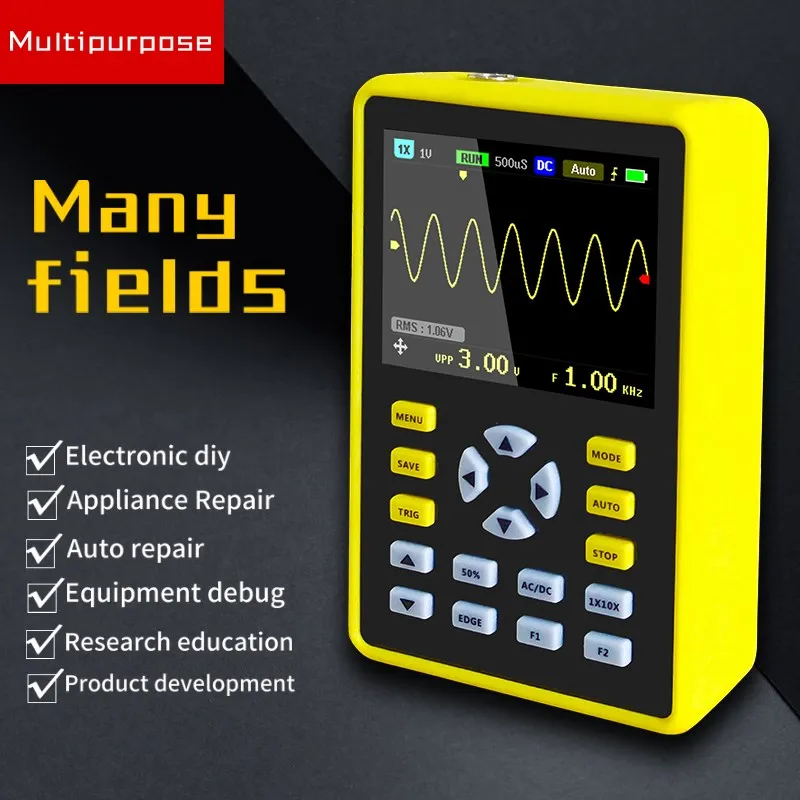

Best For

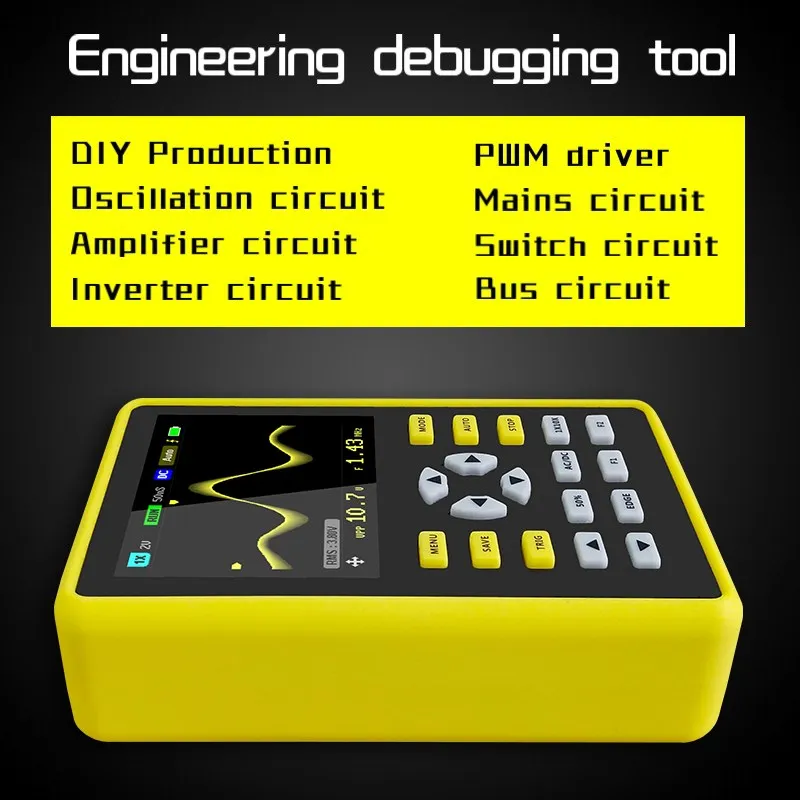

- checking waveforms, debugging signals and validating circuit behavior
- test leads, probes and bench electronics workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

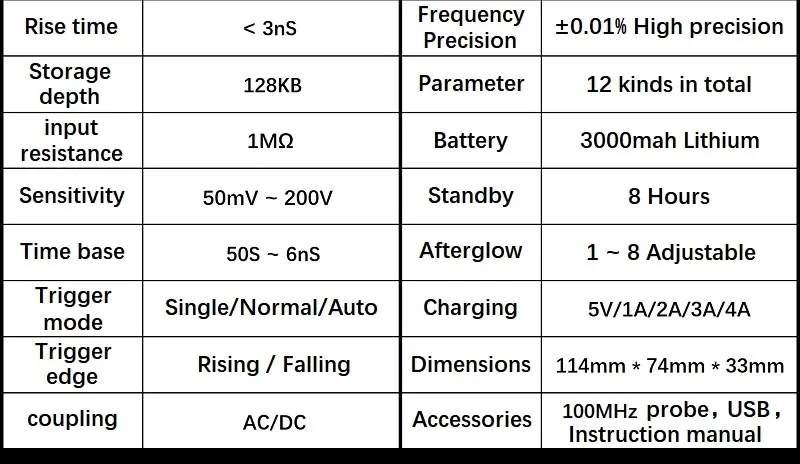

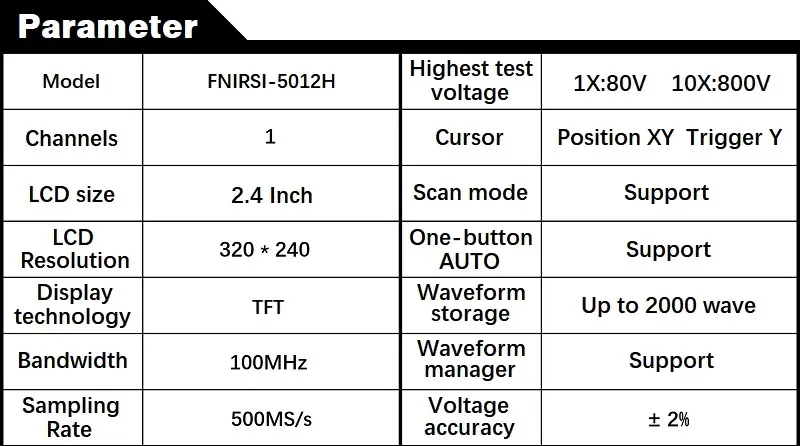

Specifications:

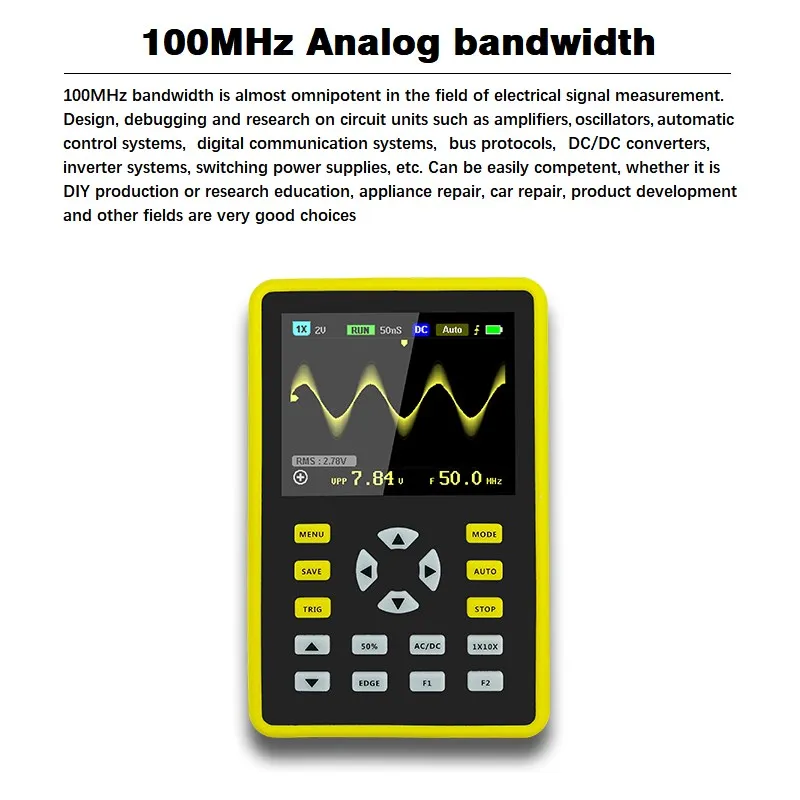

1:Analog band width: 100MHz
2:Maximum real time sampling rate: 500MS/s
3:Vertical sensitivity: 50 mV/div - 100 V/div
4:Horizontal time base range: 50S/div - 6nS/div

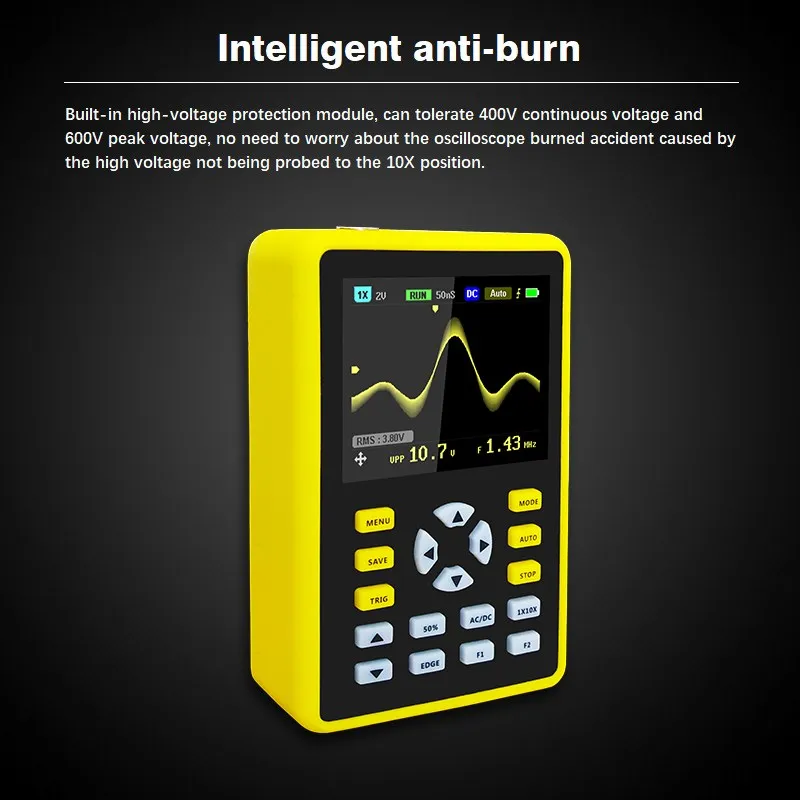

5:Maximum test voltage: 80 V (1X probe), 800 V (10X probe)
6:Storage depth: 128KB
7:Input resistance: 1M
8:ADC precision: 8bits
9:Coupling mode: AC/DC

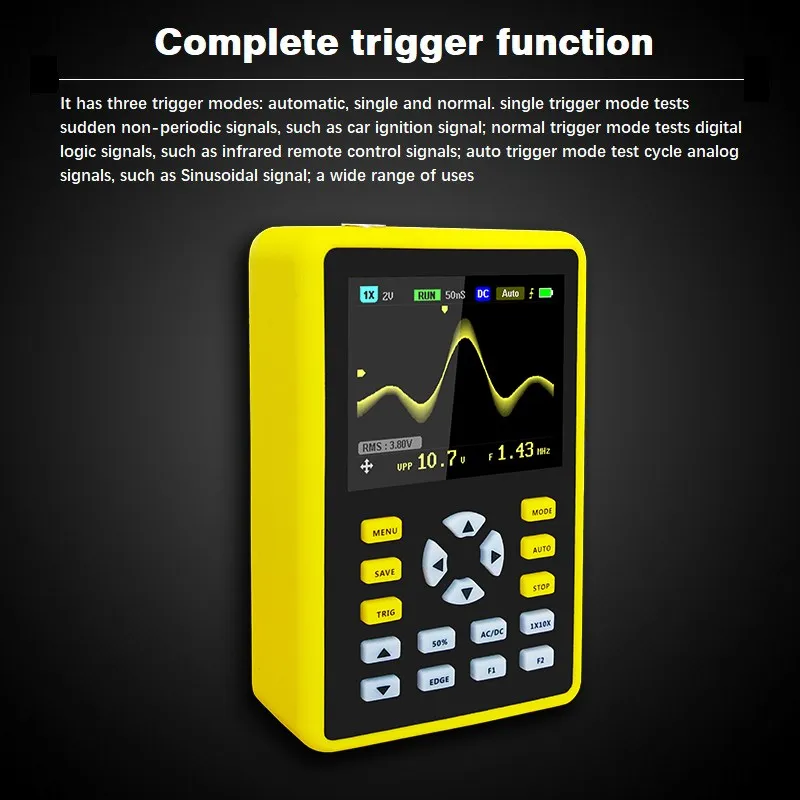

10:Trigger mode: Single, Normal, Auto
11:Trigger edge: Ascending/descending edge
12:External trigger voltage 0-80 V
13:Display: 2.4 inch - 320*240
14:Power supply: 3000 mAh lithium battery
15:Size: 114mm x 74mm x 33mm
16:Weight: 250g
1 x FNIRSI-5012H oscilloscope host
1 x Matching 100MHz probe(1X and 10X)
1 x Micro USB data line
1 x User manual (English)
1 x High quality package
