4.3 Inch NanoVNA-F V2/V3 Vector Network Analyzer 50KHz-3GHz/1MHz-6GHz HF VHF UHF VNA Antenna Analyzer 801 Scan Points
NOTE: This link has 2 options, NanoVNA-F V2 and NanoVNA-F V3, please choose correct option based on your like
Comparison of NanoVNA-F V3 and NanoVNA-F V2
Option NanoVNA-F V2
Features:

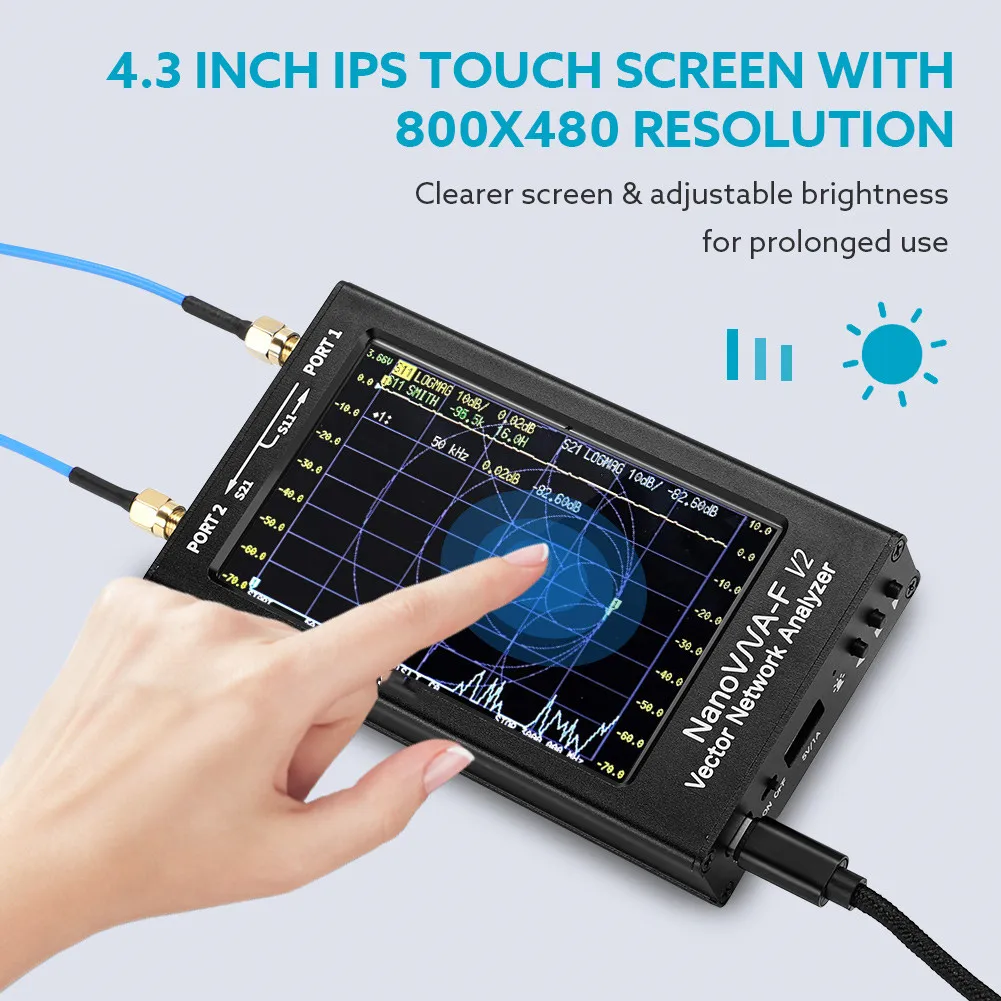

1. 4.3-inch IPS LCD display, resolution 800*480, ultra-wide viewing angle, long-term use does not hurt your eyes.
2. All aluminum alloy case, sturdy and durable, effectively shielding electromagnetic interference to ensure measurement accuracy.

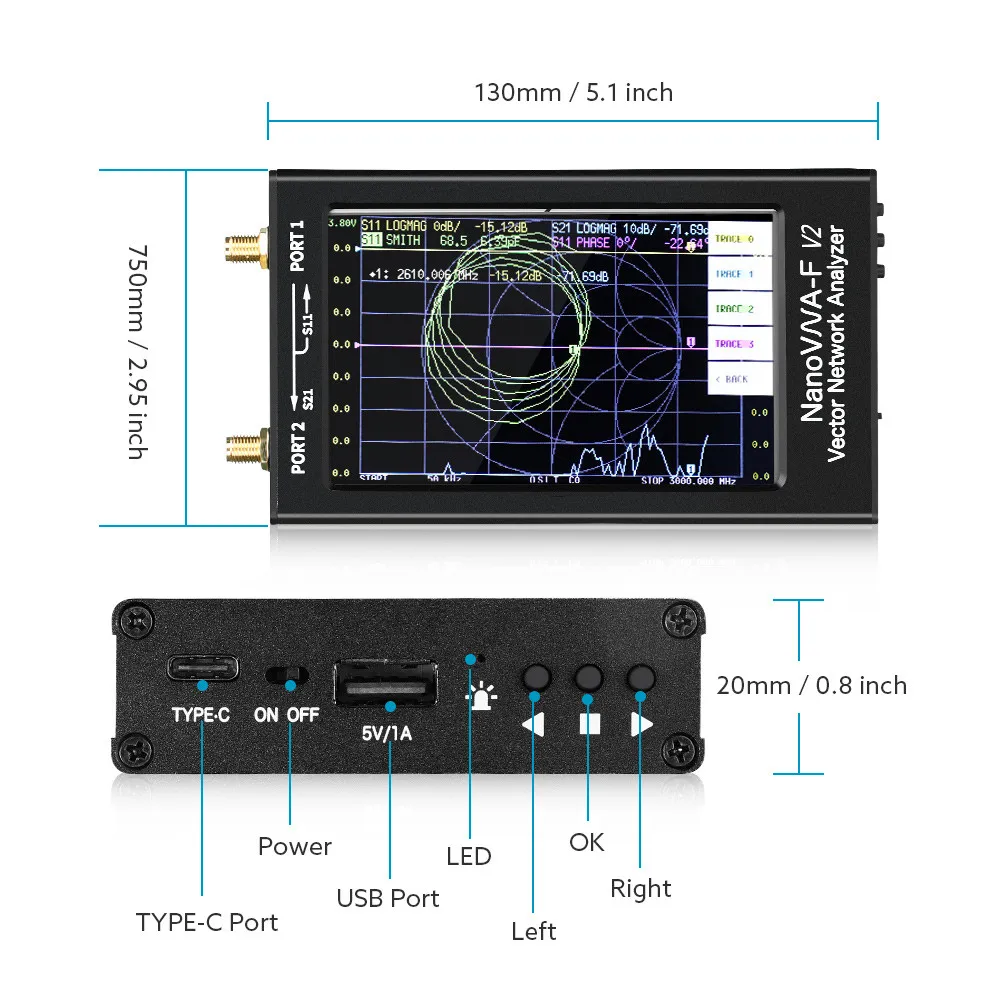

3. The body size is 125mm*75mm*20mm, compact and portable.
4. The radio frequency interface is SMA, which is convenient for connecting all kinds of DUTs.
5. 5000mAh large-capacity lithium battery, battery life up to 7 hours.
6. Full touch screen design, with 3 side buttons at the same time, flexible and convenient operation.
7. Support Chinese and English interface.
8. Optimized UI design, convenient for users to perform measurement operations.
9. Support screen brightness adjustment.
10. The firmware can be upgraded through a virtual U disk, no programmer is needed, and the firmware can be upgraded through the included USB type-c data cable.
11. Standard high-quality calibration parts and RG405 phase-stable cable to ensure calibration accuracy.
12. A USB power output interface is designed to support 5V/1A power output.
13. Using 2A high current charging IC, the charging time is shorter.
14. Supporting host computer software, the host computer supports Chinese and English interfaces.
15. The screen image of the device can be obtained by taking a screenshot of the host computer.
Specification:
- Condition: 100% brand new and high quality
- Item Name: NanoVNA-F V2 Analyzer
- Color: Black

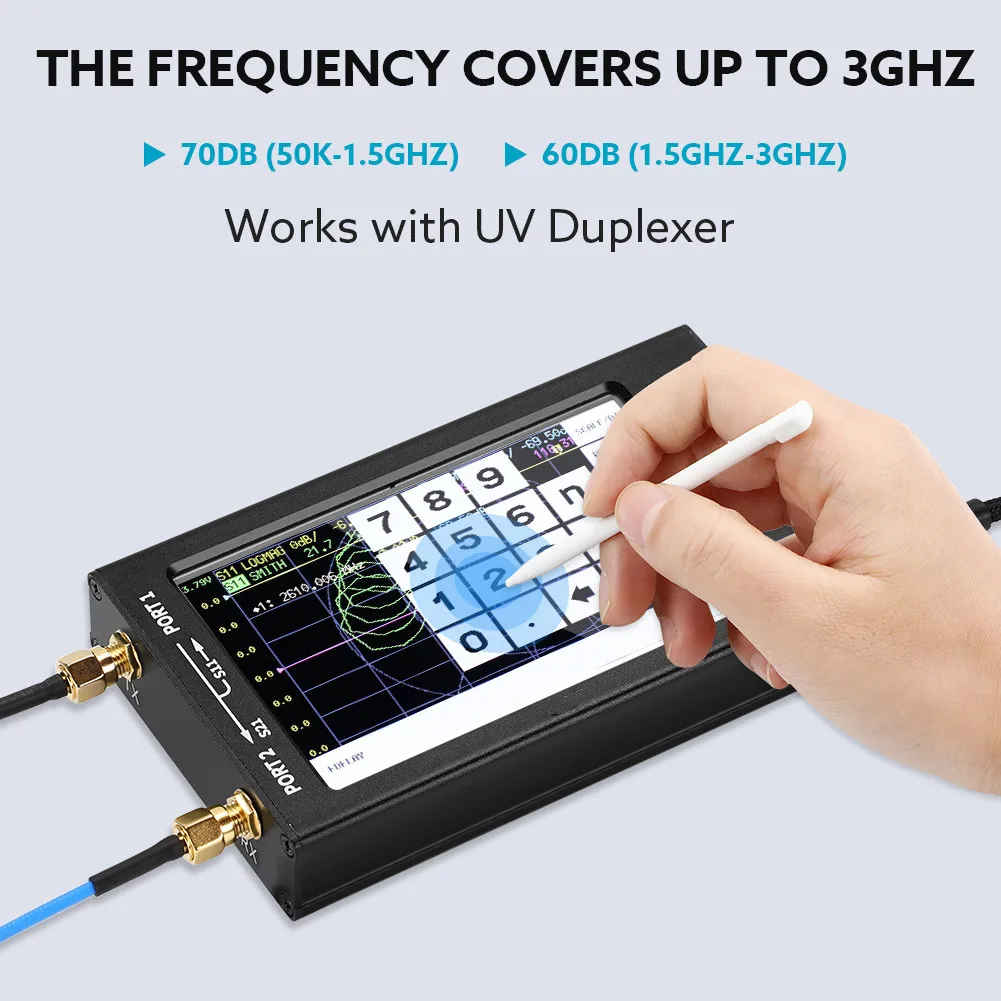

- Measurement frequency: 50KHz -3GHz
- Display: 4.3inch, Resolution 800*480
- Battery: 5000mAh Li-ion Battery
- RF output power: -9dBm (error within 1GHz: ±1dB)
- Frequency accuracy: <0.5ppm
- S21 dynamic range: 70dB (1.5GHz), 60dB (3GHz)
- S11 dynamic range: 50dB (1.5GHz), 40dB (3GHz)
- 2-port return loss: 20dB typ (1.5GHz), 13dB min (3GHz)
- Number of calibration points: 101 points
- Number of scanning points: 101 points
- Number of traces: 4
- Number of mark points: 4 (the mark point bar can be moved up and down on the screen)
- USB interface: USB Type-C communication mode: CDC (serial)
- Setting save: 5 groups (after saving, it can be directly recalled when it is used next time, no need to recalibrate, and the saved parameters before the last shutdown will be automatically recalled when it is turned on next time)
- Support calibration result interpolation, can measure without recalibration after adjusting the measurement frequency band
- Scan time: about 1.9s/1 time (50kHz ~ 3000MHz full frequency band)
- Can measure S parameters, voltage standing wave ratio, Smith chart, phase, group delay, etc.

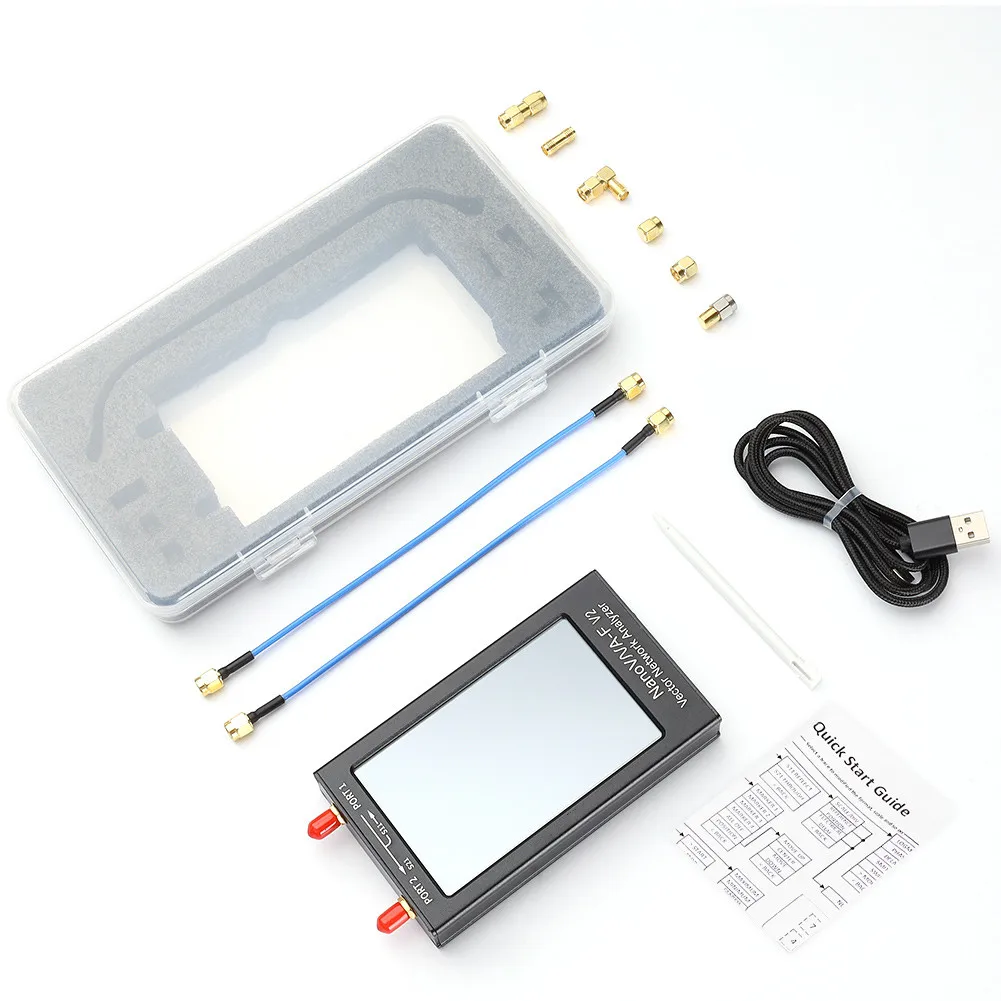

Package Included:

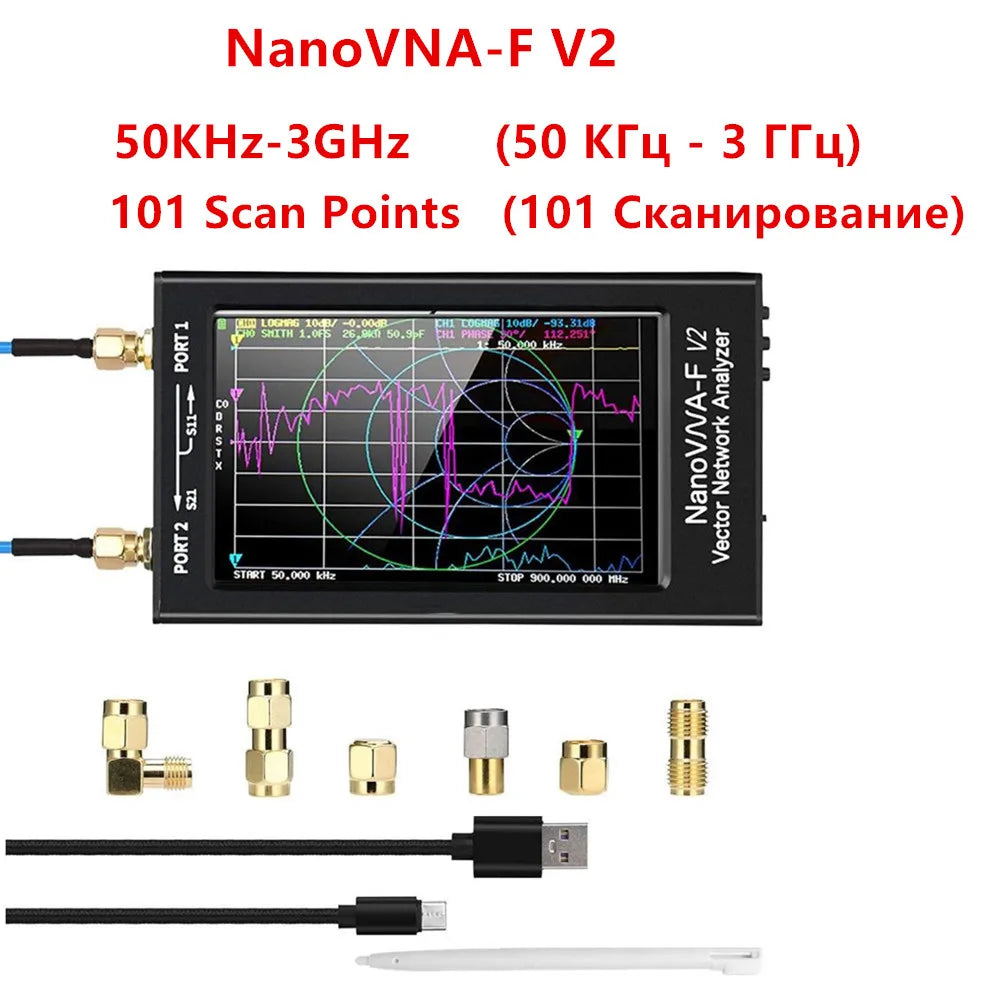

- 1 x Host
- 1 x SMA Open Circuit Calibration Part
- 1 x SMA Short-Circuit Calibration Kit
- 1 x SMA 50Ω Load Calibration Kit
- 1 x SMA-KK Double Head Female Adapter
- 1 x SMA-JJ Double Head Male Adapter
- 1 x SMA-JKW Elbow Female To Male adapter
- 2 x 20cm SMA-JJ RG405 RF Cables
- 1 x USB Type-C Data Cable
- 1 x Stylus Pen
Option NanoVNA-F V3
-

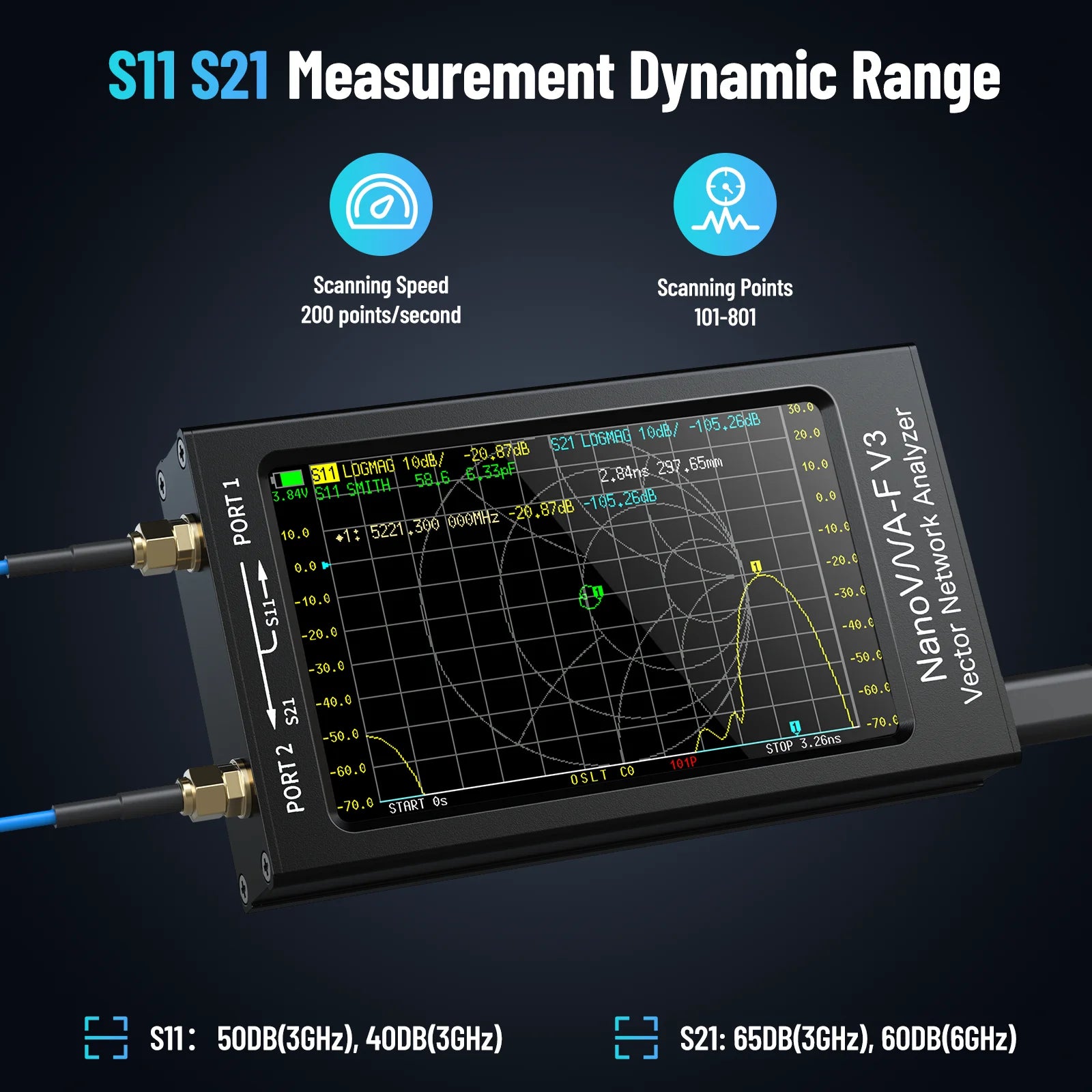

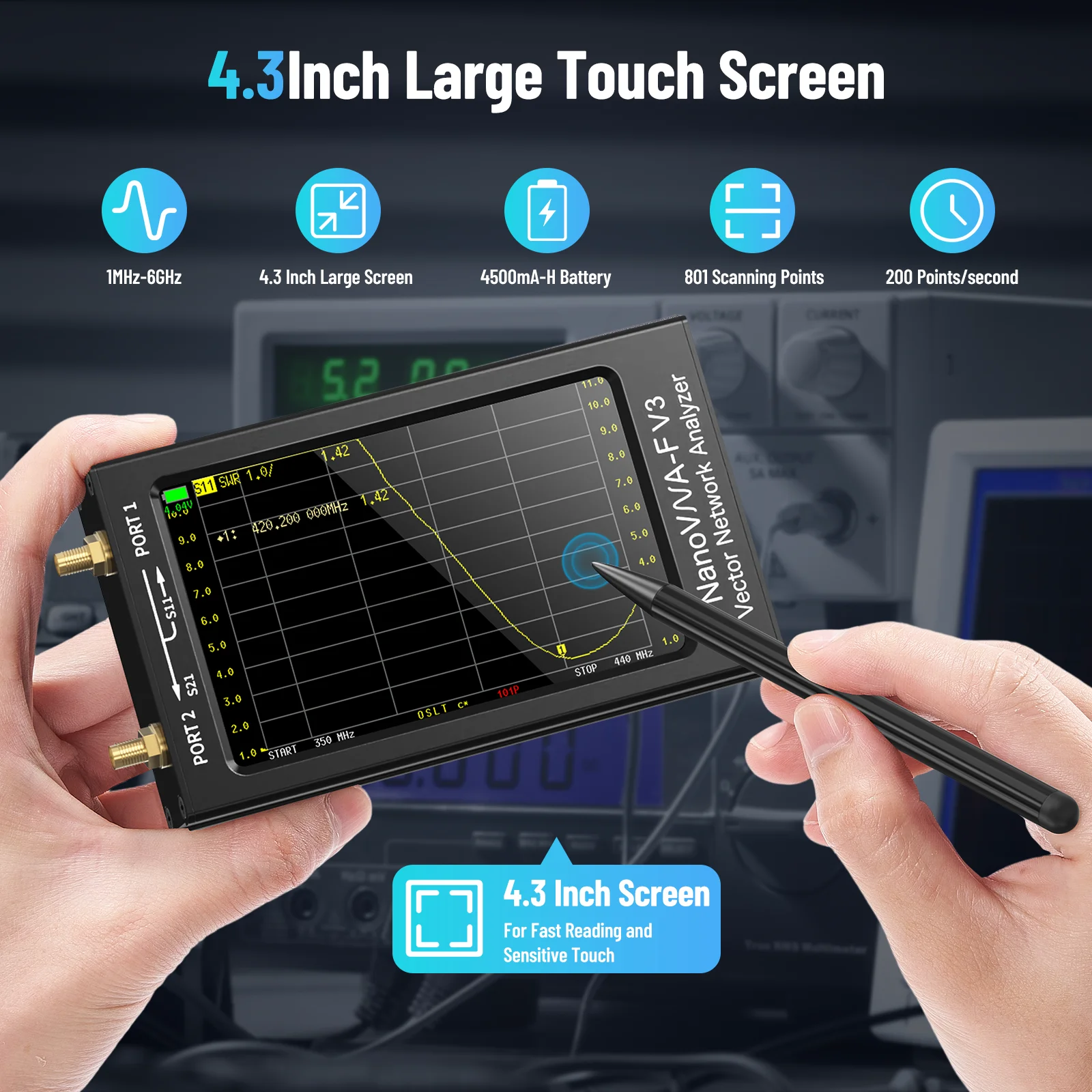

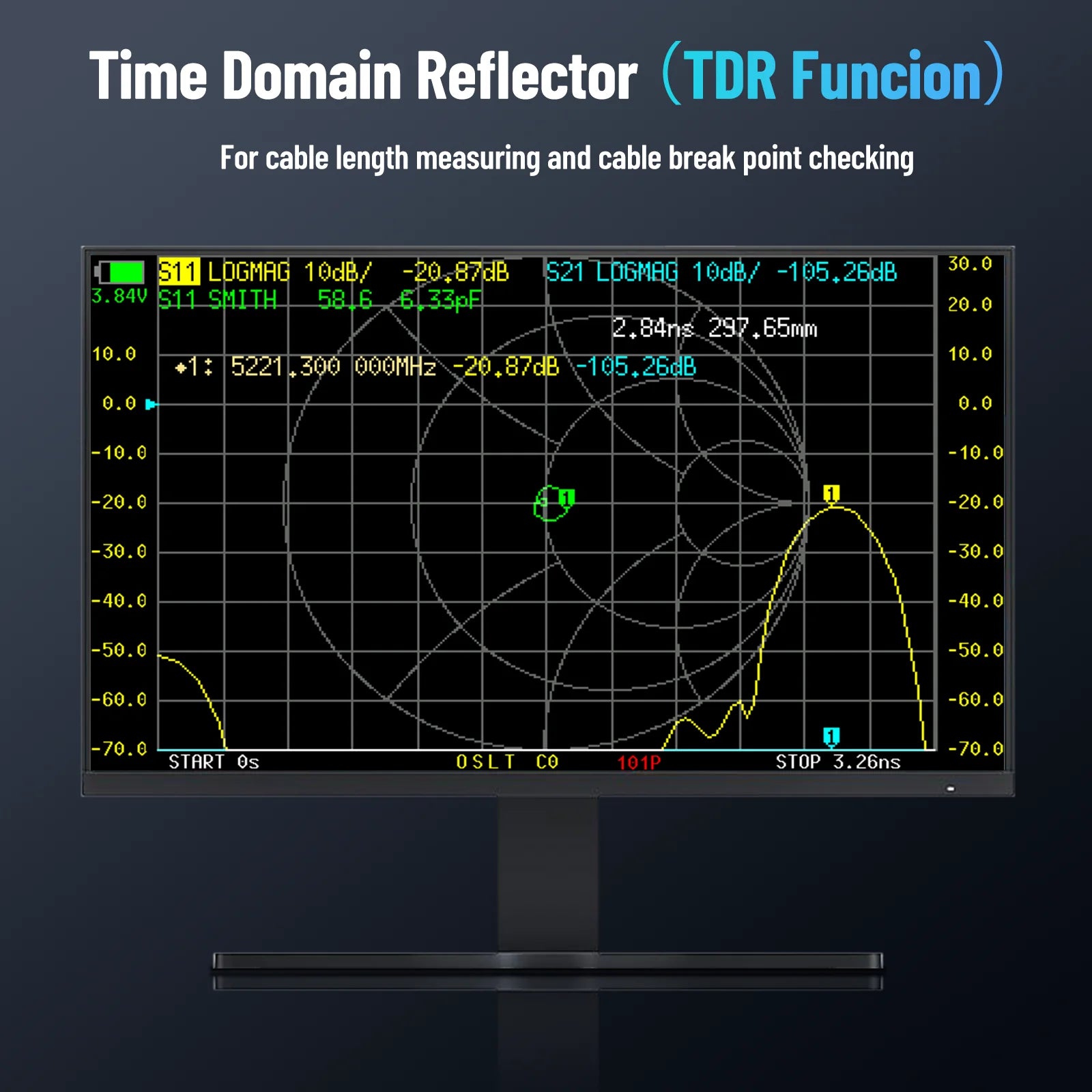

【Improved Performance】:This NanoVNA-F V3 vna analyzer is a new production machine from 2023, with 4.3 inch 800 x 480 large touchscreen display, 1MHz to 6GHz widely measuring range, the scan speed of NanoVNA-F V3 is up to 200 points/s and the maximum scanning points is up to 801.In addition, the nanovna analyzer supports TDR function which is useful for cable lengths measurement.
-
【Widely Frequency Range】:Compared to the Nanovna-F V2 (50kHz-3GHz), the upgraded Nanovna-F V3 has 1MHz-6GHz ultra-wide measuring frequency range, The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB. The scan points is up to 101-801 and the calibration result storage is 12, covering up to the full low or high frequency range. Faster and more accurate measurement performance, you can easily cope with measurement testes in various fields.
-
【Trustworthy Quality】:This nano vna analyzer measuring tool is made of metal material, which is durable and can effectively shield electromagnetic interference. With SMA connector design which can be used to connect DUTs directly.In addition,it is support PC Software control and compatible with NanoVNA-Saver for convenient measurement data transfer.Built-in 4500m-ah rechargeable battery,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to char
-

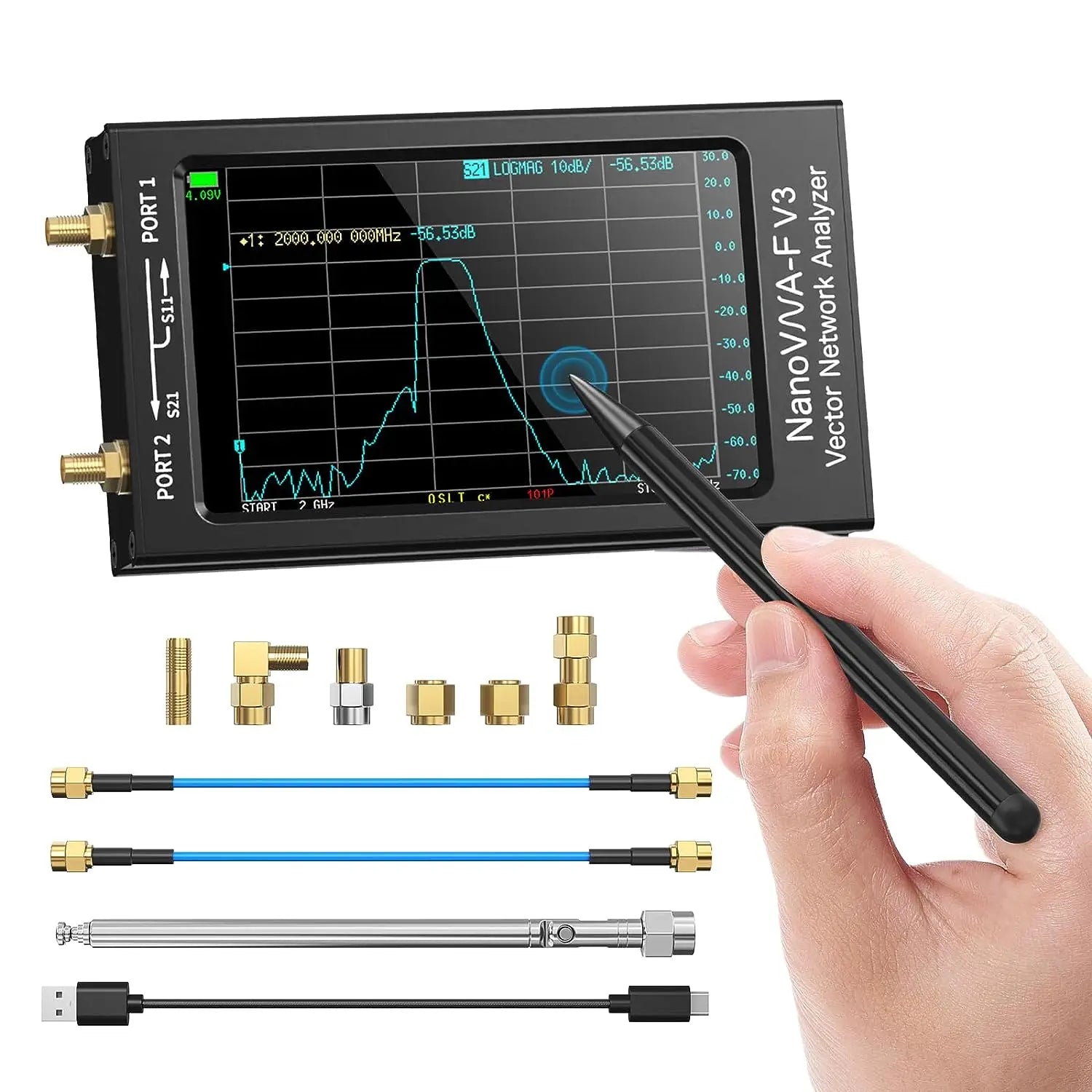

️【Multiple Measurement Functions】: SeeSii NanoVNA-F V3 antenna analyzer is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands. Supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components. For the amateur radio operator or radio enthusiast, this latest vna antenna analyzer

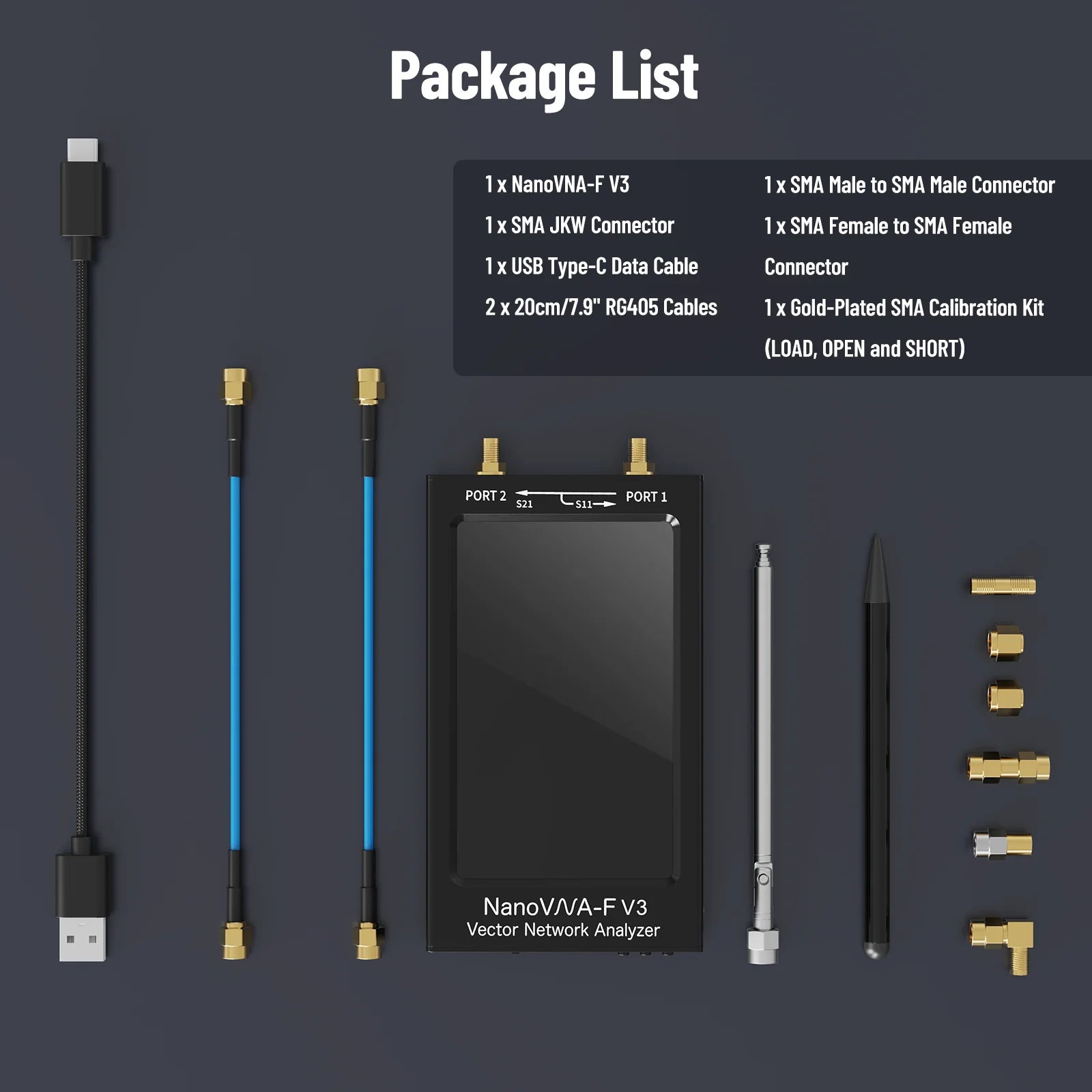

Packing List:

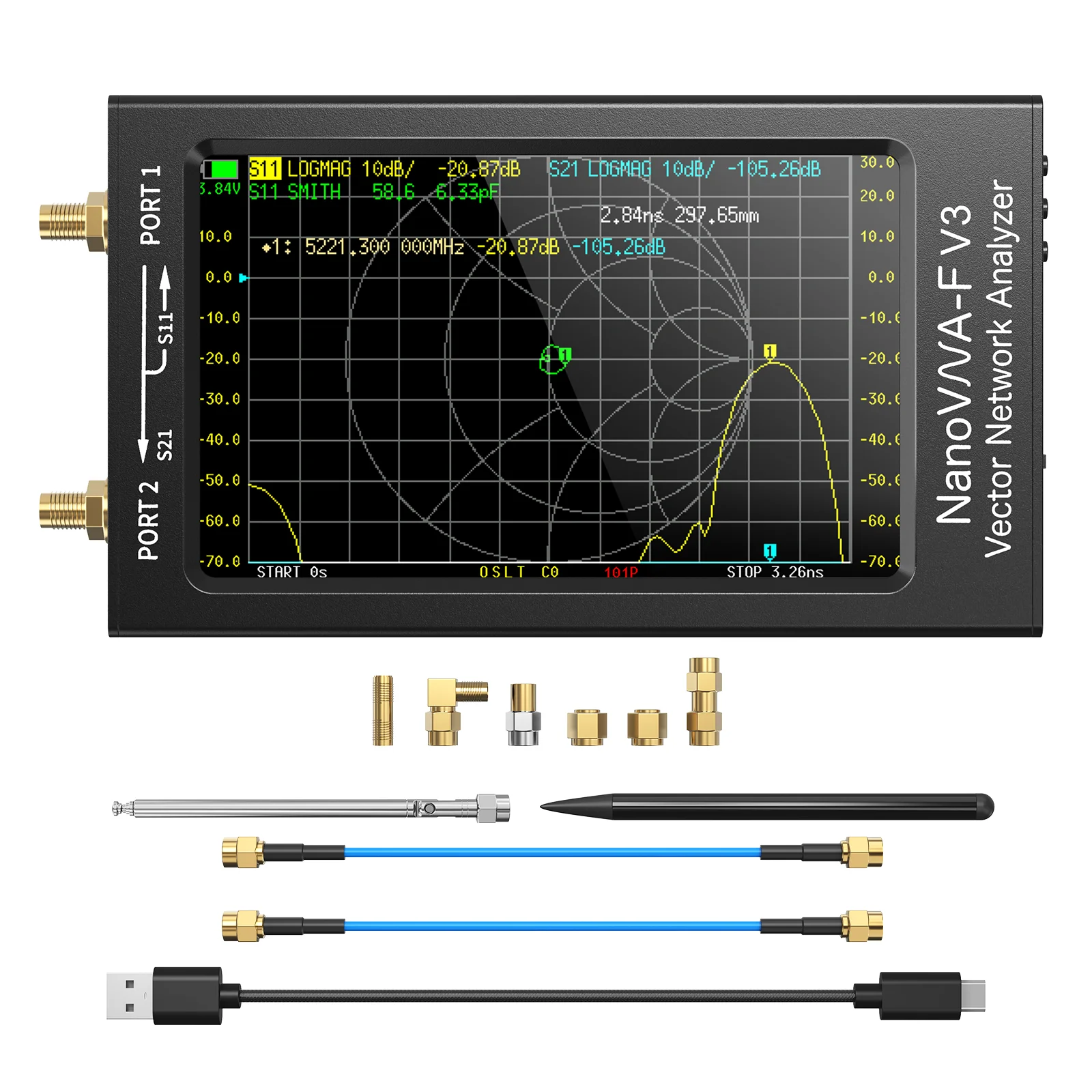

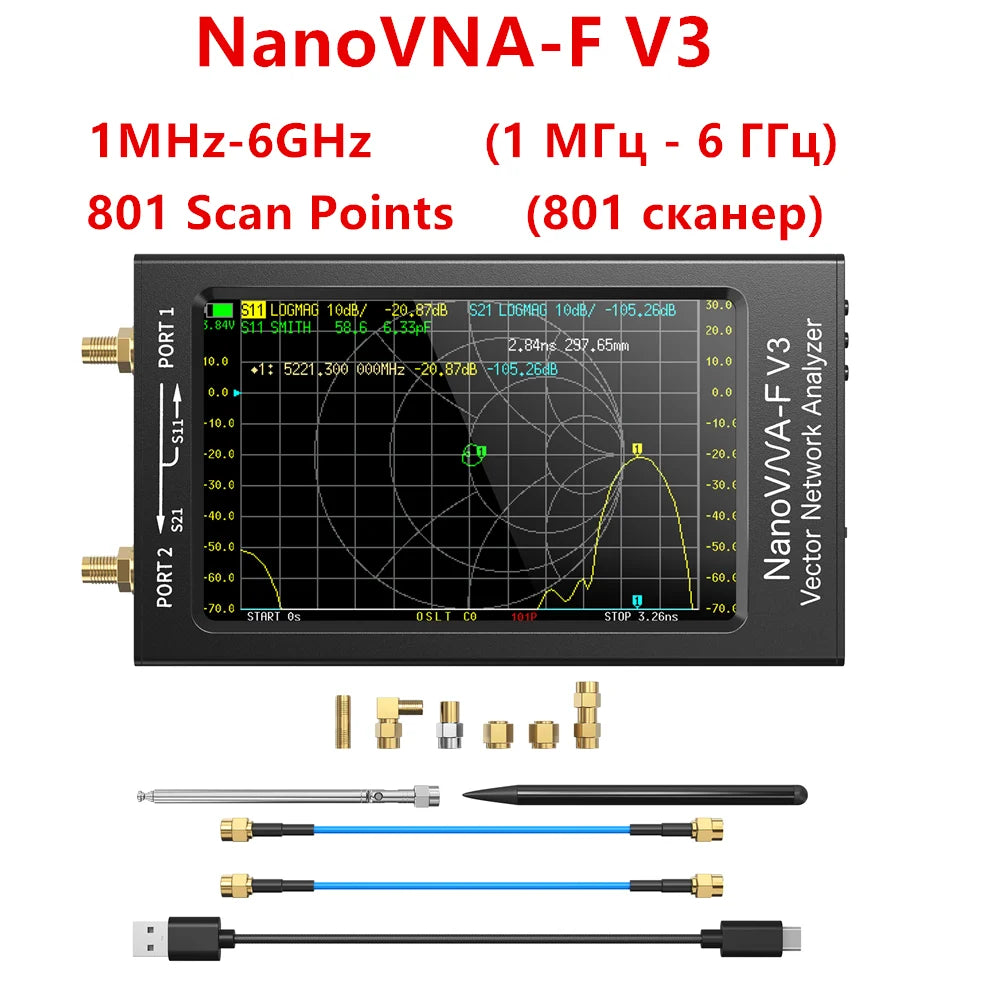

1 x NanoVNA-F V3,
1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT),
1 x SMA Female to SMA Female Connector,
1 x SMA Male to SMA Male Connector,
1 x SMA JKW Connector,2 x 20cm/7.9" RG405 Cables,
1 x USB Type-C Data Cable
