Product Summary
120W Buck Boost Converter Adjustable Regulated Power Supply Input Constant Voltage Constant is a power and battery module selected for power conversion, battery testing, charging and regulated output projects. It is suitable for electronics builders, repair users and lab bench users who need practical electronics hardware for reliable project work.
Best For
- power conversion, battery testing, charging and regulated output projects
- DIY electronics, battery packs, solar modules and bench power workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics builders, repair users and lab bench users.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
120W/150W Buck Boost Converter Adjustable Regulated Power Supply Input Constant Voltage Constant Current Solar Charging Module
Product parameters
Product name: DC buck-boost power supply

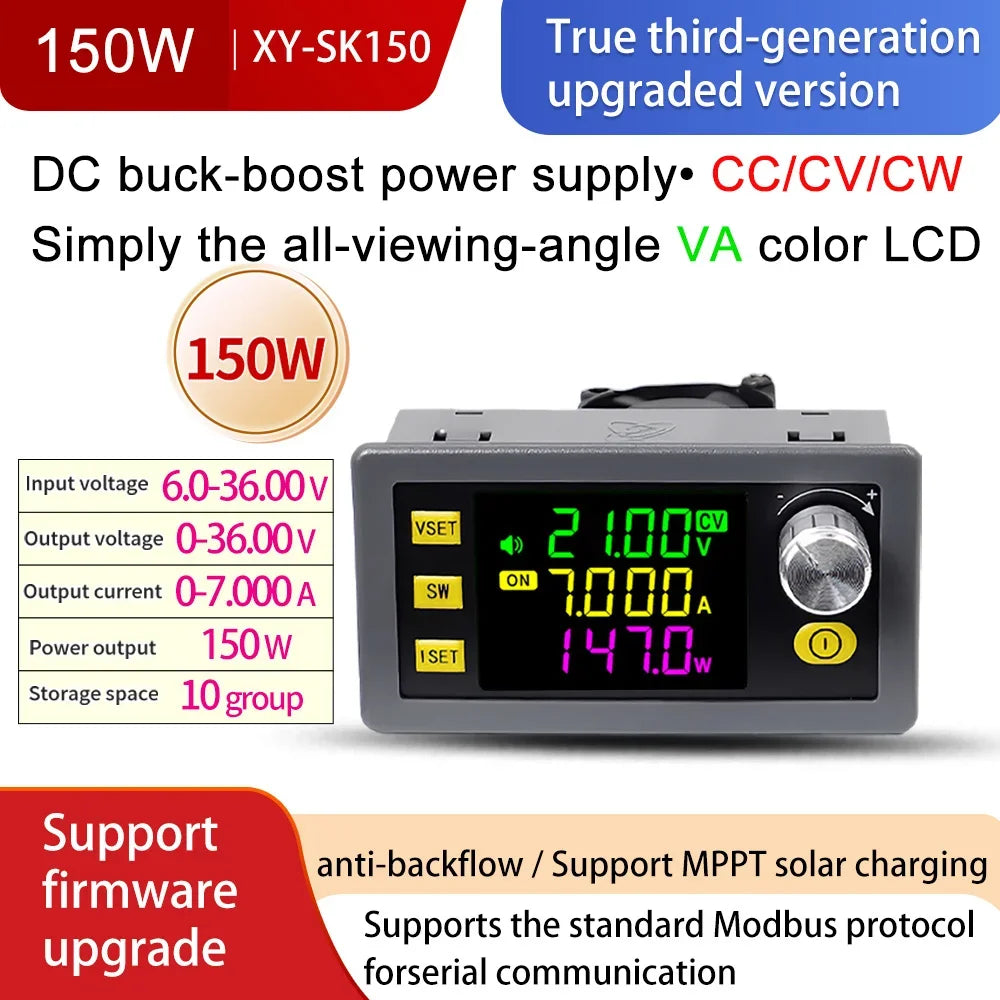

●Model:XY-SK150
Input voltage:6-36.00V
Output voltage:0.0-36.00V
Output current:0-7.000A
Accuracy of voltage:+0.5%+1 word
Power output:150W
Accuracy of current:±0.5%+3 word
Resolution of voltage:0.01V
Resolution of current:0.001A
Storage data group:10 groups

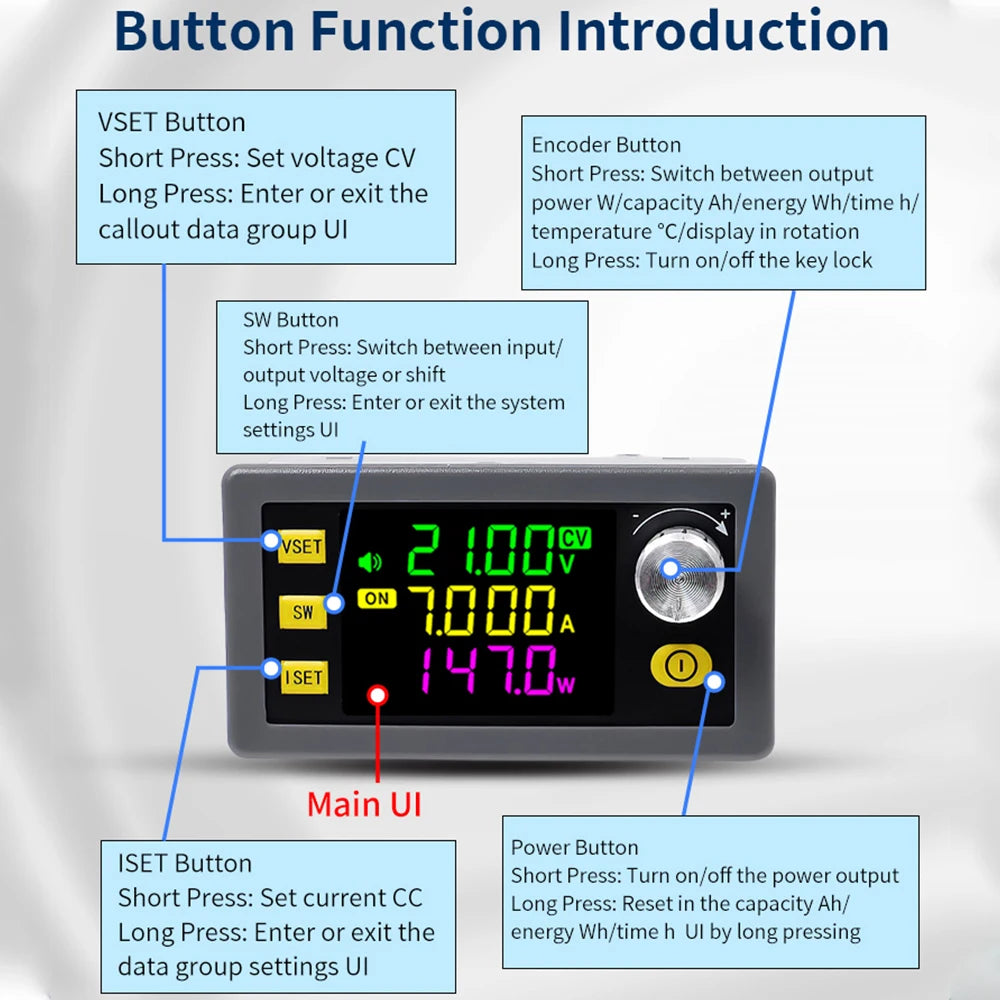

Number of buttons:5

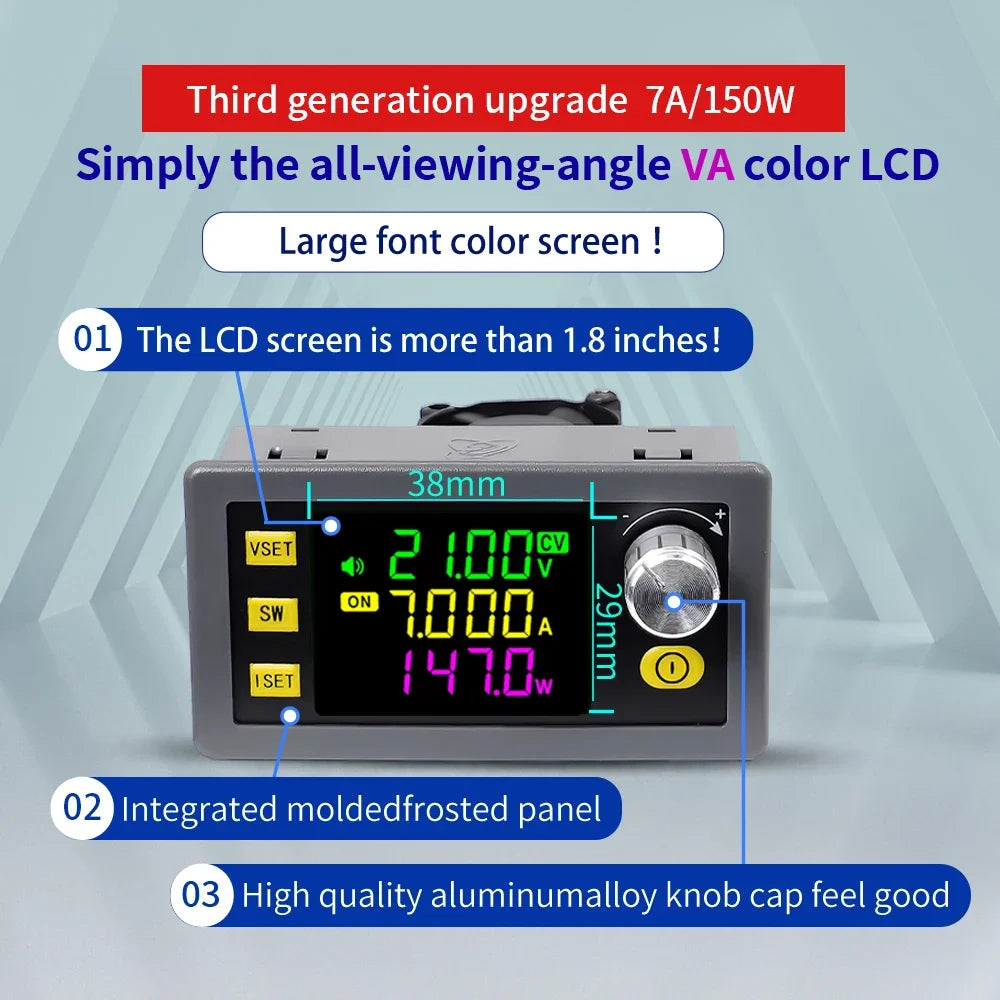

Screen size:Over 1.8-inch LCD with a viewable area of 38*29mm
Buzzer: YES
Soft start: YES
Efficiency of conversion: About 88%
Output ripple typical value: vpp-150mv
MPPT function: Support MPPT solar charging
Size:SK-150:79x43x50mm
Weight:SK-150:108g
Anti-reverse: YES
Anti-backflow: YES
under-voltage (LUP): (Adjustable 5.5-36V, default 5.5V)
over-voltage (OUP): (Adjustable from 0 to 38V, default is 38V)
over-current (OCP): (Adjustable from 0 to 7.2A, default 7.2A)
over-power (OPP): (Adjustable from 0 to 180W, default is 160W)

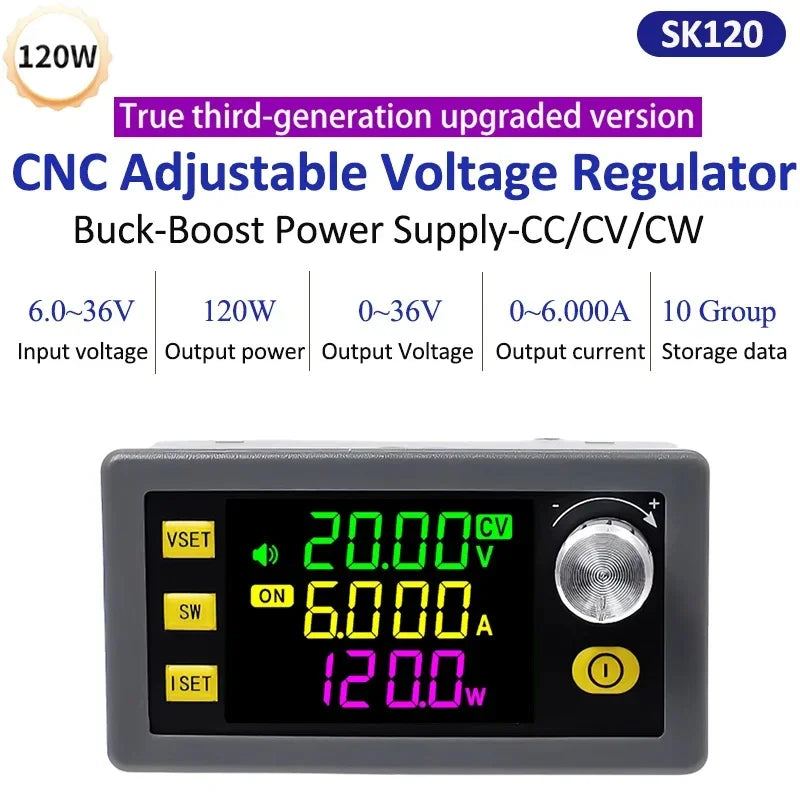

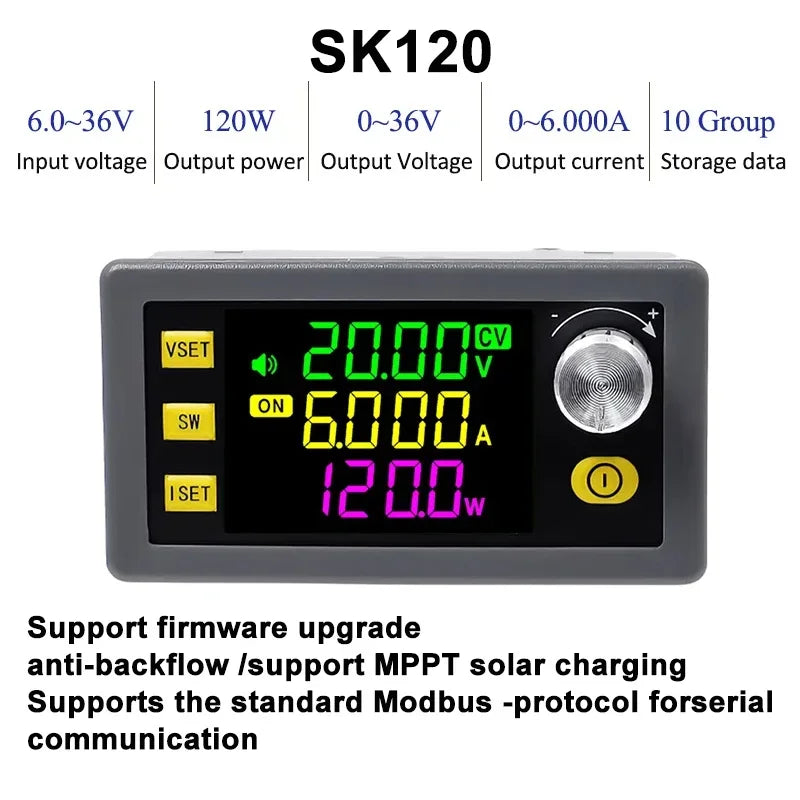

●Model:XY-SK120
Input voltage: 6.0-36V
Output current: 0-6.000A
Output power: 120W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0-36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: support MPPT solar charging
Buzzer: Yes
Soft start: Yes
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V
adjustable, default 5.5V
Output over-voltage protection: 0-38V
adjustable, default 38V
Output overcurrent protection: 0 -6.2A adjustable, default 6.2A
Output over power protection: 0-150W adjustable, default 125W
Over-temperature protection: 0-110 deg C adjustable, default 95 deg C
Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0-9999AH adjustable, default off
Super energy protection: 0-9999KWH adjustable, default off
