Riepilogo del prodotto

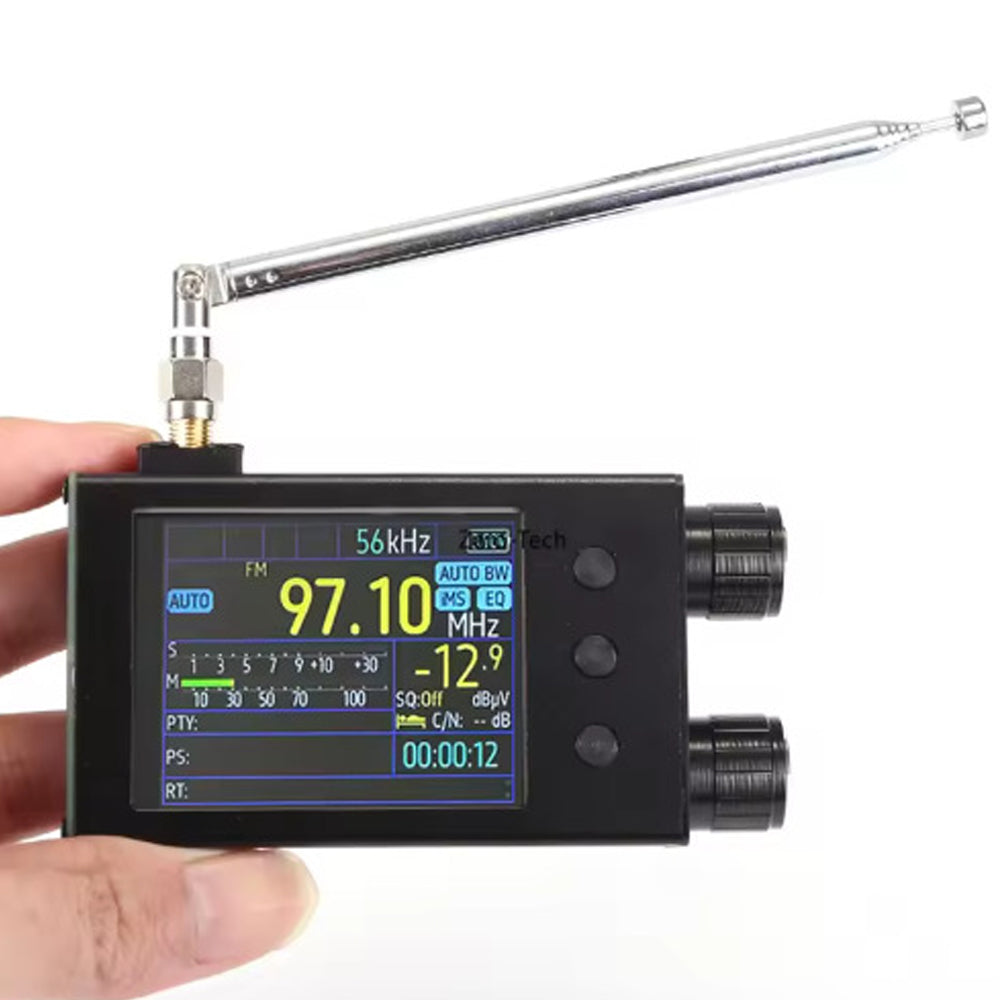

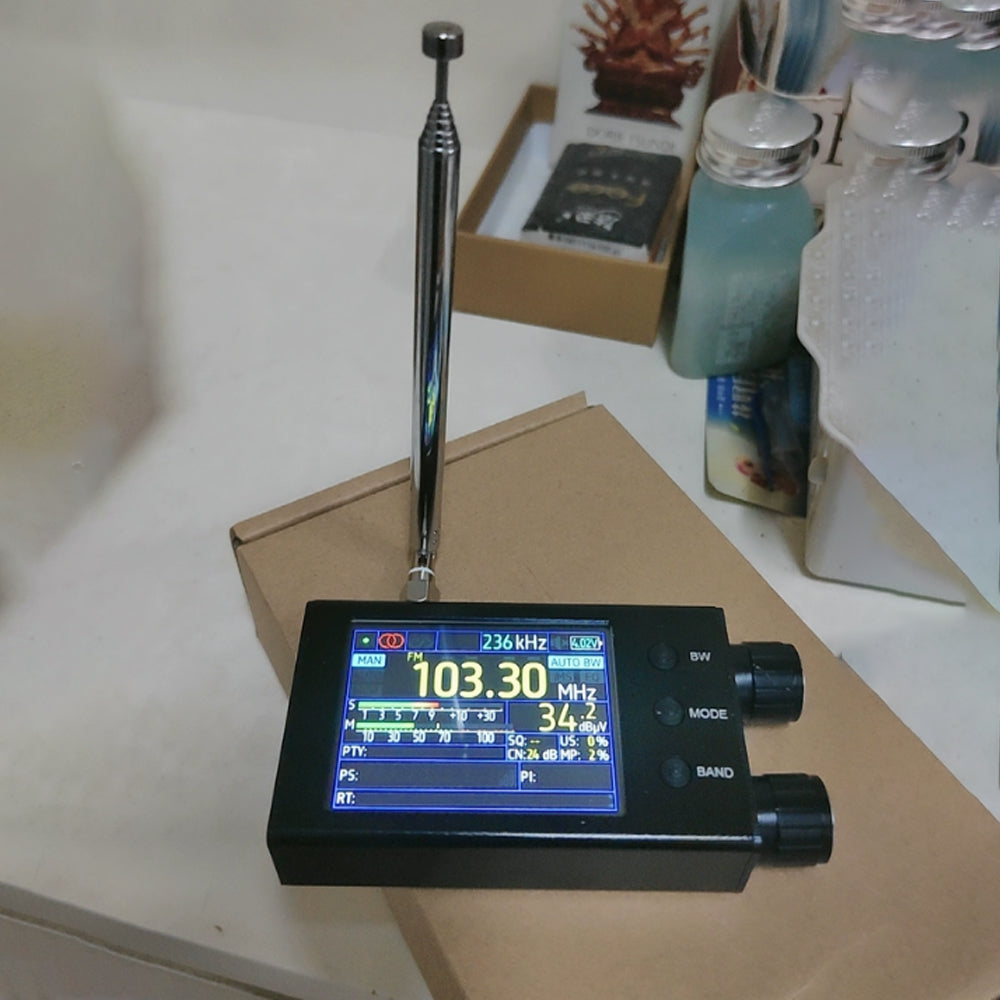

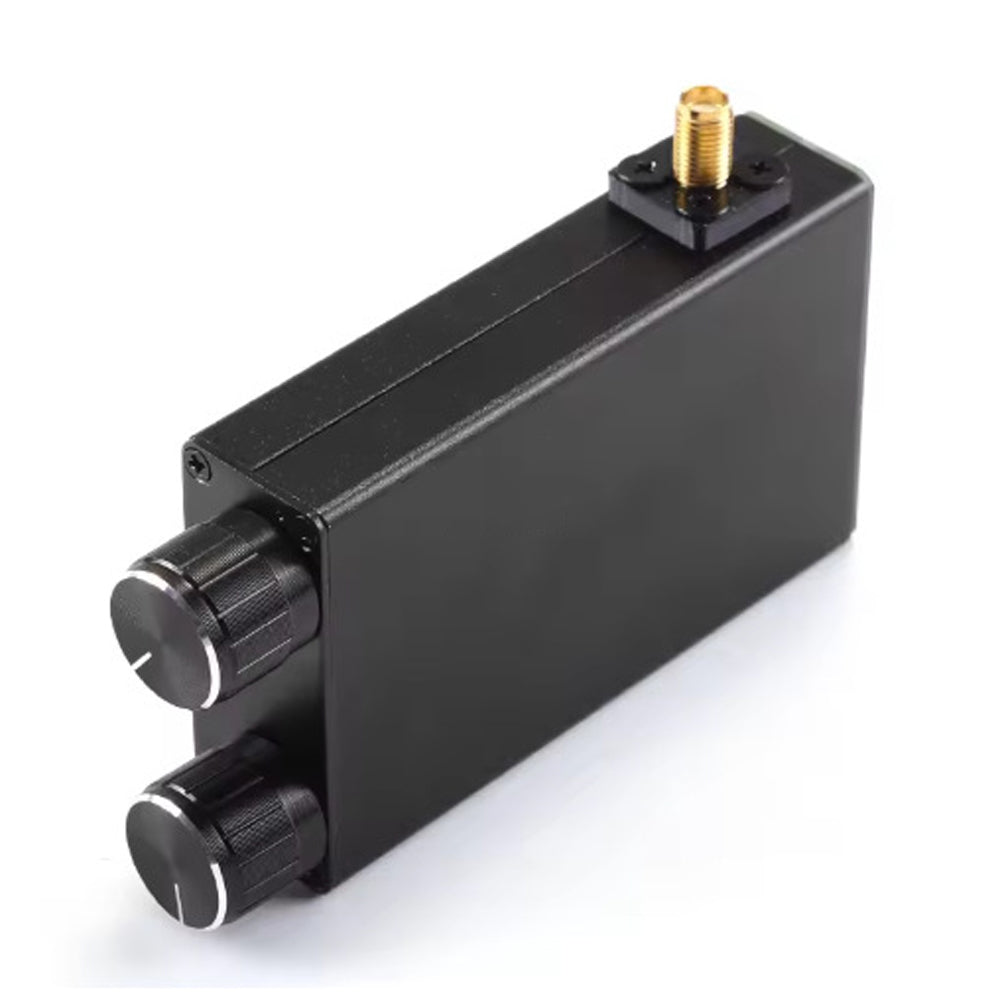

Mini Black portatile TEF6686 Full Band FM/LW/MW/SW Radio ricevitore 2.4" schermo touch is a RF wireless product selected for wireless communication, antenna experiments and radio signal workflows. È adatto per radio users, SDR experimenters and wireless project builders che hanno bisogno di hardware elettronico pratico per lavorare in modo affidabile sui propri progetti.
Ideale per
- wireless communication, antenna experiments and radio signal workflows
- SDR receivers, LoRa modules, antennas and RF test setups
- test elettronici, riparazione, prototipazione e flussi di lavoro maker
FAQ
Per chi è questo prodotto? È destinato a radio users, SDR experimenters and wireless project builders.
Cosa devo controllare prima di acquistare? Consulta in questa pagina le opzioni del prodotto, le specifiche, gli accessori inclusi e i dettagli di compatibilità.
Description:
With TEF6686 automotive-grade ricevitore chip for NXP, TEF6686 radio ricevitore has high-tech anti-interference and excellent sound quality performance. Its 2.4-inch color screen can Display more station news and information.
It boasts regolabile bandwidths, RDS reception and regolabile frequency range of 64-108MHZ. Thus, the TEF6686 full band radio is more suitable for amateurs to carry out FMDX remote reception.
Functions:
- FM: 65-108MHz. Intelligent stepping 0.01MHz/0.1MHz/1MHz/10MHz. regolabile bandwidth: 56/64/72/84/97/144/133/151/168/184/200/217/236/254/287/311KHz
- SW: 1700-27000kHz. Intelligent stepping 1kHz/10kHz/100kHz. regolabile bandwidth 3/4/6/8khz
- MW: 522-1620kHz. Intelligent stepping 1kHz/10kHz/100kHz and regolabile bandwidth 3/4/6/8kHz
- LW: 144-519kHz. Intelligent stepping 1kHz/10kHz/100kHz and regolabile bandwidth 3/4/6/8khz
- Station selection methods: manual tuning, automatic tuning and access to the stored stations

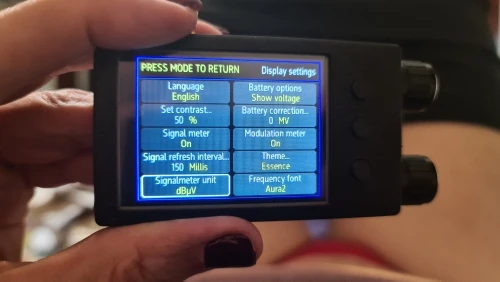

- Multiple languages: Chinese, Norsk, Espanol, Portugues, English, Nededlands, Polski, Hrvatski, Ltaliano, etc. (English by default). (Language setting: long press Mode button to enter the menu ---Display setting-language)
- Backlight brightness and screensaver time of the screen can be adjusted
- You can freely choose different theme interfaces and colors

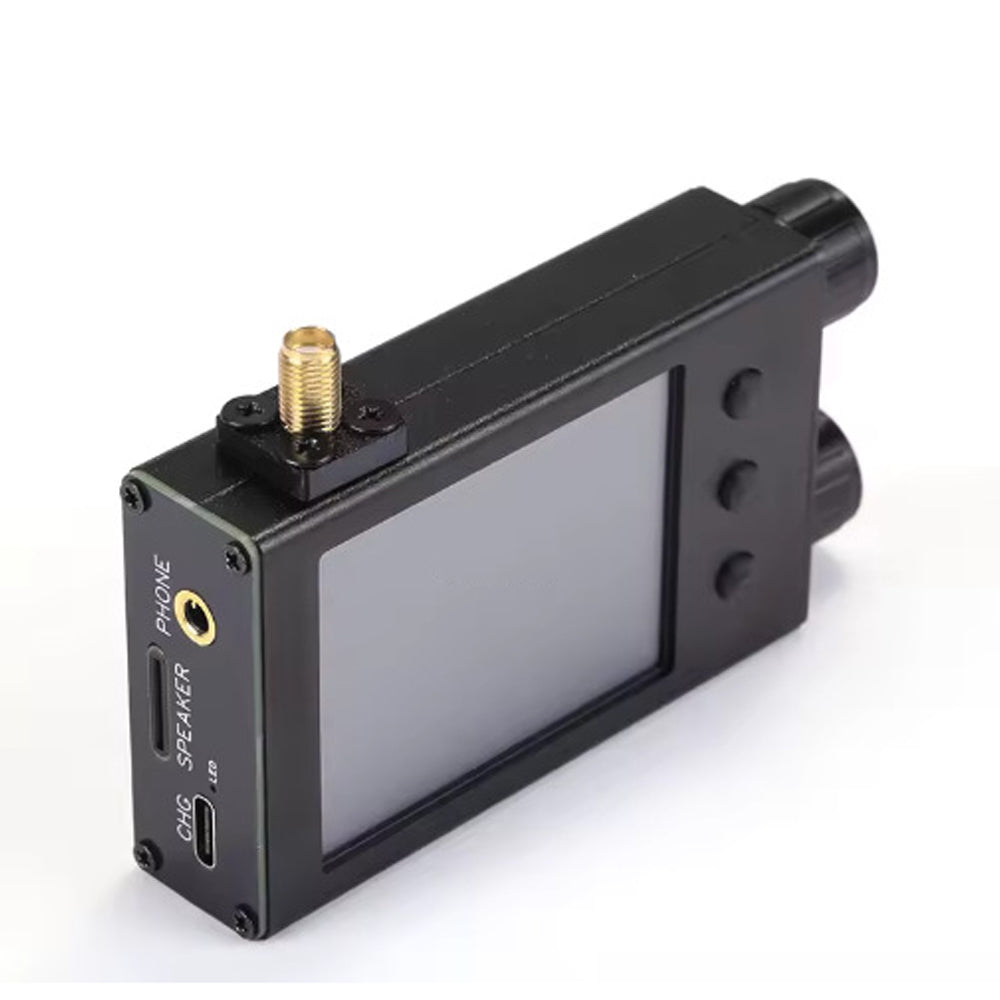

-TEF6686 radio supports squelch adjustment, optional 3.5mm stereo headphones and loudspeaker for listening
- Supports RDS and displays station name, program name, etc.
- Can be charged by a charger or a computer, with charging status indicator light
- Type-c interface makes it easy to charge and to connect with a computer
- portatile and more compact design makes it more convenient to carry
Specifications:
- Dimensions:85mm x 49mm x23mm
- Speaker: Cavity 4 ohm 2W
- Battery: 4.2V 1000MAH
- Screen: 9341 2.4" touch
- Charging voltage: DC 5V
- Antenna interface: SMA-K
Specifications:
- Material: PLA
- FM: 65MHZ-108MHZ
- LW: 144KHZ-519MHZ
- MW: 522KHZ-1.7MHZ
- SW: 1.7MHZ-27MHZ
- Size: 85mm x 49mm x23mm

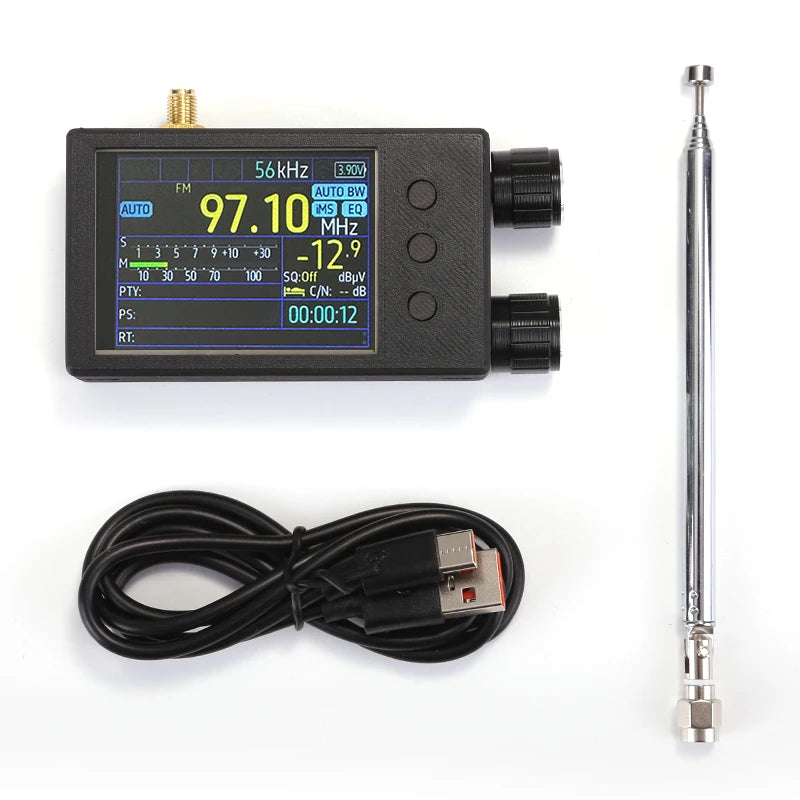

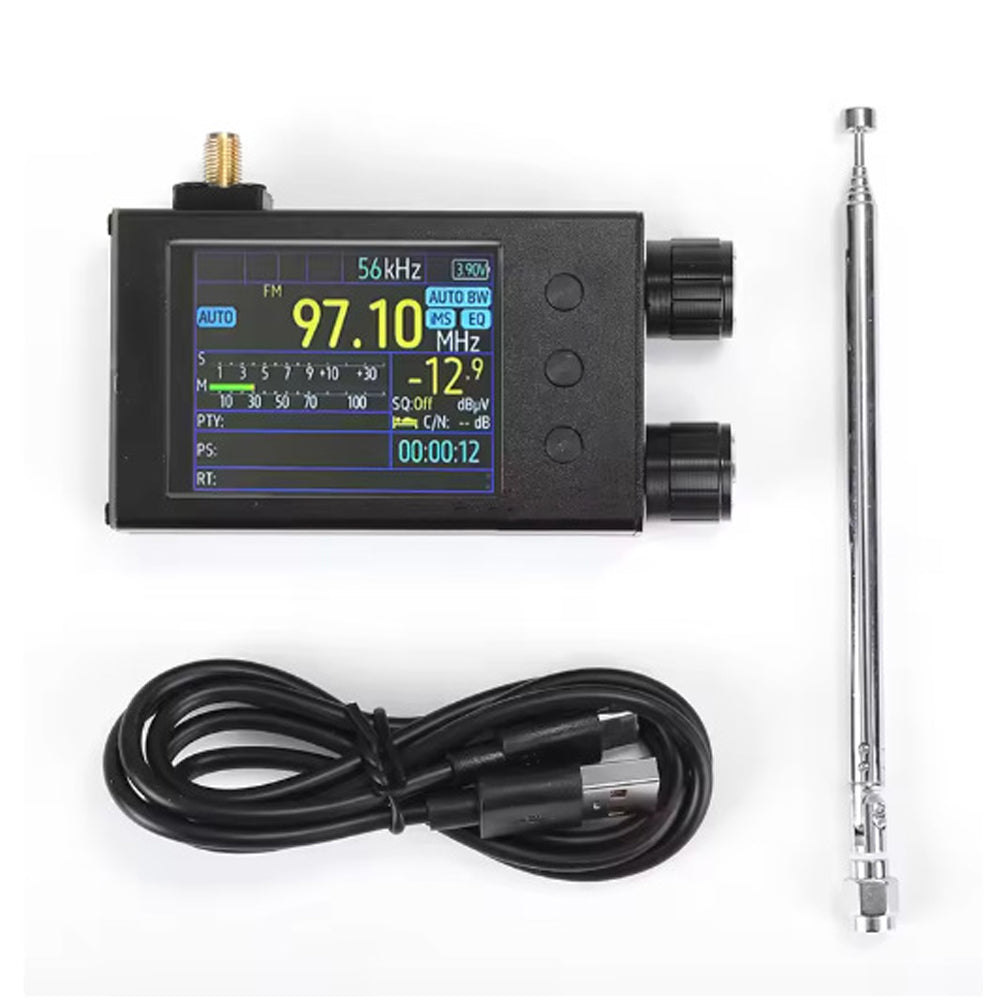

Package Included:
- 1 x radio ricevitore
- 1 x Antenna
-1 x Type-c data cable
