Riepilogo del prodotto
M5Stack StickS3 StickC PLUS2 Upgraded Version ESP32-S3 8MB Programmable Controller BT WiFi is a scheda di sviluppo selected for building connected devices, firmware tests and rapid electronics prototypes. È adatto per makers, embedded developers and IoT prototyping teams che hanno bisogno di hardware elettronico pratico per lavorare in modo affidabile sui propri progetti.
Ideale per
- building connected devices, firmware tests and rapid electronics prototypes
- Arduino, MicroPython, sensors, displays and expansion modules
- test elettronici, riparazione, prototipazione e flussi di lavoro maker
FAQ
Per chi è questo prodotto? È destinato a makers, embedded developers and IoT prototyping teams.
Cosa devo controllare prima di acquistare? Consulta in questa pagina le opzioni del prodotto, le specifiche, gli accessori inclusi e i dettagli di compatibilità.

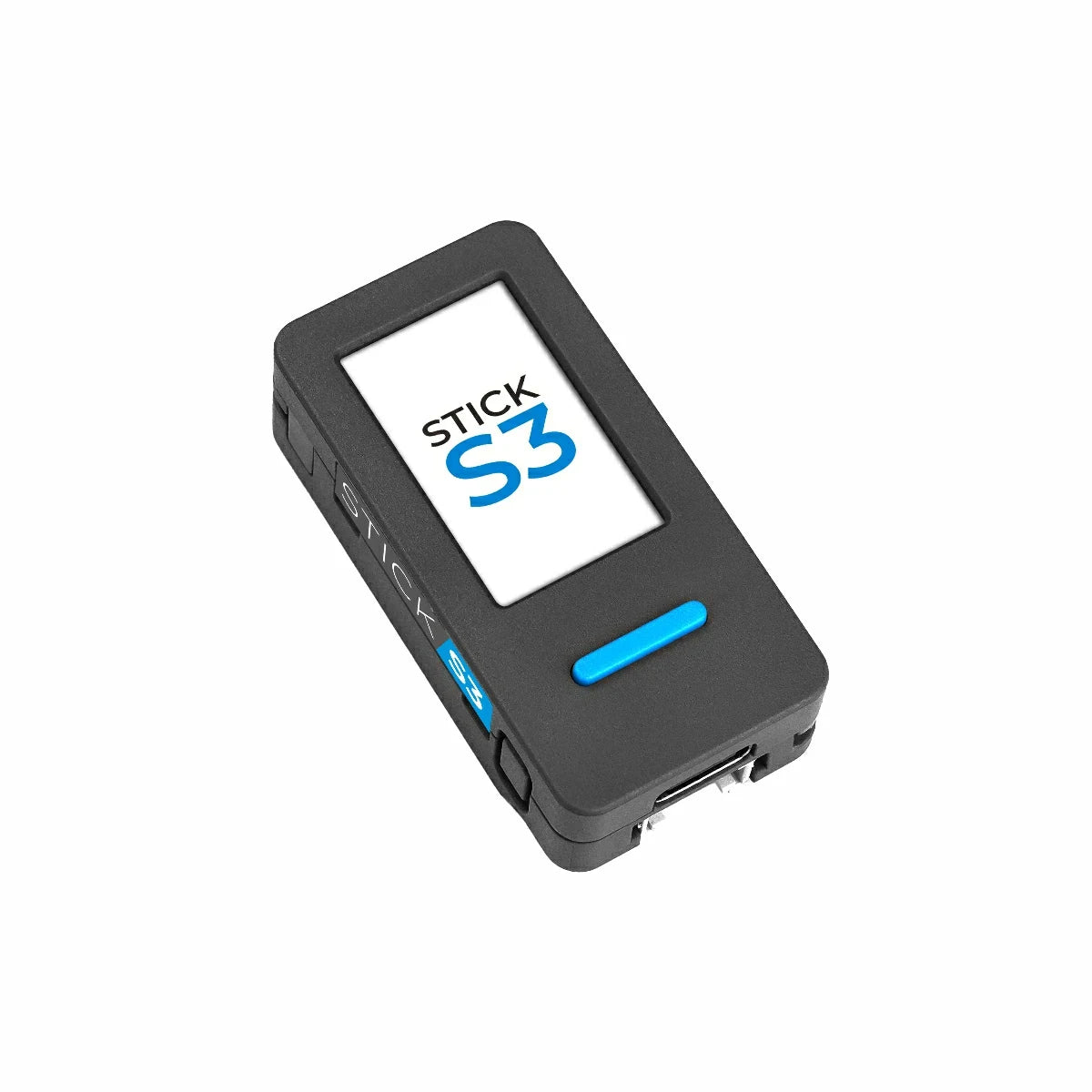

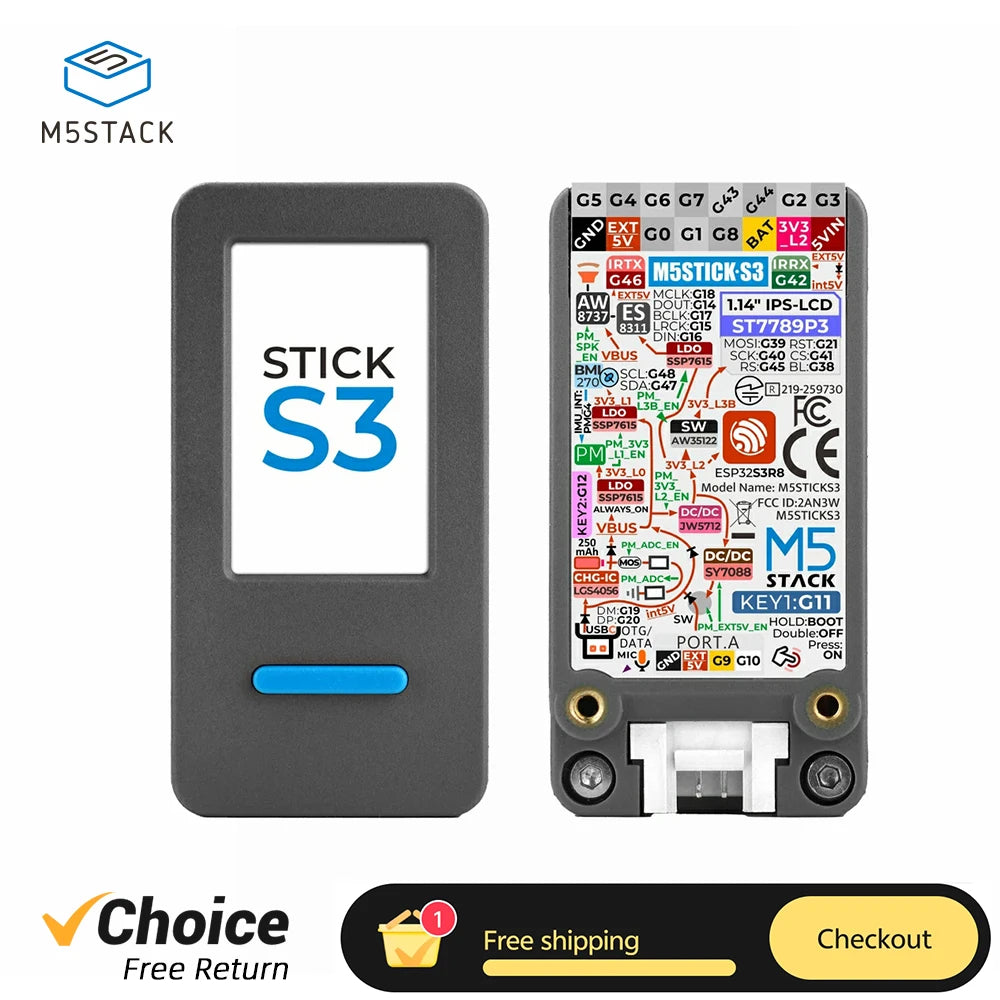

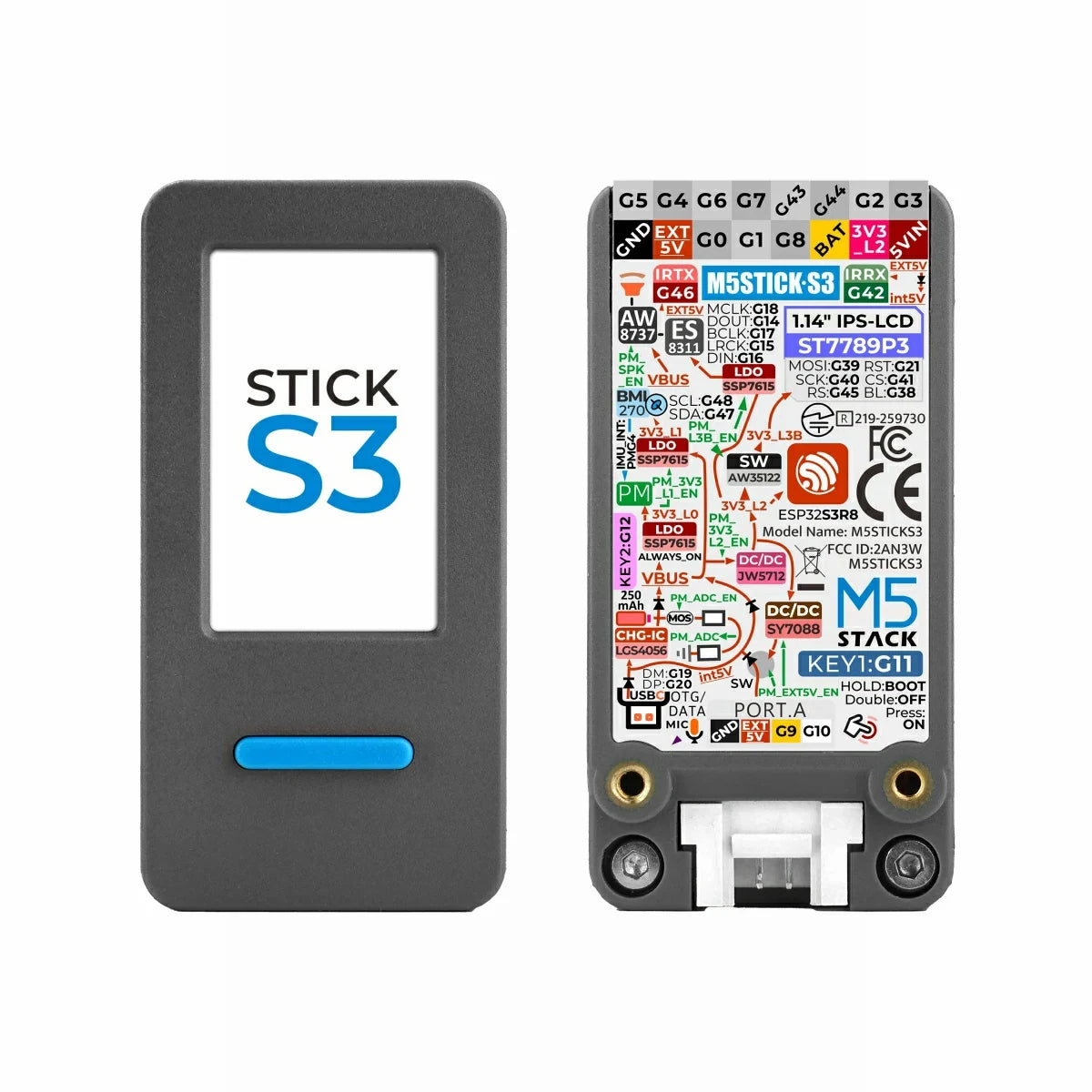

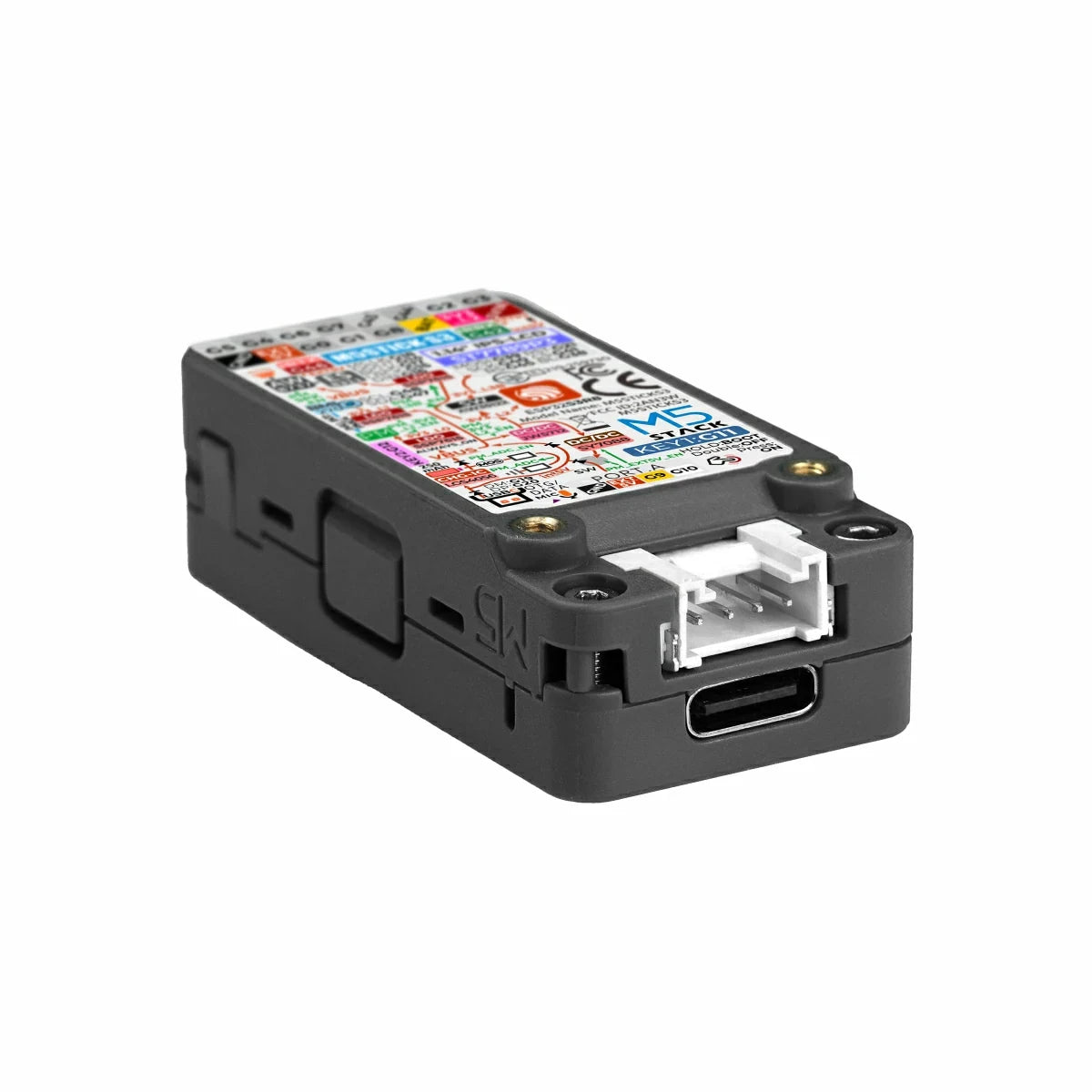

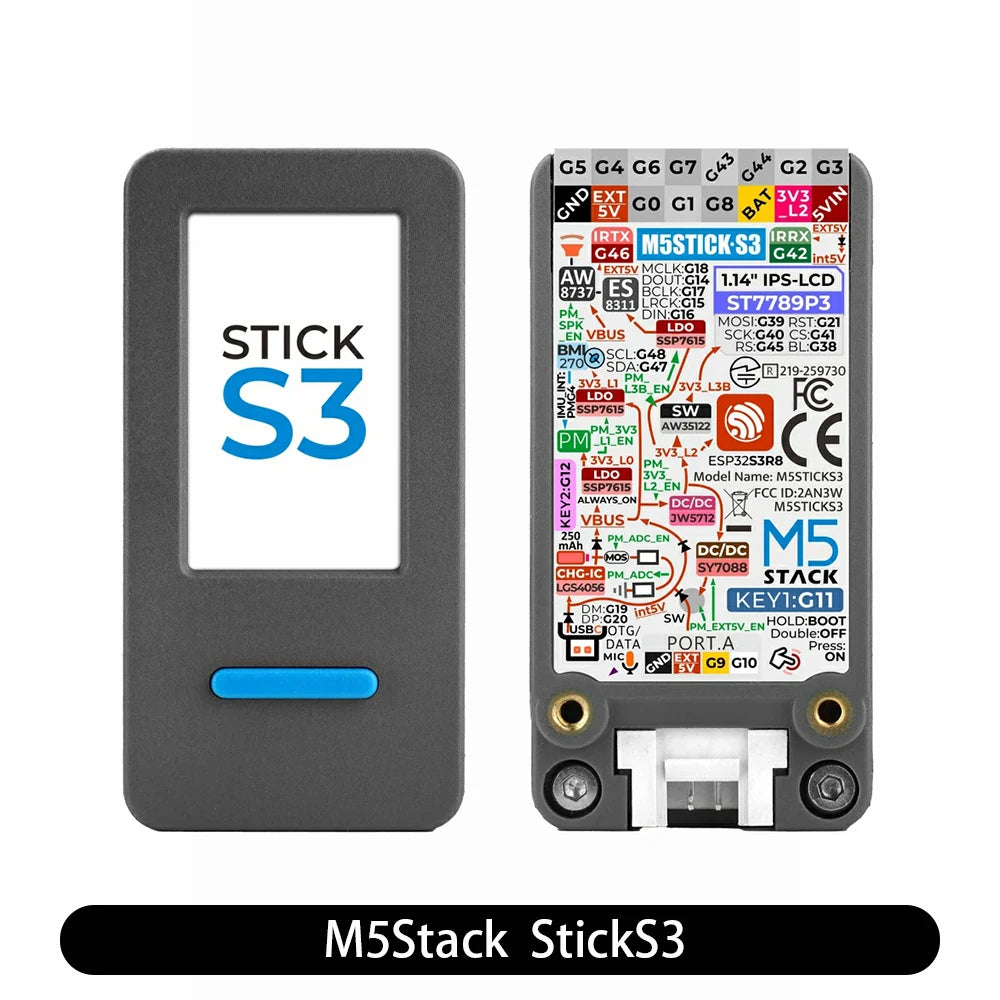

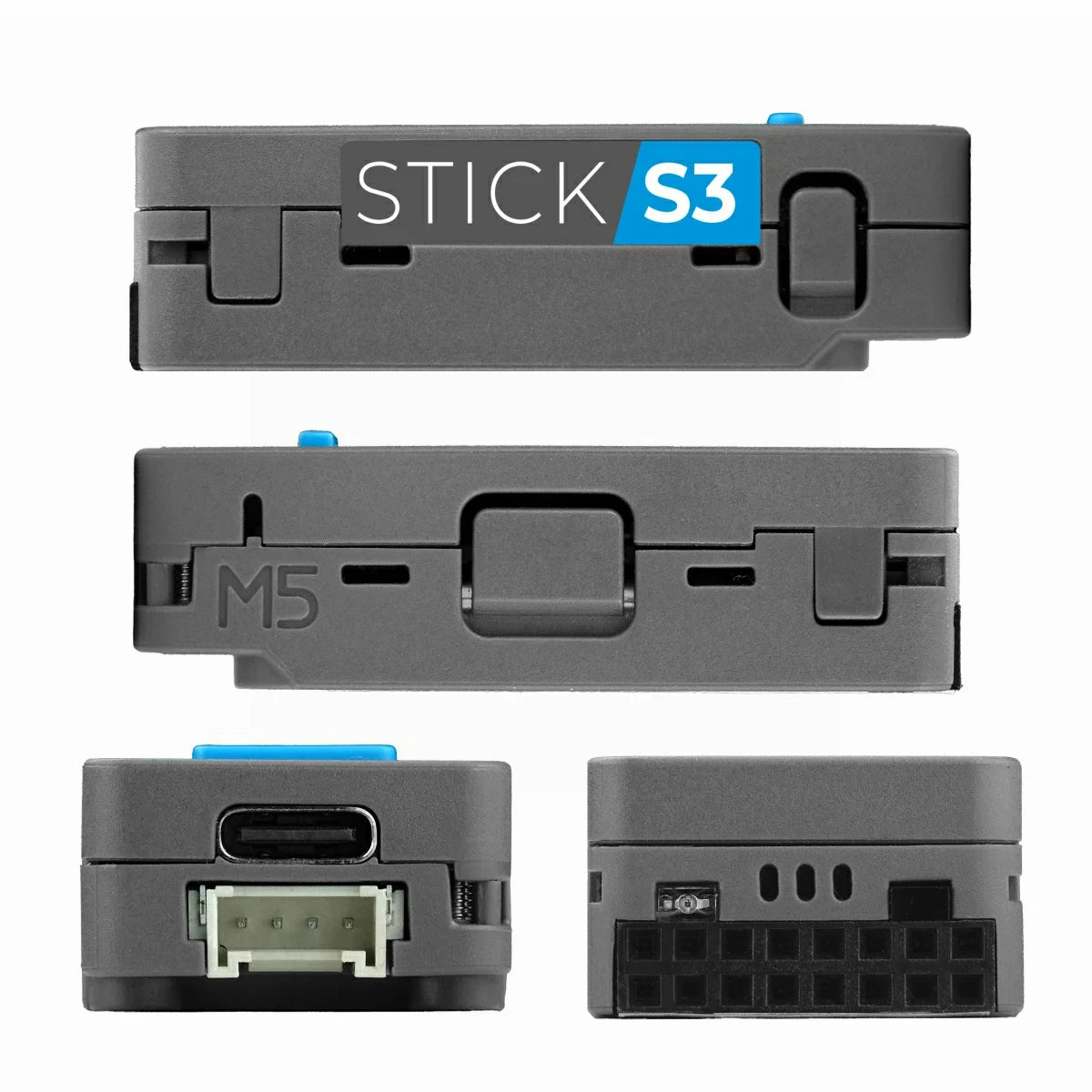

M5Stack StickS3 IoT Programmable Controller

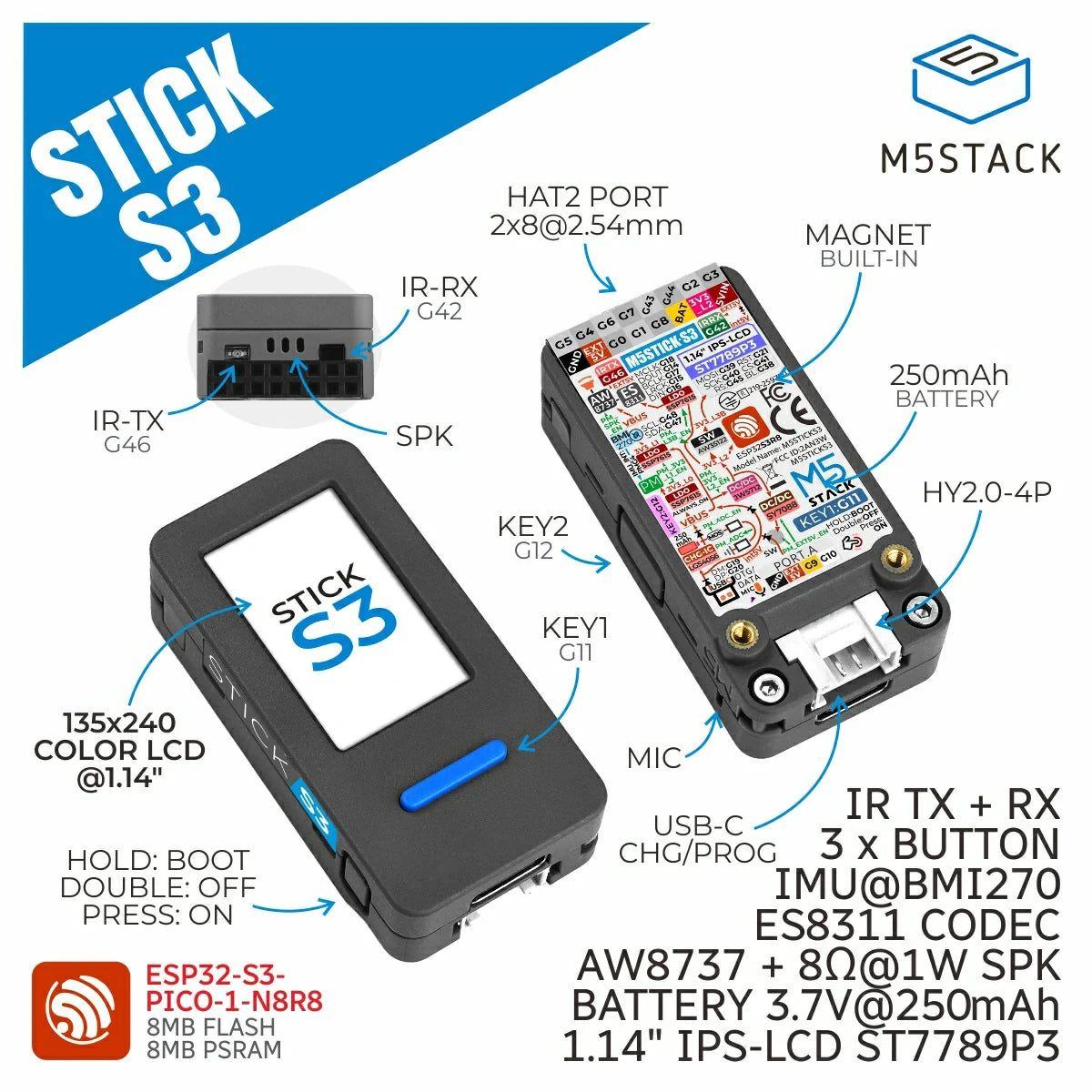

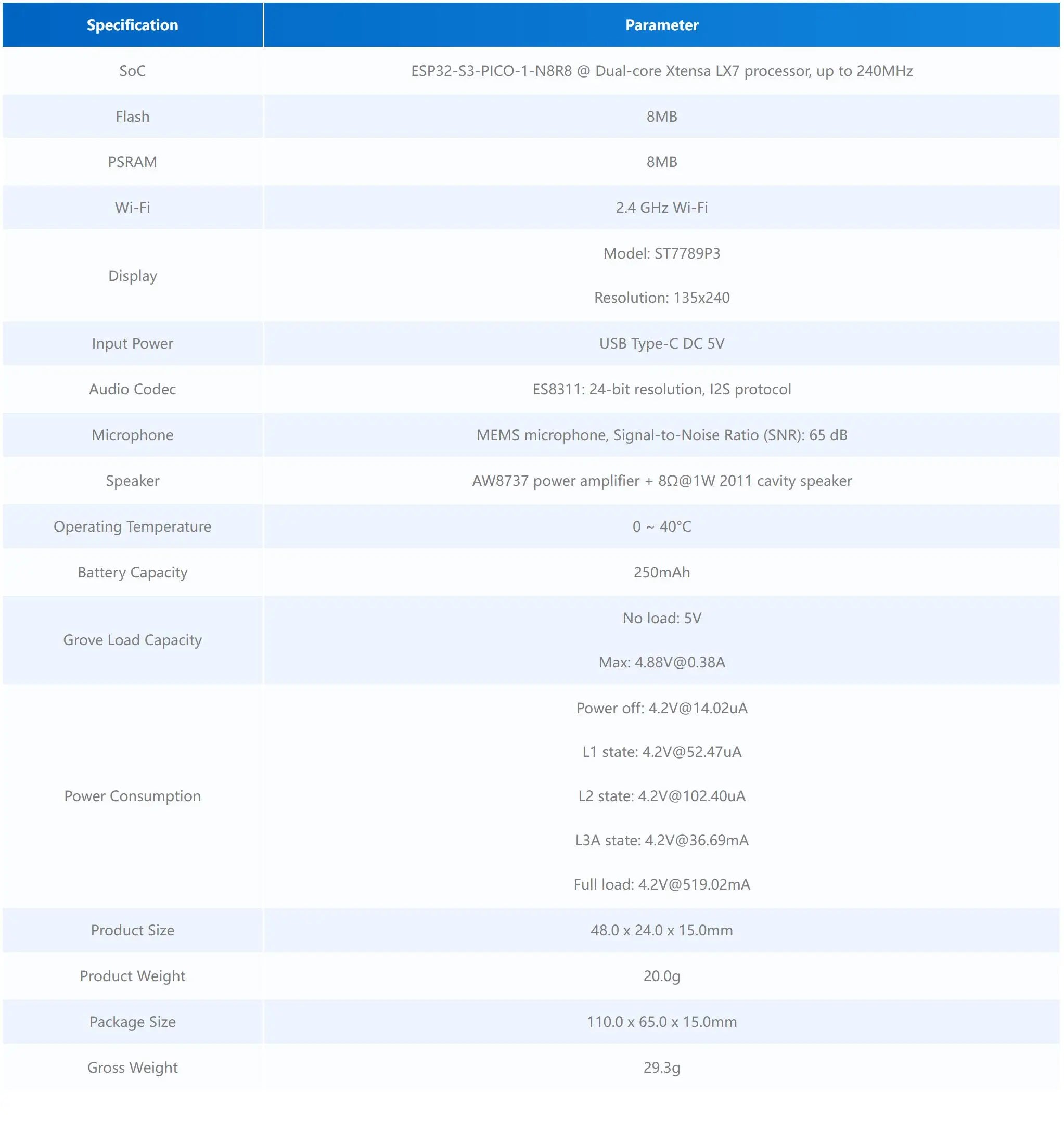

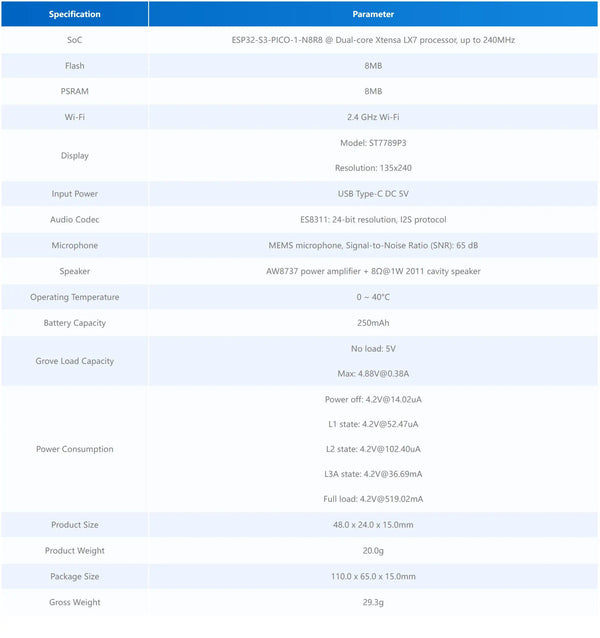

Integrated ESP32-S3-PICO-1-N8R8 main controller
8MB Flash and 8MB PSRAM
ES8311 mono audio codec chip
MEMS microphone + speaker
Integrated IR trasmettitore + IR ricevitore
Magnetic back design

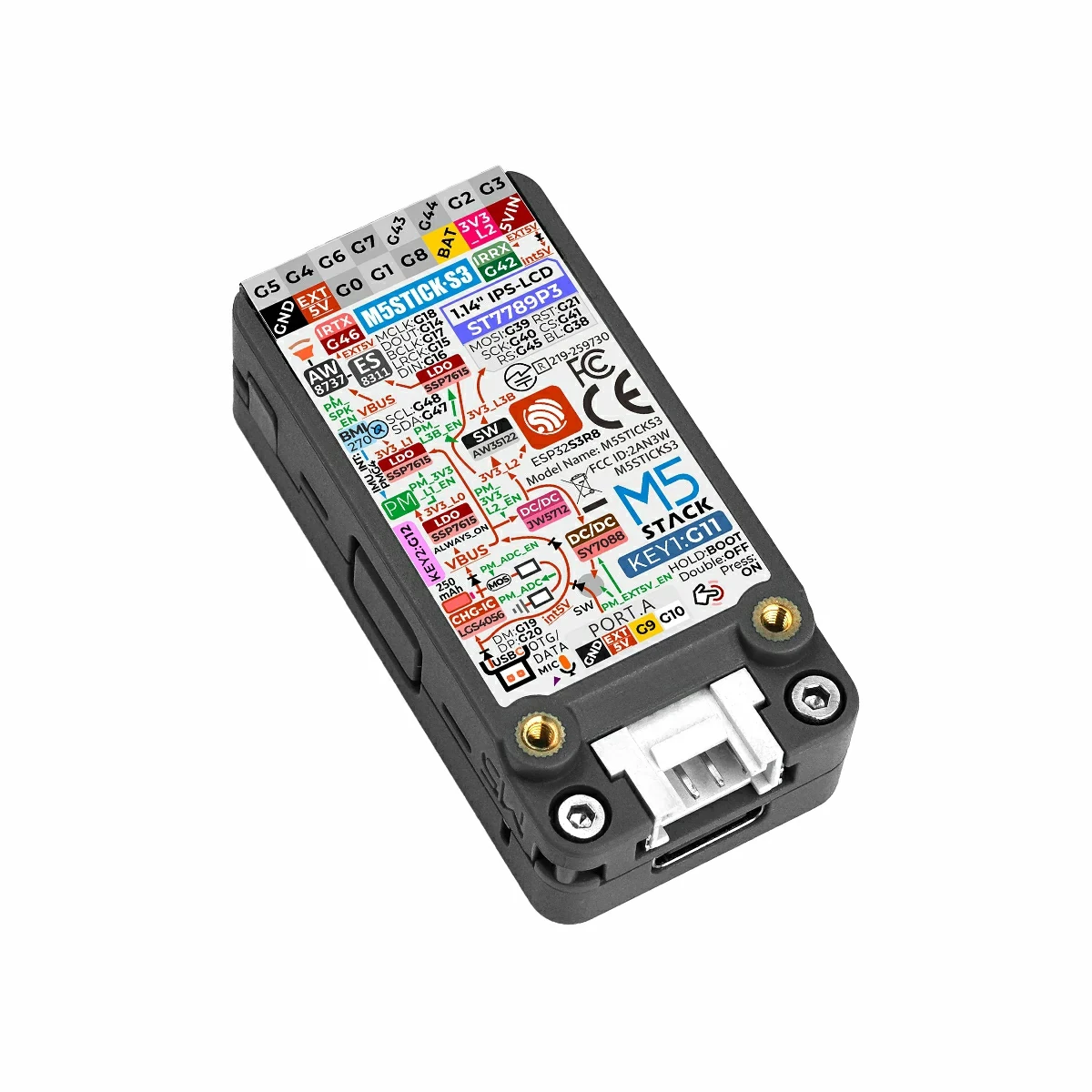

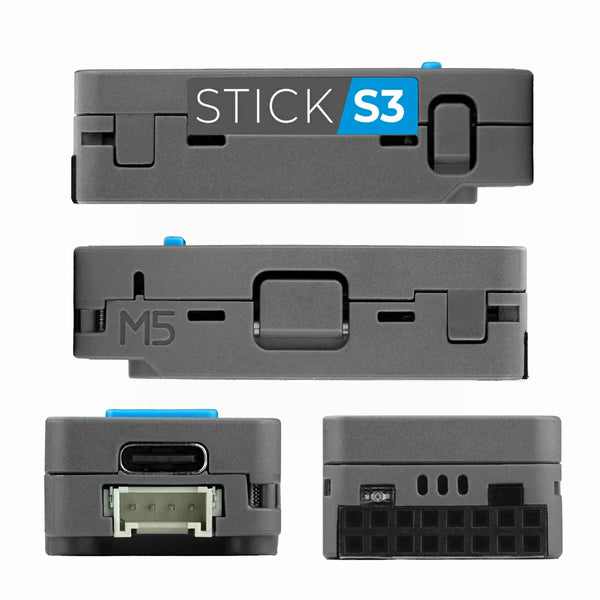

Expansion interfaces:

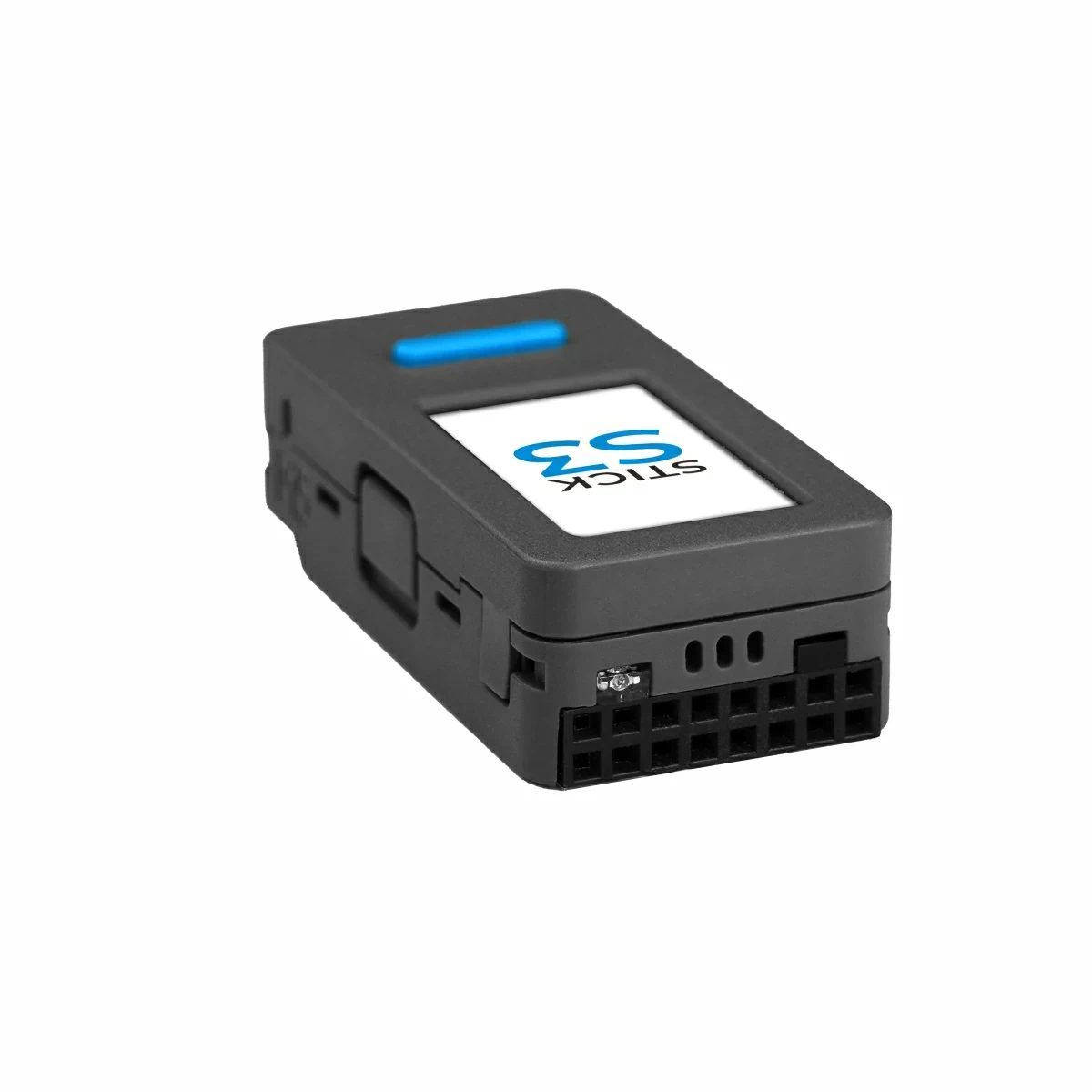

Expandable Hat2 bus (2.54-16P)
HY2.0-4P interface
Development Platform
Arduino
UiFlow2
ESP-IDF
PlatformIO
Smart home control
AI voice assistant
IoT project development

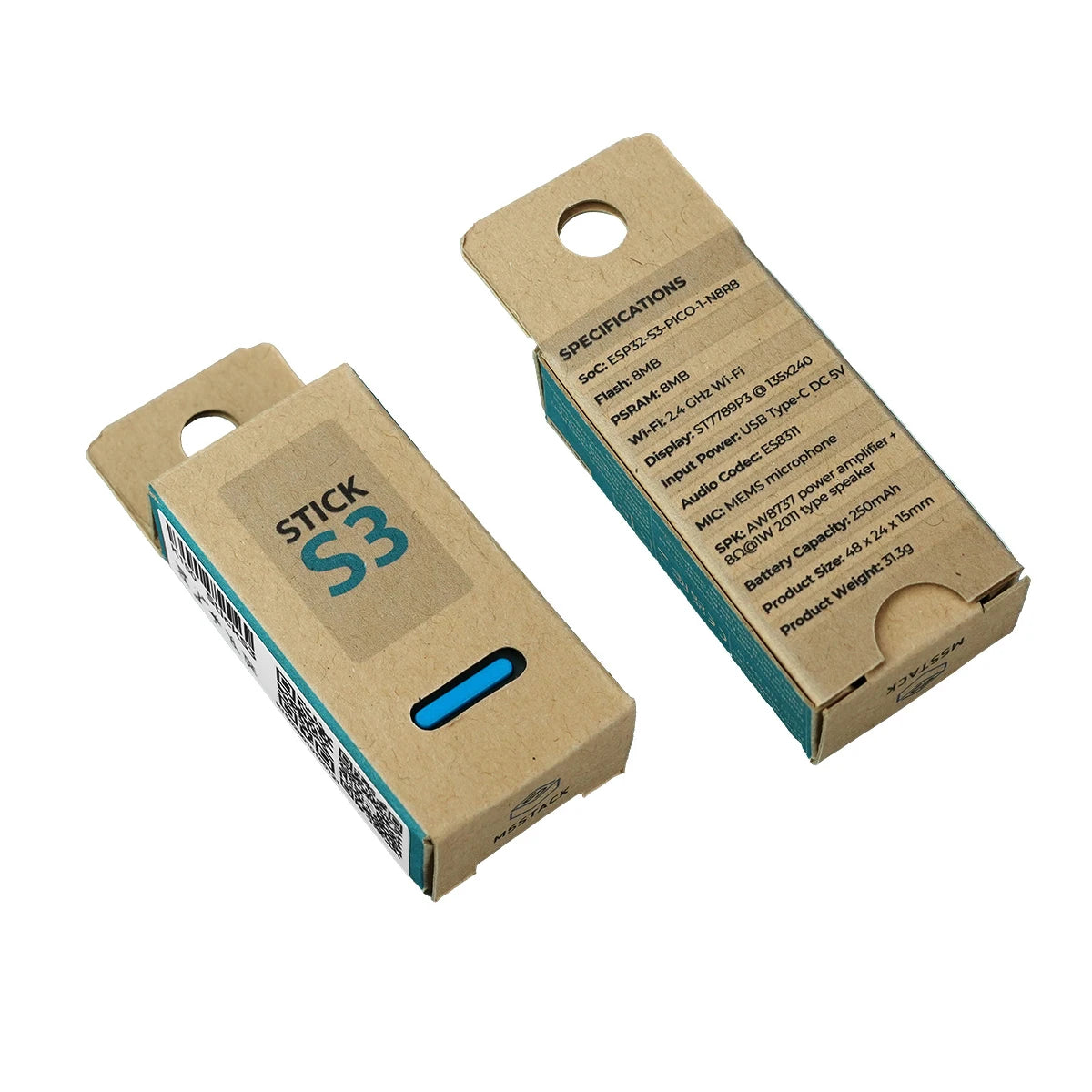

Kit Includes
1 x StickS3

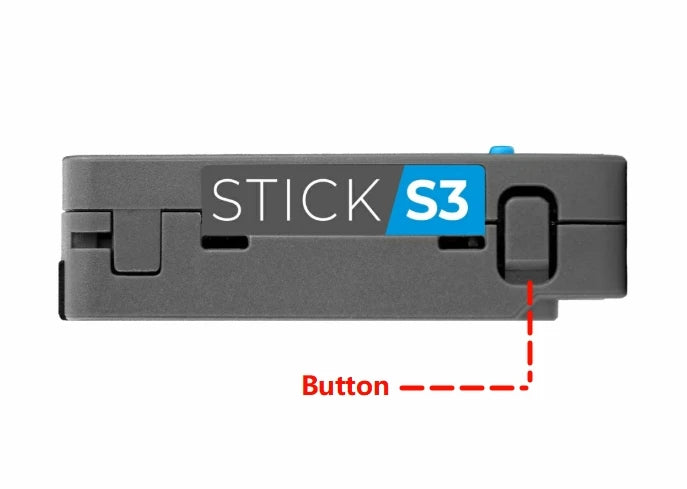

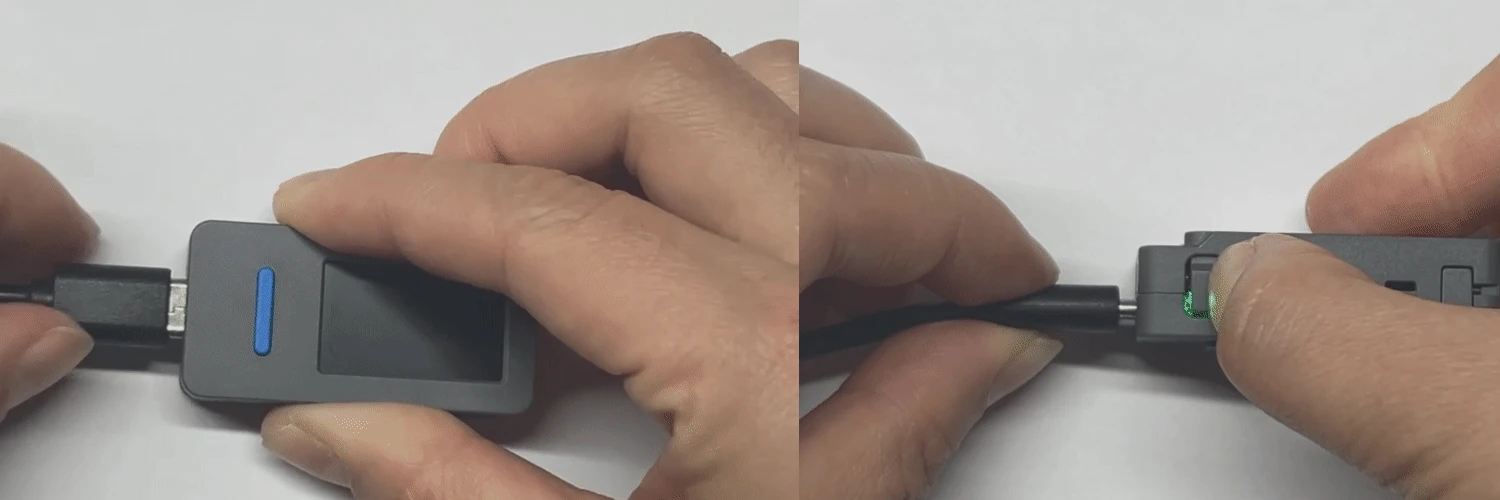

Connect the device with a USB cable and press and hold the reset button on the side of the device. When the internal green LED flashes, the device has successfully entered download mode.
EXT_5V_EN Input alimentatore Notice
The device 5V power interface can be configured as DC 5V output / input mode. The interface defaults to input mode. In this state, DC 5V power can be supplied via the Grove interface, the EXT_5V on the top Hat2-Bus, or the 5VIN interface. When configured to output mode, power input is only allowed via USB or the 5VIN on the top Hat2-Bus. Do not supply power through other output interfaces, otherwise there is a risk of short circuit and device damage.
Infrared Reception Notes
1.The infrared receiving and decoding of StickS3 must use the ESP32 RMT peripheral and does not support receiving and decoding via GPIO method.
2. When using the infrared ricevitore function, the speaker amplifier must be turned off; otherwise, reception will not work properly. The operation method can be referenced in the tutorial
3. Ensure that the trasmettitore and ricevitore are aligned as directly as possible, and keep a distance of no less than 30 cm between them. If the distance is too short, abnormal reception may occur.
IR Reception Notice
When using the IR receiving function, the speaker amplificatore di potenza must be turned off, otherwise IR signals cannot be received properly.
FAQ
Q1: Why is my StickS3 black screen/won't boot?

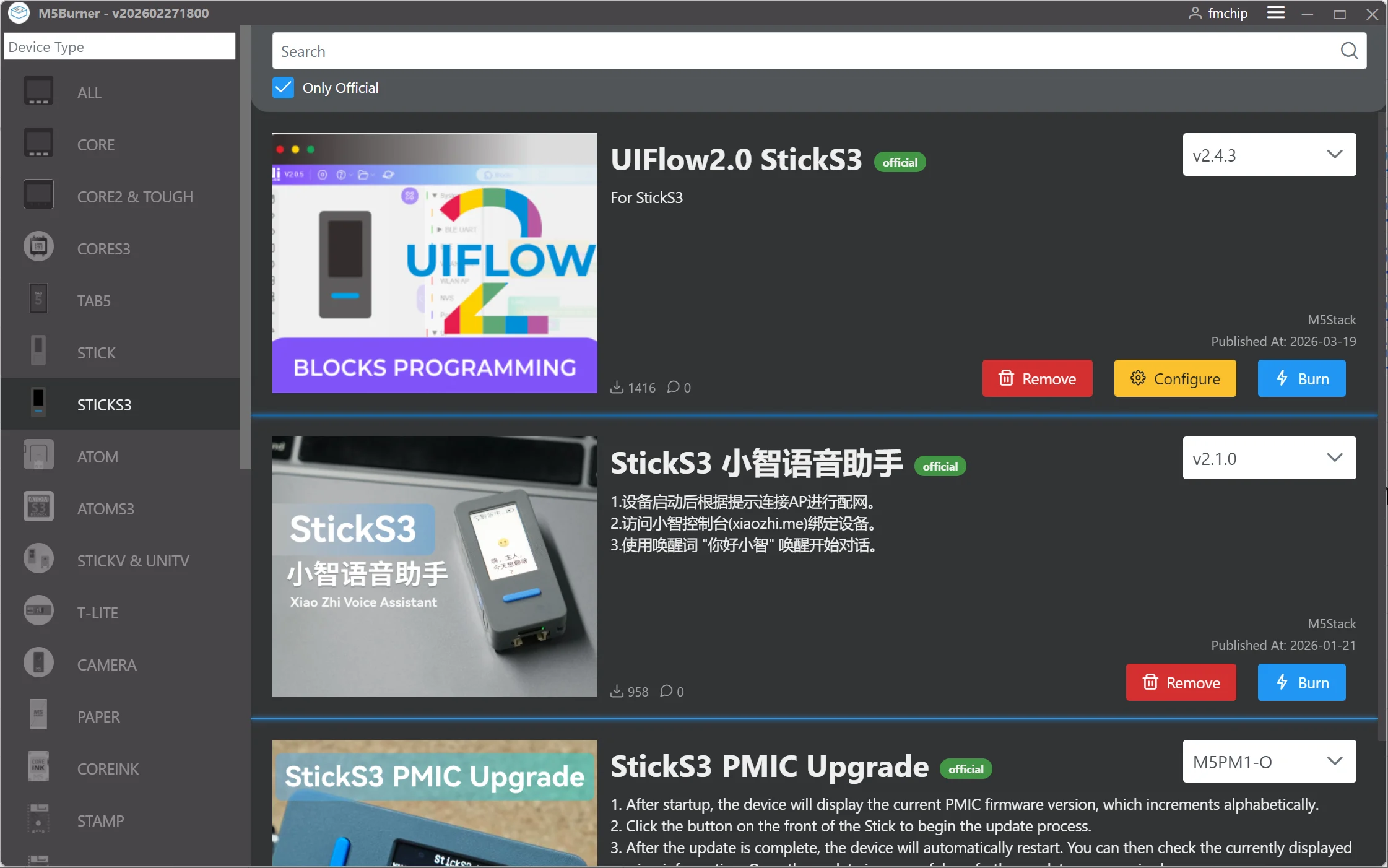

Solutions: M5Burner Burn Factory Firmware "UIFlow2.0 StickS3"
